  1. SONET Systems CET 533

  2. North American Digital Hierarchy and SONET 560 System; 560 Mbps; 8064 DS0 = 336DS1 = 12 DS3

  3. SONET and SDH • SONET is short for Synchronous Optical NETwork • the United States version of the standard published by the American National Standards Institutue • SDH is an acronym for Synchronous Digital Hierarchy • international version of the standard published by the International Telecommunications Union

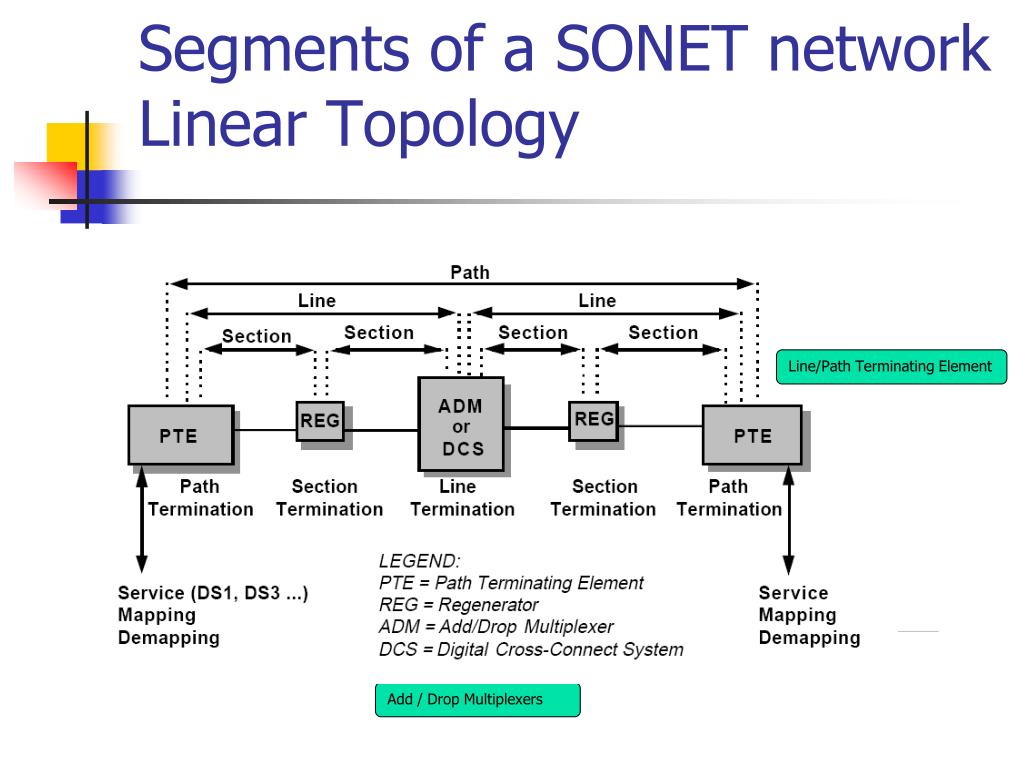

  4. Segments of a SONET networkLinear Topology Line/Path Terminating Element Add / Drop Multiplexers

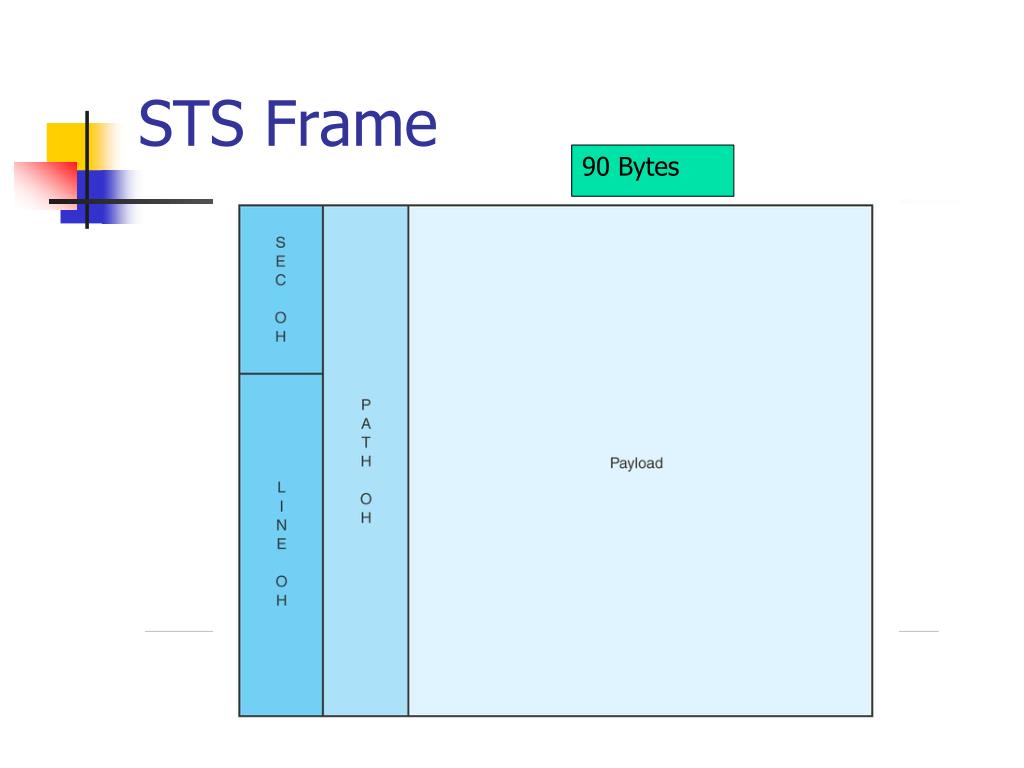

  5. STS Frame 90 Bytes

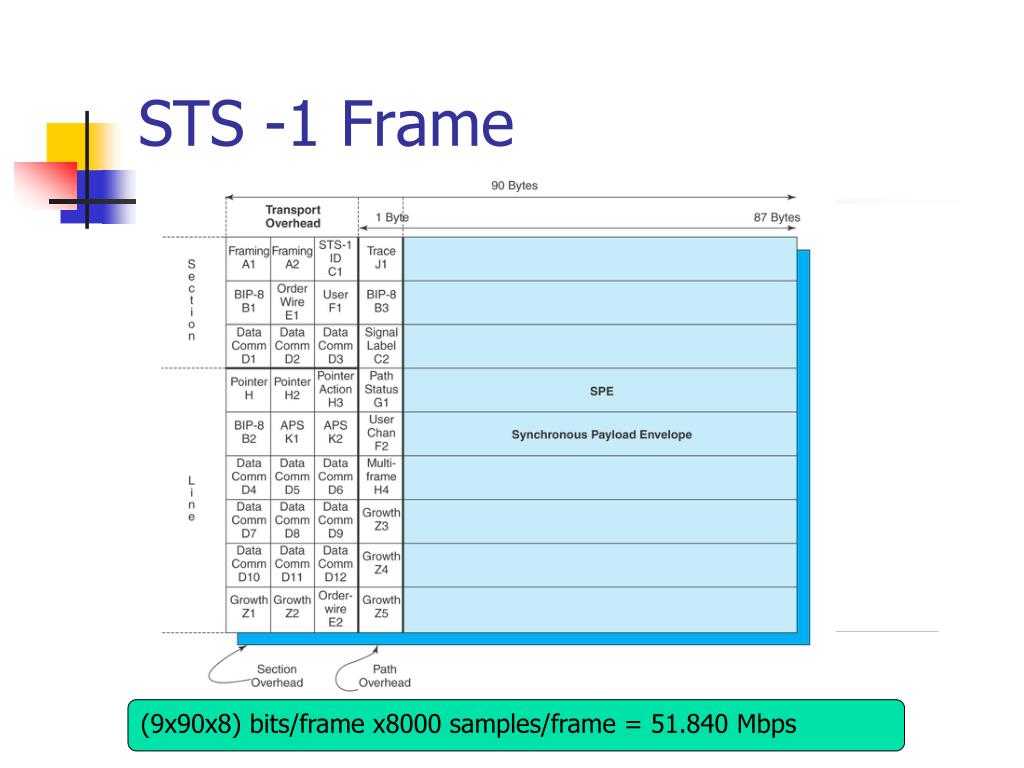

  6. STS -1 Frame (9x90x8) bits/frame x8000 samples/frame = 51.840 Mbps

  7. SONET Overheads

  8. STS-1 and its position in SPE Transport overhead includes Section and Line overheards

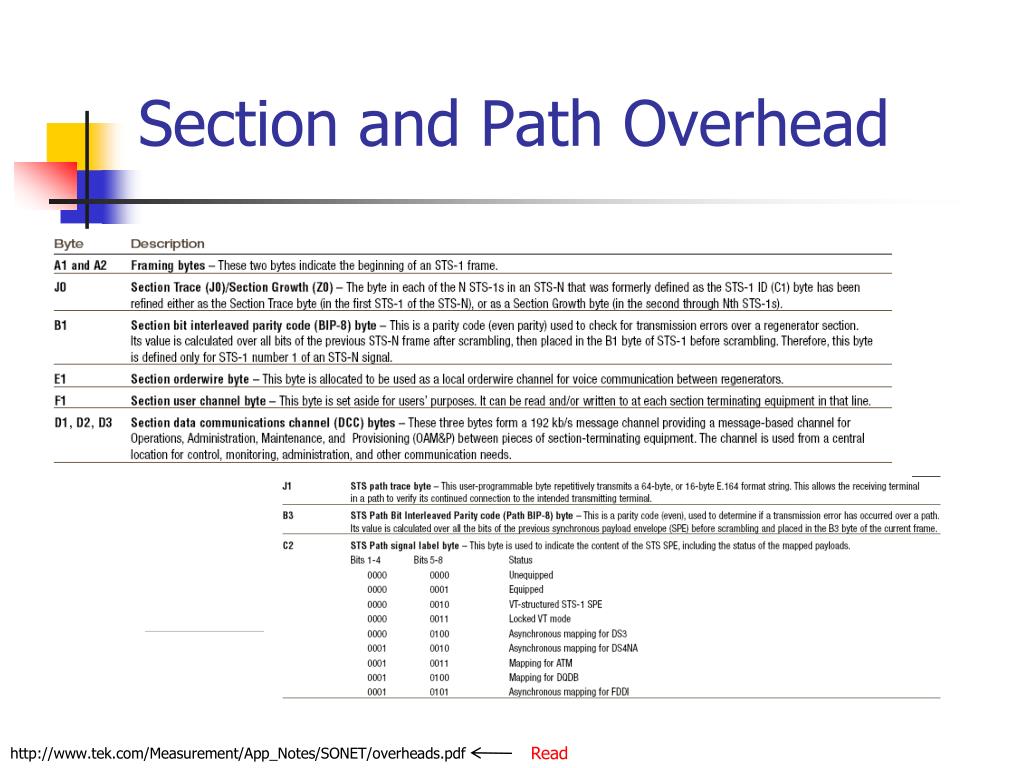

  9. Section and Path Overhead Read http://www.tek.com/Measurement/App_Notes/SONET/overheads.pdf

  10. Line Overhead

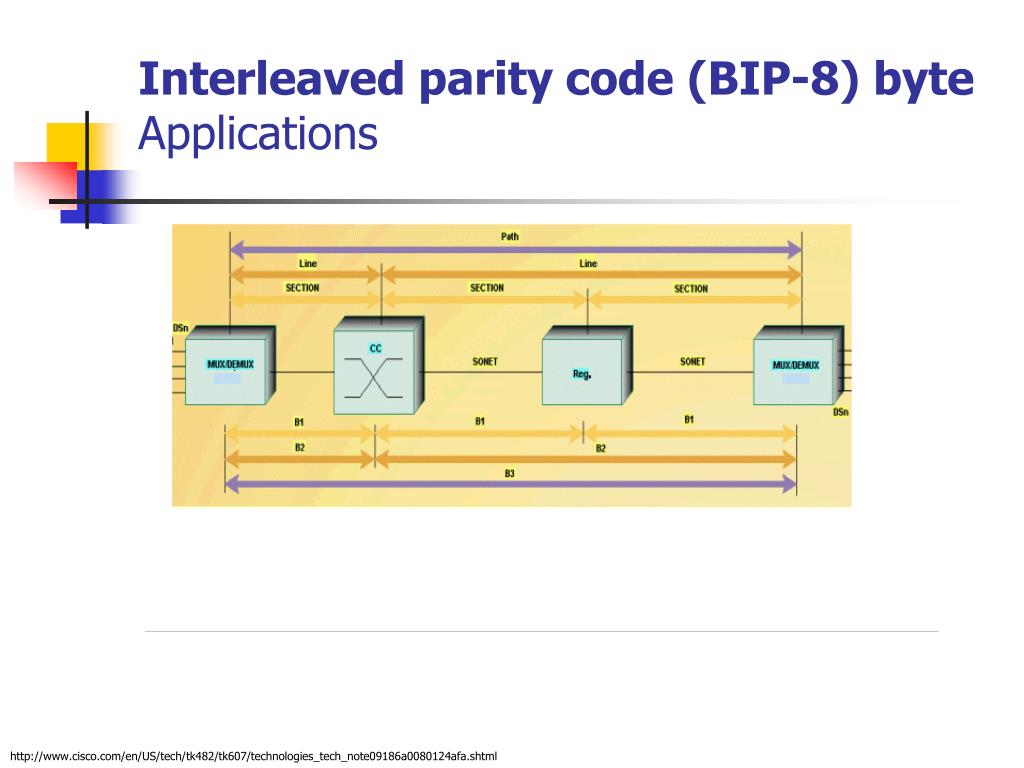

  11. Interleaved parity code (BIP-8) byte Applications http://www.cisco.com/en/US/tech/tk482/tk607/technologies_tech_note09186a0080124afa.shtml

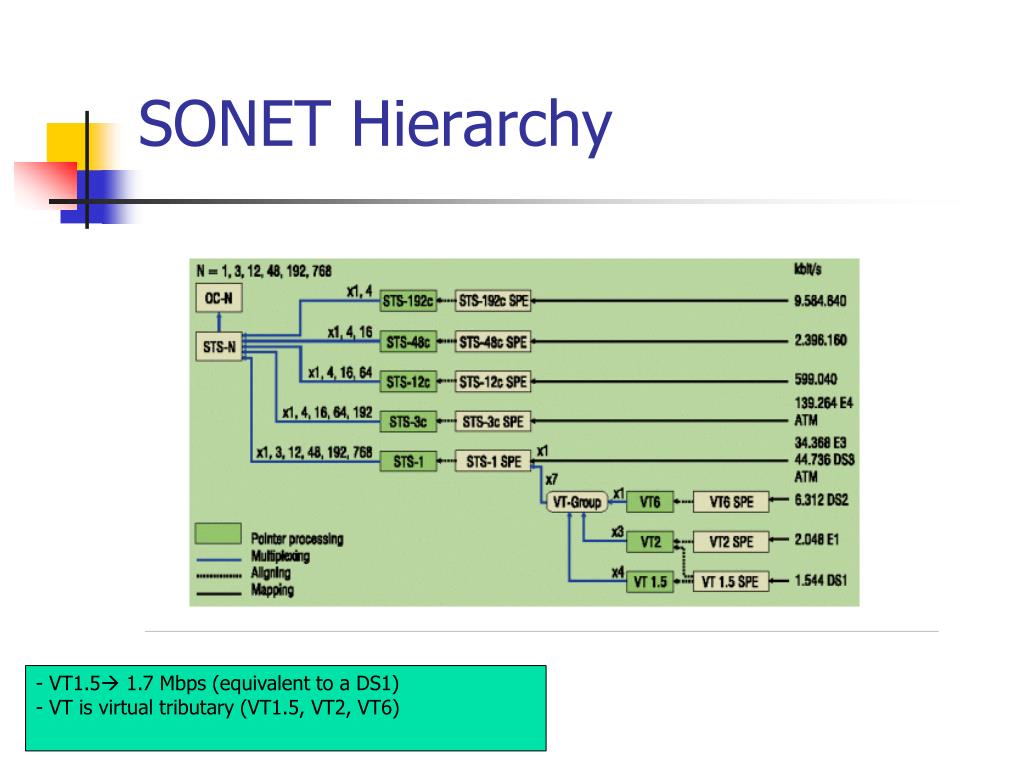

  12. SONET Hierarchy - VT1.5 1.7 Mbps (equivalent to a DS1) - VT is virtual tributary (VT1.5, VT2, VT6)

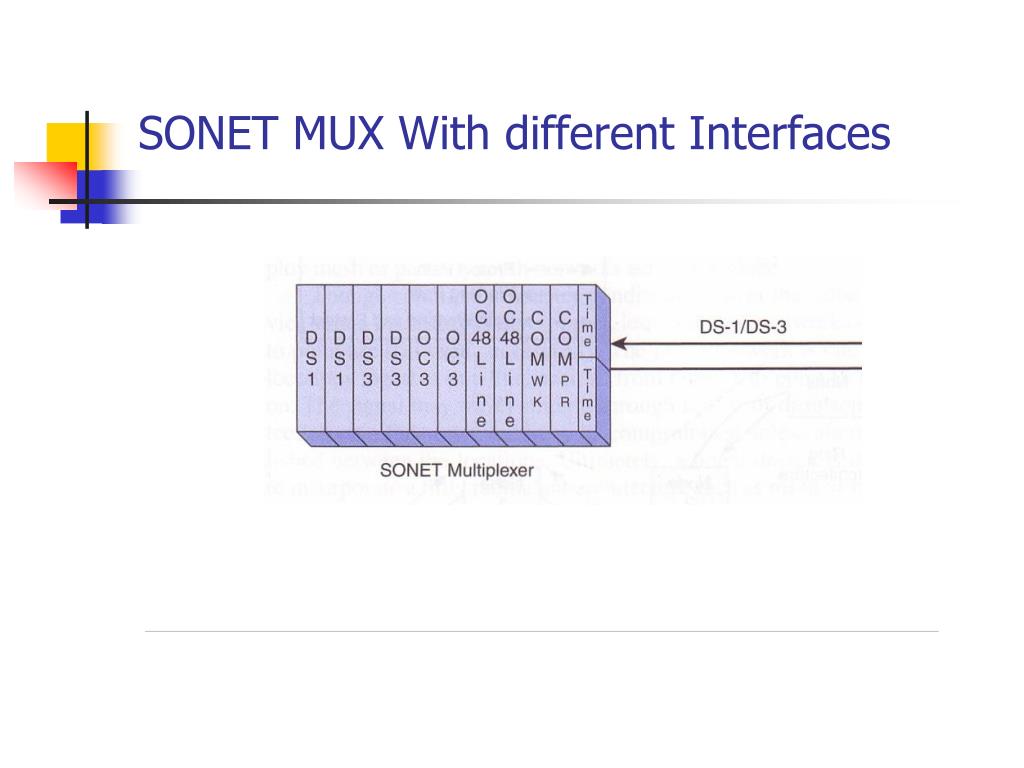

  13. SONET MUX With different Interfaces

  14. SONET Ring Application Two SONET rings connected together www2.embarq.com/wholesale/socr.html
