Vibhav Vineet, Jonathan Warrell, Paul Sturgess, Philip H.S. Torr

1. Improved Initialisation and Gaussian Mixture Pairwise Terms for Dense Random Fields with Mean-field Inference Vibhav Vineet, Jonathan Warrell, Paul Sturgess, Philip H.S. Torr http://cms.brookes.ac.uk/research/visiongroup/

2. Labelling problem Assign a label to each image pixel Object detection Stereo Object segmentation

3. Problem Formulation Find a labelling that maximizes the conditional probability or minimizes the energy function

4. Problem Formulation • Grid CRF leads to over smoothing around boundaries Inference Grid CRF construction

5. Problem Formulation • Grid CRF leads to over smoothing around boundaries • Dense CRF is able to recover fine boundaries Inference Grid CRF construction Inference Dense CRF construction

6. Inference in Dense CRF • Very high time complexity • graph-cuts based methods not feasible

7. Inference in Dense CRF • Filter-based mean-field inference method takes 0.2 secs* • Efficient inference under two assumptions • Mean-field approximation to CRF • Pairwise weights take Gaussian weights *Krahenbuhl et al. Efficient Inference in Fully Connected CRFs with Gaussian Edge Potentials, NIPS 11

8. Efficient Inference in Dense CRF • Mean-fields methods (Jordan et.al., 1999) • Intractable inference with distribution • Approximate distribution from tractable family

9. Naïve Mean Field • Mean-field approximation to CRF • Assume all variables are independent

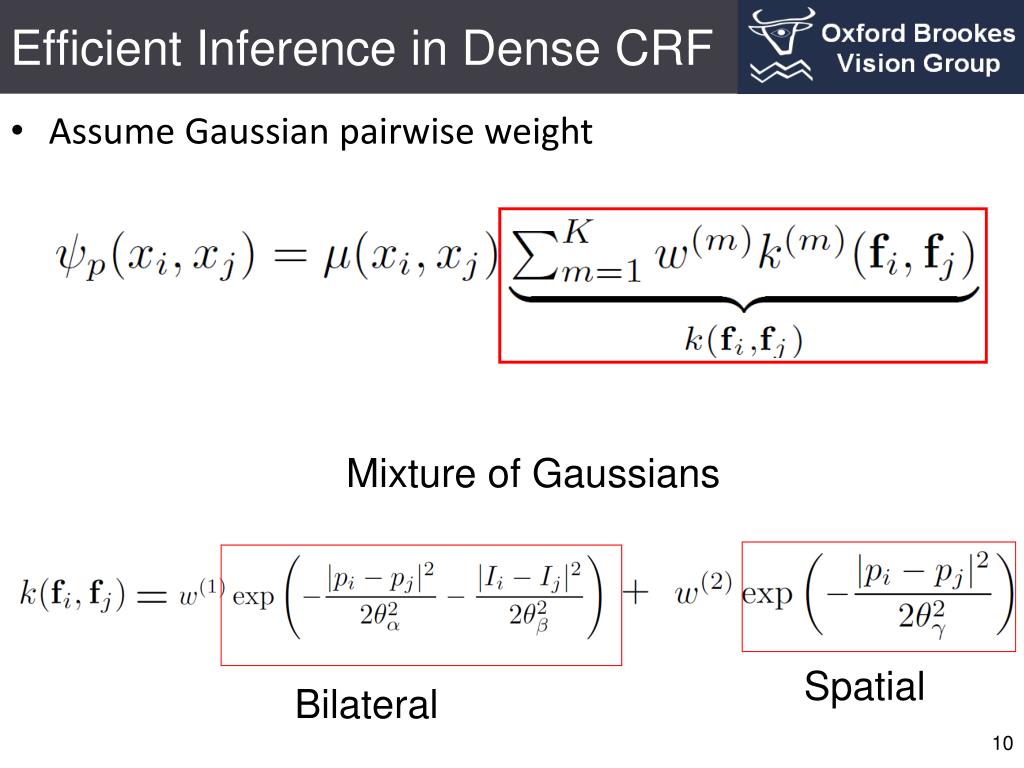

10. Efficient Inference in Dense CRF • Assume Gaussian pairwise weight Mixture of Gaussians Spatial Bilateral

11. Marginal update • Marginal update involve expectation of cost over distribution Q given that x_i takes label l Expensive message passing step is solved using highly efficient permutohedral lattice based filtering approach • MPM with approximate distribution:

12. Q distribution Q distribution for different classes across different iterations Iter 0 Iter 1 Iter 2 Iter 10

13. Two issues associated with the method • Sensitive to initialisation • Restrictive Gaussian pairwise weights

14. Our Contributions Resolve two issues associated with the method • Sensitive to initialisation • Propose SIFT-flow based initialisation method • Restrictive Gaussian pairwise weights • Expectation maximisation (EM) based strategy to learn more general Gaussian mixture model

15. Sensitivity to initialisation • Experiment on PascalVOC-10 segmentation dataset • Good initialisation can lead to better solution Propose a SIFT-flow based better initialisation method

16. SIFT-flow based correspondence Given a test image, we first retrieve a set of nearest neighbours from training set using GIST features Test image Nearest neighbours retrieved from training set

17. SIFT-flow based correspondence K-nearest neighbours warped to the test image 13.31 14.31 23.31 18.38 22 22 Test image 22 30.87 27.2 Warped nearest neighbours and corresponding flows

18. SIFT-flow based correspondence Pick the best nearest neighbour based on the flow value Test image Nearest neighbour Warped image 13.31 Flow:

19. Label transfer Ground truth of test image Ground truth of the best nearest neighbour Flow Warp the ground truth according to correspondence Transfer labels from top 1 using flow Warped ground truth according to flow

20. SIFT-flow based initialisation Rescore the unary potential Qualitative improvement in accuracy after using rescored unary potential Without rescoring Test image After rescoring Ground truth image

21. SIFT-flow based initialisation Initialise mean-field solution Qualitative improvement in accuracy after initialisation of mean-field Without initialisation Test image With initialisation Ground truth image

22. Gaussian pairwise weights Mixture of Gaussians bilateral spatial

23. Gaussian pairwise weights Mixture of Gaussians • Zero mean bilateral spatial

24. Gaussian pairwise weights Mixture of Gaussians • Zero mean bilateral • Same Gaussian mixture model for every label pair spatial

25. Gaussian pairwise weights Mixture of Gaussians • Zero mean bilateral • Same Gaussian mixture model for every label pair • Arbitrary standard deviation spatial

26. Our approach Incorporate a general Gaussian mixture model

27. Gaussian pairwise weights • Learn arbitrary mean • Learn standard deviation

28. Gaussian pairwise weights • Learn arbitrary mean • Learn standard deviation • Learn mixing coefficients

29. Gaussian pairwise weights • Learn arbitrary mean • Learn standard deviation • Learn mixing coefficients • Different Gaussian mixture for different label pairs

30. Learning mixture model Propose piecewise learning framework

31. Learning mixture model • First learn the parameters of unary potential

32. Learning mixture model • First learn the parameters of unary potential • Learn the label compatibility function

33. Learning mixture model • First learn the parameters of unary potential • Learn the label compatibility function • Set the Gaussian model following Krahenbuhl et.al

34. Learning mixture model • First learn the parameters of unary potential • Learn the label compatibility function • Set the Gaussian model following Krahenbuhl et.al • Learn the parameters of the Gaussian mixture

35. Learning mixture model • First learn the parameters of unary potential • Learn the label compatibility function • Set the Gaussian model following Krahenbuhl et.al • Learn the parameters of the Gaussian mixture • Lambda is set through cross validation

36. Our model • Generative training • Maximise joint likelihood of pair of labels and features: : latent variable: number of mixture components

37. Learning mixture model • Maximize the log-likelihood function • Expectation maximization based method Our learnt mixture model Zero-mean Gaussian

38. Inference with mixture model • Involves evaluating M extra Gaussian terms: • Perform blurring on mean-shifted points • Increases time complexity

39. Experiments on PascalVOC-10 Qualitative results of SIFT-flow method Output with SIFT-flow Warped nearest ground truth image Output without SIFT-flow Image

40. Experiments on PascalVOC-10 Quantitative results PascalVOC-10 segmentation dataset • Our model with unary and pairwise terms achieves better accuracy than other complex models • Generally achieves very high efficiency compared to other methods

41. Experiments on PascalVOC-10 Qualitative results on PascalVOC-10 segmentation dataset Ours Image Alpha-expansion Dense CRF • Able to recover missing object parts

42. Experiments on Camvid Quantitative results on Camvid dataset • Our model with unary and pairwise terms achieve better accuracy than other complex models • Generally achieve very high efficiency compared to other methods

43. Experiments on Camvid Qualitative results on Camvid dataset Image Alpha-expansion Ours • Able to recover missing object parts

44. Conclusion • Filter-based mean-field inference promises high efficiency and accuracy • Proposed methods to robustify basic mean-field method • SIFT-flow based method for better initialisation • EM based algorithm for learning general Gaussian mixture model • More complex higher order models can be incorporated into pairwise model

46. Thank You 

47. Q distribution

48. Learning mixture model • For every label pair: • Maximize the log-likelihood function

49. Learning mixture model • For every label pair: • Maximize the log-likelihood function • Expectation maximization based method
