COMBINED COURSE INDICATOR NPP - DKE

COMBINED COURSE INDICATOR NPP - DKE. LOCATED IN THE INSTRUMENT PANELOF THE COCKPIT. FUNCTION IS TO PROVIDE THE MEANS FOR PRE- SETTING COURSE ANGLE AND TO REDUCE RADIO STRENGTH OF RELATIVE BEARING SIGNALS SUPPLIED TO COMBINED COURSE INDICATOR FROM GYRO UNIT. COMBINED COURSE INDICATOR

Download Presentation

COMBINED COURSE INDICATOR NPP - DKE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

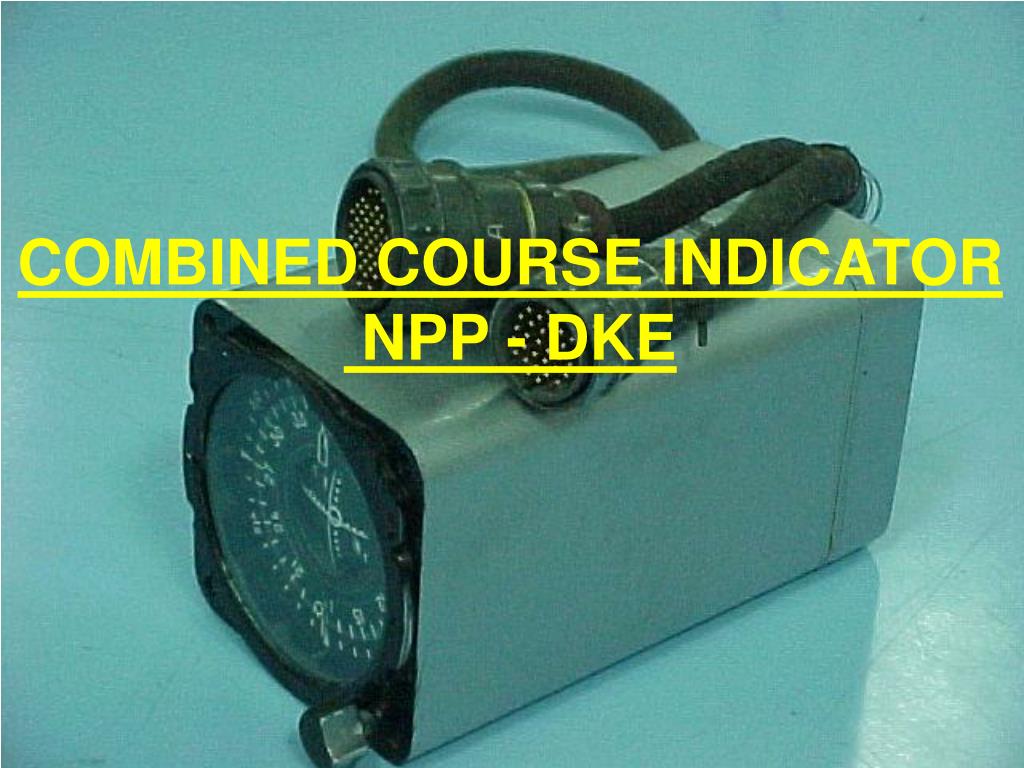

  1. COMBINED COURSE INDICATOR NPP - DKE

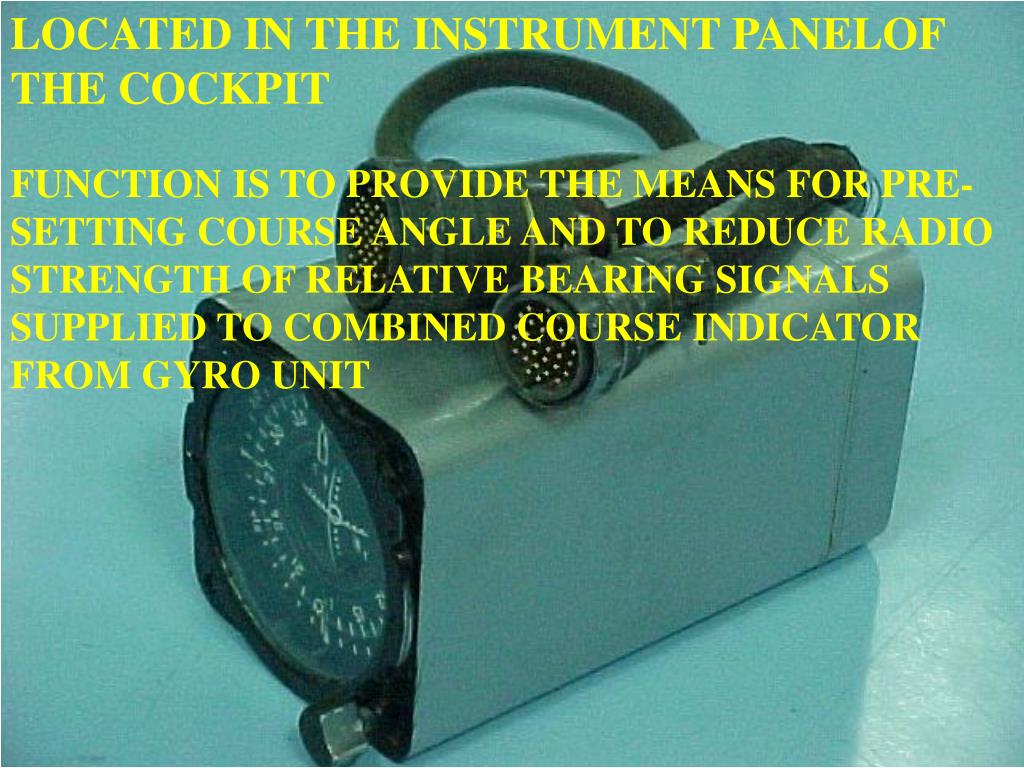

  2. LOCATED IN THE INSTRUMENT PANELOF THE COCKPIT FUNCTION IS TO PROVIDE THE MEANS FOR PRE- SETTING COURSE ANGLE AND TO REDUCE RADIO STRENGTH OF RELATIVE BEARING SIGNALS SUPPLIED TO COMBINED COURSE INDICATOR FROM GYRO UNIT

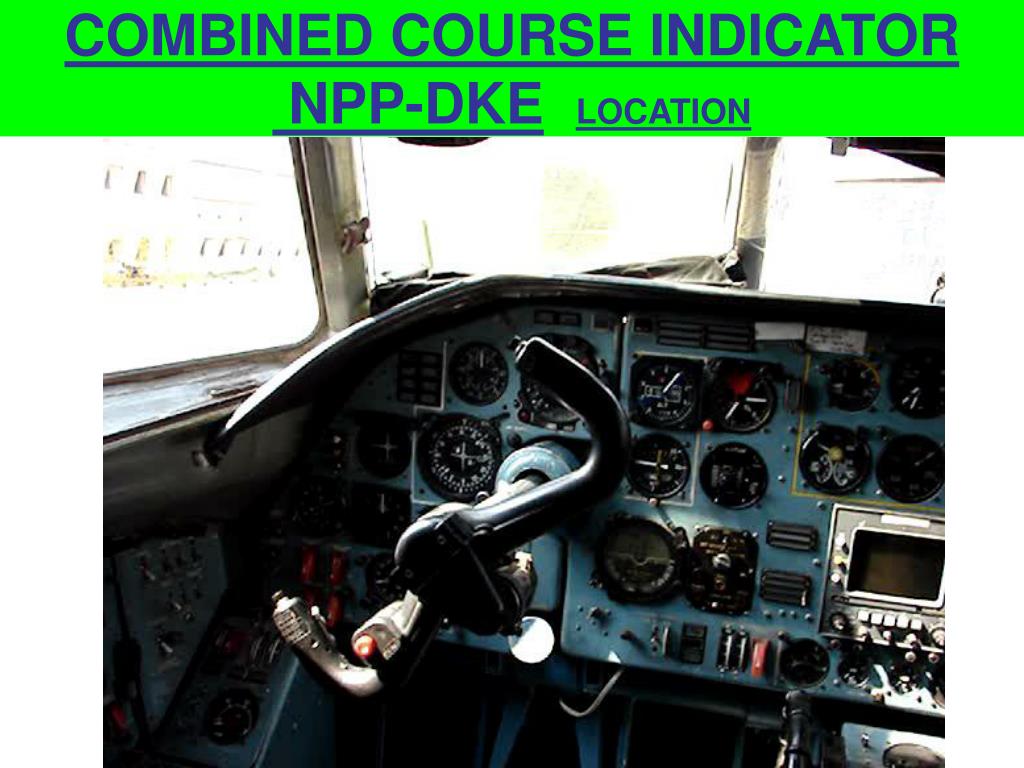

  3. COMBINED COURSE INDICATOR NPP-DKELOCATION

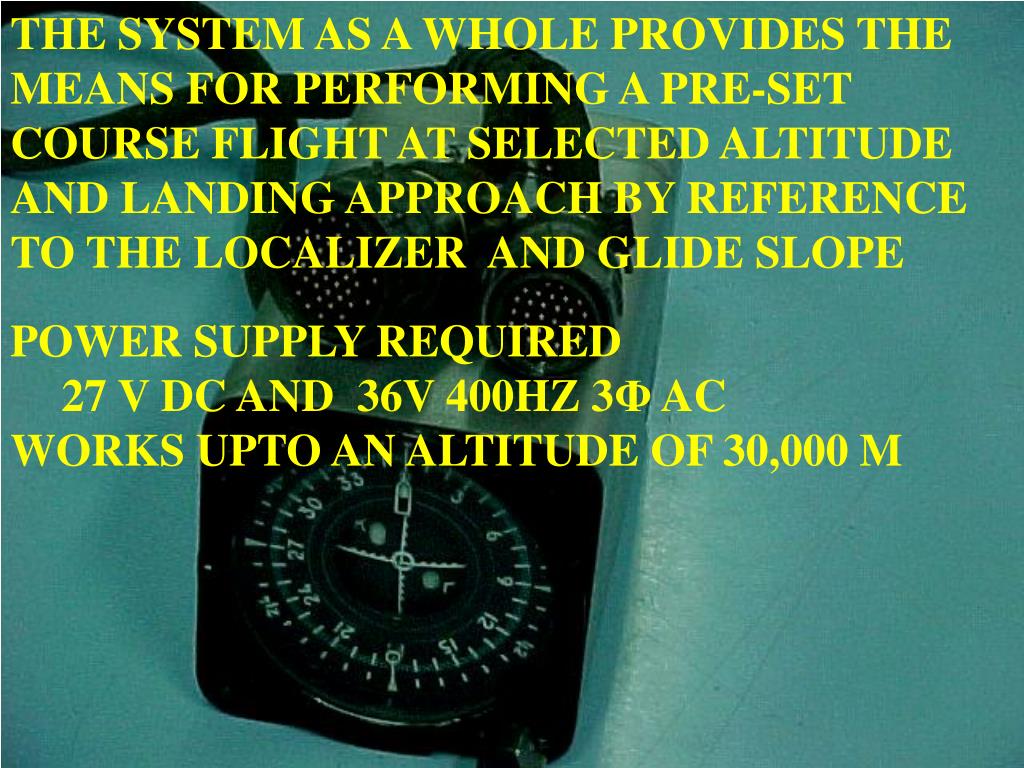

  4. THE SYSTEM AS A WHOLE PROVIDES THE MEANS FOR PERFORMING A PRE-SET COURSE FLIGHT AT SELECTED ALTITUDE AND LANDING APPROACH BY REFERENCE TO THE LOCALIZER AND GLIDE SLOPE • POWER SUPPLY REQUIRED • 27 V DC AND 36V 400HZ 3Φ AC • WORKS UPTO AN ALTITUDE OF 30,000 M

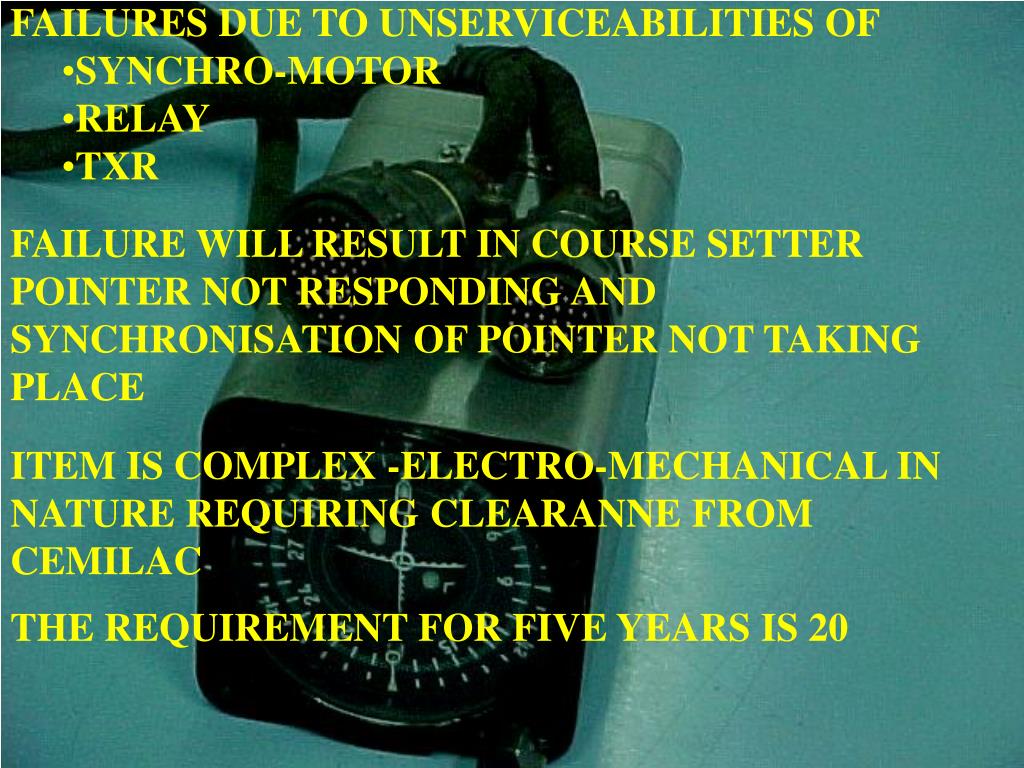

  5. FAILURES DUE TO UNSERVICEABILITIES OF • SYNCHRO-MOTOR • RELAY • TXR FAILURE WILL RESULT IN COURSE SETTER POINTER NOT RESPONDING AND SYNCHRONISATION OF POINTER NOT TAKING PLACE ITEM IS COMPLEX -ELECTRO-MECHANICAL IN NATURE REQUIRING CLEARANNE FROM CEMILAC THE REQUIREMENT FOR FIVE YEARS IS 20

  6. BACK TO LIST
