  1. Proud suppliers to the World of Orbcomm

  2. Proud suppliers to the World of Orbcomm We are the company that bring you the ubiquitous LPR (Low Profile, Rugged) Antennas).Many ofyou affectionately refer to them as the BAR Antenna. You may be interested to know that we also offer BRICK, STICK and PLATE Antennas as well.

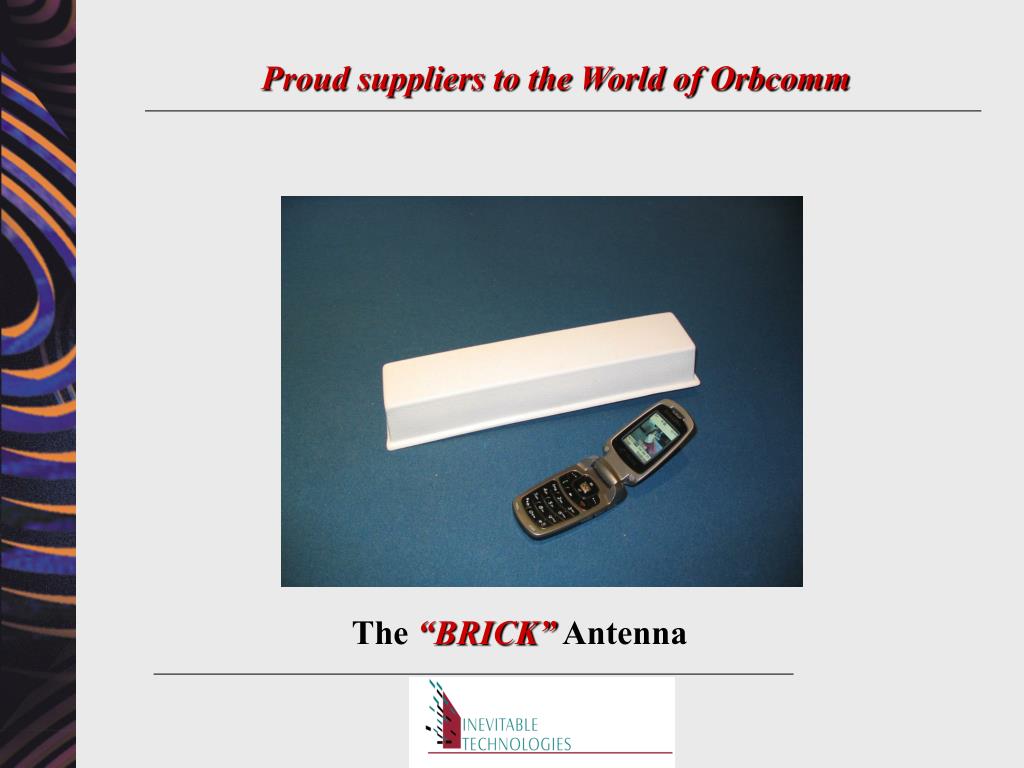

  3. Proud suppliers to the World of Orbcomm The “BRICK” Antenna

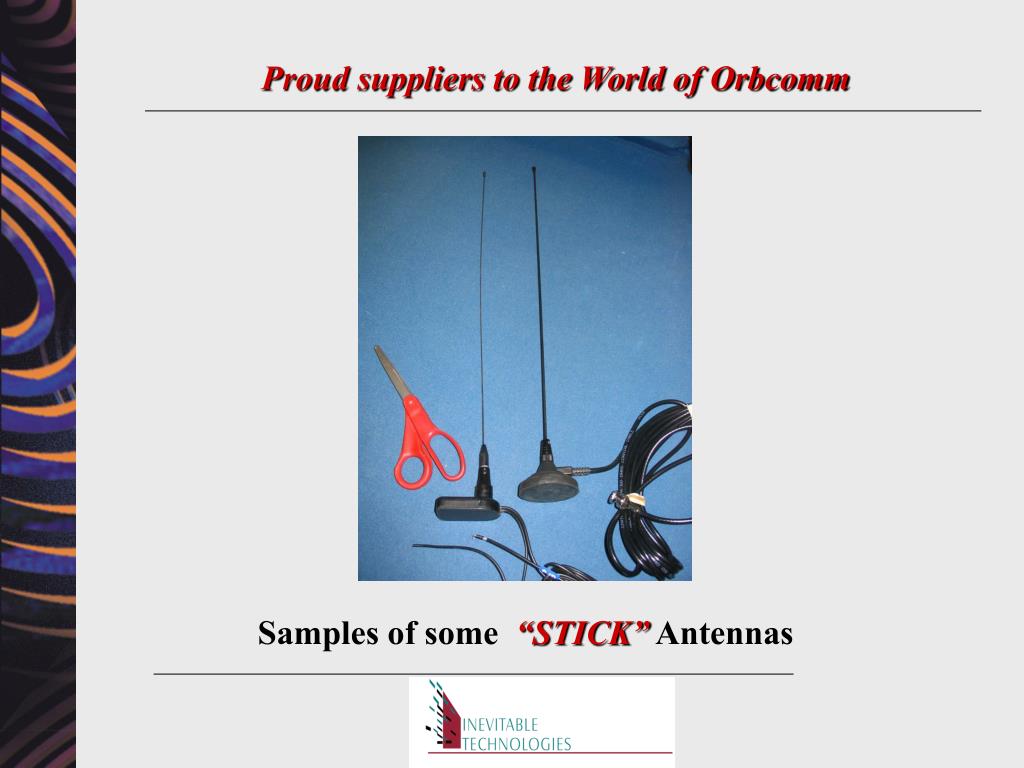

  4. Proud suppliers to the World of Orbcomm Samples of some “STICK” Antennas

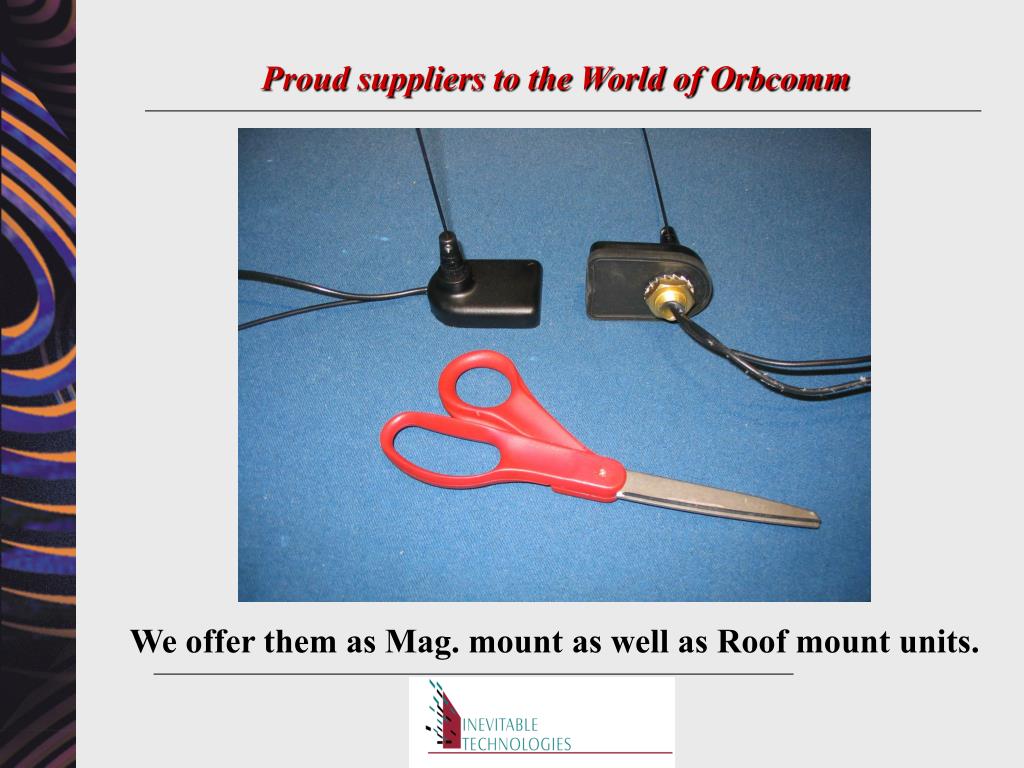

  5. Proud suppliers to the World of Orbcomm We offer them as Mag. mount as well as Roof mount units.

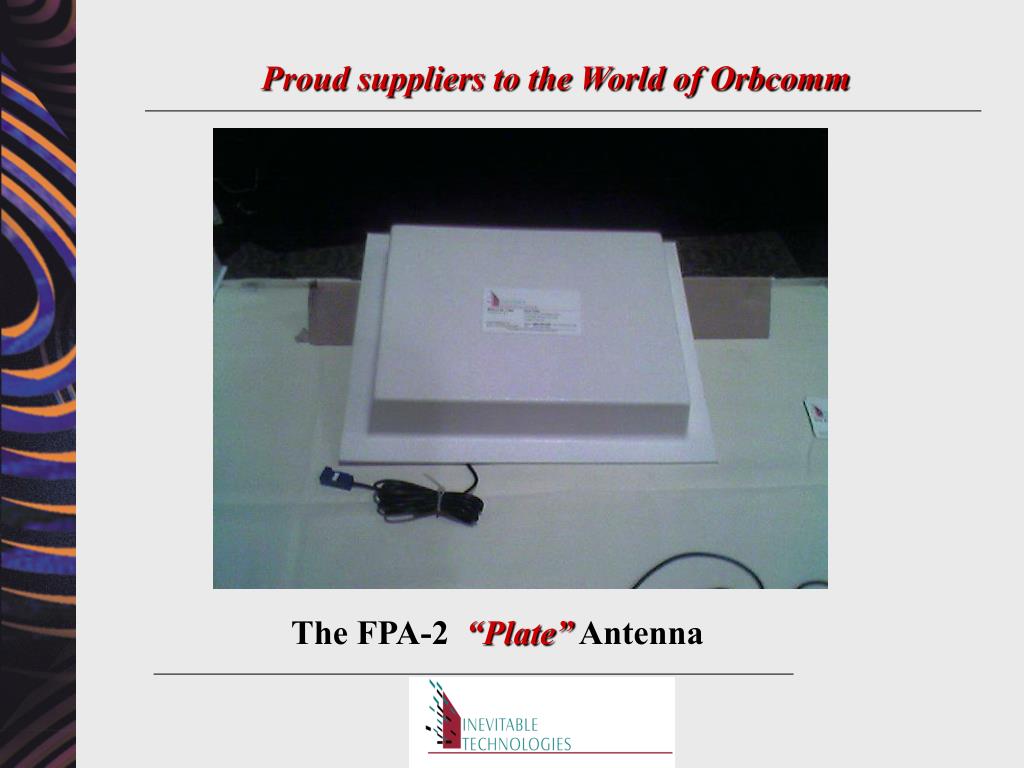

  6. Proud suppliers to the World of Orbcomm The FPA-2 “Plate” Antenna

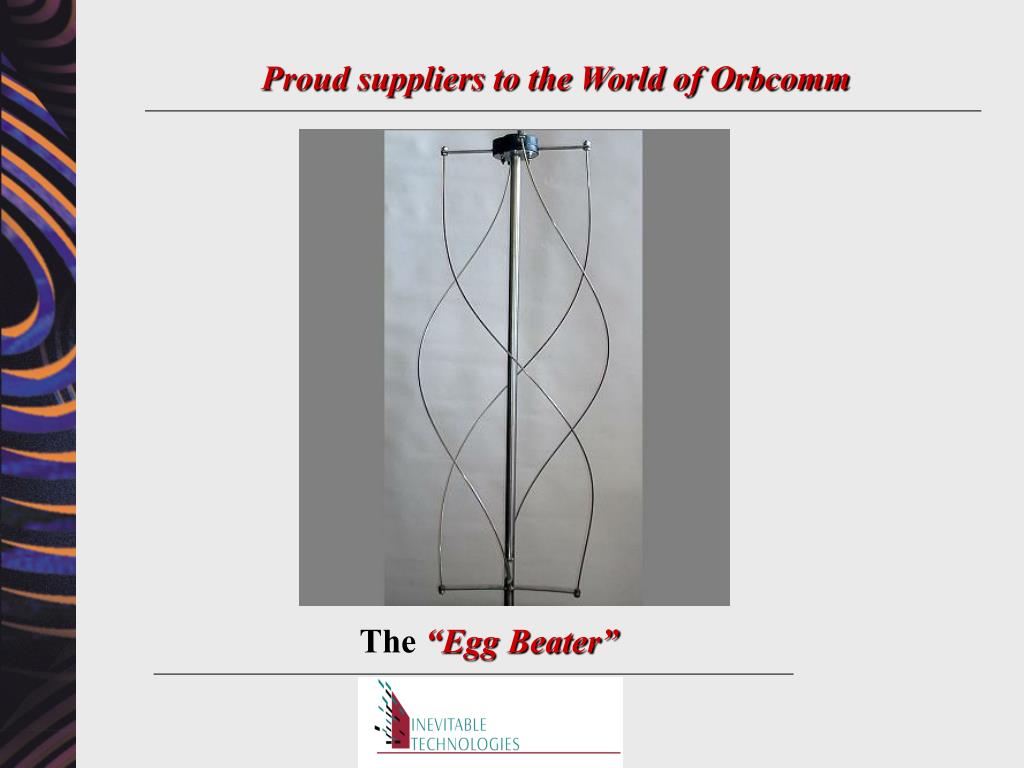

  7. Proud suppliers to the World of Orbcomm The “Egg Beater”

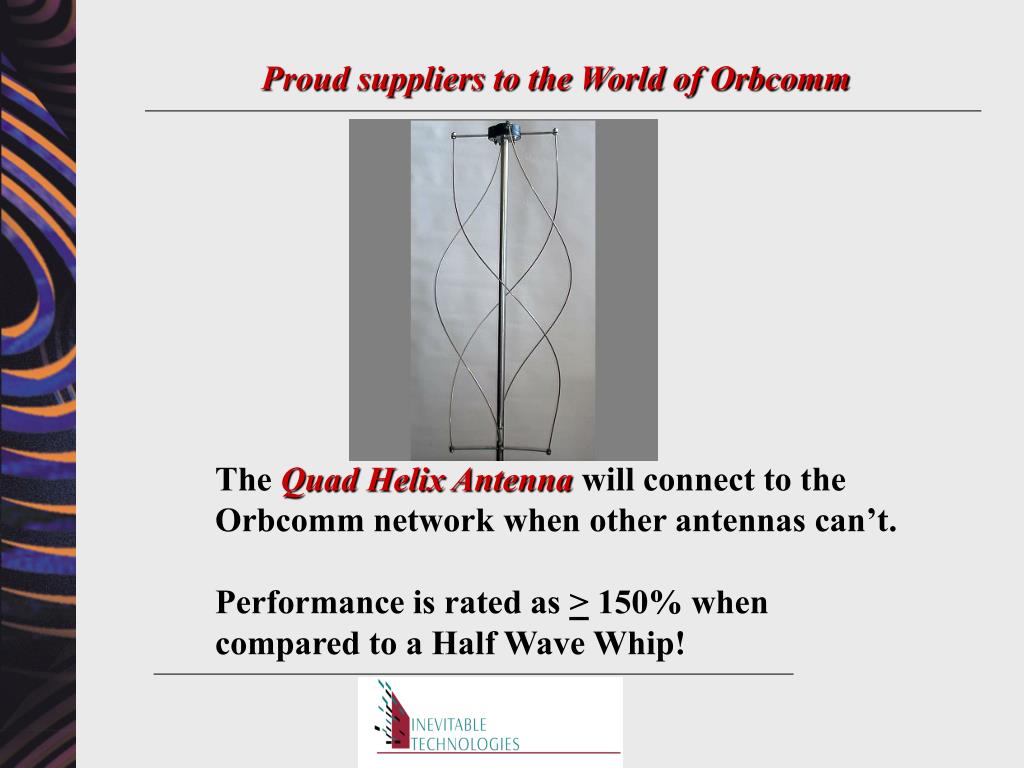

  8. Proud suppliers to the World of Orbcomm The Quad Helix Antenna will connect to the Orbcomm network when other antennas can’t. Performance is rated as > 150% when compared to a Half Wave Whip!

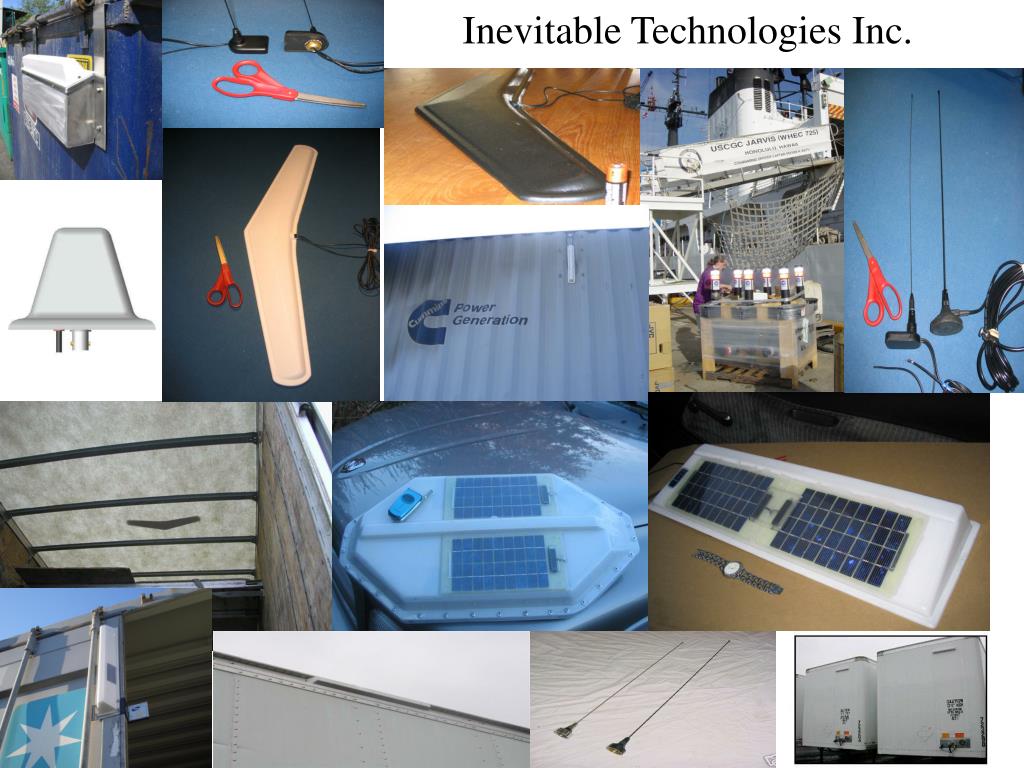

  9. Inevitable Technologies Inc.

  10. Proud suppliers to the World of Orbcomm • A fewInevTechFIRSTS: • FIRST to bring “Ruggedized” antennas to the Orbcomm world. • 2)FIRST to bring tri and quad-functional antennas (ie: VHF+GPS+GSM+2.4GHz) • <circa: 2005> to the Orbcomm World. • 3)FIRST to bring low profile antennas to • commercially acceptable price and performance levels. • 4)FIRST to offer all-in-one products • (i.e.: solar cell + batteries + antenna + radio)

  11. Proud suppliers to the World of Orbcomm LPR-2 with Solar Cell LPR-4 with Solar Cell

  12. Proud suppliers to the World of Orbcomm Over 200,000 antennas contracted for and/or supplied to Orbcomm applications!! InevTech’s Manufacturing Facilities are in North America. Our Yearly capacity is >125K units and is truly scalable.

  13. Proud suppliers to the World of Orbcomm Our customers have units deployed GLOBALLY!!

  14. Proud suppliers to the World of Orbcomm One vendor has stated on their web-site that the LPR’s performance is about half of that of their product’s. SIMPLY NOT TRUE!!

  15. Proud suppliers to the World of Orbcomm We submit our antennas to the engineering group on a regular basis for testing and validation. The LPR’s performance is continually rated and documented, by Orbcomm, at approx. 48% of a Half wave Whip. If the “competition” can’t accurately measure or simply mis-state the LPR’s performance, you wonder what their products’ real performance is…???

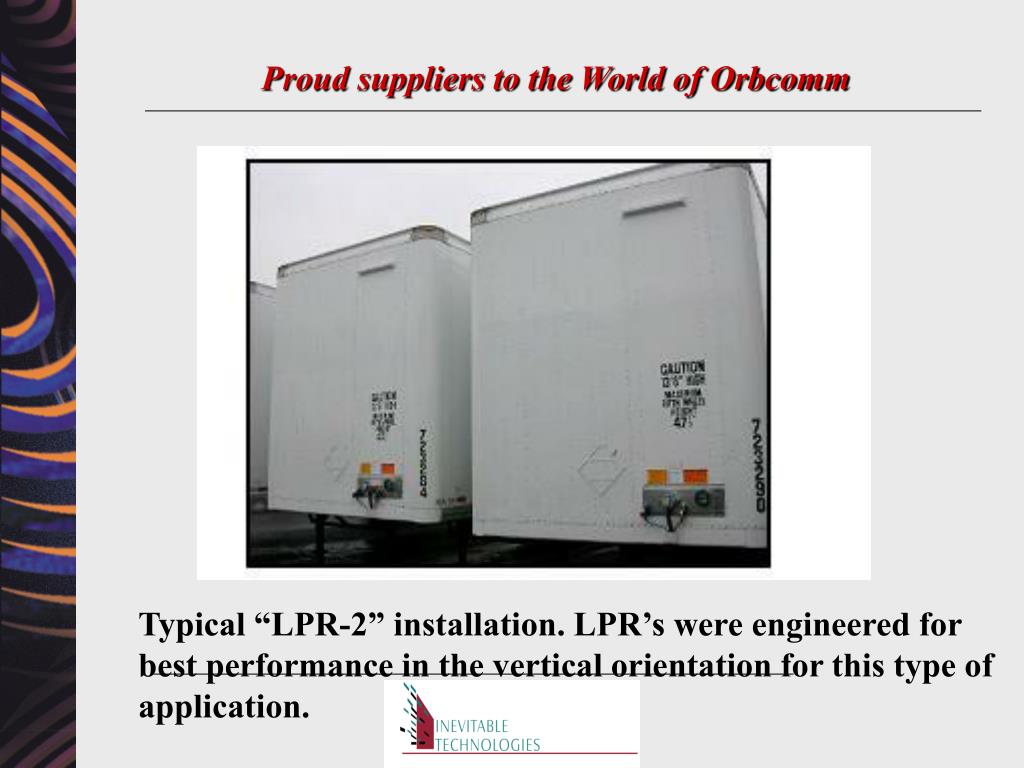

  16. Proud suppliers to the World of Orbcomm Typical “LPR-2” installation. LPR’s were engineered for best performance in the vertical orientation for this type of application.

  17. Proud suppliers to the World of Orbcomm LPR-3 being tested at facilities

  18. Proud suppliers to the World of Orbcomm Test Results courtesy of Orbcomm

  19. Proud suppliers to the World of Orbcomm Typical “LPR” VSWR Readings

  20. Proud suppliers to the World of Orbcomm Dr. John Lui – Head of InevTech’s Research Team

  21. Proud suppliers to the World of Orbcomm Our antennas are rigorously tested.

  22. Proud suppliers to the World of Orbcomm Quality Control is of utmost importance!

  23. Proud suppliers to the World of Orbcomm 100% testing prior to shipment!

  24. Proud suppliers to the World of Orbcomm LPR-2 submersion test. Units are left for 3 weeks

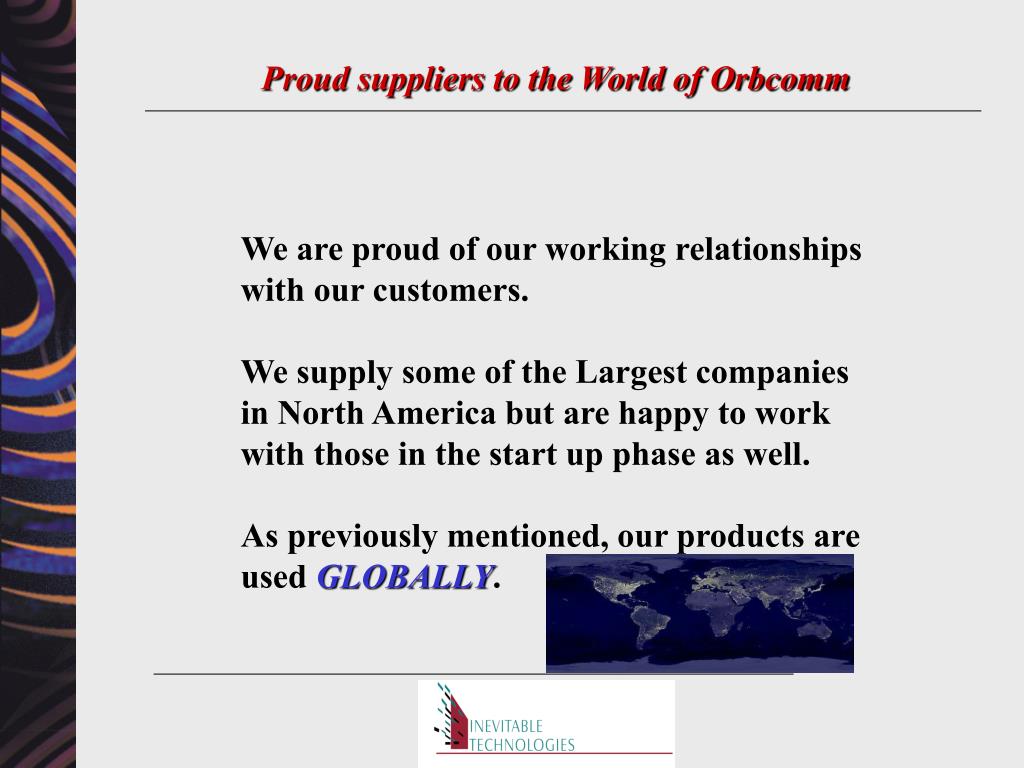

  25. Proud suppliers to the World of Orbcomm We are proud of our working relationships with our customers. We supply some of the Largest companies in North America but are happy to work with those in the start up phase as well. As previously mentioned, our products are used GLOBALLY.

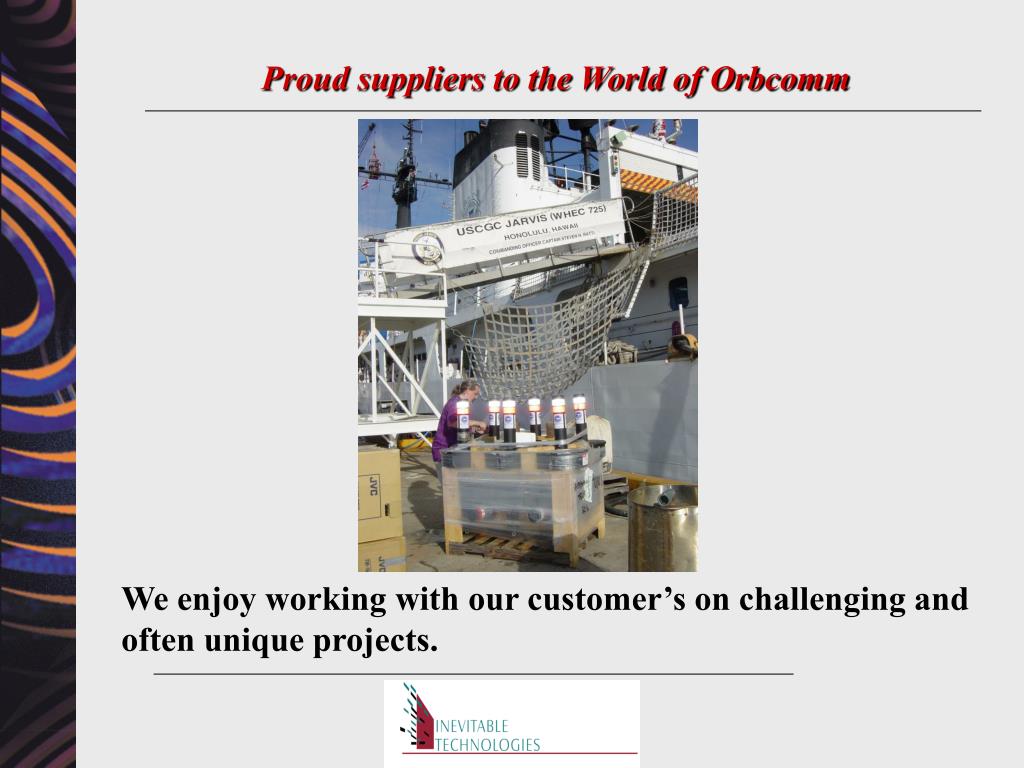

  26. Proud suppliers to the World of Orbcomm We enjoy working with our customer’s on challenging and often unique projects.

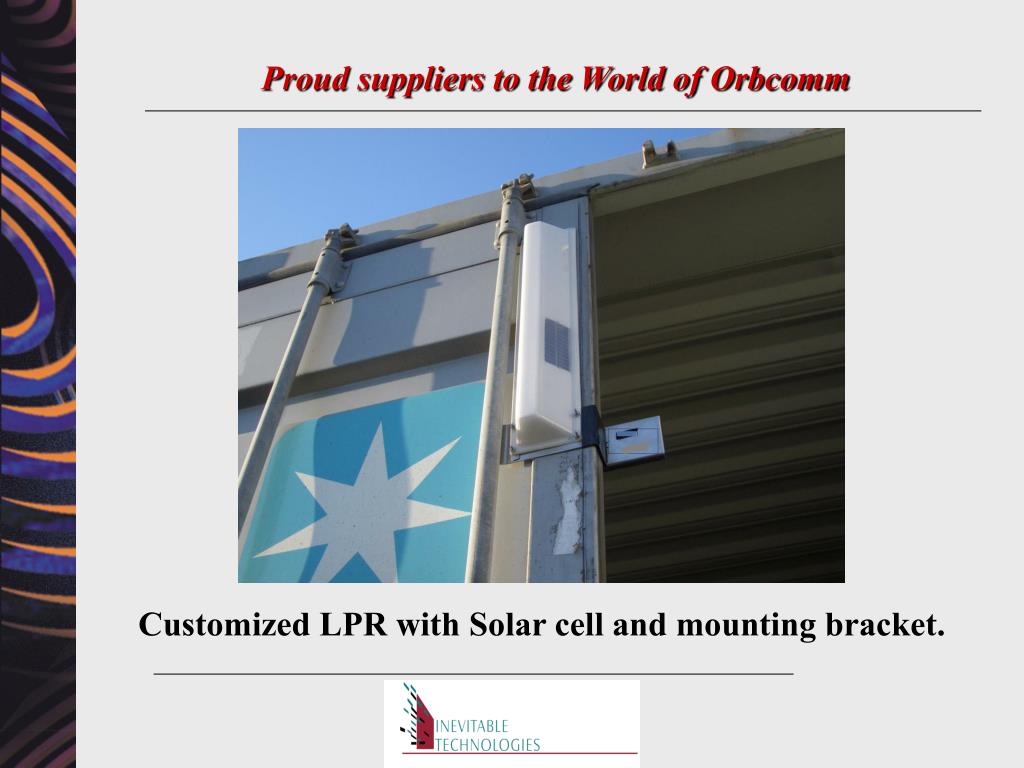

  27. Proud suppliers to the World of Orbcomm Customized LPR with Solar cell and mounting bracket.

  28. Proud suppliers to the World of Orbcomm Our “Stealth-2” antenna was developed for extremely low profile requirements. (less than ¾”)

  29. Proud suppliers to the World of Orbcomm Our Customer’s know that if InevTech doesn’t make it, that we will find and supply the right solution for their requirement.

  30. Proud suppliers to the World of Orbcomm Rob Calis (InevTech) and Bill Purdie (MobileNet) discussing business at last year’s Orbcomm conference.

  31. Proud suppliers to the World of Orbcomm Insert the “Homeland Security” video clip! We’ve worked with Orbcomm and its partners to help secure the Borders!

  32. Proud suppliers to the World of Orbcomm We work closely with Dr. David Michelson (R) at the Radio Science Lab at the University of British Columbia, Canada

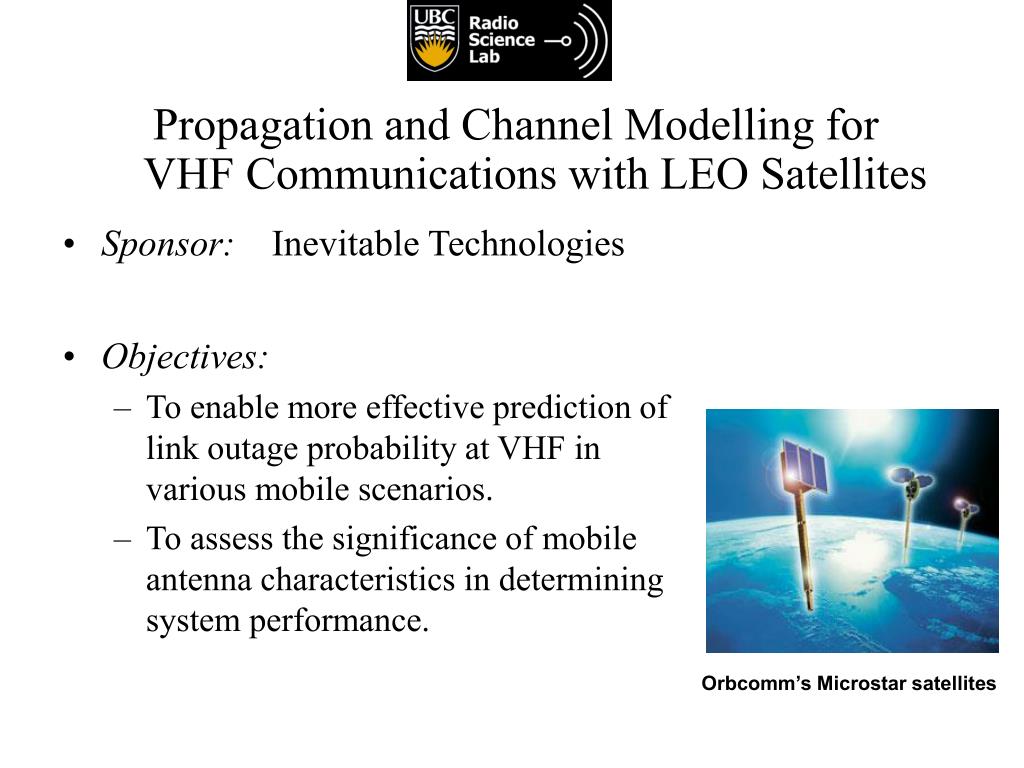

  33. Propagation and Channel Modelling for VHF Communications with LEO Satellites • Sponsor: Inevitable Technologies • Objectives: • To enable more effective prediction of link outage probability at VHF in various mobile scenarios. • To assess the significance of mobile antenna characteristics in determining system performance. Orbcomm’s Microstar satellites

  34. Ultra-low Profile Antennas for VHF Communications with LEO Satellites • Sponsors: Inevitable Technologies, NSERC, ScienceLink Canada • Objectives: • To determine the fundamental limits on the performance of ultra-low profile (but not necessarily electrically small) antennas • To introduce the notion of the gain-bandwidth product for ULPAs and determine how it can be exploited to yield efficient antennas at VHF

  35. Proud suppliers to the World of Orbcomm We have vacuum forming facilities within the corporate umbrella and are able to offer custom fabrication of housings or your other formed Plastics needs.

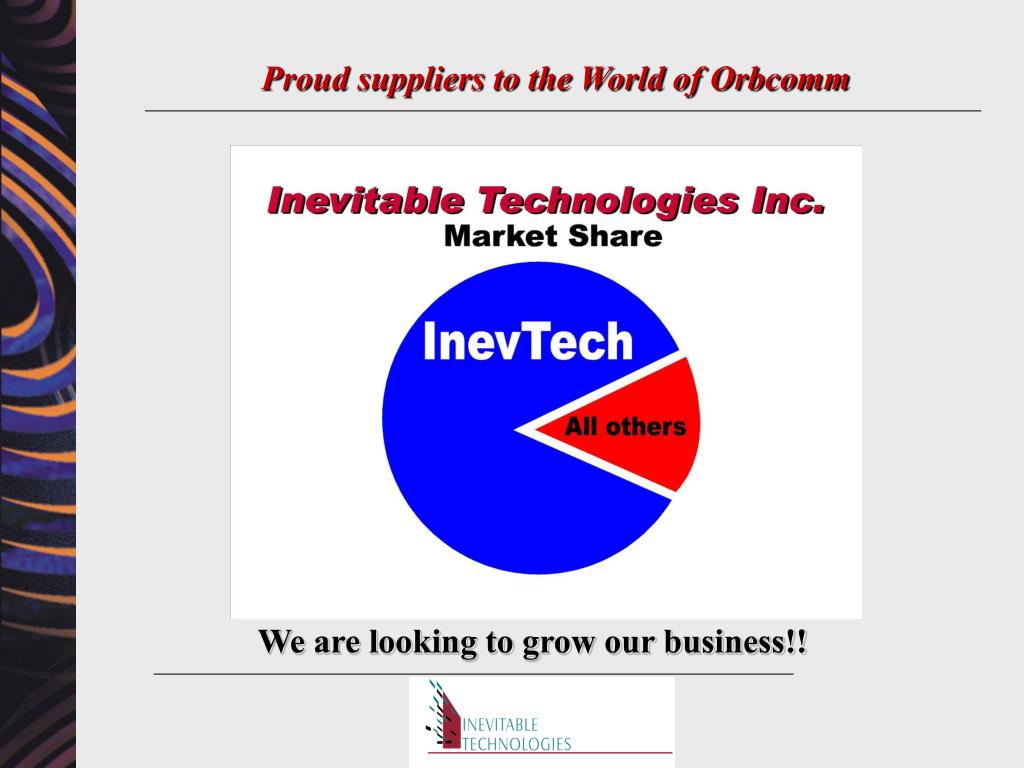

  36. Proud suppliers to the World of Orbcomm We are looking to grow our business!!

  37. Proud suppliers to the World of Orbcomm GPS / QuadBand GSM GPS/GSM/ WiFi QuadBand GSM Stand-alone GPS We also offer a variety of antenna solutions for your other communication challenges .

  38. We look forward to doing business with you… its Inevitable!!
