  1. Covalent Bonding Molecular Polarity

  2. Covalent Bonds involve sharing electrons But Just like in real life, not all sharing Is equal !!!

  3. /Electronegativity Electronegativity is the ability of an atom to Attract electrons to itself in a covalent bond Large Electronegavity Small Electronegativity

  4. So, the atoms in a covalent bond are engaged in a tug-of-war over electrons electrons

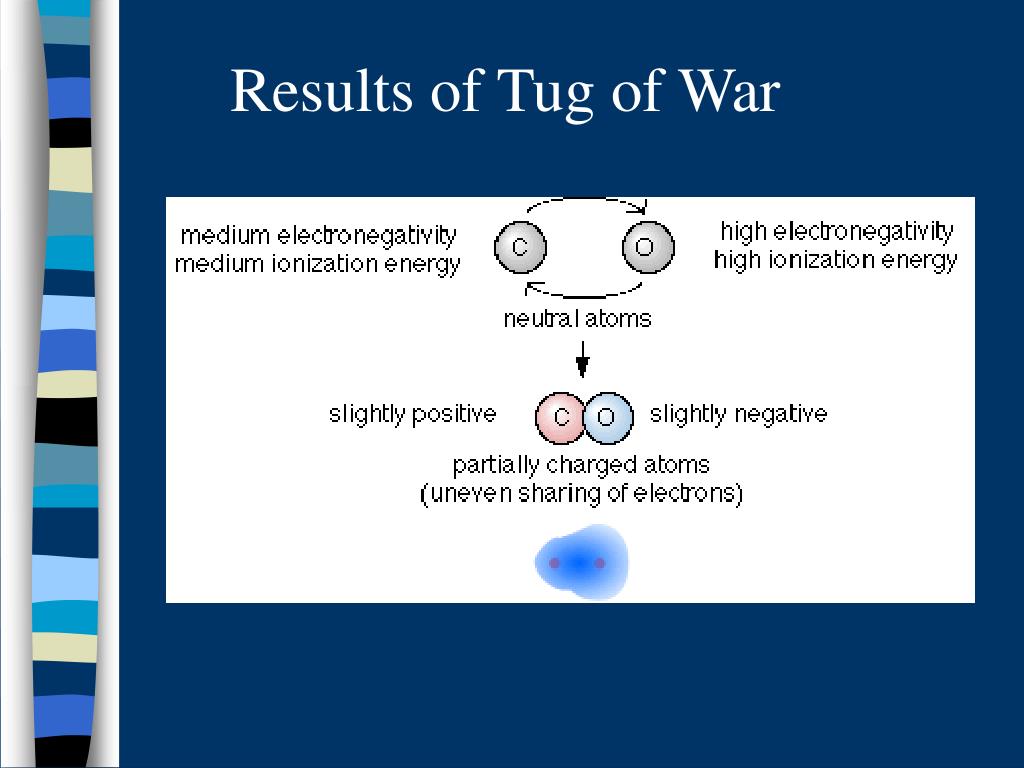

  5. Results of Tug of War

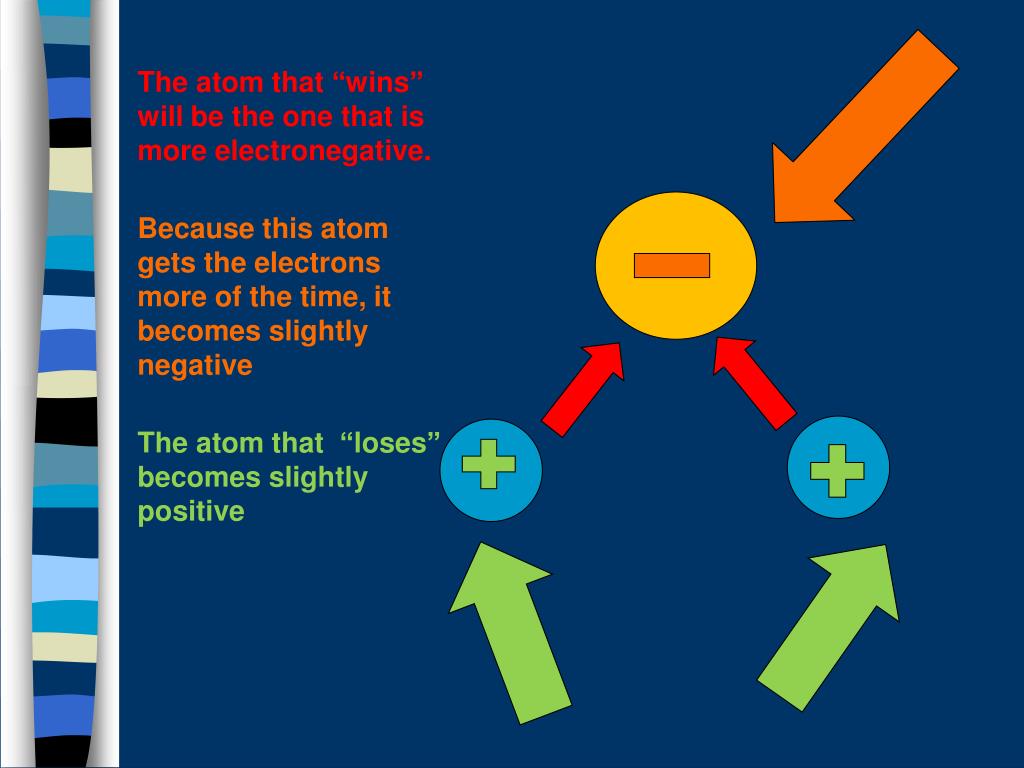

  6. The atom that “wins” will be the one that is more electronegative. Because this atom gets the electrons more of the time, it becomes slightly negative The atom that “loses” becomes slightly positive

  7. The Periodic Table allows us To predict differences in electronegavity F is the most electronegative

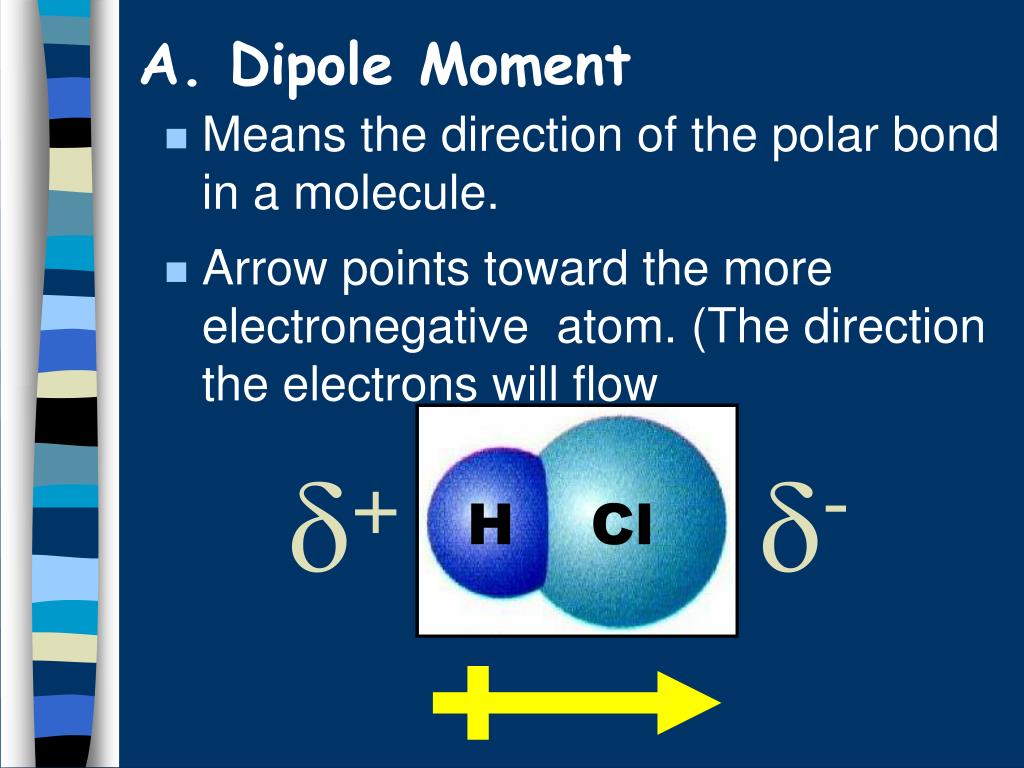

  8. + - H Cl A. Dipole Moment • Means the direction of the polar bond in a molecule. • Arrow points toward the more electronegative atom. (The direction the electrons will flow

  9. B. Determining Molecular Polarity • Depends on: • Electronegativity differences • dipole moments • molecular shape

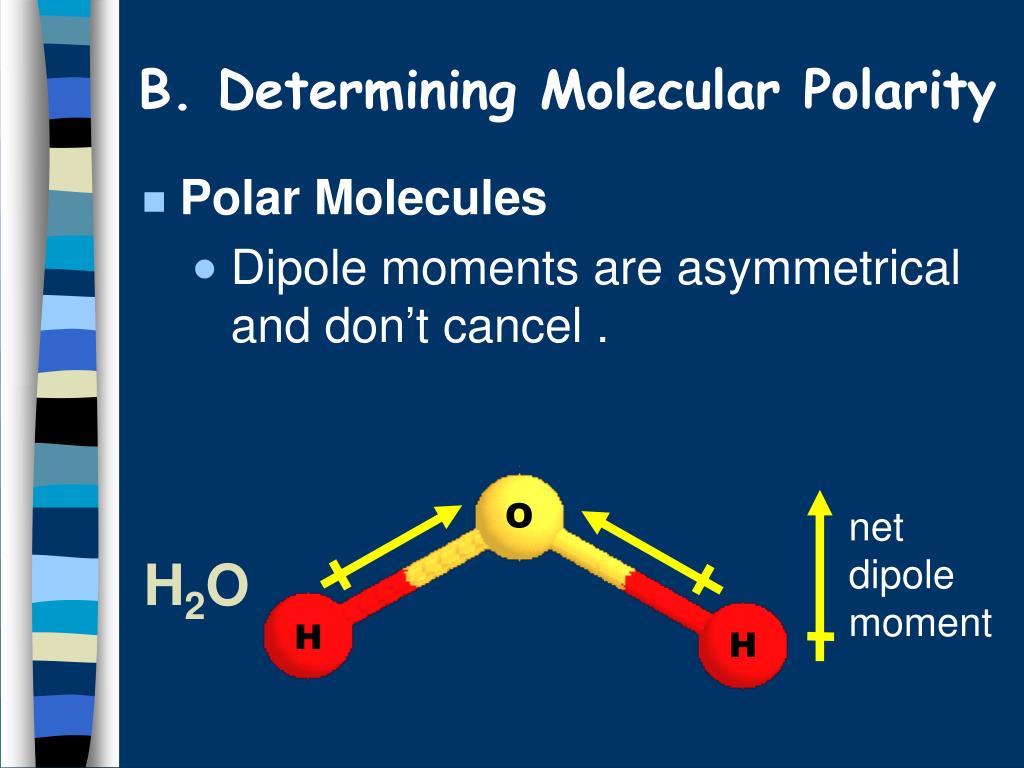

  10. O net dipole moment H2O H H B. Determining Molecular Polarity • Polar Molecules • Dipole moments are asymmetrical and don’t cancel .

  11. F BF3 B F F B. Determining Molecular Polarity • Nonpolar Molecules • Dipole moments are symmetrical and cancel out.

  12. H net dipole moment CHCl3 Cl Cl Cl B. Determining Molecular Polarity • Therefore, polar molecules have... • asymmetrical shape (lone pairs) or • asymmetrical atoms

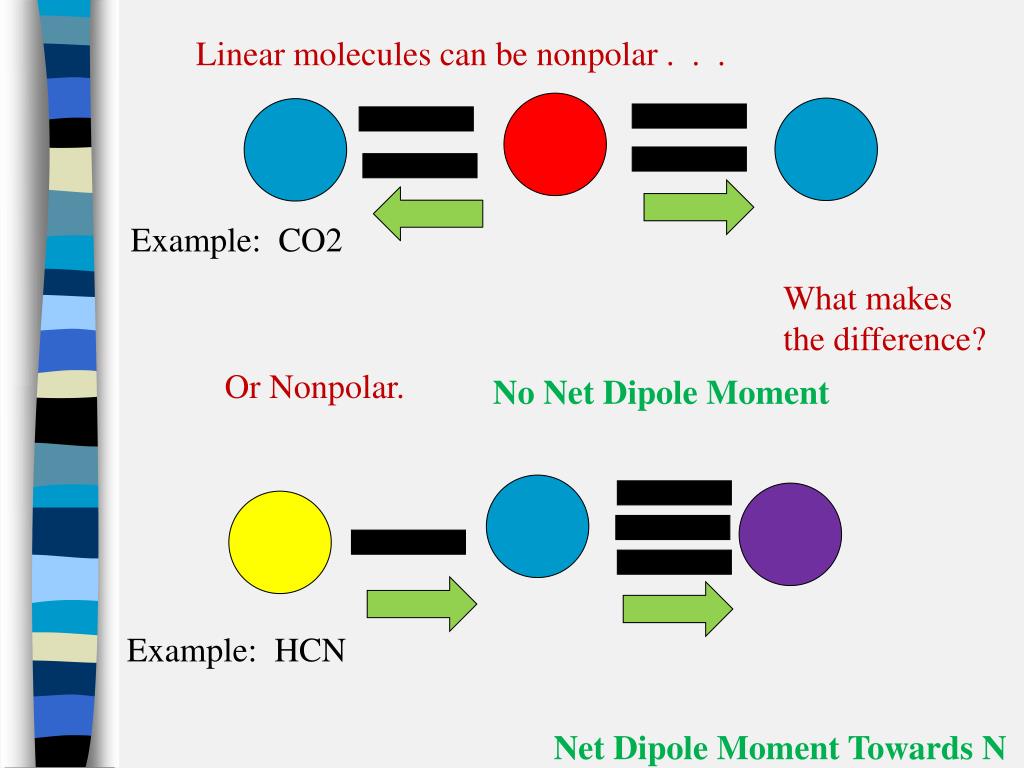

  13. Linear molecules can be nonpolar . . . Example: CO2 What makes the difference? Or Nonpolar. No Net Dipole Moment Example: HCN Net Dipole Moment Towards N

  14. Trigonal Planar molecules are usually nonpolar Example: BF3 But, what makes this one polar? Example: BF2Cl

  15. Trigonal Pyramidal Molecules are Polar. Example: NH3 Net Dipole Toward N

  16. Tetrahedral Molecules can be polar Example: CH3F Or non polar Example: CF4 Explain this!

  17. Can a Molecule be Both Polar and NonPolar? Trigonal planar with Asymmetric atoms Tetrahedral with symmetric atoms Polar End Non Polar End

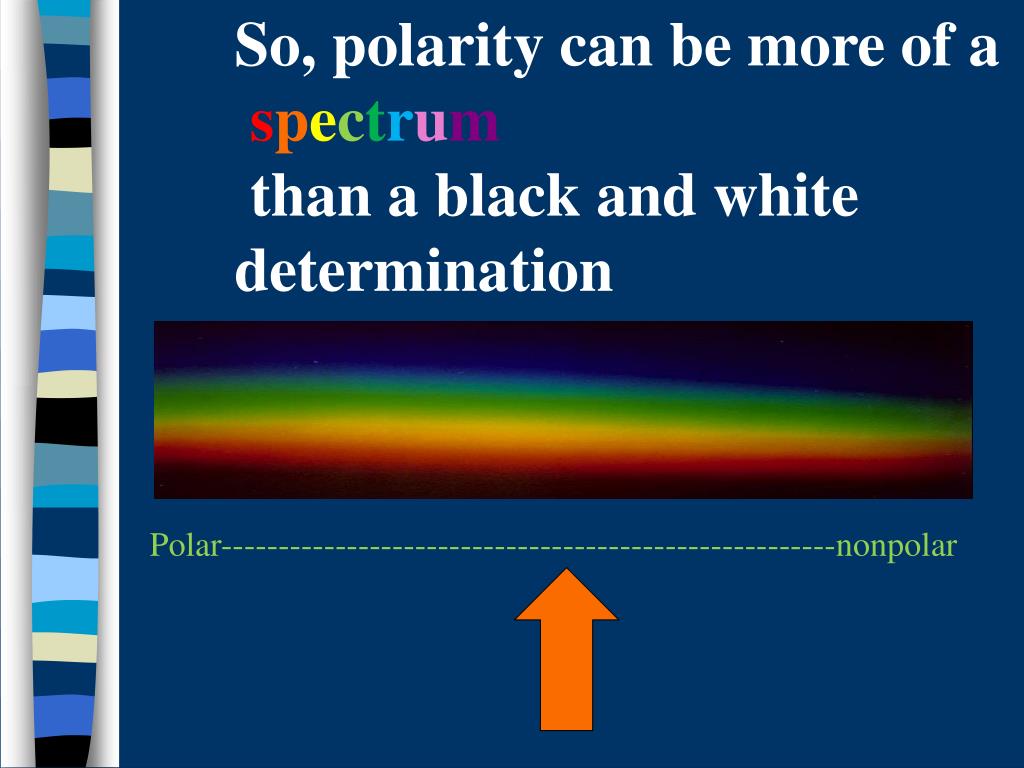

  18. So, polarity can be more of a spectrum than a black and white determination Polar------------------------------------------------------nonpolar

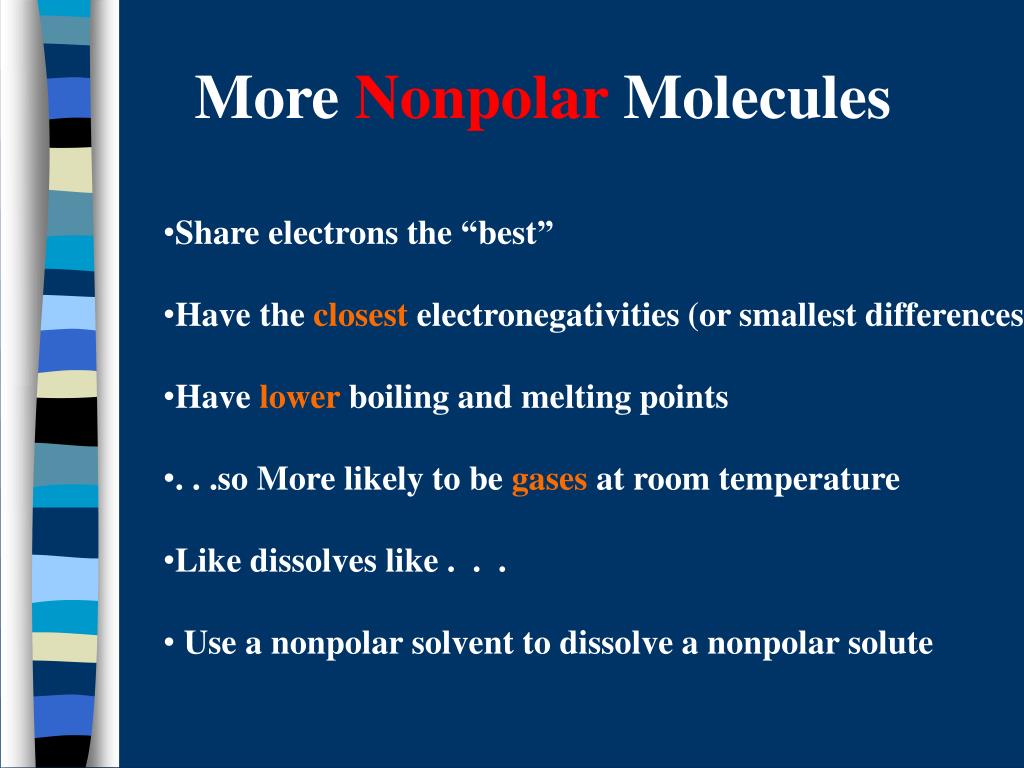

  19. More Nonpolar Molecules • Share electrons the “best” • Have the closest electronegativities (or smallest differences) • Have lower boiling and melting points • . . .so More likely to be gases at room temperature • Like dissolves like . . . • Use a nonpolar solvent to dissolve a nonpolar solute

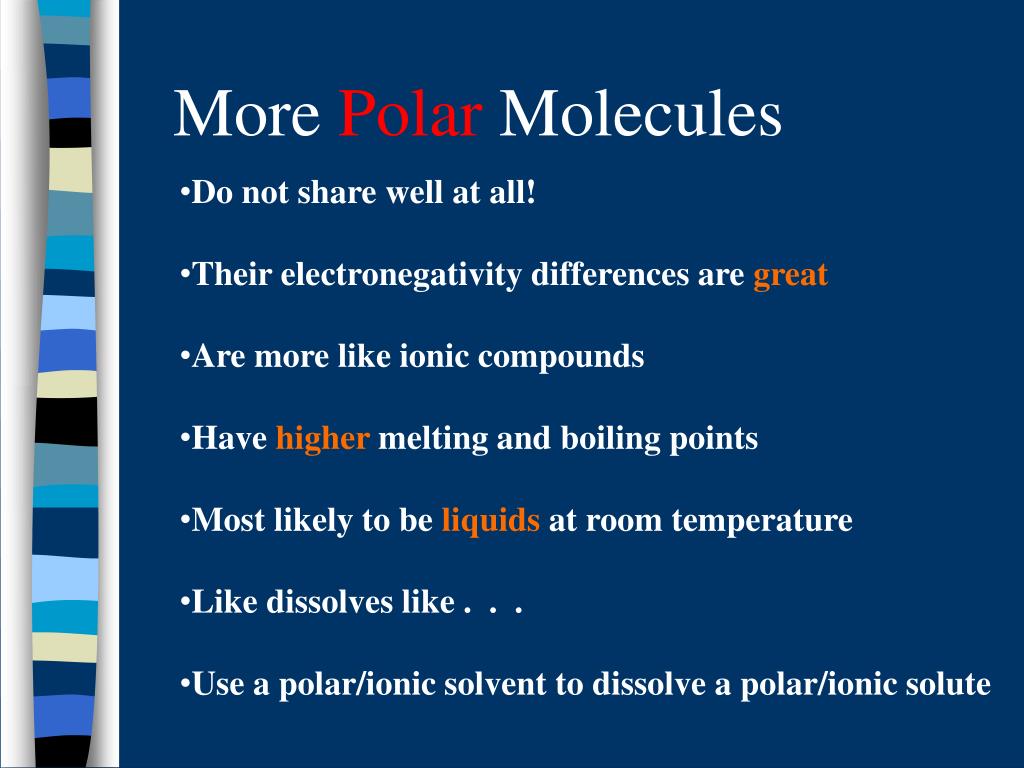

  20. More Polar Molecules • Do not share well at all! • Their electronegativity differences are great • Are more like ionic compounds • Have higher melting and boiling points • Most likely to be liquids at room temperature • Like dissolves like . . . • Use a polar/ionic solvent to dissolve a polar/ionic solute

  21. Ionic, Polar, Nonpolar: A Continuum Ionic------------ ------------Polar--------- -------Nonpolar Electrons transferred E- shared unequally E- shared Huge charge separation no charge sep. some charge sep. High mp/bp Low mp/bp Solids at STP Liquids at STPGas at STP
