  1. Vision Presented By: Jenna, Jeff, and Olivia

  2. Essential Questions • What parts of the visual system create and process images? • What are some theories related to color vision and what do they state? • Name some common visual disorders and what causes them. My head is spinning just from reading these!

  3. Structure of the Eye

  4. Structure • Iris: Colored part of the eye; contracts and expands retina in response to light and protects it • Pupil: Hole in the center of the iris where light passes through • Cornea: Clear, dome-shaped surface that covers eye; first (and most powerful) lens • Lens: keeps images in focus (adjustable for close work/distance); inverts images and sends to brain

  5. Retina: film over the eye; converts light into electrical signals to send to the brain • Blind Spot: location where the optic nerve exits the eye; anything that falls in this area is not seen • Bipolar cells: cells in the retina that connect receptors to ganglion cells • Ganglion cells: axons of these cells form the optic nerve; located in the retina • Fovea: area of the retina that controls central vision

  6. Structures that help with vision, but aren’t totally located in the eye • Optic Chiasm: where the optic nerve fibers from each eye meet • Optic Nerve: group of neurons that transfer visual information from the retina to the brain • Visual Cortex: area in the brain that processes vision, and combines it in order to create an image • Forebrain: receives and processes visual information (contains the visual cortex) • Occipital Lobe: located in the forebrain; contains the visual cortex • Thalamus: processes visions; information from the optic nerves is relayed here, and then to the cerebral cortex

  7. Photoreceptors • Light sensitive cells (neurons) in the retina that convert light energy to neural impulses • Furthest that light travels in the visual system • Two types: • Rods: most sensitive to light, but not to color; 120 million • Cones: provide eye’s color sensitivity; 6-7 million • Visual Phototransduction: process through which photoreceptors convert light into electrical signals in the rods and cones of the retina

  8. Visual Processing • Images enter through lens and are inverted • info on viewer’s left is taken in on right side of the eye • Eye sends info to optic chiasmus • info on left side sent to be right cerebral hemisphere, processed by right occipital lobe • Neurons of cerebral cortex pass their separate analyses of the image into parietal lobe and temporal lobe • assembled and integrated w/ emotions, memories into meaningfulness

  9. Eye Disorders • Nearsighted: inability to see objects that are far away; eyes have difficulty refracting light • Farsighted: inability to see objects that are nearby; eye ball is either too short or lens cannot become round • Blindness: inability to see • Cataracts: clouding of the lens • Glaucoma: increased pressure within the eye

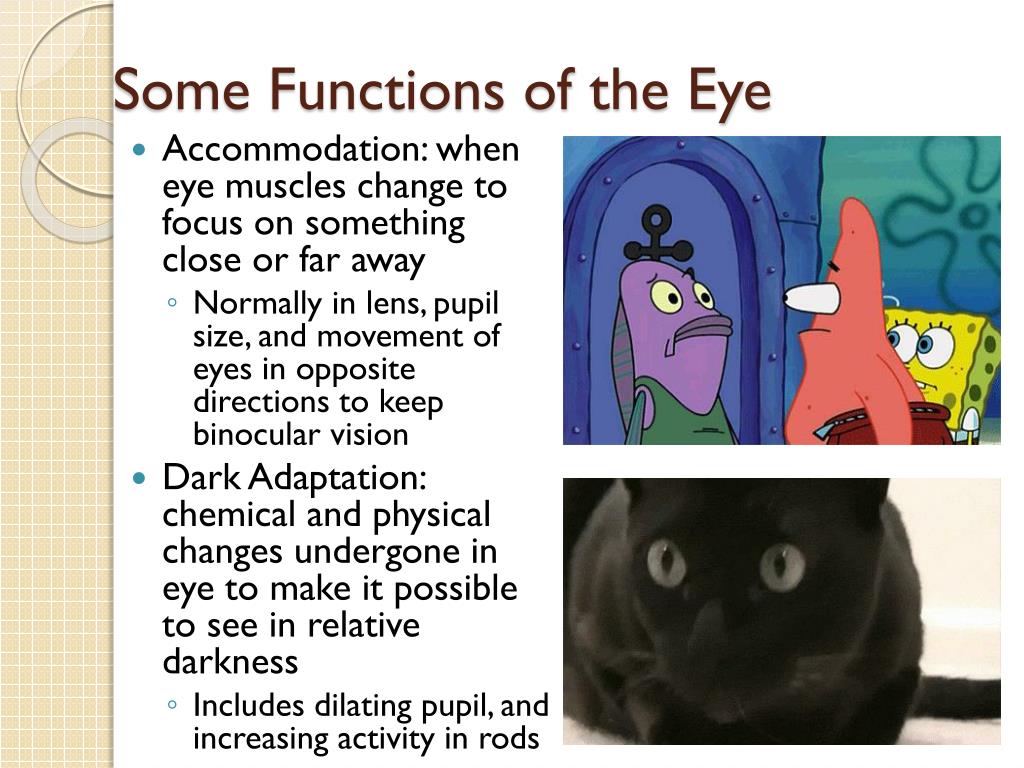

  10. Some Functions of the Eye • Accommodation: when eye muscles change to focus on something close or far away • Normally in lens, pupil size, and movement of eyes in opposite directions to keep binocular vision • Dark Adaptation: chemical and physical changes undergone in eye to make it possible to see in relative darkness • Includes dilating pupil, and increasing activity in rods

  11. More Functions of the Eye • Parallel Processing: ability of brain to simultaneously process incoming messages of different quality (multitasking for your eyes) • Important for vision because brain first divides vision into color, motion, shape, depth then synthesizes it • Acuity: clearness of vision • Usually depends on focused retina, and how well brain interprets images

  12. What is color? • Color/ Hue: sensation created in the brain from wavelengths of light and visual information gathered from the eyes • Color is a sensation, so it does not exist outside of the brain • Only exists in the individual mind • Created when light waves are translated by photoreceptors into neural impulses, and are transferred to specialized areas of the brain to be processed

  13. Electromagnetic Spectrum • The range of electromagnetic energy • Includes: • Radio waves • Microwaves • Infrared • Visible Light • Ultraviolet • X-Rays • Gamma Rays

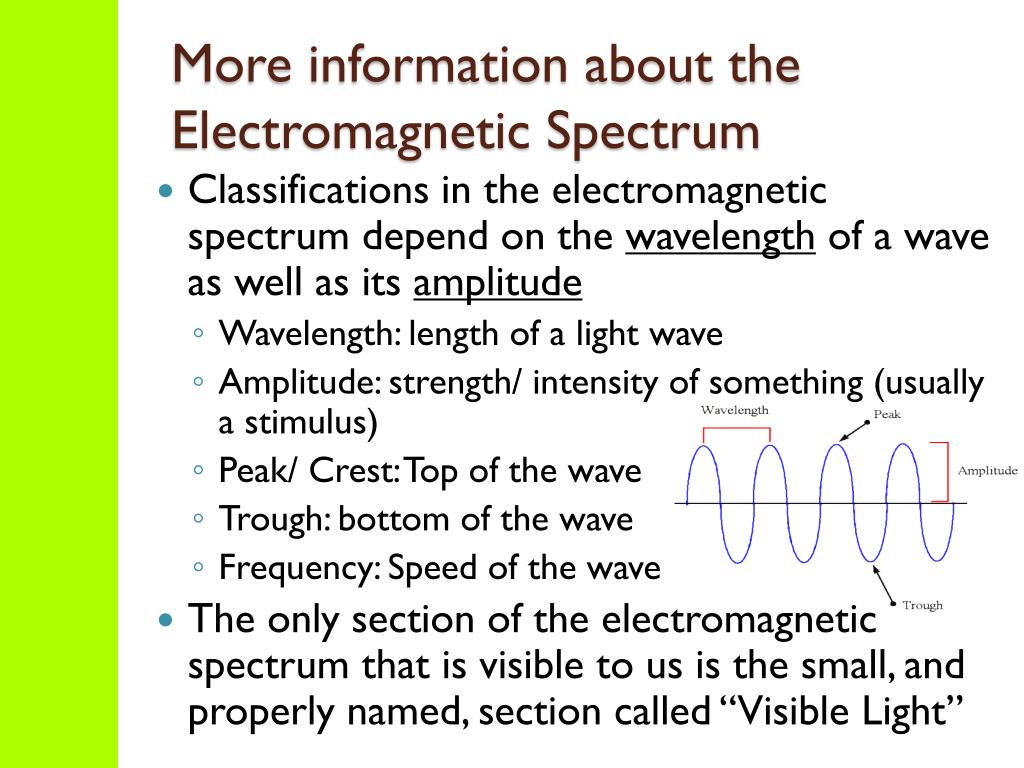

  14. More information about the Electromagnetic Spectrum • Classifications in the electromagnetic spectrum depend on the wavelength of a wave as well as its amplitude • Wavelength: length of a light wave • Amplitude: strength/ intensity of something (usually a stimulus) • Peak/ Crest: Top of the wave • Trough: bottom of the wave • Frequency: Speed of the wave • The only section of the electromagnetic spectrum that is visible to us is the small, and properly named, section called “Visible Light”

  15. Visible Spectrum • Small section of the Electromagnetic Spectrum that our eyes are sensitive to • Light waves with different wavelengths within the Visible Spectrum, create different colors • Waves come from Radiant and/or Reflected Light • Radiant light: visible energy emitted by something • Reflected light: energy reflected by objects • The eye extracts information from the wavelength of a light ray in order for the brain to process color

  16. Visible Spectrum • Visual experiences of color, form, position, and depth, are all based on processing one stream of sensory information in multiple parts of the visual cortex • Since color only exists within the brain, perception of a color can vary in saturation and brightness • Saturation: purity of a color • Brightness: psychological sensation that is based on a light wave’s intensity

  17. Theories on viewing colors • Trichromatic theory: idea that colors are sensed by three different types of cones sensitive to light in red, blue, and green wavelengths • explains earliest stages of color sensation • also called Young-Helmholtz theory

  18. Another theory • Opponent-process theory: idea that cells in visual system process colors in complementary pairs, such as red and green or yellow and blue • explains color sensation from bipolar cells onward in visual system

  19. Afterimages • Sensations that linger after stimulus is removed • negative afterimages appear in reversed colors

  20. Monocular Cues • Depth perceived in each individual eye • Types: relative size, interposition, relative clarity, texture gradient, relative height, relative motion, light, shadow

  21. Binocular Cues • Depth perceived using both eyes • Types: Retinal disparity, Convergence • Retinal disparity: the difference between the visual images that each eye perceives because of the different angles viewed • Convergence: coordinated movement of eyes inward to focus on objects close to us

  22. Optical Illusions (Fun ways to mess with your eyes!)

  23. THE END
