Quickest Detection of a Change Process Across a Sensor Array

Quickest Detection of a Change Process Across a Sensor Array. Vasanthan Raghavan and Venugopal V. Veeravalli Presented by: Kuntal Ray. Outline. Introduction Problem Formulation DP Frame Work Recursion for Sufficient Statistics Structure for Optimal Stopping Rule References.

dixon
Download Presentation

Quickest Detection of a Change Process Across a Sensor Array

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Quickest Detection of a Change Process Across aSensor Array VasanthanRaghavan and Venugopal V. Veeravalli Presented by: Kuntal Ray

  2. Outline • Introduction • Problem Formulation • DP Frame Work • Recursion for Sufficient Statistics • Structure for Optimal Stopping Rule • References

  3. Outline • Introduction • Problem Formulation • DP Frame Work • Recursion for Sufficient Statistics • Structure for Optimal Stopping Rule • References

  4. INTRODUCTION • Sensors take observations ,responds to disruptive change • The goal is to detect this change point, subjected to false alarm constraints • Sequence of observations ,densities changes at unknown time has to be detected.

  5. Two Approaches to change detection: - • Bayesian Approach • Change point is assumed to be a random variable with a prior density known as a priori • Goal is to minimize the expected detection delay subject to a bound on the false alarm Probability • Minimax Approach • Goal is to minimize the worst case delay subject to lower bound on the mean time between false alarm

  6. Introduction… • Significant advances in theory of change detection has been made using single sensor • Also extension of those framework to the multi-sensor case has been studied, where information available for decision making is decentralized. • The above work assume that the statistical properties of the sensors’ observations change at the same time. • However, in many scenarios, it is more suitable to consider the case where each sensor’s observations may change at different points in time.

  7. Introduction… • An application to such a model is detection of pollutants where the change process is governed by the movement of the agent through the medium under consideration. • This paper considers Bayesian version of this problem and assumes point of disruption is a random variable with Geometric Distribution.

  8. INTRODUCTION… • Assume L sensors placed in an array • Fusion center has complete information about the observations. • This is applicable when ample bandwidth is available for communication between the sensors and the fusion center

  9. INTRODUCTION… • The goal of the fusion center is to come up with a strategy to declare change, subject to false alarm constraints • Towards this goal, pose the problem in a dynamic programming (DP) framework and first obtain sufficient statistics for the DP under consideration • We then establish a recursion for the sufficient statistics which generalizes the recursion established in previous paper • Following along the logic of previous work they establish the optimality of a more general stopping rule for change detection.

  10. Outline • Introduction • Problem Formulation • DP Frame Work • Recursion for Sufficient Statistics • Structure for Optimal Stopping Rule • References

  11. PROBLEM FORMULATION • Consider L sensors that observes L dimensional Discrete time Stochastic process • Disruption in the sensing environment occurs at random time constant Γ1 • Hence the density of the observations at each sensor undergoes a change from the null density f0to the alternate density f1.

  12. Problem Formulation… • Previous work considers change to be instantaneous to all the sensors at time Γ1 • In this paper they consider change process which evolves across the sensor array and the change seen by the lth sensor is given by Γl • Also assume the evolution of the change process is Markovian Process across the sensor

  13. Problem Formulation… • Under this model, the change point evolves as a geometric random variable with parameter ρ. • P({Γ1 = m}) = ρ (1 − ρ)m, m ≥ 0. • As ρ 1 corresponds to case where instantaneous disruption has high probability of occurrence • As ρ 0 uniformizes the change point in the sense that the disruption is equally likely to happen at any point at any time

  14. Problem Formulation… • Observations at every sensor are independent and identically distributed (i.i.d.) conditioned on the change hypothesis corresponding to that sensor. • Zk, ∼ i.i.d. f0 if k < Γ, i.i.d. f1 if k ≥ Γ. • Consider a centralized, Bayesian setup where a fusion center has complete knowledge of the observations from all the sensors • Ik {Z1, . . . ,Zk}

  15. Problem Formulation… • The fusion center decides whether a change has happened or not based on the information, Ik, available to it at time instant k (equivalently, it provides a stopping time τ)

  16. Problem Formulation… • Two conflicting performance measures on change detection are: - • Probability of false Alarm • PFA = P({τ < Γ1}) • The average detection delay, • EDD = E [(τ − Γ1)+] where x+ = max(x, 0).

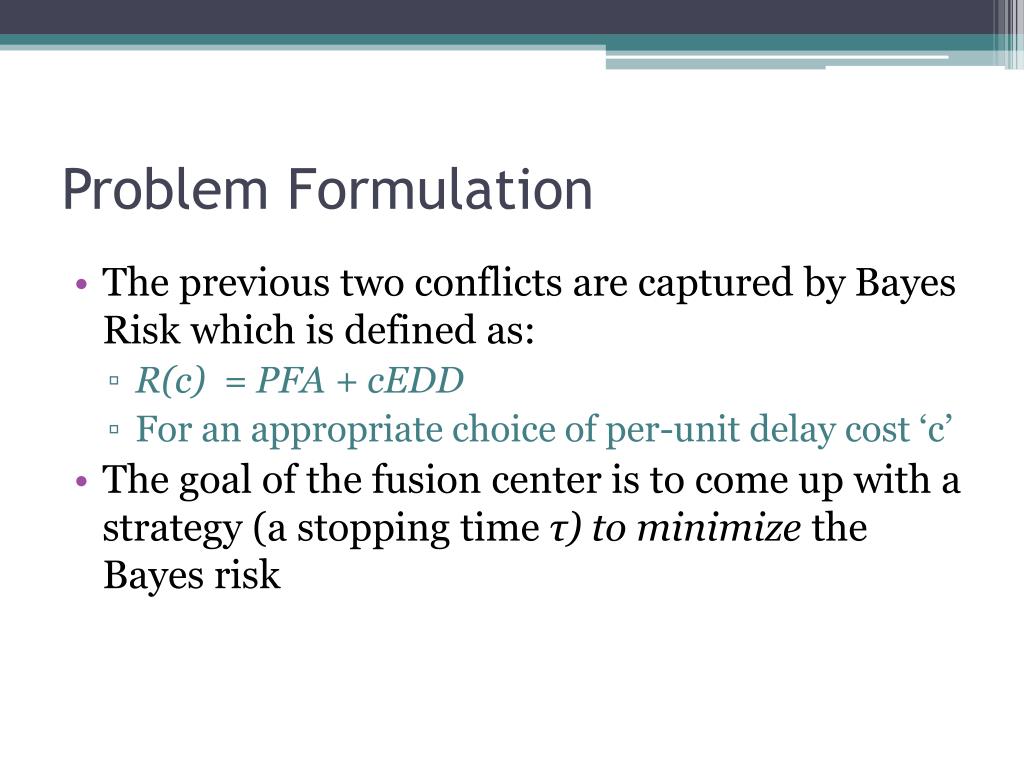

  17. Problem Formulation • The previous two conflicts are captured by Bayes Risk which is defined as: • R(c) = PFA + cEDD • For an appropriate choice of per-unit delay cost ‘c’ • The goal of the fusion center is to come up with a strategy (a stopping time τ) to minimize the Bayes risk

  18. Outline • Introduction • Problem Formulation • DP Frame Work • Recursion for Sufficient Statistics • Structure for Optimal Stopping Rule • References

  19. DP Framework • In their previous paper they had rewritten Bayes Risk as: • The state of the system at time k is the vector • Sk =[Sk,1, . . . , Sk,L] • With Sk, denoting the state at sensor . • The state Sk, can take the value 1 (post-change), 0 (prechange), or t (terminal). • The system goes to the terminal state t, once a change-point decision τ has been declared.

  20. Outline • Introduction • Problem Formulation • DP Frame Work • Recursion for Sufficient Statistics • Structure for Optimal Stopping Rule • Asymptotically Optimal Test • Numerical Results • References

  21. Recursion for Sufficient Statistics • Consider case where changes to all sensors happen at same instant. • In this setting, it can be shown that Random Variable P({Γ1 ≤ k}|Ik) serves as the sufficient statistics for the dynamic program and affords a recursion • But, we consider general case

  22. Recursion for Sufficient Statistics • But as we consider general case, i.e. slow propagation of change

  23. Outline • Introduction • Problem Formulation • DP Frame Work • Recursion for Sufficient Statistics • Structure for Optimal Stopping Rule • References

  24. Structure for Optimal Stopping Rule

  25. Outline • Introduction • Problem Formulation • DP Frame Work • Recursion for Sufficient Statistics • Structure for Optimal Stopping Rule • References

  26. References [1] M. Basseville and I. V. Nikiforov, Detection of Abrupt Changes: Theory and Applications. Prentice Hall, Englewood Cliffs, 1993. [2] T. L. Lai, “Sequential changepoint detection in quality control and dynamical systems,” J. R. Statist. Soc. B, Vol. 57, No. 4, pp. 613–658, 1995. [3] G. Lorden, “Procedures for reacting to a change in distribution,” Ann. Math. Statist., Vol. 42, pp. 1987– 1908, 1971. [4] G. V. Moustakides, “Optimal stopping times for detecting changes in distributions,” Ann. Statist., Vol. 14, pp. 1379–1387, 1986. [5] M. Pollak, “Optimal detection of a change in distribution,” Ann. Statist., Vol. 13, pp. 206–227, 1985. [6] A. N. Shiryaev, “On optimum methods in quickest detection problems,” Theory Probab. Appl., Vol. 8, pp. 22–46, 1963. [7] A. N. Shiryaev, Optimal Stopping Rules. Springer- Verlag, NY, 1978. [8] A. G. Tartakovsky, Sequential Methods in the Theory of Information Systems. Radio iSvyaz’, Moscow, 1991 (In Russian).
