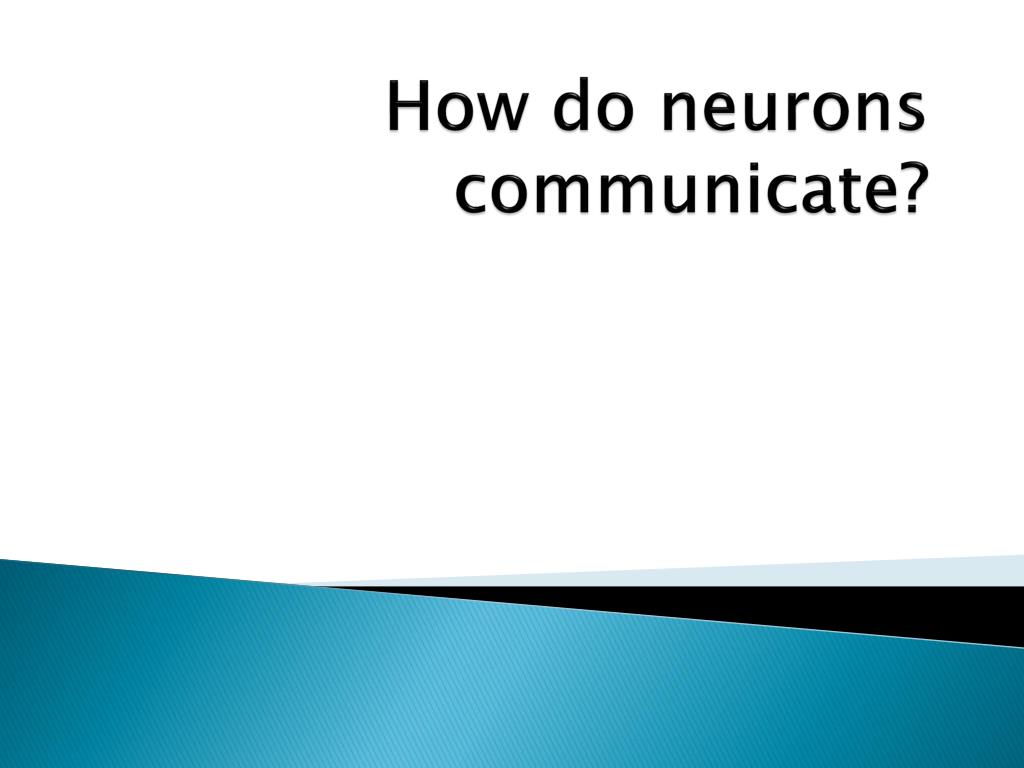

  1. How do neurons communicate?

  2. a b c

  3. How do neurons communicate? Need to think about this question 2 ways

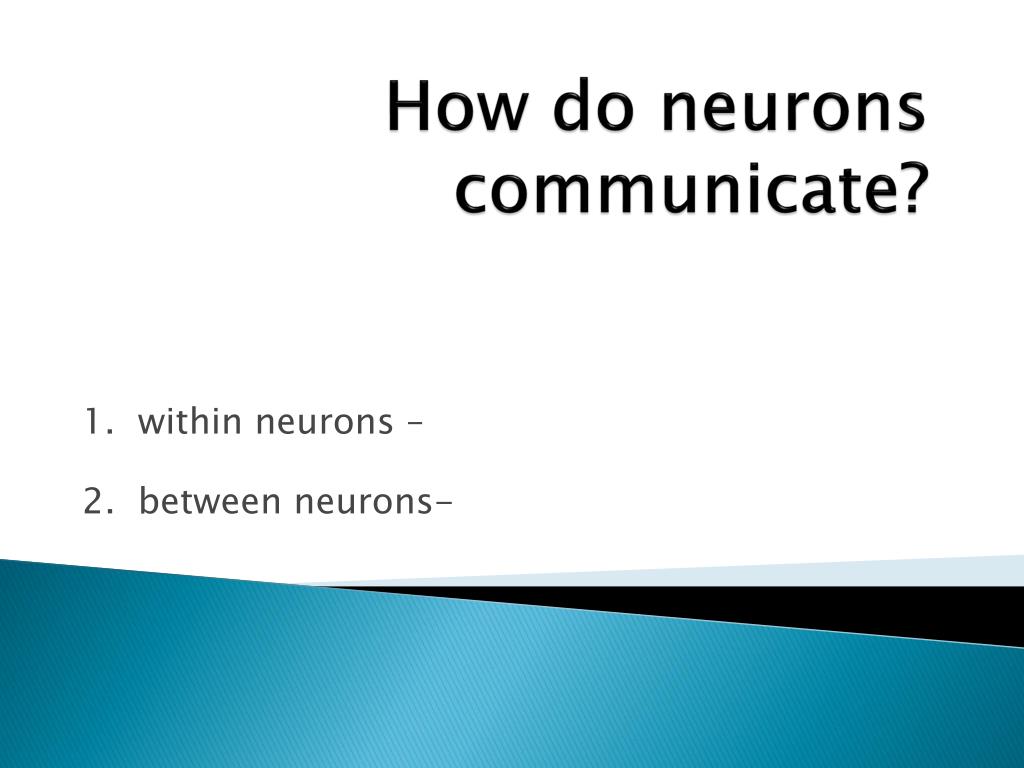

  4. How do neurons communicate? 1. within neurons – 2. between neurons-

  5. Neuron receiving info Information traveling down neuron

  6. How do neurons communicate • within neurons – electrically • between neurons – chemically • Synapse – space between neurons

  7. Ramon Y Cajal • developed Golgi Stain • first determined space between neurons • “synapse”

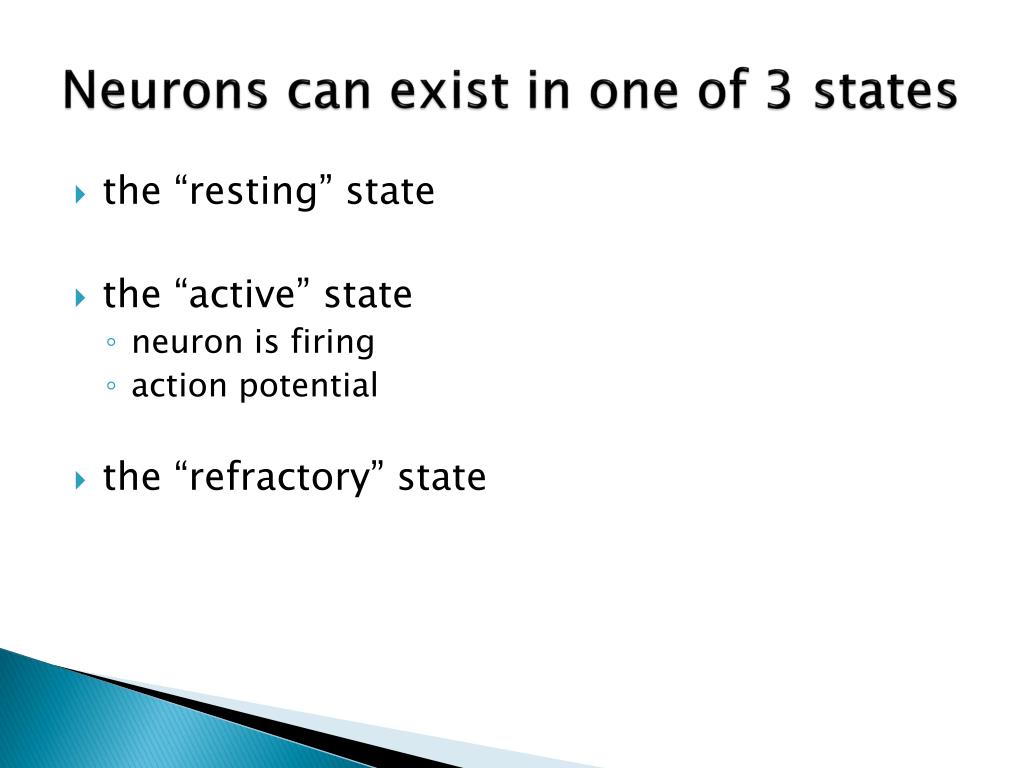

  8. Neurons can exist in one of 3 states • the “resting” state • the “active” state • neuron is firing • action potential • the “refractory” state

  9. How do we know about what is happening in the neuron? • giant squid axon

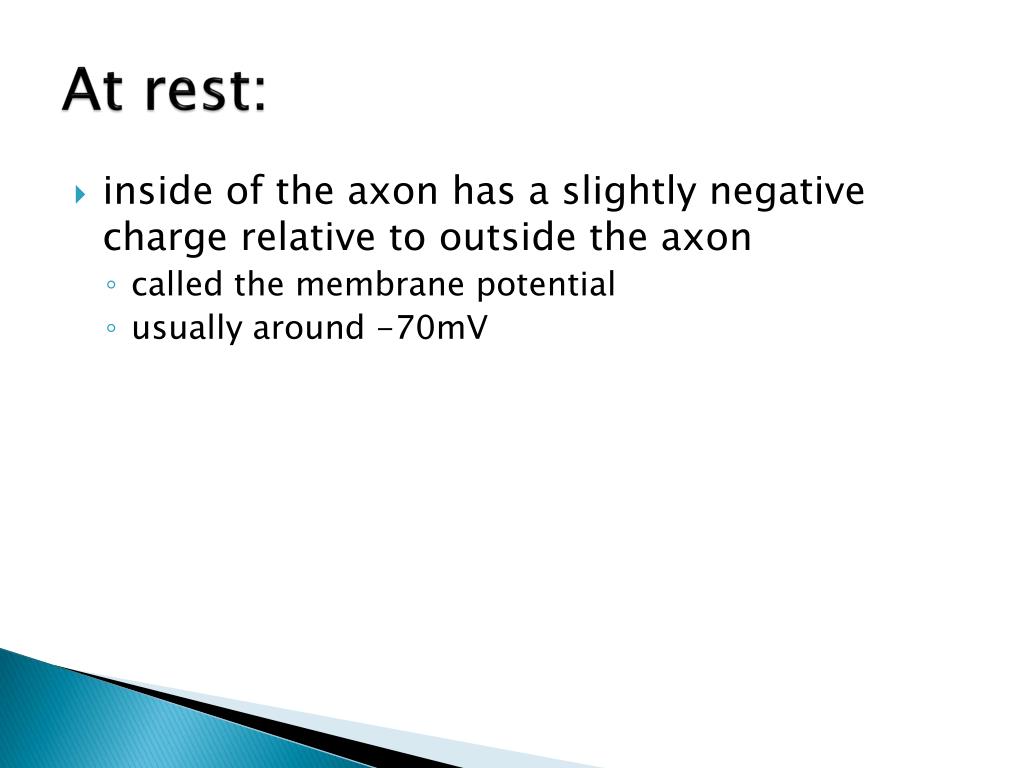

  10. At rest: • inside of the axon has a slightly negative charge relative to outside the axon • called the membrane potential • usually around -70mV

  11. At rest: • inside of the axon has a slightly negative charge relative to outside the axon • called the membrane potential • why?

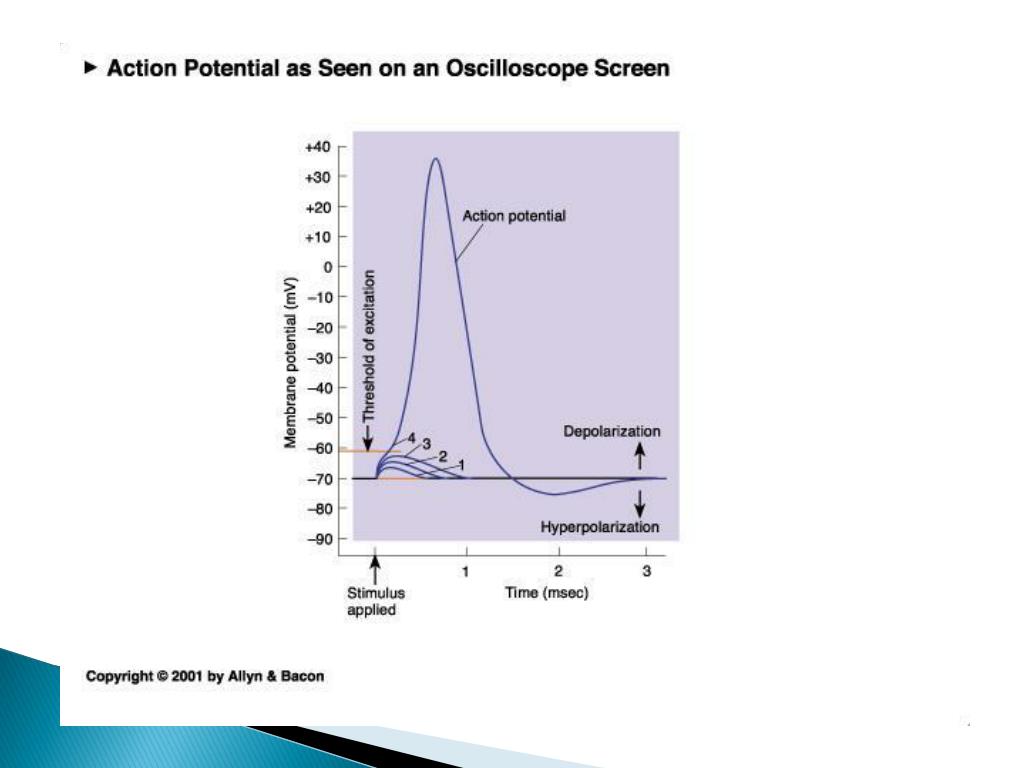

  12. action potential or spike

  13. Neuron stimulated (either electrically or by receiving a “message” • see depolarization (change from negative inside neuron to more positive)

  14. action potential or spike

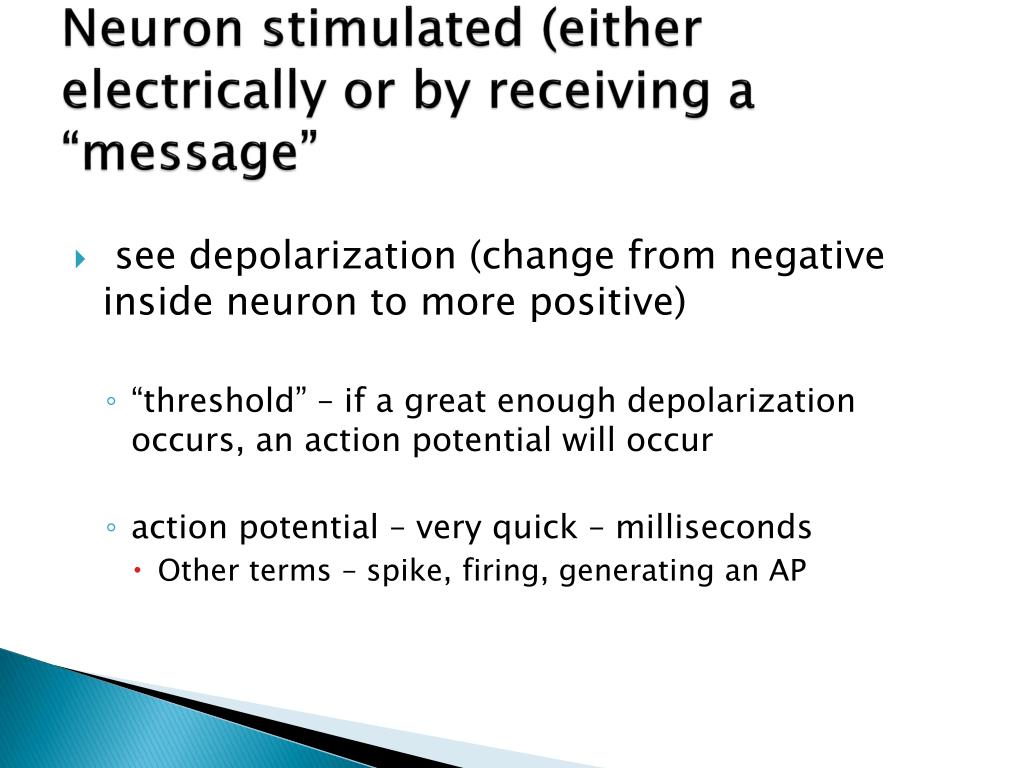

  15. Neuron stimulated (either electrically or by receiving a “message” • see depolarization (change from negative inside neuron to more positive) • “threshold” – if a great enough depolarization occurs, an action potential will occur • action potential – very quick – milliseconds • Other terms – spike, firing, generating an AP

  16. action potential or spike

  17. Hyperpolarization • return to negative • this is the refractory or recovery period

  18. action potential or spike

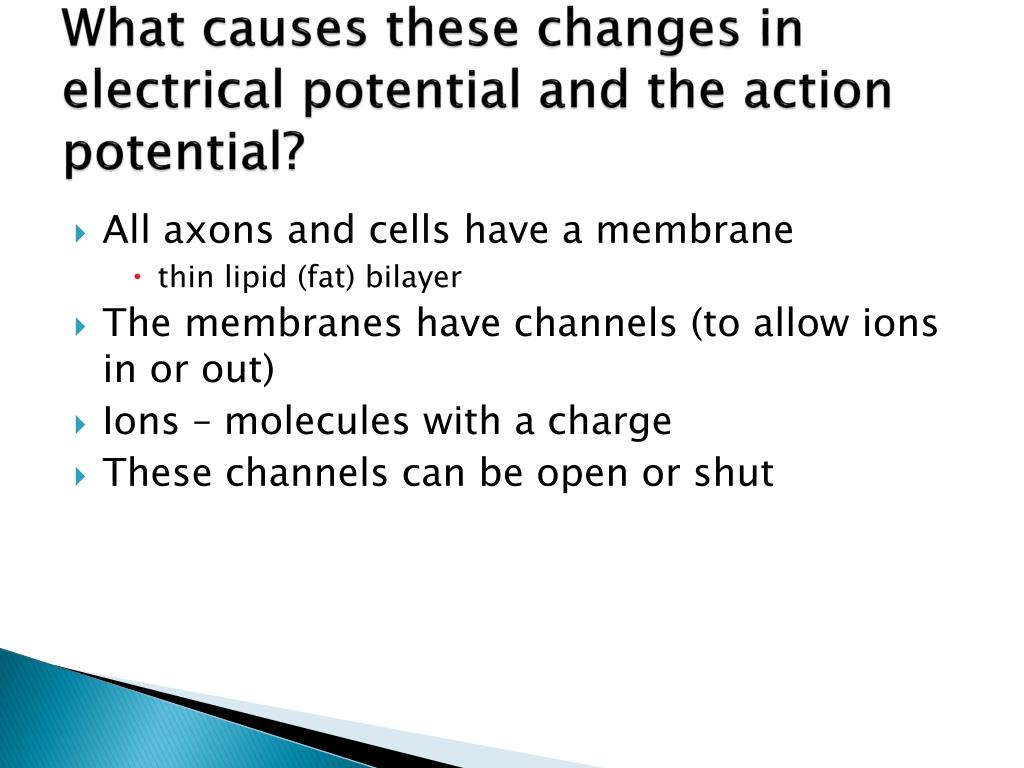

  19. What causes these changes in electrical potential and the action potential? • All axons and cells have a membrane • thin lipid (fat) bilayer • The membranes have channels (to allow ions in or out) • Ions – molecules with a charge • These channels can be open or shut

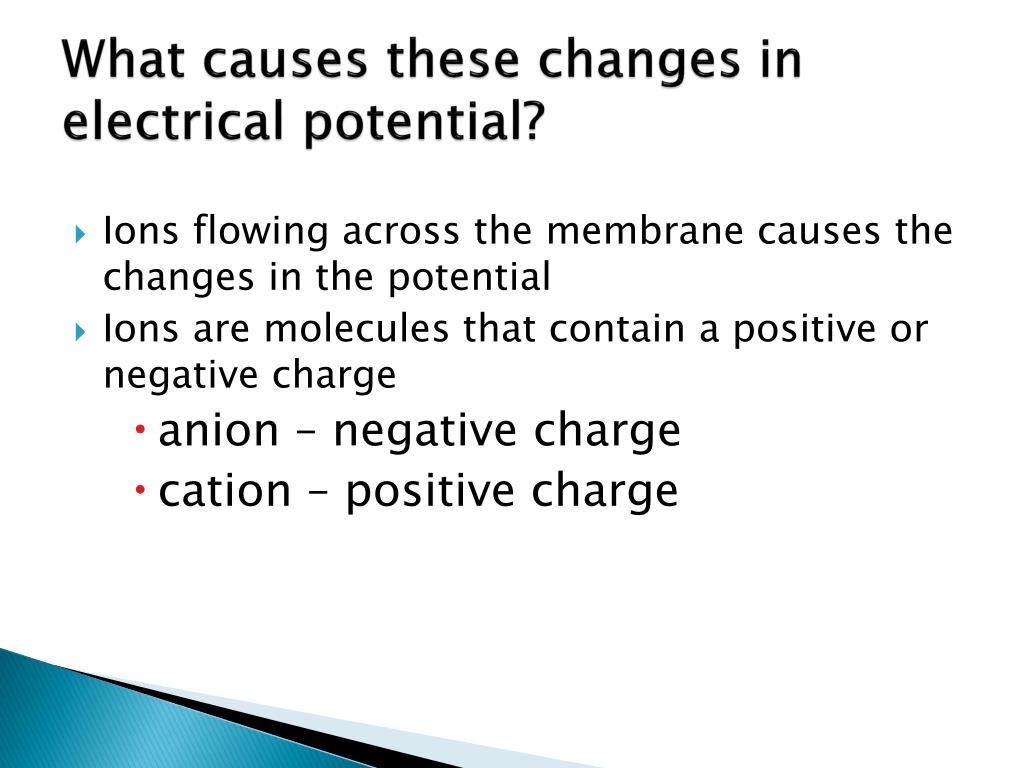

  20. What causes these changes in electrical potential? • Ions flowing across the membrane causes the changes in the potential • Ions are molecules that contain a positive or negative charge • anion – negative charge • cation – positive charge

  21. Some important ions for neuronal communication • Na+ sodium • HIGHER CONCENTRATION OUTSIDE THE AXON • Cl- chloride • HIGHER CONCENTRATION OUTSIDE AXON • K+ potassium • higher concentration inside the axon • A- anions -large (-) molecules with a negative charge (stuck inside the axon)

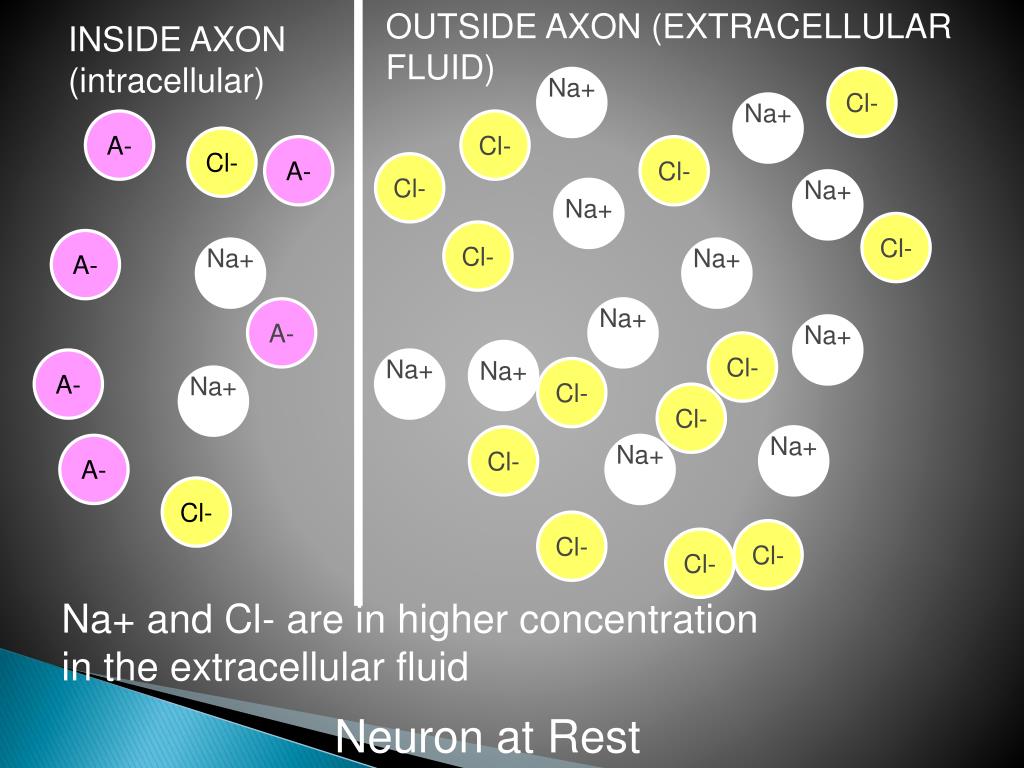

  22. OUTSIDE AXON (EXTRACELLULAR FLUID) INSIDE AXON (intracellular) Na+ Cl- Na+ A- Cl- Cl- A- Cl- Cl- Na+ Na+ Cl- Cl- A- Na+ Na+ A- Na+ Na+ Cl- A- Na+ Na+ Cl- Na+ Cl- Cl- Na+ A- Na+ Cl- Cl- Cl- Cl- Na+ and Cl- are in higher concentration in the extracellular fluid Neuron at Rest

  23. INSIDE AXON OUTSIDE AXON (EXTRACELLULAR FLUID) Cl- K+ K+ K+ Cl- A- Na+ Cl- A- Na+ K+ Na+ A- Cl- Na+ K+ A- Na+ Cl- Na+ K+ K+ K+ and negative anions are in higher concentration in the intracellular or inside the axon Neuron at Rest

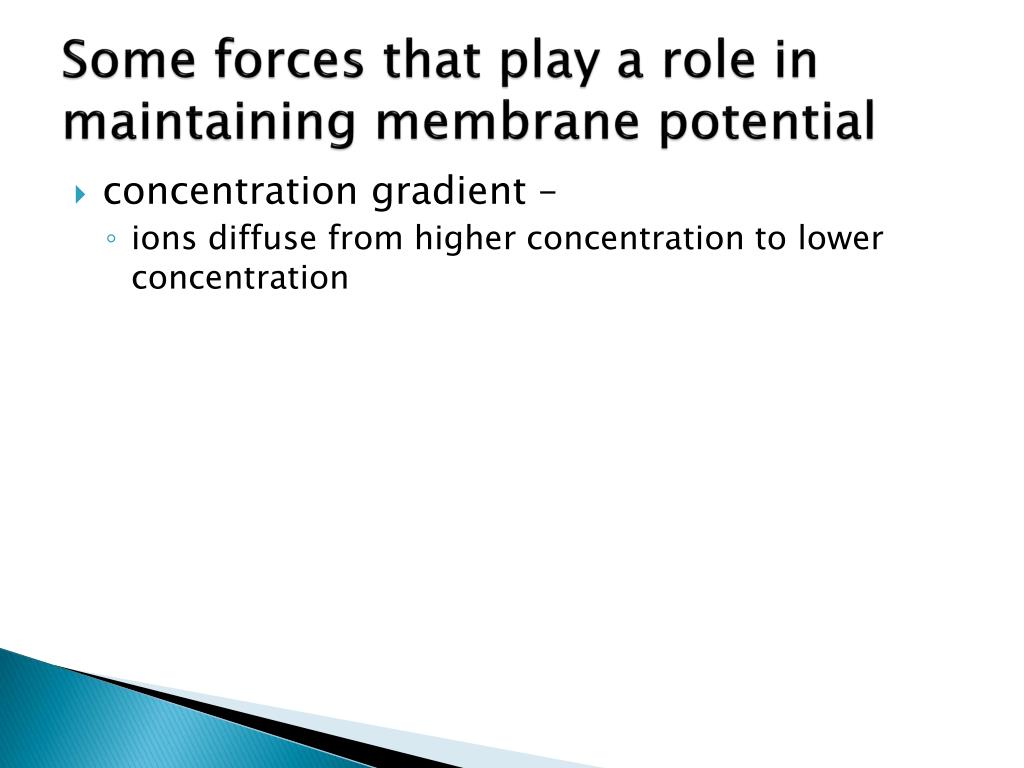

  24. Some forces that play a role in maintaining membrane potential • concentration gradient – • ions diffuse from higher concentration to lower concentration

  25. example of concentration forces

  26. What would each ion do if the ion channel opened based on the concentration gradient?

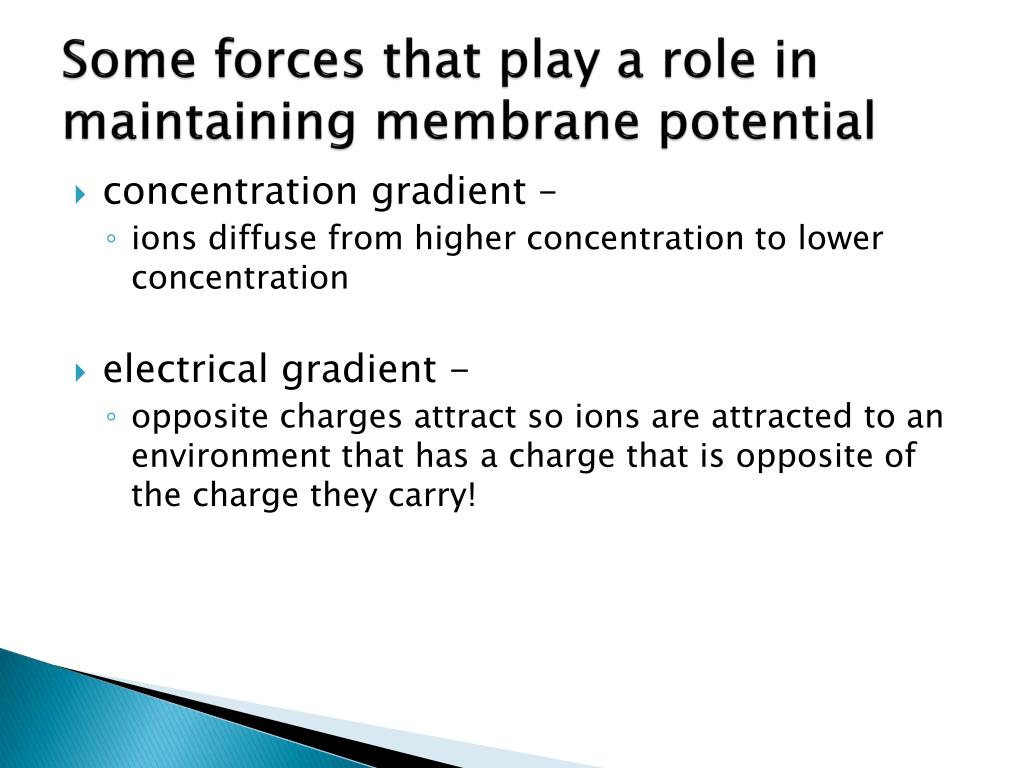

  27. Some forces that play a role in maintaining membrane potential • concentration gradient – • ions diffuse from higher concentration to lower concentration • electrical gradient - • opposite charges attract so ions are attracted to an environment that has a charge that is opposite of the charge they carry!

  28. example of electrostatic forces

  29. What would each ion do if the ion channel opened based on electrostatic forces ?

  30. OUTSIDE AXON (EXTRACELLULAR FLUID) INSIDE AXON (intracellular) Na+ Cl- Na+ A- Cl- Cl- A- Cl- Cl- Na+ Na+ Cl- Cl- A- Na+ Na+ A- Na+ Na+ Cl- A- Na+ Na+ Cl- Na+ Cl- Cl- Na+ A- Na+ Cl- Cl- Cl- Cl- Na+ and Cl- are in higher concentration in the extracellular fluid Axon depolarizing

  31. What drives the action potential? • opening of Na+ channels and influx of Na+ ions

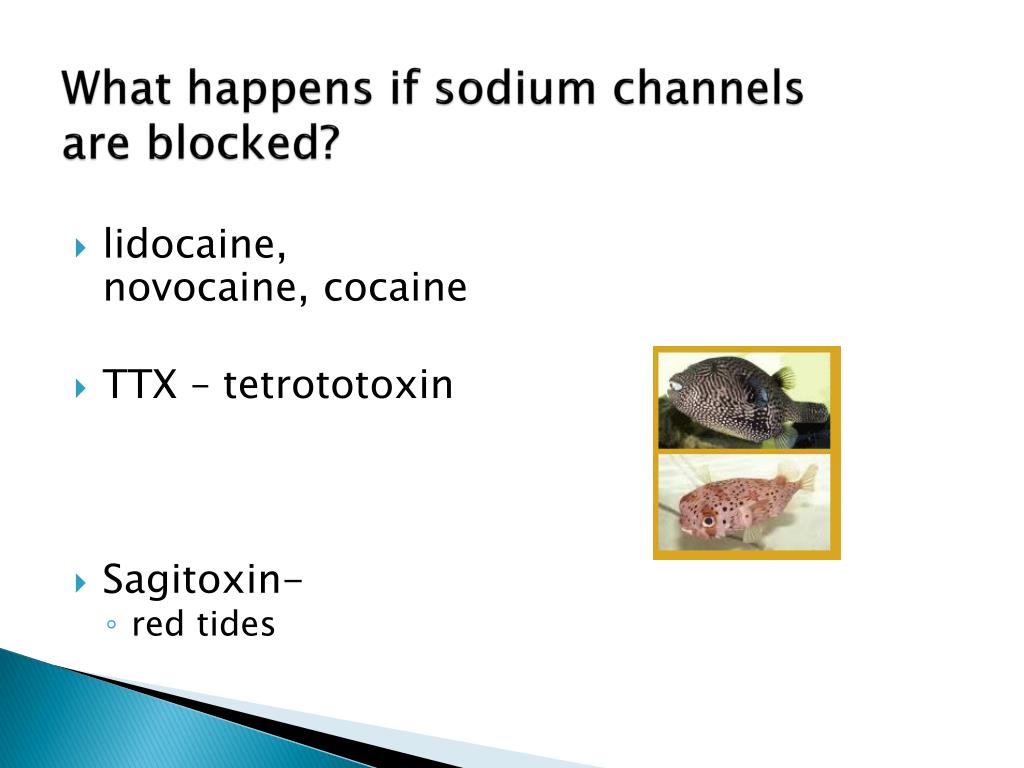

  32. What happens if sodium channels are blocked? • lidocaine, novocaine, cocaine • TTX – tetrototoxin • Sagitoxin- • red tides

  33. Concentration Gradient Electrical Gradient after the AP (+ intracellular)

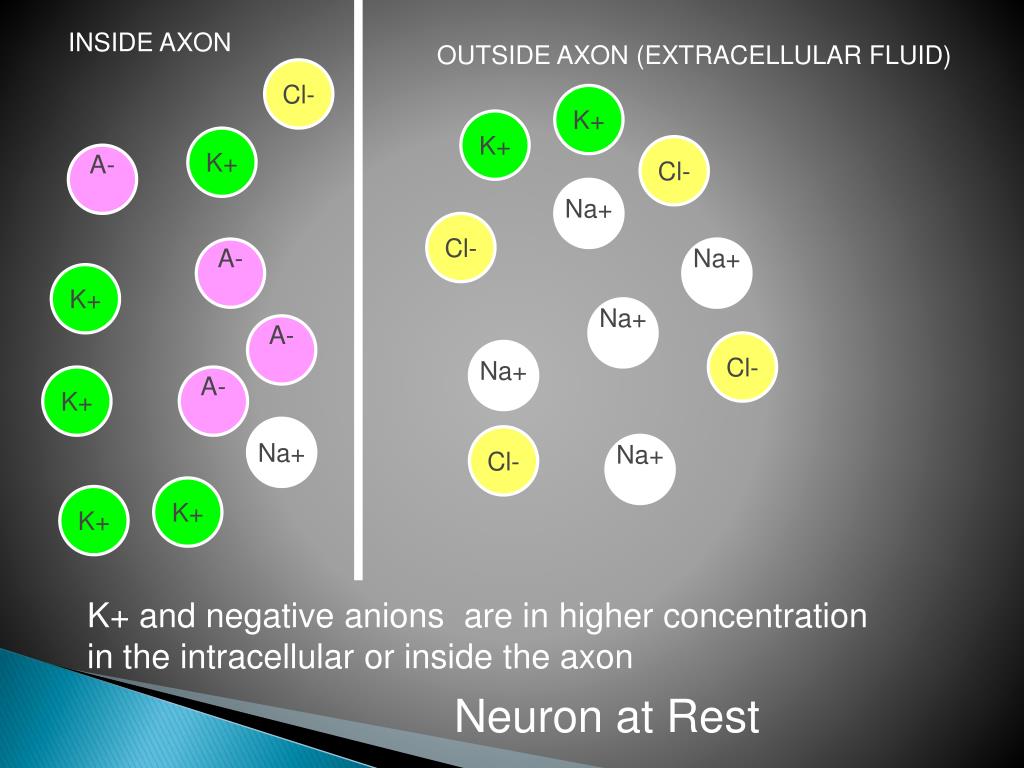

  34. INSIDE AXON OUTSIDE AXON (EXTRACELLULAR FLUID) Cl- K+ K+ K+ Cl- A- Na+ Cl- A- Na+ K+ Na+ A- Cl- Na+ K+ A- Na+ Cl- Na+ K+ K+ K+ and negative anions are in higher concentration in the intracellular or inside the axon Neuron at Rest

  35. Sodium-potassium pump – active force that exchanges 3 Na+ inside for 2 K+ outside

  36. INSIDE AXON OUTSIDE AXON (EXTRACELLULAR FLUID) Cl- Na+ K+ K+ Cl- A- Na+ Cl- Na+ A- Na+ K+ Na+ A- Na+ Cl- Na+ K+ A- K+ Na+ Na+ Cl- Na+ K+ K+ Na+ K+ and negative anions are in higher concentration in the intracellular or inside the axon After the action potential

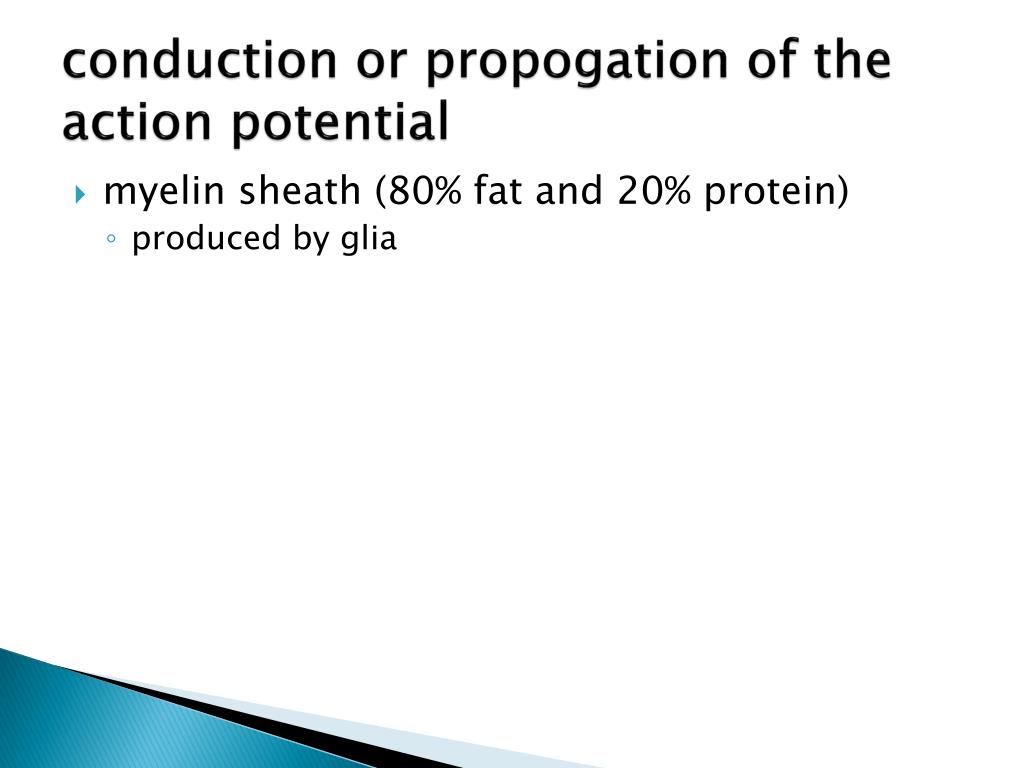

  37. conduction or propogation of the action potential • myelin sheath (80% fat and 20% protein) • produced by glia

  38. http://www.blackwellpublishing.com/matthews/channel.html

  39. nodes of ranvier

  40. conduction or propogation of the action potential • myelin sheath (80% fat and 20% protein) • produced by glia • nodes of ranvier

  41. nodes of ranvier

  42. conduction or propogation of the action potential • myelin sheath (80% fat and 20% protein) • produced by glia • nodes of ranvier • saltatory conduction (200 ft/sec)
