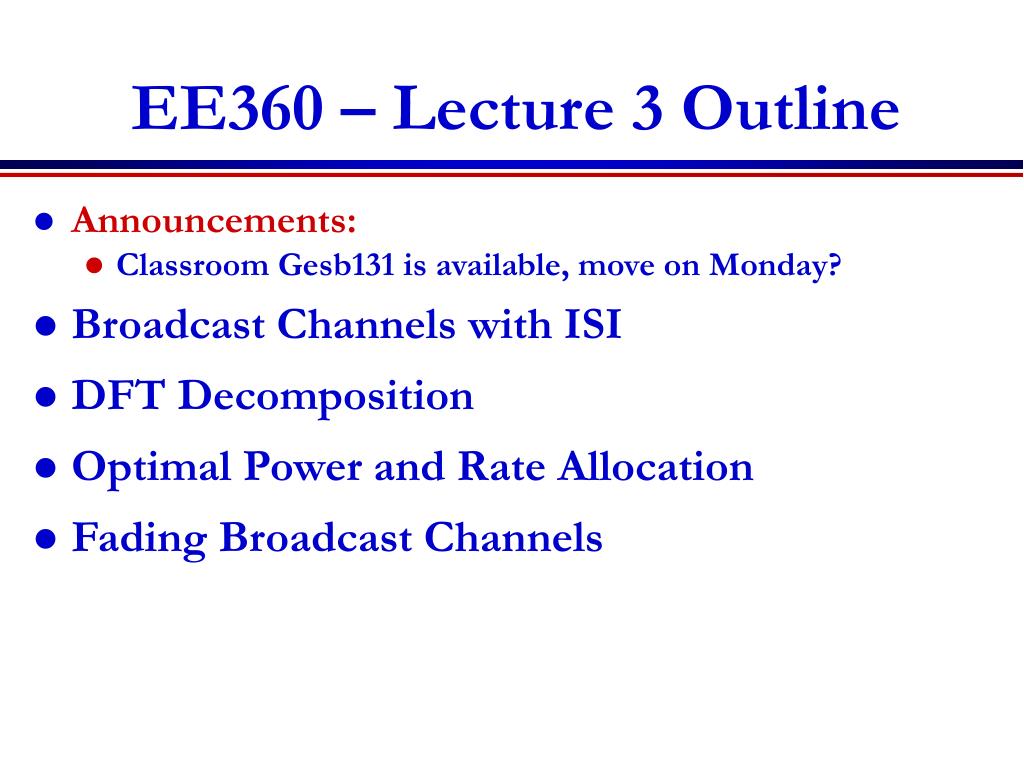

  1. EE360 – Lecture 3 Outline • Announcements: • Classroom Gesb131 is available, move on Monday? • Broadcast Channels with ISI • DFT Decomposition • Optimal Power and Rate Allocation • Fading Broadcast Channels

  2. Broadcast Channels with ISI • ISI introduces memory into the channel • The optimal coding strategy decomposes the channel into parallel broadcast channels • Superposition coding is applied to each subchannel. • Power must be optimized across subchannels and between users in each subchannel.

  3. H1(w) H2(w) Broadcast Channel Model w1k • Both H1 and H2are finite IR filters of length m. • The w1kand w2k are correlated noise samples. • For 1<k<n, we call this channel the n-block discrete Gaussian broadcast channel (n-DGBC). • The channel capacity region is C=(R1,R2). xk w2k

  4. 0<k<n Circular Channel Model • Define the zero padded filters as: • The n-Block Circular Gaussian Broadcast Channel (n-CGBC) is defined based on circular convolution: where ((.)) denotes addition modulo n.

  5. 0<j<n 0<j<n Equivalent Channel Model • Taking DFTs of both sides yields • Dividing by H and using additional properties of the DFT yields ~ where {V1j} and {V2j} are independent zero-mean Gaussian random variables with

  6. Parallel Channel Model V11 Y11 + X1 Y21 + V21 Ni(f)/Hi(f) V1n f Y1n + Xn Y2n + V2n

  7. Channel Decomposition • The n-CGBC thus decomposes to a set of n parallel discrete memoryless degraded broadcast channels with AWGN. • Can show that as n goes to infinity, the circular and original channel have the same capacity region • The capacity region of parallel degraded broadcast channels was obtained by El-Gamal (1980) • Optimal power allocation obtained by Hughes-Hartogs(’75). • The power constraint on the original channel is converted by Parseval’s theorem to on the equivalent channel.

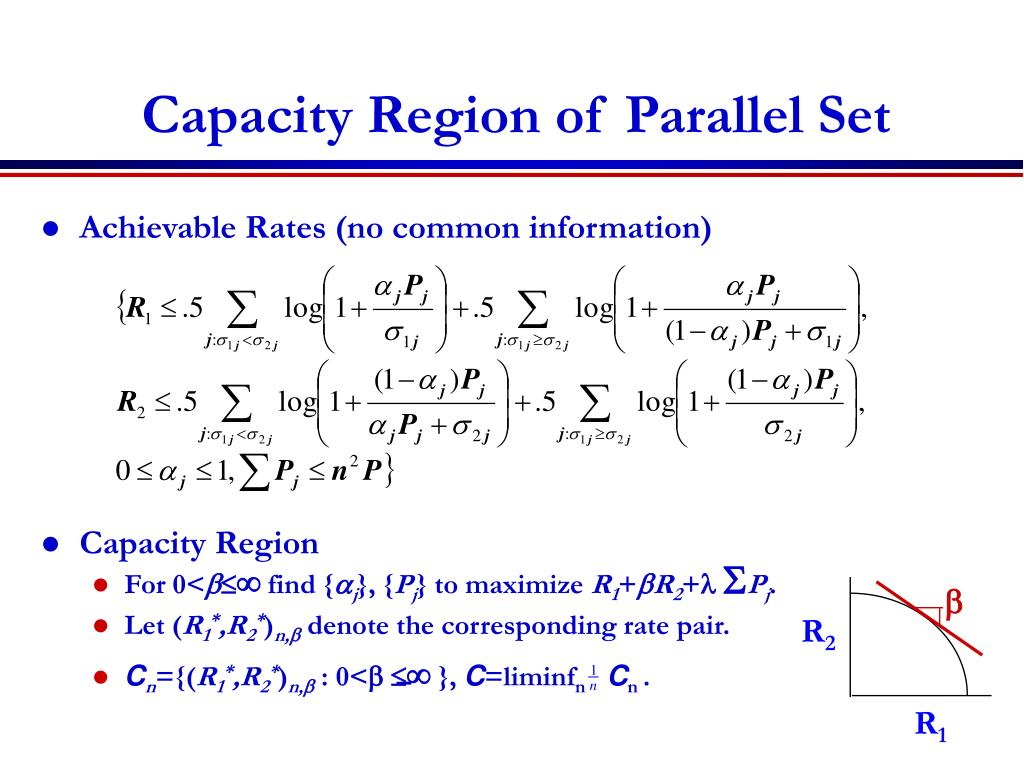

  8. Capacity Region of Parallel Set • Achievable Rates (no common information) • Capacity Region • For 0<b find {aj}, {Pj} to maximize R1+bR2+lSPj. • Let (R1*,R2*)n,b denote the corresponding rate pair. • Cn={(R1*,R2*)n,b : 0<b  }, C=liminfnCn . b R2 R1

  9. Limiting Capacity Region

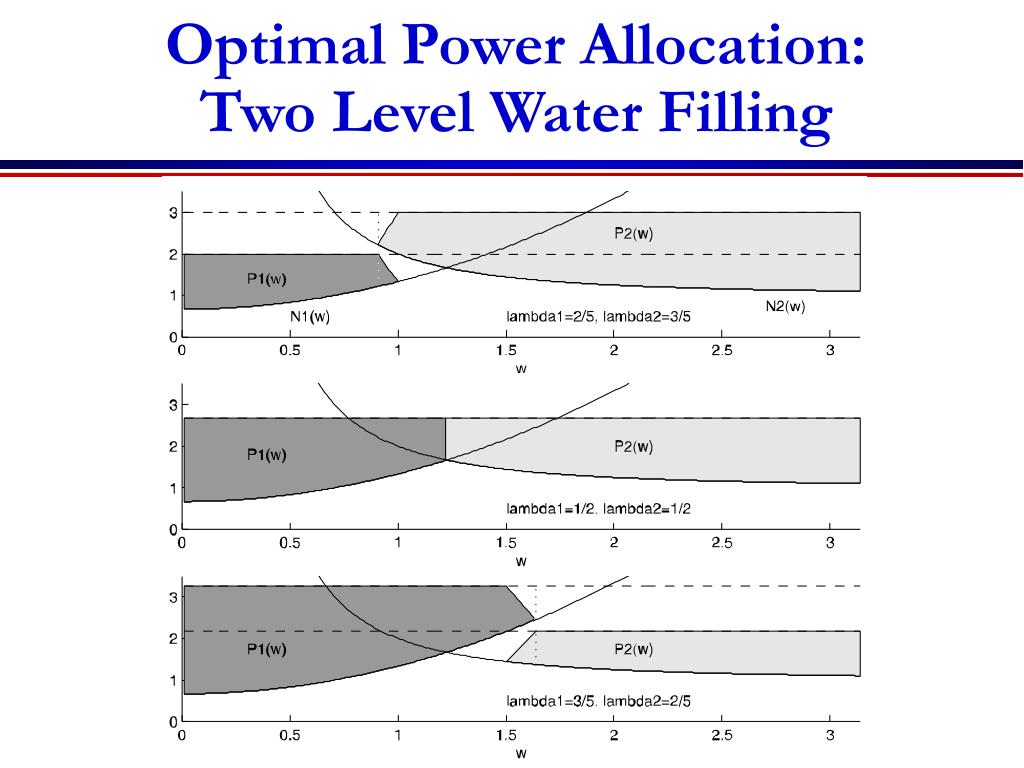

  10. Optimal Power Allocation:Two Level Water Filling

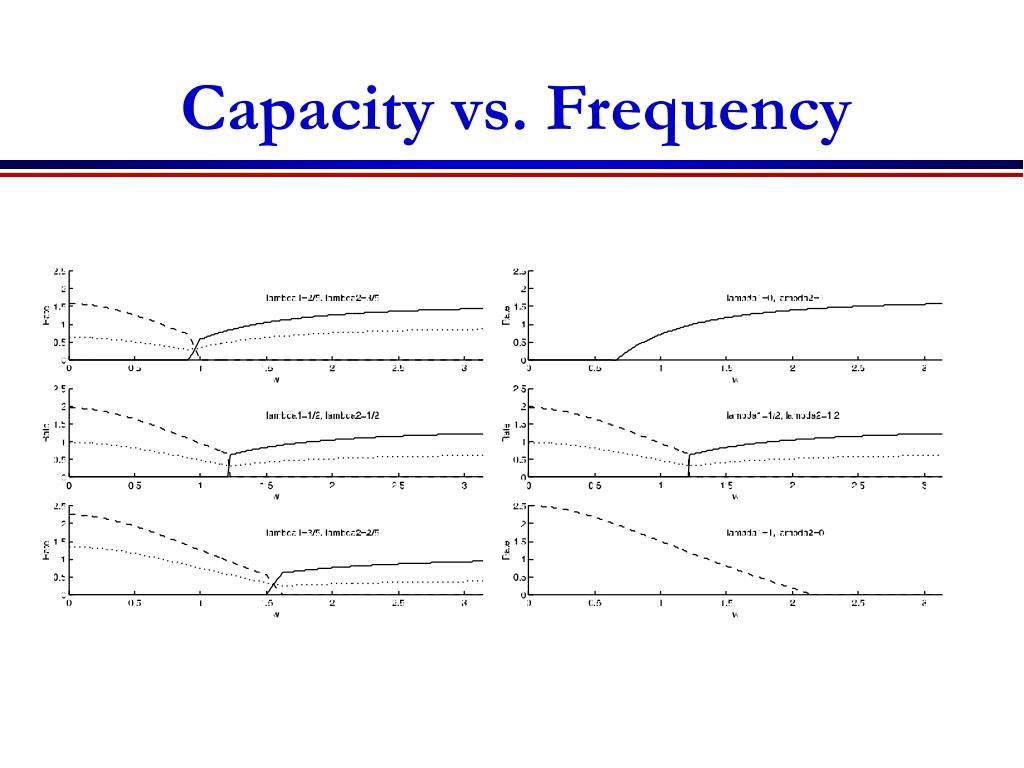

  11. Capacity vs. Frequency

  12. Capacity Region

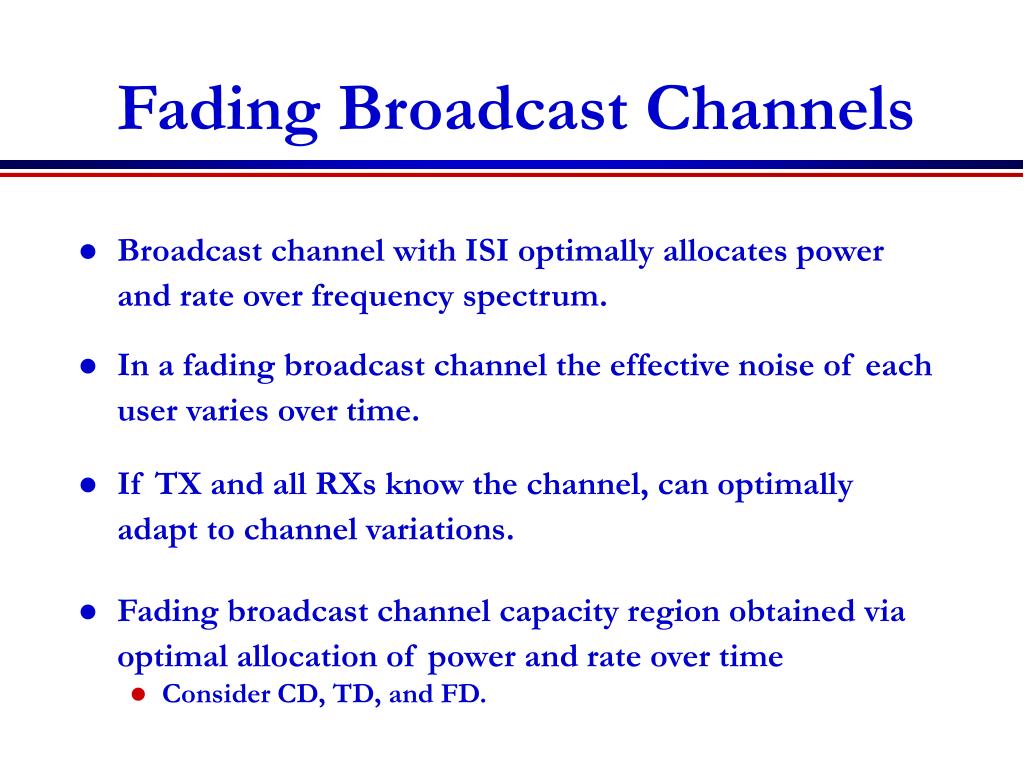

  13. Fading Broadcast Channels • Broadcast channel with ISI optimally allocates power and rate over frequency spectrum. • In a fading broadcast channel the effective noise of each user varies over time. • If TX and all RXs know the channel, can optimally adapt to channel variations. • Fading broadcast channel capacity region obtained via optimal allocation of power and rate over time • Consider CD, TD, and FD.

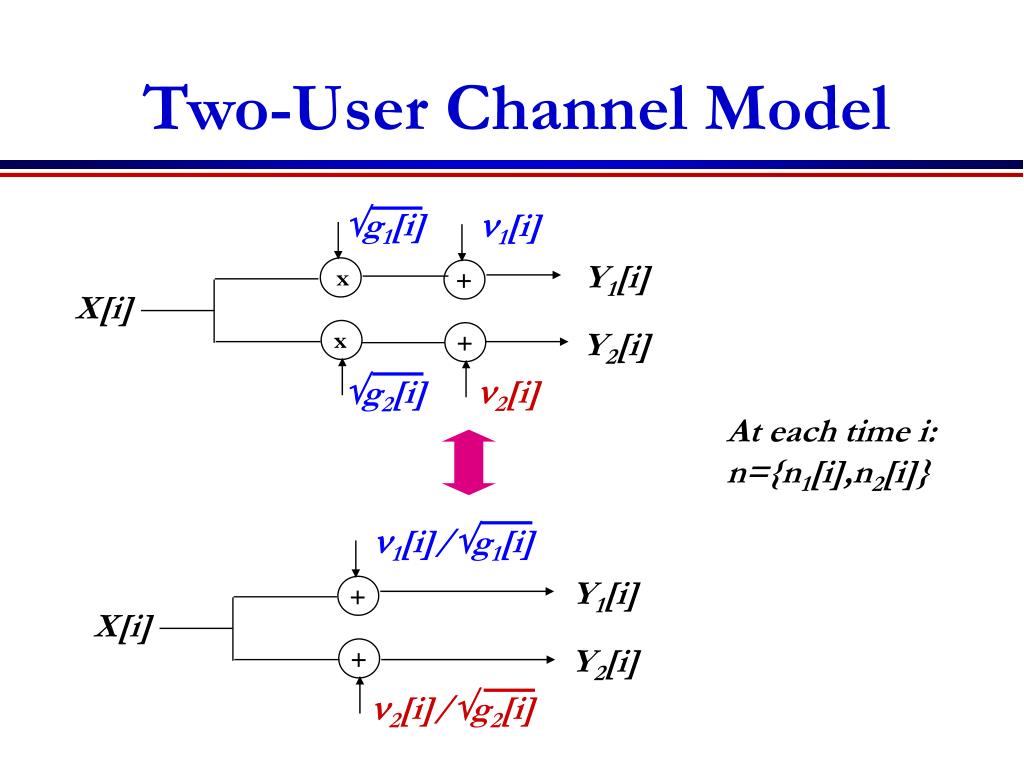

  14. + + + + Two-User Channel Model g1[i] n1[i] Y1[i] x X[i] Y2[i] x n2[i] g2[i] At each time i: n={n1[i],n2[i]} n1[i]/g1[i] Y1[i] X[i] Y2[i] n2[i]/g2[i]

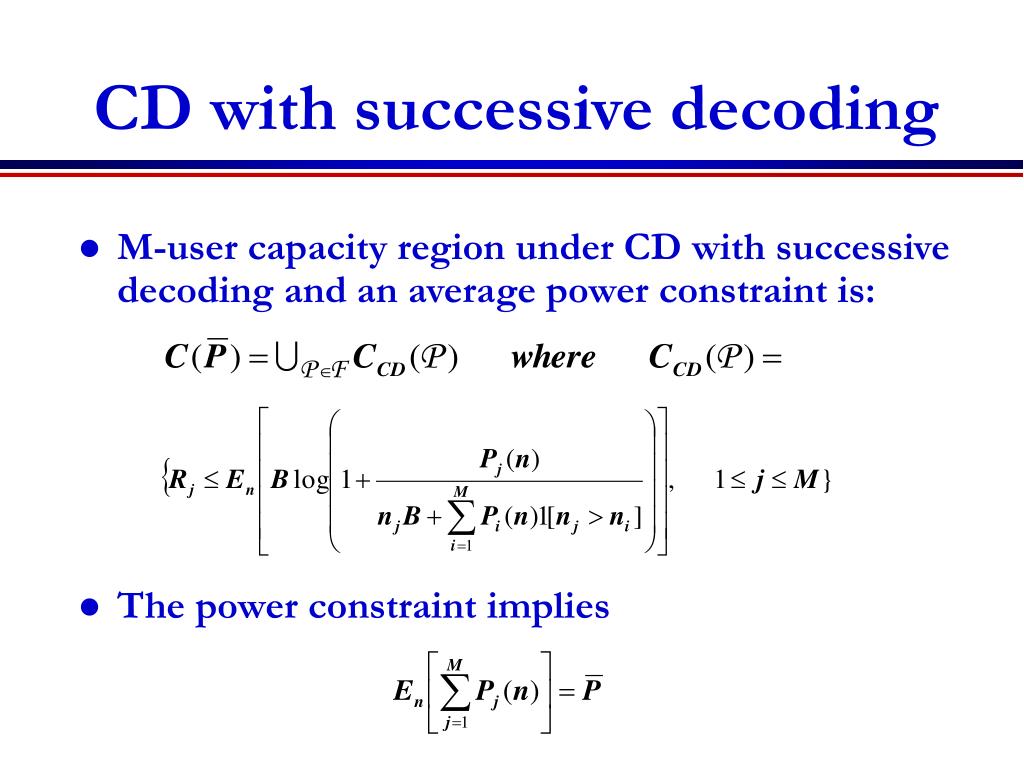

  15. CD with successive decoding • M-user capacity region under CD with successive decoding and an average power constraint is: • The power constraint implies

  16. Proof • Achievability is obvious • Converse • Exploit stationarity and ergodicity • Reduces channel to parallel degraded broadcast channel • Capacity known (El-Gamal’80) • Optimal power allocation known (Hughes-Hartogs’75, Tse’97)

  17. Capacity Region Boundary • By convexity, mRM+, boundary vectors satisfy: • Lagrangian method: • Must optimize power between users and over time

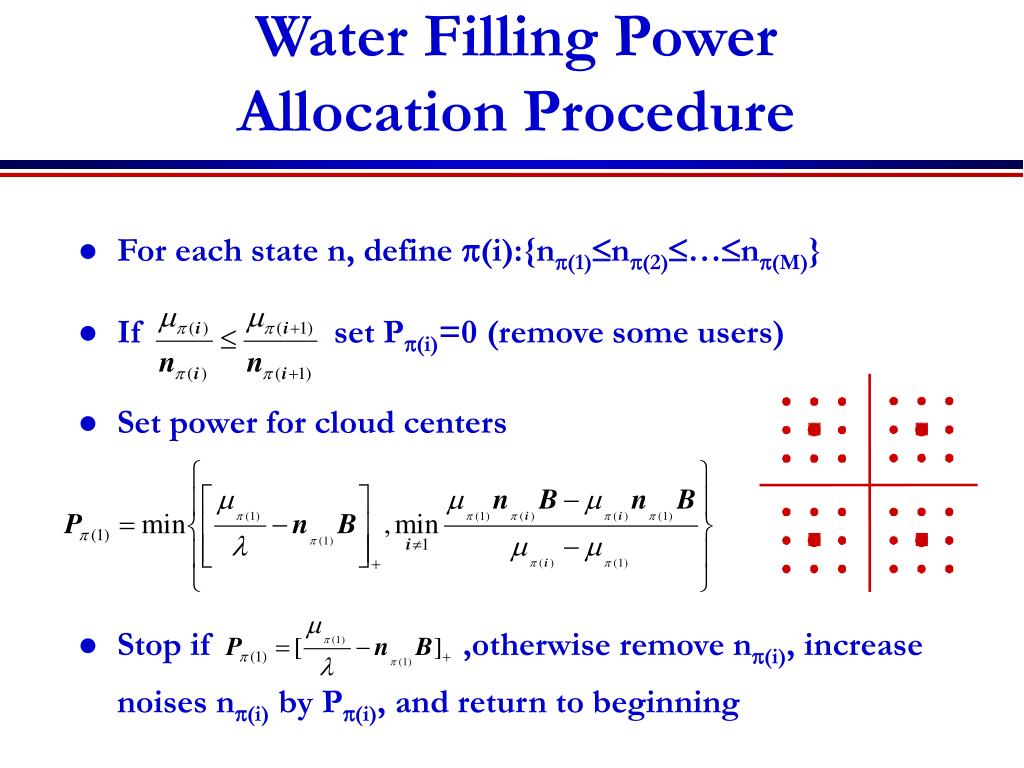

  18. Water Filling Power Allocation Procedure • For each state n, define p(i):{np(1)np(2)…np(M)} • If set Pp(i)=0 (remove some users) • Set power for cloud centers • Stop if ,otherwise remove np(i), increase noises np(i) by Pp(i), and return to beginning

  19. Time Division • For each fading state n, allocate power Pj(n) and fraction of time tj(n) to user j. • Achievable rate region: • Subject to • Frequency division equivalent to time-division

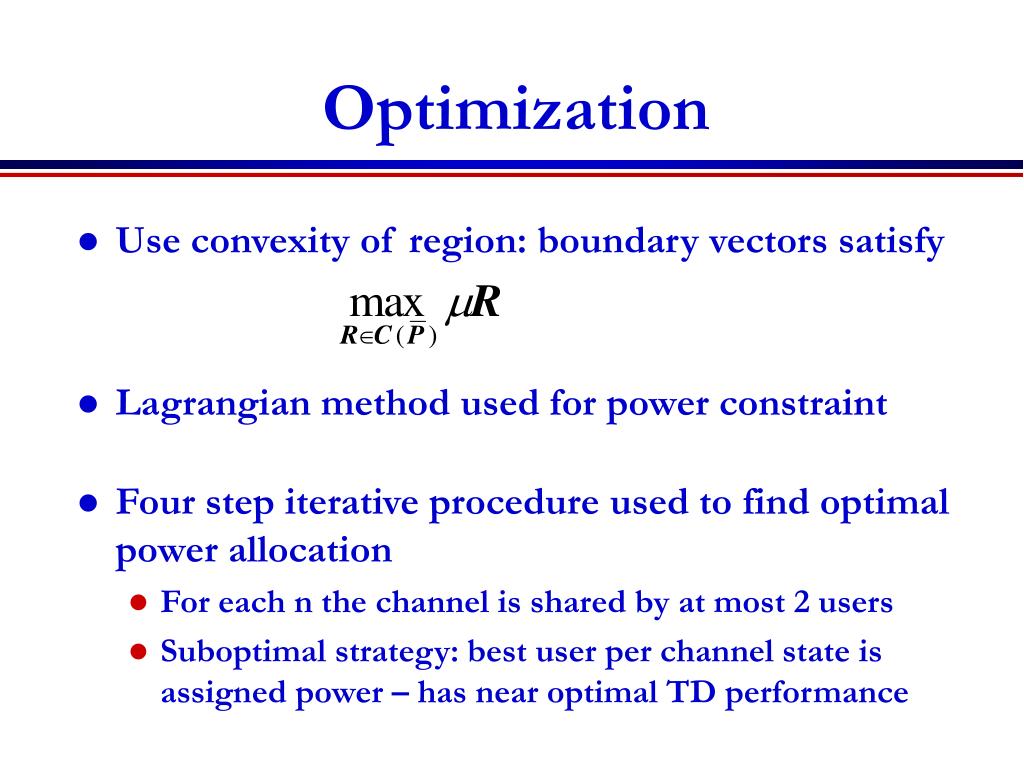

  20. Optimization • Use convexity of region: boundary vectors satisfy • Lagrangian method used for power constraint • Four step iterative procedure used to find optimal power allocation • For each n the channel is shared by at most 2 users • Suboptimal strategy: best user per channel state is assigned power – has near optimal TD performance

  21. CD without successive decoding • M-user capacity region under CD with successive decoding and an average power constraint is: • The best strategy for CDWO is time-division
