  1. Aim: How can we explain Einstein’s energy-mass relationship? Do Now: In the nucleus of any atom, there exists protons that are tightly packed together. How come they do not repel each other as any other positively charged objects would when brought close to one another?

  2. Strong Nuclear Force • Very strong (the strongest of the four forces) • Short ranged • Holds protons and neutrons (nucleons) in the nucleus together

  3. Atomic Mass Unit (u) • Also referred to as universal mass unit • 1/12 of a atom • 1 u = 1.66 x 10-27 kg What is the atomic mass of Carbon-12? = 12(1.66 x 10-27 kg) = 1.99 x 10-26 kg

  4. Energy-Mass Relationship • Energy and mass are equivalent E = mc2 • Units: Joules or eV • 1 u = 9.31 x 102 MeV • 1 MeV = 106 eV

  5. If mass is in kg, it converts to energy in J through the formula • E = mc2 • If mass is in u, it coverts to energy in MeV through the conversion • 1 u = 9.31 x 102 MeV

  6. What is the energy equivalent of the rest mass of a proton? Rest mass of a proton = 1.67 x 10-27 kg E = mc2 E = (1.67x10-27 kg)(3.00 x 108 m/s)2 E = 1.5 x 10-10 Joules

  7. What is the energy equivalent of a 60 kg boy? E = mc2 E = (60 kg) (3.00 x 108m/s)2 E = 5.4 x 1018 Joules

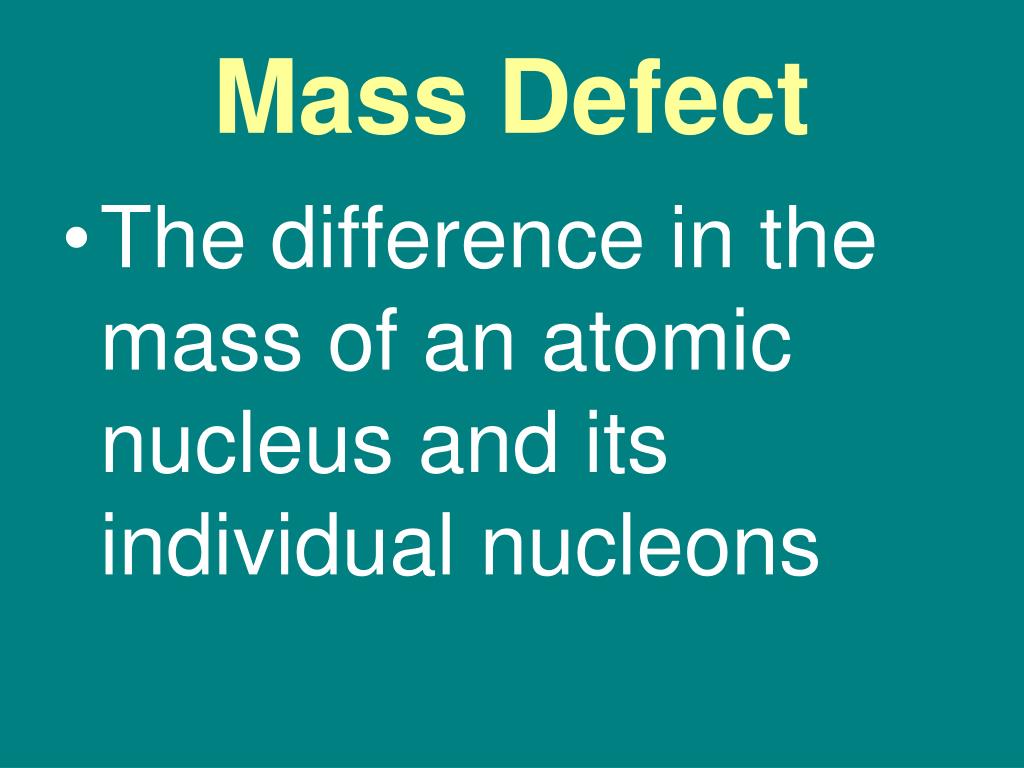

  8. Mass Defect • The difference in the mass of an atomic nucleus and its individual nucleons

  9. Mass of proton = 1.0073 u Mass of neutron = 1.0087 u Find the mass of 2 protons = 2(1.0073 u) + 2 neutrons = 2(1.0087 u) 4.0320 u

  10. The actual mass of is 4.0016 u What is the mass defect? 4.0320 u - 4.0016 u 0.0304 u

  11. Convert this mass defect to energy So why did some of the mass turn into energy?

  12. Binding Energy • Energy needed to bind nucleus together • This is the energy that goes into the strong nuclear force

  13. Mass Defect = Binding Energy This is part of Einstein’s Theory of Special Relativity Albert Einstein 1879-1955

  14. If a deuterium nucleus has a mass of 1.53 x 10-3 u less than its components, this mass represents an energy of 1.53 x 10-3 u x 9.31 x 102 MeV 1 u = 1.42 MeV

  15. When an electron and its antiparticle (positron) combine, they annihilate each other and become energy in the form of gamma rays. The positron has the same mass as the electron. Calculate how many joules of energy are released when they annihilate.

  16. m = mass of electron plus positron = 2 x (9.11x 10-31 kg) E = mc2 E = 2(9.11x10-31kg)(3.00x108m/s)2 E = 1.64 x 10-13 J

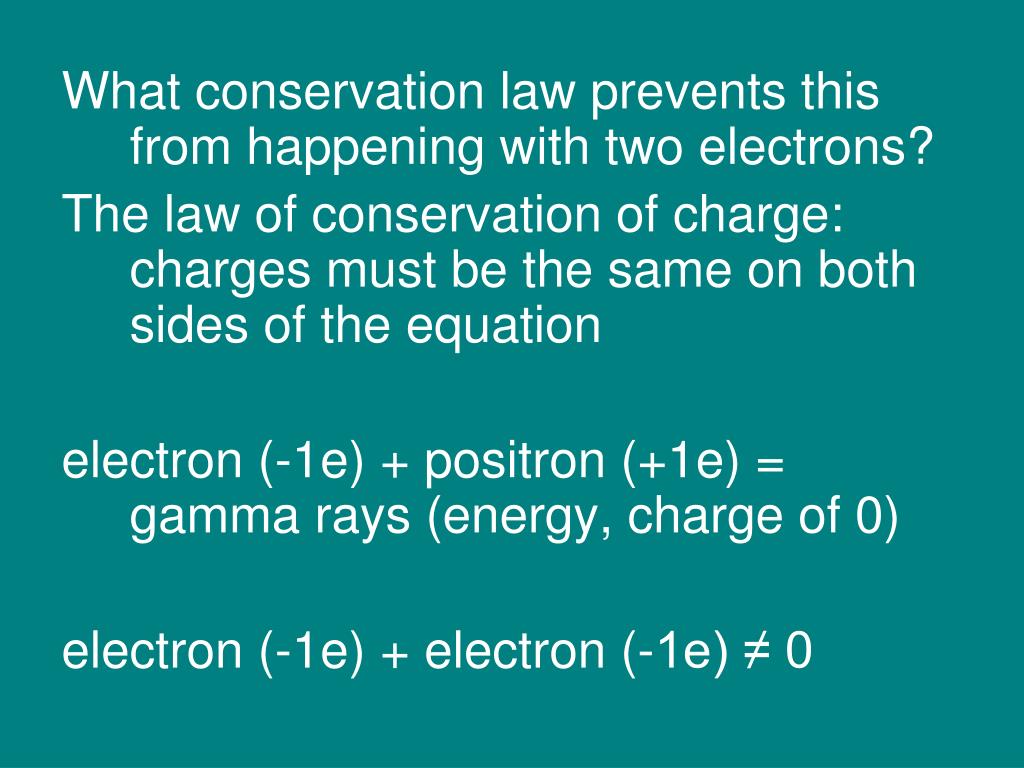

  17. What conservation law prevents this from happening with two electrons? The law of conservation of charge: charges must be the same on both sides of the equation electron (-1e) + positron (+1e) = gamma rays (energy, charge of 0) electron (-1e) + electron (-1e) ≠ 0
