  1. Label Assignment and Distribution Introducing MPLS Label Allocation, Distribution, and Retention Modes

  2. Outline • Overview • Label Distribution Parameters • Distributing Labels • Allocating Labels • Retaining Labels • Summary

  3. Label Distribution Parameters • Frame-mode MPLS architecture defines several label allocation and distribution parameters: • Per-platform label space • Unsolicited downstream label distribution • Independent label allocation control • Liberal label retention

  4. Label Distribution: Unsolicited Downstream • The label for a prefix is allocated and advertised to all neighbor LSRs, regardless of whether the neighbors are upstream or downstream LSRs for the destination.

  5. Label Allocation: Independent Control • An LSR can always assign a label for a prefix, even if it has no downstream label. • Independent control can be used only for LSRs with Layer 3 capabilities.

  6. Label Retention: Liberal Retention Mode • Each LSR stores the received label in its LIB, even when the label is not received from a next-hop LSR. • Liberal label retention mode improves convergence speed.

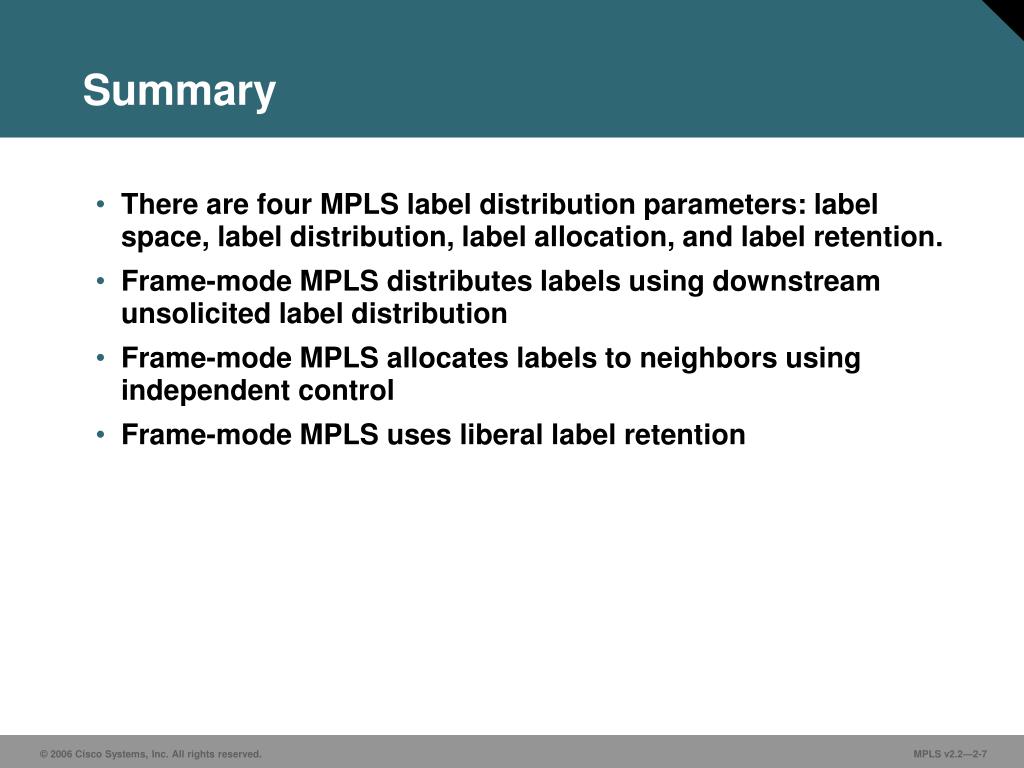

  7. Summary • There are four MPLS label distribution parameters: label space, label distribution, label allocation, and label retention. • Frame-mode MPLS distributes labels using downstream unsolicited label distribution • Frame-mode MPLS allocates labels to neighbors using independent control • Frame-mode MPLS uses liberal label retention
