Crystallization. Nucleation Tendency for random tangled molecules in the melt to become aligned and form small ordered regions (nuclei) Homogeneous Heterogeneous Growth r = v t Spherulite radius v: growth rate Growth rate strongly depends on the crystallization temperature.

Download Presentation

Crystallization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Crystallization • Nucleation • Tendency for random tangled molecules in the melt to become aligned and form small ordered regions (nuclei) • Homogeneous • Heterogeneous • Growth • r = v t • Spherulite radius • v: growth rate • Growth rate strongly depends on the crystallization temperature

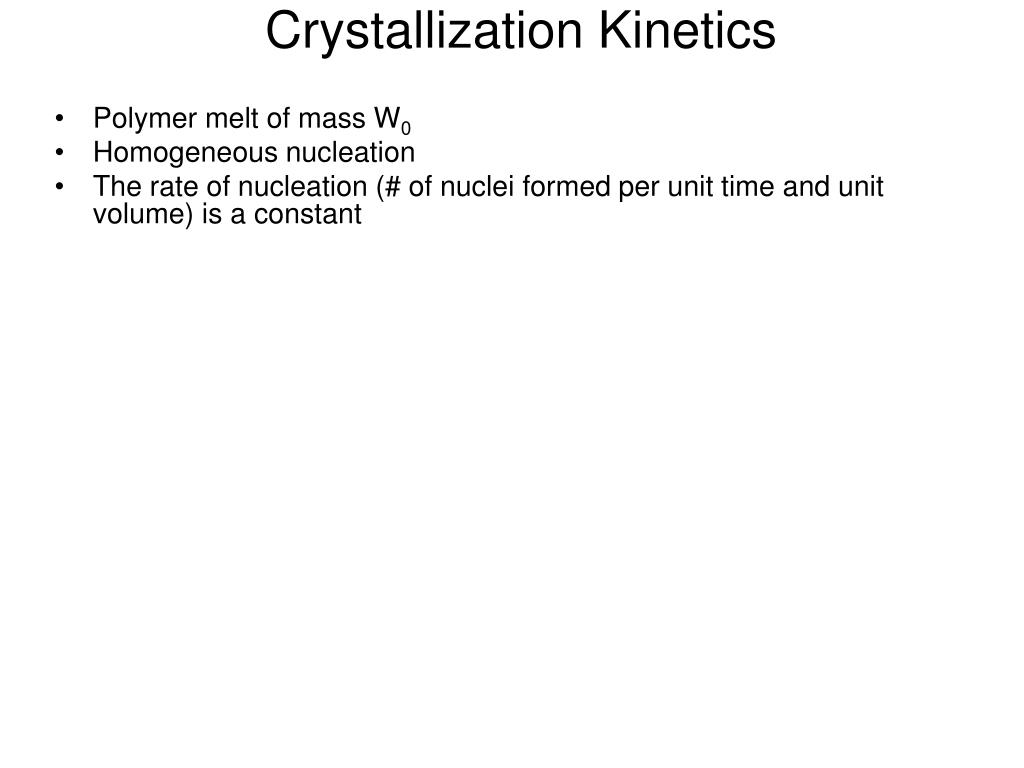

  2. Crystallization Kinetics • Polymer melt of mass W0 • Homogeneous nucleation • The rate of nucleation (# of nuclei formed per unit time and unit volume) is a constant

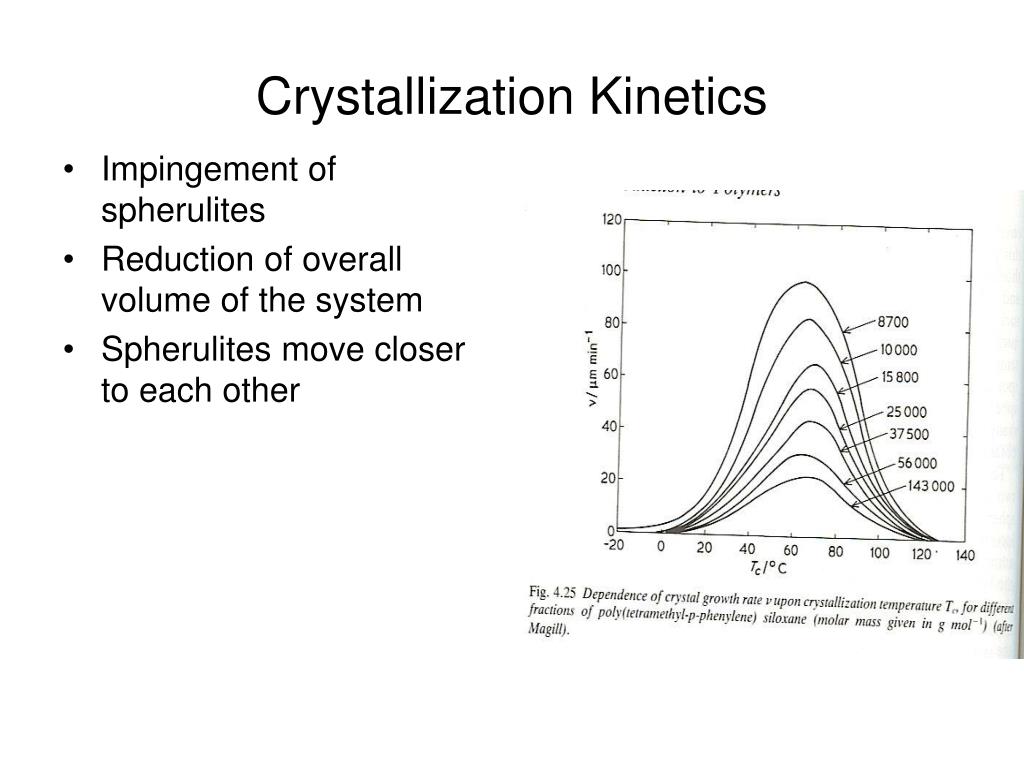

  3. Crystallization Kinetics • Impingement of spherulites • Reduction of overall volume of the system • Spherulites move closer to each other

  4. Molecular mechanism of crystallization Experimental Observation • Polymer crystal are usually thin and lamellar when crystallized from dilute solution and melt • Lamellar thickness and crystallization temperature, 1/DT (where DT =Tc-Ts) • Chain folding (dilute solution and maybe from melt) • Growth rate of polymer crystals highly depend on Tc and molar mass of the polymer

  5. Crystallization Kinetics secondary nucleation on a pre-existing crystal surface

  6. Melting • Characteristics of the melting behavior of polymers • Not possible to define a single melting temperature for a polymer • Depends on the specimen history, particularly the temperature of crystallization • Depends on the rate of heating

  7. Melting • Tmo concept, equilibrium melting temperature – an infinitely large crystal • In general Tm > Tc • The line Tm = Tc represent the lower limit of the melting behavior • The implication of Tmo

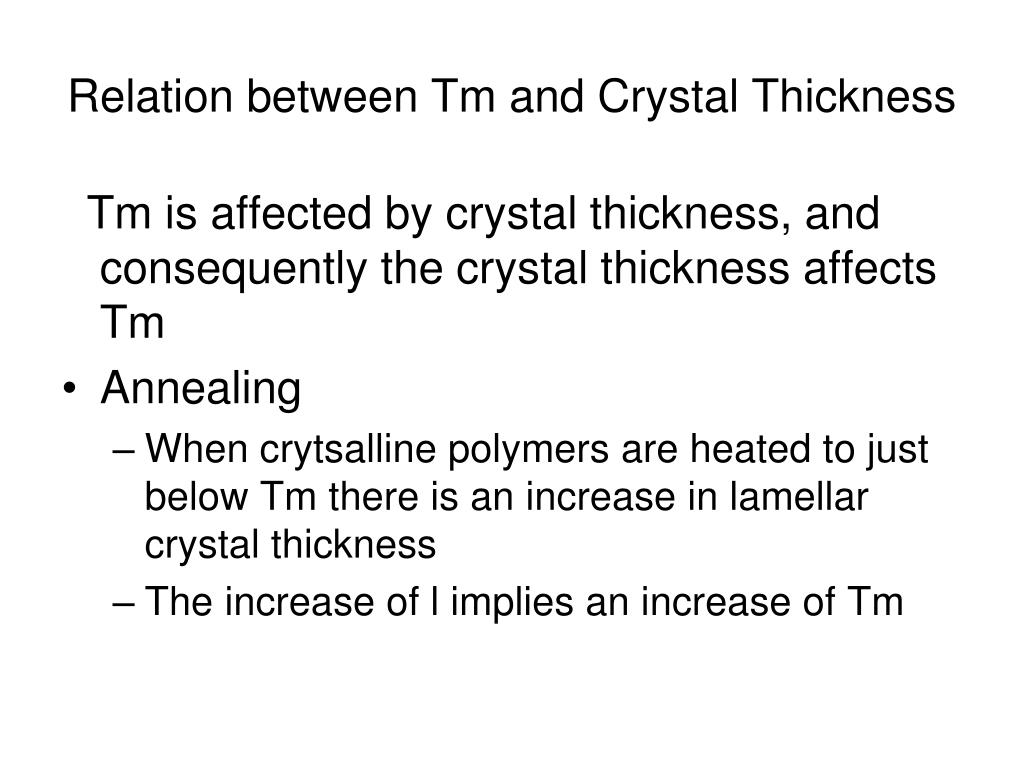

  8. Relation between Tm and Crystal Thickness Tm is affected by crystal thickness, and consequently the crystal thickness affects Tm • Annealing • When crytsalline polymers are heated to just below Tm there is an increase in lamellar crystal thickness • The increase of l implies an increase of Tm

  9. Factor affecting Tm • For a specific polymer system, Tm depends on molar mass and degree of branching • Chain ends and braches: impurities which depress Tm • For different polymers, chemical structure determines Tm • Stiffness of the main chain • More flexible  lower Tm • -O- or –CO-O- increase flexibility • Phenylene group increases stiffness • Polar group such as amide linkage which forms intermolecular hydrogen bonding • Type and size of any side group

  10. Volume change on Tm

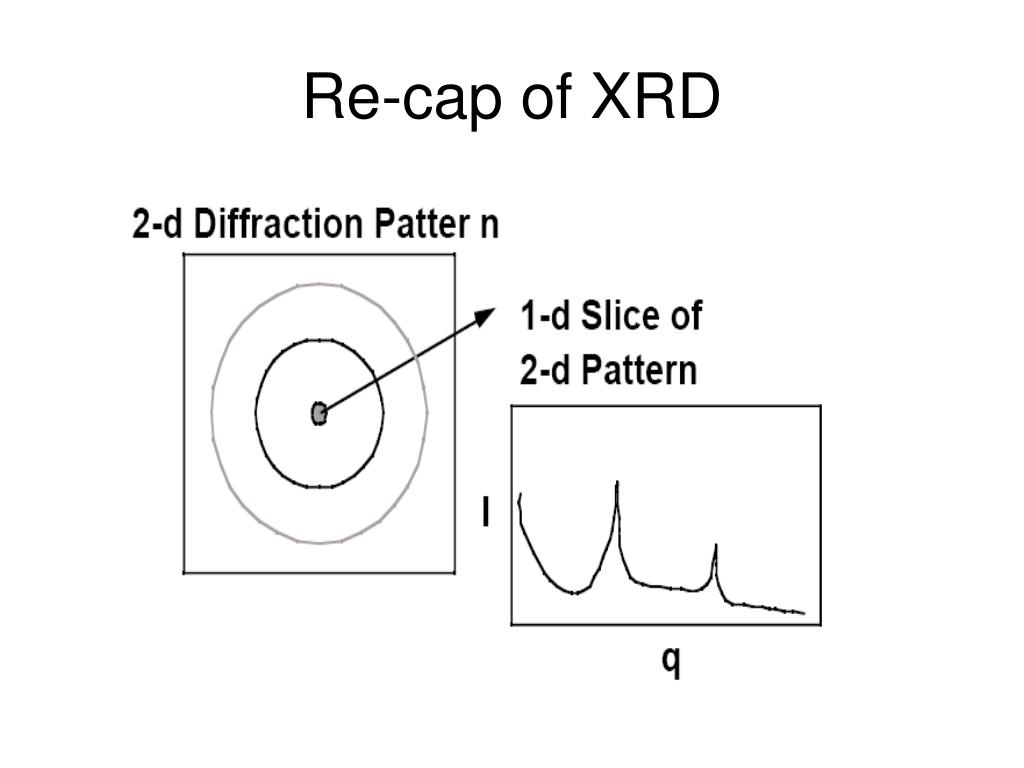

  11. Re-cap of XRD

  12. Amorphous Polymers • Examples of flat-film x-ray photographs • X-ray diffraction pattern – shown the structure in amorphous polymer is random • PET and PP • Crystallize slowly • Amorphous when rapidly quenched • Crystallization can be induced by annealing the quenched polymer at an elevated temperature

  13. Glass Transition • Tg is the temperature at which the polymer undergoes the transformation from a rubber to a glass • Definition: Specific volume vs T • Depends on the cooling rate • The lower cooling rate, the lower Tg

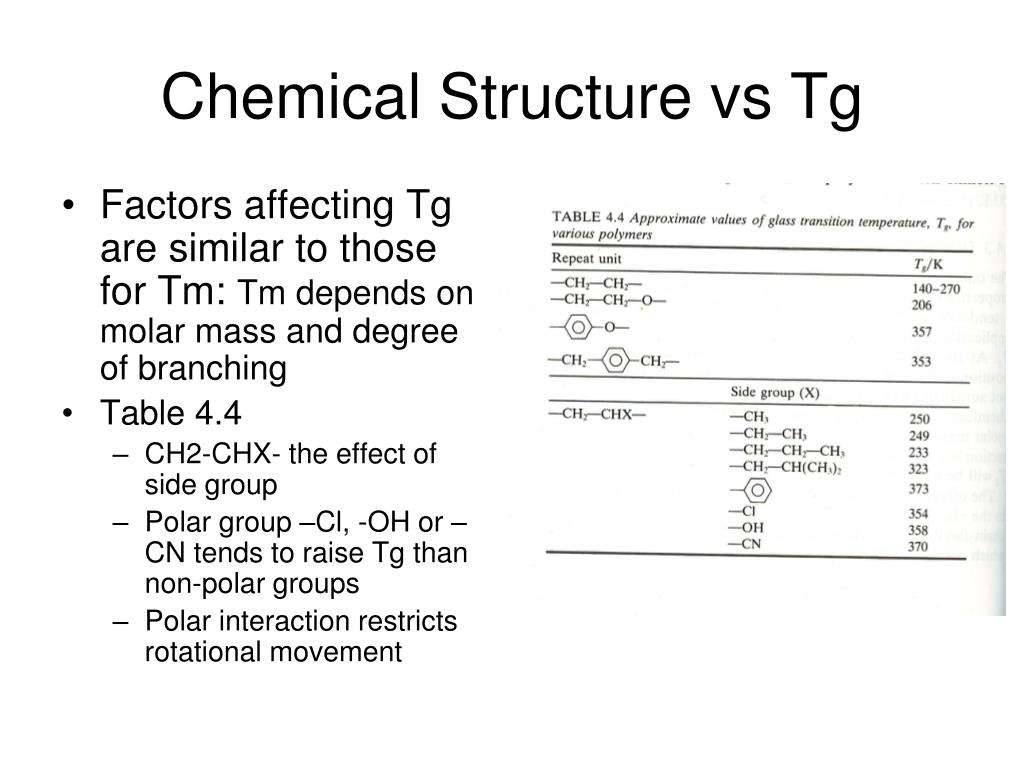

  14. Chemical Structure vs Tg • Factors affecting Tg are similar to those for Tm: Tm depends on molar mass and degree of branching • Table 4.4 • CH2-CHX- the effect of side group • Polar group –Cl, -OH or –CN tends to raise Tg than non-polar groups • Polar interaction restricts rotational movement

  15. Tg & Tm • Volume change – Dilatometry

  16. Tab DSC and DTA

  17. Tg & Tm • Differential thermal analyzer (DMA) • Ref. such as Alumina • At const. rate of T increase • Endotherm: Tm • Small amount of sample, fast data and accuracy • Disadv: weak signal for crystalline • Heat change – Differential scanning calorimetry (DSC) • Keep temperature of sample the same as that of Reference • Monitor the current flow

  18. DSC

  19. Tg and Tm similarity Tg = 0.5 to 0.8 Tm

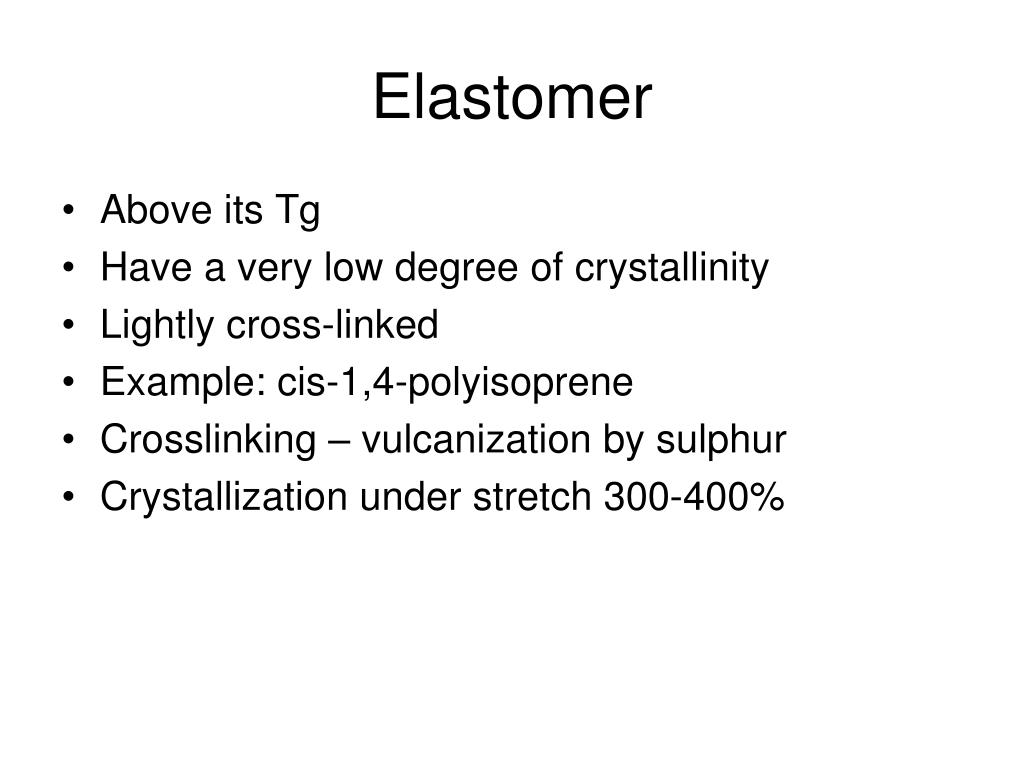

  20. Elastomer • Above its Tg • Have a very low degree of crystallinity • Lightly cross-linked • Example: cis-1,4-polyisoprene • Crosslinking – vulcanization by sulphur • Crystallization under stretch 300-400%

  21. Thermoplastic elastomers • Behave like elastomer without the necessity of chemical crosslink • Crosslink is physical, not chemical in nature • Thermoplastic at elevated temperature; elastomer when cooled down to ambient temperature • Reversible

  22. Thermoplastic elastomer • Thermoplastic PU elastomer: • PU: hard segment • Tends to aggregate to give ordered crystalline domain w/ possibility of forming hydrogen bonding • Can be disrupted by heating the materials to its processing temperature orby the action of a solvent • Polyol: soft segment • Above their Tg and remains amorphous at ambient • Can be moulded • Similar behavior found in segmented polyester copolymer

  23. ABA-tri-block copolymer • A: glassy • B: rubbery (polydiene such as polybutadiene or polyisoprene) • A-B incompatible on the molecular level because of their different chemical type • Flexible polydiene linked by covalent bonds to polystyrene • When heated up, PS-rish domain become disrupted and materials can be processed as a normal thermoplastic
