  1. Network Manager DMS Release 3 New FeaturesMartin Bass ABB Annual Users’ Group Meeting August 27 – 31, 2006

  2. Release 3 (2006) New Features • New features for Network Manager DMS Release 3 • Consult release notes for details • Some features may require additional license fee • Release numbering has changed back to a numbered version, to be consistent with Network Manager suite of products

  3. Release 3 New Features • Double click brings up outage detail in OMI • Right mouse in OMI status dialog brings up menu • Drag outage and drop onto crew to assign • netCADOPS call entry will allow non-customer calls to be tied to street intersection • Crew Status Dialog changes • Security check changes • Add Cogenerator • Advanced Switching Order enhancements

  4. Release 3 New Features, 2 • ICCP Interface to SCADA • Color by Planned • Split Mode Architecture • Show Selected Conductors • Independent symbol scaling • Admin database changes • Bus bar changes • Data maintenance • Mobile Data Integration

  5. Right Mouse Menu in OMI Status Dialog • Right click on a selected outage • Actions menu will appear

  6. Drag Outage and Drop Onto Crew to Assign • Left click outage on outage status dialog • Drag outage and drop onto crew status dialog • ‘Fast Assign’ is done automatically

  7. Non-customer Call Entry Street Intersection • Requires street intersection table for each transformer • Table holds closest transformer for each intersection • User enters two streets • Transformer automatically associated with value • If multiple matches, first transformer will be used • Dispatcher may have to correct, if needed.

  8. New Entry Area in Non-Customer Call

  9. Intersection Popup • User Presses Find or lookup • List of matching intersections pop up • User Selects an intersection

  10. Street Intersection • Intersection and City automatically populated • Transformer ID added automatically behind the scenes

  11. Non-customer Call Shows in OMI • Non-customer call is automatically tied to transformer • Call is locatable

  12. Cause and Equipment for Non-Customer Calls

  13. Crew Status Dialog Changes • Show feeder and substation on crew status dialog • Toggle to filter logged off crews

  14. Crew Status Dialog Changes • Ability to change work operation center in OMI • Set current Operation Center from Crew Status dialog • Toggle to filter crew status dialog by Operation Center • Operation center filtered by Ormap login

  15. Do Not Tie/Parallel Tag • Special connectivity tag • Can be placed on any tie switch • Prevents a parallel from being made • Allows switch to be operated if de-energizing or energizing

  16. Security Checking – Do not Tie • Do not tie tag

  17. Security Checking – Phase Difference • Check for phase angle difference • Nominal phase angle trace from source(s) • Does not use UBLF • Accounts for 30 deg phase shifts in wye-delta, delta-wye transformers • Warns operator when making parallel if circuits do not phase because of transformer connections • Warning issued if over limit

  18. Automatic Throwover Warnings • Warning when switch in an ATO will operate due to energization change

  19. Add Temporary Generator • Similar to add generator • Prompts user for temporary generator information before adding

  20. Safety Document Includes Clearance Tracking • Top window shows summary of tag steps in switching plan • Middle window shows clearance status for each crew • Bottom window shows details of clearance selected in middle window

  21. Advanced Switch Order Templates • Templates can now be saved under area of responsibility • User selects a single AOR from a tree

  22. Advanced Switch Order Templates • Warning issued if steps not in selected sub area

  23. ICCP SCADA Interface • ICCP – Inter Control Center Protocol (TASE.2) • Industry standard for EMS to EMS communications • Set of conformance blocks define functions supported • Release 3 implementation supports • Incoming status values • Incoming analog values

  24. Supported ICCP Conformance Blocks • Block 1 (periodic data transfer) • Data can be grouped to be transferred at different intervals • Block 2 (exception reporting) • Used for status changes • Only changes are sent • Includes periodic sending of entire data set • Block 5 (Device control). Future release. Will also support two-way tagging.

  25. Unsupported ICCP Conformance Blocks • The following blocks will not be supported • Block 3 (Block data transfer) • Block 4 (Information messages) • Block 6 (Program Control) • Block 7 (Event reporting) • Block 8 (Additional User Objects) • Block 9 (Time Series Data)

  26. Typical Configuration Diagram ICCP Server (Windows) SCADA System ICCP Server NM DMS Application Server SCADA System

  27. Bilateral Tables • ICCP maps point names to Network Manager DMS names via Bilateral Tables • SCADA system has table to map point name to ID that is sent over the wire • Network Manager DMS has table to map ID sent over the wire to Device ID • ID sent over the wire is determined by mutual agreement

  28. ICCP Implementation Details • Separate Windows server runs SISCO MMS-Ease Software • Communicates to Network Manager DMS Server via Smart Sockets

  29. Color by Planned • New coloring option: • Color by Planned • Separate colors for: • In Service • Planned addition • Planned deletion

  30. Color By Conductor Capacity • Color by conductor rating • Colors are user configurable

  31. Color By Conductor Capacity Margin • Color by conductor rating less results of load flow (requires load flow option) • Colors are user configurable

  32. Show Selected Conductors • Tool to highlight conductors of a given type

  33. Select Conductors, press OK

  34. Selected Conductors are Highlighted

  35. Independent Symbol Scaling • User can increase or decrease symbols according to category • Category defined in symbol_category table

  36. Select Symbol to resize from pulldown

  37. Press Increase/decrease Size Button

  38. Press ‘G’ Button to Reset Symbol Size

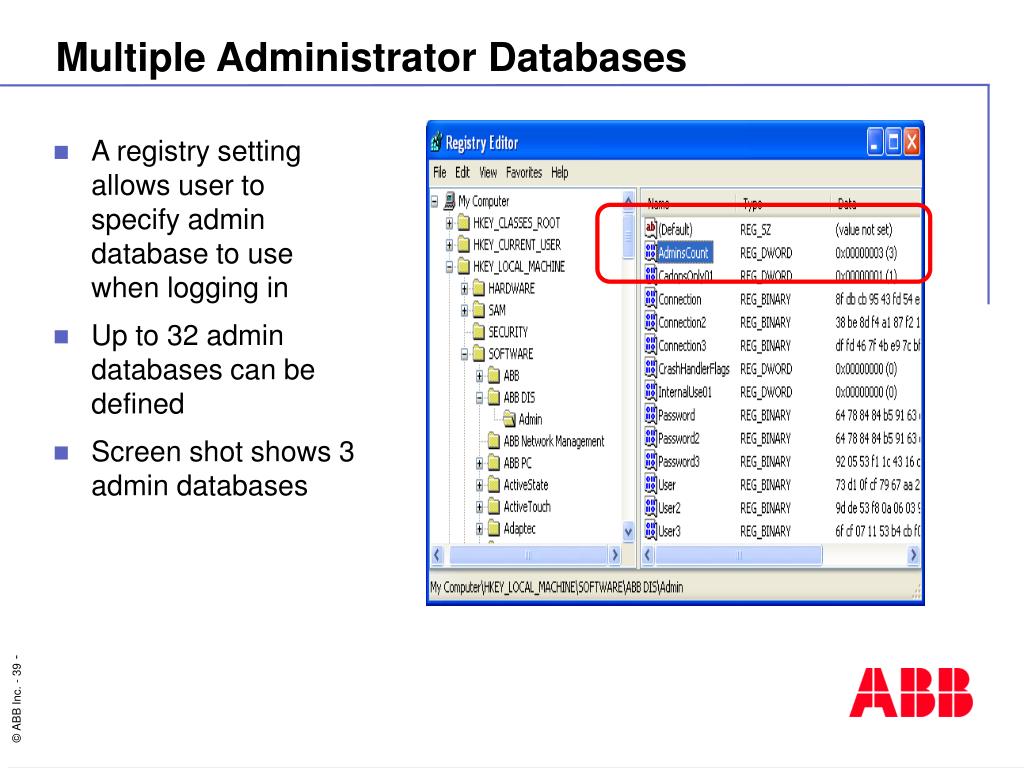

  39. Multiple Administrator Databases • A registry setting allows user to specify admin database to use when logging in • Up to 32 admin databases can be defined • Screen shot shows 3 admin databases

  40. Multiple Administrator Databases • User is presented with menu of admin databases to select when logging in

  41. Bus Bar Line Style • New busbar line style defined • Defined by bus_bar attribute in line_type table • Old line style table no longer supported • Bus_bar attribute in line table no longer supported • Bus bar nodes being phased out

  42. Data Maintenance • Merge data maintenance to common code base • Data Maintenance login authority • Add and delete equipment with on-line incremental update • Edit and specify equipment properties with on-line incremental update • Includes ATOs

  43. DM Login Authority • User’s login account must be given DM authority • User chooses data maintenance GUI at login • DM GUI is fully functional but not intended for operations

  44. DM Login Authority in Database • Add record to ADM_USER_CLASSES table • Record contains the following information: • USR_ID = login user id • CLS_CODE = ‘DM’

  45. Logging into Data Maintenance • Check the Data Maintenance box • Select the Operator from the pull down list • Note: Pull down list of operations only shows operators with Data Maintenance authority

  46. Data Maintenance GUI • Ormap title bar indicates that operator is in data maintenance

  47. DM Login Authority in Database • Select Toolbars | Components to get the component editing toolbar • Component Editing toolbar appears as shown below

  48. DM Login Authority in Database • Select Toolbars | DM Specials to get the data maintenance specials editing toolbar • DM Specials Editing toolbar appears as shown below

  49. Adding a Line • Select the Line icon on the DM component toolbar • Hold the cursor down at the starting position of the line • Drag it to the end node position and release • New line is created

  50. Data Maintenance Operator Warning • Operator is warned when a data maintenance operation is performed • Operator can choose to ignore warnings • Remember that all data maintenance operations go to all operational consoles immediately
