Presentation Transcript


  1. Scott Pickett – WW Informix Technical Sales For questions about this presentation contact: spickett@us.ibm.com A Better Install

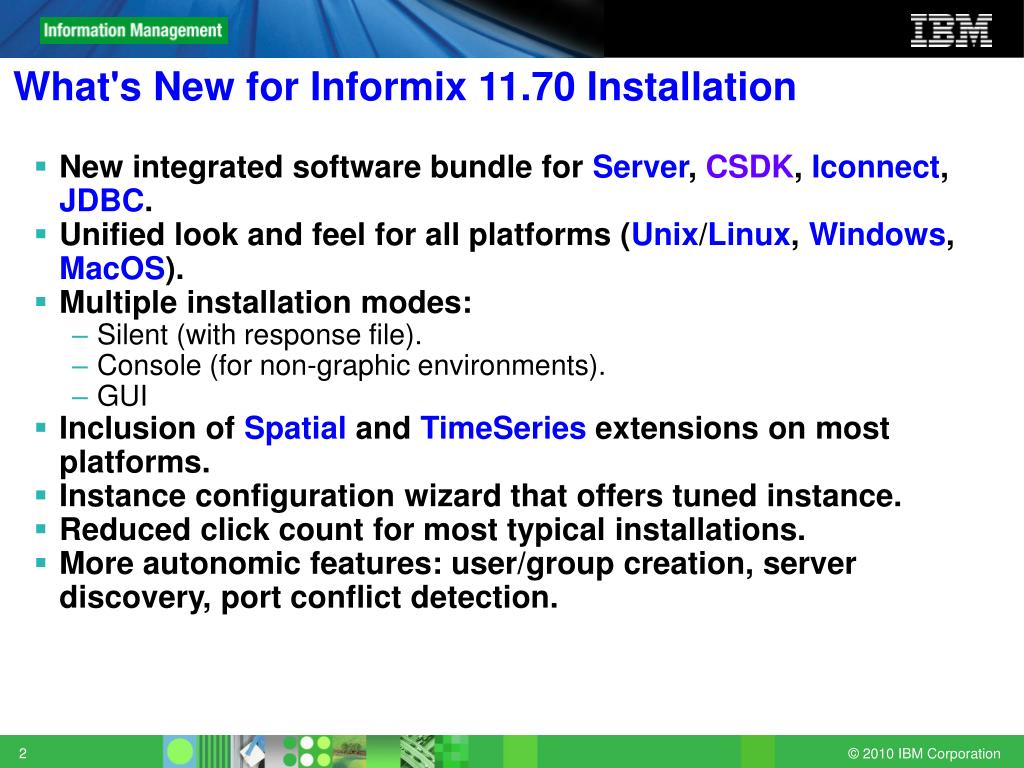

  2. What's New for Informix 11.70 Installation • New integrated software bundle for Server, CSDK, Iconnect, JDBC. • Unified look and feel for all platforms (Unix/Linux, Windows, MacOS). • Multiple installation modes: • Silent (with response file). • Console (for non-graphic environments). • GUI • Inclusion of Spatial and TimeSeries extensions on most platforms. • Instance configuration wizard that offers tuned instance. • Reduced click count for most typical installations. • More autonomic features: user/group creation, server discovery, port conflict detection.

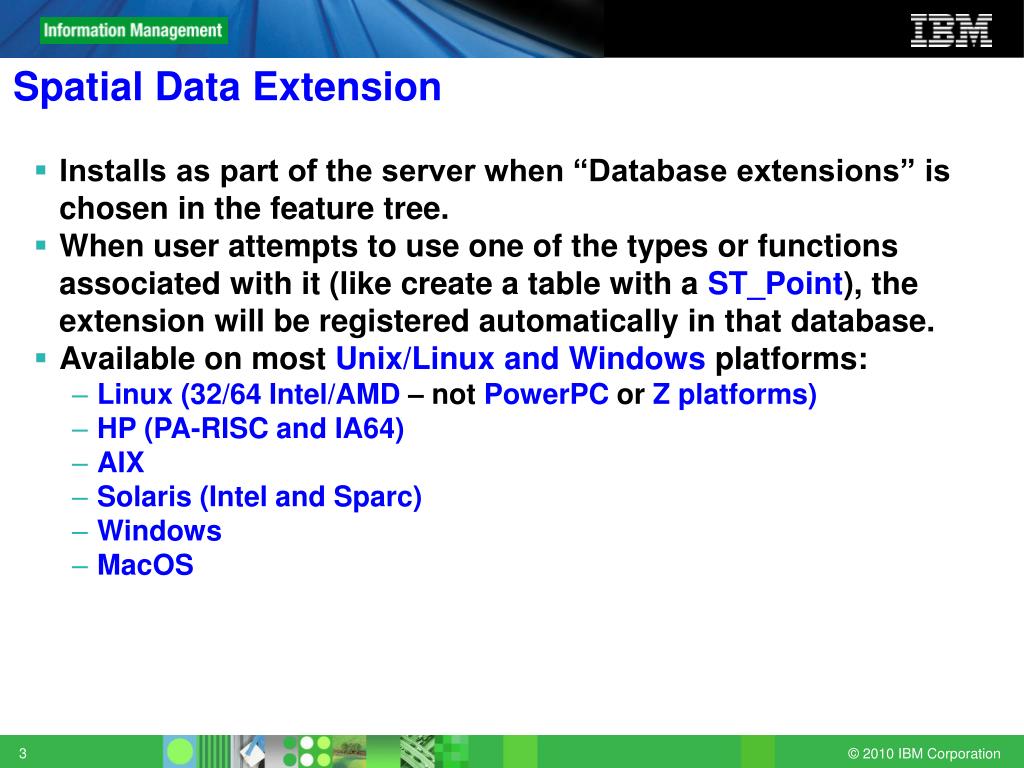

  3. Spatial Data Extension • Installs as part of the server when “Database extensions” is chosen in the feature tree. • When user attempts to use one of the types or functions associated with it (like create a table with a ST_Point), the extension will be registered automatically in that database. • Available on most Unix/Linux and Windows platforms: • Linux (32/64 Intel/AMD – not PowerPC or Z platforms) • HP (PA-RISC and IA64) • AIX • Solaris (Intel and Sparc) • Windows • MacOS

  4. TimeSeries Data Extension • Installs as part of the server when “Database extensions” is chosen in the feature tree. • When user attempts to use one of the types or functions associated with it (like create a table with a timeseries), the extension will be registered automatically in that database. • Available on most Unix/Linux platforms: • Linux (32/64 Intel/AMD) • Z-series • HP (PA-RISC and IA64) • AIX • Solaris (Sparc) • Windows (32bit)

  5. Getting Started with Informix 11.70

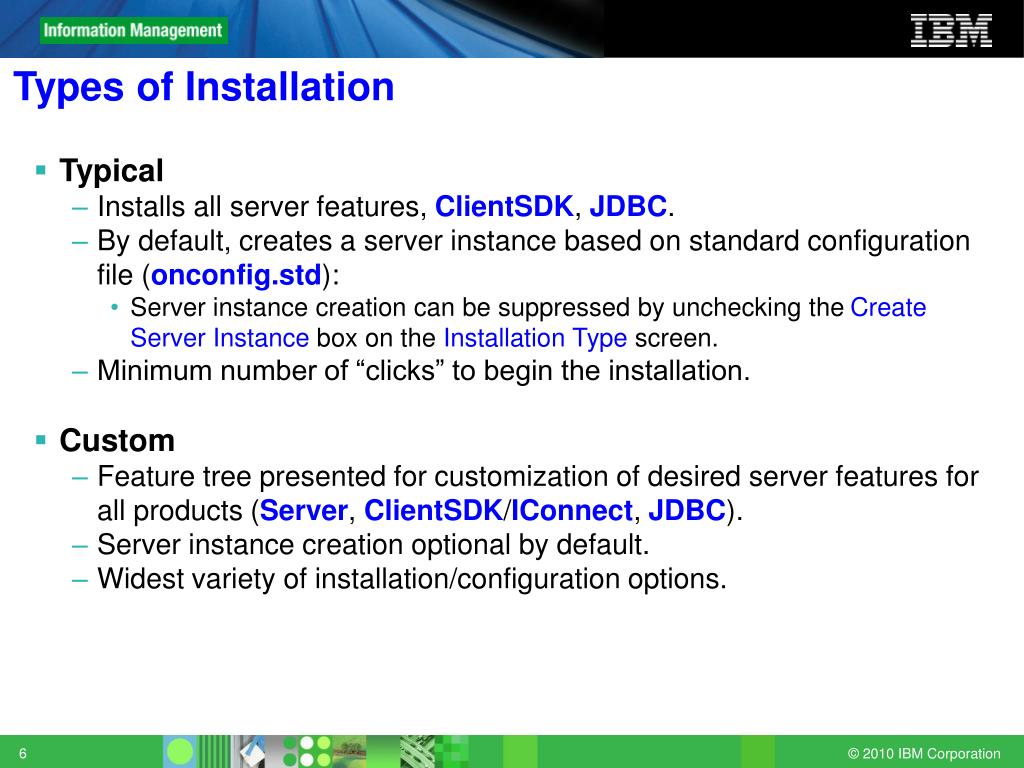

  6. Types of Installation • Typical • Installs all server features, ClientSDK, JDBC. • By default, creates a server instance based on standard configuration file (onconfig.std): • Server instance creation can be suppressed by unchecking the Create Server Instance box on the Installation Type screen. • Minimum number of “clicks” to begin the installation. • Custom • Feature tree presented for customization of desired server features for all products (Server, ClientSDK/IConnect, JDBC). • Server instance creation optional by default. • Widest variety of installation/configuration options.

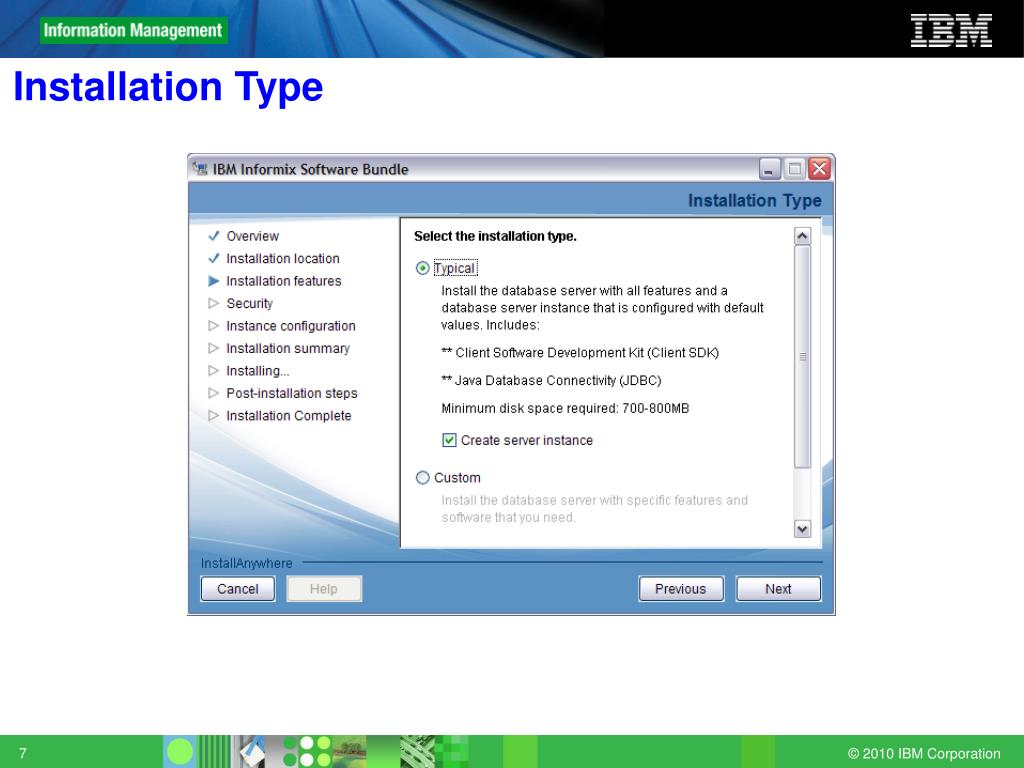

  7. Installation Type

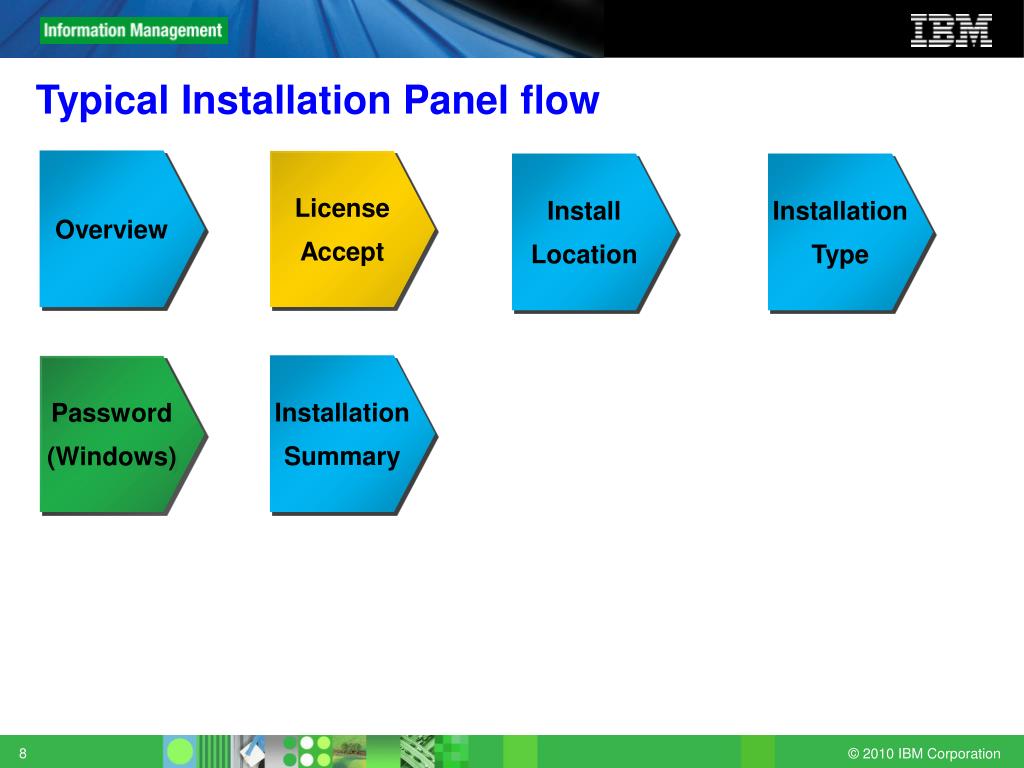

  8. Typical Installation Panel flow Overview License Accept Install Location Installation Type Installation Summary Password (Windows)

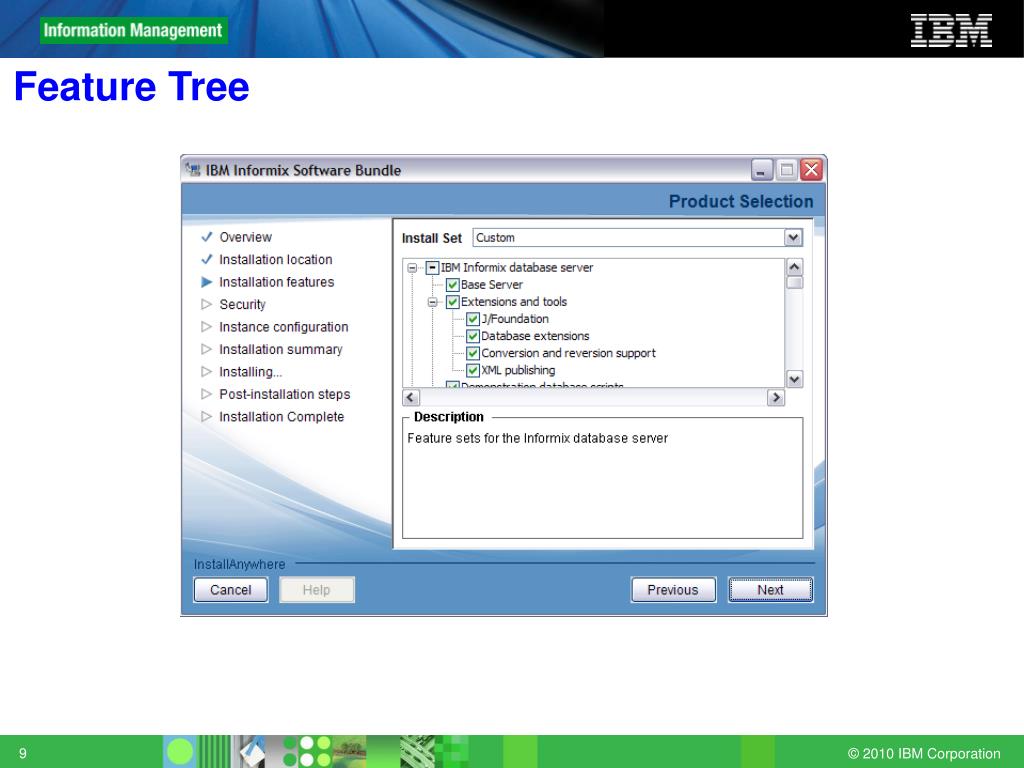

  9. Feature Tree

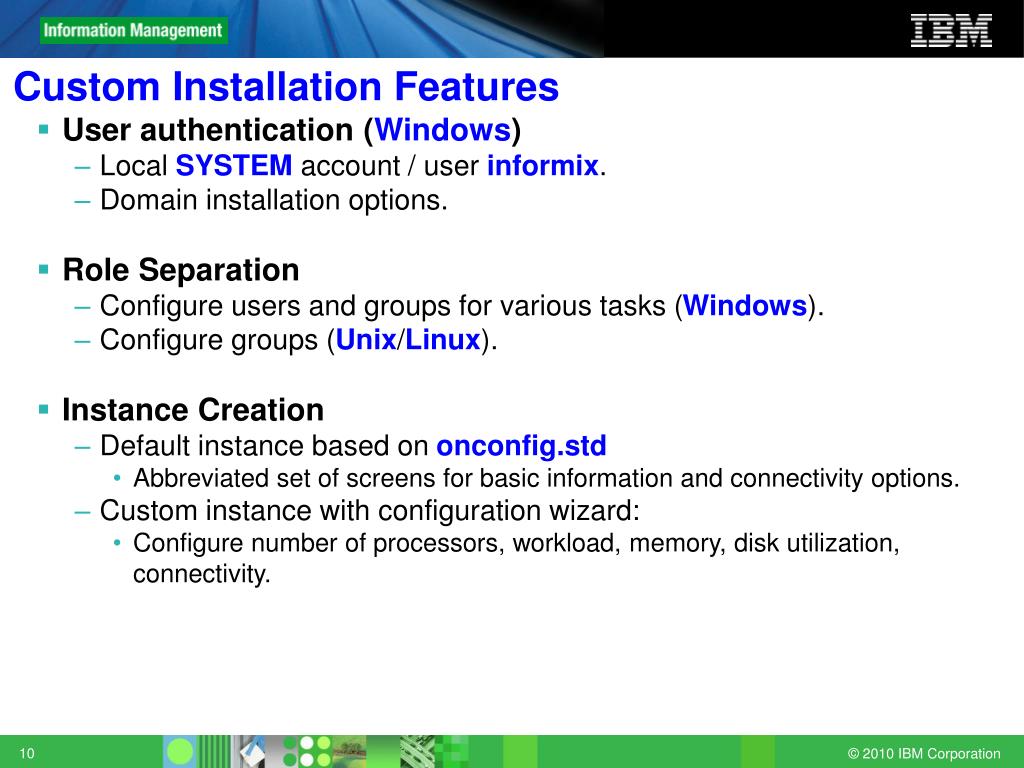

  10. Custom Installation Features • User authentication (Windows) • Local SYSTEM account / user informix. • Domain installation options. • Role Separation • Configure users and groups for various tasks (Windows). • Configure groups (Unix/Linux). • Instance Creation • Default instance based on onconfig.std • Abbreviated set of screens for basic information and connectivity options. • Custom instance with configuration wizard: • Configure number of processors, workload, memory, disk utilization, connectivity.

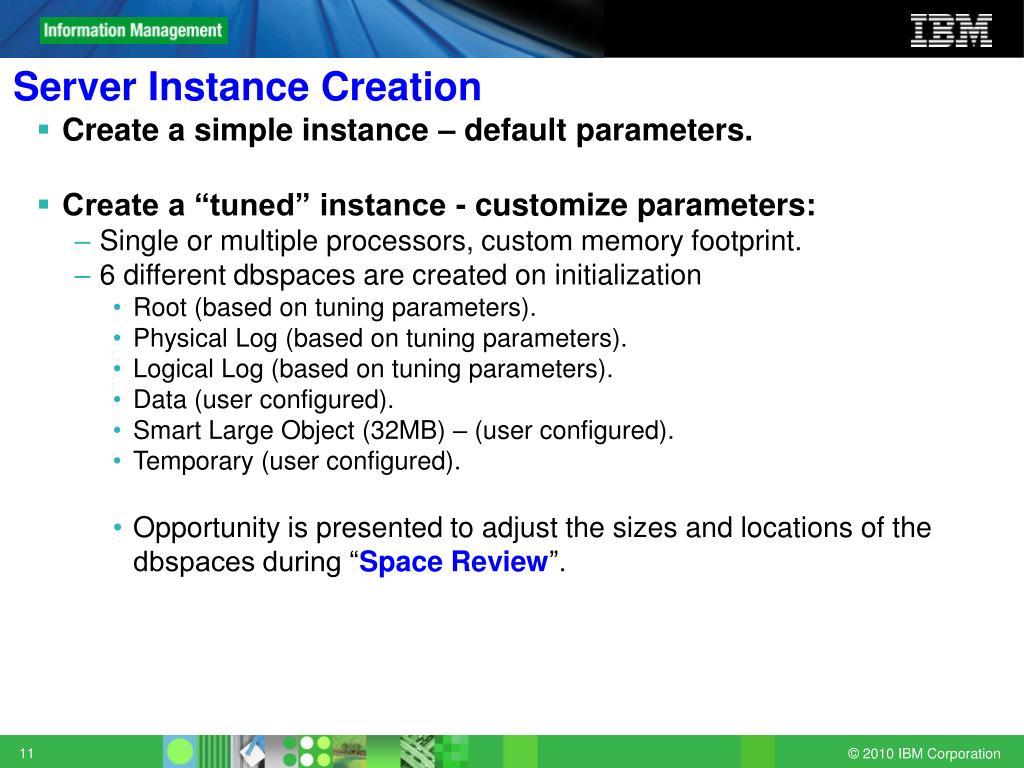

  11. Server Instance Creation • Create a simple instance – default parameters. • Create a “tuned” instance - customize parameters: • Single or multiple processors, custom memory footprint. • 6 different dbspaces are created on initialization • Root (based on tuning parameters). • Physical Log (based on tuning parameters). • Logical Log (based on tuning parameters). • Data (user configured). • Smart Large Object (32MB) – (user configured). • Temporary (user configured). • Opportunity is presented to adjust the sizes and locations of the dbspaces during “Space Review”.

  12. Server Instance Creation • Factors that go into tuning: • Processor speed. • Number of processors. • Total memory allocated to Informix by user. • I/O speed on selected volume(s). • Type of instance (DSS/OLTP). • Concurrent user counts (transactional and decision support). • Transaction support by application. • Recovery time objective for OLTP applications. • Can initialize the default or custom instance created as part of the install process.

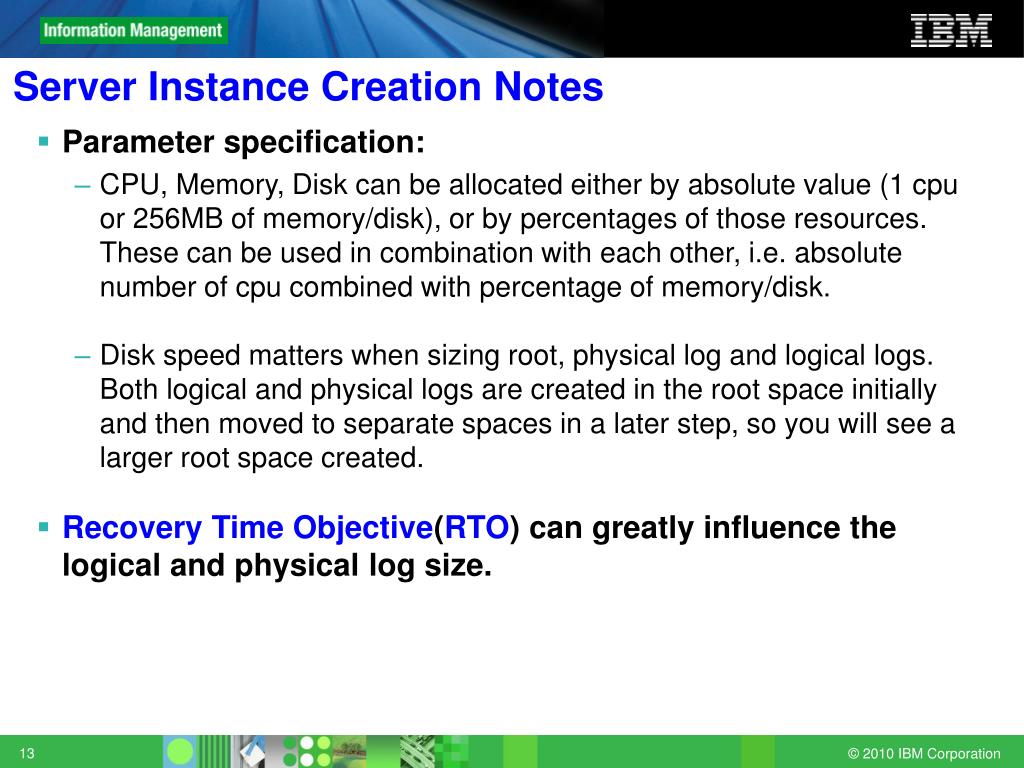

  13. Server Instance Creation Notes • Parameter specification: • CPU, Memory, Disk can be allocated either by absolute value (1 cpu or 256MB of memory/disk), or by percentages of those resources. These can be used in combination with each other, i.e. absolute number of cpu combined with percentage of memory/disk. • Disk speed matters when sizing root, physical log and logical logs. Both logical and physical logs are created in the root space initially and then moved to separate spaces in a later step, so you will see a larger root space created. • Recovery Time Objective(RTO) can greatly influence the logical and physical log size.

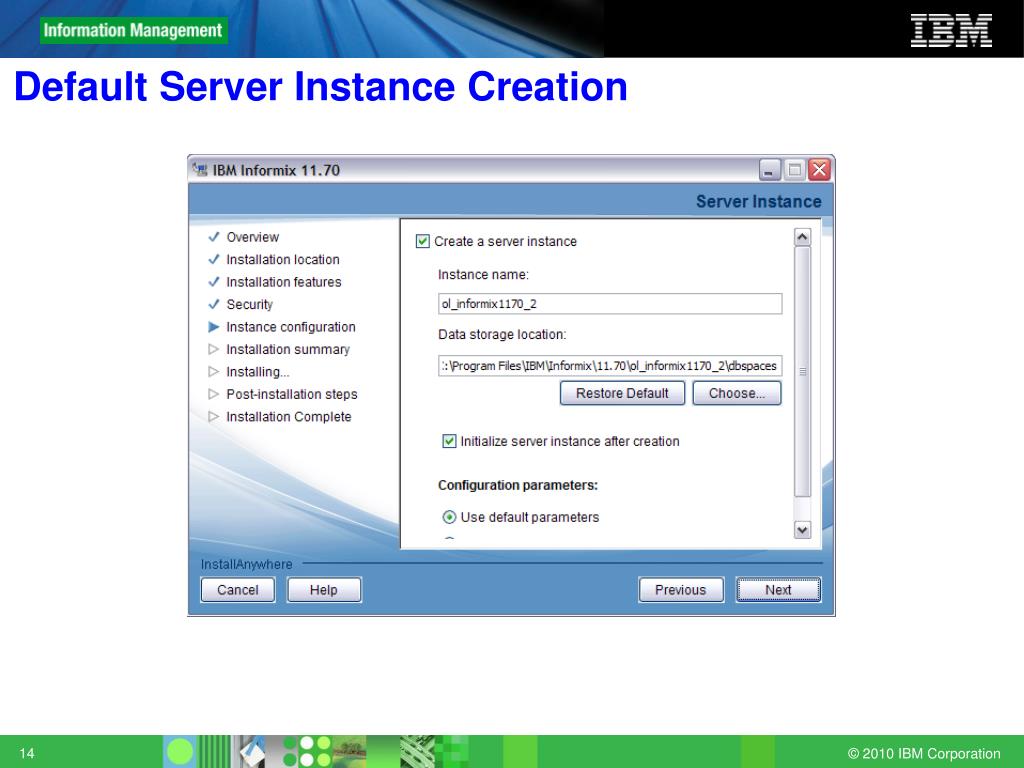

  14. Default Server Instance Creation

  15. Customized Instance Configuration Wizard

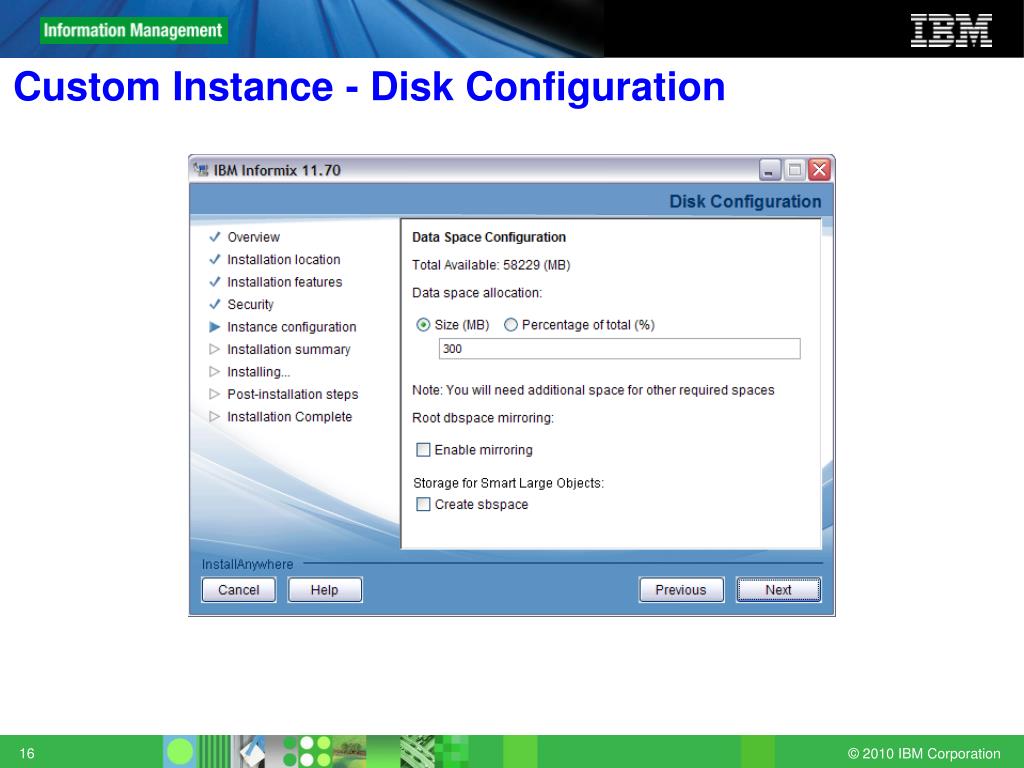

  16. Custom Instance - Disk Configuration

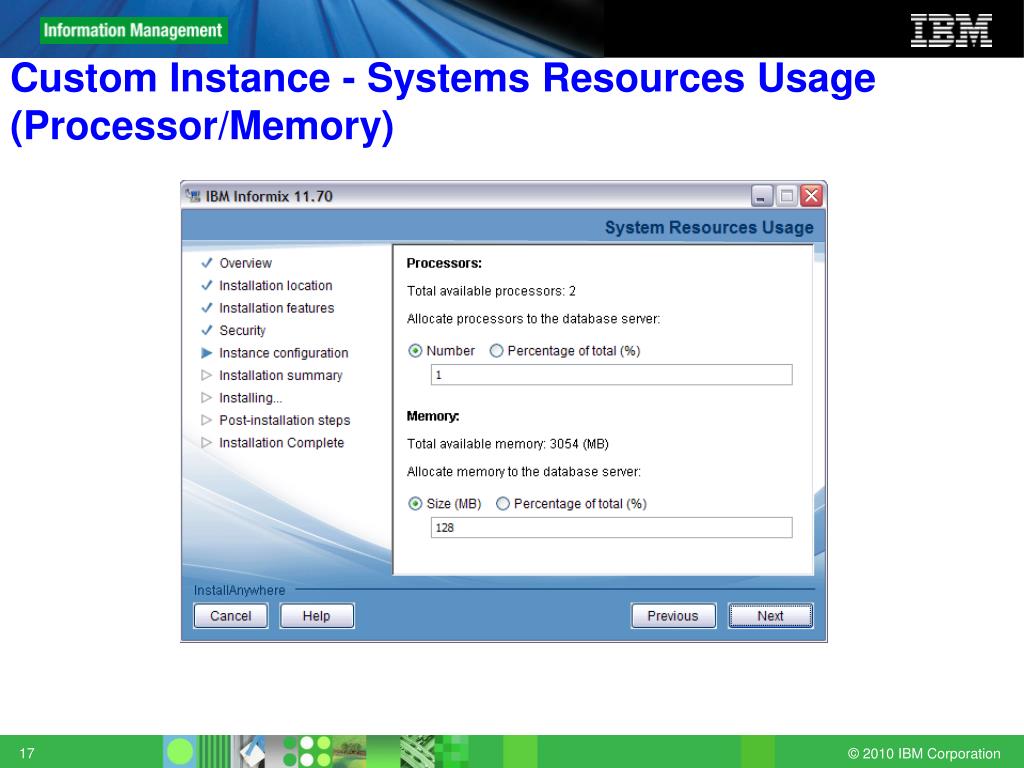

  17. Custom Instance - Systems Resources Usage (Processor/Memory)

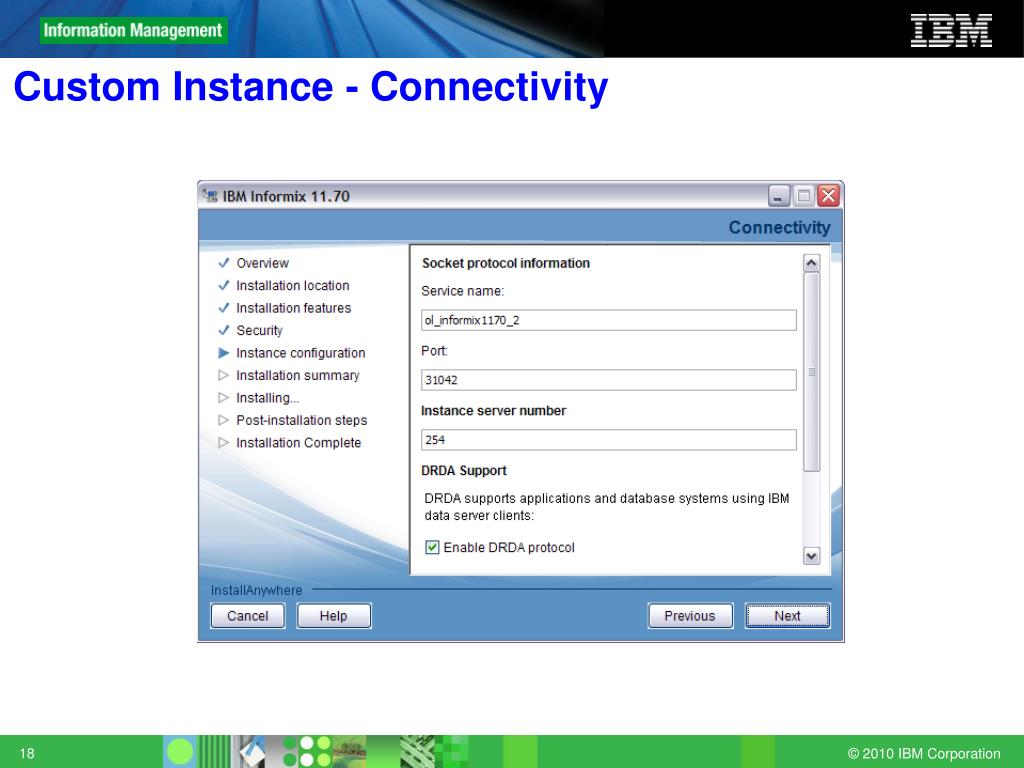

  18. Custom Instance - Connectivity

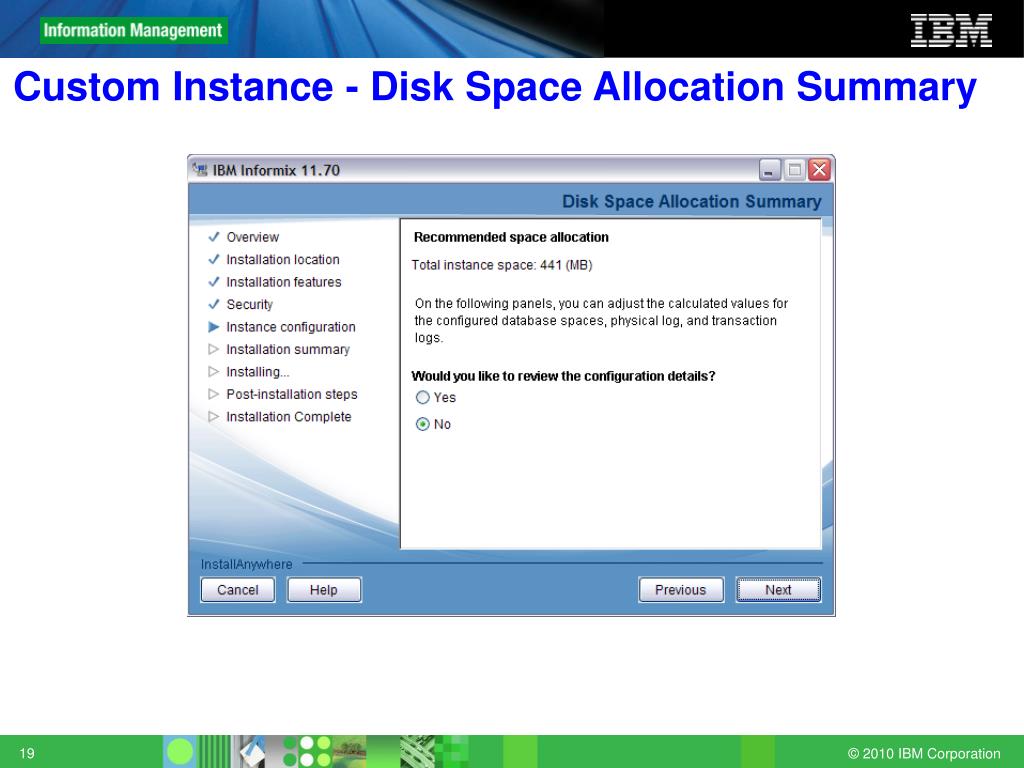

  19. Custom Instance - Disk Space Allocation Summary

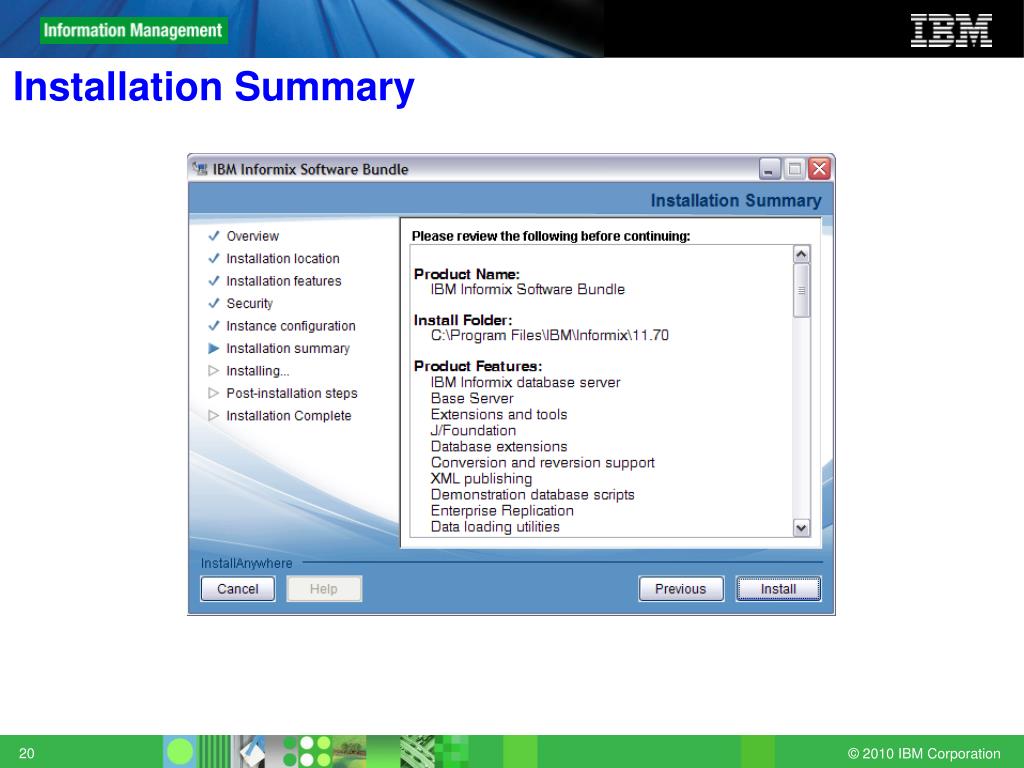

  20. Installation Summary

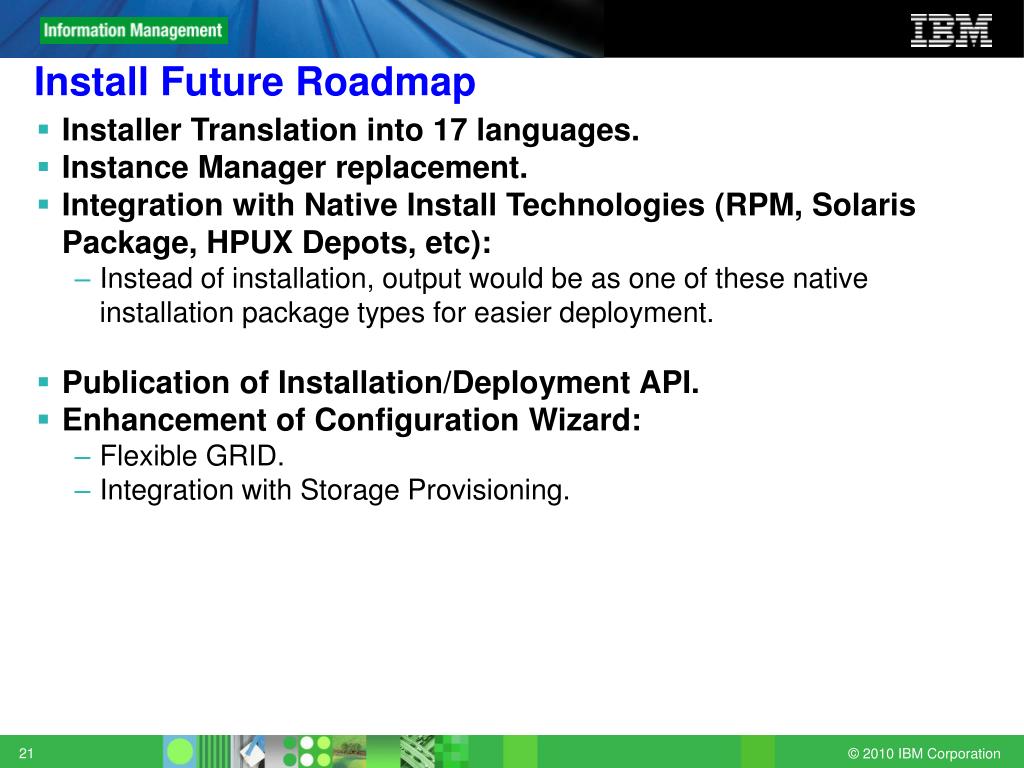

  21. Install Future Roadmap • Installer Translation into 17 languages. • Instance Manager replacement. • Integration with Native Install Technologies (RPM, Solaris Package, HPUX Depots, etc): • Instead of installation, output would be as one of these native installation package types for easier deployment. • Publication of Installation/Deployment API. • Enhancement of Configuration Wizard: • Flexible GRID. • Integration with Storage Provisioning.

  22. Questions?

  23. Scott Pickett – WW IDS Technical Sales For questions about this presentation contact: spickett@us.ibm.com Private Instance/Install

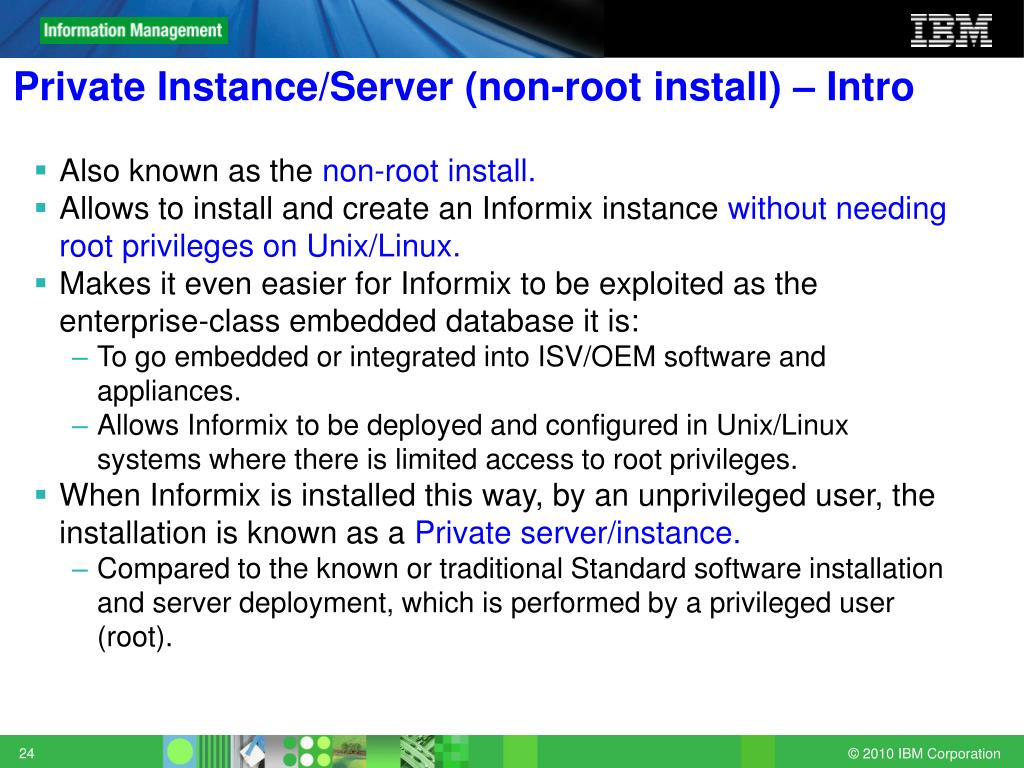

  24. Private Instance/Server (non-root install) – Intro • Also known as the non-root install. • Allows to install and create an Informix instance without needing root privileges on Unix/Linux. • Makes it even easier for Informix to be exploited as the enterprise-class embedded database it is: • To go embedded or integrated into ISV/OEM software and appliances. • Allows Informix to be deployed and configured in Unix/Linux systems where there is limited access to root privileges. • When Informix is installed this way, by an unprivileged user, the installation is known as a Private server/instance. • Compared to the known or traditional Standard software installation and server deployment, which is performed by a privileged user (root).

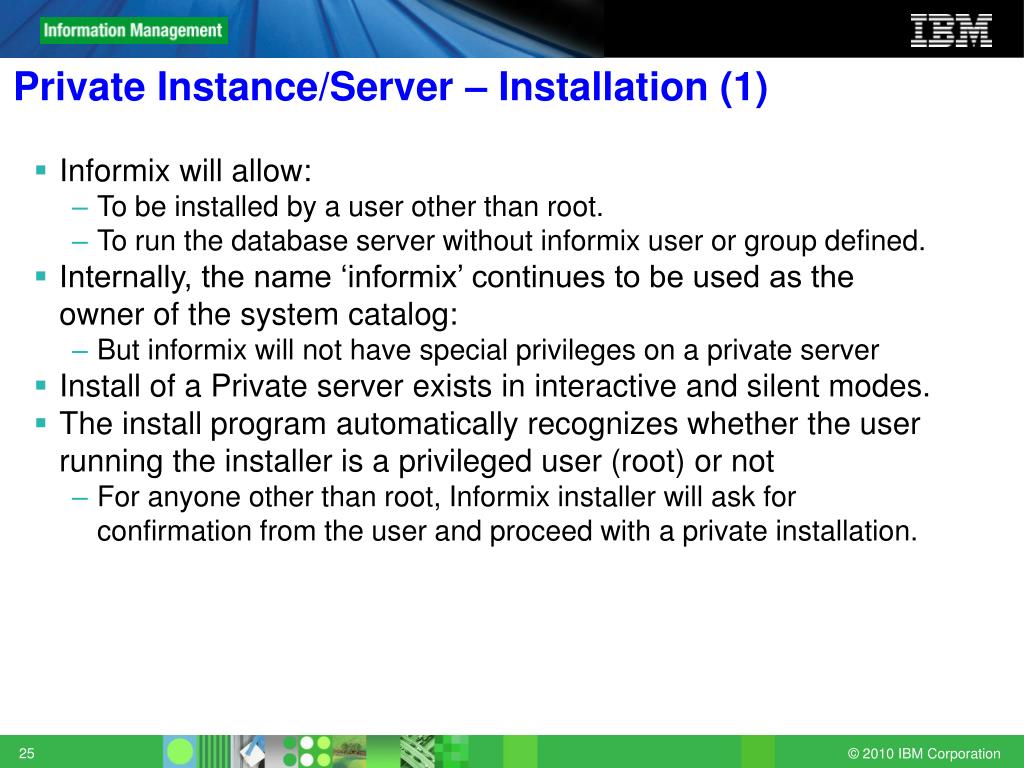

  25. Private Instance/Server – Installation (1) • Informix will allow: • To be installed by a user other than root. • To run the database server without informix user or group defined. • Internally, the name ‘informix’ continues to be used as the owner of the system catalog: • But informix will not have special privileges on a private server • Install of a Private server exists in interactive and silent modes. • The install program automatically recognizes whether the user running the installer is a privileged user (root) or not • For anyone other than root, Informix installer will ask for confirmation from the user and proceed with a private installation.

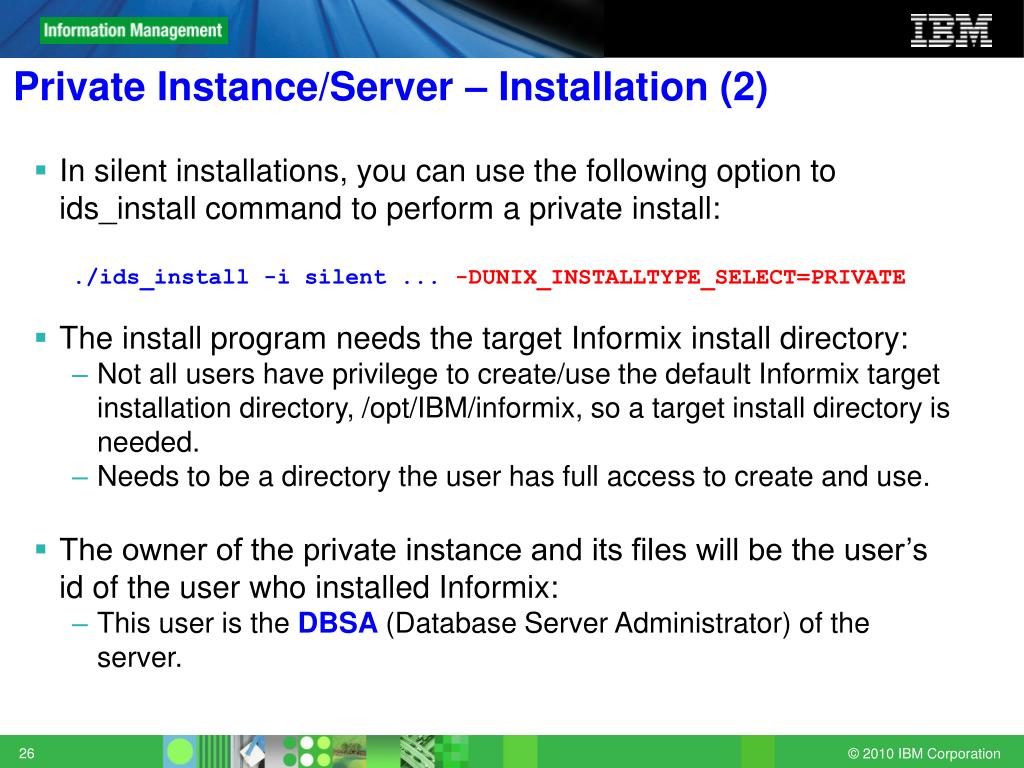

  26. Private Instance/Server – Installation (2) • In silent installations, you can use the following option to ids_install command to perform a private install: ./ids_install -i silent ... -DUNIX_INSTALLTYPE_SELECT=PRIVATE • The install program needs the target Informix install directory: • Not all users have privilege to create/use the default Informix target installation directory, /opt/IBM/informix, so a target install directory is needed. • Needs to be a directory the user has full access to create and use. • The owner of the private instance and its files will be the user’s id of the user who installed Informix: • This user is the DBSA(Database Server Administrator) of the server.

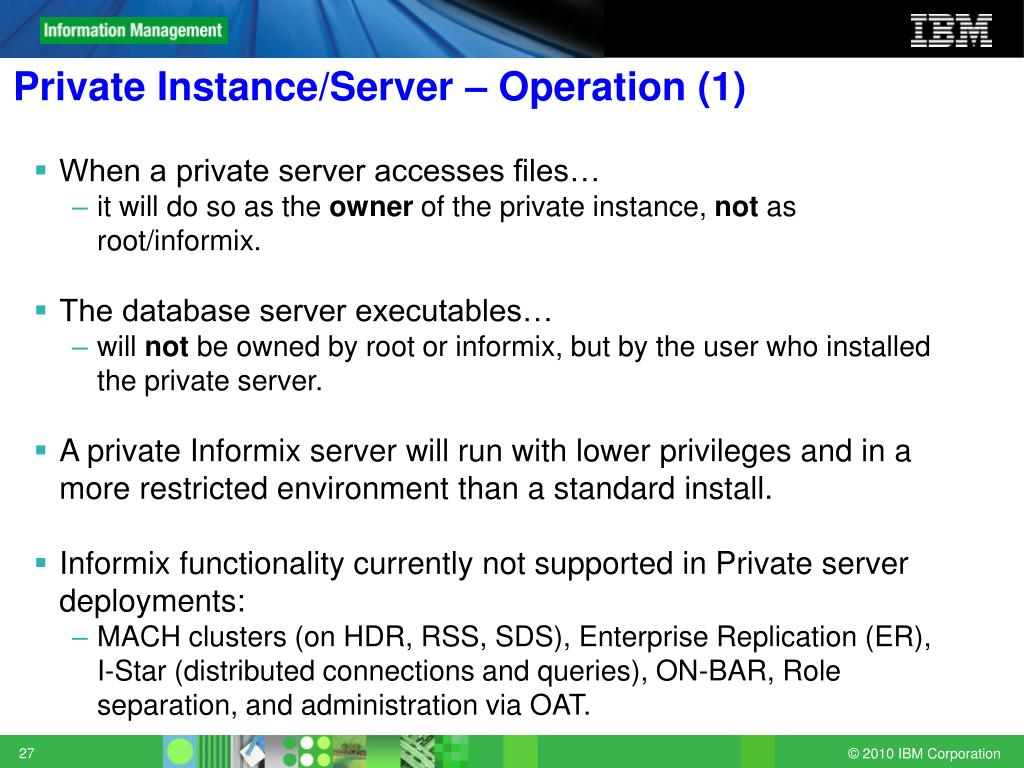

  27. Private Instance/Server – Operation (1) • When a private server accesses files… • it will do so as the owner of the private instance, not as root/informix. • The database server executables… • will not be owned by root or informix, but by the user who installed the private server. • A private Informix server will run with lower privileges and in a more restricted environment than a standard install. • Informix functionality currently not supported in Private server deployments: • MACH clusters (on HDR, RSS, SDS), Enterprise Replication (ER), I-Star (distributed connections and queries), ON-BAR, Role separation, and administration via OAT.

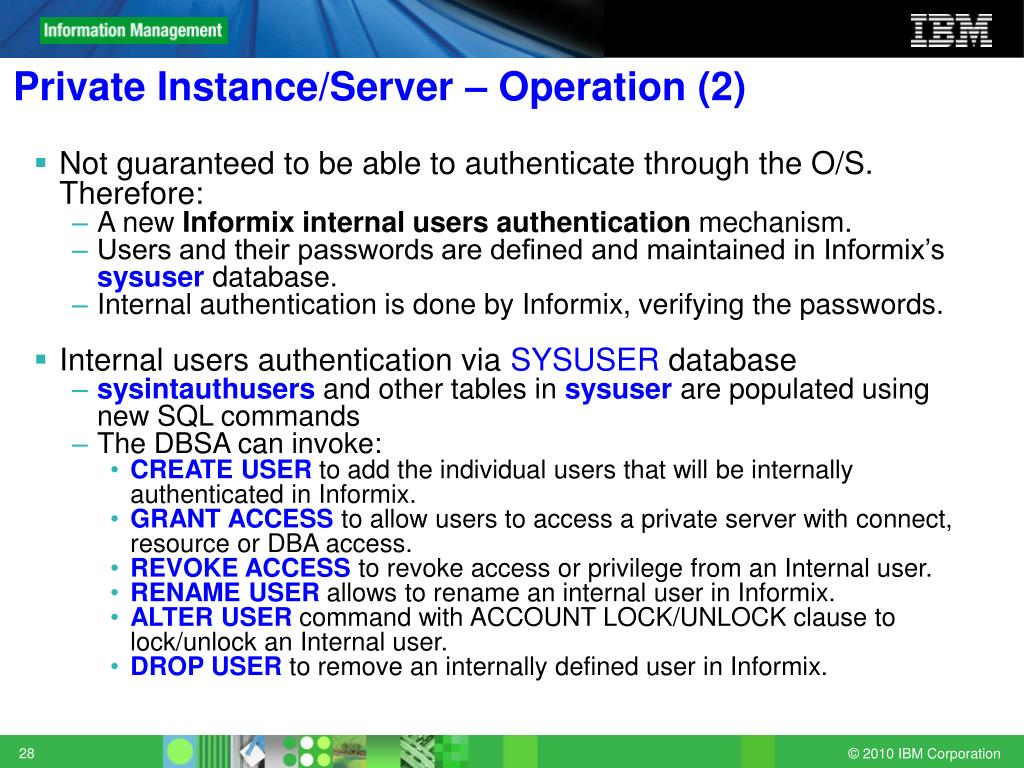

  28. Private Instance/Server – Operation (2) • Not guaranteed to be able to authenticate through the O/S. Therefore: • A new Informix internal users authentication mechanism. • Users and their passwords are defined and maintained in Informix’s sysuserdatabase. • Internal authentication is done by Informix, verifying the passwords. • Internal users authentication via SYSUSER database • sysintauthusers and other tables in sysuser are populated using new SQL commands • The DBSA can invoke: • CREATE USER to add the individual users that will be internally authenticated in Informix. • GRANT ACCESS to allow users to access a private server with connect, resource or DBA access. • REVOKE ACCESS to revoke access or privilege from an Internal user. • RENAME USER allows to rename an internal user in Informix. • ALTER USER command with ACCOUNT LOCK/UNLOCK clause to lock/unlock an Internal user. • DROP USER to remove an internally defined user in Informix.

  29. Questions?

  30. Scott Pickett – WW IDS Technical Sales For questions about this presentation contact: spickett@us.ibm.com RPM for Linux

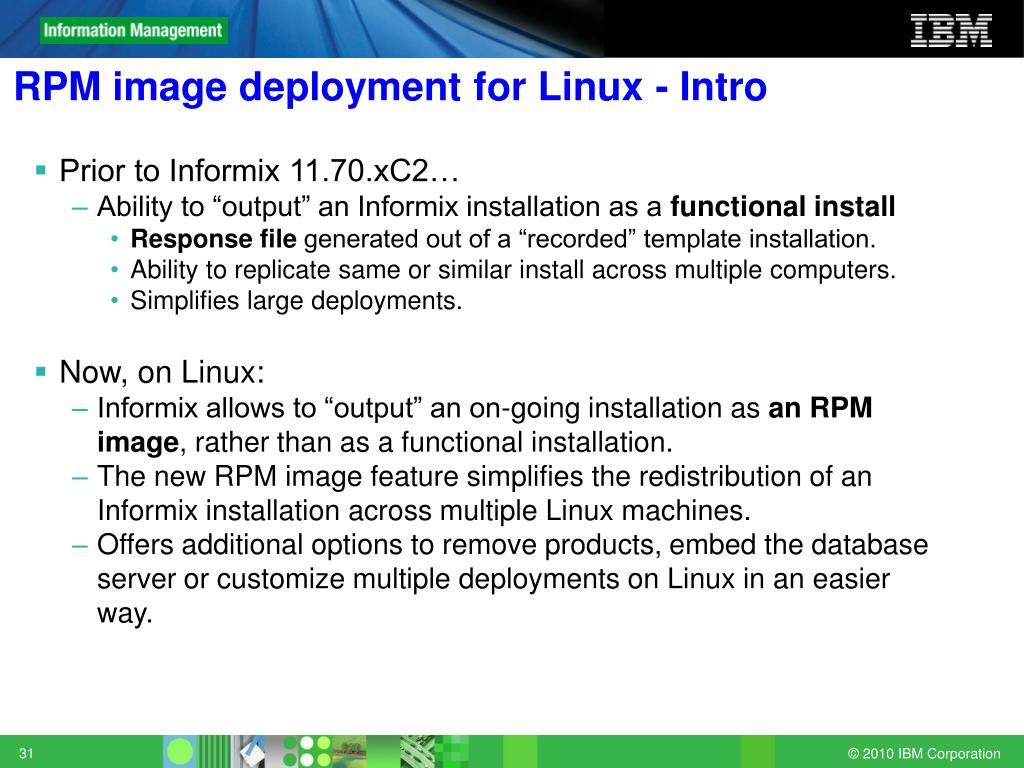

  31. RPM image deployment for Linux - Intro • Prior to Informix 11.70.xC2… • Ability to “output” an Informix installation as a functional install • Response file generated out of a “recorded” template installation. • Ability to replicate same or similar install across multiple computers. • Simplifies large deployments. • Now, on Linux: • Informix allows to “output” an on-going installation as an RPM image, rather than as a functional installation. • The new RPM image feature simplifies the redistribution of an Informix installation across multiple Linux machines. • Offers additional options to remove products, embed the database server or customize multiple deployments on Linux in an easier way.

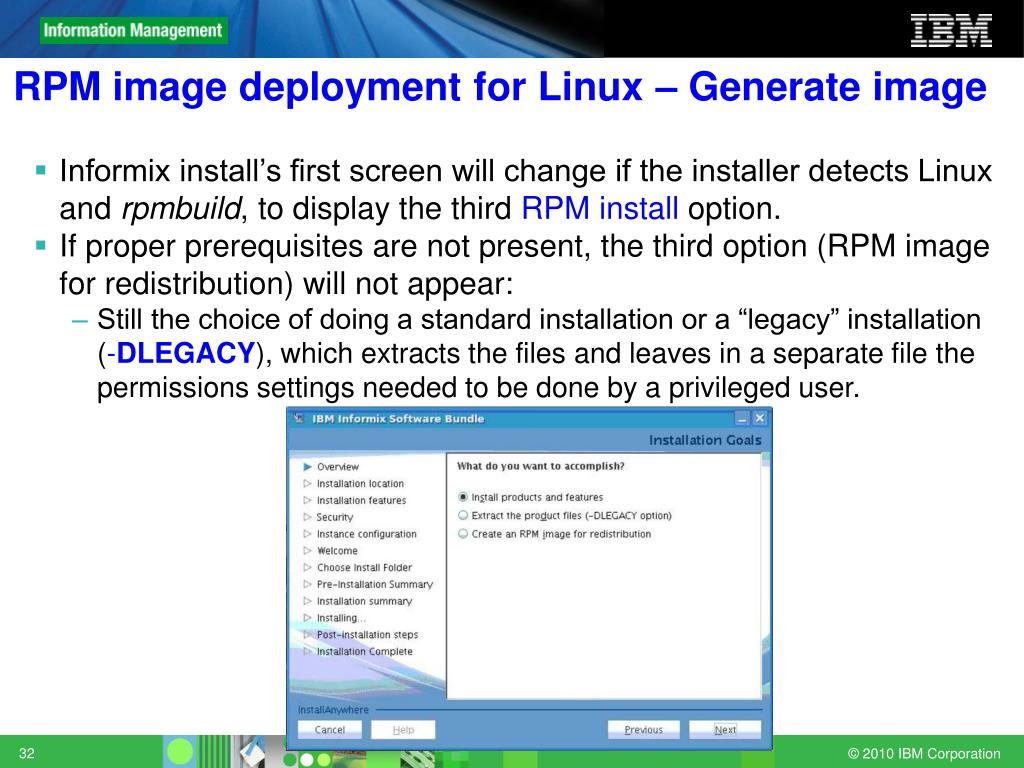

  32. RPM image deployment for Linux – Generate image • Informix install’s first screen will change if the installer detects Linux and rpmbuild, to display the third RPM install option. • If proper prerequisites are not present, the third option (RPM image for redistribution) will not appear: • Still the choice of doing a standard installation or a “legacy” installation (-DLEGACY), which extracts the files and leaves in a separate file the permissions settings needed to be done by a privileged user.

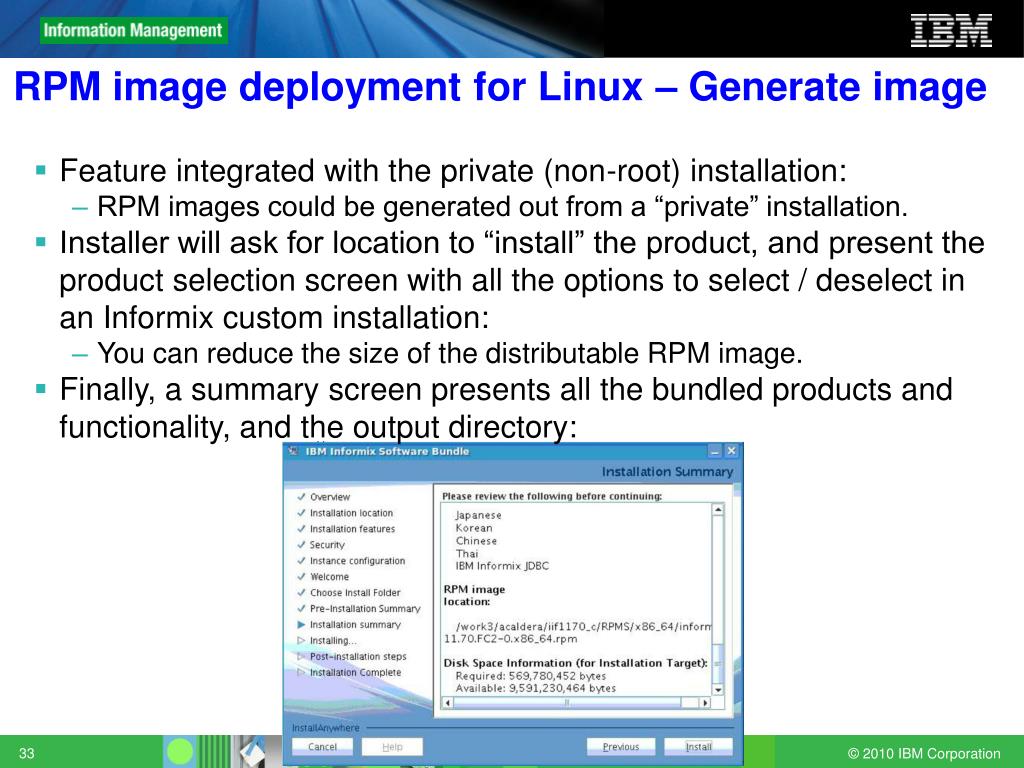

  33. RPM image deployment for Linux – Generate image • Feature integrated with the private (non-root) installation: • RPM images could be generated out from a “private” installation. • Installer will ask for location to “install” the product, and present the product selection screen with all the options to select / deselect in an Informix custom installation: • You can reduce the size of the distributable RPM image. • Finally, a summary screen presents all the bundled products and functionality, and the output directory:

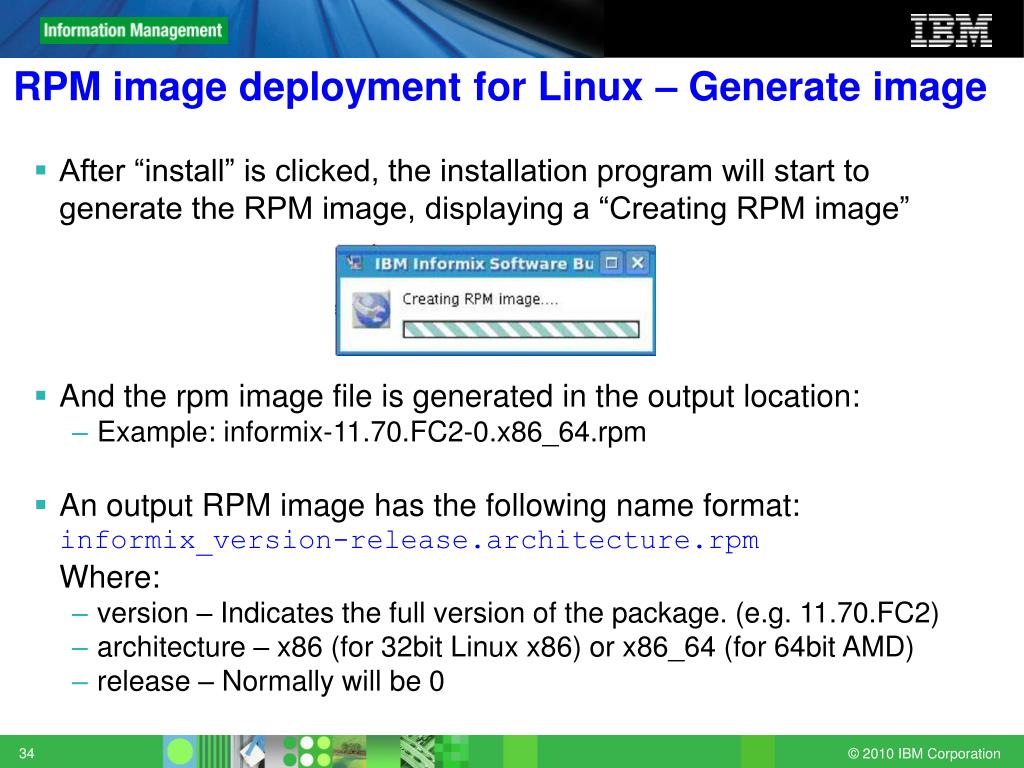

  34. RPM image deployment for Linux – Generate image • After “install” is clicked, the installation program will start to generate the RPM image, displaying a “Creating RPM image” • And the rpm image file is generated in the output location: • Example: informix-11.70.FC2-0.x86_64.rpm • An output RPM image has the following name format: informix_version-release.architecture.rpm Where: • version – Indicates the full version of the package. (e.g. 11.70.FC2) • architecture – x86 (for 32bit Linux x86) or x86_64 (for 64bit AMD) • release – Normally will be 0

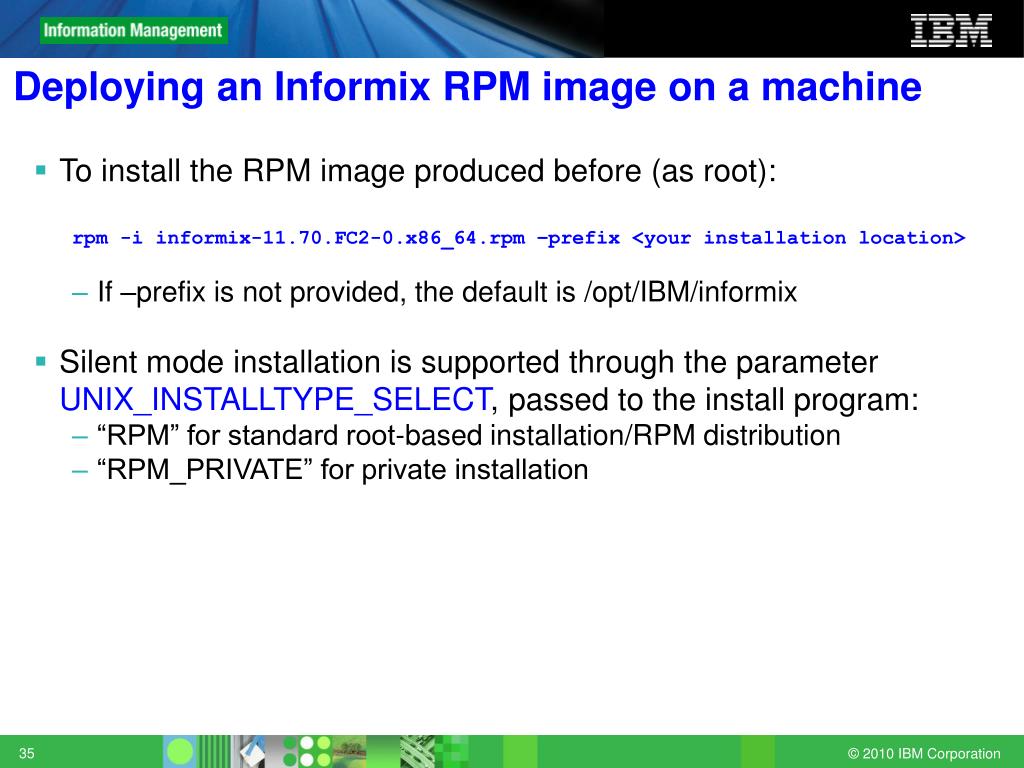

  35. Deploying an Informix RPM image on a machine • To install the RPM image produced before (as root): rpm -i informix-11.70.FC2-0.x86_64.rpm –prefix <your installation location> • If –prefix is not provided, the default is /opt/IBM/informix • Silent mode installation is supported through the parameter UNIX_INSTALLTYPE_SELECT, passed to the install program: • “RPM” for standard root-based installation/RPM distribution • “RPM_PRIVATE” for private installation

  36. Questions?

  37. Logo

  38. Scott Pickett – WW IDS Technical Sales For questions about this presentation contact: spickett@us.ibm.com
