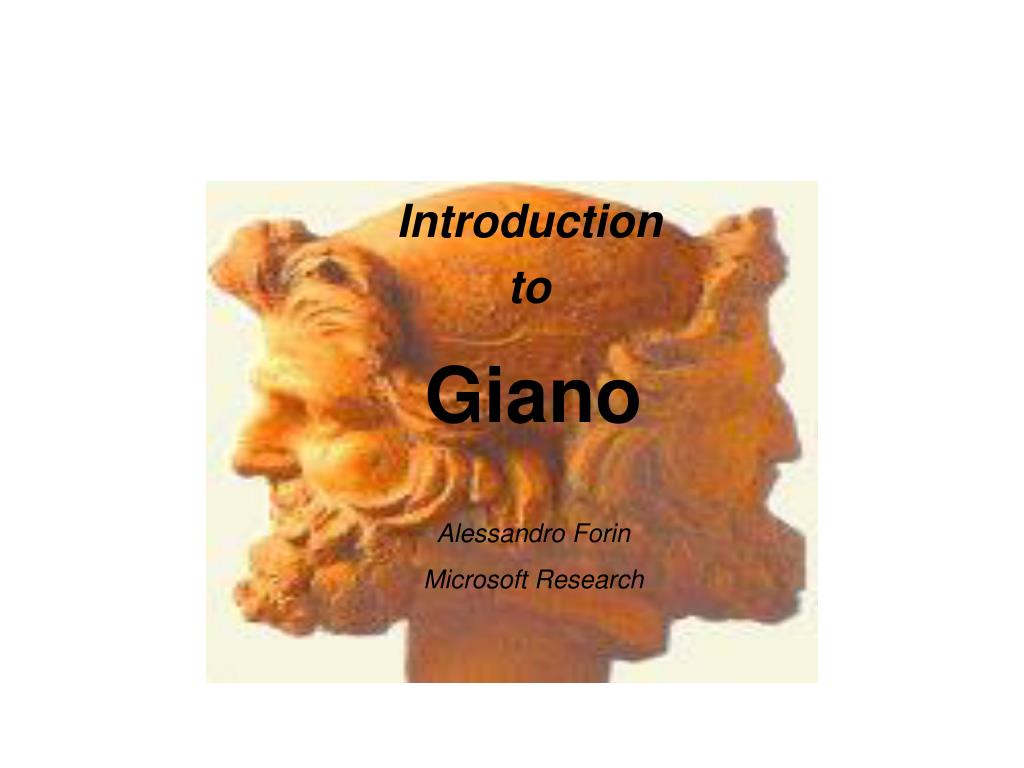

  1. Giano Introduction to Alessandro Forin Microsoft Research

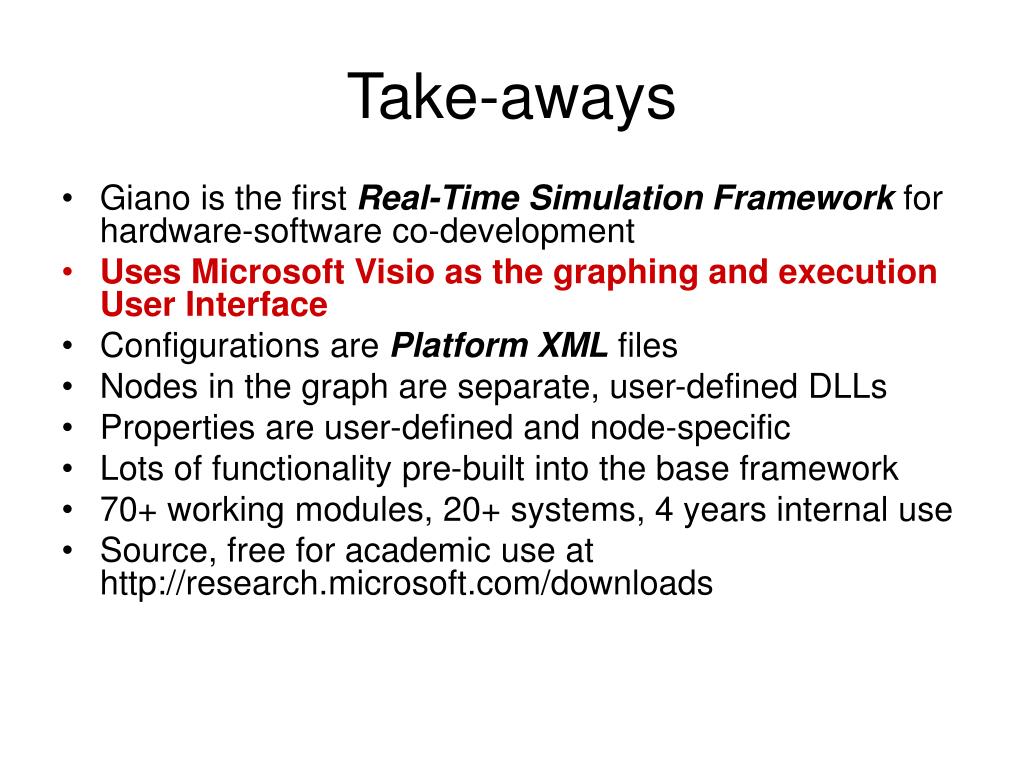

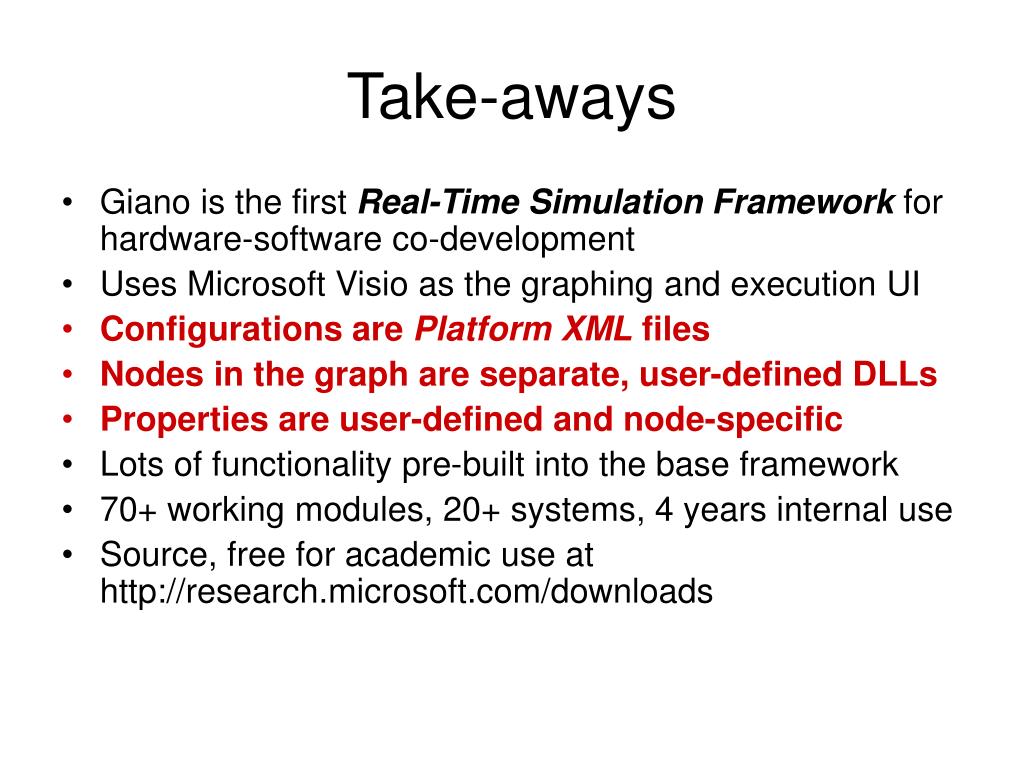

  2. Take-aways • Giano is the first Real-Time Simulation Framework for hardware-software co-development • Uses Microsoft Visio as the graphing and execution UI • Configurations are Platform XML files • Nodes in the graph are separate, user-defined DLLs • Properties are user-defined and node-specific • Lots of functionality pre-built into the base framework • 70+ working modules, 20+ systems, 4 years internal use • Source, free for academic use at http://research.microsoft.com/downloads

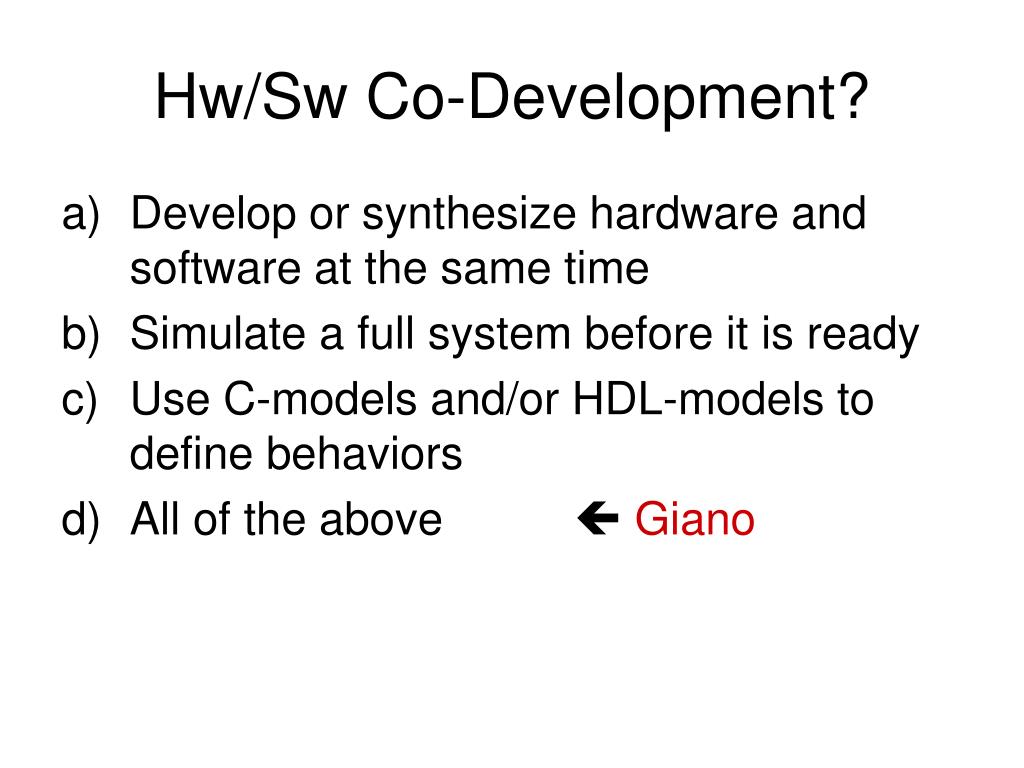

  3. Hw/Sw Co-Development? • Develop or synthesize hardware and software at the same time • Simulate a full system before it is ready • Use C-models and/or HDL-models to define behaviors • All of the above  Giano

  4. ARM: At91m63200 FPGA: vvp.dll PLI plug-in (VPI) NamedPipe client NamedPipe “GIANO” PLI plug-in (VPI) Optional: external devices (LabView) Giano process ModelSim process Xilinx: Spartan3 CPU module test; always @(posedge clock) counter = counter + 1; Start = TheCounter->Value; ...compute... End = TheCounter->Value; MEM I/O Optional: Icarus Verilog Interpreter

  5. ICipher implementation AES components, sw/hw Test program and data AES component Base RTOS ARM Microcontroller Xilinx FPGA

  6. Real-Time Simulation • Definition Realize a software system that matches the temporal behavior of the hardware+software system being simulated, using the same time-ordered sequence of inputs • Applicable to hybrid hw+sw simulators too • Requires: • Clock adaptation • I/O adaptation

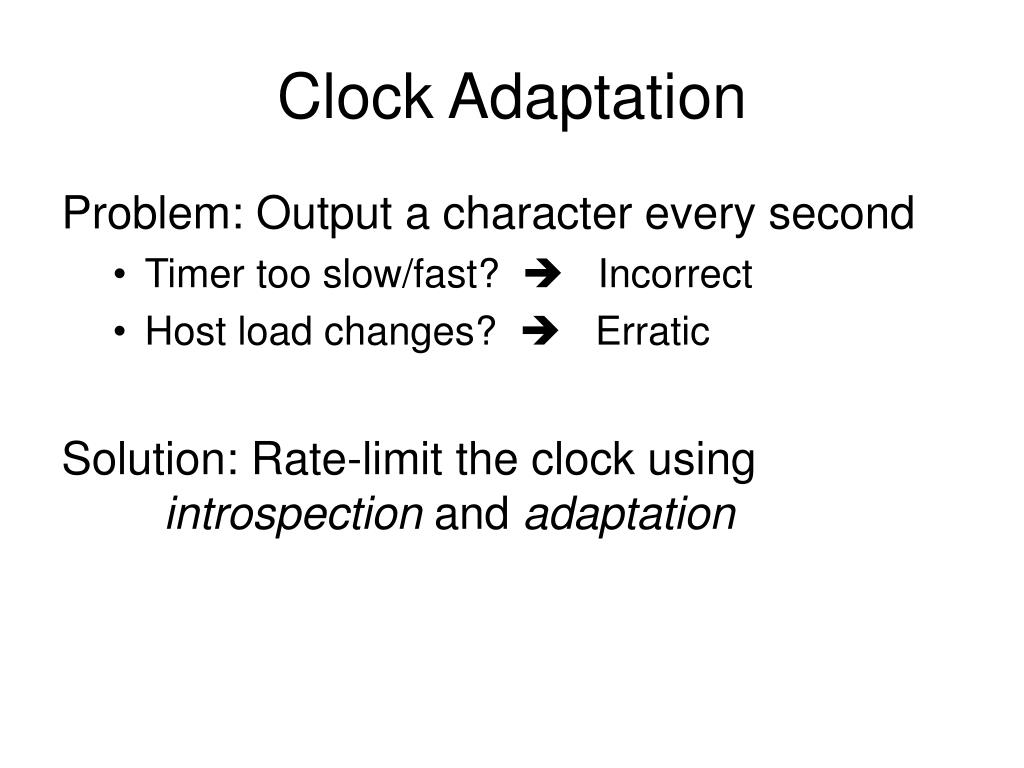

  7. Clock Adaptation Problem: Output a character every second • Timer too slow/fast?  Incorrect • Host load changes?  Erratic Solution: Rate-limit the clock using introspection and adaptation

  8. Rate-limiting the Clock • Every M (10**3) clock ticks spin idle for D microseconds • Every N (10**6) clock ticks check the actual frequency against the target frequency, adjust the delay D

  9. Adjusting the Delay factor

  10. Effect on IPS

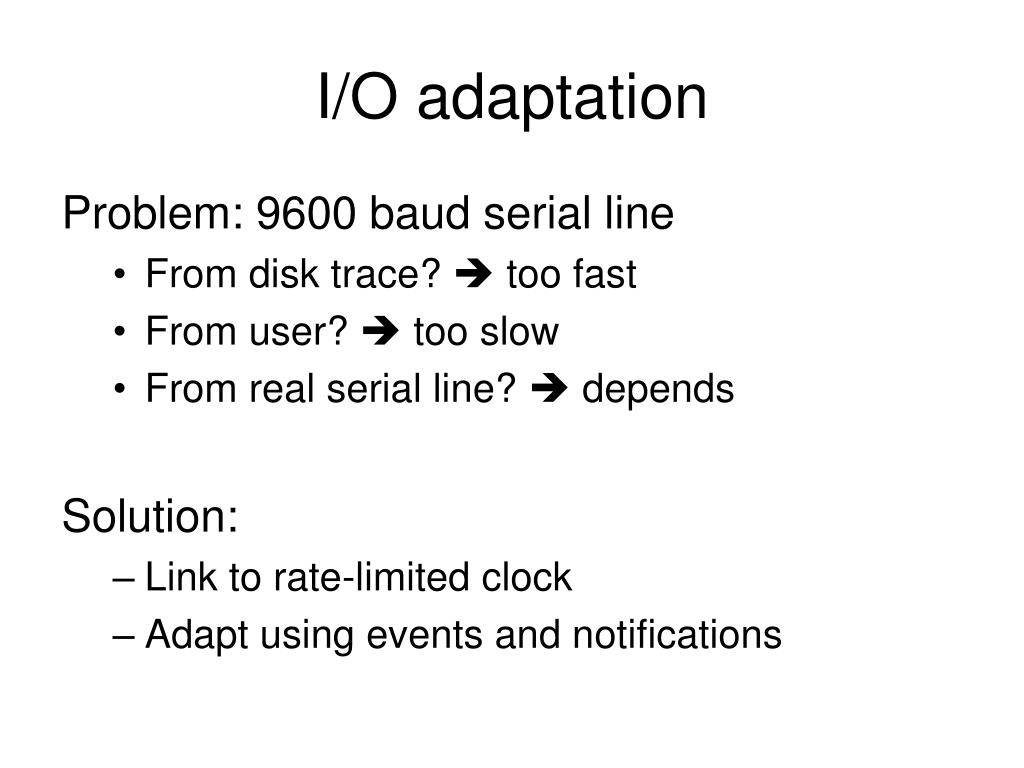

  11. I/O adaptation Problem: 9600 baud serial line • From disk trace?  too fast • From user?  too slow • From real serial line?  depends Solution: • Link to rate-limited clock • Adapt using events and notifications

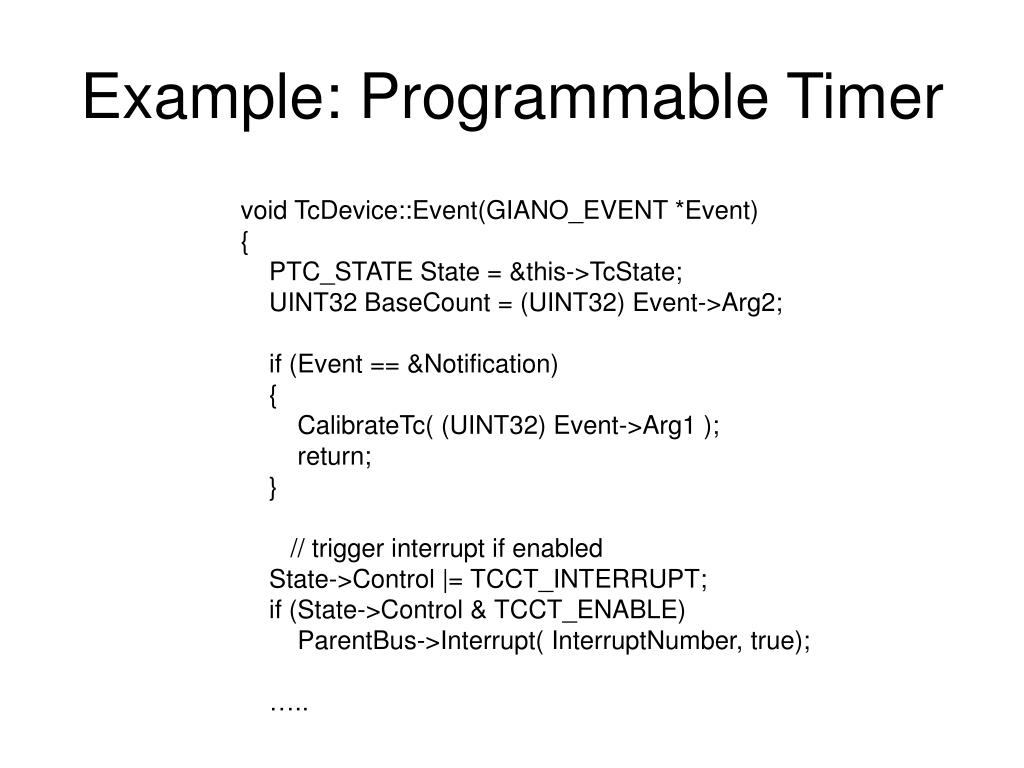

  12. Example: Programmable Timer void TcDevice::Event(GIANO_EVENT *Event) { PTC_STATE State = &this->TcState; UINT32 BaseCount = (UINT32) Event->Arg2; if (Event == &Notification) { CalibrateTc( (UINT32) Event->Arg1 ); return; } // trigger interrupt if enabled State->Control |= TCCT_INTERRUPT; if (State->Control & TCCT_ENABLE) ParentBus->Interrupt( InterruptNumber, true); …..

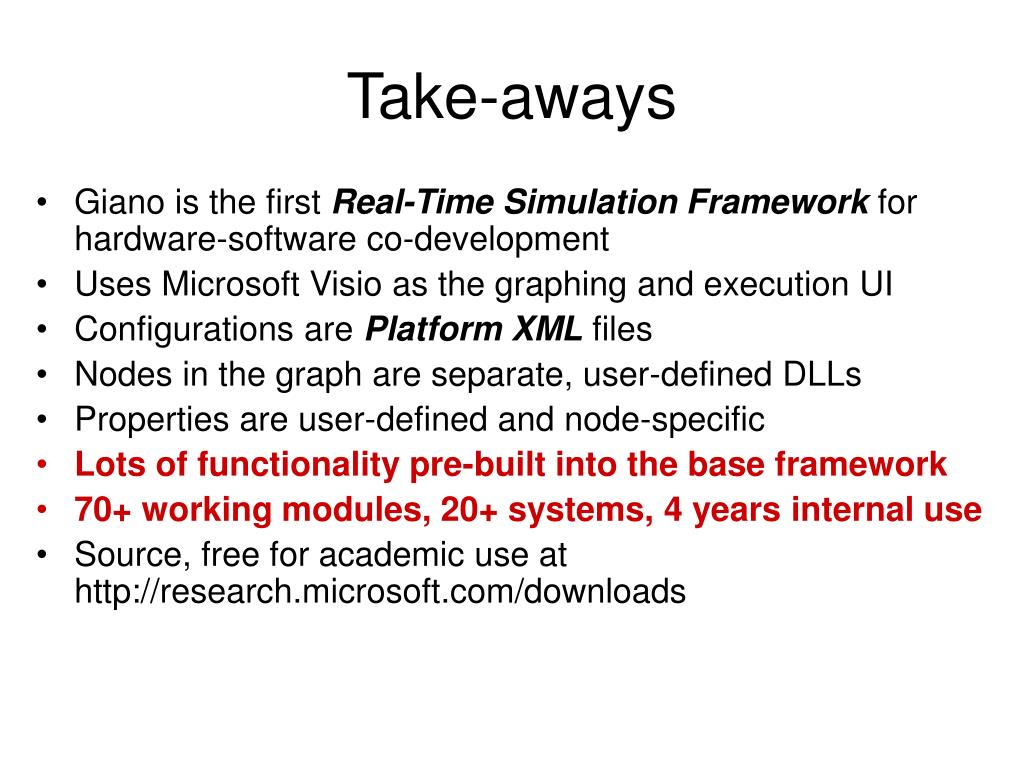

  13. Take-aways • Giano is the first Real-Time Simulation Framework for hardware-software co-development • Uses Microsoft Visio as the graphing and execution UI • Configurations are Platform XML files • Nodes in the graph are separate, user-defined DLLs • Properties are user-defined and node-specific • Lots of functionality pre-built into the base framework • 70+ working modules, 20+ systems, 4 years internal use • Source, free for academic use at http://research.microsoft.com/downloads

  14. Visio Diagrams Atmel EB63 Evaluation Board

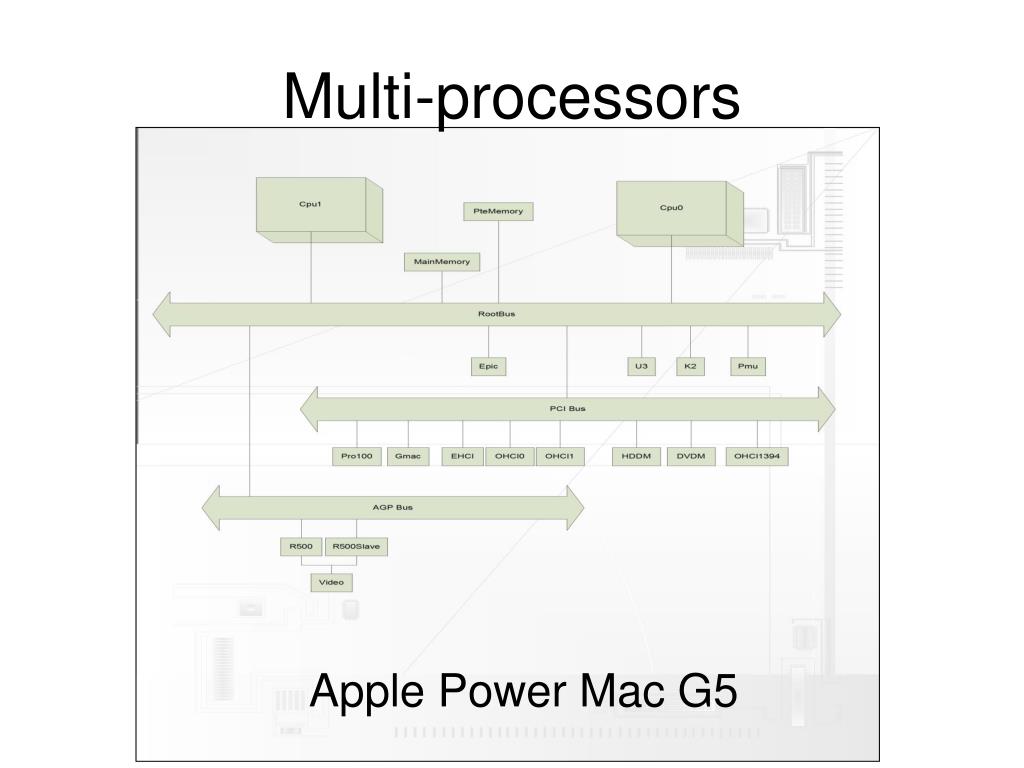

  15. Multi-processors Apple Power Mac G5

  16. Take-aways • Giano is the first Real-Time Simulation Framework for hardware-software co-development • Uses Microsoft Visio as the graphing and execution User Interface • Configurations are Platform XML files • Nodes in the graph are separate, user-defined DLLs • Properties are user-defined and node-specific • Lots of functionality pre-built into the base framework • 70+ working modules, 20+ systems, 4 years internal use • Source, free for academic use at http://research.microsoft.com/downloads

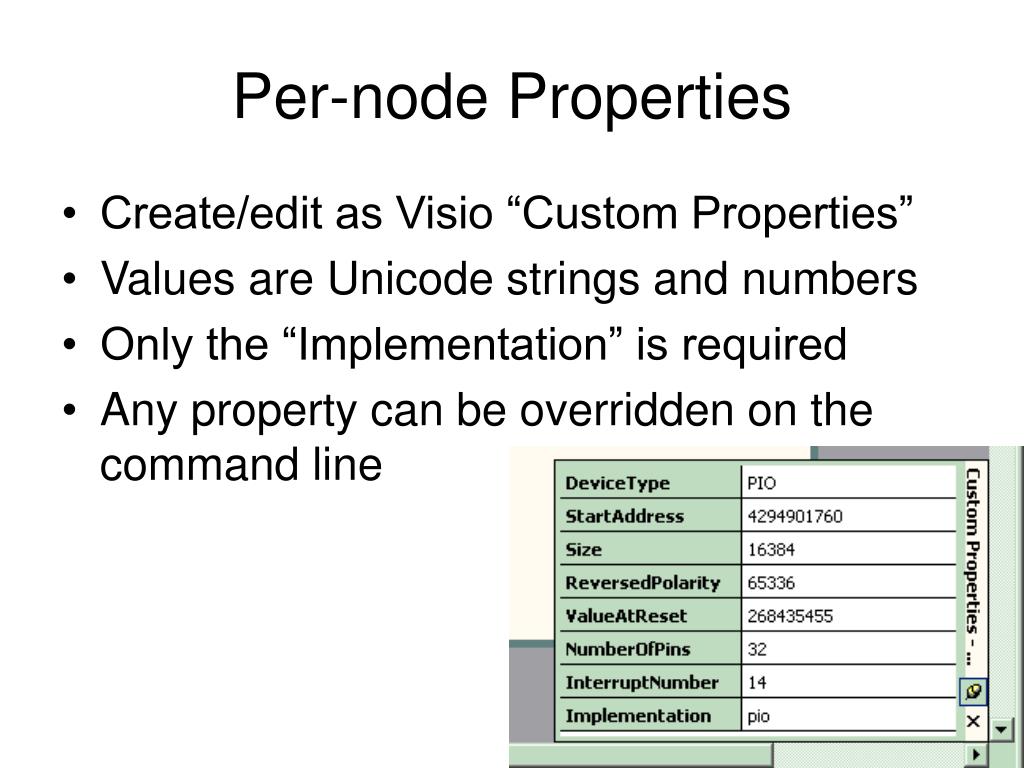

  17. Per-node Properties • Create/edit as Visio “Custom Properties” • Values are Unicode strings and numbers • Only the “Implementation” is required • Any property can be overridden on the command line

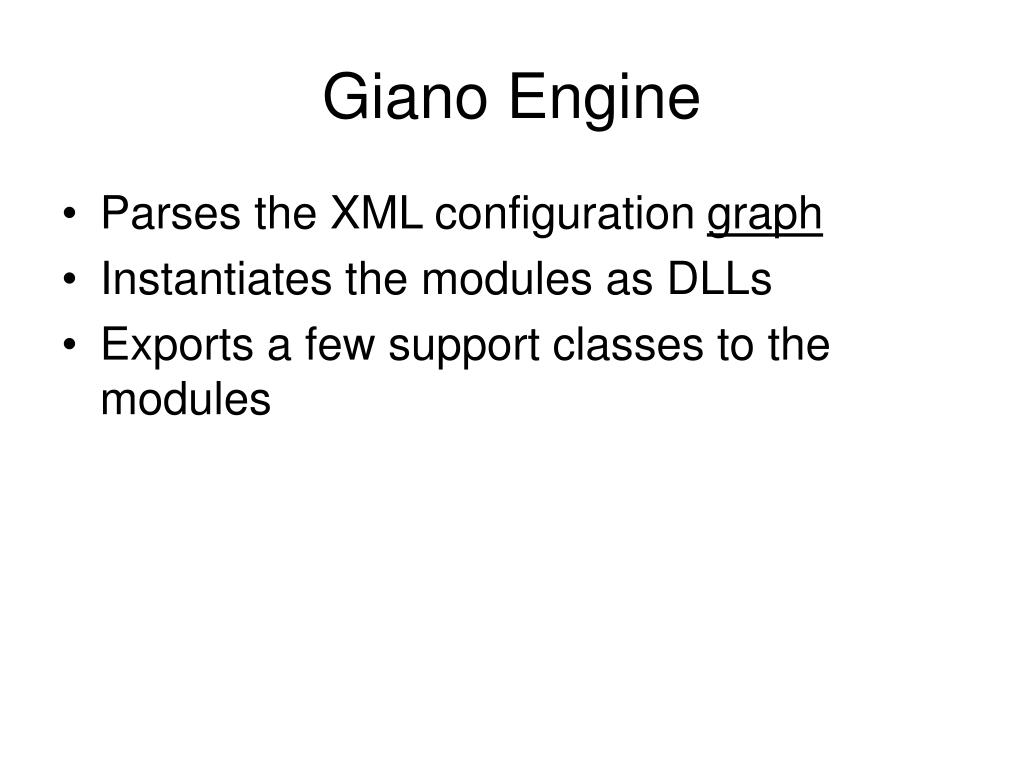

  18. Giano Engine • Parses the XML configuration graph • Instantiates the modules as DLLs • Exports a few support classes to the modules

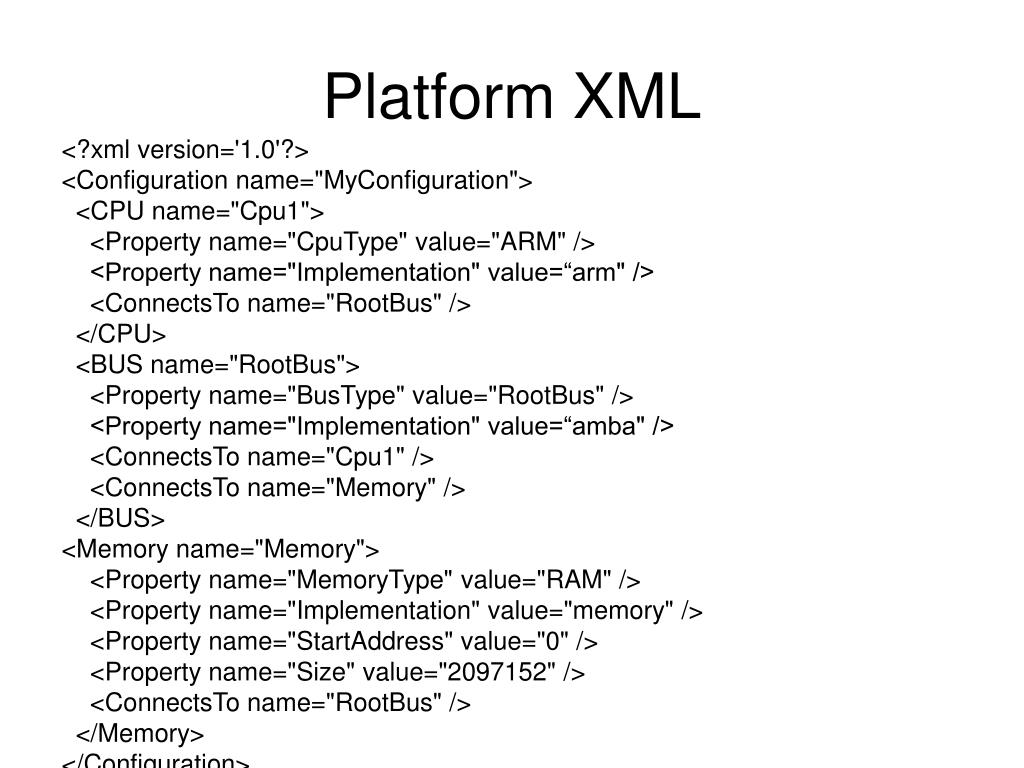

  19. Platform XML <?xml version='1.0'?> <Configuration name="MyConfiguration"> <CPU name="Cpu1"> <Property name="CpuType" value="ARM" /> <Property name="Implementation" value=“arm" /> <ConnectsTo name="RootBus" /> </CPU> <BUS name="RootBus"> <Property name="BusType" value="RootBus" /> <Property name="Implementation" value=“amba" /> <ConnectsTo name="Cpu1" /> <ConnectsTo name="Memory" /> </BUS> <Memory name="Memory"> <Property name="MemoryType" value="RAM" /> <Property name="Implementation" value="memory" /> <Property name="StartAddress" value="0" /> <Property name="Size" value="2097152" /> <ConnectsTo name="RootBus" /> </Memory> </Configuration>

  20. Take-aways • Giano is the first Real-Time Simulation Framework for hardware-software co-development • Uses Microsoft Visio as the graphing and execution UI • Configurations are Platform XML files • Nodes in the graph are separate, user-defined DLLs • Properties are user-defined and node-specific • Lots of functionality pre-built into the base framework • 70+ working modules, 20+ systems, 4 years internal use • Source, free for academic use at http://research.microsoft.com/downloads

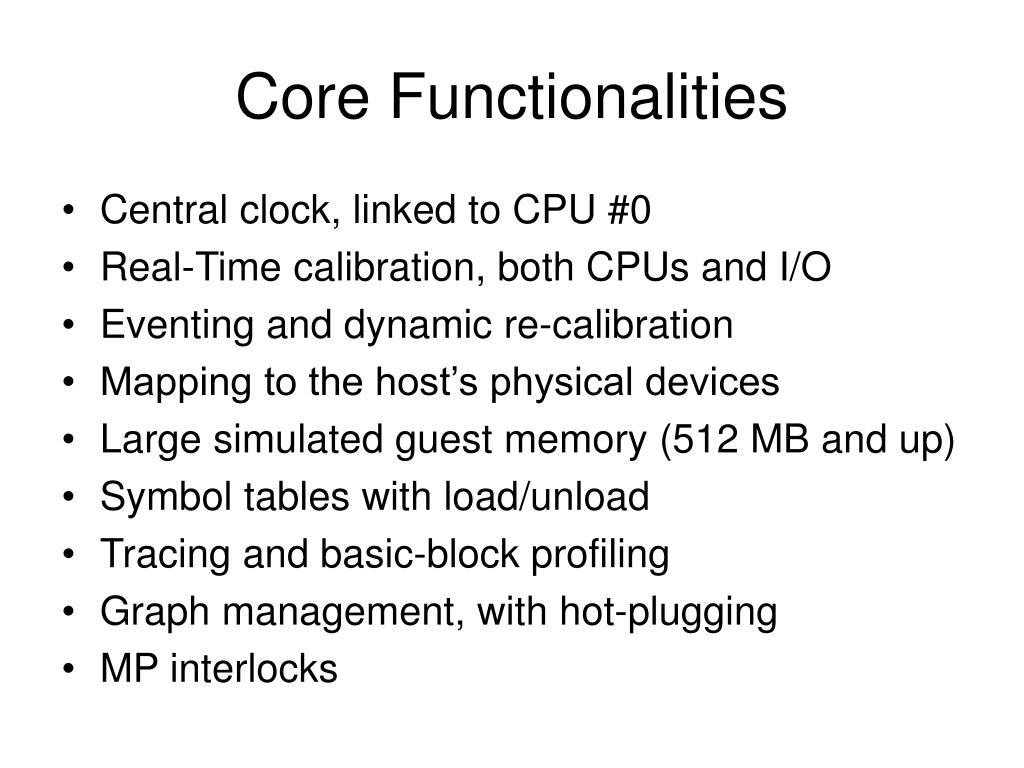

  21. Core Functionalities • Central clock, linked to CPU #0 • Real-Time calibration, both CPUs and I/O • Eventing and dynamic re-calibration • Mapping to the host’s physical devices • Large simulated guest memory (512 MB and up) • Symbol tables with load/unload • Tracing and basic-block profiling • Graph management, with hot-plugging • MP interlocks

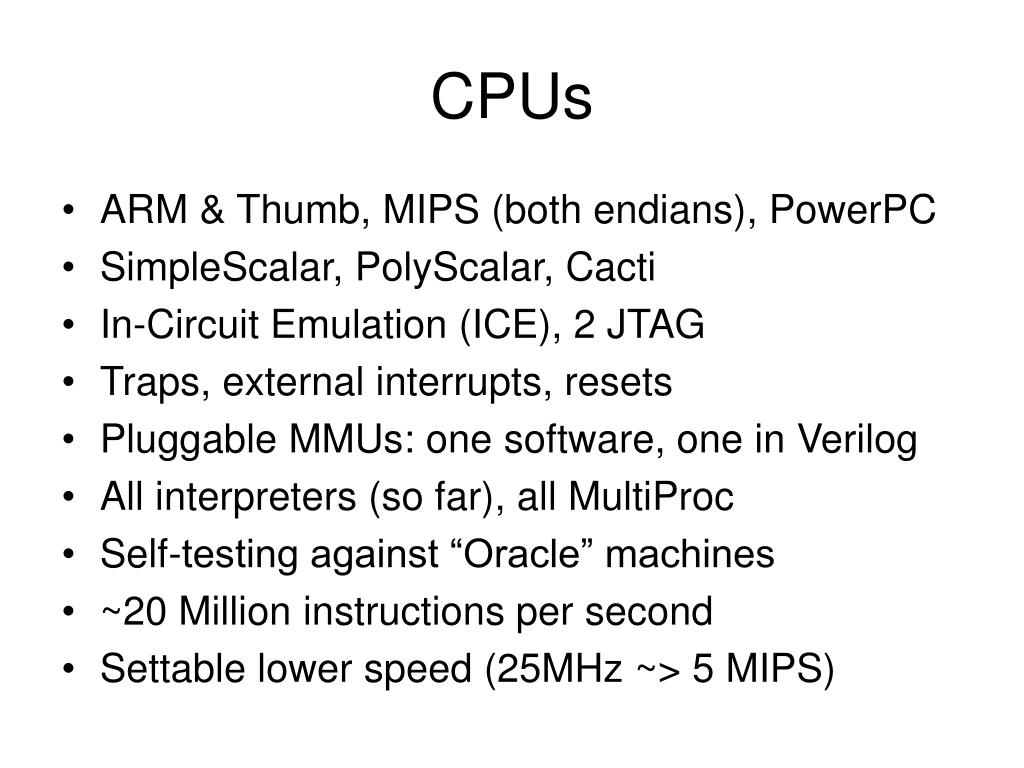

  22. CPUs • ARM & Thumb, MIPS (both endians), PowerPC • SimpleScalar, PolyScalar, Cacti • In-Circuit Emulation (ICE), 2 JTAG • Traps, external interrupts, resets • Pluggable MMUs: one software, one in Verilog • All interpreters (so far), all MultiProc • Self-testing against “Oracle” machines • ~20 Million instructions per second • Settable lower speed (25MHz ~> 5 MIPS)

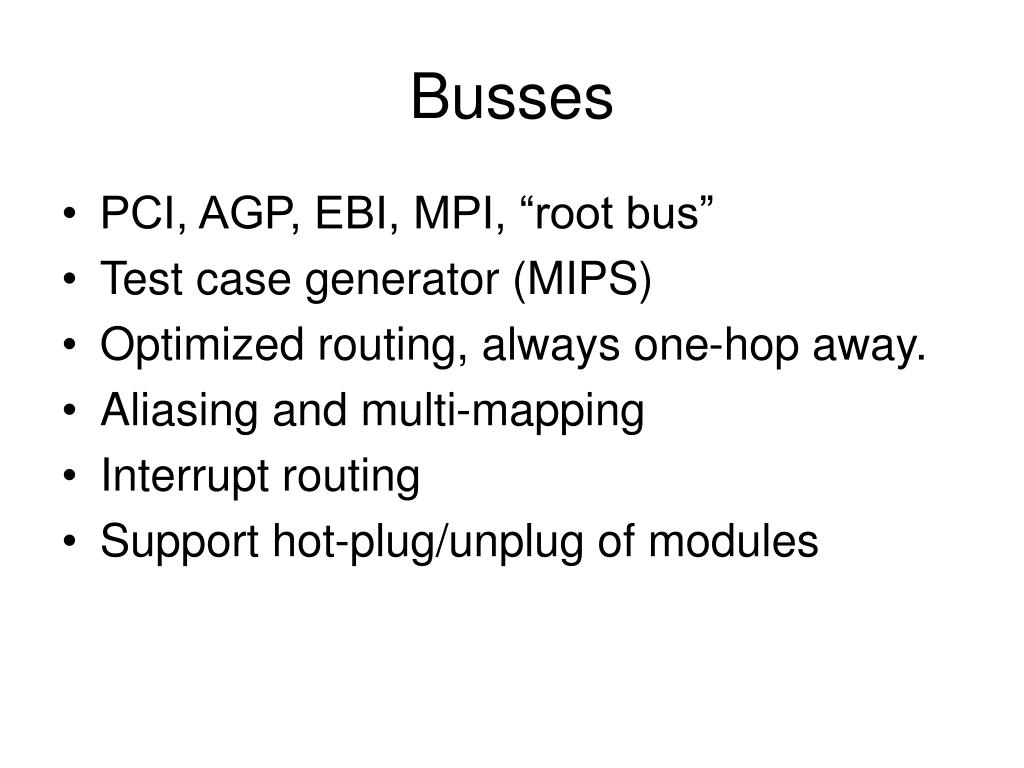

  23. Busses • PCI, AGP, EBI, MPI, “root bus” • Test case generator (MIPS) • Optimized routing, always one-hop away. • Aliasing and multi-mapping • Interrupt routing • Support hot-plug/unplug of modules

  24. Memory • RAM, ROM, FLASH, Serial Flash • Boot images and overlays • Arbitrary transaction sizes • Accessible from any module (DMA!) • Buffer pinning • Large, contiguous virtual segment for best performance • Aliasing

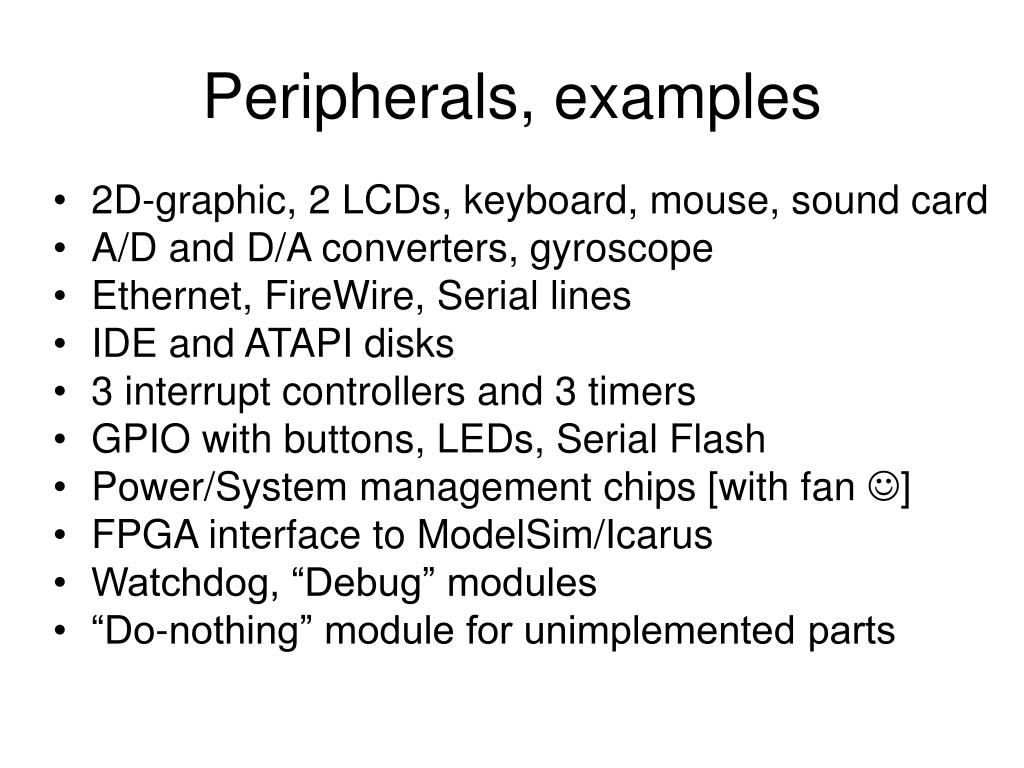

  25. Peripherals, examples • 2D-graphic, 2 LCDs, keyboard, mouse, sound card • A/D and D/A converters, gyroscope • Ethernet, FireWire, Serial lines • IDE and ATAPI disks • 3 interrupt controllers and 3 timers • GPIO with buttons, LEDs, Serial Flash • Power/System management chips [with fan ] • FPGA interface to ModelSim/Icarus • Watchdog, “Debug” modules • “Do-nothing” module for unimplemented parts

  26. Take-aways • Giano is the first Real-Time Simulation Framework for hardware-software co-development • Uses Microsoft Visio as the graphing and execution UI • Configurations are Platform XML files • Nodes in the graph are separate, user-defined DLLs • Properties are user-defined and node-specific • Lots of functionality pre-built into the base framework • 70+ working modules, 20+ systems, 4 years internal use • Source, free for academic use at http://research.microsoft.com/downloads
