  1. Flexible Filters for High Performance Embedded Computing Rebecca Collins and Luca Carloni Department of Computer Science Columbia University

  2. Motivation

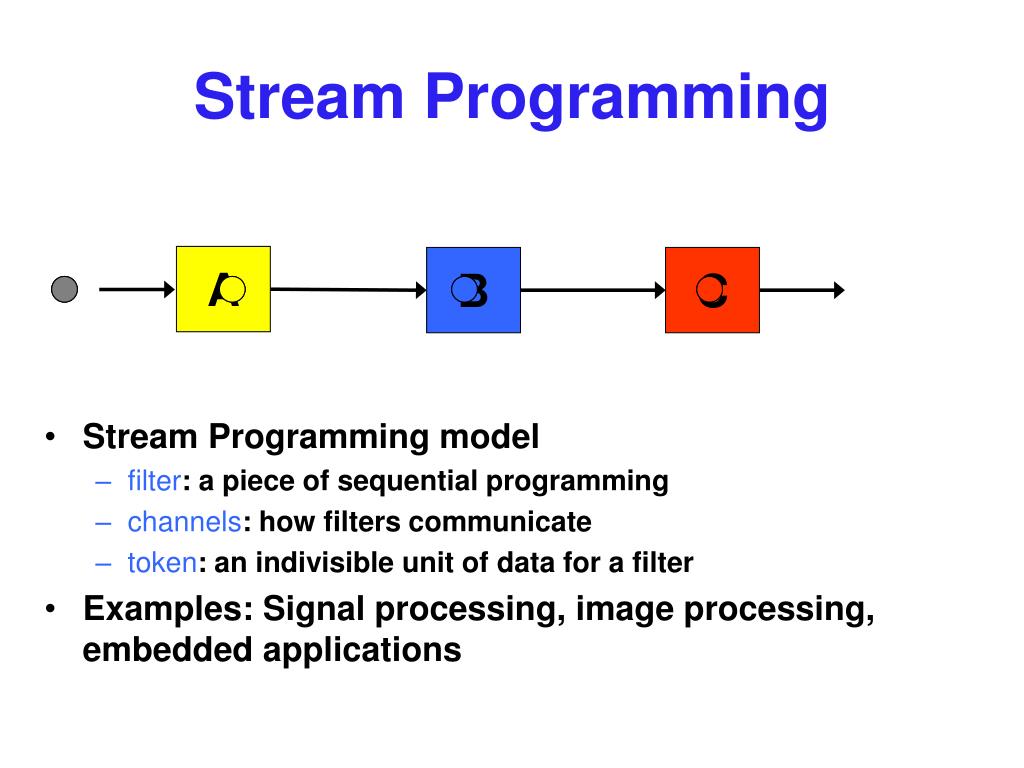

  3. Stream Programming • Stream Programming model • filter: a piece of sequential programming • channels: how filters communicate • token: an indivisible unit of data for a filter • Examples: Signal processing, image processing, embedded applications A B C

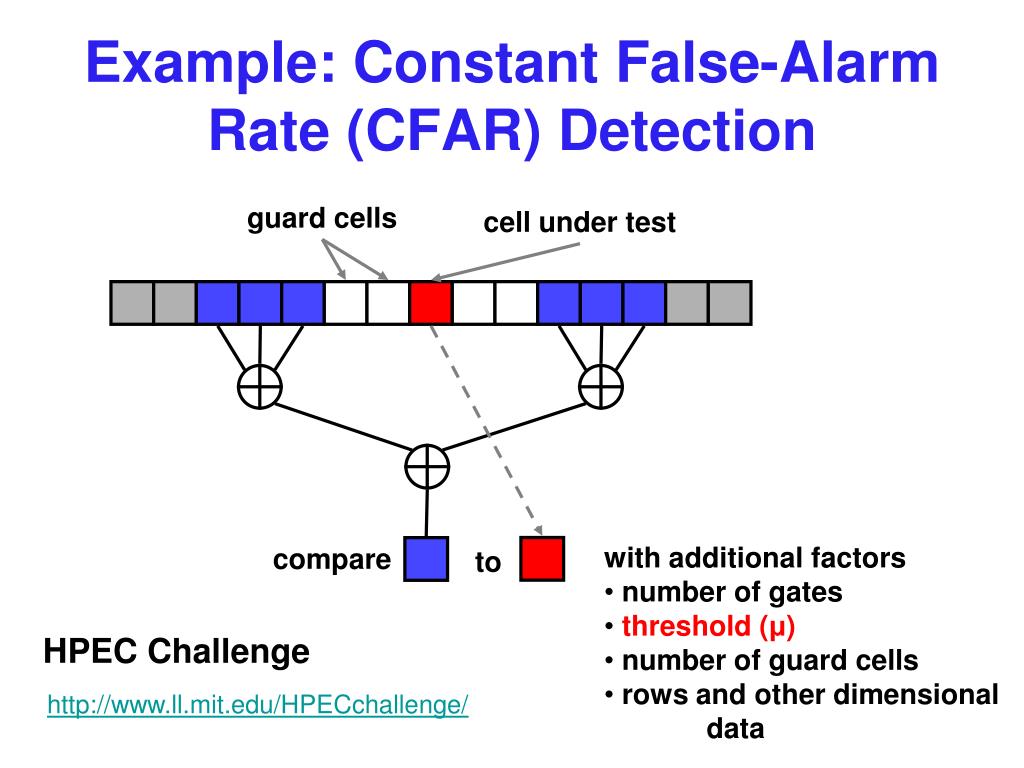

  4. Example: Constant False-Alarm Rate (CFAR) Detection guard cells cell under test • with additional factors • number of gates • threshold (μ) • number of guard cells • rows and other dimensional data compare to HPEC Challenge http://www.ll.mit.edu/HPECchallenge/

  5. CFAR Benchmark uInt to float right window left window align data find targets square add Data Stream: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

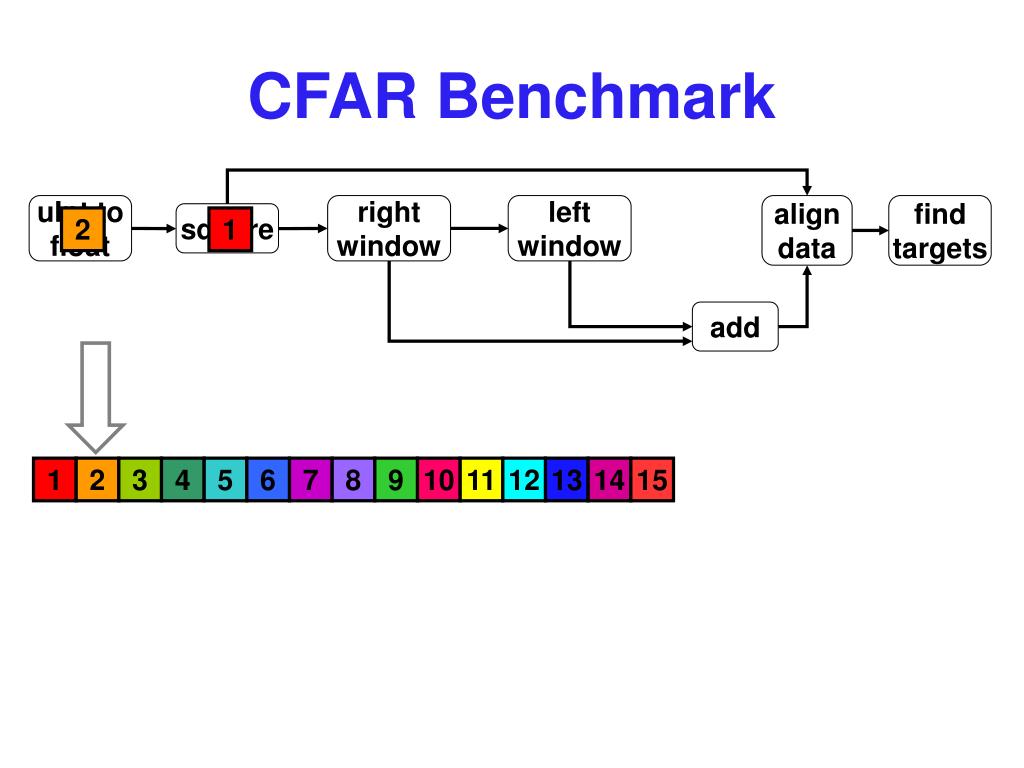

  6. CFAR Benchmark uInt to float right window left window align data find targets square 1 add 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

  7. CFAR Benchmark uInt to float right window left window align data find targets square 2 1 add 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

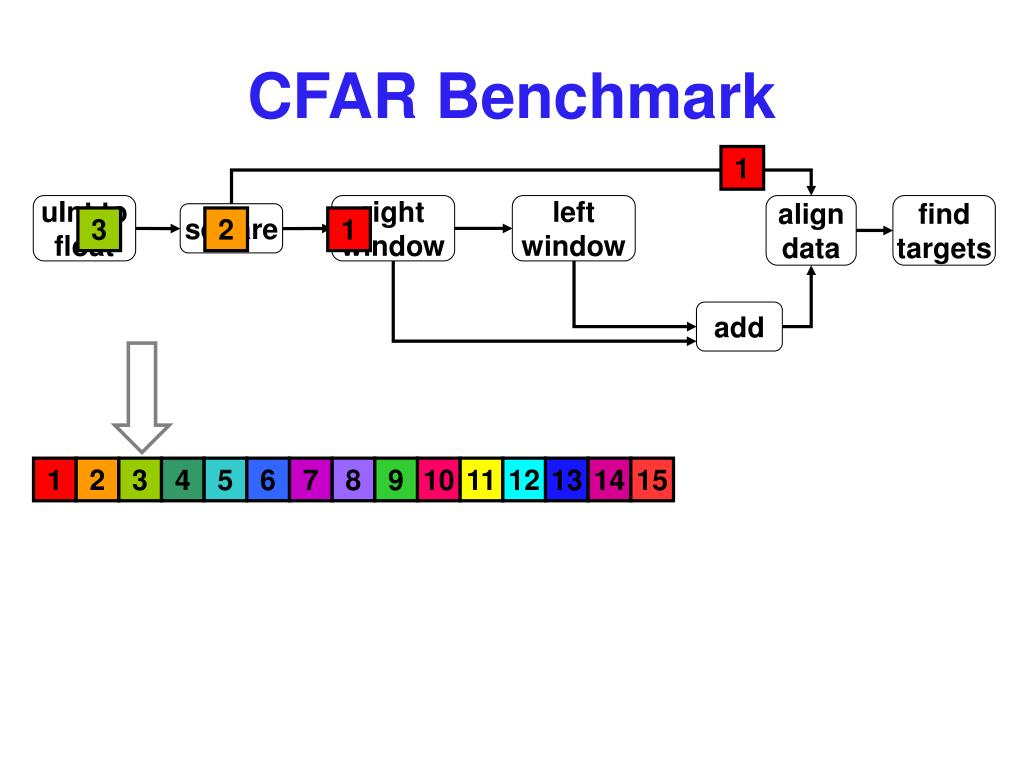

  8. CFAR Benchmark 1 uInt to float right window left window align data find targets square 3 2 1 add 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

  9. CFAR Benchmark 11 10 9 8 7 6 uInt to float right window left window align data find targets 13 square 12 3 2 1 11 10 9 8 add t cell under test right window left window 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 t

  10. core 1 core 2 core 3 A B C multi-core chip Mapping A B C Throughput: rate of processing data tokens

  11. multi-core chip Mapping core 1 core 3 A B C Throughput: rate of processing data tokens A C B

  12. Unbalanced Flow • Bottlenecks reduce throughput • Caused by backpressure • inherent algorithmic imbalances • data-dependent computational spikes core 1 core 2 core 3 A B C “wait”

  13. Data Dependent Execution Time: CFAR • Using Set 1 from the HPEC CFAR Kernel Benchmark • Over a block of about 100 cells • Extra workload of 32 microseconds per target

  14. Some other examples: Bloom Filters (Financial, Spam detection) Compression (Image processing) Data Dependent Execution Time

  15. Our Solution: Flexible Filters flex-merge flex-split • Unused cycles on B are filled by working ahead on filter C with the data already present on B • Push stream flow upstream of a bottleneck • Semantic Preservation core 1 core 2 core 3 A B C C

  16. Related Works • Static Compiler Optimizations • StreamIt [Gordon et al, 2006] • Dynamic Runtime Load Balancing • Work Stealing/Filter Migration • [Kakulavarapu et al., 2001] • Cilk [Frigo et al., 1998] • Flux [Shah et al., 2003] • Borealis [Xing et al., 2005] • Queue based load balancing • Diamond [Huston et al., 2005] distributed search, queue based load balancing, filter re-ordering • Combination Static+Dynamic • FlexStream [Hormati et al., 2009] multiple competing programs

  17. Outline • Introduction • Design Flow of a Stream Program with Flexibility • Performance • Implementation of Flexible Filters • Experiments • CFAR Case Study

  18. Design Flow of a Stream Program with Flexible Filters Design stream algorithm • Mapping • Filters • Memory Profile Add Flexibility to Bottlenecks compiler/ design tools

  19. Design Considerations Design stream algorithm • Mapping • Filters • Memory Profile Add Flexibility to Bottlenecks

  20. Adding Flexibility Design stream algorithm • Mapping • Filters • Memory Profile Add Flexibility to Bottlenecks

  21. Outline • Introduction • Design Flow of a Stream Program with Flexibility • Performance • Implementation of Flexible Filters • Experiments • CFAR Case Study

  22. Mapping Stream Programs to Multi-Core Platforms core 1 core 1 core 2 core 3 A B C A B C core 2 pipeline mapping A B C core 1 core 2 core 3 A B C A B C sharing a core SPMD mapping

  23. EB=2 EC=3 EA=2 A1 B1 C1 A2 C2 B2 B3 A3 C3 Throughput: SPMD Mapping core 1 Suppose EA = 2, EB = 2, EC = 3 A B C 1 core 2 A B C 2 core 3 A B C 3 3 tokens processed in 7 timesteps, ideal throughput = 3/7 = 0.429 SPMD mapping

  24. 1 3 2 2 1 3 4 2 A3 A2 A4 B1 B2 B3 C1 C2 Throughput: Pipeline Mapping core 3 core 1 core 2 C A B 1 latency 2 latency 3 latency 2 A1 throughput = 1/3 = 0.333 < 0.429

  25. Data Blocks core 1 core 2 core 3 A B C C • data block: group of data tokens

  26. 1 2 3 2 1 4 3 2 A3 A2 A4 B1 B2 B3 C1 C2 Throughput: Pipeline Augmented with Flexibility core 3 core 1 core 2 C A B 1 C A1 C2 throughput = 2/5 = 0.4 < 0.429 (but > 0.333)

  27. Outline • Introduction • Design Flow of a Stream Program with Flexibility • Performance • Implementation of Flexible Filters • Experiments • CFAR Case Study

  28. Flex-Split Flex-split pop data block b from in n0 = available space on out0 n1 = |b| - n0 send n0 to out0, n1 to out1 send n0 0’s, then n1 1’s to select core 2 core 3 B C C select in0 out0 in out C flex split flex merge in1 out1 C • maintain ordering • based on run-time state of queues

  29. Flex-Merge Flex-merge pop i from select if i is 0, pop token from in0 if i is 1, pop token from in1 push token to out core 2 core 3 B C C select in0 out0 in out Overhead of Flexibility? C flex split flex merge in1 out1 C

  30. output channel 1 output channel 1 flex merge flex merge flex merge filterflex output channel 2 output channel 2 filter flex split output channel n output channel n Multi-Channel Flex-Split and Flex-Merge … select

  31. filter Multi-Channel Flex-Split and Flex-Merge input channel 1 input channel 2 … input channel n

  32. flex merge filterflex filter flex split Multi-Channel Flex-Split and Flex-Merge input channel 1 Centralized input channel 2 … input channel n select

  33. flex merge flex merge filterflex filterflex filter filter flex split flex split βflex split βflex split select Multi-Channel Flex-Split and Flex-Merge input channel 1 Centralized input channel 2 … input channel n select Distributed input channel 1 input channel 2 … input channel n

  34. Outline • Introduction • Design Flow of a Stream Program with Flexibility • Performance • Implementation of Flexible Filters • Experiments • CFAR Case Study

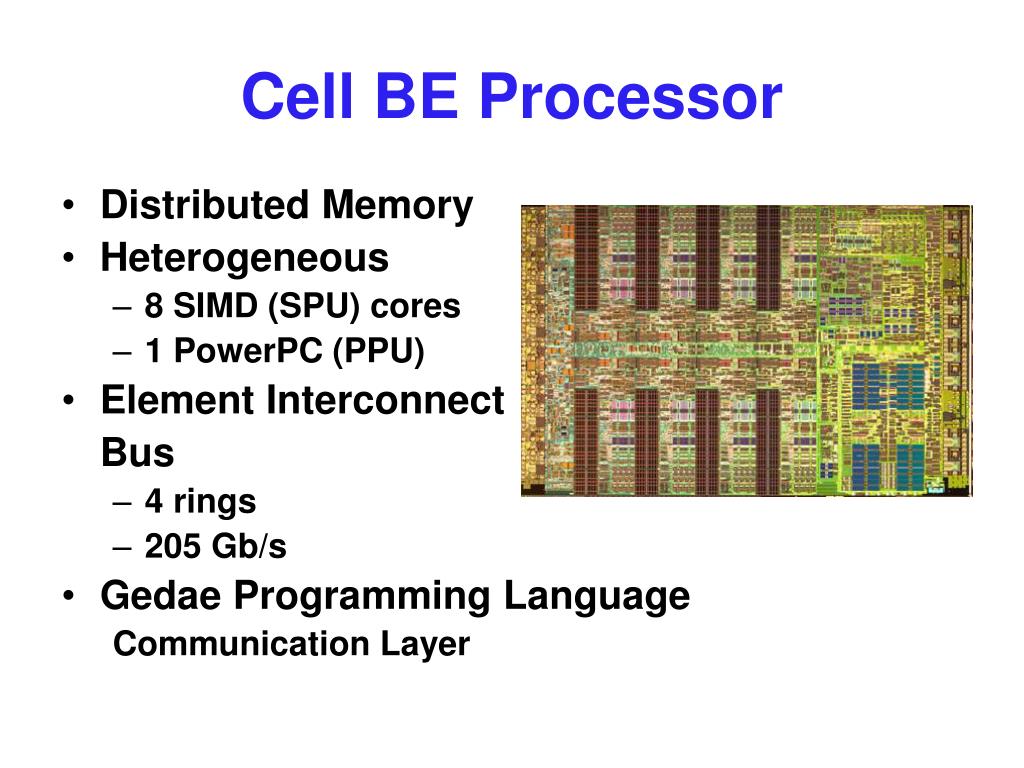

  35. Cell BE Processor • Distributed Memory • Heterogeneous • 8 SIMD (SPU) cores • 1 PowerPC (PPU) • Element Interconnect Bus • 4 rings • 205 Gb/s • Gedae Programming Language Communication Layer

  36. Gedae • Commercial data-flow language and programming GUI • Performance analysis tools

  37. CFAR Benchmark uInt to float right window left window align data find targets square add

  38. By changing threshold, change % targets 1.3 % 7.3 % Additional workload per target 16 µs 32 µs 64 µs Data Dependency % Targets Additional Workload

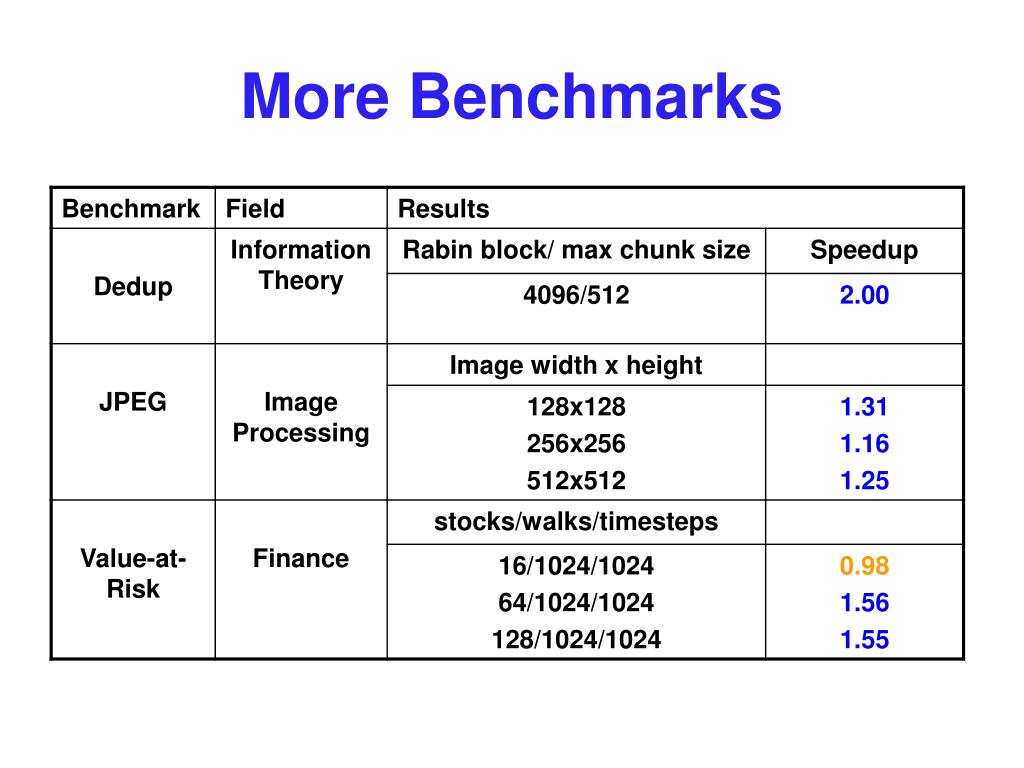

  39. More Benchmarks

  40. Conclusions • Flexible filters • adapt to data dependent bottlenecks • distributed load balancing • provide speedup without modification to original filters • can be implemented on top of general stream languages
