  1. RAD Pseudowires Solutions – Market and Products Overview Presented by: Merav Shenkar E-mail: merav_s@rad.com

  2. Agenda • Introduction • Typical applications of RAD PW products • RAD PW products • Summary PW = Pseudowire

  3. Background RAD’s TDM Pseudowire Products Offering • Carrier class TDM voice or data over packet networks • Uniform TDM access across all last mile infrastructures • Preserves investment in legacy equipment in migration to PSN • Reduce the costs by avoiding the need to pay for leased lines • Lowers OpEx of TDM service by utilizing packet infrastructure. • Carrier grade voice quality (no compression, no Silence Suppression) Packet Network PW GW PW GW TDM Service TDM Service Pseudowire

  4. Leased Line PSN TDMoIP Solution – Campus Environment Application:Carrying PBX traffic over campus ETH network Benefits: • Using PSN to provide voice services • Saves leased line costs • Preserving legacy TDM equipment, features and functionalities Building 1 Building 2 PBX PBX LAN LAN

  5. BSC/RNC Radio Stations RAN Cellular Backhauling Using PW Market trends: • E1/T1 bandwidth is insufficient for new Broadband Services (e.g. HSDPA) • Mobile operators deployed 3G, which requires additional backhaul bandwidth • Circuit-based 2G co-located with ATM-based 3G • Network evolution from TDM/ATM to IP/MPLS • Future IP based Node B’s (3GPP R5/6) The RAN (Radio Access Network) typically consists of multiple E1/T1 Leased Lines

  6. Different Services over PSN Solution 3G • Multiplex mixed-generation links to a common transport • Convert between circuit, cell and packet • Transport of a legacy service over IP/MPLS tunnels • Multiplexing/aggregation of multiple services over PSN ATM ACE 2G TDM Cellular Services PSN GW PBX IPmux PSN Eth/IP/MPLS E1 TDM DSL Services VoIP LA DSL

  7. What is Pseudowire? • Pseudo = Simulated, Seemingly • Extends services over PSN (ETH/IP/MPLS) • Supports voice, data and video • Provides a transparent tunnel through the PSN • Defined by IETF PWE3 working groupsTDM PW, ATM PW, FR PW and ETH PW • Provides clock distribution and synchronization over PSN

  8. What is Pseudowire? PSN Network ATM VCC ATM VCC PW-GW PW-GW HDLC HDLC TDM Bundle TDM Bundle

  9. PW-Label VCC/E1 VCC/E1 PW-Label MPLS Switching 1. User Services are mapped to PW Switching is done according to the Tunnel label 2. Adding Tunnel Label E1-TDM E1-TDM PW-Label VCC/E1 Tunnel Label PSN-GW PSN-GW VCC VCC ETH ETH MPLS VCC VCC 3. The Tunnel Label is stripped VCC/E1 PW-Label Tunnel Label 4. PW Label mapped back to user services

  10. PW-Label PW-Label VCC/E1 VCC/E1 IP Header IP Header VCC/E1 PW-Label IP/ETH Switching Switching is done according to the IP addresses 1.User services are mapped to PW PW-Label VCC/E1 2. Adding Tunnel Label E1-TDM E1-TDM PW-GW PW-GW VCC VCC ETH ETH IP/ETH Network VCC VCC 3. The Tunnel Label is stripped 4. PW Label mapped back to user services

  11. Typical Applications

  12. TDM Backhaul/Trunking over PSN Gmux-2000 Gmux-2000 Target Customers • Alternative Carriers save on leased line capacity from incumbent • Large enterprises looking to save on leased line costs Benefits • Small foot print with high capacity: 196xE1/T1 or 2xSTM-1/OC-3 for a 6U chassis • Grooming of E1/T1 into lower cost STM-1/OC-3 ports E1/T1 Ch. STM-1/OC-3 E1/T1 Ethernet/ MPLS/IP GbE GbE SDH PABX Class 5 Switch

  13. PSTN Access over Packet IPmux-16 E1/T1 Fiber Gmux-2000 Ethernet Target Customers • Alternative Carriers • Incumbents in migration or out of their network reach Benefits • Unified TDM over packet solution regardless of access technology • Enables Ethernet and TDM service on the same infrastructure • Alternative carriers can increase revenue by selling TDM services GbE CMTS Ethernet/IP/ MPLS n x T1/E1 or Ch.OC-3/C.STM-1 IPmux-11/14 FT1/T1/n x T1 FE1/E1/n x E1 Cable HFC Infrastructure CableModem PSTN Fixed Wireless IPmux-11/14 FT1/T1/n x T1 FE1/E1/n x E1 DSLModem IPmux-1E

  14. 2G/3G Cellular traffic over PSN 3G RNC 3G Node B • Aggregation and tunneling (pseudo-wire) of both 2G TDM traffic and 3G ATM traffic over the same packet transport network • Mapping of TDM/ATM traffic to packets • Transparent backhaul of Abis and lub over the PSN • Clock distribution and network synchronization STM-1 STM-1 n x E1 IMA/UNI PW-GW PW-GW Packet Switched Network ETH ETH 2G BSC E1 TDM CH-STM-1 2G BTS PW GW STM-1 ETH n x E1 IMA/UNI Node B

  15. HSDPA Application – Cellular Backhaul over PSN/ATM Packet Switched Network GbE FE • Aggregation and tunneling (pseudo-wire) of both 2G TDM traffic and 3G ATM traffic over the same packet transport network • HSDPA differentiation using two types of networks to reduce data transport cost • Clock distribution and network synchronization ACE-3400 SGSN E1/T1s ATM/IMA ACE-3100 STM-1 2G BTS 3G RNC STM-1 E1/T1s ATM/IMA SDH/ATM Access Network STM-1 APS Redundancy STM-1 APS Redundancy 3G Node B

  16. 2G/3G ATM over PSN Using DSL Access PSN • E1 TDM traffic from the 2G BTS and E1 UNI/IMA traffic from the 3G NodeB is encapsulated as data and tunneled towards the BSC/RNC as TDM/ATM PW • The ACE\Gmux terminates the TDM/ATM PW and hands the TDM/ATM traffic to the BSC/RNC LA-110 E1 TDM xDSL 2G BSC ATM Gmux-2000 ACE-3400 BTS IP-DSLAM PSN Eth/IP/MPLS LA-130 GbE GbE n  SHDSL E1s 3G RNC ATM IMA IMA 3G Node B ATM UNI STM-1

  17. RAD PW Products

  18. IPmux-11, IPmux-14 • IPmux-11 – 1xE1/T1 TDMoIP gateway • Single E1/T1 port with 2 user Ethernet ports • Single network port with copper or fiber • Cost effective CPE/CLE providing both Ethernet and TDM service • IPmux-14 – 2/4xE1/T1 or 1xSerial TDMoIP Gateway • 2/4 E1/T1 ports with 2 user Ethernet ports • Serial interface support for nx64, X.25, RS-232, V.35 legacy services • Single network port with copper or fiber • Grooming on time slot level • IPmux-14/T & IPmux-14/A Support all IPmux-14 features including advanced timing mechanism compliance with adaptive clock according to G.823 Traffic/Sync interface IPmux-11 IPmux-14 IPmux-14/A

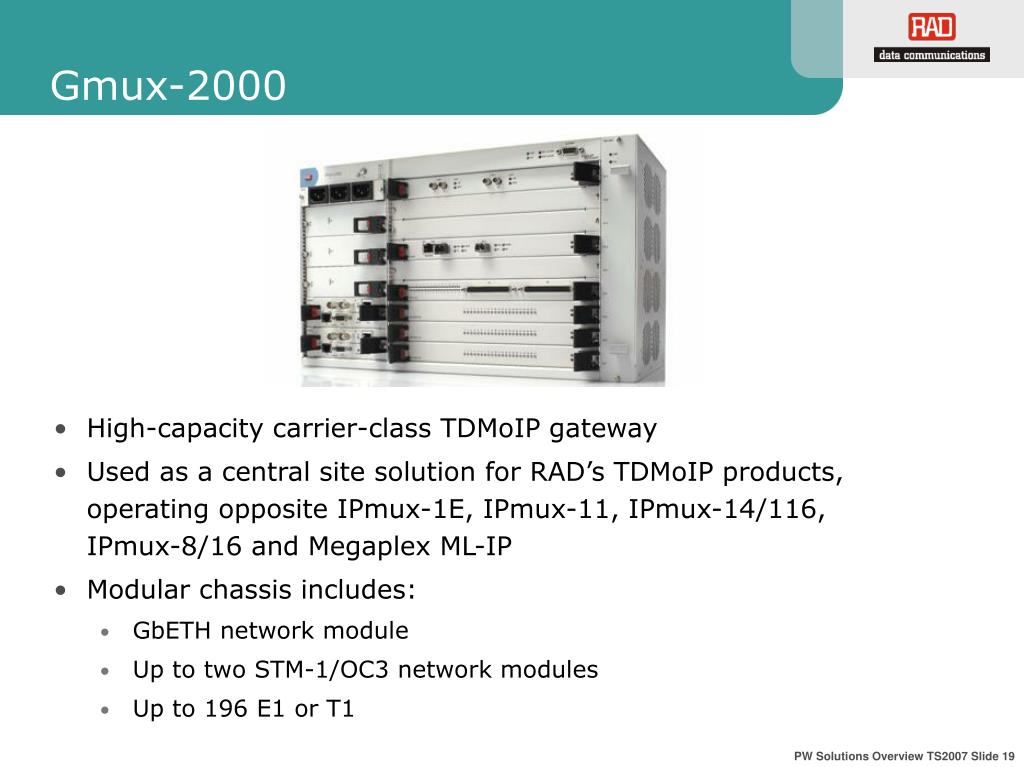

  19. Gmux-2000 • High-capacity carrier-class TDMoIP gateway • Used as a central site solution for RAD’s TDMoIP products, operating opposite IPmux-1E, IPmux-11, IPmux-14/116, IPmux-8/16 and Megaplex ML-IP • Modular chassis includes: • GbETH network module • Up to two STM-1/OC3 network modules • Up to 196 E1 or T1

  20. IPmux-116 • Supports TDM, HDLC-based and Ethernet services over Ethernet, MPLS or IP networks with Pseudowire technology • Ideal solution for Cellular backhaul, PSTN access and TDM trunking • Provides cost effective solution for converging new and legacy services over packet infrastructure • Up to 16 E1 or T1 ports • Available for beta in Q2/2007 New

  21. IPmux/Gmux Main Features • Applicable over: • L2/MPLS/IP networks/backbones • Encapsulation protocols: • TDMoIP • OAM support • Alarm forwarding propagation • Clock recovery mechanism- Complies to G.823/4 Traffic interface & G.8261 • ETH NTU • Gmux Redundancy: • STM-1/OC-3 port/module level redundancy GE port level redundancy (Phase 2.xx)

  22. RAD’s TDMoIP Product Family Product

  23. ACE-3100 & ACE-3200 ACE-3200 ACE-3100 • ACE-3100: • 4 x T1/E1 UNI (ASAP) with 2 x STM-1 UNI • 2 x Fast Ethernet ports – For OOB management or as an uplink for PSN support • ACE-3200: • 8/16 x T1/E1 UNI with 2 x STM-1 UNI • 2 x Fast Ethernet ports – For OOB management or as an uplink for PSN support • Redundant PS option (AC/DC)

  24. ACE-3400 32/63 E1/T1 UNI/IMA/CES (ASAP) 4 Pluggable network interfaces supporting 1 GbE Up to 3 STM-1 UNI (one for Redundancy) 3U, 19”, Fully modular ACE-3402 4 Pluggable network interfaces supporting 1xGbE 2 x STM-1 UNI 1+1 Channelized STM-1/OC3 with support for 63/84 E1/T1 over VC12/VT1.5 2U, 19”, Fully modular ACE-3400 & ACE-3402 ACE-3400 ACE-3402 • Fully redundant, no single point of failure • 2 swappable AC or DC power supplies • Total front access

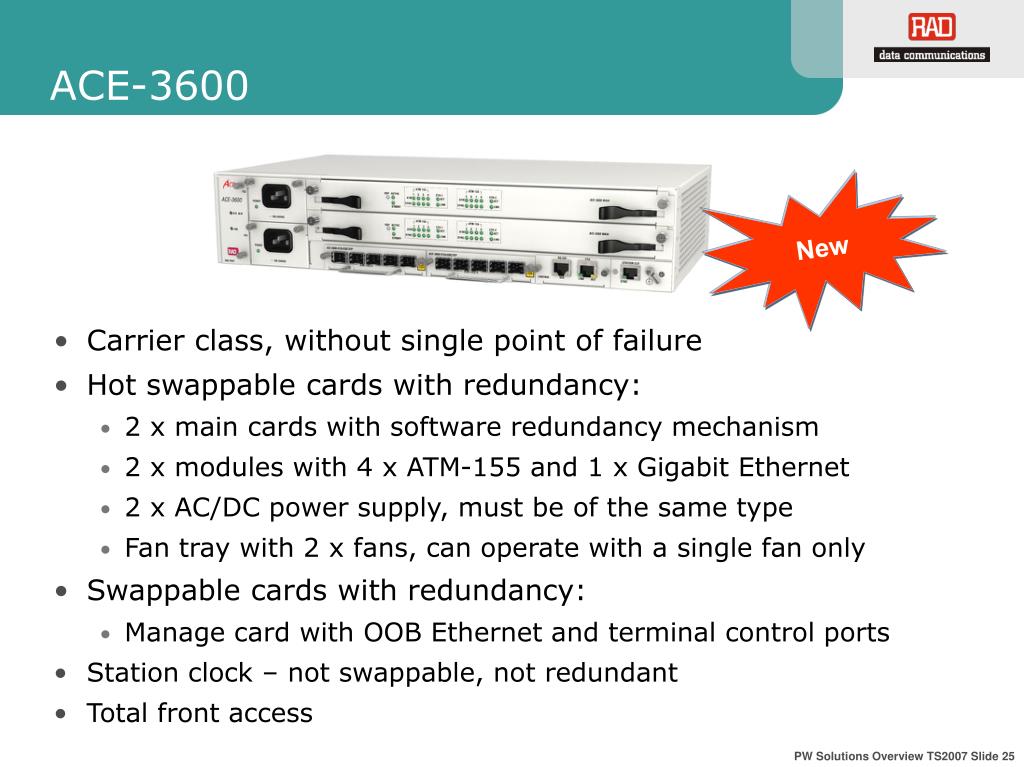

  25. ACE-3600 New • Carrier class, without single point of failure • Hot swappable cards with redundancy: • 2 x main cards with software redundancy mechanism • 2 x modules with 4 x ATM-155 and 1 x Gigabit Ethernet • 2 x AC/DC power supply, must be of the same type • Fan tray with 2 x fans, can operate with a single fan only • Swappable cards with redundancy: • Manage card with OOB Ethernet and terminal control ports • Station clock – not swappable, not redundant • Total front access

  26. ACE-3x00/PSN Main Features • Applicable for backhauling over: • L2/MPLS/IP networks/backbones • Encapsulation protocols: • ATM over PSN for 3G- ATMoPSN • CES over PSN for 2G- CESoPSN/SAToP • 1:1 and N:1 mapping mode (for ATMoPSN) • PW connectivity verification • Alarm forwarding support • Clock distribution and synchronization support according to G.823 synchronization interface • Multicast support • LDP support- Label Distribution Protocol enables the device to learn the MPLS labels automatically (phase 5)

  27. Physical Description

  28. 4 E1\T1 ports (ATM or TDM) 1 CES and up to 3 ATM UNI or IMA 4 E1 ASAP – Q1/07 WAN interfaces SHDSL 4 pairs IMA ADSL2+ (Q2\07) User ports: 4 ISDN S0, 4 POTS, E1, T1 1 LAN interface 1 data port V.35/X.21 Network SHDSL, ADSL, E1-UNI, IMA LA-110 & LA-130 LA-130 LA-110

  29. RAD Pseudowire Product Guide

  30. Summary The PW solution enables: • Smooth migration to new packet based transport networks • Good for voice, data and video traffic • Provide a complete solution for TDM, ATM and DSL services over PSN using RAD PW products • Transparent to protocols and signaling • Reducing the cost by avoiding the need to use leased lines • Controlled transport costs by maximizing utilization of RAN infrastructure • Standardized by the IETF PWE3 working group

  31. thank you for your attention Merav Shenkar BroadBand Access team Email: merav_s@rad.com www.rad.com
