  1. V-22 IETM Overview The Evolution of the V-22 IETM Gary L. Smith NAVAIR V-22 IETM IPT Lead 10 February 2004

  2. V-22 IETM Overview • The Evolution of the V-22 IETM • Portable Electronic Display Device (PEDD) • Data Authoring Environment • Presentation Software • Lessons Learned • The Way Forward

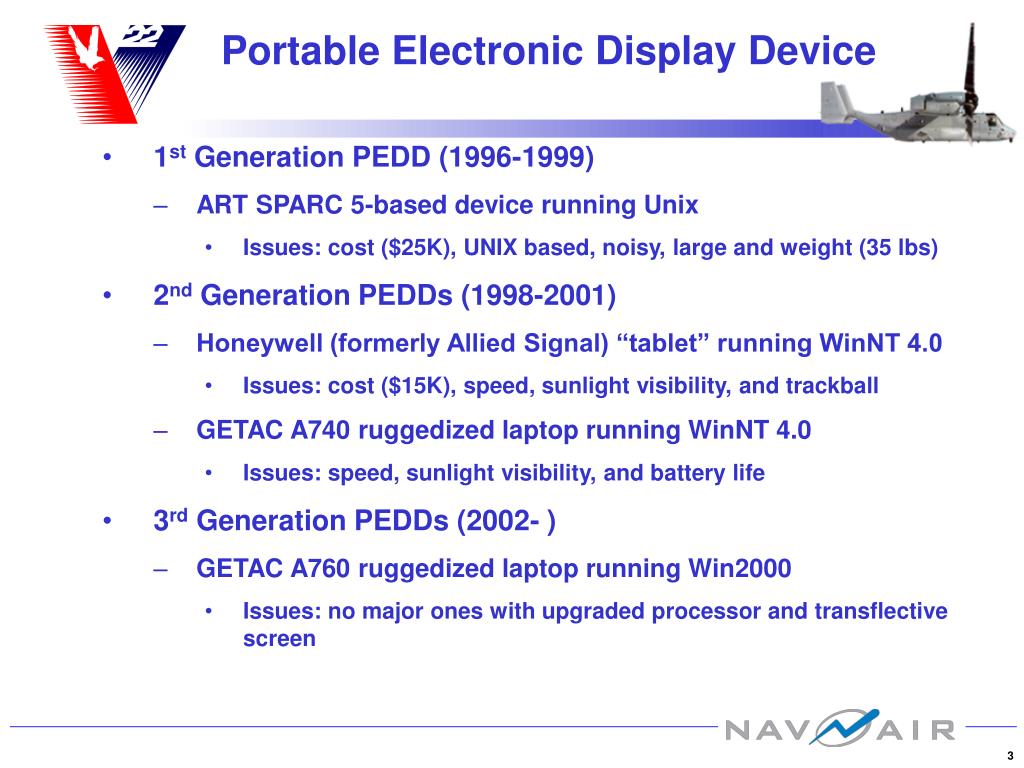

  3. Portable Electronic Display Device • 1st Generation PEDD (1996-1999) • ART SPARC 5-based device running Unix • Issues: cost ($25K), UNIX based, noisy, large and weight (35 lbs) • 2nd Generation PEDDs (1998-2001) • Honeywell (formerly Allied Signal) “tablet” running WinNT 4.0 • Issues: cost ($15K), speed, sunlight visibility, and trackball • GETAC A740 ruggedized laptop running WinNT 4.0 • Issues: speed, sunlight visibility, and battery life • 3rd Generation PEDDs (2002- ) • GETAC A760 ruggedized laptop running Win2000 • Issues: no major ones with upgraded processor and transflective screen

  4. Portable Electronic Display Device GETAC A760 Ruggedized Laptop

  5. Data Authoring Environment1st Generation • JIMIS Authoring Environment (1994-1999) • SGML-based authoring environment introduced in 1994 • Initial product baseline available to V-22 authors in June 1995 as GFE • Did not include electronic interface to LSA database • Continued in use on V-22 through 1999 and still being used by JSTARS program

  6. Data Authoring Environment2nd Generation • PDAT Authoring Environment (1999- ) • Oracle-based Publications Data Authoring Tool (PDAT) developed by Boeing Helicopter, using V-22 program funds • Incorporated direct interface to LSA database • Real-time presentation functionality • Eliminated time consuming parse activity • Still in use by V-22 authors today

  7. Data Authoring EnvironmentPublications Data Authoring Tool

  8. Presentation Software1st Generation • JIMIS Presentation Software (1995- ) • Developed in early 90’s for JSTARS (E8C) Program • First Class IV IETM delivered to the USAF for operational use in March 1995 • Adopted for use by V-22 in 1995 • Unix-based ANSI C application ported to run under WinNT in 1998 • Version 6.X being used by JSTARS and V-22 today

  9. Presentation Software2nd Generation • Phoenix Presentation Software (2004 on) • Web-based Class IV presentation system • Minimum data migration issues involved in using currently authored data • Data integrity testing currently being conducted by JSTARS and V-22 personnel • Version 1.0 to be released to V-22 in May 2004 representing fully ported JIMIS functionality (and more)

  10. Presentation SoftwarePhoenix

  11. Lessons Learned • Lesson #1- Adhere to open standards to the maximum extent possible • Open standards foster cost effective development • Avoid proprietary non-standard hardware and software solutions, if at all possible

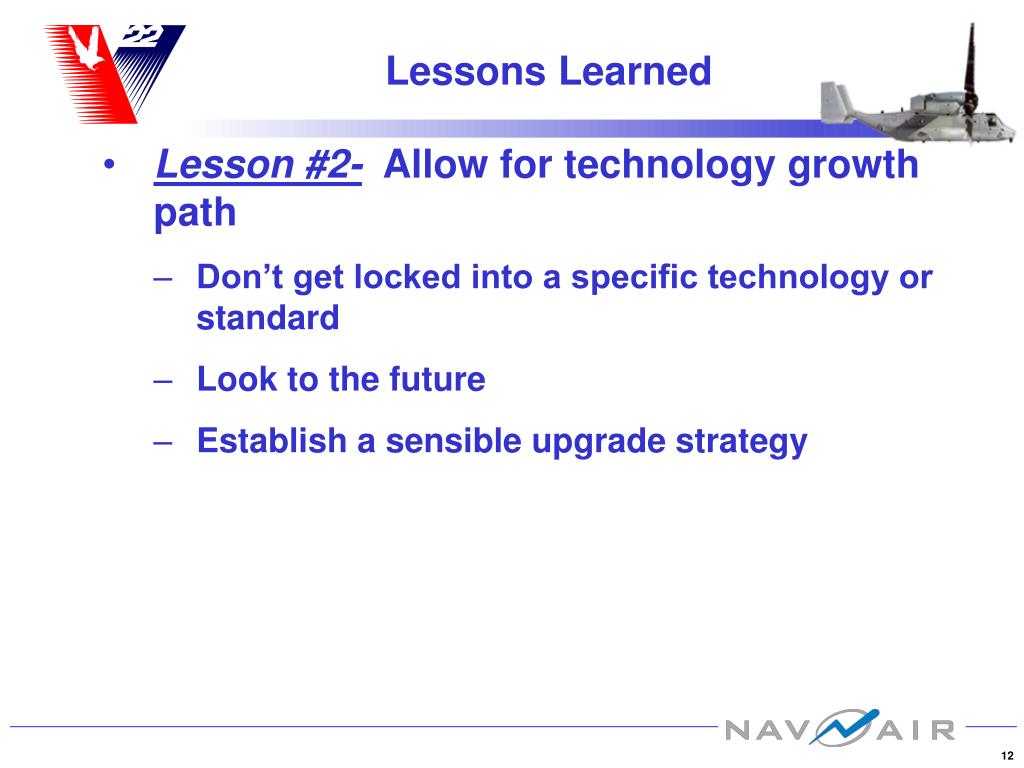

  12. Lessons Learned • Lesson #2- Allow for technology growth path • Don’t get locked into a specific technology or standard • Look to the future • Establish a sensible upgrade strategy

  13. Lessons Learned • Lesson #3- Hardware is cheap • Do not let hardware costs adversely dictate your technology decisions • Be forward thinking • Don’t be “penny wise and pound foolish”

  14. Lessons Learned • Lesson #4- Don’t let data development environment dictate the final product • The deployed product should be independent of the data development methodology • Publications data need only reflect the requirements of the supportability data

  15. Lessons Learned • Lesson #5- Use COTS wisely • Just because it’s COTS doesn’t mean it’s good • COTS does not necessarily mean open • Avoid COTS products with no readily available alternatives

  16. Lessons Learned • Lesson #6- Spec compliance does not guarantee an acceptable product • Being 100% spec compliant does not ensure the end-user will accept the delivered product • Proper interpretation of the implementation of the spec requirements is the key

  17. Lessons Learned • Lesson #7- Involve the end-user • The user is the key to interpreting the spec • User involvement fosters buy-in of the delivered product • Manage the user expectations

  18. The Way Forward • Near-term Initiatives • Complete the upgrade to web-based Phoenix • Support the execution of a successful V-22 OPEVAL • Evaluate and procure a 4th generation PEDD • Establish the framework for a V-22 Automated Maintenance Environment • Define the requirements and technology path for improved IETM graphics

  19. The Way Forward • Mid to Long-term Initiatives • Evaluate alternate hardware technologies for the deployed IETM, to include: • Wearable devices • Hand-held devices • Wireless capabilities • Evaluate the benefits and cost of migrating to an XML environment • Examine the benefits and cost of achieving S1000D spec-compliance

  20. The Way Forward On the V-22 program, we will continually strive to provide the end-user with the best possible IETM product we can.
