  1. Biochemical instrumental analysis-3 Dr. Maha Al-Sedik

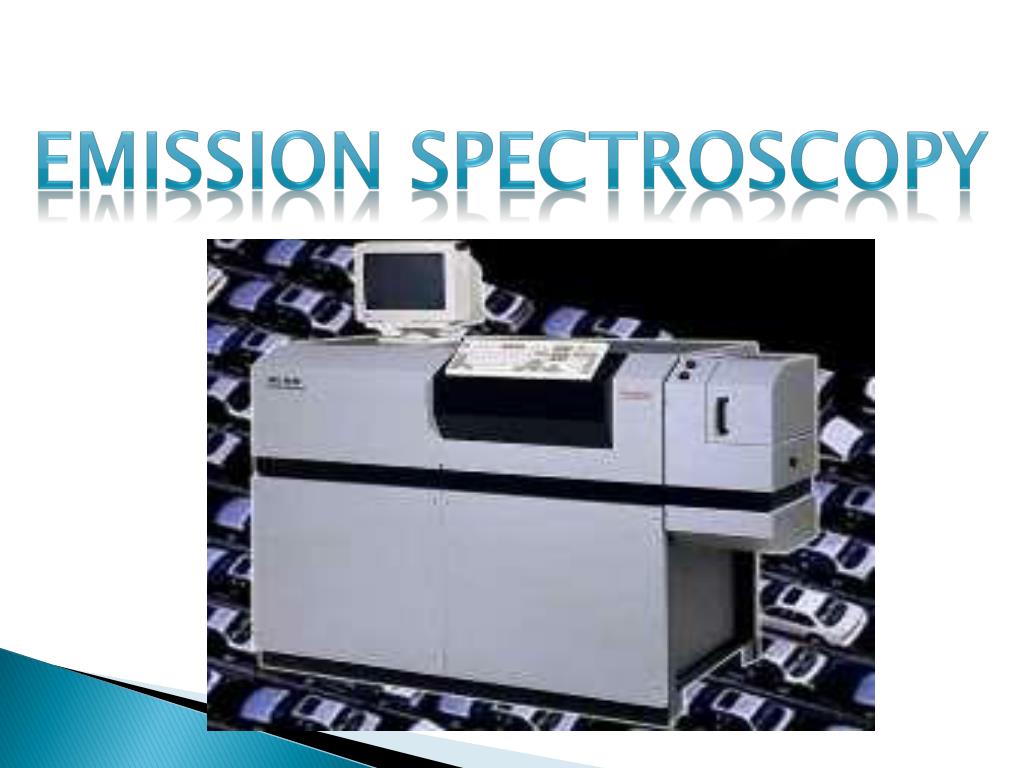

  2. Emission spectroscopy

  3. LUMINESCENCE

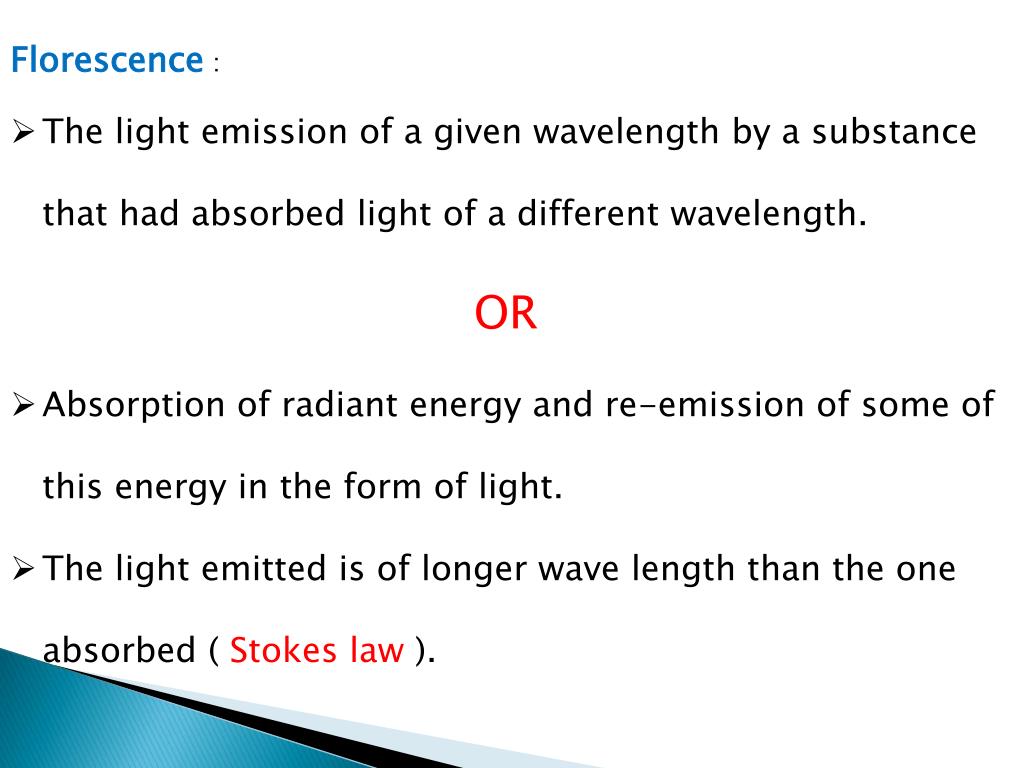

  4. Florescence : • The light emission of a given wavelength by a substance that had absorbed light of a different wavelength. • OR • Absorption of radiant energy and re-emission of some of this energy in the form of light. • The light emitted is of longer wave length than the one absorbed ( Stokes law ).

  5. Fluorescence occurs when an orbital electron of a molecule, atom or nanostructure relaxes to its ground state by emitting a photon of light after being excited to a higher quantum state by some type of energy.

  6. I am the florescent substance .I take what you can not see and give you what you can see

  7. The most striking examples of fluorescence occur when the absorbed radiation is in the ultraviolet region of the spectrum, and thus invisible to the human eye, and the emitted light is in the visible region..

  8. Fluorometer

  9. Fluorometer • Principle: • The appropriate wave length is selected from the light source and then falls onto the sample. • The substance absorbs part from this light. • Measurement of fluorescence (light emitted from substance after being stimulated by light energy). • The amount of emitted light is directly proportional to the concentration of substance.

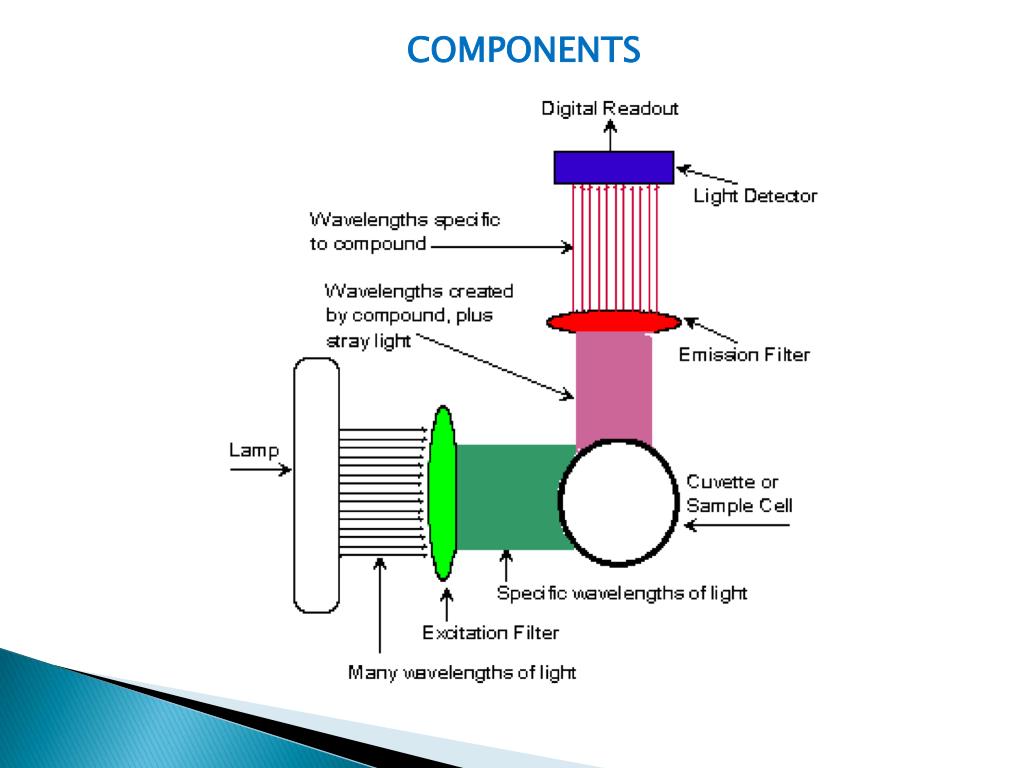

  10. COMPONENTS

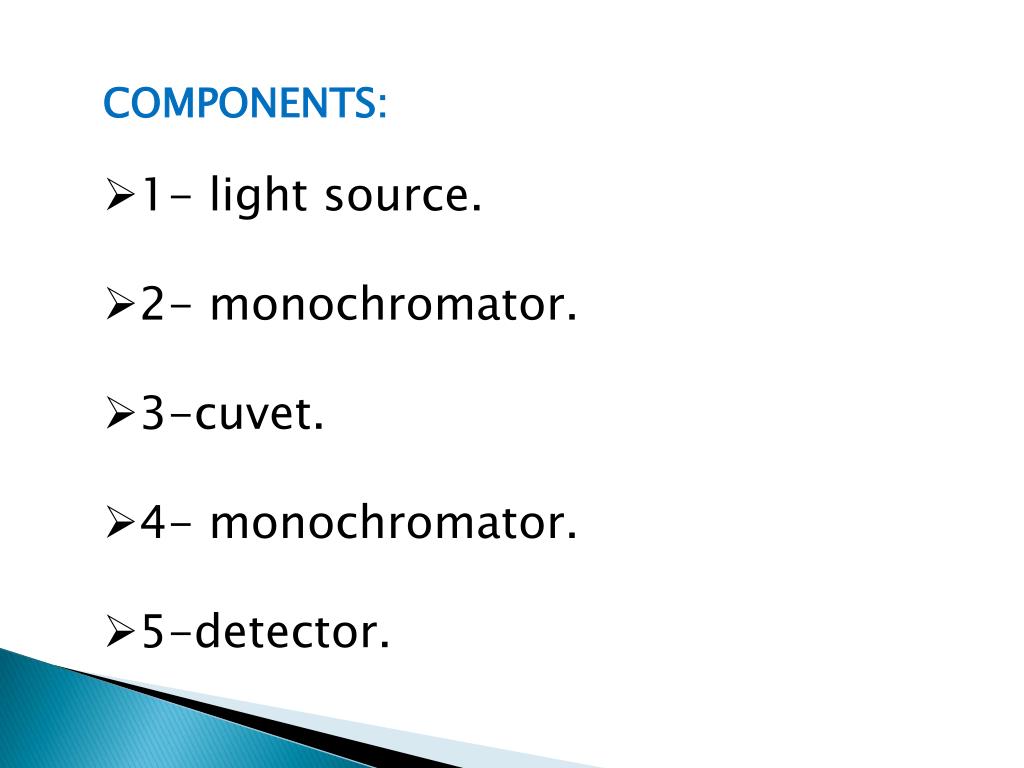

  11. COMPONENTS: • 1- light source. • 2- monochromator. • 3-cuvet. • 4- monochromator. • 5-detector.

  12. I have two monochromators

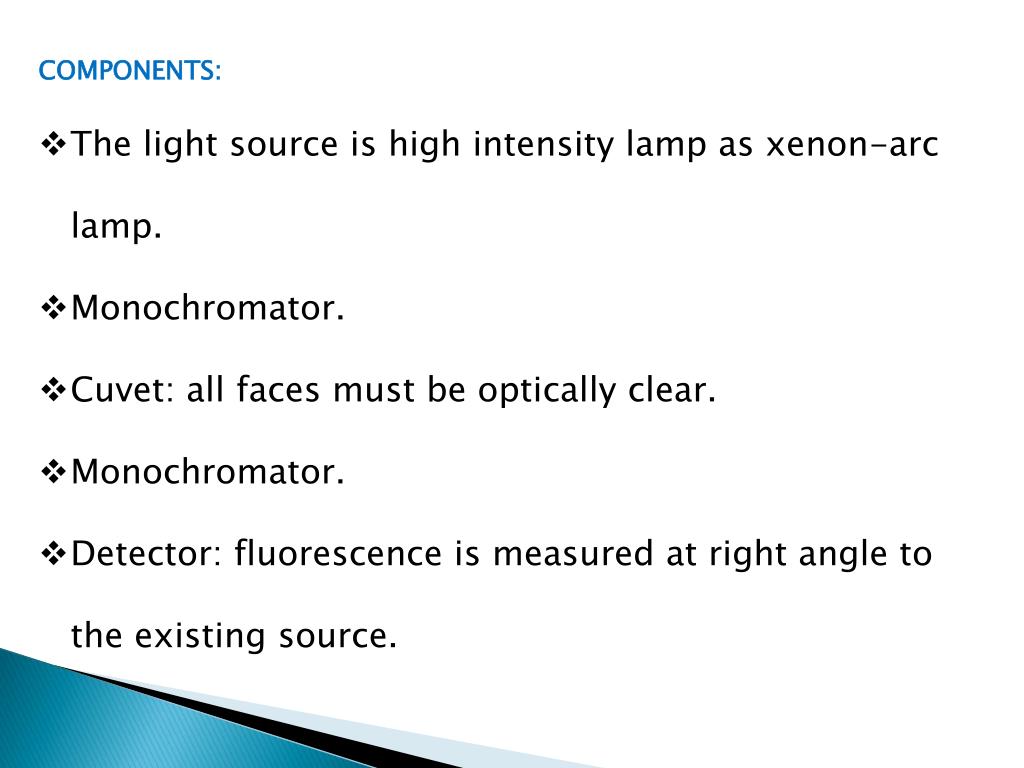

  13. COMPONENTS: • The light source is high intensity lamp as xenon-arc lamp. • Monochromator. • Cuvet: all faces must be optically clear. • Monochromator. • Detector: fluorescence is measured at right angle to the existing source.

  14. Applications of fluorimetry: • 1-measurement of naturally fluorescent compounds: • such as tyrosine, tryptophan, bilirubin and vitamins. • 2-measurment of chemically induced fluorescence: • Tagging the compounds with fluorescence label. Labeling of antigen with fluorescence label: Antibody to these antigen are labeled with fluorescence so allowing its binding to the Ag.

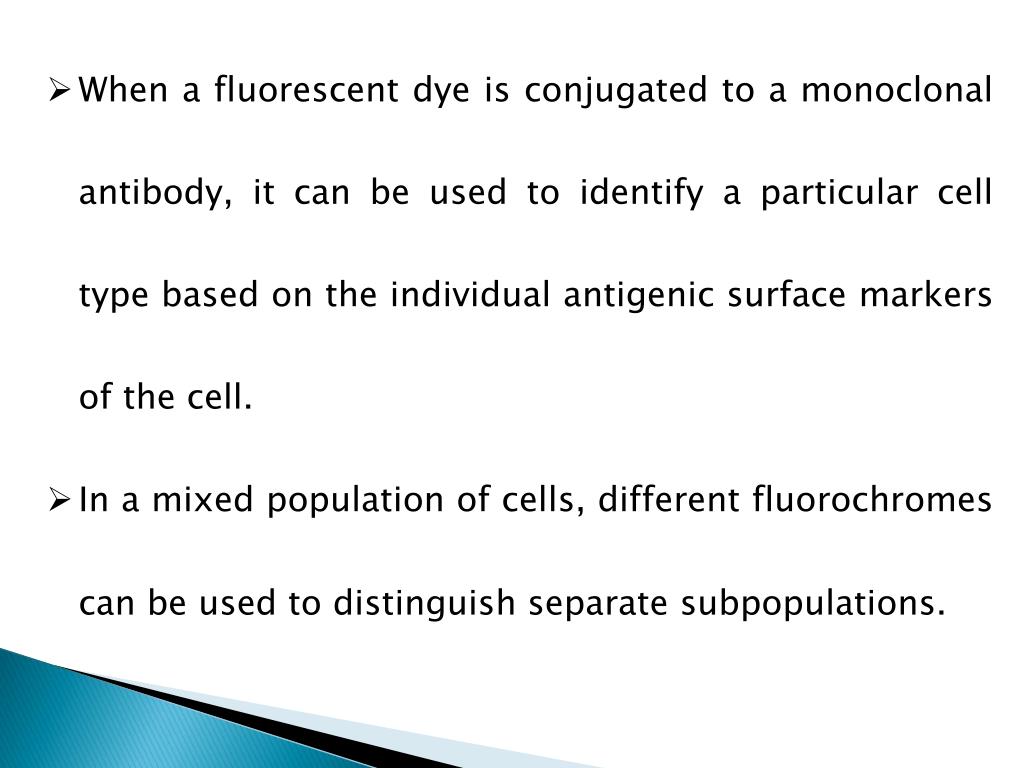

  15. When a fluorescent dye is conjugated to a monoclonal antibody, it can be used to identify a particular cell type based on the individual antigenic surface markers of the cell. • In a mixed population of cells, different fluorochromes can be used to distinguish separate subpopulations.

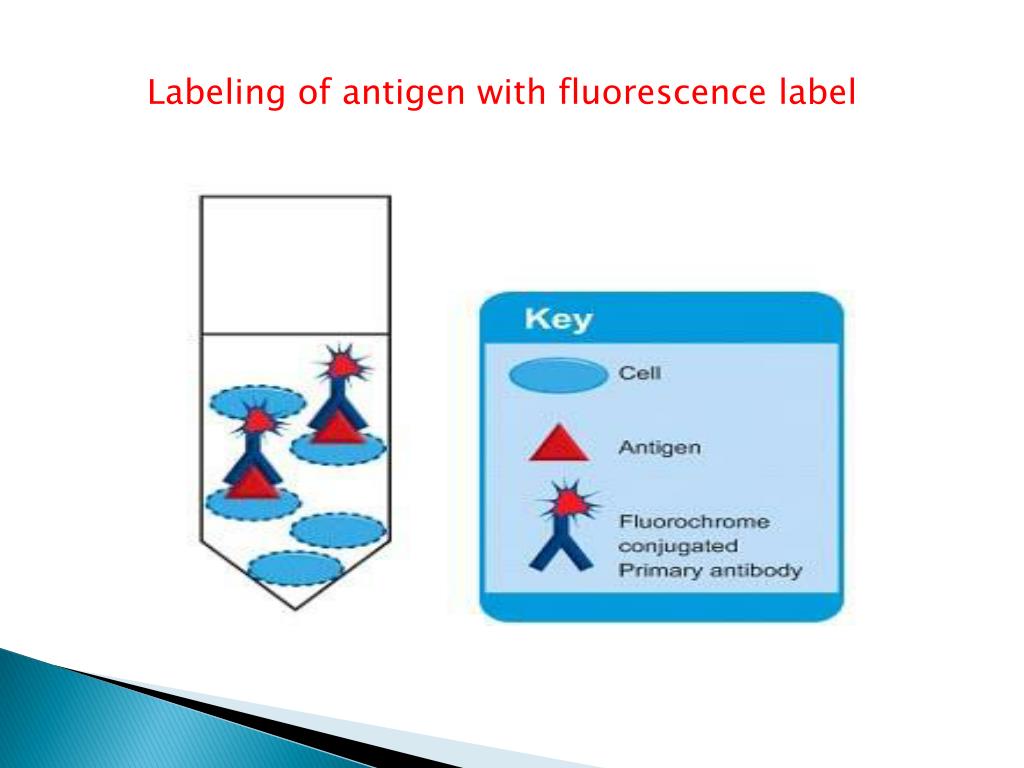

  16. Labeling of antigen with fluorescence label

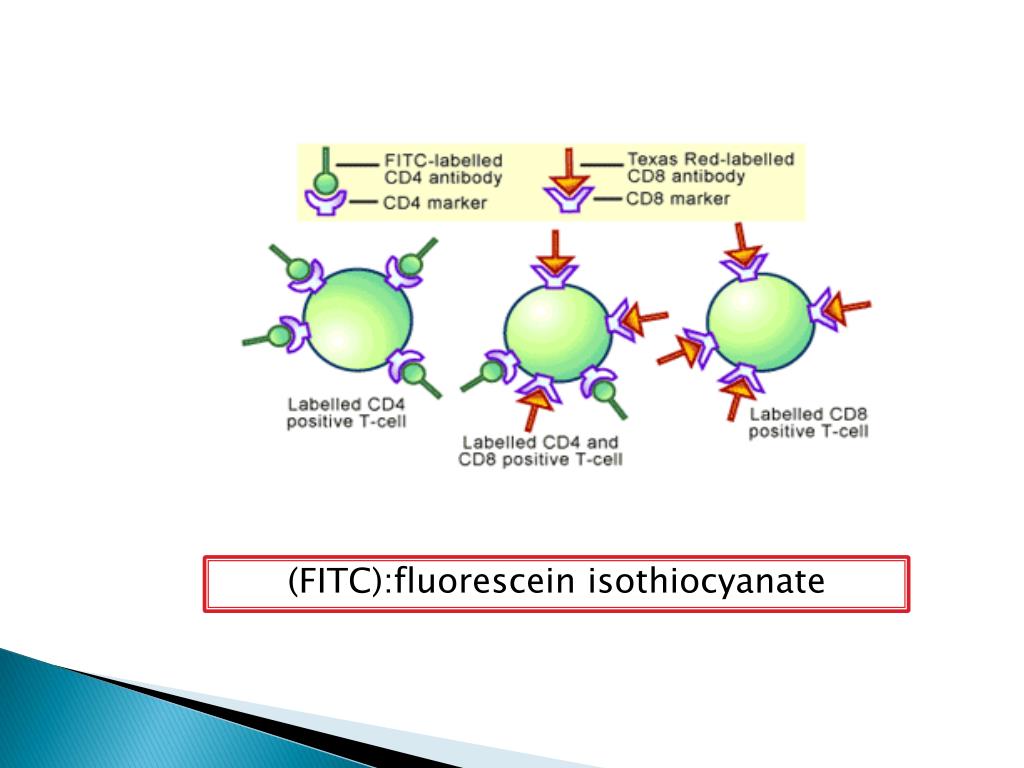

  17. (FITC):fluorescein isothiocyanate

  18. what happens to the laser light as it strikes the single-file particles. Light scattering

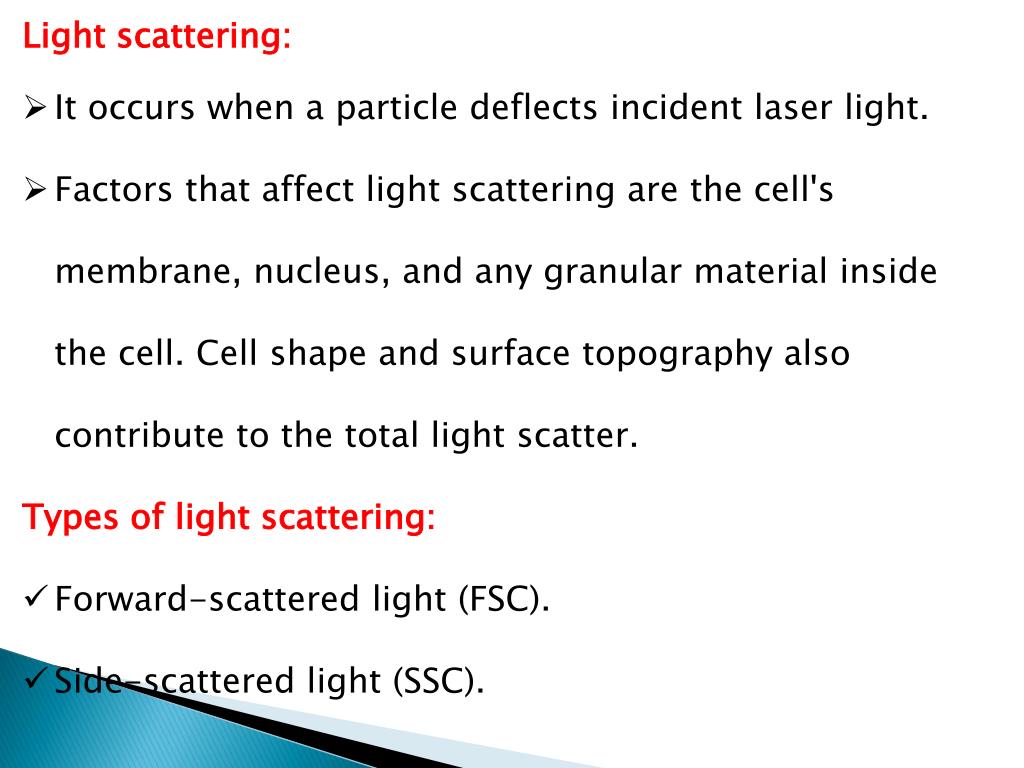

  19. Light scattering: • It occurs when a particle deflects incident laser light. • Factors that affect light scattering are the cell's membrane, nucleus, and any granular material inside the cell. Cell shape and surface topography also contribute to the total light scatter. • Types of light scattering: • Forward-scattered light (FSC). • Side-scattered light (SSC).

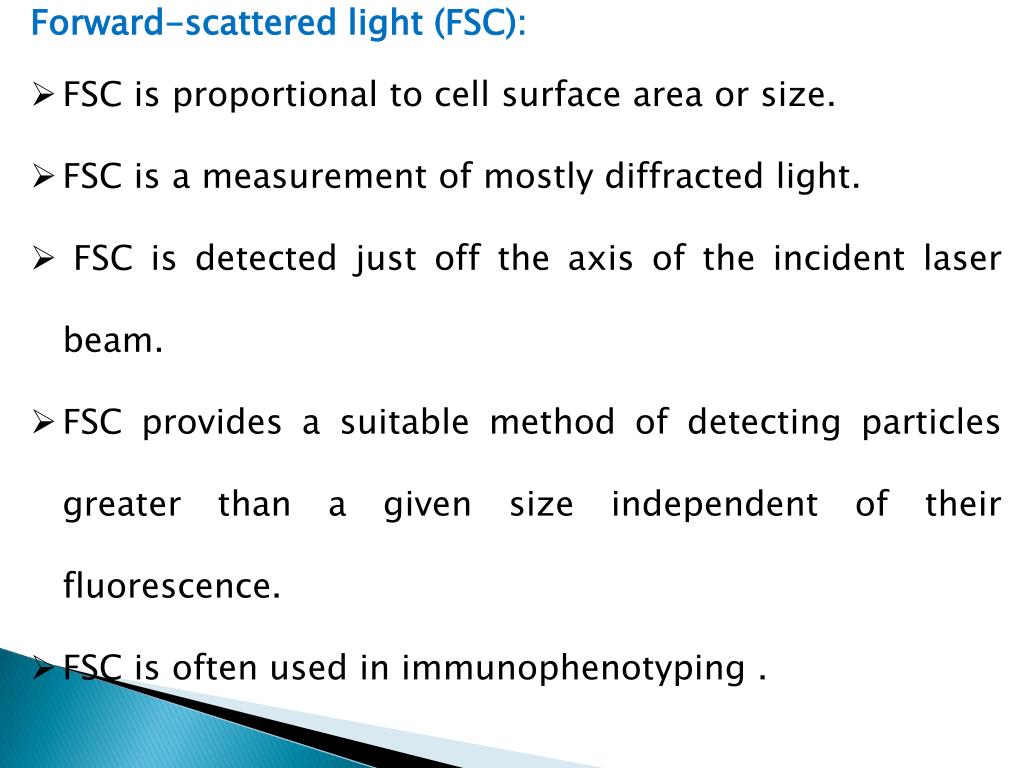

  20. Forward-scattered light (FSC): • FSC is proportional to cell surface area or size. • FSC is a measurement of mostly diffracted light. • FSC is detected just off the axis of the incident laser beam. • FSC provides a suitable method of detecting particles greater than a given size independent of their fluorescence. • FSC is often used in immunophenotyping .

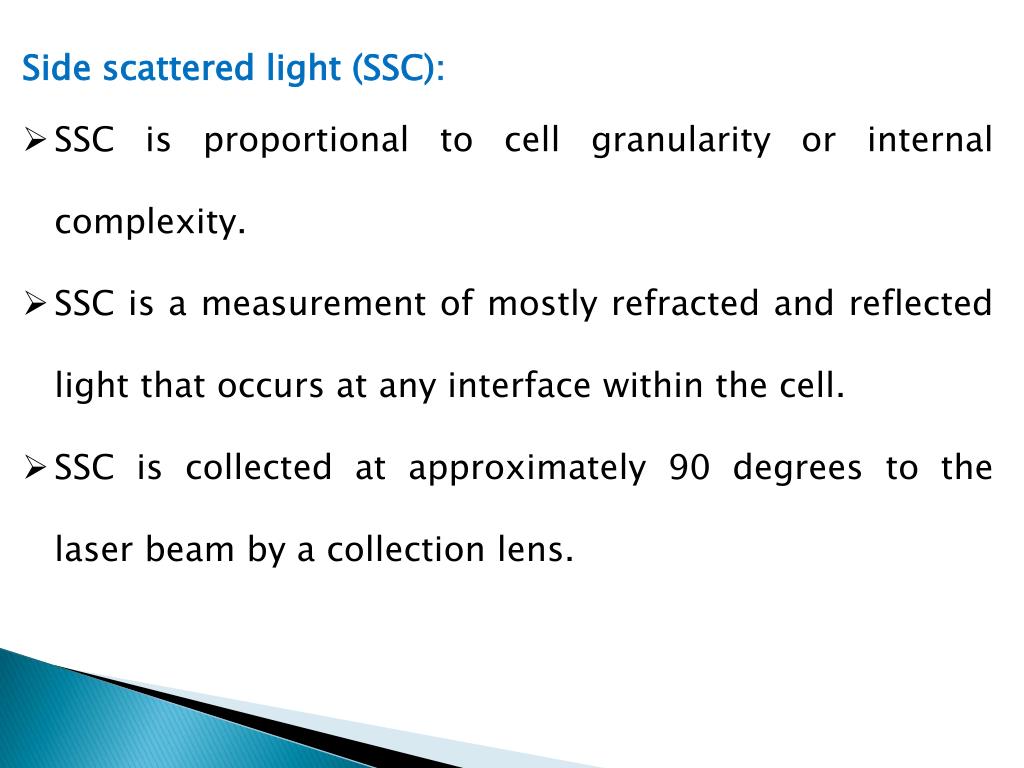

  21. Side scattered light (SSC): • SSC is proportional to cell granularity or internal complexity. • SSC is a measurement of mostly refracted and reflected light that occurs at any interface within the cell. • SSC is collected at approximately 90 degrees to the laser beam by a collection lens.
