  1. NSWI152 - Vývoj cloudových aplikacíFilip Zavoral, Jaroslav Keznikl, Stanislav Ulrychhttp://ulita.ms.mff.cuni.cz/pub/predn/NSWI152/

  2. Průběh semestru, platformy Průběh semestru 0/2 Z, průběh semestru nepravidelný některé týdny cvičení - 'Guided Tour'v SW2 některé týdny praxe - samostatná práce Platformy Windows Azure Filip Zavoral 3 týdny cvičení - instalace, deployment, multi-tier aplikace 2 týdny praxe - vlastní aplikace OpenStack Stanislav Ulrych, Lukáš Korous 2týdny cvičení + 2 týdnypraxe Google App Engine Jaroslav Keznikl 3 týdny cvičení +2 týdny praxe poslední seminář předvedení, prezentace, zhodnocení

  3. Znalosti NSWI150 Virtualizace a cloud computing speciálně část týkající se cloudů http://data.ksi.ms.mff.cuni.cz/svn/NSWI150pub/index.html C#, ASP.Net, Python běžné věci na základní úrovni, copy-and-paste rozšiřující: NPRG057 Pokročilé programování pro .NET II Účty Microsoft Account (Windows Live ID) http://windows.microsoft.com/en-US/windows-8/microsoft-account#1TC=t1 Google Account Virtuální stroje VMware vSphere Client / Web Client Windows 7, VS 2013, .Net 4.5 Prerekvizity a požadavky

  4. Windows AzureFilip Zavoral

  5. Windows Azure Cloud Components

  6. Microsoft Azure

  7. Plán Studijní materiály, odkazy, harmonogram http://ulita.ms.mff.cuni.cz/pub/predn/NSWI152/ (Ulita  Výuka  NSWI152) Příprava prostředí Virtual Machines, RDP Instalace SDK, WATK Aktivace Windows Azure, Azure Management Portal Customer Management System Příprava cloudovéinfrastruktury Windows Azure Training Kit Vytvoření, deployment a spuštění aplikace GuestBook Vícevrstvá komplexnější reálná aplikace Web role, worker role, queues, blob, tables Vlastní aplikačka Individuálně nebo komplexnější aplikace ve dvojici Libovolný jazyk: .Net, Java, Php, Node.js, Python ...

  8. Příprava prostředí a aktivace Virtual Machines VMware vSphere Client bobr.ms.mff.cuni.cz login: cloud_xx Grupíček pwd: v Grupíčku vSphere Web client https://bobr.ms.mff.cuni.cz/vsphere-client [VCenter] VM: BOBR / VIRTLAB / Cloud / Students / cloud_xx login: administrator pwd: v Grupíčku nastavena IP 10.2.1.xx ověřit! subnet 255.255.0.0, GW 10.2.0.1, DNS 195.113.19.71/77 RDP enable RDP: Start / Computer / Properties / Remote Settings / Allow Power Options - never sleep acheron.ms.mff.cuni.cz:102xx aktualizace! - povolit auto, provést Aktivace Windows Azure http://ulita/pub/predn/NSWI152/azure/WindowsAzurePlatformAcademicPass.pptx http://www.windowsazurepass.com/azureu Window Azure Management Portal https://manage.windowsazure.com/ Have a codeRedeem

  9. Microsoft Azure Academic Licence Cloud Services 2 Small Instances for Cloud Services or Virtual Machines 10 Shared Web Sites, 10 Shared Mobile Services Data Management Two 1 GB Web Edition SQL Databases 35 GB of Storage 50,000,000 Storage Transactions Data Transfers 16 GB Bandwidth (8 GB In, 8 GB Out) Messaging 750 Service Bus Relay Hours 250,000 Service Bus Messages Identity 100,000 Access Control Transactions

  10. Web Platform Installer - Azure SDK, WATK Windows Azure SDK 2.2 pro VS 2013 http://www.windowsazure.com/en-us/downloads/ http://www.windowsazure.com/en-us/develop/net/tutorials/get-started/ Windows Azure Training Kit http://www.microsoft.com/en-us/download/details.aspx?id=8396  c:\watk\HOL - hands-on labs

  11. Checklist Před 2. cvičením mít zprovozněno: virtual machine, RDP přes acheron W7 + aktualizace VS 2013+ Windows Azure SDK 2.2 Windows Azure Training Kit (WATK) Microsoft Account (Windows Live ID) Aktivace Windows Azure - redeem code login to Azure Management Portal v případě jakýchkoliv problémů se včas(do pátku) přihlaste platí i pro ty, kteří nebyli na prvním cvičení! Studijní materiály Building Real-World Cloud Apps with Windows Azureleden 2014 http://www.windowsazure.com/en-us/develop/net/building-real-world-cloud-apps/ Azure documentation, články, linky, ... http://ulita.ms.mff.cuni.cz/pub/predn/NSWI152/azure.html

  12. Customer Management System

  13. Customer Management System Windows Azure Training Kit Building and Publishing ASP.NET Applications with Windows Azure Web Sites watk\HOL\ASPNETAzureWebSites Customer Management System jednoduchý adresníček Objectives Create a Web Site from the Windows Azure Management Portal Use MS VS 2013 to build a new ASP.NET MVC 5 application Deploythe application using Web Deploy from Visual Studio Exercises E1: Creating a Windows Azure Web Site E2: Creating an MVC 5 Application with Entity Framework E3: Publishing an MVC 5 Application using Web Deploy (opt. E4: publish an ASP.NET MVC 5 application using Git or ftp)

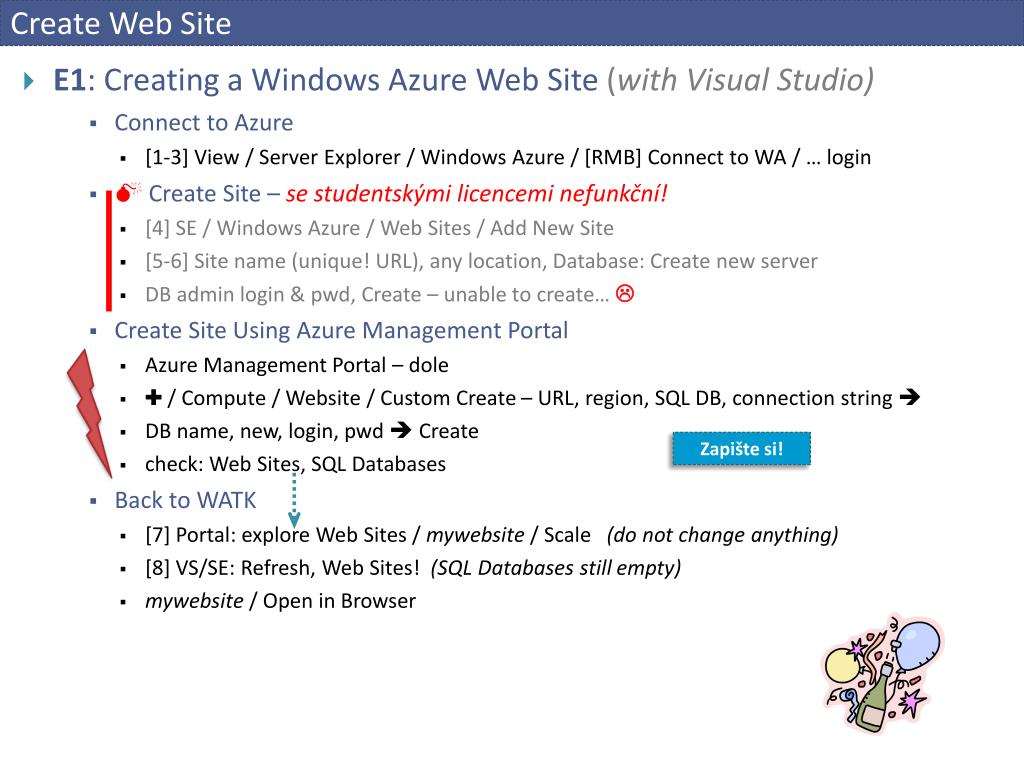

  14. Create Web Site E1: Creating a Windows Azure Web Site (with Visual Studio) Connect to Azure [1-3] View / Server Explorer / Windows Azure / [RMB] Connect to WA / … login  Create Site – se studentskými licencemi nefunkční! [4] SE /Windows Azure / Web Sites / Add New Site [5-6] Site name (unique! URL), any location, Database: Create new server DB admin login & pwd, Create – unable to create… Create Site Using Azure Management Portal Azure Management Portal – dole ✚ / Compute / Website / Custom Create – URL, region, SQL DB, connection string  DB name, new, login, pwd Create check: Web Sites, SQL Databases Back to WATK [7] Portal: explore Web Sites / mywebsite / Scale (do not change anything) [8] VS/SE: Refresh, Web Sites! (SQL Databases still empty) mywebsite / Open in Browser Zapište si!

  15. Create Application E2: Creating an MVC 5 Application with Entity Framework Create New Project [1-2] Installed Templates, Visual C# Web, .NetFramework 4.5, ASP.Net Web Application [3] MVC, check: Authentication: Individual User Accounts Model-View-Controller Solution explorer: Models, Views, Controllers, ..., ... Create Customer Model [4] Solution Explorer/Models: Add class Customer [5-6] Models/Customer.cs:add properties, build Create Person Controller & View [7-8] Solution Explorer/Controllers, Add Controller, MVC5 using EntFwk, Add [9] vyplnitpřesnědle WATK use asynccontroller, Customer model [10] Add actions, data context & views are generated [11] Controllers/CustomersController.cs: see generated methods See async, await – asynchroneous execution

  16. Publish Application E3: Publishing an MVC 5 Application using Web Deploy Establish Connection [1-2] SE / MVCSample.Web / [RMB] Publish [3-5] Publish Web: Profile ⊳Import  Import from Azure / mywebsite / OK Dialog is filled-in with the imported connection data [6] Connection ⊳Validate Connection ☑ / Next Connect to Database [7] Settings ⊳CustomerContext / mydatabase / Next Publish [8] Preview ⊳ Publish Build started … [chvíli trvá] ... Site was published successfully [9] Check the browser, check url Use the Application [10] url: /Customer Play the game – new, edit, delete Check the source code

  17. Git & ftp Access Samostatně E4: Publishing an MVC 5 Application using Git Dle WATK E5: Ftp Access Portal / WebSites / mywebsite / Dashboard / Quick Glance Set Deployment Credentials ftp/ftps host name, ftp user (incl. prefix!) connect, browse

  18. GuestBook

  19. GuestBook Windows Azure Training Kit HOL\IntroToCloudServicesVS2012 Objectives Create applications in Windows Azure using web roles and worker roles Use Storage services including blobs, queuesand key/value tables Publish an application to Windows Azure Cloud Services Setup IntroToCloudServicesVS2012\Source\setup.cmd- Run as administrator ! nestahovat VC2012 ! web role ≠ web site

  20. GuestBook Outline E1: Azure Application with Blobs and Tables Task 1 - Creating the VS Project Task 2 - Creating a Data Model for Table Storage Task 3 - Creating a Web Role to Display the Guest Book and Process User Input Task 4 - Queuing Work Items for Background Processing E2: Background Processing with Worker Roles and Queues Task 1 - Creating a Worker Role to Process Images in the Background E3: Publishing a Windows Azure Application Task 1 - Creating a Storage Account and a Cloud Service Component Task 2 - Publishing the Application to the Azure Portal Task 3 - Configuring the Application to Increase the Number of Instances Task 4 - Testing the Application in the Staging Environment Task 5 - Promoting the Application to Production

  21. E1T1 - Create Application E1: Building Windows Azure Application with Blobs and Tables Task 1 - Creating the Visual Studio Project Create Cloud Service Project [1-2] Run VS 2013 as administrator Windows Azure Compute Emulator [3-4] Installed Templates, Visual C# Cloud, .Net4.5, W Azure Cloud Service, vyplnit Name: GuestBook, Solution name: Begin Create Web Service Web Role [5] New W Azure Cloud Service, Visual C#, ASP.Net Web Role ⍄GuestBook_WebRole MVC [6] Solution Explorer - explore Projects in Solution GuestBook -service definition, local / production configuration of roles, .cscfg GuestBook_WebRole - ASP.Net Web Application GuestBook_WorkerRole, GuestBook_Data, ... - later Task 2 - Creating a Data Model for Entities in Table Storage Task 3 - Creating a Web Role to Display the Guest Book and Process User Input Task 4 - Queuing Work Items for Background Processing

  22. E1T2 - Data Model Task 2 - Creating a Data Model for Entities in Table Storage Key/Value Tables Key/Value Table - scalable data storage Table storage API: WCF Data Services (ADO.Net Data Services Framework) - REST APIWCF Data Services Client Library (.Net Client Library) - direct access from C# objects MyEntity : TableServiceEntity - schema class MyContext : TableServiceContext - table access MyContext.IQueryable<MyEntity> - table definition and mapping Create Data Project [1-2] New Project, Installed, Visual C#, Windows, .Net 4.5, ClassLibrary, GuestBook_Data Solution: Add to Solution ! [3] delete Class1.cs [4-5] Solution explorer, GuestBook_Data, References, Add Reference Framework ⊳ System.Data.ClientServices, Extensions ⊳ Microsoft.WindowsAzure.Storage, Microsoft.WindowsAzure.Configuration, Create Schema Class [6] SE: GuestBook_Data, Add, New Item ⊳ Visual C# Items, Class, GuestBookEntry.cs [7] inherit GuestBookEntry class from TableServiceEntity TSE defines PartitionKey, RowKey, TimeStamp

  23. E1T2 - Data Model Task 2 - Creating a Data Model ... continued Define Schema PartitionKey day - partitioning, RowKeyreverse time - sort order [8] default constructor - initializes keys [9-10] other properties - data row , save Message, GuestName, PhotoUrl, ThumbnailUrl Create Context Class [11] GuestBook_Data, Add, New Item ⊳ Class, GuestBookDataContext.cs [12-14] GuestBookDataContext, constructor, GuestBookEntry property [15-16]Add Class GuestBookDataSource.cs - object bound to data controls [17-18] add storageAccount, context, constructor [19-23] finalize bindings, queries and initializations, save TableQuery<GuestBookEntry> query = newTableQuery<GuestBookEntry>() .Where(TableQuery.GenerateFilterCondition( "PartitionKey", QueryComparisons.Equal, DateTime.UtcNow.ToString("MMddyyyy"))); return table.ExecuteQuery(query); 2013: Builder GetGuestBookEntries UpdateImageThumbnail results = from g in this.context.GuestBookEntry where g.PartitionKey == DateTime.UtcNow.ToString("MMddyyyy") select g; 2012: LINQ

  24. E1T3 - Web Role Task 3 - Creating a Web Role to Display the Guest Book and Process User Input Create Application Page [1] SE: GB_WebRole, Add reference to Solution / GuestBook_Data [2] delete automatically generated default page GBWR/Default.aspx [3] Add existing item watk\....\Source\Ex1...\Assets\*.* page already prepared by watk - code, images, styles - explore Process Guest Entry [4-6] GB_WebRole: Default.aspx.cs - add using, declarations note: using GuestBook_Data, CloudBlobClient [7] add event handler to SignButton_Click- upload to blob InitializeStorage(impl. later)gen unique blob name, create blob, uploadnew table entrysave data using GBDataSource GuestBookEntry entry = new GuestBookEntry() { GuestName = this.NameTextBox.Text, Message = this.MessageTextBox.Text, PhotoUrl = blob.Uri.ToString(), ThumbnailUrl = blob.Uri.ToString() }; GuestBookDataSource ds = new GuestBookDataSource(); ds.AddGuestBookEntry(entry);

  25. E1T3 - Web Role Task 3 - Creating a Web Role ... continued Load Page - Timer [8] Timer1_Tick - periodical refresh [9] Page_Load - enable timer Initialize Storage [10] InitializeStorage execute only once, read account settings, create and configure blob container Create Storage [11] SE: GB, Roles, GBWR [RTMB] Properties Settings ⊳ Add Setting "DataConnectionString" / ConnectionString [...] [12-13] Connect using WAzure Storage Emulator, save emulator v ramci VS SDK, pro deployment se dosadispravny connection string - nezapomenout! storageAccount= CloudStorageAccount.FromConfigurationSetting("DataConnectionString"); blobStorage =storageAccount.CreateCloudBlobClient(); container = blobStorage.GetContainerReference("guestbookpics"); container.CreateIfNotExist();

  26. E1T4 - Queue & Run Task 4 - Queuing Work Items for Background Processing Declare and Initialize Queue [1-2] Default.aspx.cs, class _Default - declare queueStorage [3] InitializeStorage- add initialization code after blob queue "guestthumbs" Enqueue Message [4] SignButton_Click - locate queue, form message, enqueue - add code Verification Run Application Windows Azure Compute Emulator (Development Fabric), Storage Browser check: Run VS 2013 as administrator Update to .Net 4.5 - Web.config - do sekce<appSettings> [1-3] F5 build & run - browser ➠ /Default.aspx system tray - Show Compute Emulator, firewall - allow access Play the game Storage Explorer [4-9]VS: View/ServerExplorer/Azure/Storage/Development - table, blob, queue nawebu <add key="ValidationSettings:UnobtrusiveValidationMode" value="None" />

  27. E2 - Worker Role E2: Background Processing with Worker Roles and Queues Task 1 - Creating a Worker Role to Process Images in the Background Create Worker Role [1-2] stop debugging, continue with the solution [3-4] GuestBook, Roles, New WorkerRole - GuestBook_WorkerRole [5-6] add references - GuestBook_Data, System.Drawing Programming Worker Role - Create Thumbnails [7-8] WorkerRole.cs: add using, WorkerRole: add queue and blob properties [9] OnStart - worker initialization read config, init blob & queue, catch [10] Run - replace default body - main worker logic fetch & parse msg, read blob, create thumbnail, write blob, update thumbnailusing - unmanaged IDisposable objects processing [11] ProcessImage - create thumbnail, save to output stream Storage Service [12] Create WAzure Storage Emulator ( E1T3.12-13) Verification [1-6] Run - wait a moment, create an entry, wait a moment [4] Server Explorer - explore data old images

  28. E3T1 - Create Storage and Component E3: Publishing a Windows Azure Application Task 1 - Creating a Storage Account and a Cloud Service Component Create Virtual Network [1-4] Portal / ✚ / Networks / Virtual Network / Custom Create Network Name, Affinity Group Name [5-7]  - no other options! Create Cloud Service [8-9] ✚ / Compute / Cloud Service / Quick Create unique URL Create Storage [10-11] ✚ / Data Services / Storage / Quick Create the same URL as [9] (if possible) [12-14] Manage Keys - Primary Access Key- copy to clipboard [15] do not close the browser

  29. E3T2 - Publish Task 2 - Publishing the Application to the Azure Portal Deployment Options Visual Studio / PowerShell WAzurecmdlets /WAzure Portal Service Configuration [1-3] continue with the solution (or Ex3/.../GuestBook.sln) [4-7] SE: GuestBook / Roles / GuestBook_WebRole / Properties Settings ⊳ DataConnectionString[...] Manually entered [8] Microsoft.WindowsAzure.Plugins.... totéž GuestBook_WebRole- totéž (oba klíče) Generate Package [9] VS: GuestBook [RMB] Package: Cloud/Debug enable NuGet download...\app.publish\*.cspkg, .cscfg Upload Package [11-19] Cloud Service, Dashboard, Staging, Upload [16]!! checkDeploy even if one or more roles contain a single instance - wait Play the game, check Portal, ..., ... Task 3 - Configuring the Application to Increase the Number of Instances Task 4 - Testing the Application in the Staging Environment Task 5 - Promoting the Application to Production při překliknutí přes Your subscriptionse správně vyplní otevře sefolder s package nejdřív vyzkoušet v staging, potom upgrade to production

  30. Useful tools & practices Useful tools Storage explorer http://azurestorageexplorer.codeplex.com/ V4 - stable Useful Labs Mobile AndroidAndMobileServices HTMLAppAndMobileServices MobileServicesCustomAPI Other services IntroToWindowsAzureMediaServices ServiceBusTopics DebuggingCloudServices Practices Azure Blogs http://blogs.msdn.com/b/windowsazure/ Using Trace http://blogs.msdn.com/b/windowsazure/archive/2012/10/25/using-trace-in-windows-azure-cloud-applications-1.aspx .cscfg: Microsoft.WindowsAzure.Plugins.Diagnostics.ConnectionString

  31. Cloud Development Patterns Automate everything Use scripts to maximize efficiency and minimize errors in repetitive processes Source control Set up branching structure in source control Continuous integration and delivery Automate build and deployment with each source control check-in Web development best practices Keep web tier stateless; Avoid session state; Use a CDN; Use asynchronous programming model Data storage options Types of data stores; How to choose the right data store; Unstructured blob storage Data partitioning strategies Partition data vertically, horizontally, or both to facilitate scaling a relational database Design to survive failures Types of failures; Failure Scope; Understanding SLAs Monitoring and telemetry Why you should both buy a telemetry app and write your own code to instrument your app Transient fault handling Use smart retry/back-off logic to mitigate the effect of transient failures Distributed caching Improve scalability and reduce database transaction costs by using distributed caching Queue-centric work pattern Enable high availability and improve scalability by loosely coupling web and worker tiers Single sign-on - Active Directory Building Real-World Cloud Apps with Windows Azure

  32. Vlastní aplikace Vlastní aplikace individuálně nebo větší aplikace ve dvojici cokoliv, co využije větší počet modulů a služeb Web-Worker Roles, Key/Value Tables, BLOBs, Mobile, Media, Service Bus, Hadoop, .... vloni - pro inspiraci Mobilníkurýr s balíčkem, Pivar, Pet gallery, Azgool Plus, Twitter, Vysledkyflorbalu, Jídelníčkymenz pro mobily, Konverzea filtrvelkýchXML, Renderovani map, Bugzilla, Cestovníagentura, Rapidshare/ Ulozto, Kontrolyrevizorů Dokončení a předvedení poslední cvičení 20.5. slajdy - prezentace co to dělá jak je to udělané moduly a služby, vazby mezi nimi zhodnocení - co bylo zajímavé, kladně i záporně srovnání s ostatnímiplatformami ukázka reálného běhu

  33. OpenStackStanislav Ulrych / Lukáš Korous

  34. Google App EngineJaroslav Keznikl

  35. The End.
