  1. OfficeServ 7070 Introduction. 2009. 2

  2. Overview ■ Main Target - Small & medium Biz. 12 to 50 extensions - Replacing OfficeServ 100 ■ IP Enabled platform - TDM config. : Max. 58 ports (Trunk + Station) Max. 30 E1 PRI channel + 44 ports (TDM terminals) - IP config. : Max. 60 ports (8 SIP Trunk + 52 Station) - Basic embedded config. : 4Trunk + 4DLI + 8SLI, (BMP + B8S) 4ch AA, 4ch VMS, 8MGI, 1LAN for programming and connection to IP switch - Common resources : 2 MOH(1 internal, 1 external), 1 external paging ■ Compatibility with b’ds of OfficeServ 7100 ■ SPNet connectivity with OfficeServ 7030/7100/7200/7400 ■ No cabinet expansion ■ Identical S/W and Terminals to 7000 series ■ IP Phone, WiFi phone and SIP Trunk Connectivity

  3. ■ Mother boards - BMP : Main Processor, 4 DLI embedded, enabling 2 D B’ds to place on BMP - B8S : 8 SLI + 4 ATrunk embedded, enabling 3 D B’ds to place on B8S, connected to BMP - E8S : 8 SLI embedded, enabling 3 D B’ds to place on E8S, connected to B8S ■ Daughter boards - Trunk b’d : 4TRK, PRI (E1 PRI, R2 not supported) - Station b’d : 4SLI, 4SL2(New), 4DLI [ Location table of feature boards]

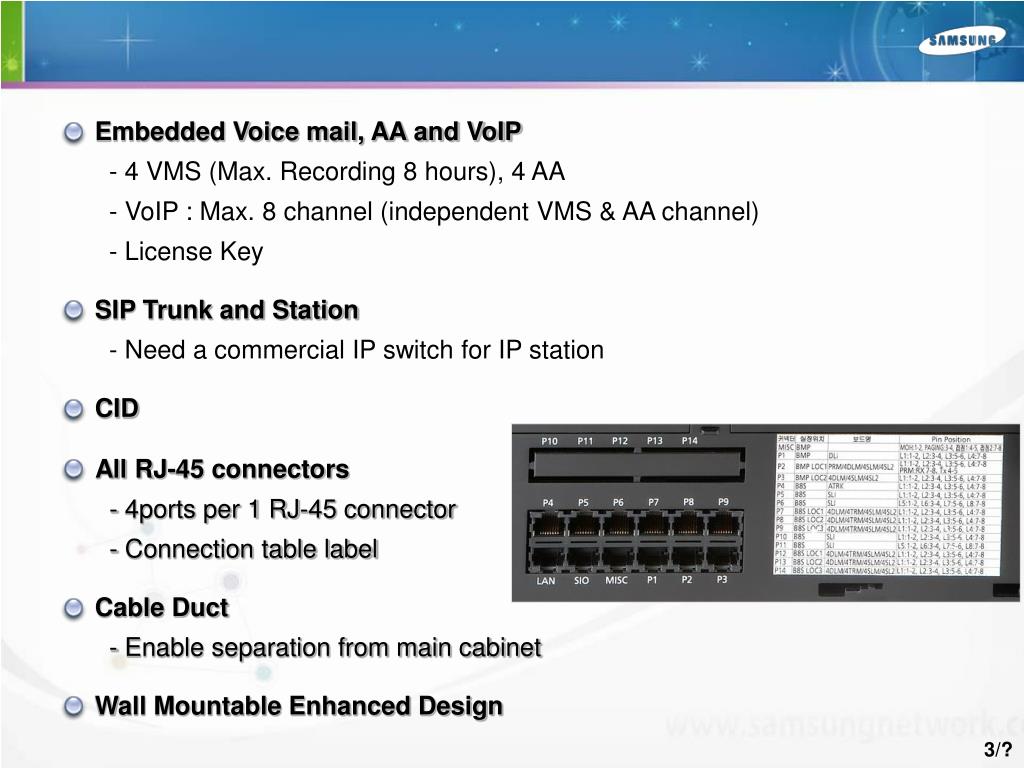

  4. Embedded Voice mail, AA and VoIP - 4 VMS (Max. Recording 8 hours), 4 AA - VoIP : Max. 8 channel (independent VMS & AA channel) - License Key SIP Trunk and Station - Need a commercial IP switch for IP station CID Wall Mountable Enhanced Design All RJ-45 connectors - 4ports per 1 RJ-45 connector - Connection table label Cable Duct - Enable separation from main cabinet

  5. Maximum Capacity 1st target market : Korea (Oct. 08 )

  6. (LED) Reserved D B'd RJ-45 Jack D B'd D B'd D B'd D B'd B8S & E8S BMP PSU all-Option D B'd E8S B'd Switch Power Jack ● ● BMP B'd B8S B'd Design • Cabinet Internal Configuration [ Top view ] [ Front view ]

  7. Design • Cabinet Images

  8. Design • Cabinet Images

  9. Design • Cabinet Images
