  1. Using MIDUSS 98 by Alan A. Smith Alan A. Smith Inc. Dundas, Ontario, Canada

  2. Getting Started • Confirm that program is authorized • Accept statement of Disclaimer • Select system of units • Define an Output file • Set the time parameters Required first steps:

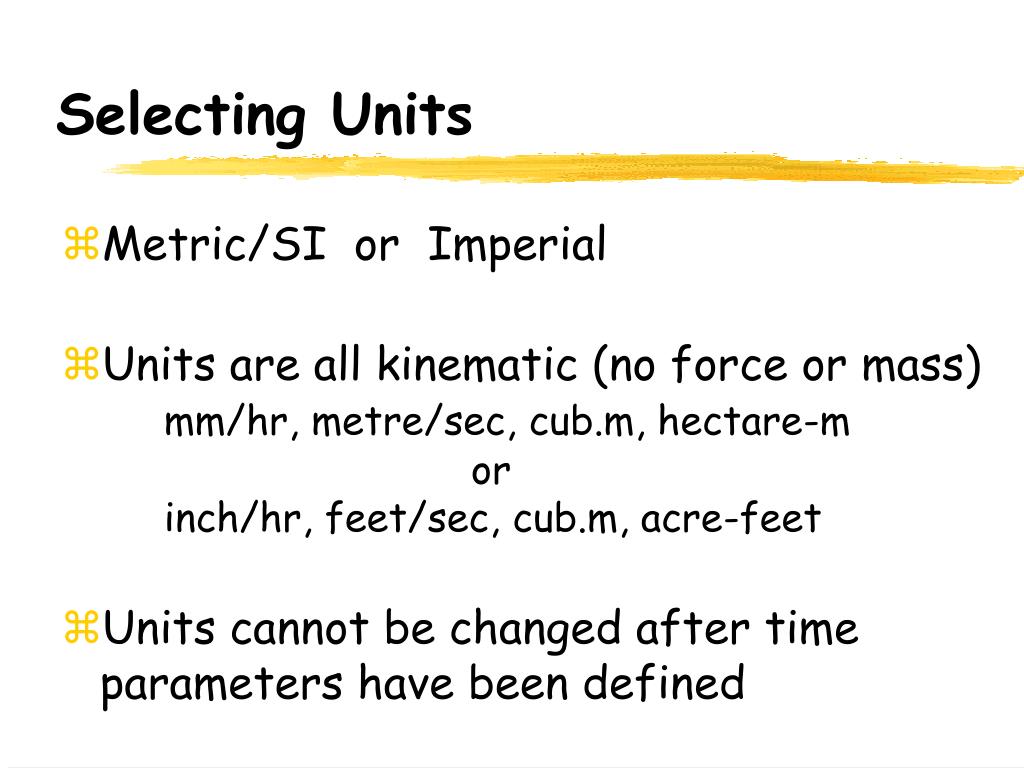

  3. Selecting Units • Metric/SI or Imperial • Units are all kinematic (no force or mass)mm/hr, metre/sec, cub.m, hectare-m or inch/hr, feet/sec, cub.m, acre-feet • Units cannot be changed after time parameters have been defined

  4. Output file • Contains a record of all commands, data and results to allow design session to be repeated exactly • Can be converted to an Input database to run in Automatic mode • Should be stored in special folder for each job

  5. Time Parameters • Time step for hydrology • Maximum expected storm duration • Maximum expected hydrograph length Routing or stability time step t = t/N, N = 1,2,3,...

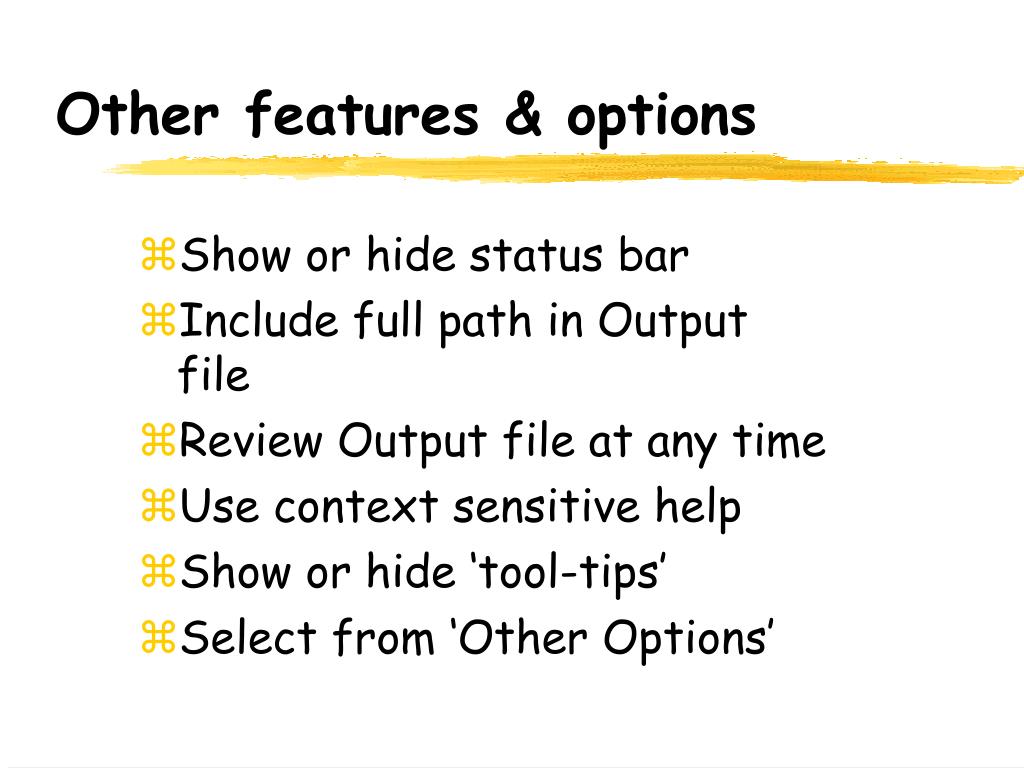

  6. Other features & options • Show or hide status bar • Include full path in Output file • Review Output file at any time • Use context sensitive help • Show or hide ‘tool-tips’ • Select from ‘Other Options’
