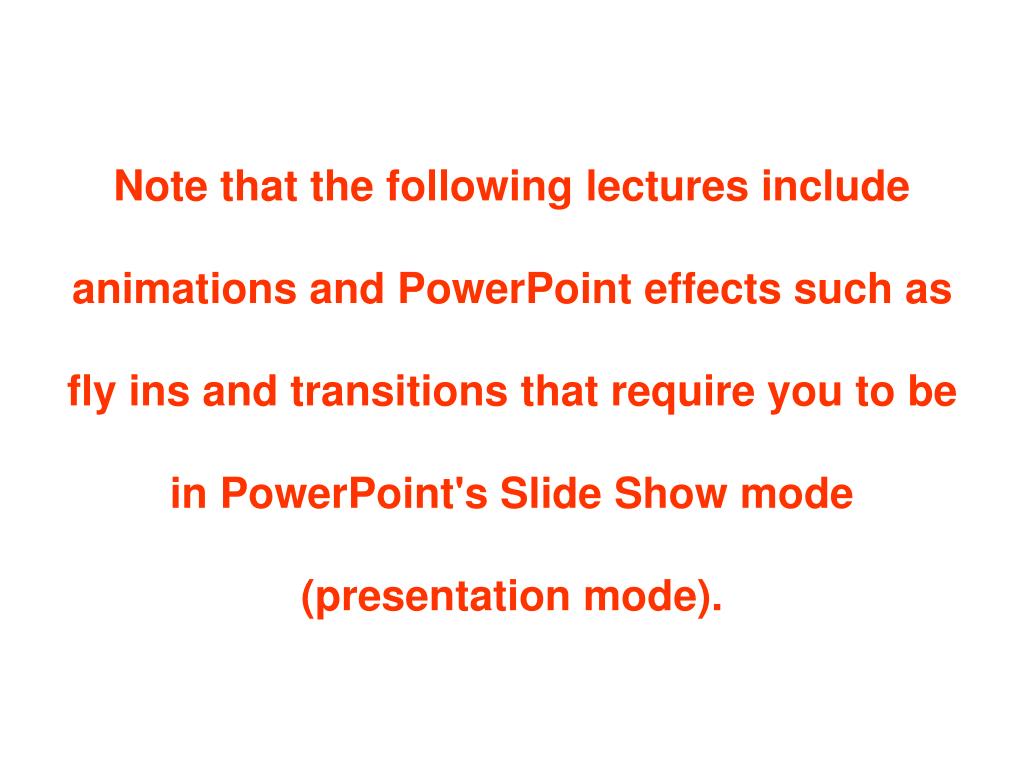

  1. Note that the following lectures include animations and PowerPoint effects such as fly ins and transitions that require you to be in PowerPoint's Slide Show mode (presentation mode).

  2. The Formation of Stars Chapter 11

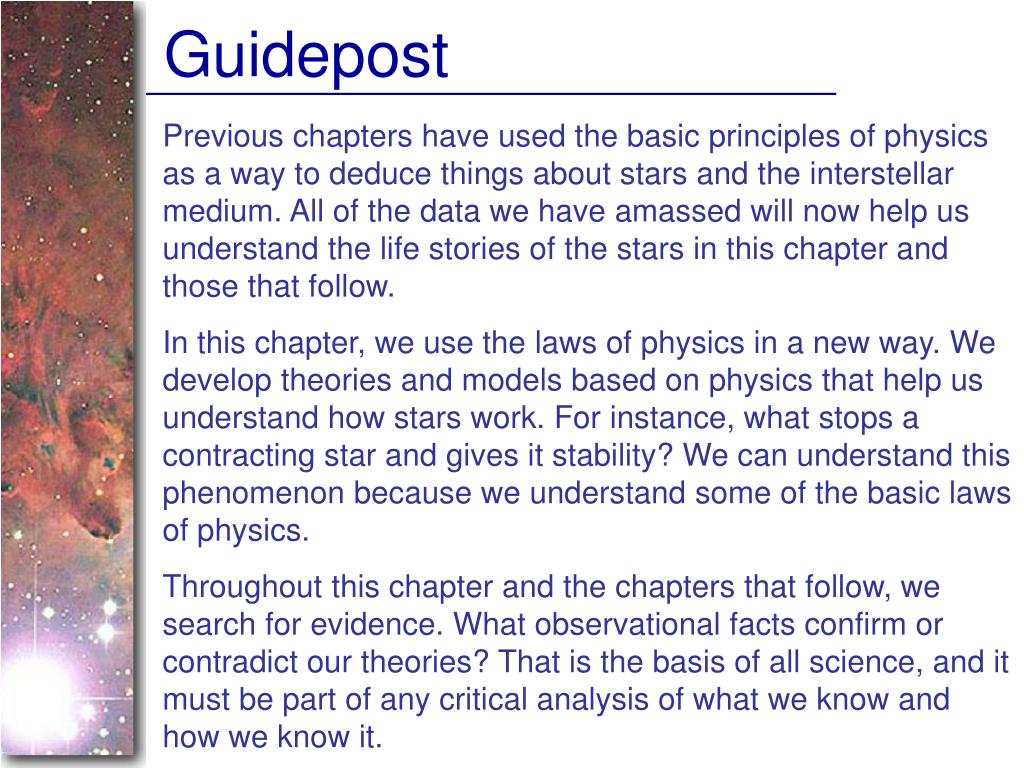

  3. Guidepost Previous chapters have used the basic principles of physics as a way to deduce things about stars and the interstellar medium. All of the data we have amassed will now help us understand the life stories of the stars in this chapter and those that follow. In this chapter, we use the laws of physics in a new way. We develop theories and models based on physics that help us understand how stars work. For instance, what stops a contracting star and gives it stability? We can understand this phenomenon because we understand some of the basic laws of physics. Throughout this chapter and the chapters that follow, we search for evidence. What observational facts confirm or contradict our theories? That is the basis of all science, and it must be part of any critical analysis of what we know and how we know it.

  4. Outline I. Making Stars from the Interstellar Medium A. Star Birth in Giant Molecular Clouds B. Heating By Contraction C. Protostars D. Evidence of Star Formation II. The Source of Stellar Energy A. A Review of the Proton-Proton Chain B. The CNO Cycle III. Stellar Structure A. Energy Transport B. What Supports the Sun? C. Inside Stars D. The Pressure-Temperature Thermostat

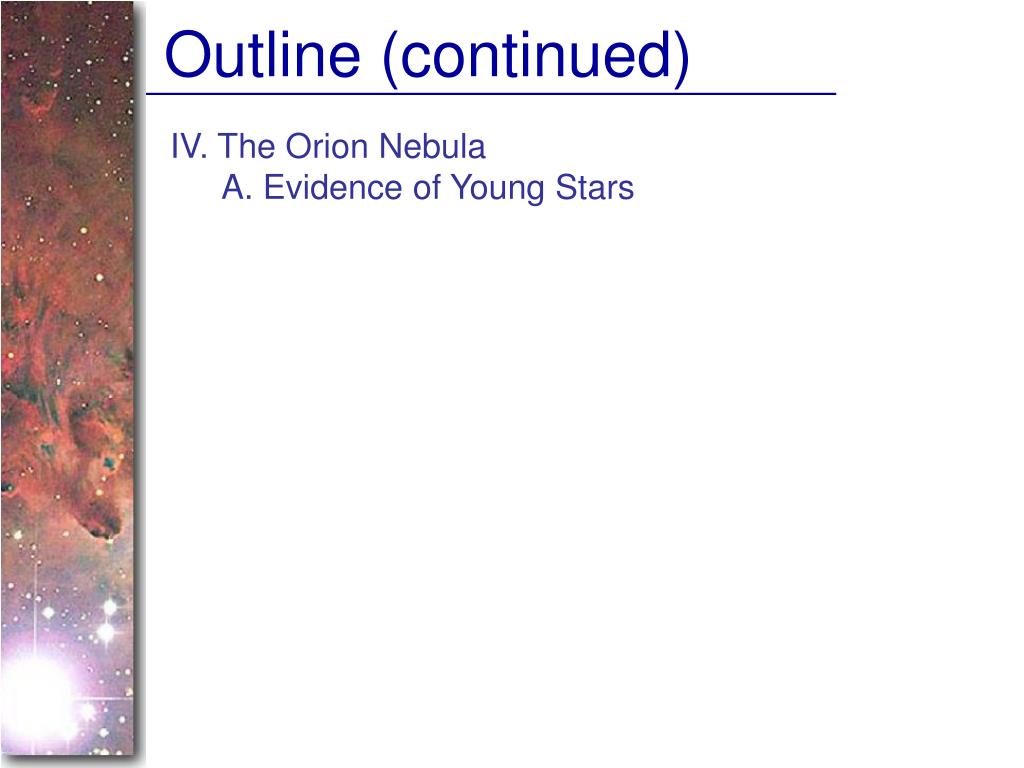

  5. Outline (continued) IV. The Orion Nebula A. Evidence of Young Stars

  6. The Life Cycle of Stars Dense, dark clouds, possibly forming stars in the future Aging supergiant Young stars, still in their birth nebulae

  7. Giant Molecular Clouds Barnard 68 Infrared Visible Star formation collapse of the cores of giant molecular clouds: Dark, cold, dense clouds obscuring the light of stars behind them.  (More transparent in infrared light.)

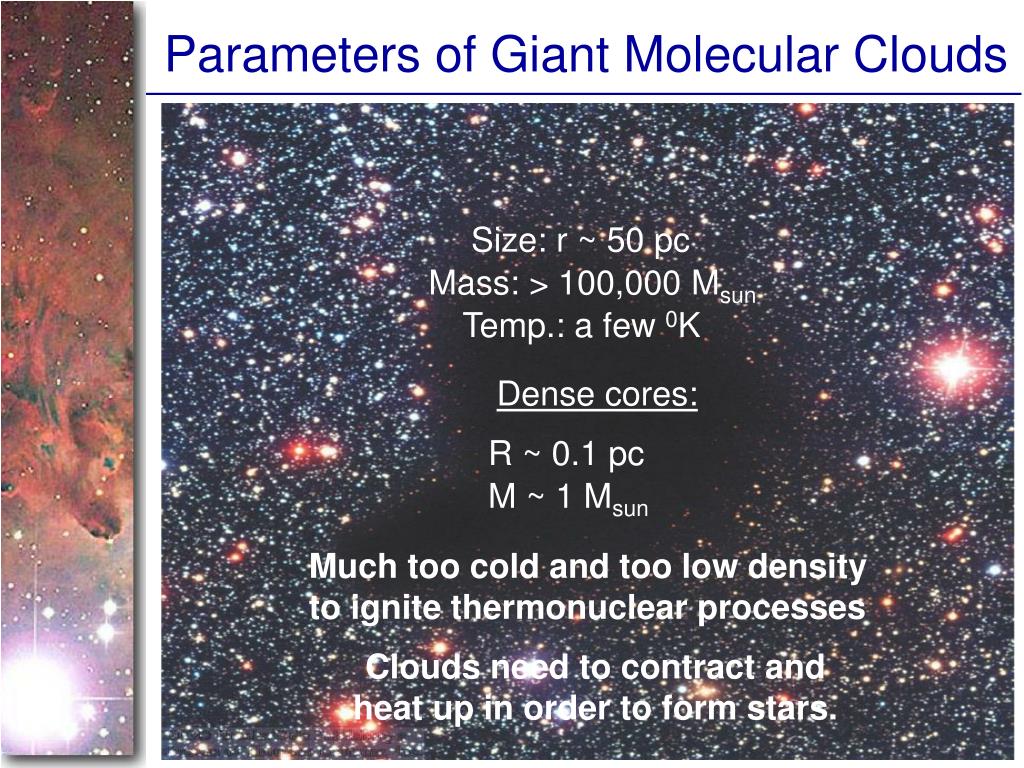

  8. Parameters of Giant Molecular Clouds Size: r ~ 50 pc Mass: > 100,000 Msun Temp.: a few 0K Dense cores: R ~ 0.1 pc M ~ 1 Msun Much too cold and too low density to ignite thermonuclear processes Clouds need to contract and heat up in order to form stars.

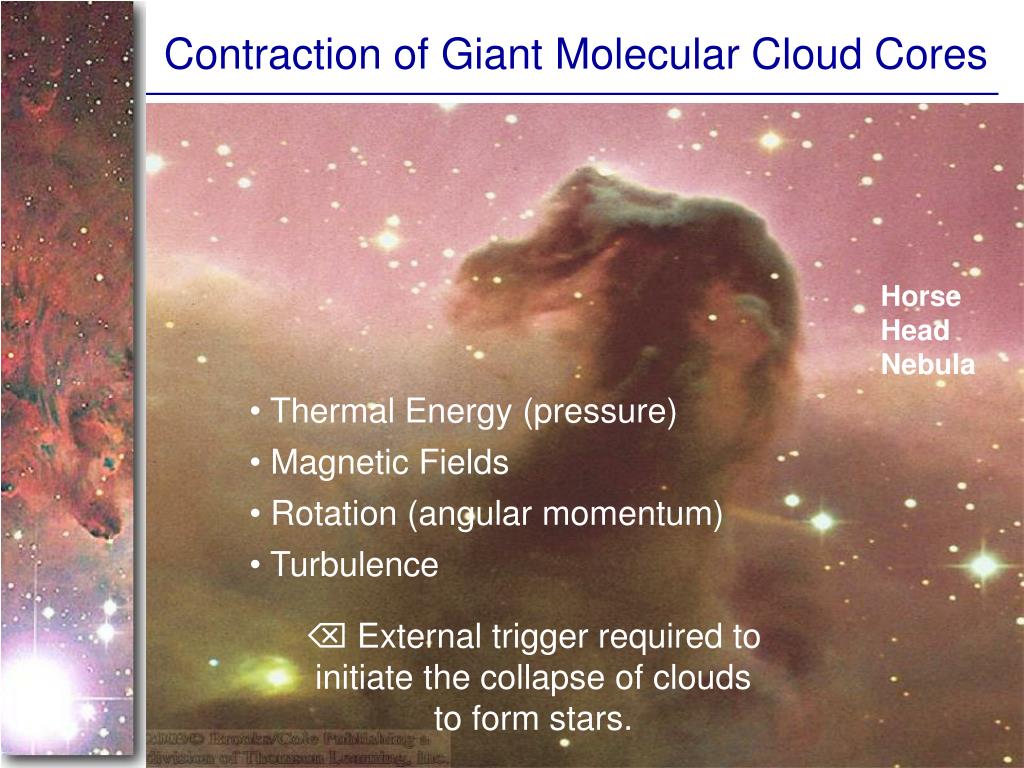

  9. Contraction of Giant Molecular Cloud Cores Horse Head Nebula • Thermal Energy (pressure) • Magnetic Fields • Rotation (angular momentum) • Turbulence External trigger required to initiate the collapse of clouds to form stars.

  10. Shocks Triggering Star Formation Trifid Nebula Globules = sites where stars are being born right now!

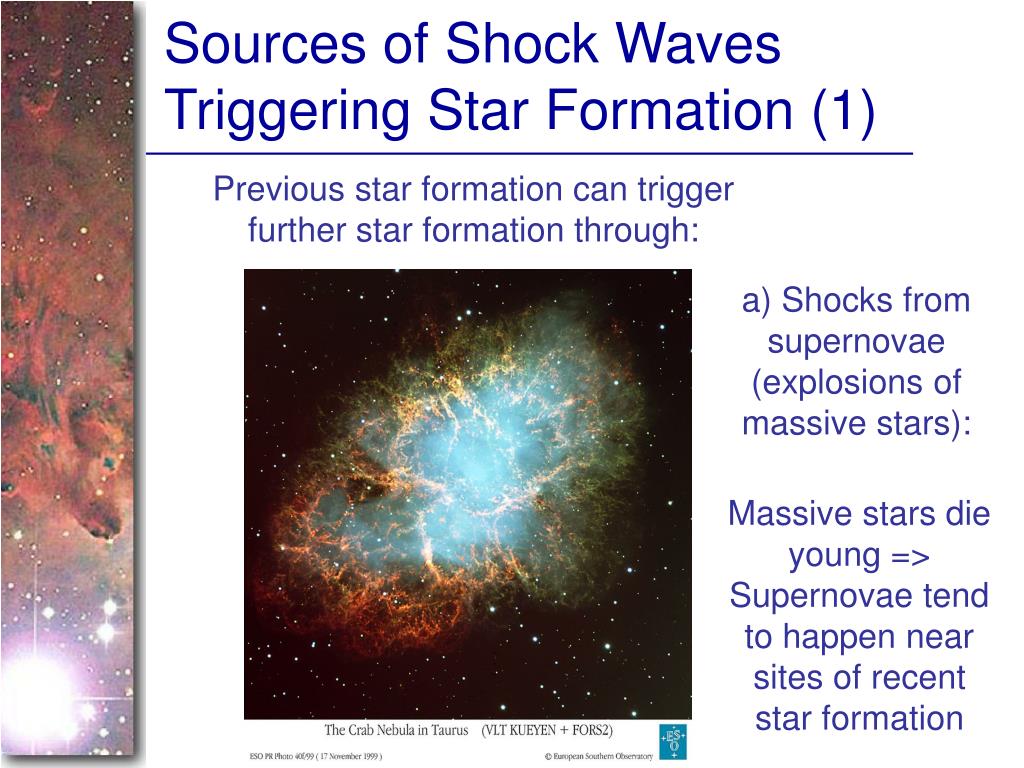

  11. Sources of Shock Waves Triggering Star Formation (1) Previous star formation can trigger further star formation through: a) Shocks from supernovae (explosions of massive stars): Massive stars die young => Supernovae tend to happen near sites of recent star formation

  12. Sources of Shock Waves Triggering Star Formation (2) Previous star formation can trigger further star formation through: b) Ionization fronts of hot, massive O or B stars which produce a lot of UV radiation: Massive stars die young => O and B stars only exist near sites of recent star formation

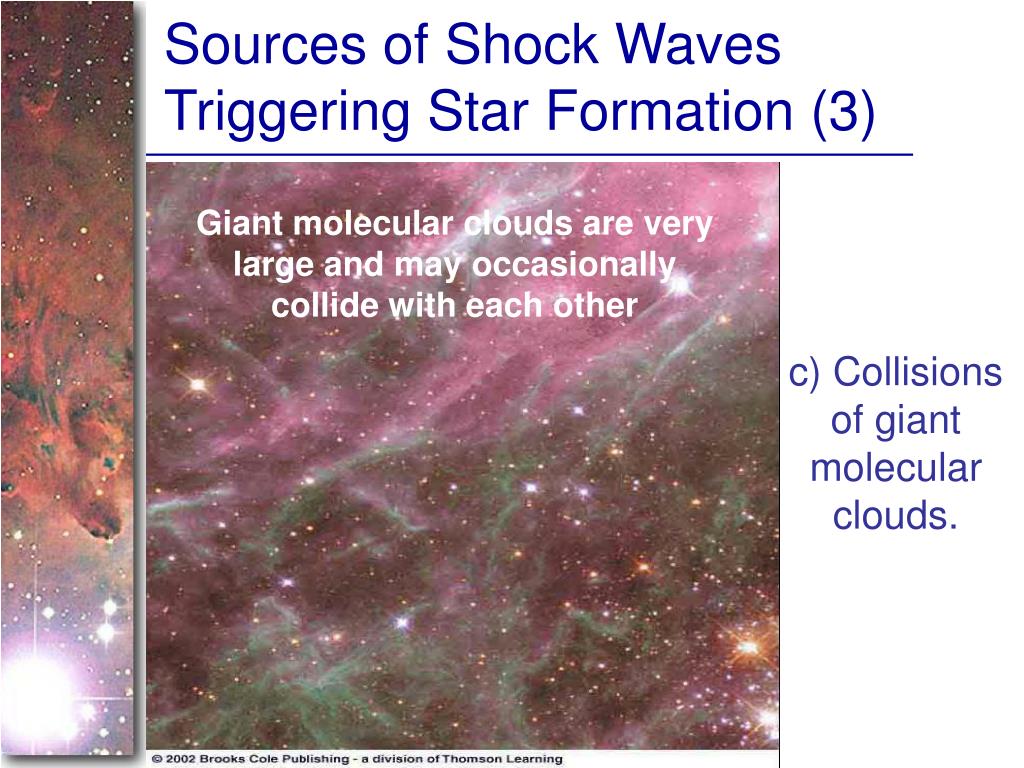

  13. Sources of Shock Waves Triggering Star Formation (3) Giant molecular clouds are very large and may occasionally collide with each other c) Collisions of giant molecular clouds.

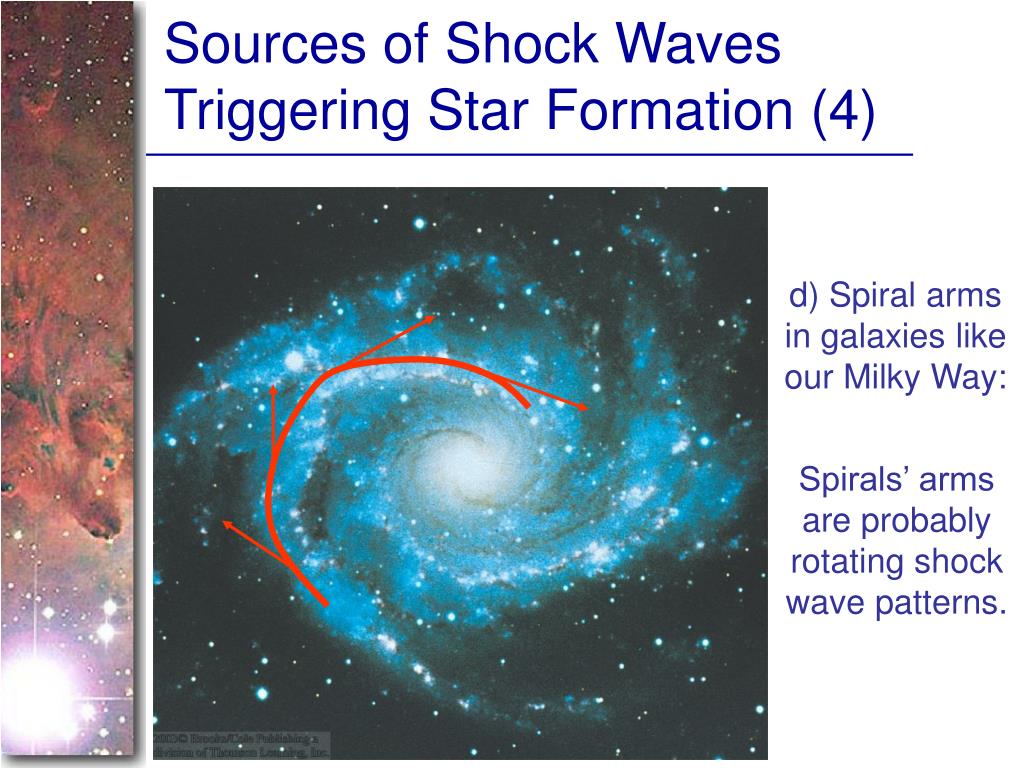

  14. Sources of Shock Waves Triggering Star Formation (4) d) Spiral arms in galaxies like our Milky Way: Spirals’ arms are probably rotating shock wave patterns.

  15. Protostars Protostars = pre-birth state of stars: Hydrogen to Helium fusion not yet ignited Still enshrouded in opaque “cocoons” of dust => barely visible in the optical, but bright in the infrared.

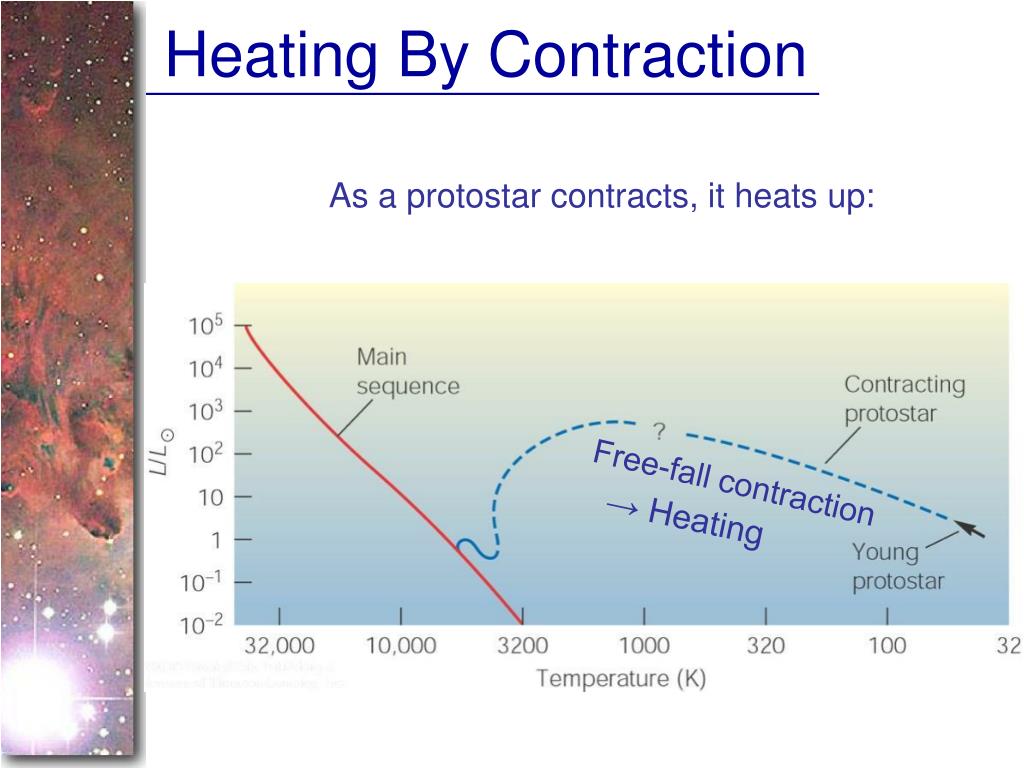

  16. Heating By Contraction As a protostar contracts, it heats up: Free-fall contraction → Heating

  17. Protostellar Disks Conservation of angular momentum leads to the formation of protostellar disks birth place of planets and moons

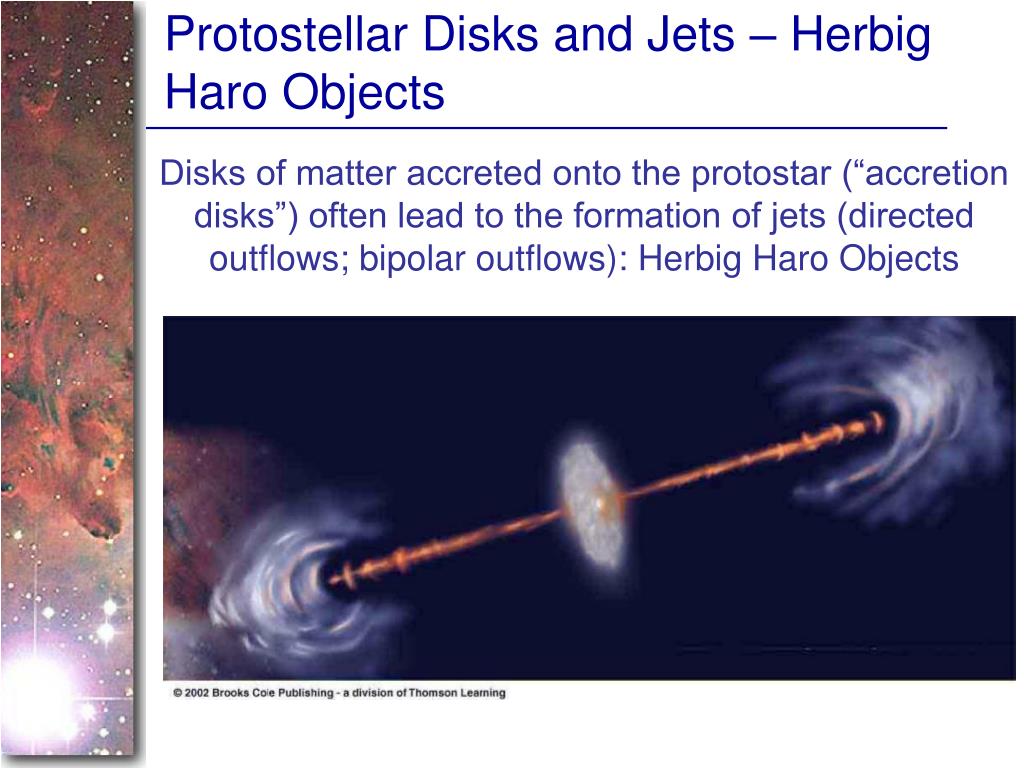

  18. Protostellar Disks and Jets – Herbig Haro Objects Disks of matter accreted onto the protostar (“accretion disks”) often lead to the formation of jets (directed outflows; bipolar outflows): Herbig Haro Objects

  19. Protostellar Disks and Jets – Herbig Haro Objects (2) Herbig Haro Object HH34

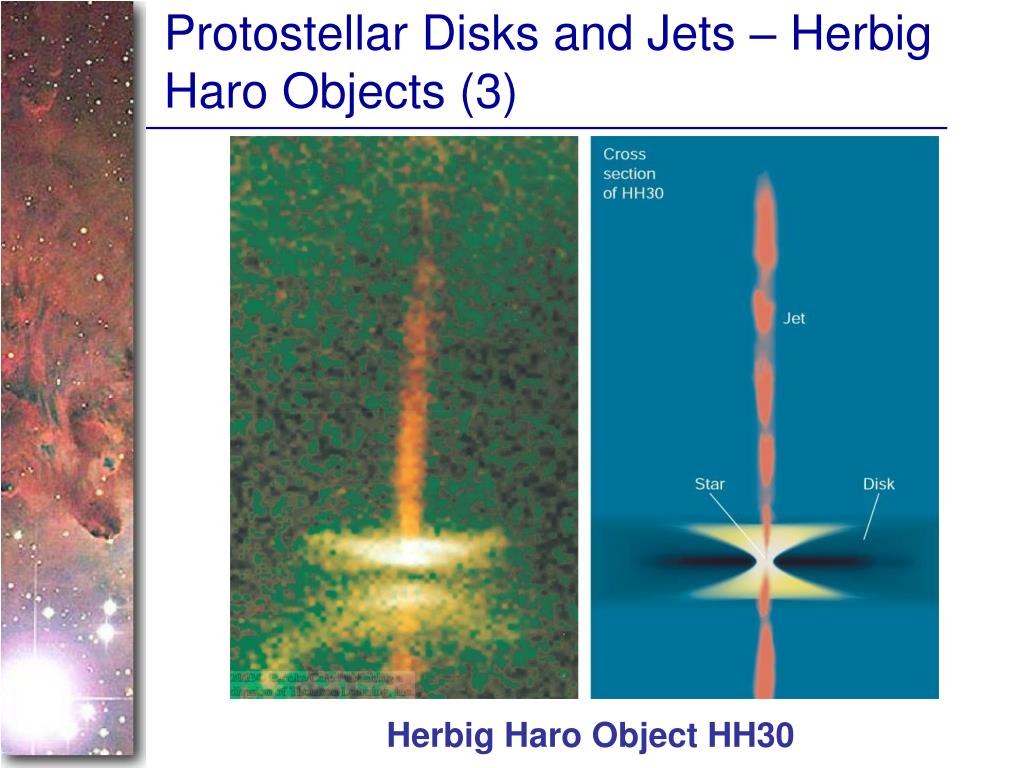

  20. Protostellar Disks and Jets – Herbig Haro Objects (3) Herbig Haro Object HH30

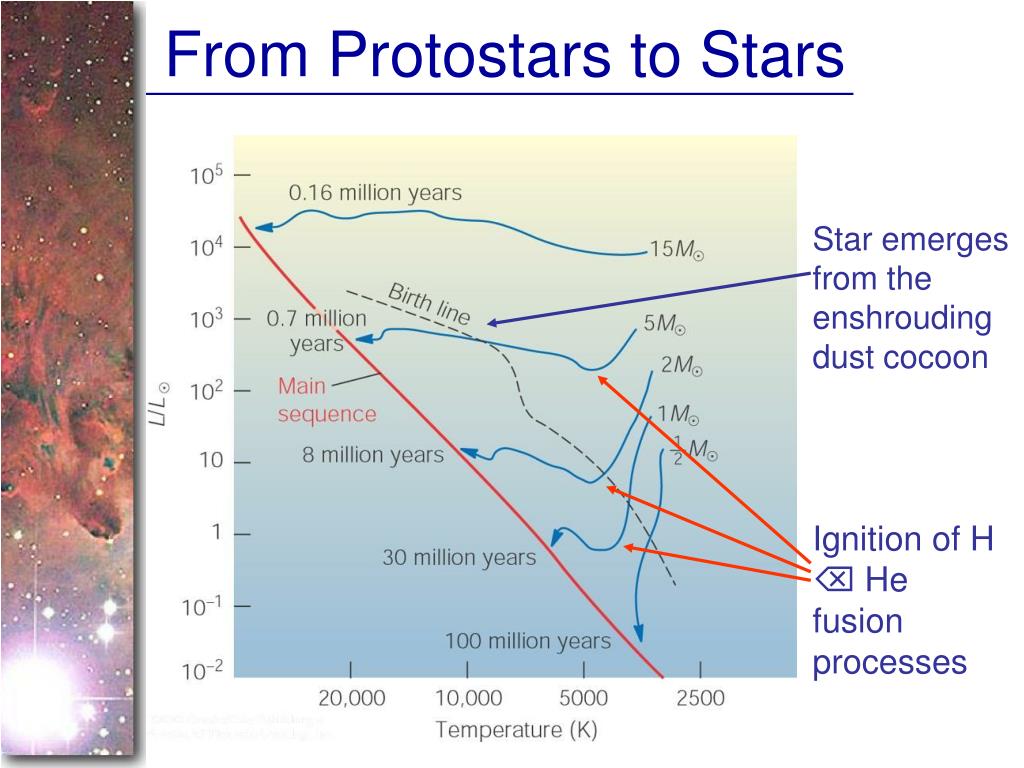

  21. From Protostars to Stars Star emerges from the enshrouding dust cocoon Ignition of H  He fusion processes

  22. Evidence of Star Formation Nebula around S Monocerotis: Contains many massive, very young stars, including T Tauri Stars: strongly variable; bright in the infrared.

  23. Evidence of Star Formation (2) Smaller, sunlike stars, probably formed under the influence of the massive star Young, very massive star Infrared Optical The Cone Nebula

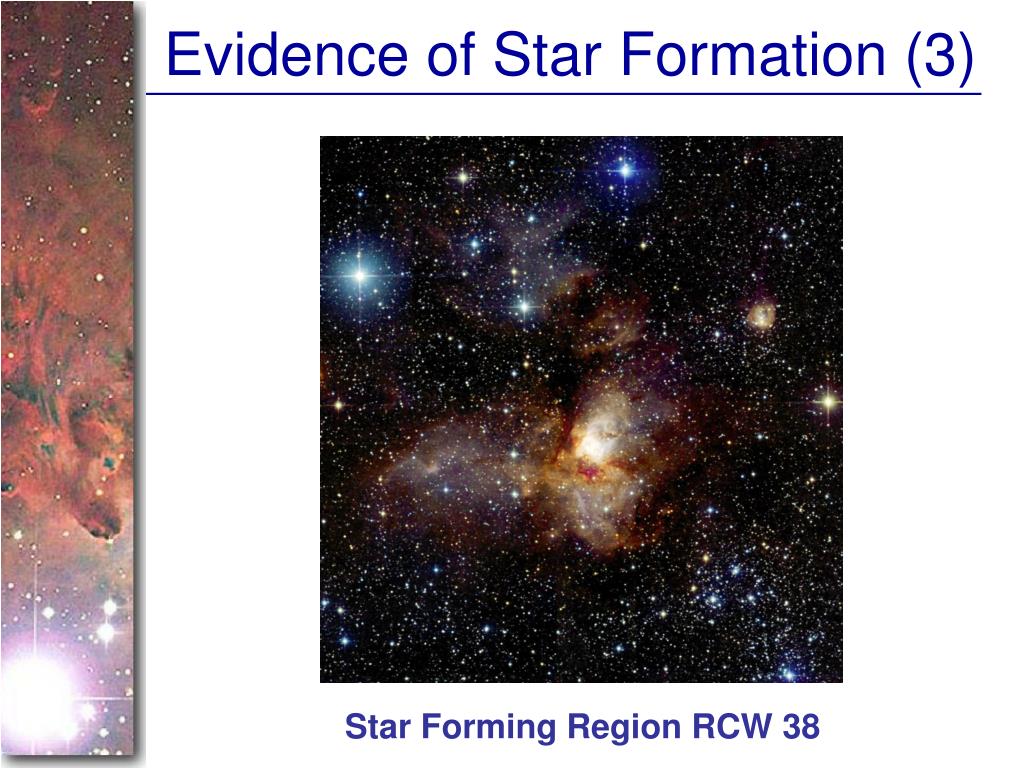

  24. Evidence of Star Formation (3) Star Forming Region RCW 38

  25. Globules Bok Globules: ~ 10 to 1000 solar masses; Contracting to form protostars

  26. Globules (2) Evaporating Gaseous Globules (“EGGs”): Newly forming stars exposed by the ionizing radiation from nearby massive stars

  27. Open Clusters of Stars Large masses of Giant Molecular Clouds => Stars do not form isolated, but in large groups, called Open Clusters of Stars. Open Cluster M7

  28. Open Clusters of Stars (2) Large, dense cluster of (yellow and red) stars in the foreground; ~ 50 million years old Scattered individual (bright, white) stars in the background; only ~ 4 million years old

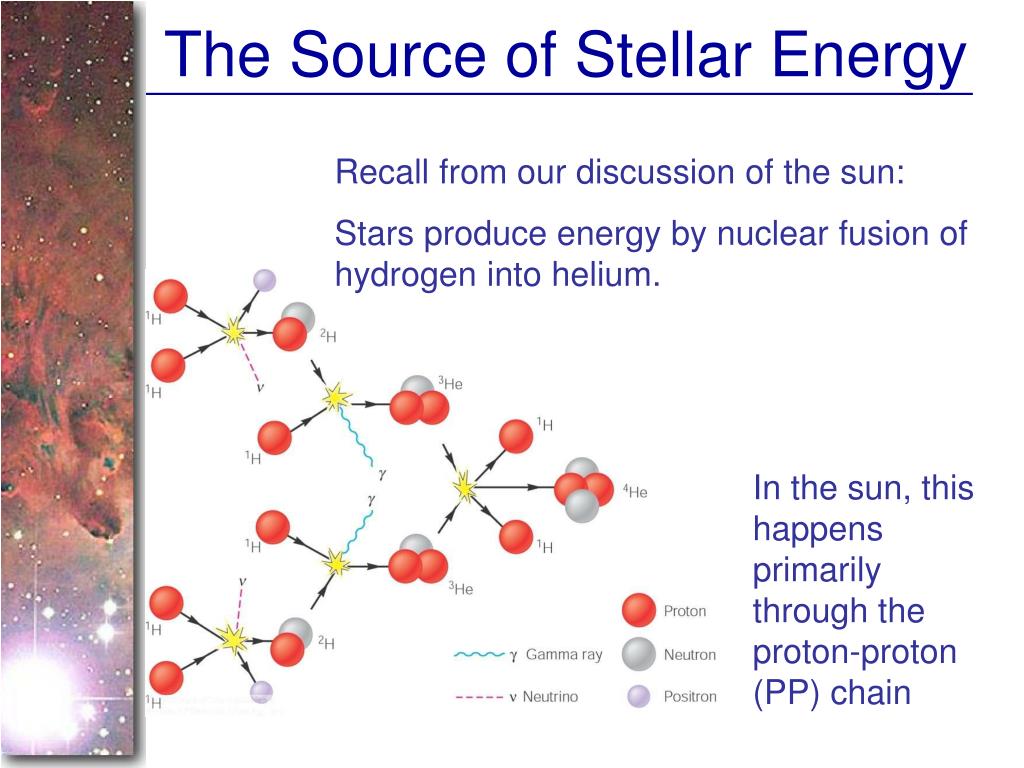

  29. The Source of Stellar Energy Recall from our discussion of the sun: Stars produce energy by nuclear fusion of hydrogen into helium. In the sun, this happens primarily through the proton-proton (PP) chain

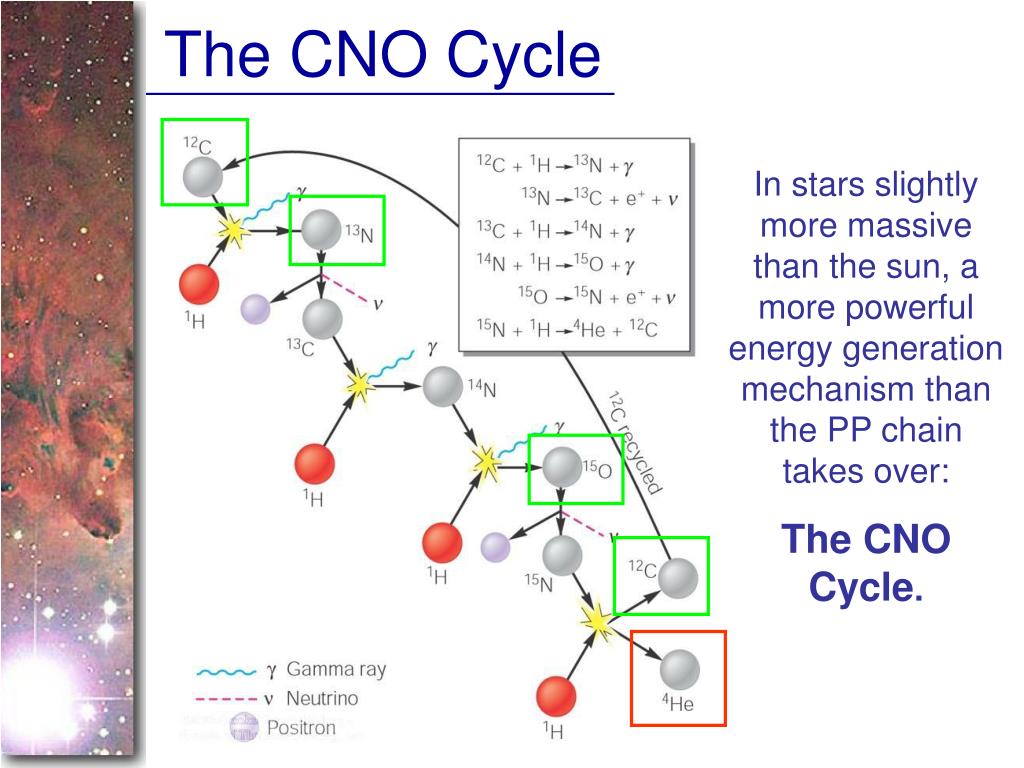

  30. The CNO Cycle In stars slightly more massive than the sun, a more powerful energy generation mechanism than the PP chain takes over: The CNO Cycle.

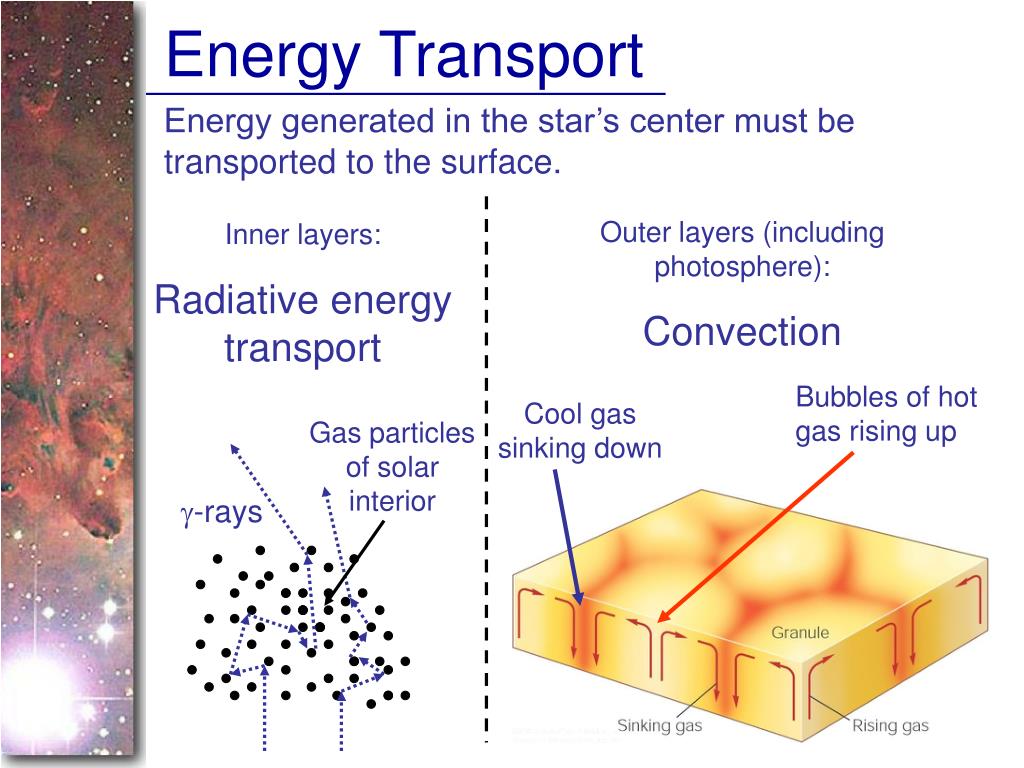

  31. Energy Transport Energy generated in the star’s center must be transported to the surface. Outer layers (including photosphere): Convection Inner layers: Radiative energy transport Bubbles of hot gas rising up Cool gas sinking down Gas particles of solar interior g-rays

  32. Conduction, Convection, and Radiation (SLIDESHOW MODE ONLY)

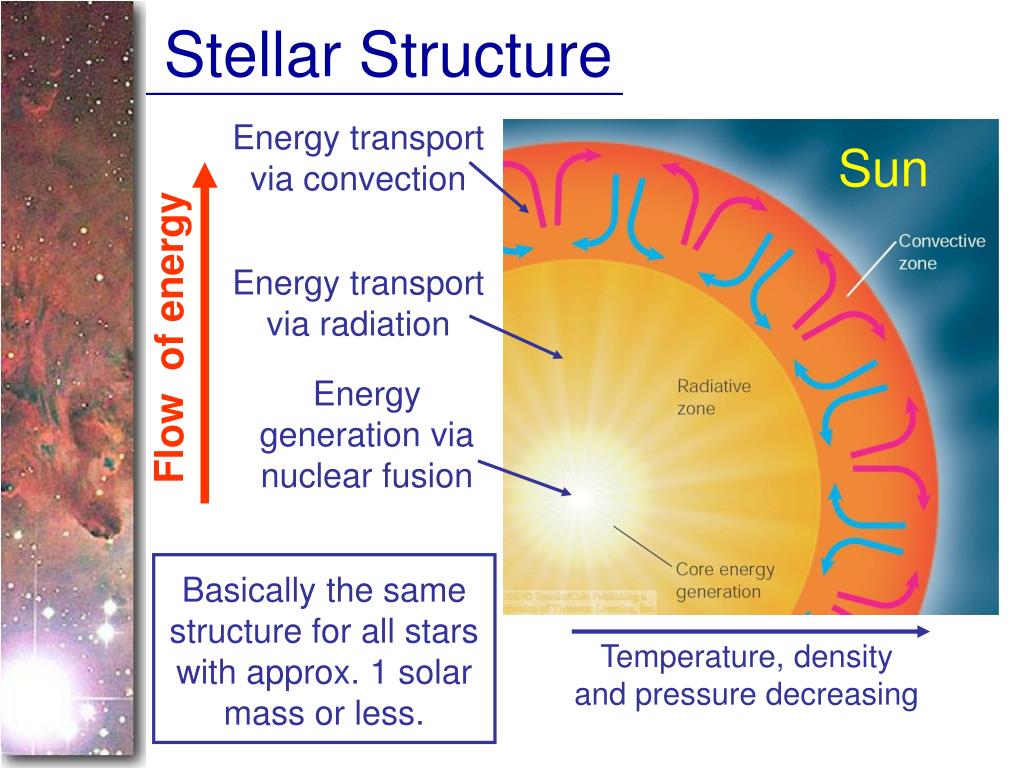

  33. Stellar Structure Energy transport via convection Sun Energy transport via radiation Flow of energy Energy generation via nuclear fusion Basically the same structure for all stars with approx. 1 solar mass or less. Temperature, density and pressure decreasing

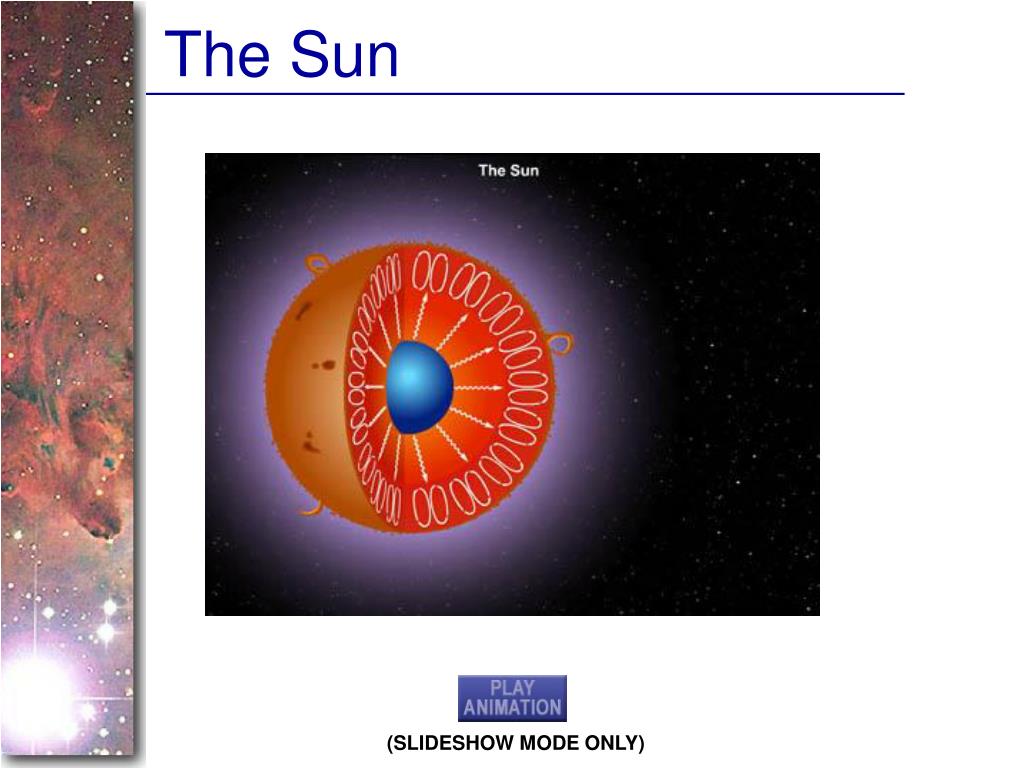

  34. The Sun (SLIDESHOW MODE ONLY)

  35. Hydrostatic Equilibrium Imagine a star’s interior composed of individual shells. Within each shell, two forces have to be in equilibrium with each other: Gravity, i.e. the weight from all layers above Outward pressure from the interior

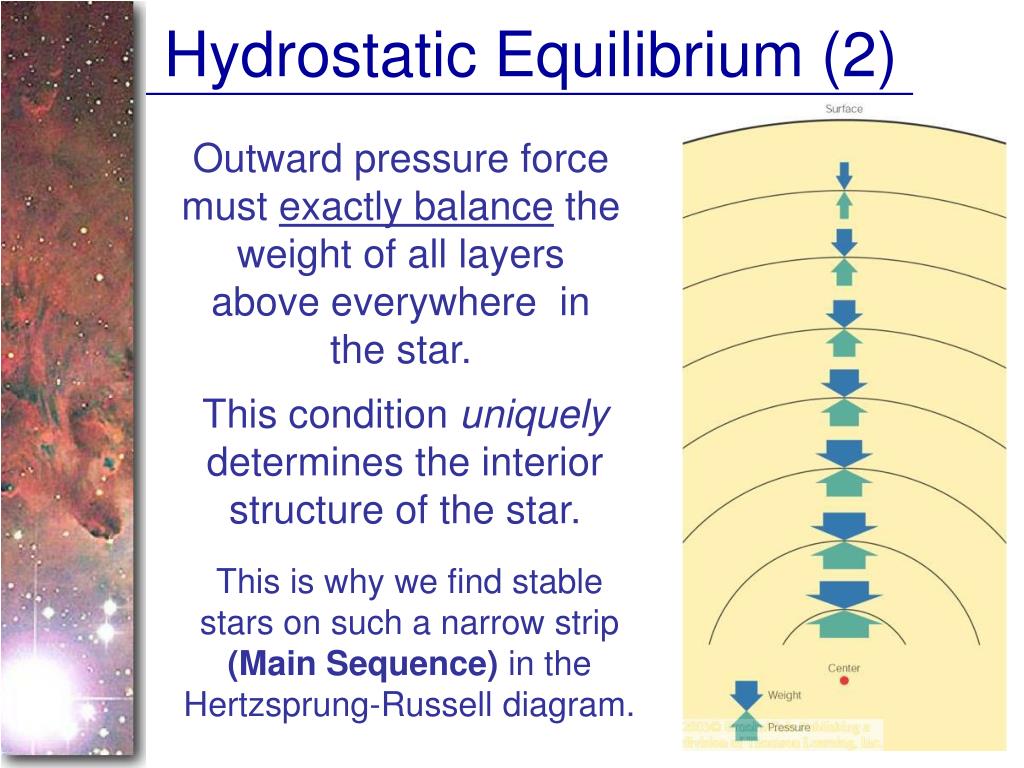

  36. Hydrostatic Equilibrium (2) Outward pressure force must exactly balance the weight of all layers above everywhere in the star. This condition uniquely determines the interior structure of the star. This is why we find stable stars on such a narrow strip (Main Sequence) in the Hertzsprung-Russell diagram.

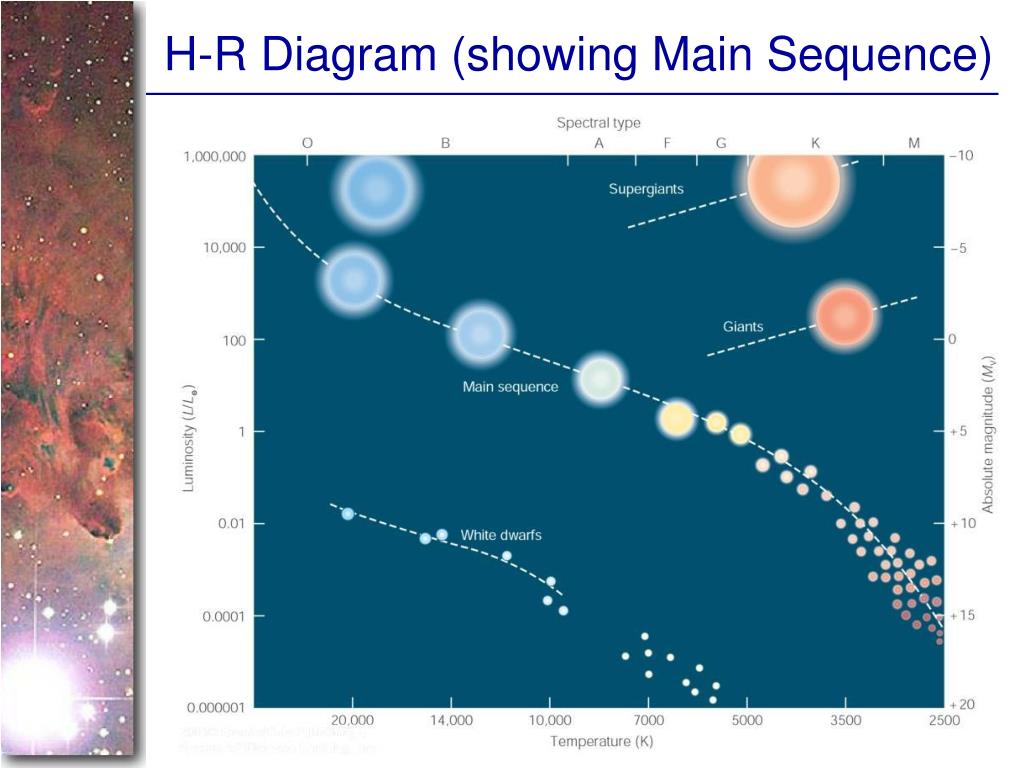

  37. H-R Diagram (showing Main Sequence)

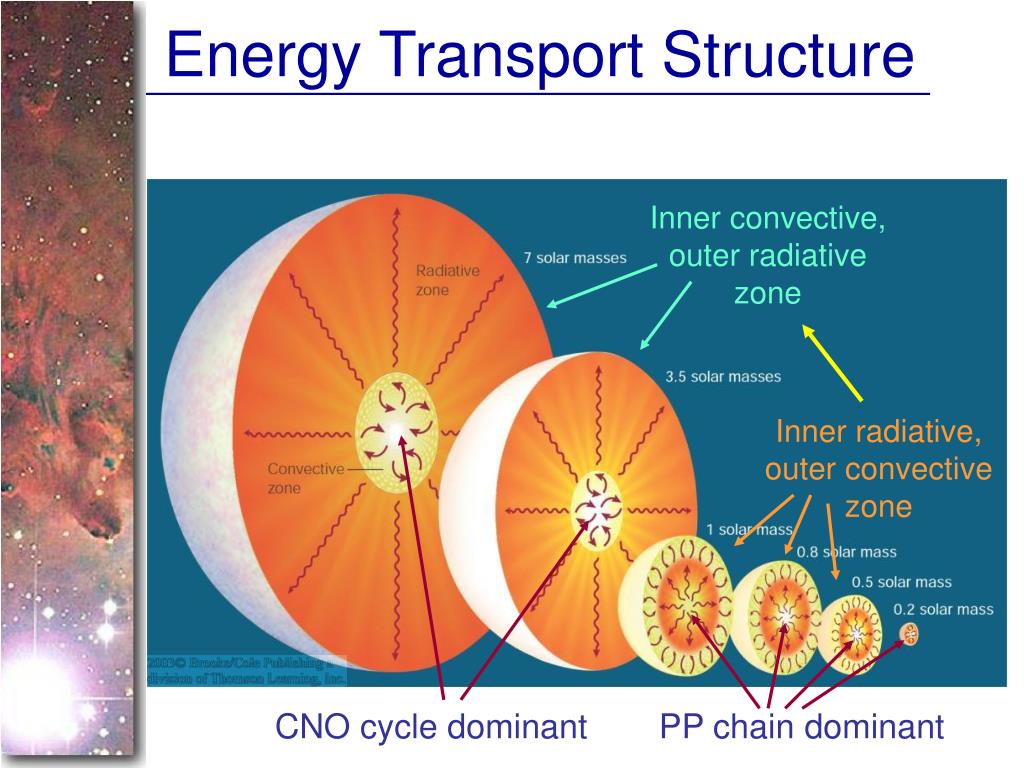

  38. Energy Transport Structure Inner convective, outer radiative zone Inner radiative, outer convective zone CNO cycle dominant PP chain dominant

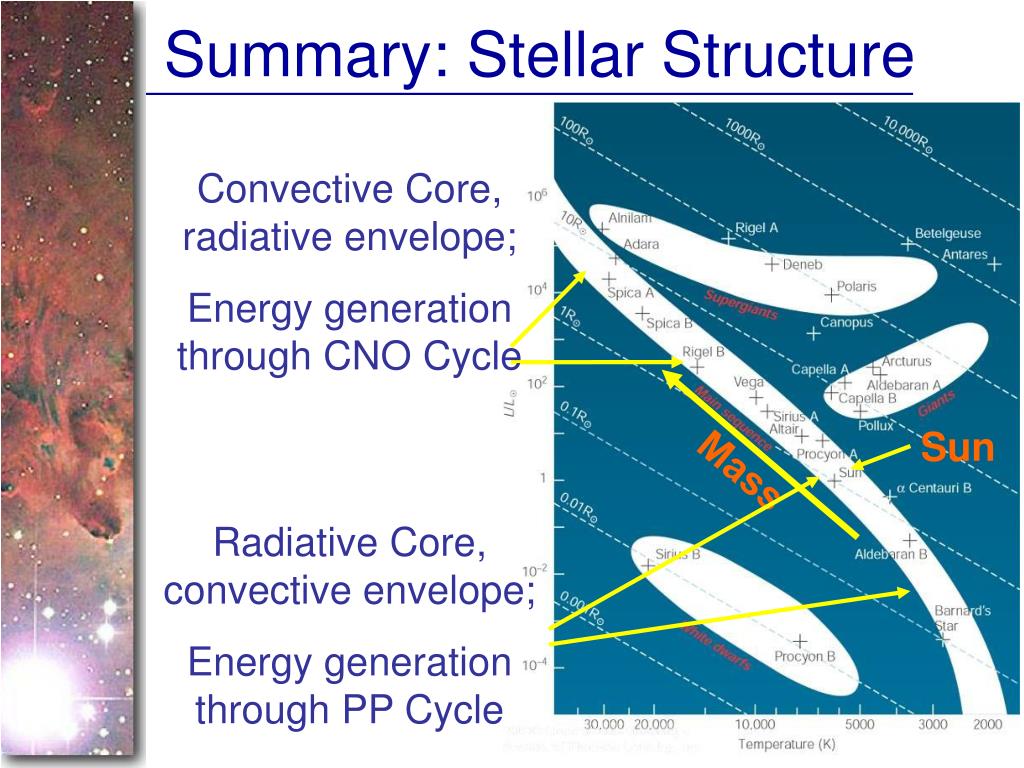

  39. Summary: Stellar Structure Convective Core, radiative envelope; Energy generation through CNO Cycle Sun Mass Radiative Core, convective envelope; Energy generation through PP Cycle

  40. The Orion Nebula: An Active Star-Forming Region

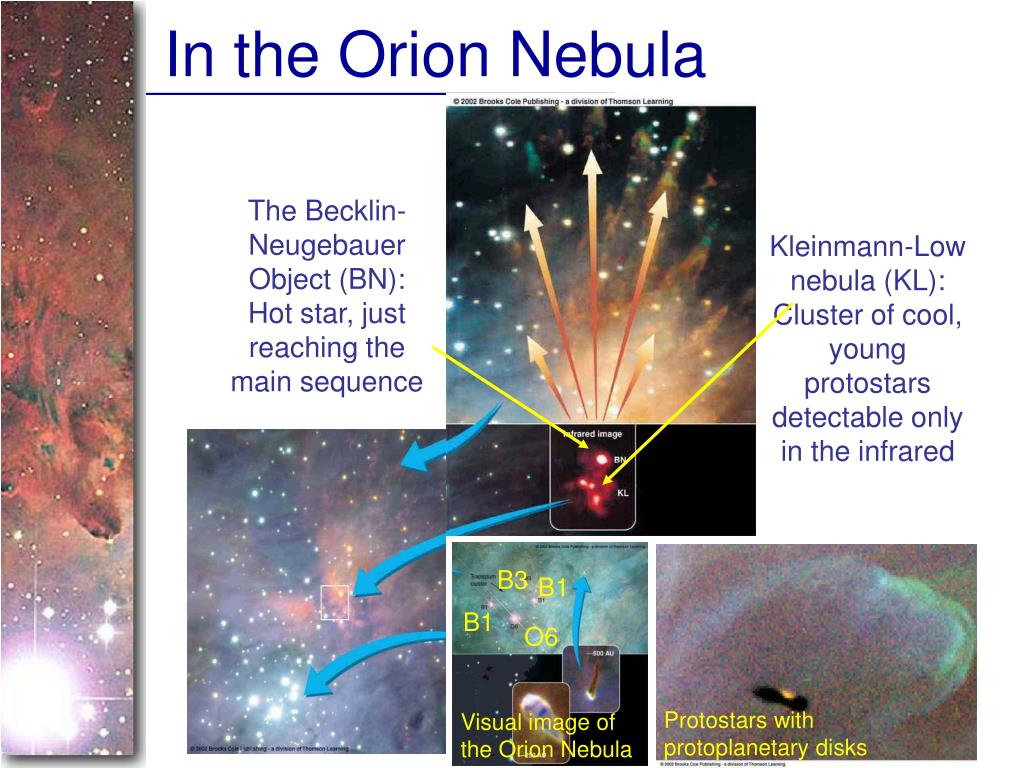

  41. In the Orion Nebula The Becklin-Neugebauer Object (BN): Hot star, just reaching the main sequence Kleinmann-Low nebula (KL): Cluster of cool, young protostars detectable only in the infrared B3 B1 B1 O6 Protostars with protoplanetary disks Visual image of the Orion Nebula

  42. New Terms shock wave free-fall contraction protostar cocoon protostellar disk birth line T Tauri star Bok globule Herbig–Haro object bipolar flow association T association O association CNO (carbon–nitrogen–oxygen) cycle opacity hydrostatic equilibrium

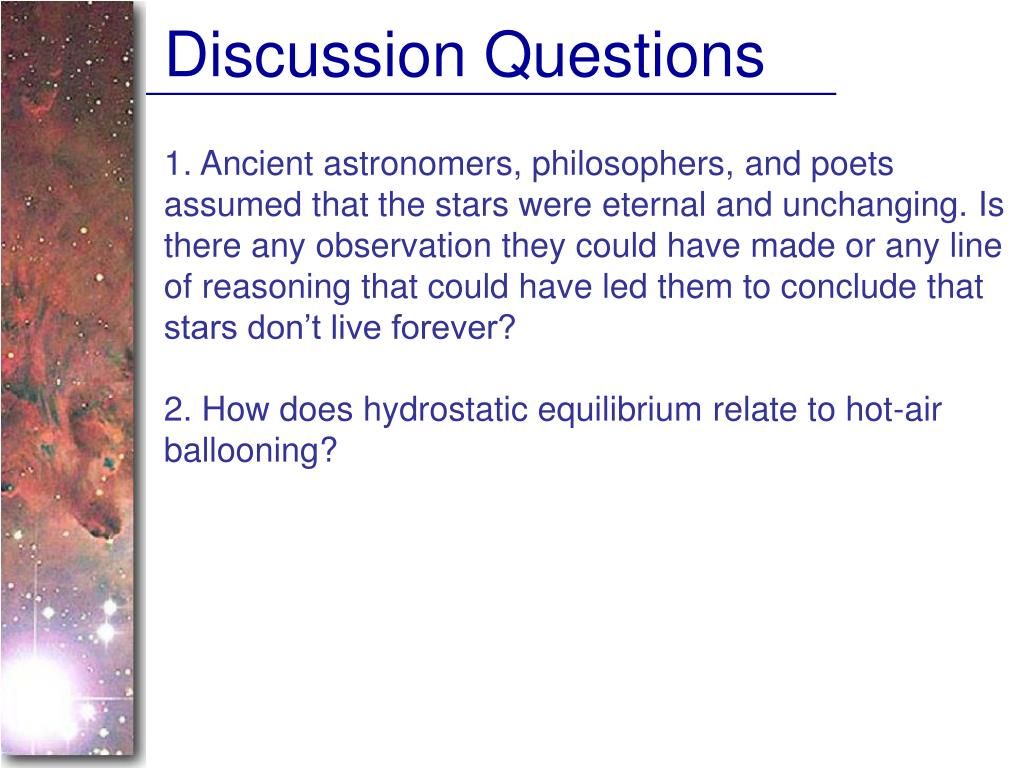

  43. Discussion Questions 1. Ancient astronomers, philosophers, and poets assumed that the stars were eternal and unchanging. Is there any observation they could have made or any line of reasoning that could have led them to conclude that stars don’t live forever? 2. How does hydrostatic equilibrium relate to hot-air ballooning?

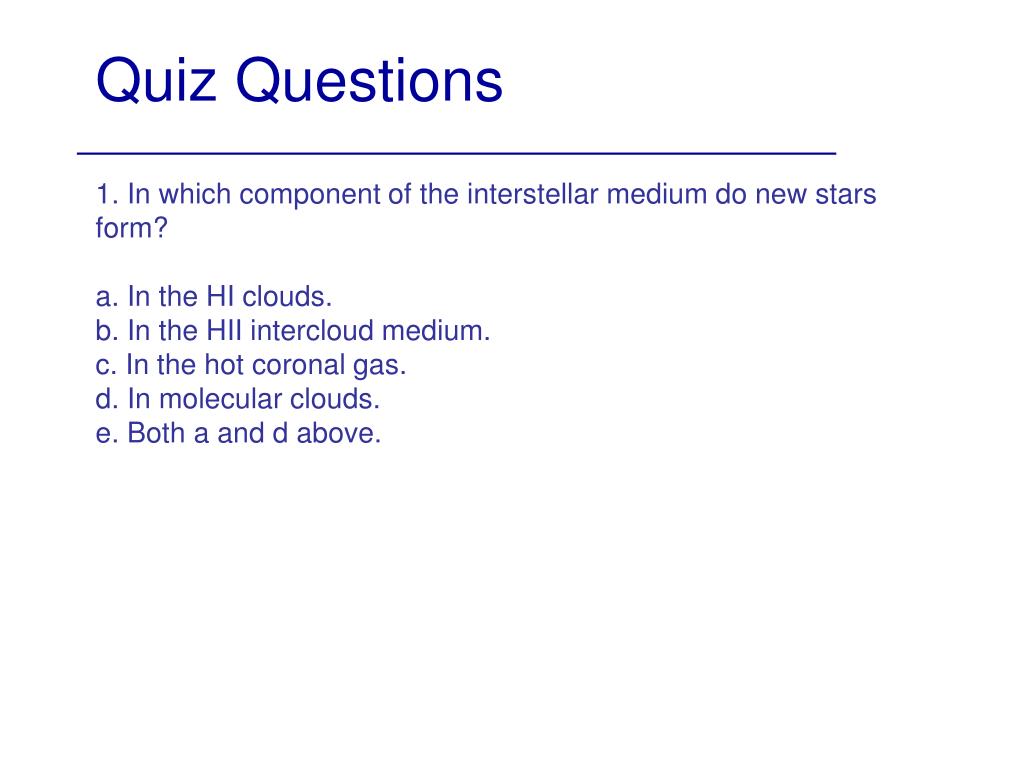

  44. Quiz Questions 1. In which component of the interstellar medium do new stars form? a. In the HI clouds. b. In the HII intercloud medium. c. In the hot coronal gas. d. In molecular clouds. e. Both a and d above.

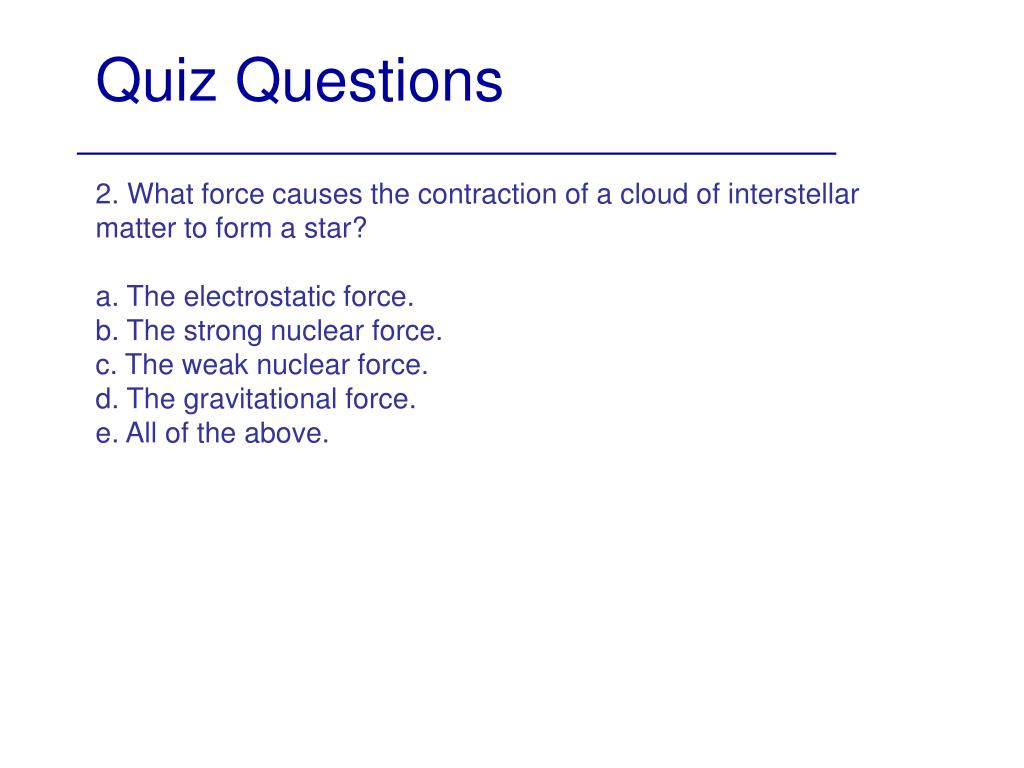

  45. Quiz Questions 2. What force causes the contraction of a cloud of interstellar matter to form a star? a. The electrostatic force. b. The strong nuclear force. c. The weak nuclear force. d. The gravitational force. e. All of the above.

  46. Quiz Questions 3. Which factor resists the contraction of a cloud of interstellar matter? a. Thermal energy. b. The interstellar magnetic field. c. Rotation. d. Turbulence. e. All of the above.

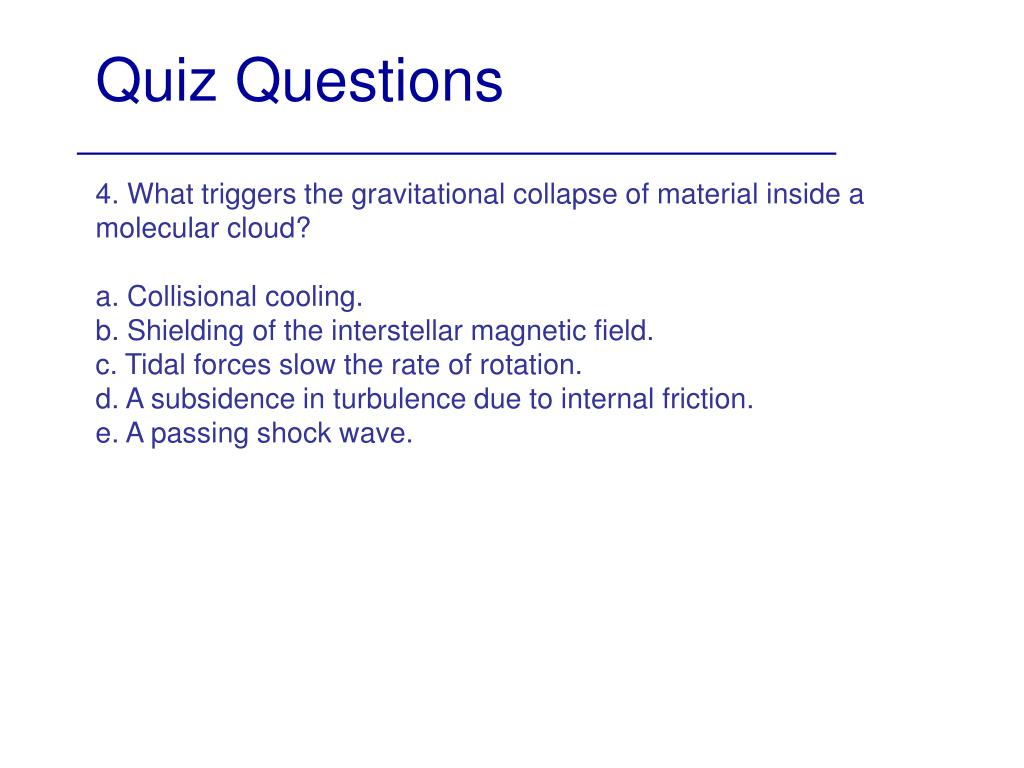

  47. Quiz Questions 4. What triggers the gravitational collapse of material inside a molecular cloud? a. Collisional cooling. b. Shielding of the interstellar magnetic field. c. Tidal forces slow the rate of rotation. d. A subsidence in turbulence due to internal friction. e. A passing shock wave.

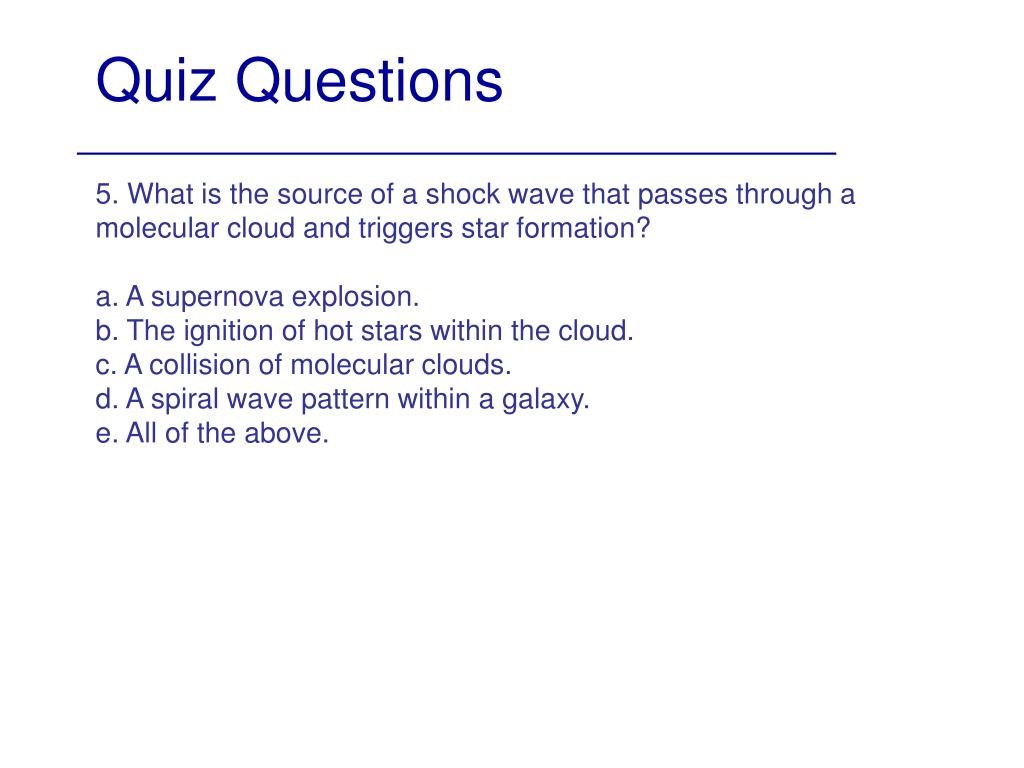

  48. Quiz Questions 5. What is the source of a shock wave that passes through a molecular cloud and triggers star formation? a. A supernova explosion. b. The ignition of hot stars within the cloud. c. A collision of molecular clouds. d. A spiral wave pattern within a galaxy. e. All of the above.

  49. Quiz Questions 6. What happens to the temperature and density inside a collapsing protostar? a. Temperature and density both increase. b. Temperature and density both decrease. c. Temperature increases and density decreases. d. Temperature decreases and density increases. e. The product of temperature and density remains constant.

  50. Quiz Questions 7. What is a protostar's energy source? a. Nuclear fusion. b. Gravitational energy. c. Chemical energy. d. Both a and b above. e. All of the above.
