  1. The digital pathology archive: the UMC Utrecht initiative Paul van Diest, MD, PhD Professor and Head Department of Pathology University Medical Center Utrecht p.j.vandiest@umcutrecht.nl

  2. The problem I • 100.000 new slides per year • archive of 7.000.000 slides • total weight 60.000 kg • weight increase 100 kg per year

  3. The problem II • slides often have to be retrieved: • clinicopathological conferences • compare with new material • teaching • research

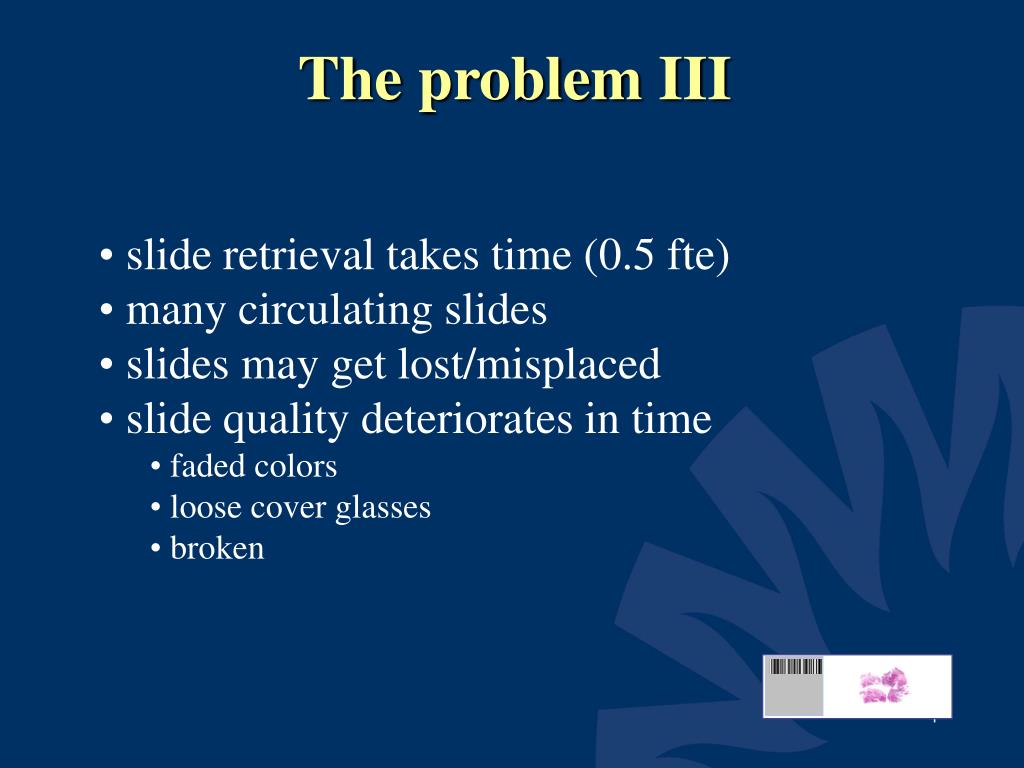

  4. The problem III • slide retrieval takes time (0.5 fte) • many circulating slides • slides may get lost/misplaced • slide quality deteriorates in time • faded colors • loose cover glasses • broken

  5. The solution? • technically feasible to digitize all slides • store images on SAN • view slides digitally

  6. Advantages of the digital archive • all slides are digitally available • instantaneously • simultaneously to multiple users • no slide retrieval from the archive • no searching for circulating slides • constant image quality • no slides get lost/damaged

  7. Advantages of the digital archive • quicker preparation of CP conferences • CP can be held outside the pathology • laboratory • close colleagues can be consulted quicker • remote colleagues (at home, at conferences, • on vacation) can be consulted quicker • external consultations can be done quicker • images can be made available in EPF (ZIS, Mirador)

  8. Advantages of digital “microscopy” teaching • all students view the same “best slide” • slide images can be integrated with • annotations • questions • macroscopic images • sound clips • links • etc

  9. Advantages of the digital archive • more efficient CP conferences • higher speed, dynamics and flexibility of • consultation • higher quality and more dynamic teaching • but…… Can it be done?

  10. mirador The digital pathology archive: the UMC Utrecht solution acquisition workstation scanning macro imager order form scanner RVC database DPS Sun SAN HSM storage clinical users pathology users 6 TB fast access hard disk array 120 TB tape library

  11. Digital slide demo

  12. PALGA link

  13. Pitfalls of the digital archive I • huge storage management • 200 MB – 1 GB per slide (20x) • 80 TB per year • backup • back archive • speed of image retrieval • logistics of scanning 500 slides per day • no delay in having slides scanned • flexible scanning slots • image compression

  14. Pitfalls of the digital archive II • costs (vs. savings/quality improvement)

  15. Scanning logistics • scanners are loaded twice daily • at different moments • organize other work around this • 7 hours per run • bar code recognition in scanners • extra set of slide boxes • mark slides to be scanned (double slides) • do not write on slides • install alarm system when scanner crashes

  16. lab B lab B lab C lab C lab A lab A lab D lab D central storage lab I lab I lab E lab E lab H lab H lab F lab F lab G lab G Future perspectives I • nationwide digital archive (EPF) • quicker revision • quicker consultation or…

  17. Future perspectives II • digital diagnostics • remote diagnostics • diagnostic networks

  18. from …….. to …….. pathology cockpit

  19. The digital pathology archive:desirable and feasible!
