  1. Squawks, Squeaks, & Things That Go Bump in the Flight Tailwinds Flying Club Spring Safety Session – 2010

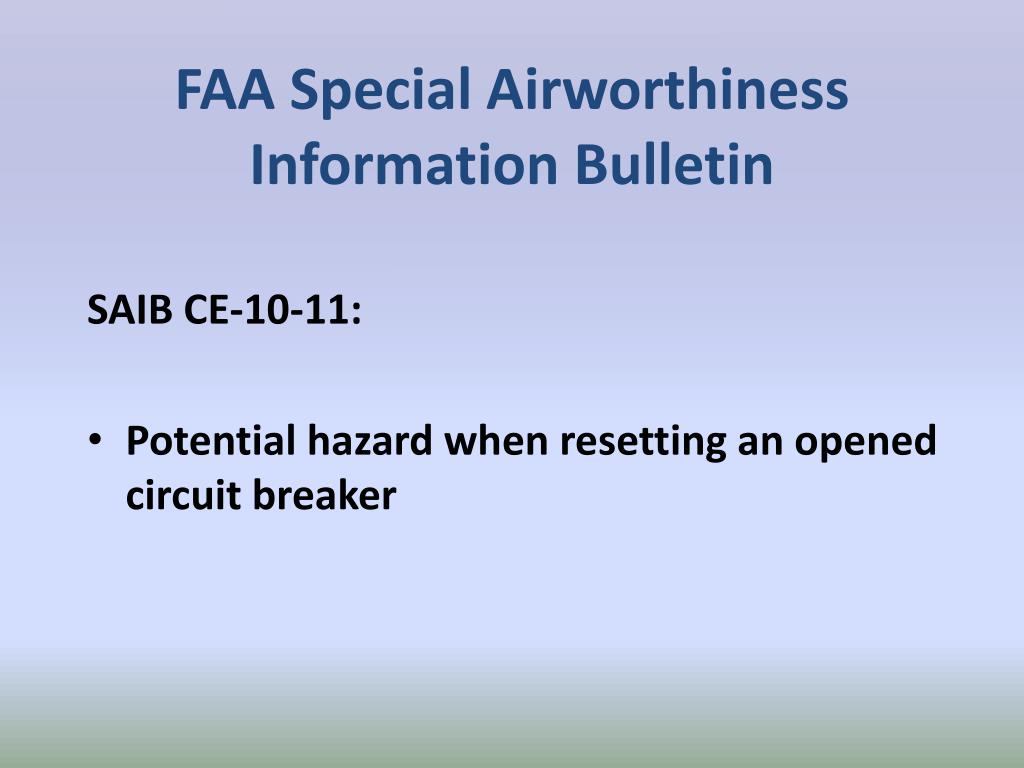

  2. FAA Special Airworthiness Information Bulletin SAIB CE-10-11: • Potential hazard when resetting an opened circuit breaker

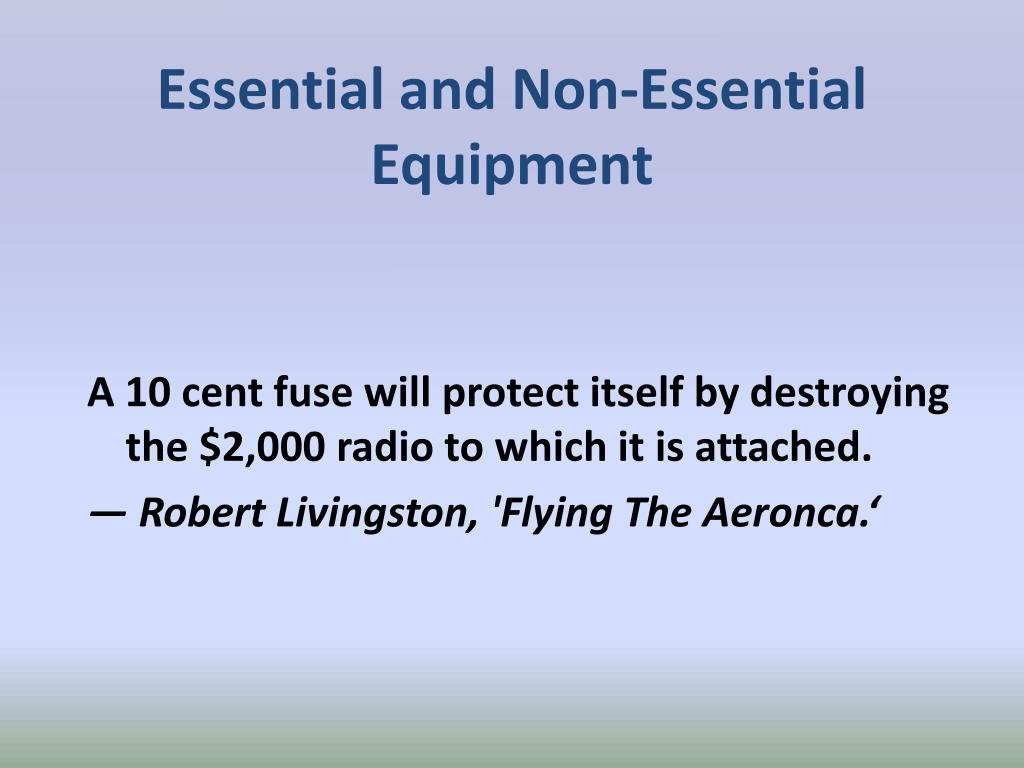

  3. Essential and Non-Essential Equipment A 10 cent fuse will protect itself by destroying the $2,000 radio to which it is attached. — Robert Livingston, 'Flying The Aeronca.‘

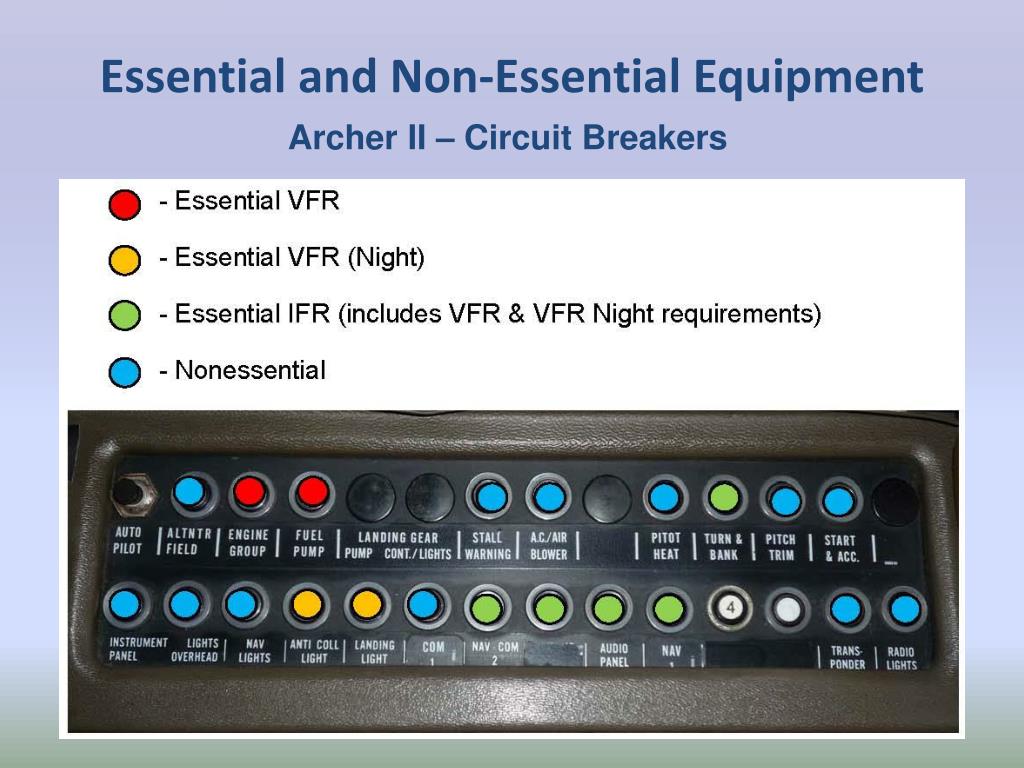

  4. Essential and Non-Essential Equipment Archer II – Circuit Breakers

  5. Essential and Non-Essential Equipment Archer II – Circuit Breakers

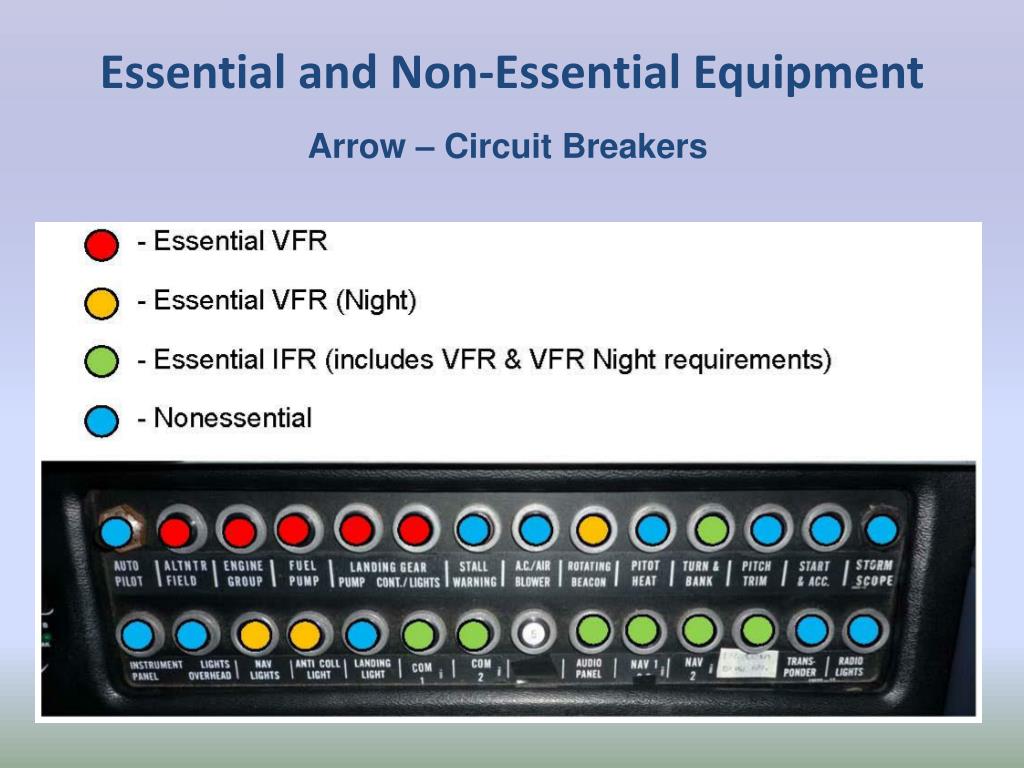

  6. Essential and Non-Essential Equipment Arrow – Circuit Breakers

  7. Essential and Non-Essential Equipment Arrow – Circuit Breakers

  8. Essential and Non-Essential Equipment Six – Circuit Breakers

  9. Essential and Non-Essential Equipment Six – Circuit Breakers

  10. Electrical Malfunctions What do you do when the juice stops flowing? Immediate action items: • Reset alternator by turning circuit breaker(s) off, then on again. • If problem persists, turn alternator off. • Electrical fire: turn off battery and alternator; extinguish fire; vent cabin, then close vents; land ASAP • If electrical power is needed and system voltage is restored, attempt to identify faulty component(s), then land as soon as practical.

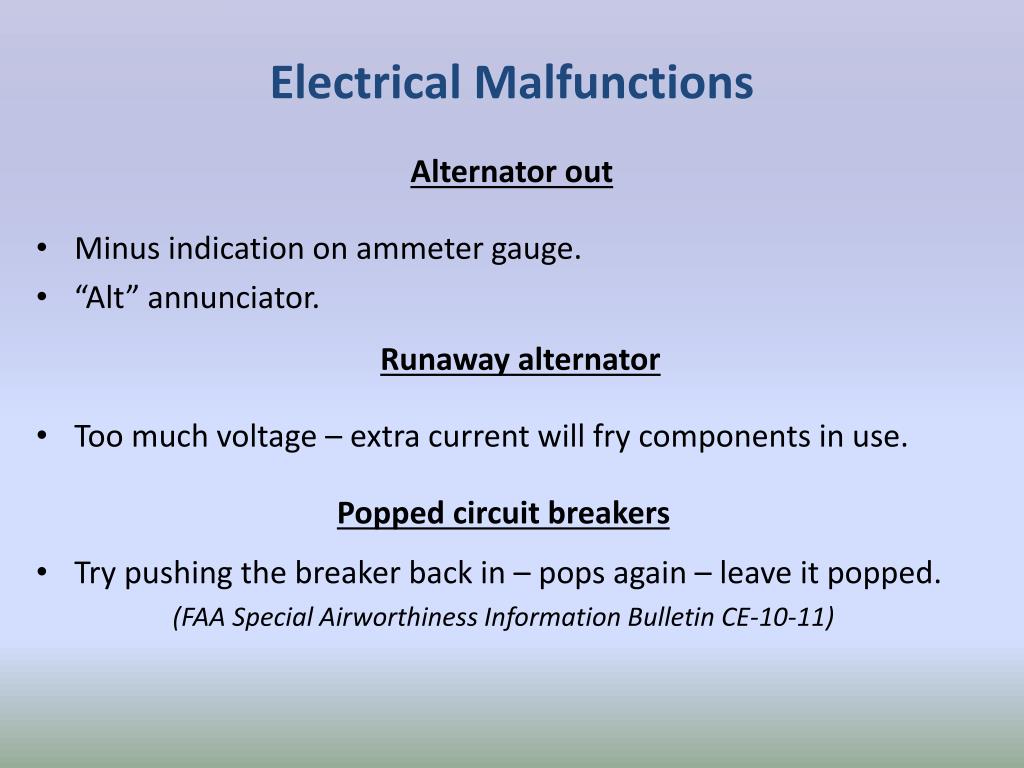

  11. Electrical Malfunctions Alternator out • Minus indication on ammeter gauge. • “Alt” annunciator. Runaway alternator • Too much voltage – extra current will fry components in use. Popped circuit breakers • Try pushing the breaker back in – pops again – leave it popped. • (FAA Special Airworthiness Information Bulletin CE-10-11)

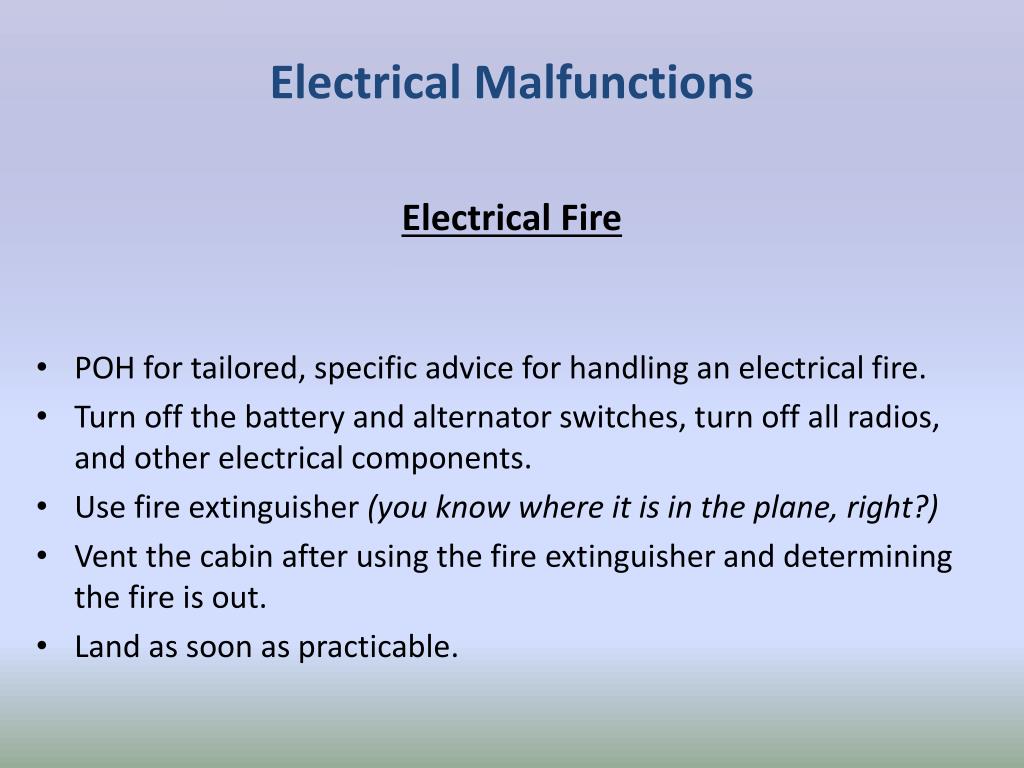

  12. Electrical Malfunctions Electrical Fire • POH for tailored, specific advice for handling an electrical fire. • Turn off the battery and alternator switches, turn off all radios, and other electrical components. • Use fire extinguisher (you know where it is in the plane, right?) • Vent the cabin after using the fire extinguisher and determining the fire is out. • Land as soon as practicable.

  13. Electrical Malfunctions VFR • Complete electrical failure in VFR weather conditions not as problematic • Land at the nearest uncontrolled airport (you’ve still got your handheld GPS aboard, right?) • Land at a controlled airport (what are those light gun signals again?) • Night landing a bit more problematic • No lights, no radios to control airport lighting, other airplanes won’t see you. (hand held transceiver?)

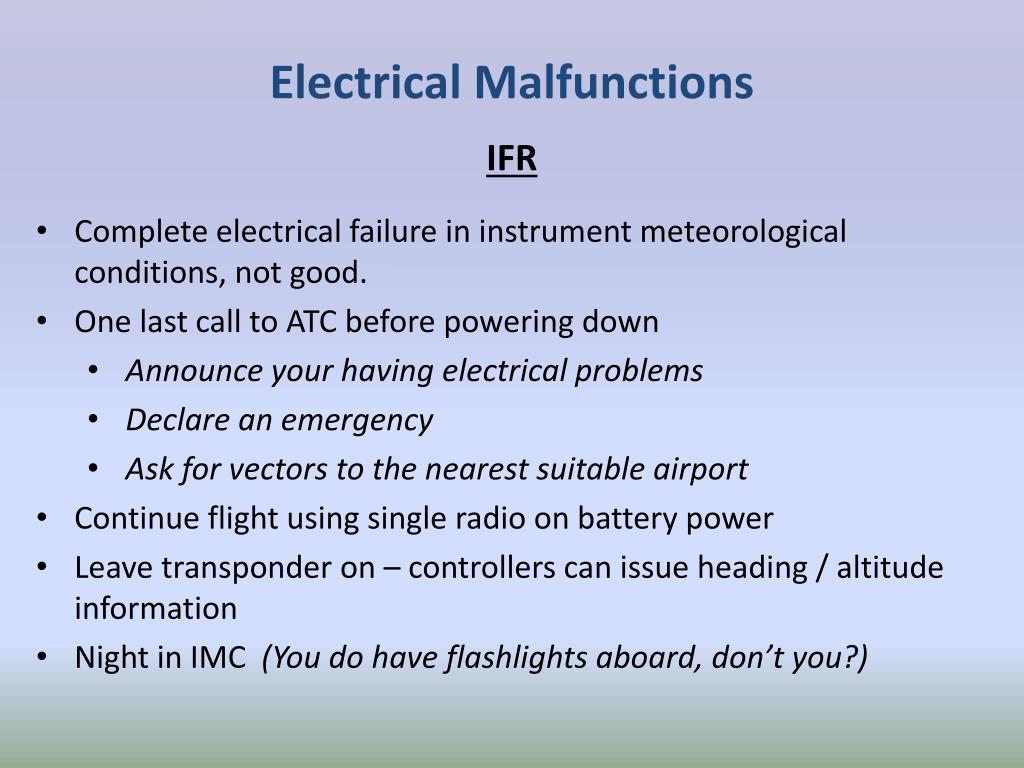

  14. Electrical Malfunctions IFR • Complete electrical failure in instrument meteorological conditions, not good. • One last call to ATC before powering down • Announce your having electrical problems • Declare an emergency • Ask for vectors to the nearest suitable airport • Continue flight using single radio on battery power • Leave transponder on – controllers can issue heading / altitude information • Night in IMC (You do have flashlights aboard, don’t you?)

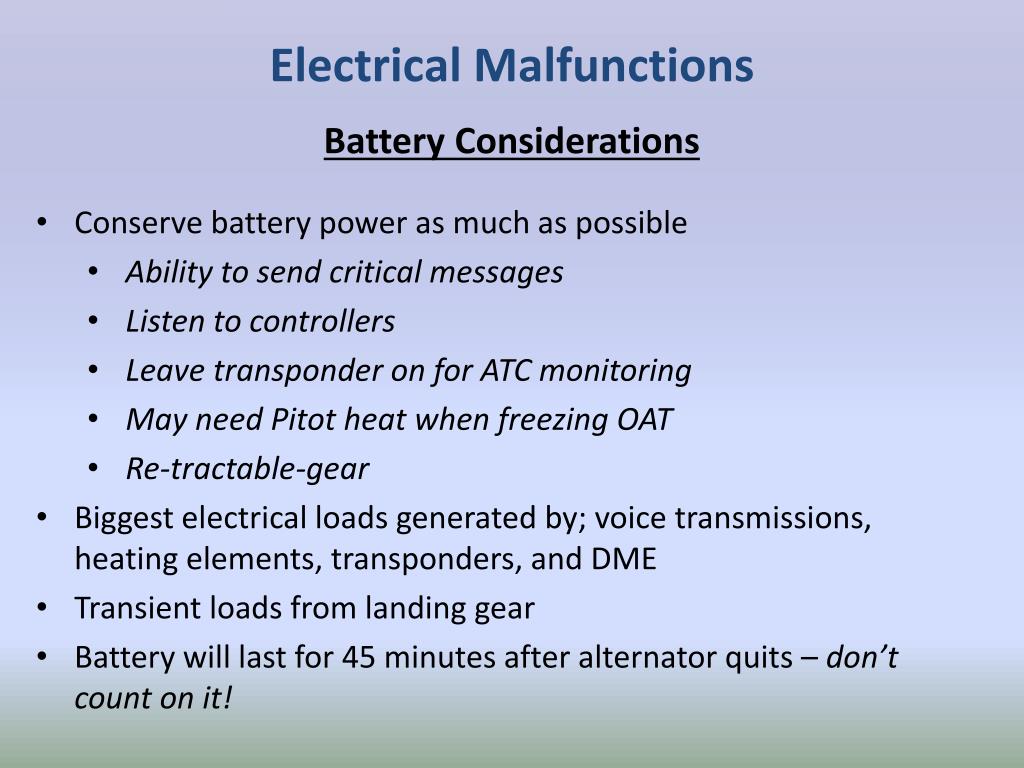

  15. Electrical Malfunctions Battery Considerations • Conserve battery power as much as possible • Ability to send critical messages • Listen to controllers • Leave transponder on for ATC monitoring • May need Pitot heat when freezing OAT • Re-tractable-gear • Biggest electrical loads generated by; voice transmissions, heating elements, transponders, and DME • Transient loads from landing gear • Battery will last for 45 minutes after alternator quits – don’t count on it!

  16. Required Equipment FAR 91.205 Powered civil aircraft with standard category U.S. airworthiness certificates: Instrument and equipment requirements. VFR flight during the day: (TOMATO FLAME) • Tachometer (each engine) • Oil pressure gauge • Magnetic direction indicator • Airspeed indicator • Temperature gauge • Oil temperature gauge • Fuel gauge (quantity each tank) • Landing gear position indicator • Altimeter • Manifold pressure • ELT

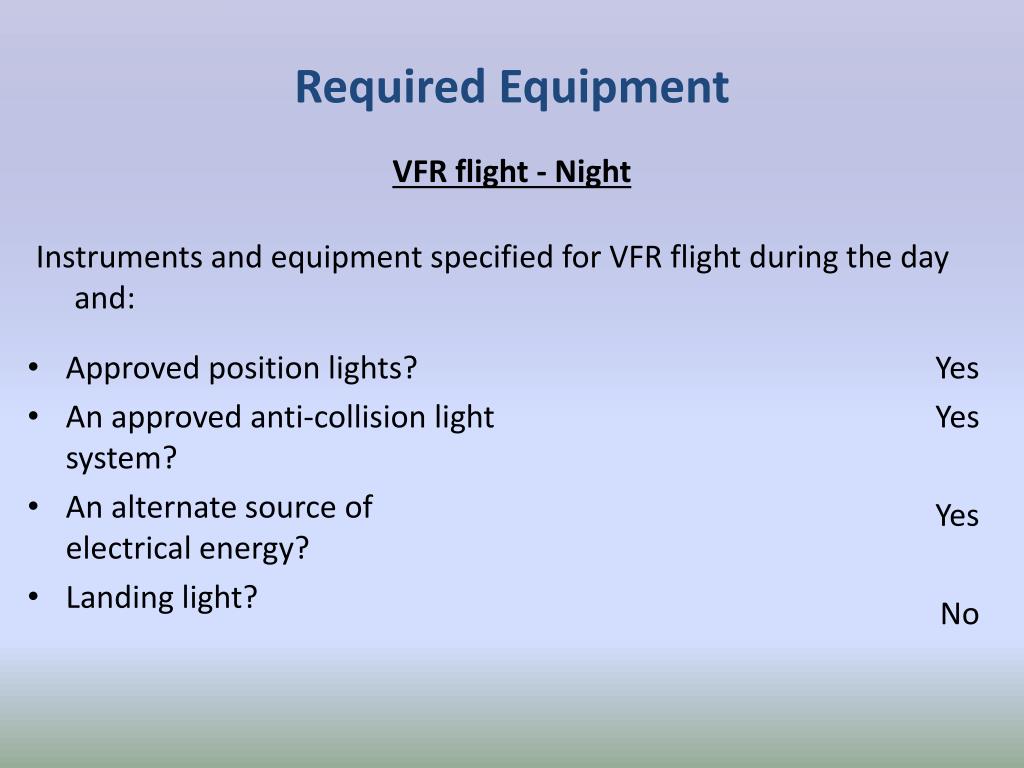

  17. Required Equipment VFR flight - Night Instruments and equipment specified for VFR flight during the day and: • Approved position lights? • An approved anti-collision light system? • An alternate source of electrical energy? • Landing light? • Yes • Yes • Yes • No

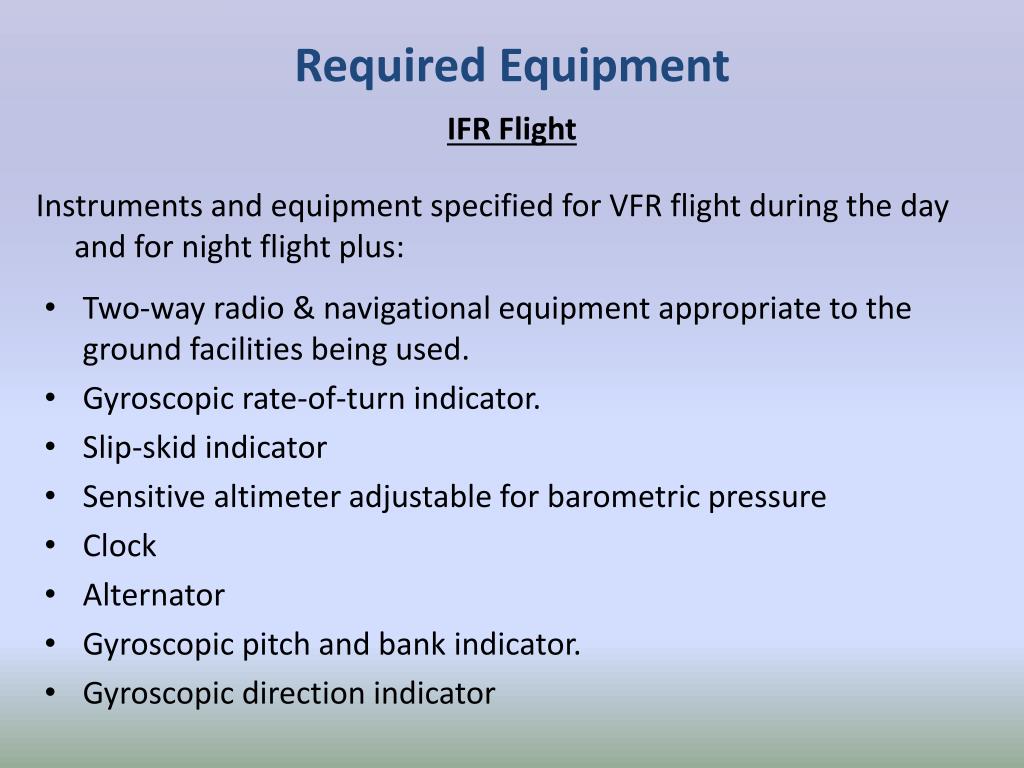

  18. Required Equipment IFR Flight Instruments and equipment specified for VFR flight during the day and for night flight plus: • Two-way radio & navigational equipment appropriate to the ground facilities being used. • Gyroscopic rate-of-turn indicator. • Slip-skid indicator • Sensitive altimeter adjustable for barometric pressure • Clock • Alternator • Gyroscopic pitch and bank indicator. • Gyroscopic direction indicator

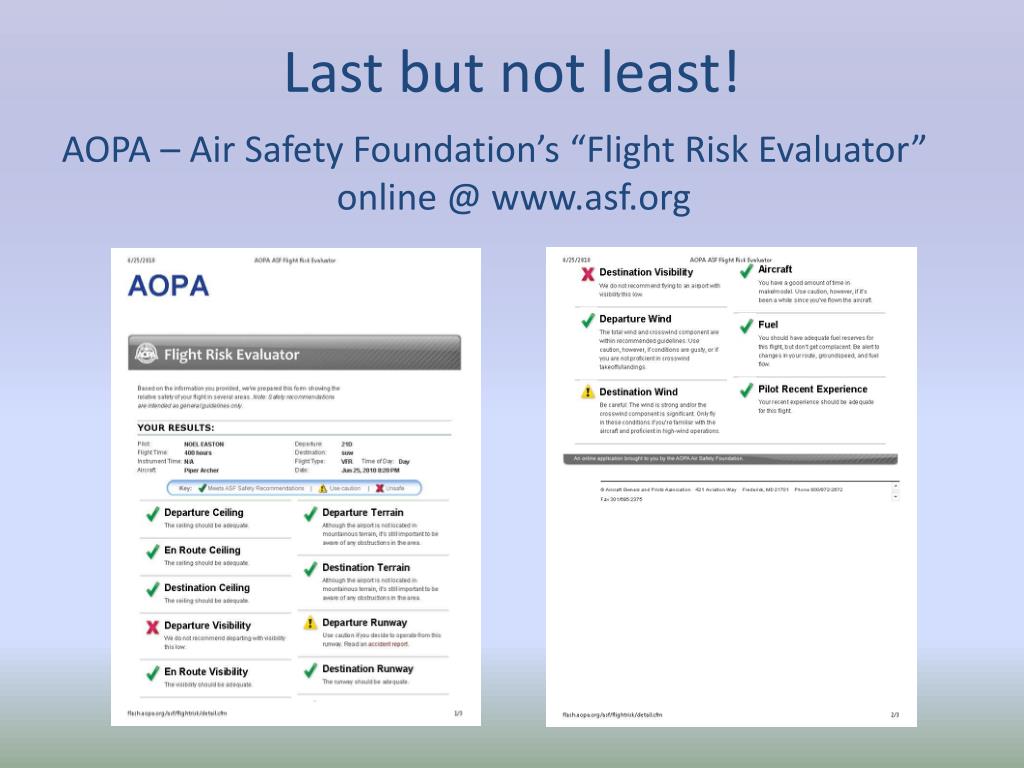

  19. Last but not least! AOPA – Air Safety Foundation’s “Flight Risk Evaluator” online @ www.asf.org

  20. Thanks! Questions?
