Presentation Transcript

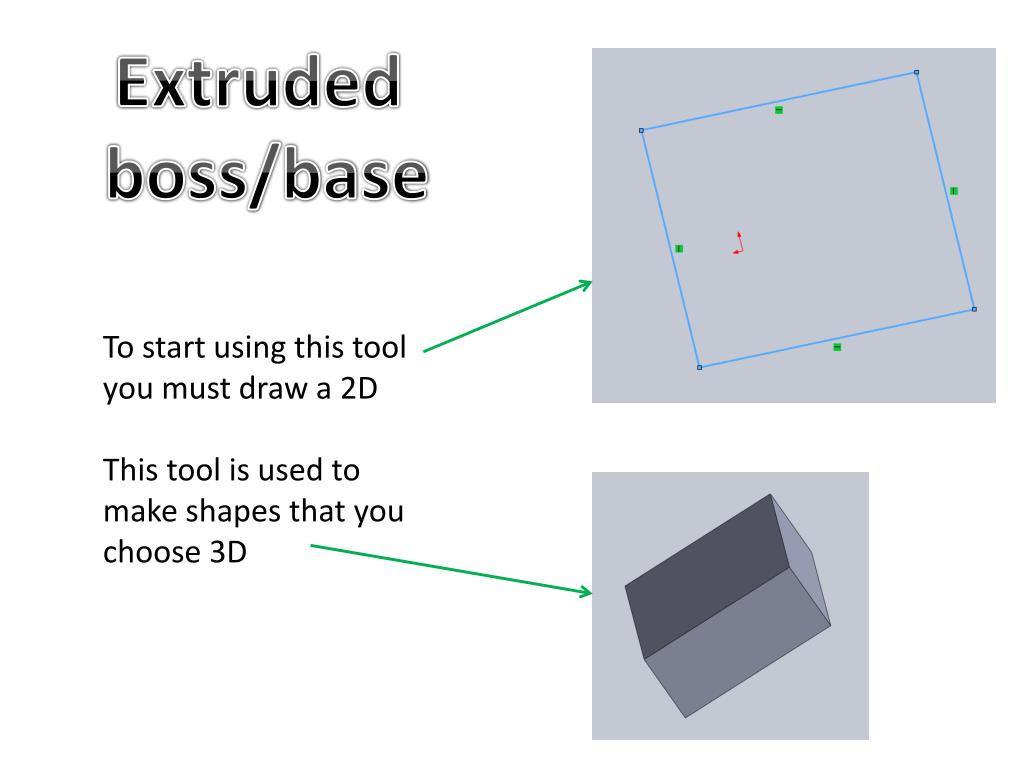

  1. Extruded boss/base To start using this tool you must draw a 2D This tool is used to make shapes that you choose 3D

  2. Start a new sketch on a plane or an existing surface Draw a 2D shape that follows the rules of a

  3. The select the extruded boss/base to extrude your shape into a 3D shape

  4. You can also choose how much you want to extrude by sliding it with you mouse or entering in the length you would like

  5. Select one of the check marks and you will have you finished product Finished product

  6. Another option for extruded base is the “ up to vertex” which allows you to extrude a shape up to the vertex of another shape.

  7. the two shapes This will extrude off of one shape up the vertex of another

  8. The vertex chosen the pink line The shape has been extrude up the vertex of your choice

  9. Select one of the check marks and you will have you finished product Finished “up to vertex option”

  10. You can also extrude off another surface Fist double click the pace bar. Chose normal to which ever surface you would like to extrude off of. should come facing you flat

  11. Then draw the shape you would like to extrude Then draw it on the surface

  12. You can choose how big you want your extrude to be both here and here

  13. Select one of the check marks and you will have you finished product Finished product

  14. Extruded cut Feature The extruded cut button is used to cut through 3D shapes

  15. First you need a solid 3D shape Once you have your solid 3D shape draw the shape you would like to extrude through the 3D shape on the surface you want to cut through

  16. The shape I’m going to extrude After you have drawn the shape click on it so it turns blue and the select the extrude button

  17. You have many different options when your choosing to extrude The blind options is how ever far you chose to extrude it Through all is when the extrude will go all the way through you shape

  18. The blind option allows you enter in a depth that you choose or slide the cut through your shape

  19. Select one of the check marks and you will have you finished product Finished product

  20. For the through all option you do the same steps in drawing the shape you want to cut but you select the through all option which will go all the way through the 3D shape

  21. The up to next feature. You draw the 3Dshape you want to cut through, then draw the shape you want to cut through it on the side, the up to next feature will cut from where you draw the shape to the surface that you choose for it to cut to

  22. The shape I'm going to cut through the 3D shape The yellow circle is where it is going to cut too. This will put a hole through the entire 3D shape The pink line is where it is going to cut up to

  23. The up to next option cuts the hole through the shape from the surface you choose to the other surface you choose

  24. The up to vertex feature. Will cut from where you draw your sketch to a vertex of your choice To stratou do the same in the way you draw a sketch on the 3D shape

  25. Then select your sketch and choose the extruded cut option Then the up to vertex option

  26. The vertex you select it to cut too will turn pink

  27. Select one of the check marks and you will have you finished product Finished product
