  1. Virtual Memory

  2. Main memory: reasonable cost, but slow & small Memory Hierarchy Summary Cache memory: provides illusion of very high speed Virtual memory: provides illusion of very large size

  3. Virtual Memory Virtual Memory • Program addresses only logical addresses • Hardware maps logical addresses to physical addresses • Only part of a process is loaded into memory • process may be larger than main memory • additional processes allowed in main memory since only part of each process needs to be in physical memory • memory loaded/unloaded as the programs execute • Real Memory – The physical memory occupied by a program (frames) • Virtual memory – The larger memory space perceived by the program (pages)

  4. Virtual Memory That is Larger Than Physical Memory

  5. Virtual Memory Virtual Memory • Principle of Locality– A program tends to reference the same items - even if same item not used, nearby items will often be referenced • Resident Set– Those parts of the program being actively used (remaining parts of program on disk) • Thrashing– Constantly needing to get pages off secondary storage • happens if the O.S. throws out a piece of memory that is about to be used • can happen if the program scans a long array – continuously referencing pages not used recently • O.S. must watch out for this situation!

  6. Virtual Memory • Decisions about virtual memory: • Fetch Policy – when to bring a page in? • When needed or in anticipation of need? • Placement – where to put it? • Replacement – what to unload to make room for a new page? • Resident Set Management – how many pages to keep in memory? • Fixed # of pages or variable? • Reassign pages to other processes? • Cleaning Policy – when to write a page to disk? • Load Control – degree of multiprogramming?

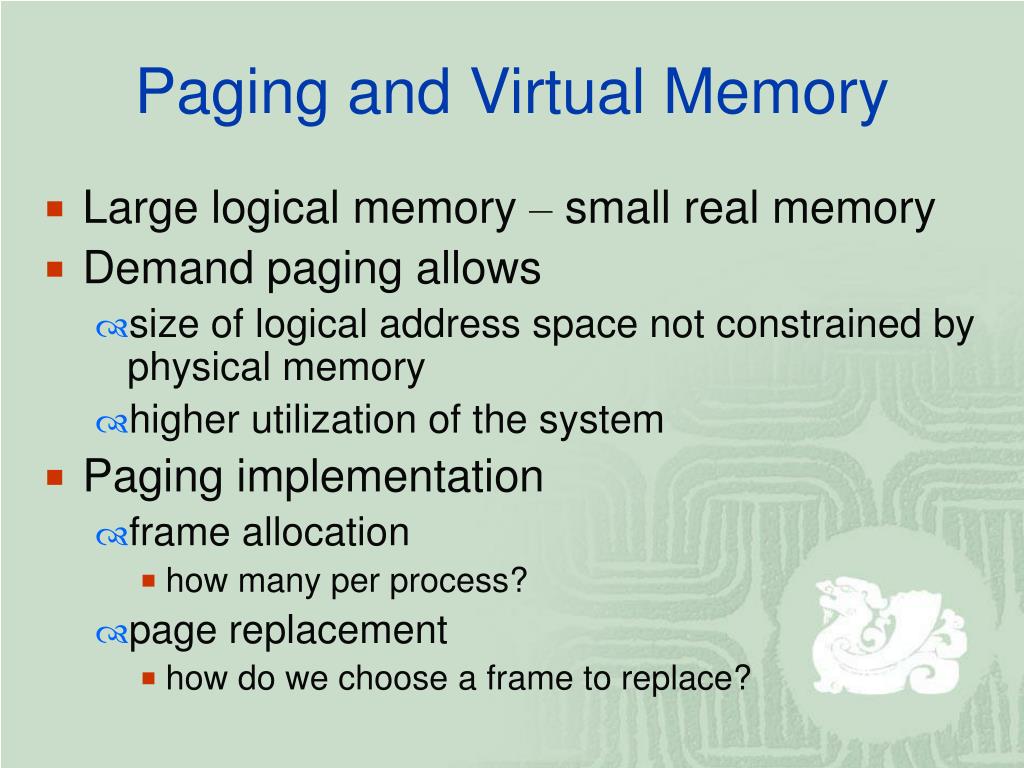

  7. Paging and Virtual Memory • Large logical memory – small real memory • Demand paging allows • size of logical address space not constrained by physical memory • higher utilization of the system • Paging implementation • frame allocation • how many per process? • page replacement • how do we choose a frame to replace?

  8. Demand Paging • Bring a page into memory only when it is needed. • Less I/O needed • Less memory needed • Faster response • More users • Page is needed  reference to it • invalid reference  abort • not-in-memory  bring to memory

  9. Transfer of a Paged Memory to Contiguous Disk Space

  10. Page Table of Demand Paging

  11. Page Fault • If there is ever a reference to a page, first reference will trap to OS  page fault • OS looks at another table to decide: • Invalid reference  abort. • Just not in memory. • Get empty frame. • Swap page into frame. • Reset tables, validation bit = 1. • Restart instruction: Least Recently Used • block move • auto increment/decrement location

  12. Steps in Handling a Page Fault

  13. What happens if there is no free frame? • Page replacement – find some page in memory, but not really in use, swap it out. • algorithm • performance – want an algorithm which will result in minimum number of page faults. • Same page may be brought into memory several times.

  14. Demand Paging • Paged memory combined with swapping • Processes reside in main/secondary memory • Could also be termed as lazy swapping • bring pages into memory only when accessed • What about at context switch time? • could swap out entire process • restore page state as remembered • anticipate which pages are needed

  15. Page Replacement • Demand paging allows us to over-allocate • no free frames – must implement frame replacement • Frame replacement • select a frame (victim) • write the victim frame to disk • read in new frame • update page tables • restart process

  16. Page Replacement • If no frames are free, two page transfers • doubles page fault service time • Reduce overhead using dirty bit • dirty bit is set whenever a page is modified • if dirty, write page, else just throw it out

  17. Paging Implementation (continued…) • Must be able to restart a process at any time • instruction fetch • operand fetch • operand store (any memory reference) • Consider simple instruction • Add C,A,B (C = A + B) • All operands on different pages • Instruction not in memory • 4 possible page faults )-: slooooow :-(

  18. Performance of Demand Paging • Page Fault Rate 0  p  1.0 • if p = 0 no page faults • if p = 1, every reference is a fault • Effective Access Time (EAT) EAT = (1 –p) x memory access + p (page fault overhead + [swap page out ] + swap page in + restart overhead)

  19. Demand Paging Example • Memory access time = 1 microsecond • 50% of the time the page that is being replaced has been modified and therefore needs to be swapped out. • Swap Page Time = 10 msec = 10,000 microsecond EAT = (1 – p) x 1 + p (15000) =1 + 15000p (in microsecond)

  20. Performance Example • Paging Time… • Disk latency 8 milliseconds • Disk seek 15 milliseconds • Disk transfer time 1 millisecond • Total paging time ~25 milliseconds • Could be longer due to • device queueing time • other paging overhead

  21. Paging Performance (continued…) • Effective access time: EAT = (1 - p)  ma + p  pft where: p is probability of page fault ma is memory access time pft is page fault time

  22. Paging Performance (continued…) • Effective access time with 100 ns memory access and 25 ms page fault time: EAT = (1 - p)  ma + p  pft = (1 - p)  100 + p  25,000,000 = 100 + 24,999,900  p • What is the EAT if p = 0.001 (1 out of 1000)? • 100 + 24999,990  0.001 = 25 microseconds • 250 times slowdown! • How do we get less than 10% slowdown? • 100 + 24999,990  p  1.10  100 ns = 110 ns • Less than 1 out of 2,500,000 accesses fault

  23. Paging Improvements • Paging needs to be as fast as possible • Disk access time is faster if: • use larger blocks • no file table lookup or other indirect lookup • binary boundaries • Most systems have a separate swap space • Copy entire file image into swap at load time • Demand page • Or… • Demand pages initially from the file system • Write pages to swap as they are needed

  24. Fetch Policy • Demand paging means that a process starts slowly. • produces a flurry of page faults early, then settles down • Locality means a smaller number of pages per process are needed. • desired set of pages should be in memory - working set • Prepaging means bringing in pages that are likely to be used in the near future. • try to take advantage of disk characteristics • generally more efficient to load several consecutive sectors/pages than individual sectors due to seek, rotational latency • hard to correctly guess which pages will be referenced • easier to guess at program startup • may load unnecessary pages

  25. Placement Policies • Where to put the page • trivial in a paging system – can be placed anywhere • Best-fit, First-Fit, or Next-Fit can be used with segmentation • is a concern with distributed systems

  26. Replacement Policies • Replacement Policy • which page to replace when a new page needs to be loaded • tends to combine several things: • how many page frames are allocated • replace only a page in the current process or from all processes? (Resident Set Management) • from pages being considered, selecting one page to be replaced • Frame Locking • require a page to stay in memory • O.S. Kernel and Interrupt Handlers • real-Time processes • other key data structures • implemented by bit in data structures
