PVD COATING PROCESS

PVD COATING PROCESS. 东宇热处理工业(株). N 2. BIAS Voltage. Reactive gas. Ti ++. TiN. Workpiece. Cathode. Target. Ti +. 0 ~ -1000V. BIAS Voltage. 东宇热处理工业(株). Arc PVD Coating 概要. 利用 PLASMA 在 TARGET 表面使用 ARC , E-Beam , Direct heating 等蒸发金属物质后增加加速 Bias 电压在产品表面蒸着的真空法。.

gage-foley
Download Presentation

PVD COATING PROCESS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. PVD COATING PROCESS 东宇热处理工业(株)

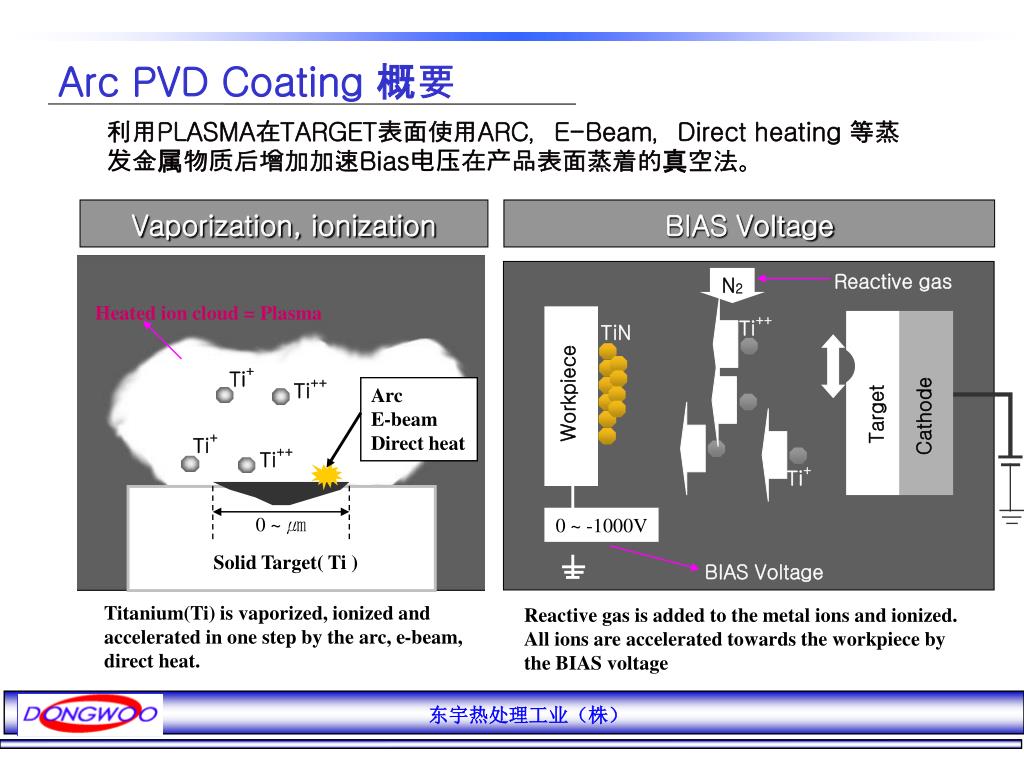

  2. N2 BIAS Voltage Reactive gas Ti++ TiN Workpiece Cathode Target Ti+ 0 ~ -1000V BIAS Voltage 东宇热处理工业(株) Arc PVD Coating概要 利用PLASMA在TARGET表面使用ARC,E-Beam,Direct heating 等蒸发金属物质后增加加速Bias电压在产品表面蒸着的真空法。 Vaporization, ionization Heated ion cloud = Plasma Ti+ Ti++ Arc E-beam Direct heat Ti+ Ti++ 0 ~ ㎛ Solid Target( Ti ) Titanium(Ti) is vaporized, ionized and accelerated in one step by the arc, e-beam, direct heat. Reactive gas is added to the metal ions and ionized. All ions are accelerated towards the workpiece by the BIAS voltage

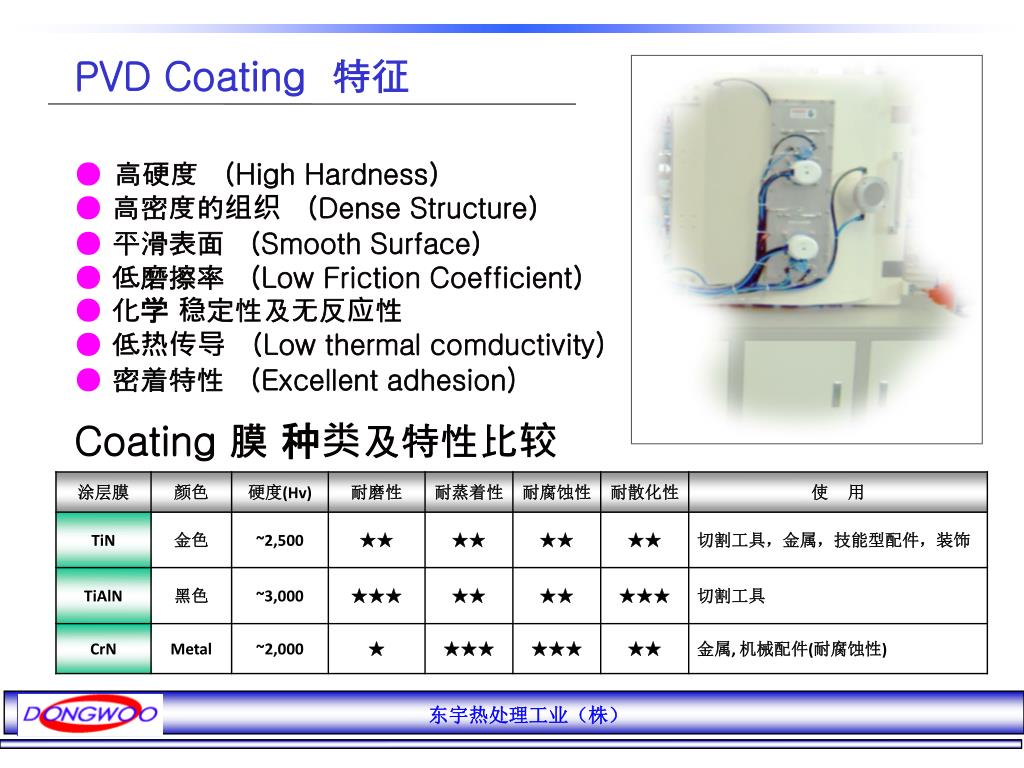

  3. 东宇热处理工业(株) PVD Coating 特征 ●高硬度 (High Hardness) ● 高密度的组织 (Dense Structure) ●平滑表面 (Smooth Surface) ●低磨擦率 (Low Friction Coefficient) ●化学 稳定性及无反应性 ●低热传导 (Low thermal comductivity) ●密着特性 (Excellent adhesion) Coating 膜 种类及特性比较

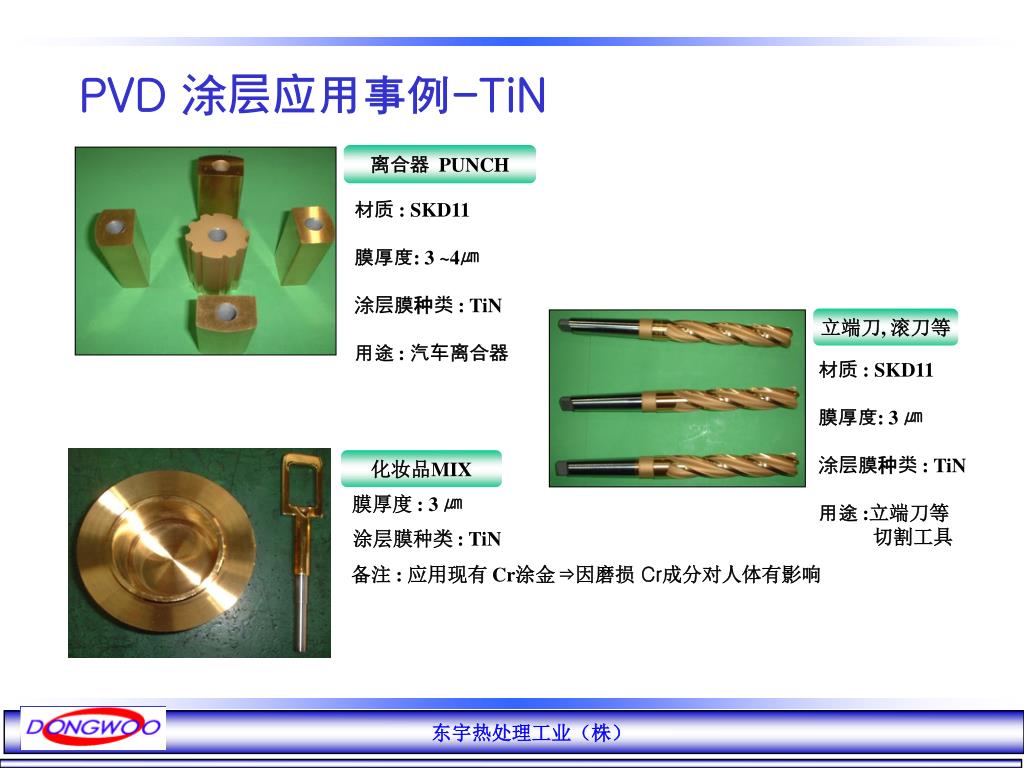

  4. 东宇热处理工业(株) PVD 涂层应用事例-TiN 离合器 PUNCH 材质: SKD11 膜厚度: 3 ~4㎛ 涂层膜种类: TiN 用途: 汽车离合器 立端刀, 滚刀等 材质: SKD11 膜厚度: 3 ㎛ 涂层膜种类: TiN 用途:立端刀等 切割工具 化妆品MIX 膜厚度 : 3 ㎛ 涂层膜种类: TiN 备注 : 应用现有Cr涂金⇒因磨损 Cr成分对人体有影响

  5. 东宇热处理工业(株) PVD 涂层应用事例-TiN 电子配件制陶术粉末PUNCH 材质: HSS 膜厚度: 3 ㎛ 涂层膜种类: TiN 备 注 : 未涂层时划痕涂层后提高10倍以上的寿命效果。 PUNCH类 材质: HSS 膜厚度: 3 ~4㎛ 涂层膜种类: TiN 备 注 : 涂层后提高寿命效果。

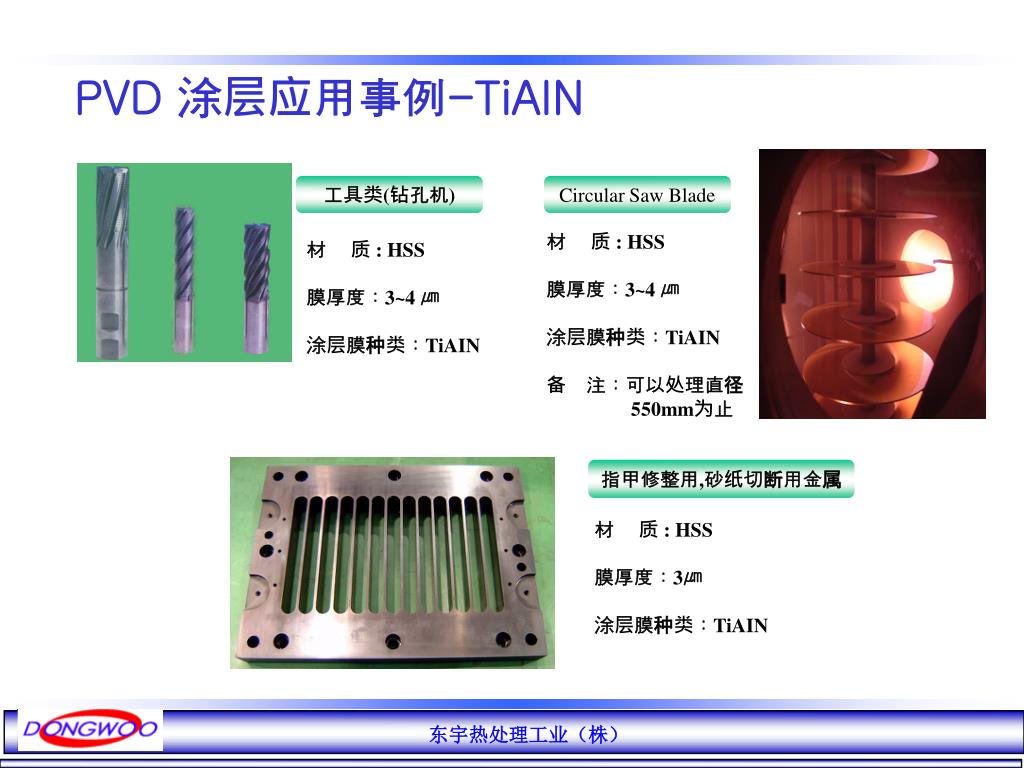

  6. 东宇热处理工业(株) PVD 涂层应用事例-TiAIN 工具类(钻孔机) Circular Saw Blade 材 质: HSS 膜厚度:3~4㎛ 涂层膜种类:TiAIN 备 注:可以处理直径 550mm为止 材 质: HSS 膜厚度:3~4㎛ 涂层膜种类:TiAIN 指甲修整用,砂纸切断用金属 材 质: HSS 膜厚度:3㎛ 涂层膜种类:TiAIN

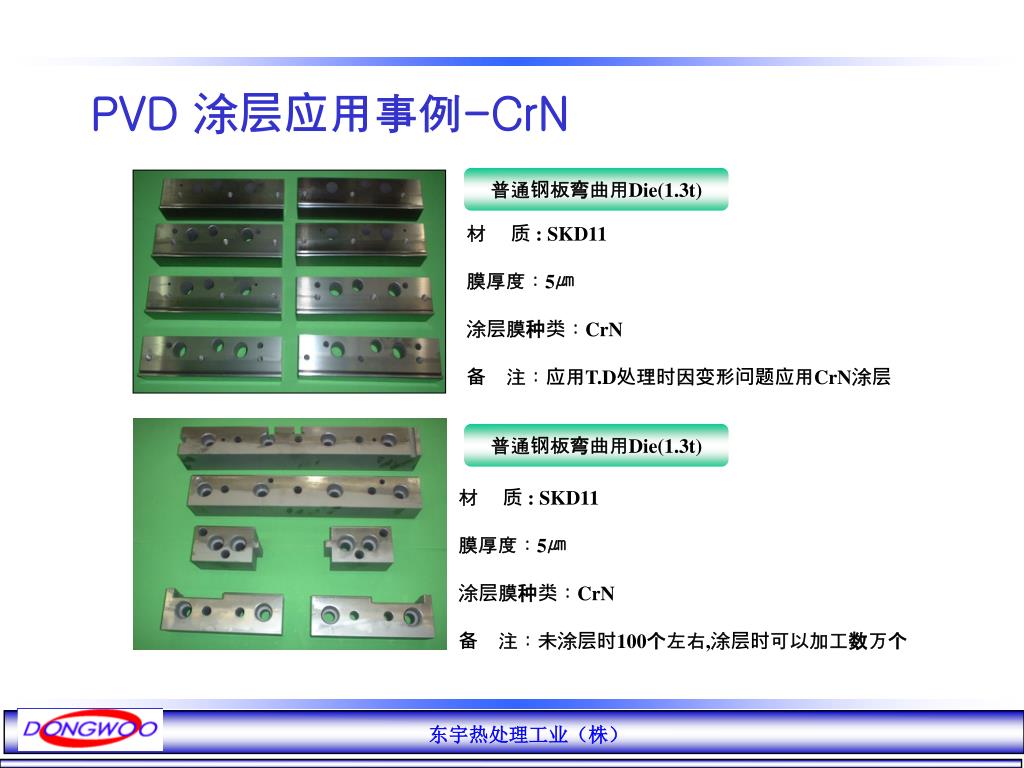

  7. 东宇热处理工业(株) PVD 涂层应用事例-CrN 普通钢板弯曲用Die(1.3t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN 备 注:应用T.D处理时因变形问题应用CrN涂层 普通钢板弯曲用Die(1.3t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN 备 注:未涂层时100个左右,涂层时可以加工数万个

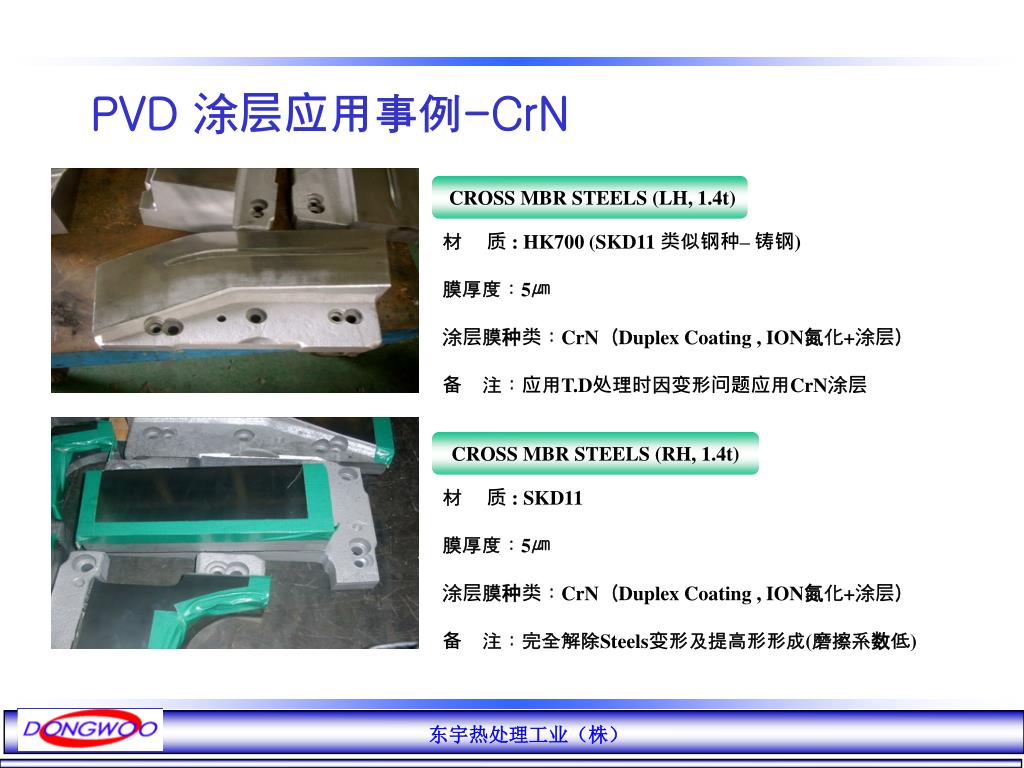

  8. 东宇热处理工业(株) PVD 涂层应用事例-CrN CROSS MBR STEELS (LH, 1.4t) 材 质: HK700 (SKD11 类似钢种– 铸钢) 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用T.D处理时因变形问题应用CrN涂层 CROSS MBR STEELS (RH, 1.4t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:完全解除Steels变形及提高形形成(磨擦系数低)

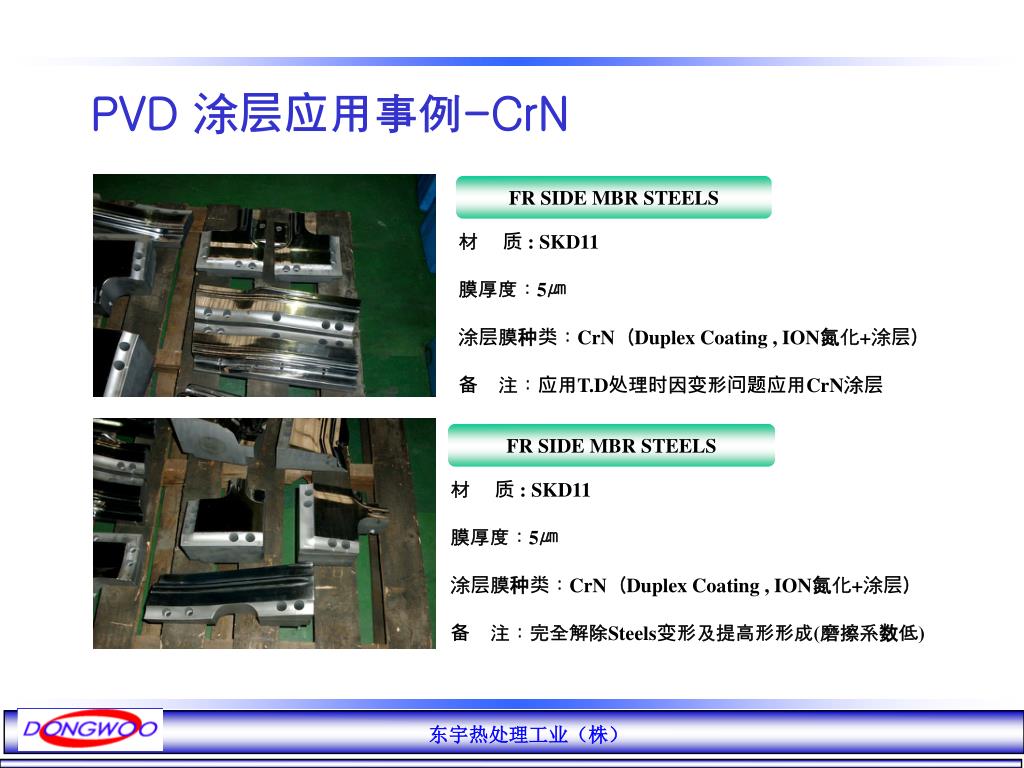

  9. 东宇热处理工业(株) PVD 涂层应用事例-CrN FR SIDE MBR STEELS 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用T.D处理时因变形问题应用CrN涂层 FR SIDE MBR STEELS 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:完全解除Steels变形及提高形形成(磨擦系数低)

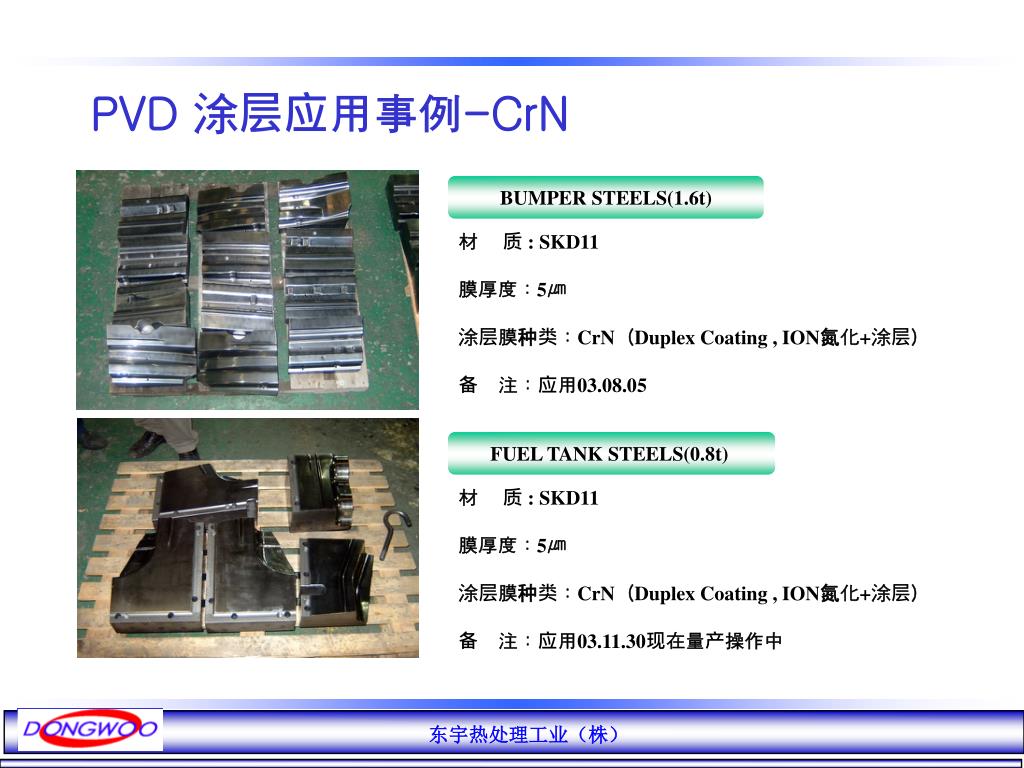

  10. 东宇热处理工业(株) PVD 涂层应用事例-CrN BUMPER STEELS(1.6t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用03.08.05 FUEL TANK STEELS(0.8t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用03.11.30现在量产操作中

  11. 东宇热处理工业(株) PVD 涂层应用事例-CrN RR X MBR UPPER STEELS(2.0t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用03.10.10 MBR STEELS (2.0t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用03.09.15现在量产处理中

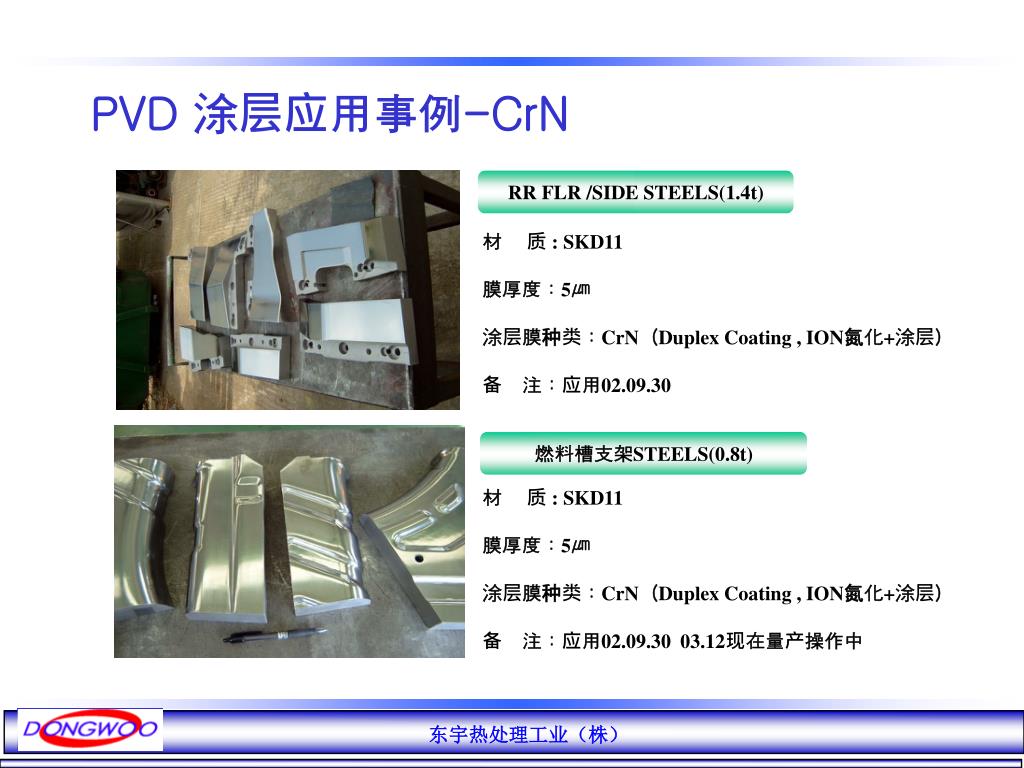

  12. 东宇热处理工业(株) PVD 涂层应用事例-CrN RR FLR /SIDE STEELS(1.4t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用02.09.30 燃料槽支架STEELS(0.8t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用02.09.3003.12现在量产操作中

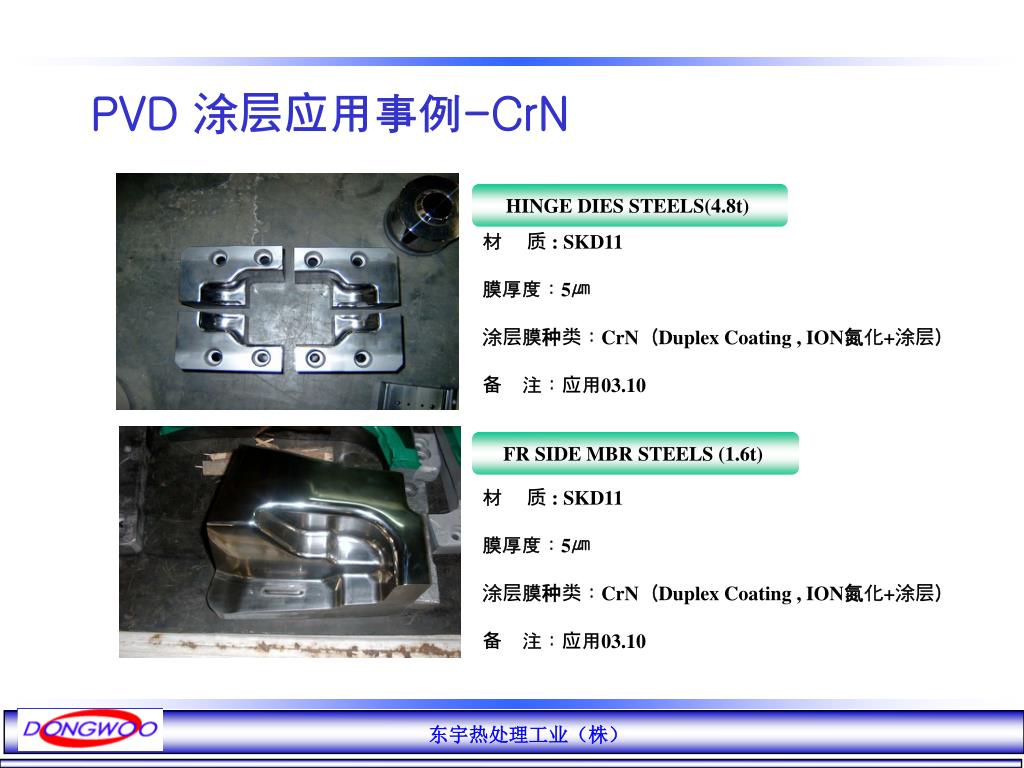

  13. 东宇热处理工业(株) PVD 涂层应用事例-CrN HINGE DIES STEELS(4.8t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用03.10 FR SIDE MBR STEELS (1.6t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating,ION氮化+涂层) 备 注:应用03.10

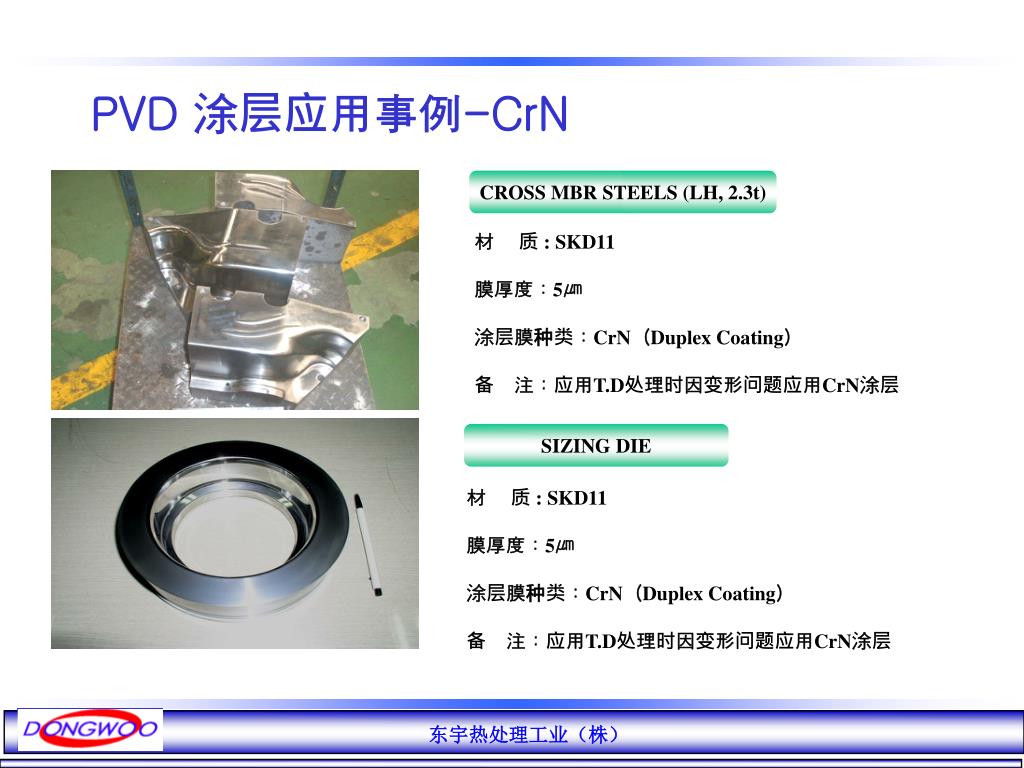

  14. 东宇热处理工业(株) PVD 涂层应用事例-CrN CROSS MBR STEELS (LH, 2.3t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:应用T.D处理时因变形问题应用CrN涂层 SIZING DIE 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:应用T.D处理时因变形问题应用CrN涂层

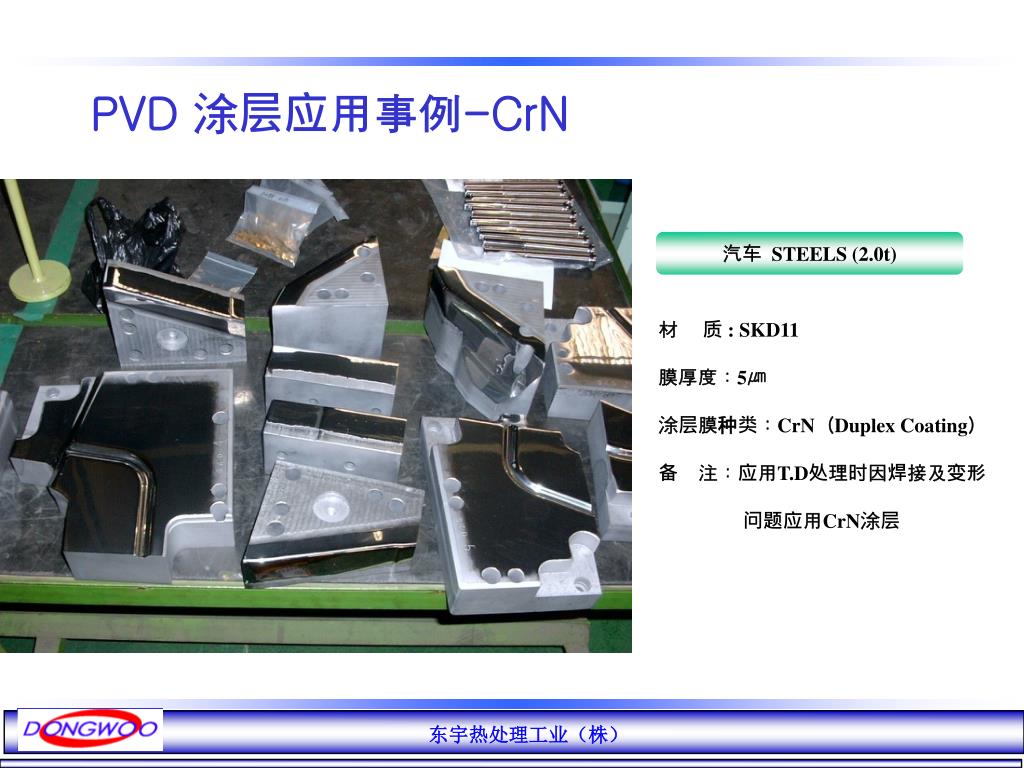

  15. 东宇热处理工业(株) PVD 涂层应用事例-CrN 汽车STEELS (2.0t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:应用T.D处理时因焊接及变形 问题应用CrN涂层

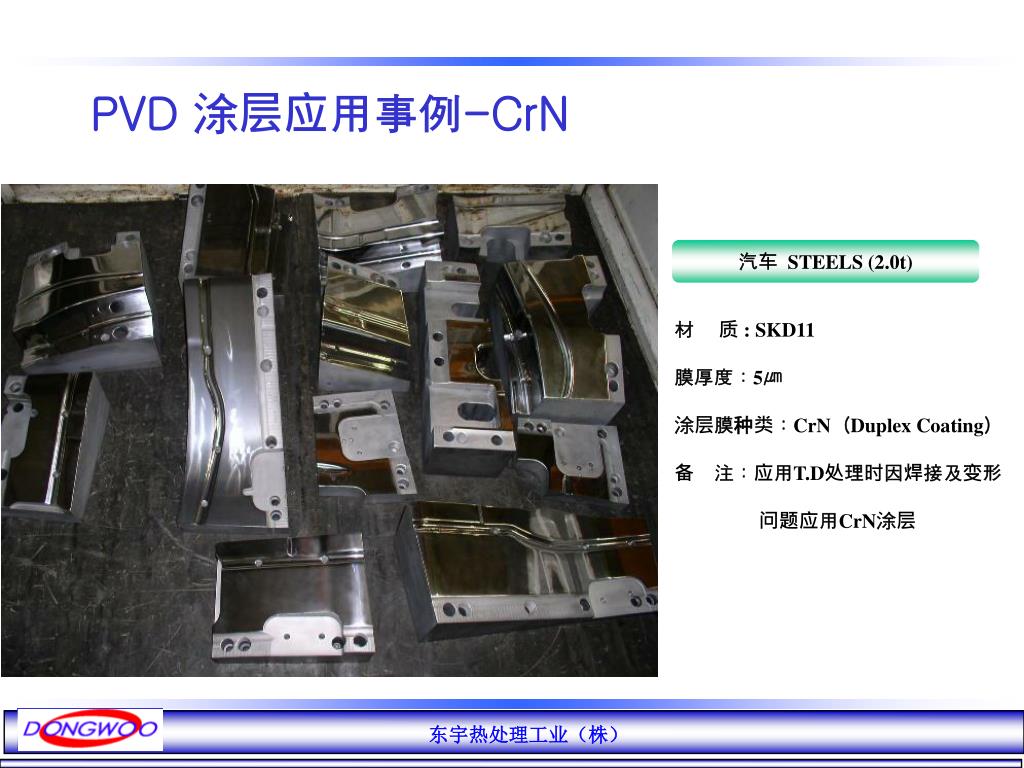

  16. 东宇热处理工业(株) PVD 涂层应用事例-CrN 汽车STEELS (2.0t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:应用T.D处理时因焊接及变形 问题应用CrN涂层

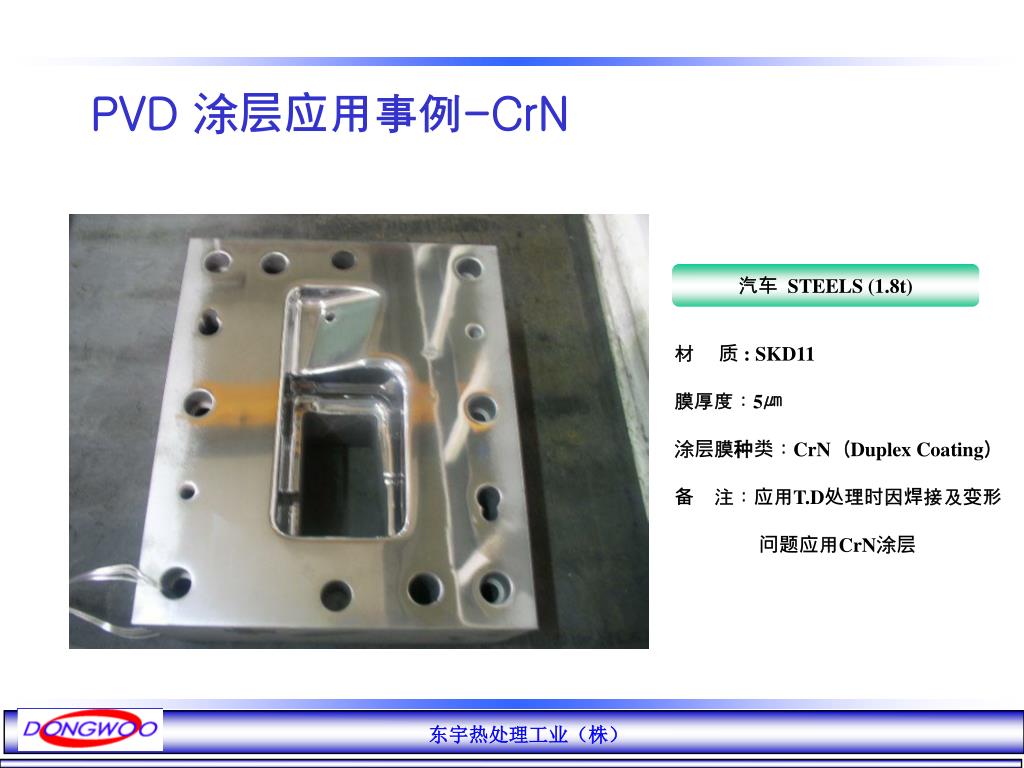

  17. 东宇热处理工业(株) PVD 涂层应用事例-CrN 汽车STEELS (1.8t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:应用T.D处理时因焊接及变形 问题应用CrN涂层

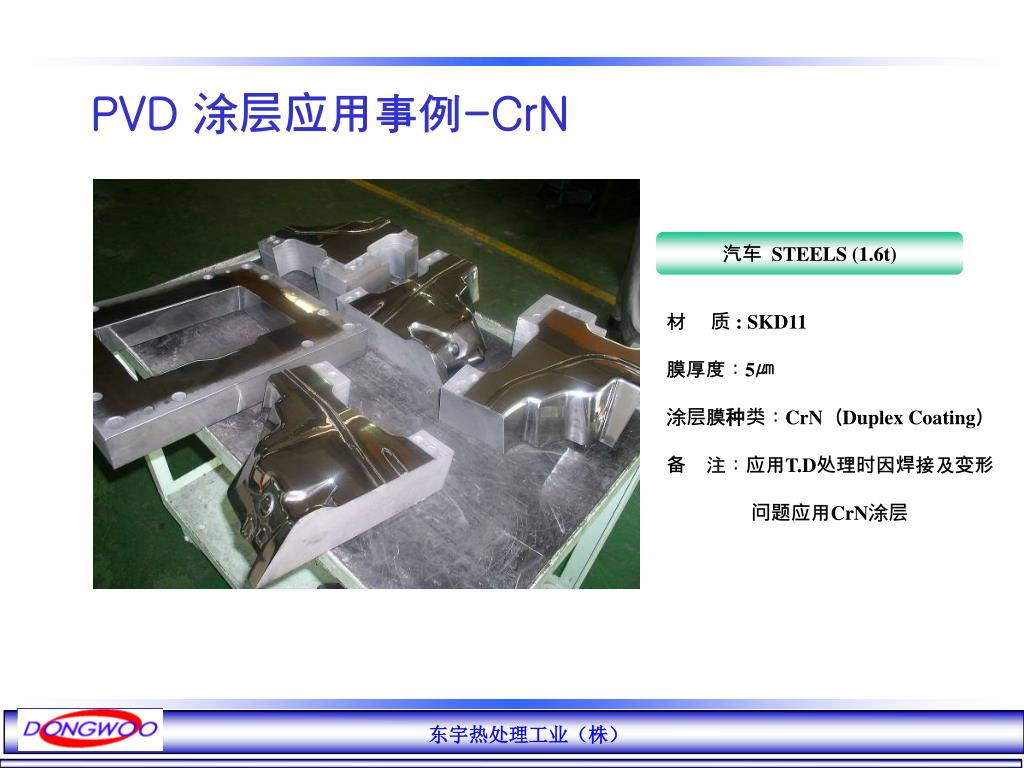

  18. 东宇热处理工业(株) PVD 涂层应用事例-CrN 汽车STEELS (1.6t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:应用T.D处理时因焊接及变形 问题应用CrN涂层

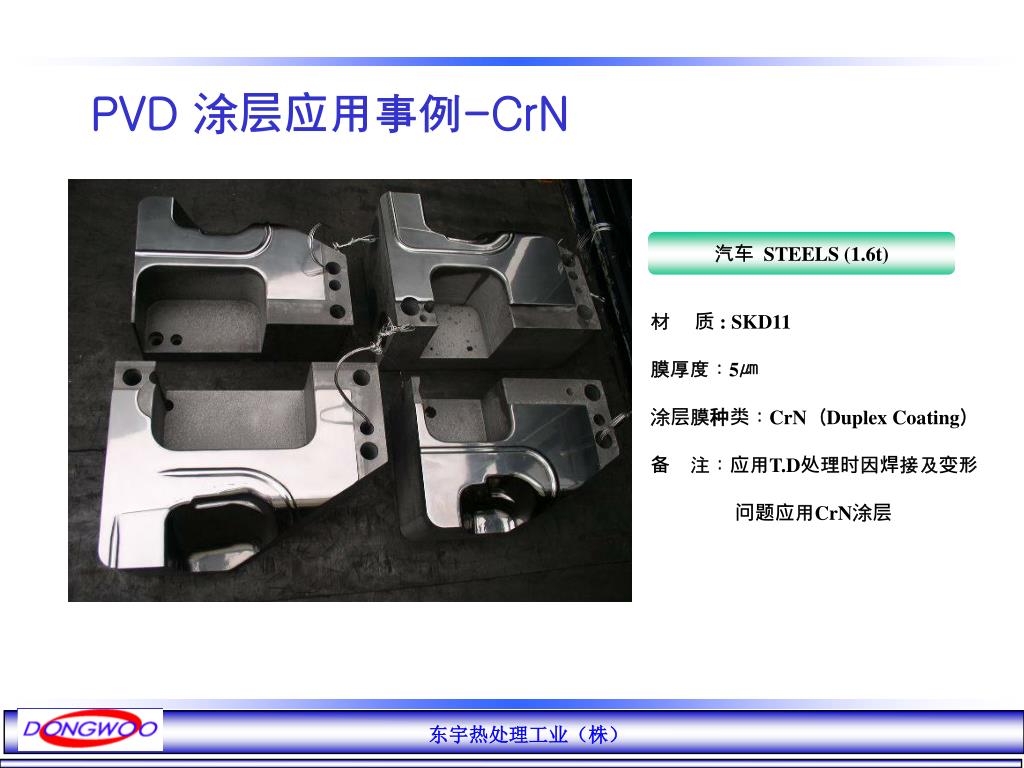

  19. 东宇热处理工业(株) PVD 涂层应用事例-CrN 汽车STEELS (1.6t) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:应用T.D处理时因焊接及变形 问题应用CrN涂层

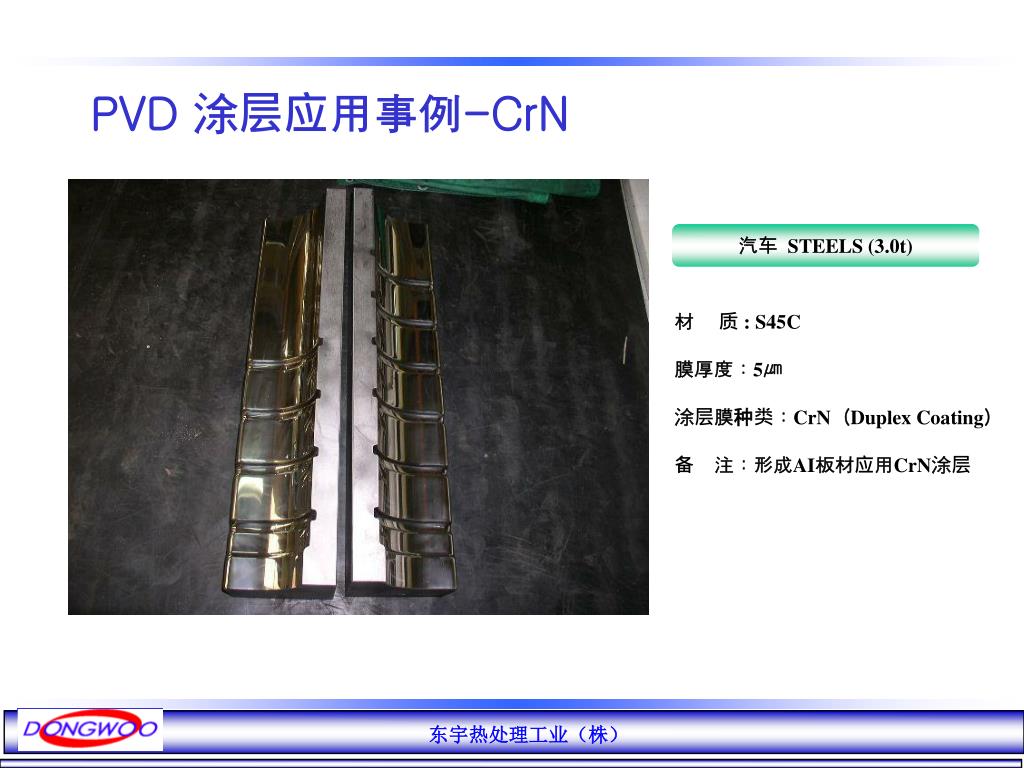

  20. 东宇热处理工业(株) PVD 涂层应用事例-CrN 汽车STEELS (3.0t) 材 质: S45C 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:形成AI板材应用CrN涂层

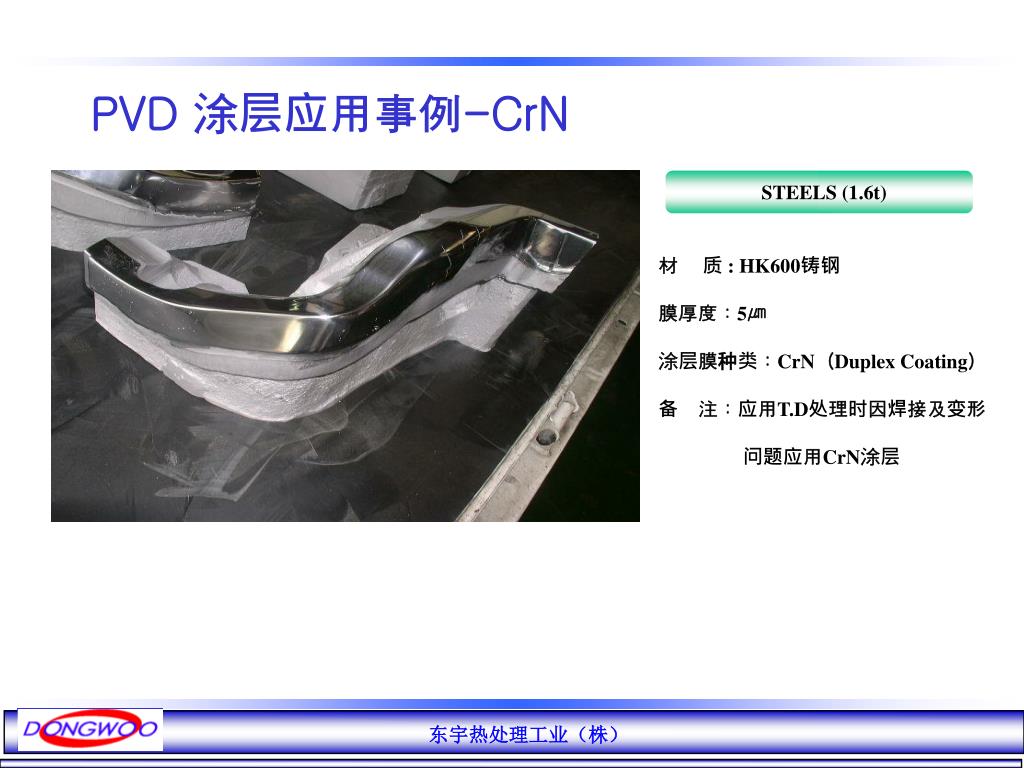

  21. 东宇热处理工业(株) PVD 涂层应用事例-CrN STEELS (1.6t) 材 质: HK600铸钢 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating) 备 注:应用T.D处理时因焊接及变形 问题应用CrN涂层

  22. 东宇热处理工业(株) PVD 涂层应用事例-CrN DIE STEEL (1.6t ) 材 质: SKD11 膜厚度:5㎛ 涂层膜种类:CrN(DuplexCoating)
