  1. Tunneling Phenomena Potential Barriers

  2. Tunneling • Unlike attractive potentials which traps particle, barriers repel them.

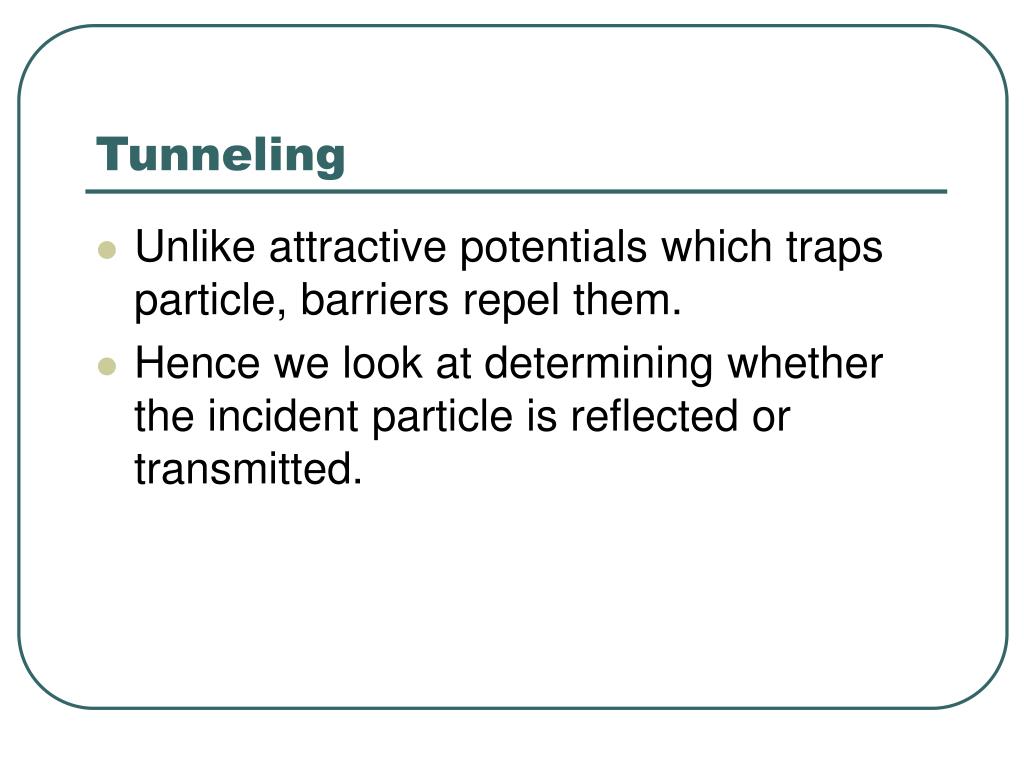

  3. Tunneling • Unlike attractive potentials which traps particle, barriers repel them. • Hence we look at determining whether the incident particle is reflected or transmitted.

  4. Tunneling • Unlike attractive potentials which traps particle, barriers repel them. • Hence we look at determining whether the incident particle is reflected or transmitted. • Tunneling is a purely QM effect.

  5. Tunneling • Unlike attractive potentials which traps particle, barriers repel them. • Hence we look at determining whether the incident particle is reflected or transmitted. • Tunneling is a purely QM effect. It is used in field emission, radioactive decay, the scanning tunneling microscope etc.

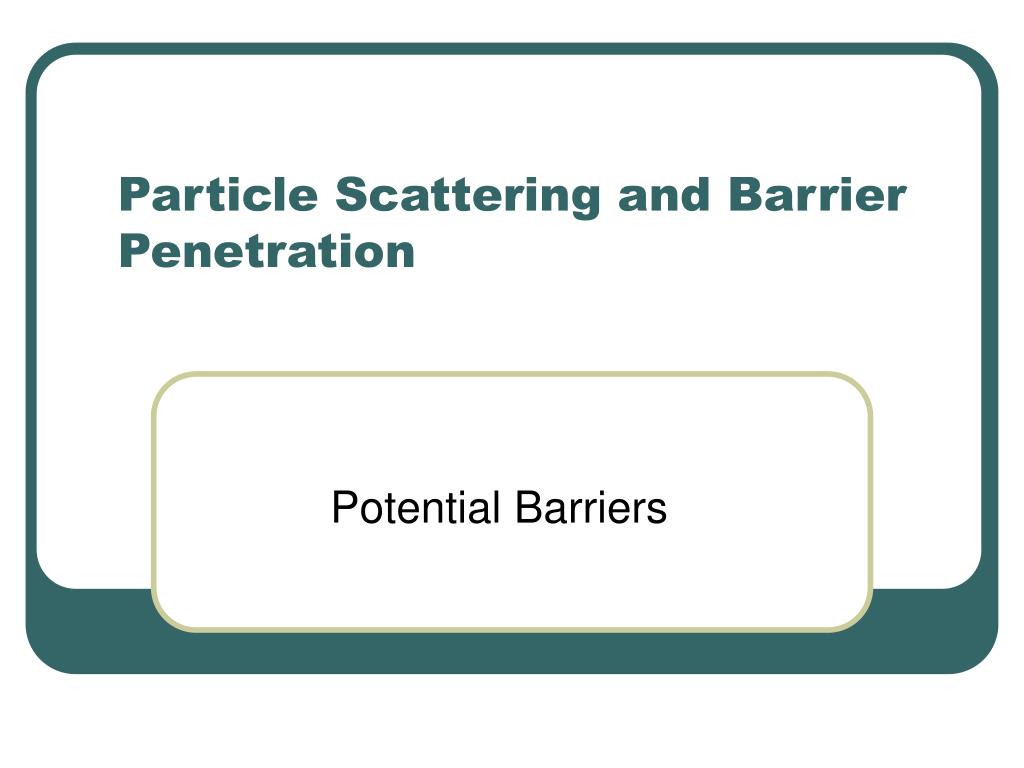

  6. Particle Scattering and Barrier Penetration Potential Barriers

  7. The Square Barrier • A square barrier is represented by a potential energy U(x) in the barrier region (between x=0 and x=L). U 0 L

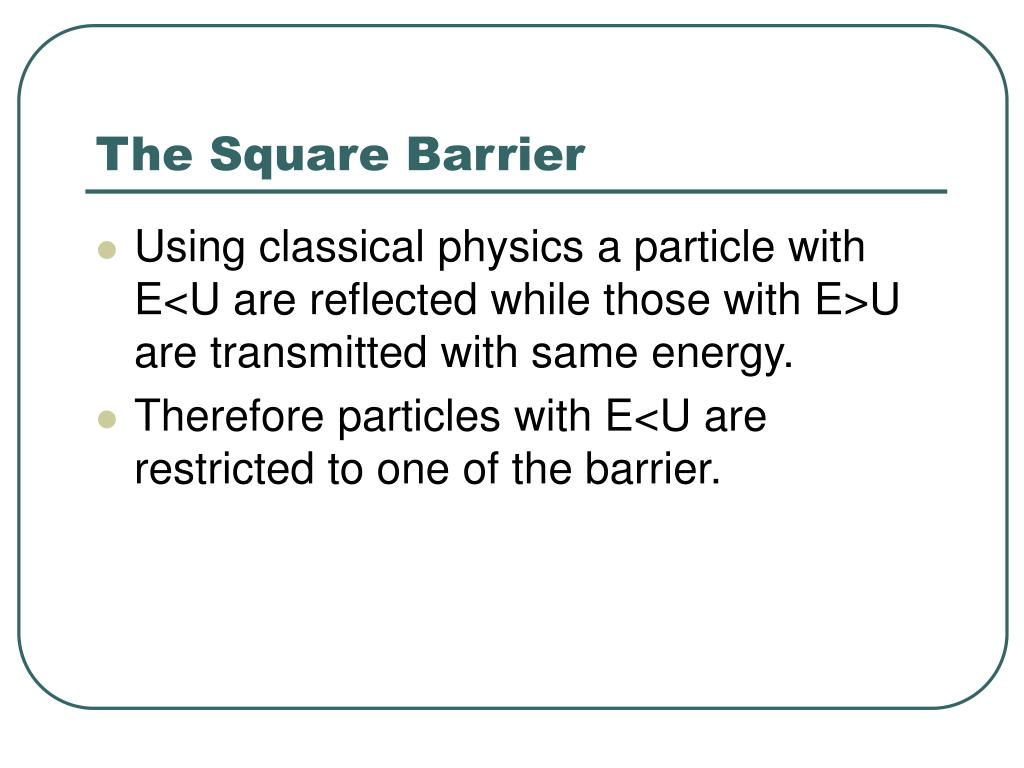

  8. The Square Barrier • Using classical physics a particle with E<U are reflected while those with E>U are transmitted with same energy.

  9. The Square Barrier • Using classical physics a particle with E<U are reflected while those with E>U are transmitted with same energy. • Therefore particles with E<U are restricted to one of the barrier.

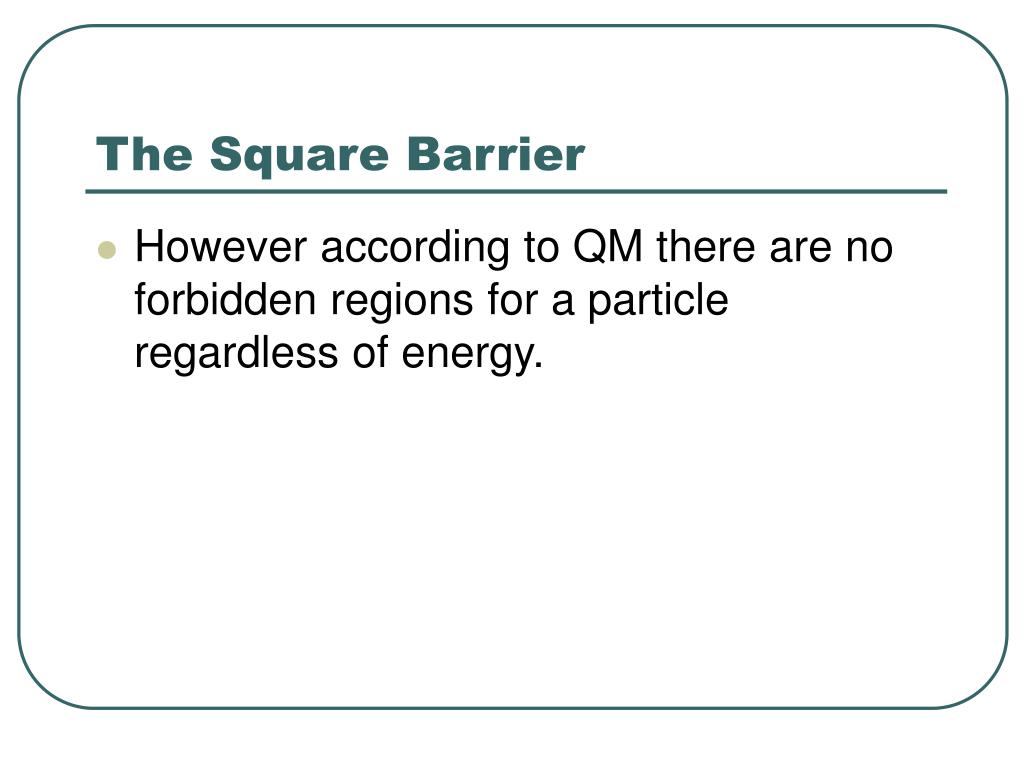

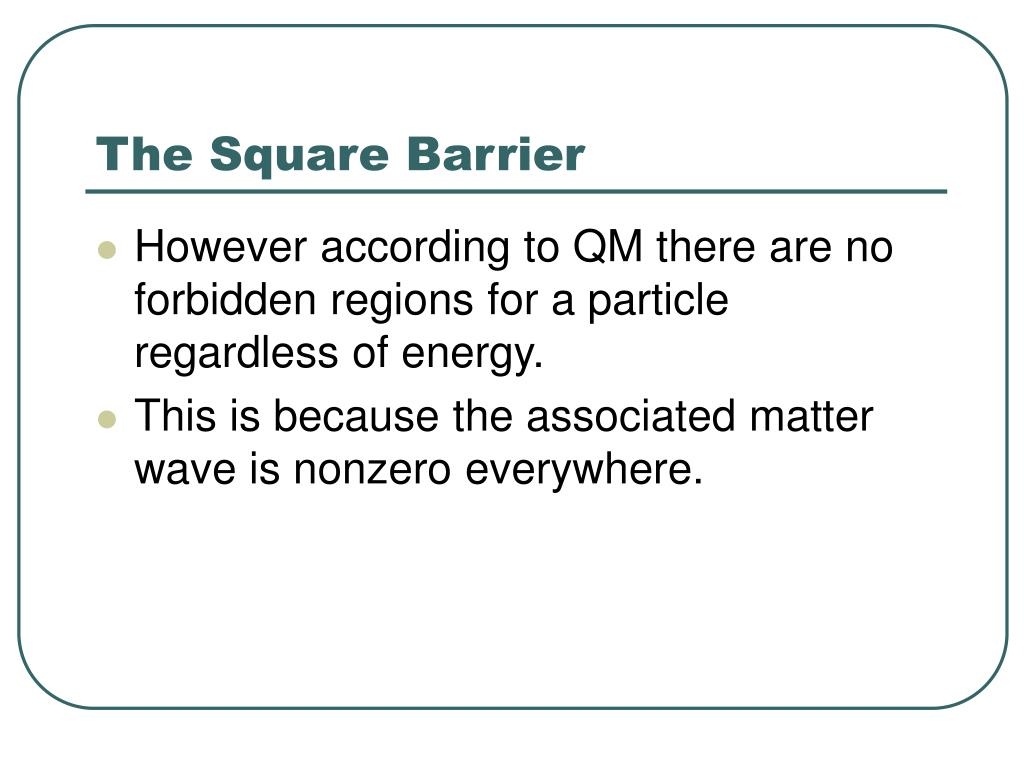

  10. The Square Barrier • However according to QM there are no forbidden regions for a particle regardless of energy.

  11. The Square Barrier • However according to QM there are no forbidden regions for a particle regardless of energy. • This is because the associated matter wave is nonzero everywhere.

  12. The Square Barrier • However according to QM there are no forbidden regions for a particle regardless of energy. • This is because the associated matter wave is nonzero everywhere. • A typical waveform is shown:

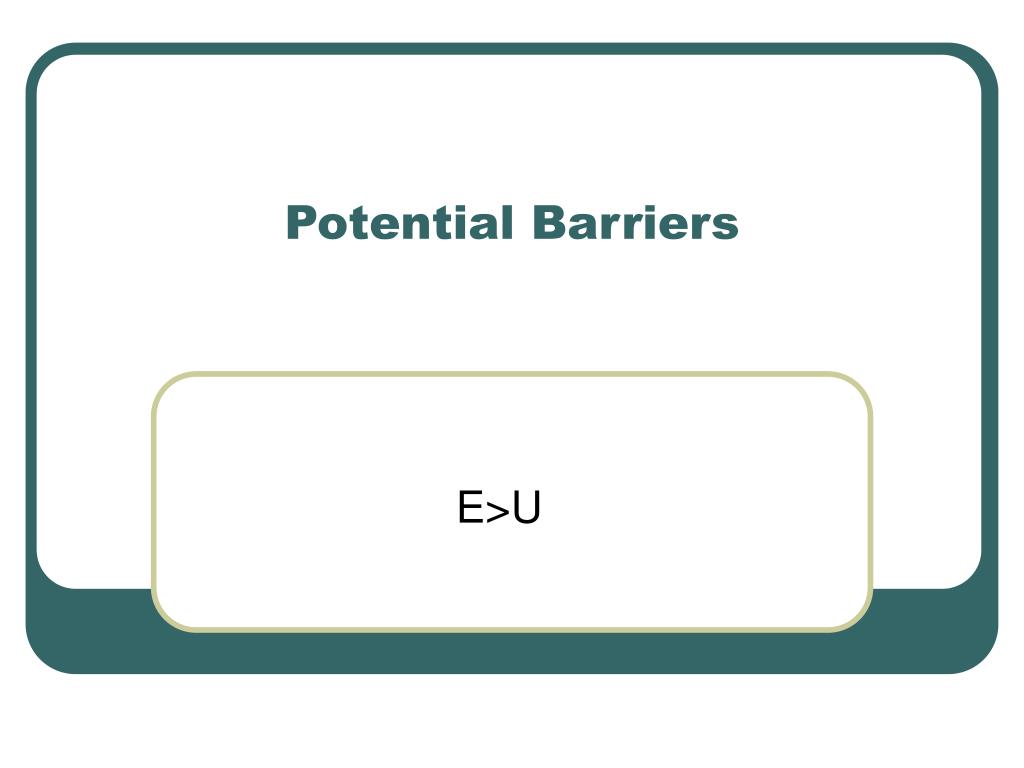

  13. Potential Barriers E>U

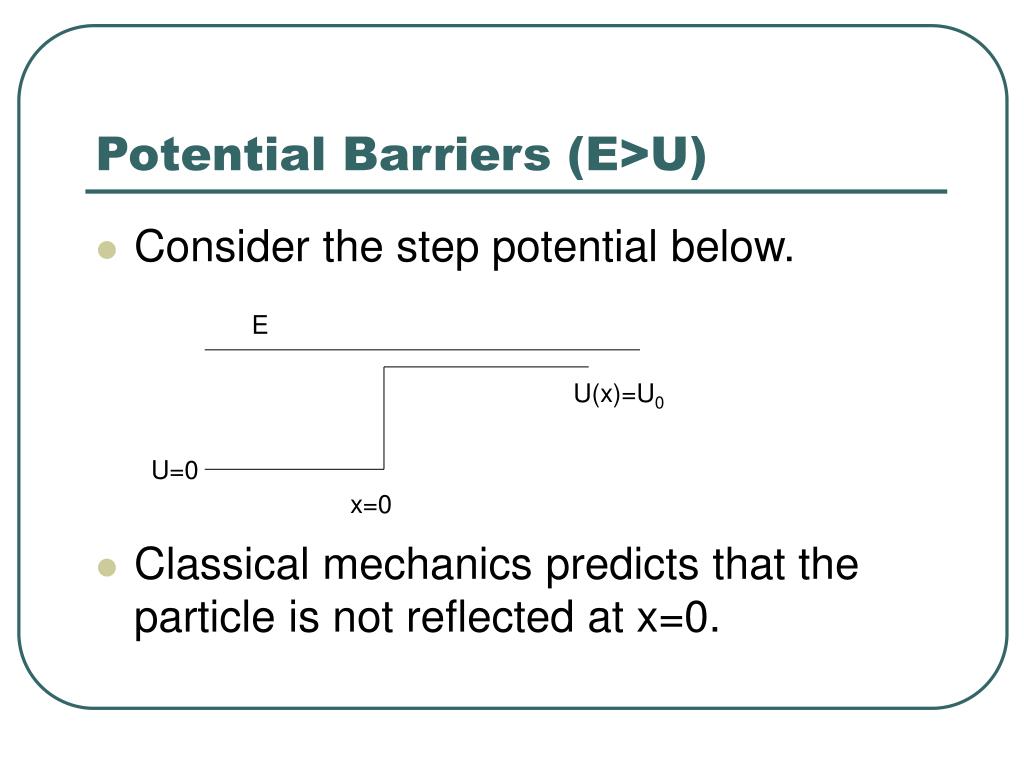

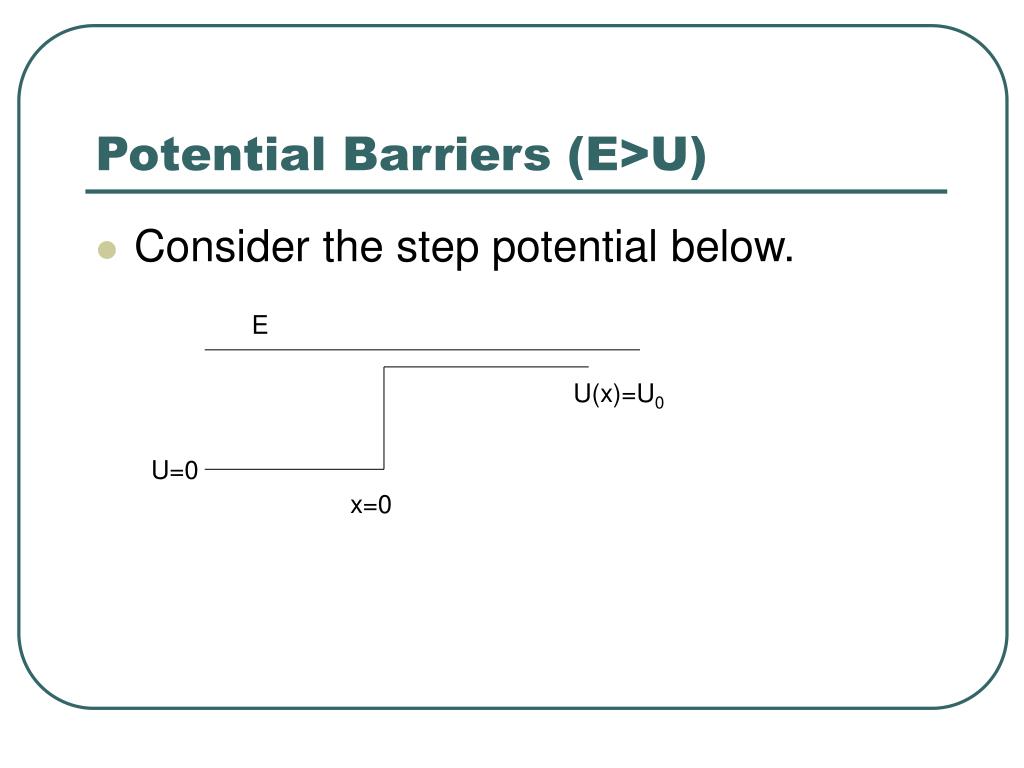

  14. Potential Barriers (E>U) • Consider the step potential below. E U(x)=U0 U=0 x=0

  15. Potential Barriers (E>U) • Consider the step potential below. • Classical mechanics predicts that the particle is not reflected at x=0. E U(x)=U0 U=0 x=0

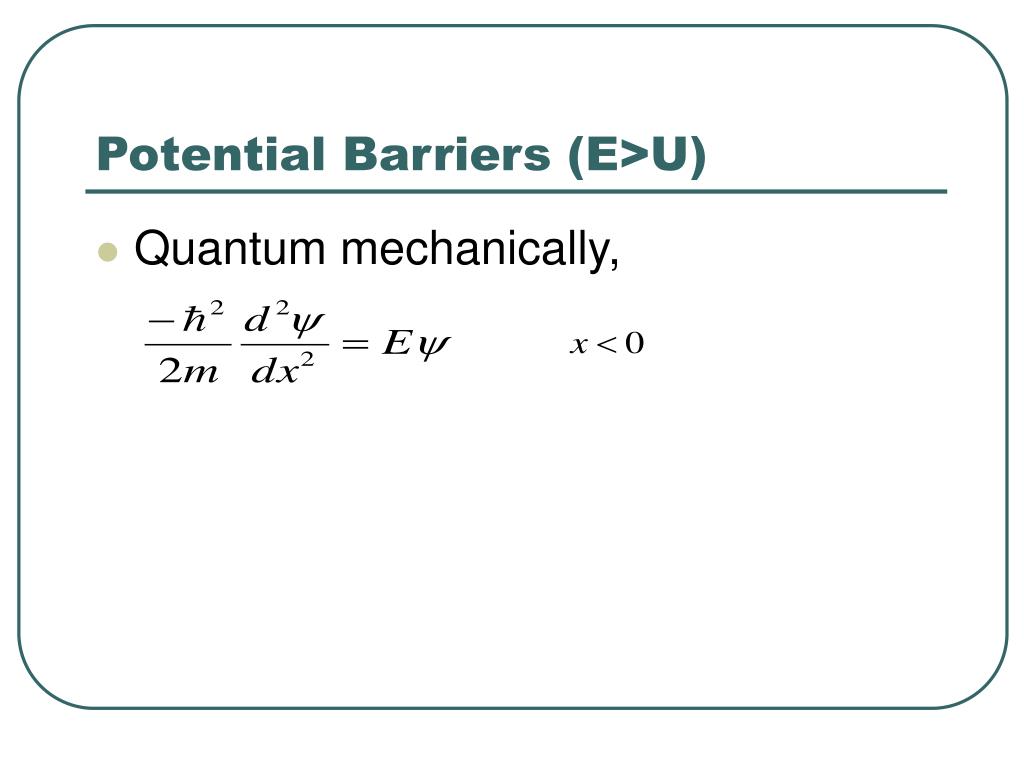

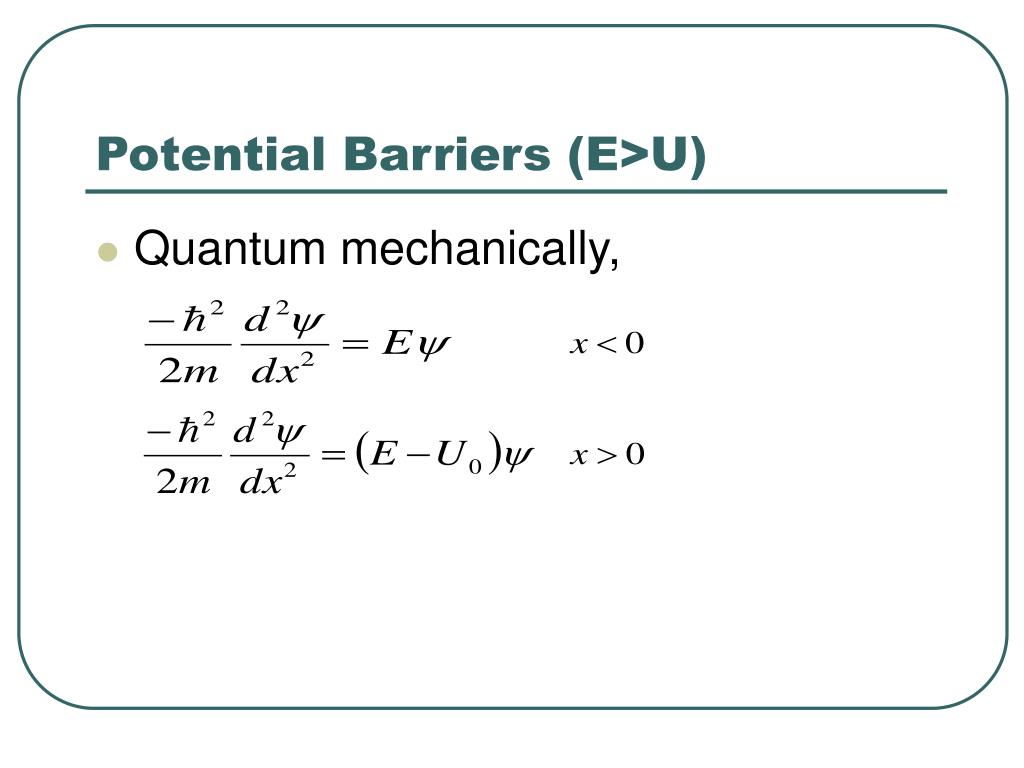

  16. Potential Barriers (E>U) • Quantum mechanically,

  17. Potential Barriers (E>U) • Quantum mechanically,

  18. Potential Barriers (E>U) • Quantum mechanically,

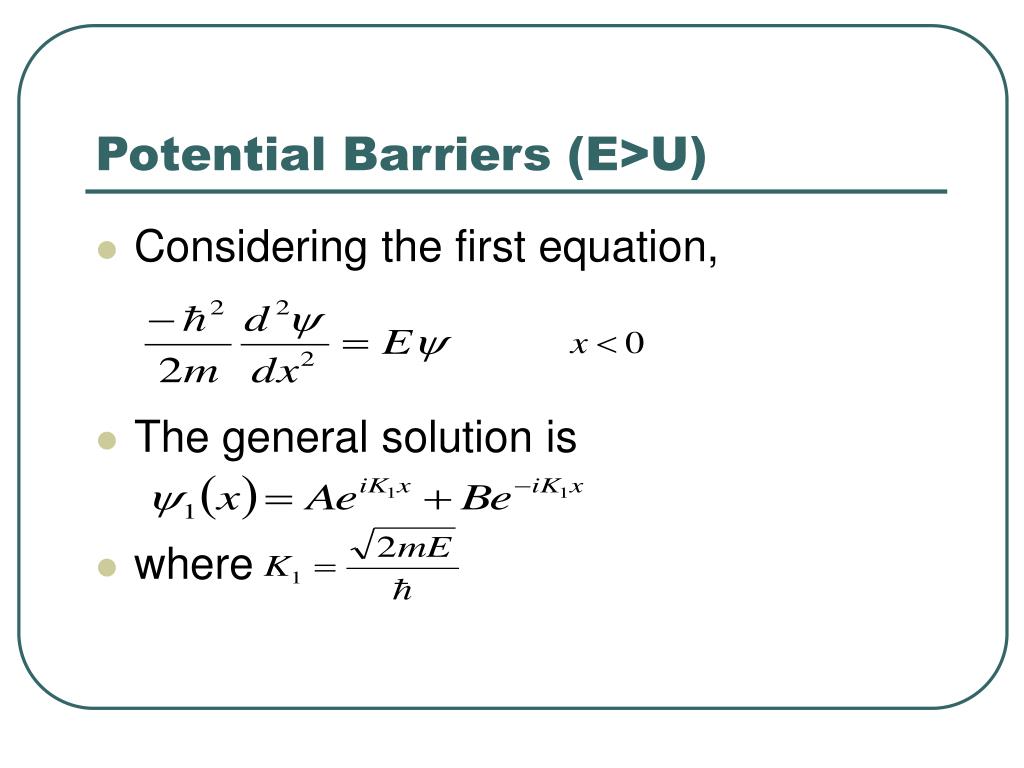

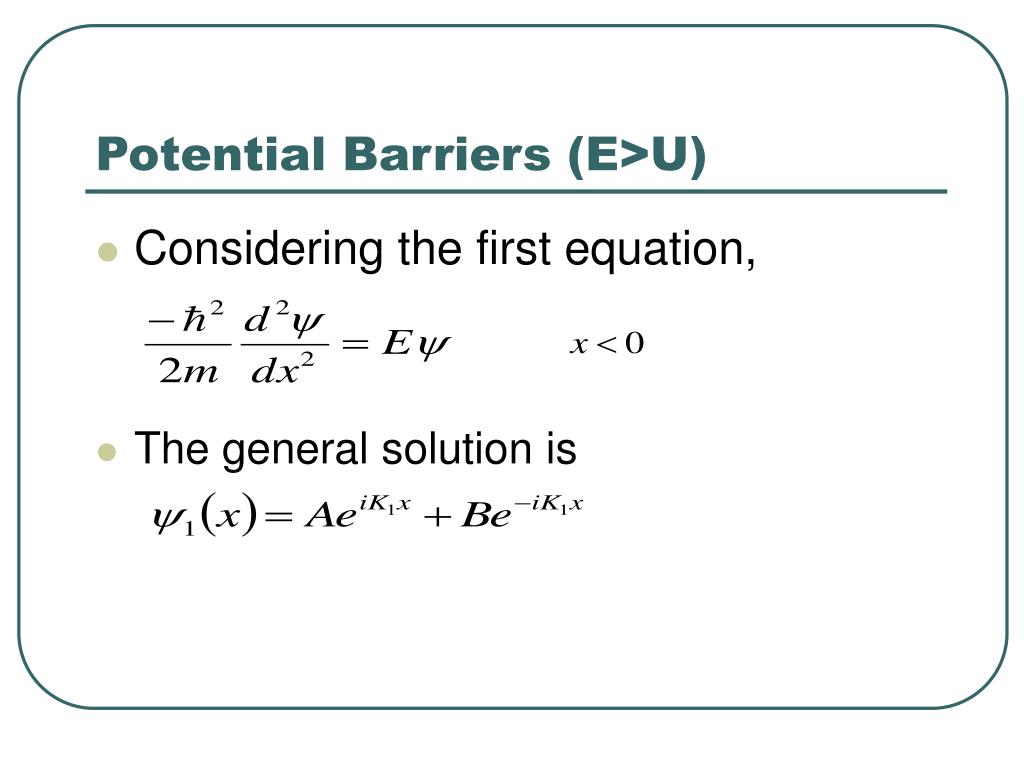

  19. Potential Barriers (E>U) • Considering the first equation,

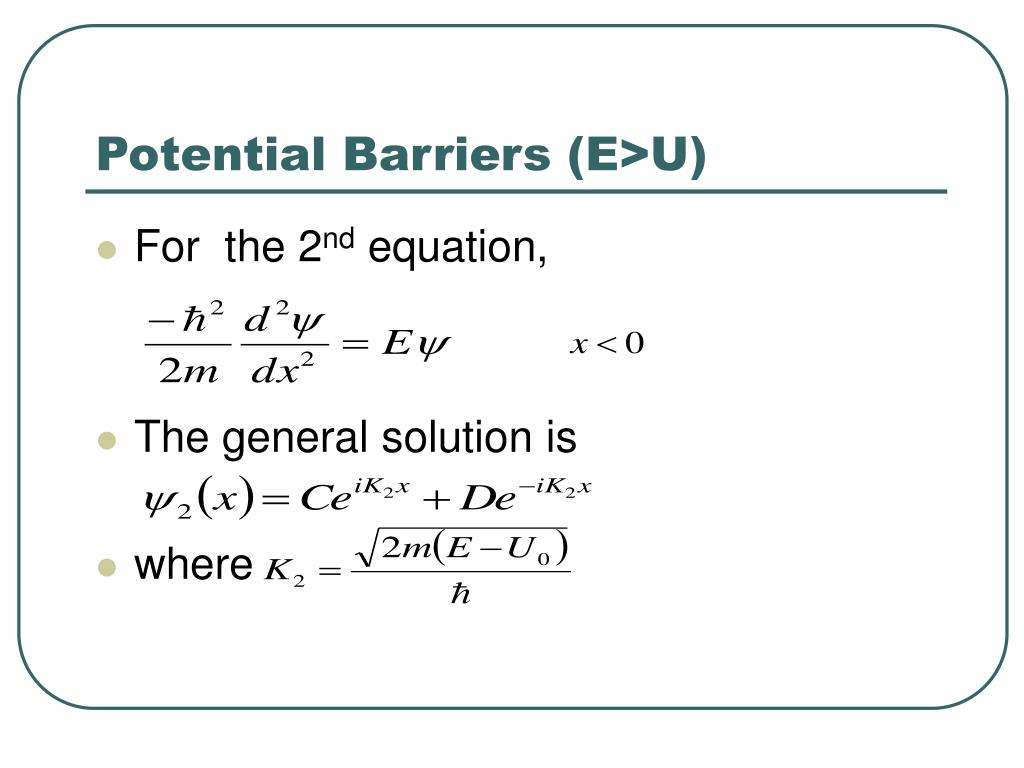

  20. Potential Barriers (E>U) • Considering the first equation, • The general solution is

  21. Potential Barriers (E>U) • Considering the first equation, • The general solution is • where

  22. Potential Barriers (E>U) • For the 2nd equation,

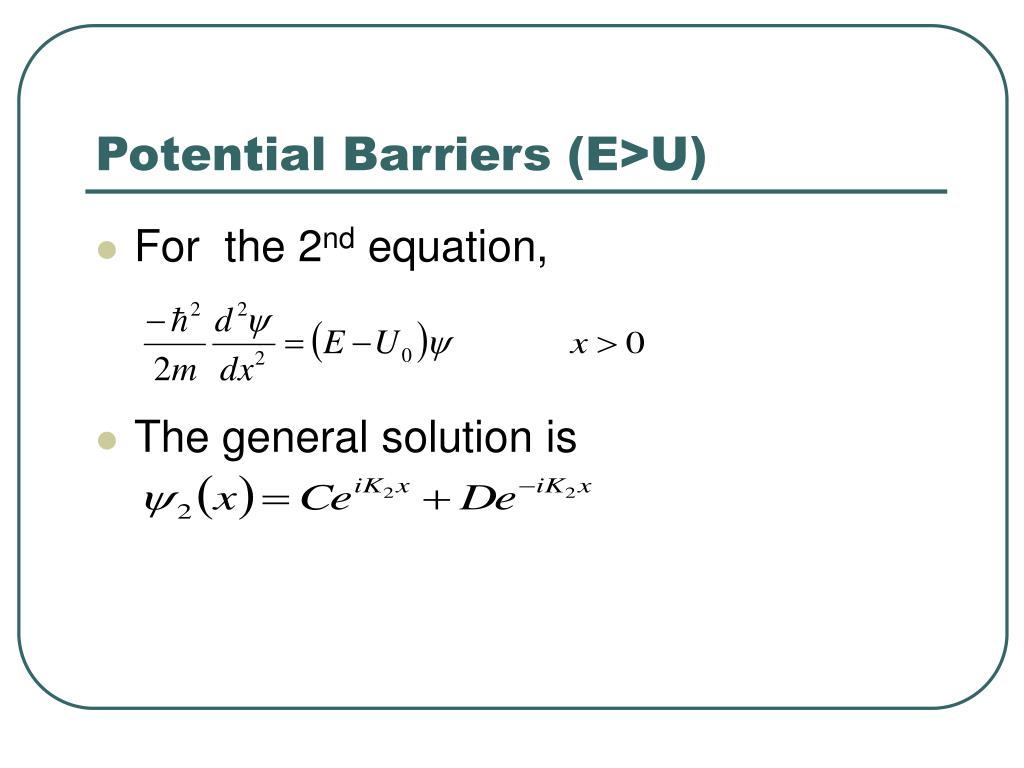

  23. Potential Barriers (E>U) • For the 2nd equation, • The general solution is

  24. Potential Barriers (E>U) • For the 2nd equation, • The general solution is • where

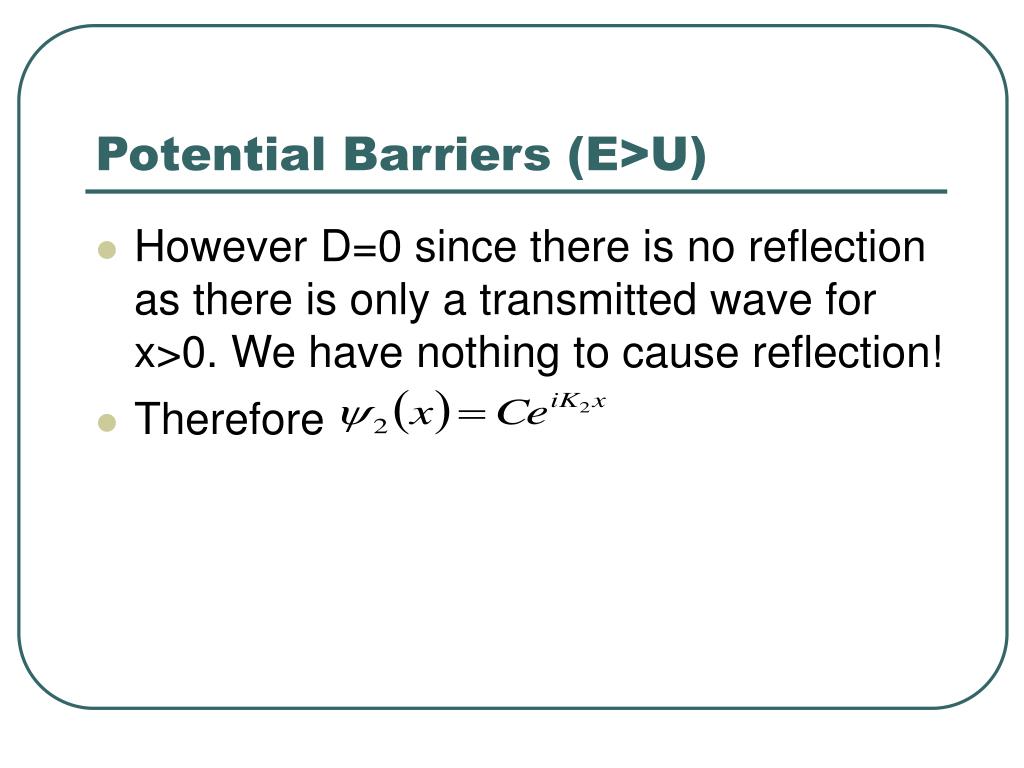

  25. Potential Barriers (E>U) • However D=0 since there is no reflection as there is only a transmitted wave for x>0. We have nothing to cause reflection!

  26. Potential Barriers (E>U) • However D=0 since there is no reflection as there is only a transmitted wave for x>0. We have nothing to cause reflection! • Therefore

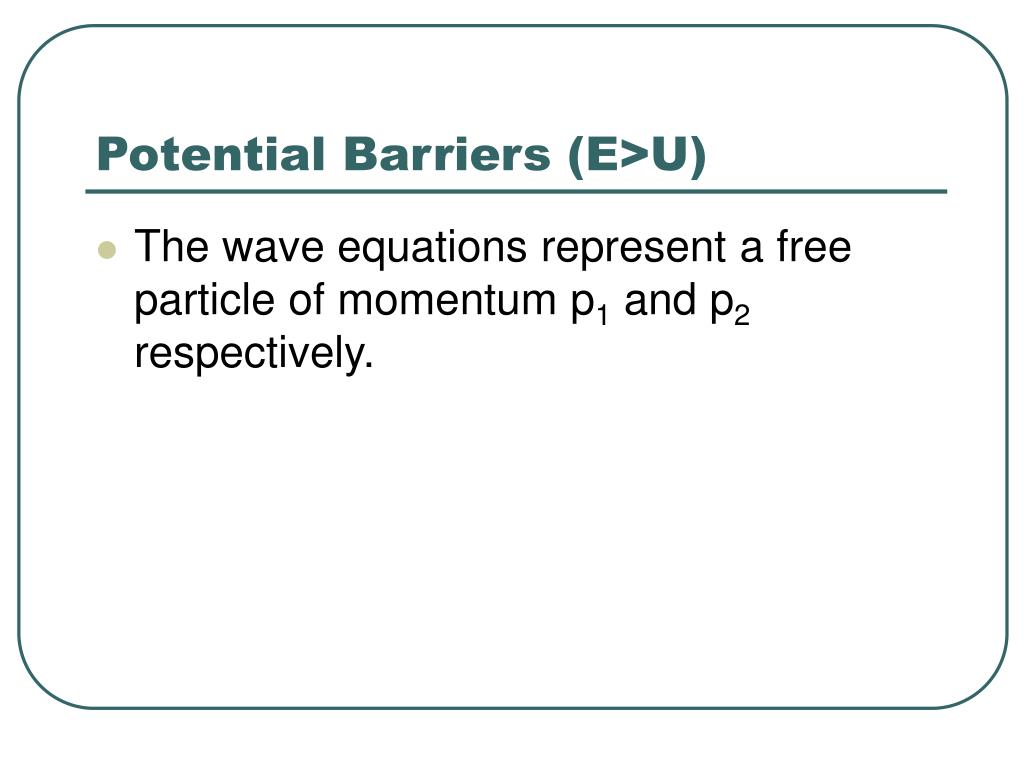

  27. Potential Barriers (E>U) • The wave equations represent a free particle of momentum p1 and p2 respectively.

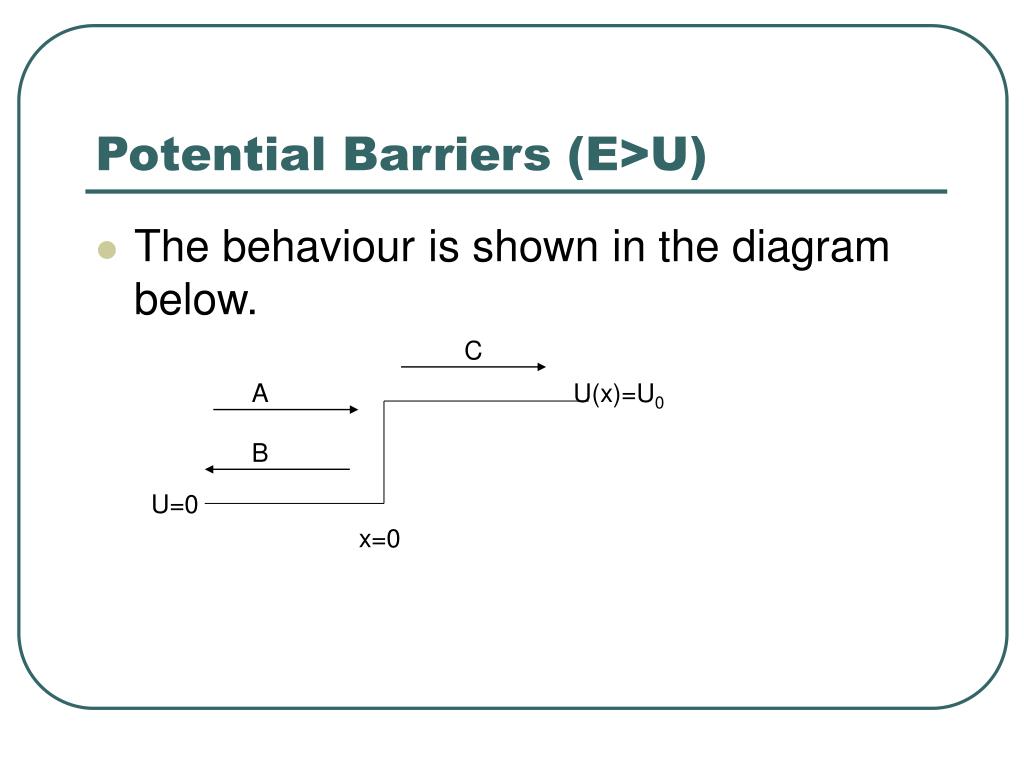

  28. Potential Barriers (E>U) • The behaviour is shown in the diagram below. C A U(x)=U0 B U=0 x=0

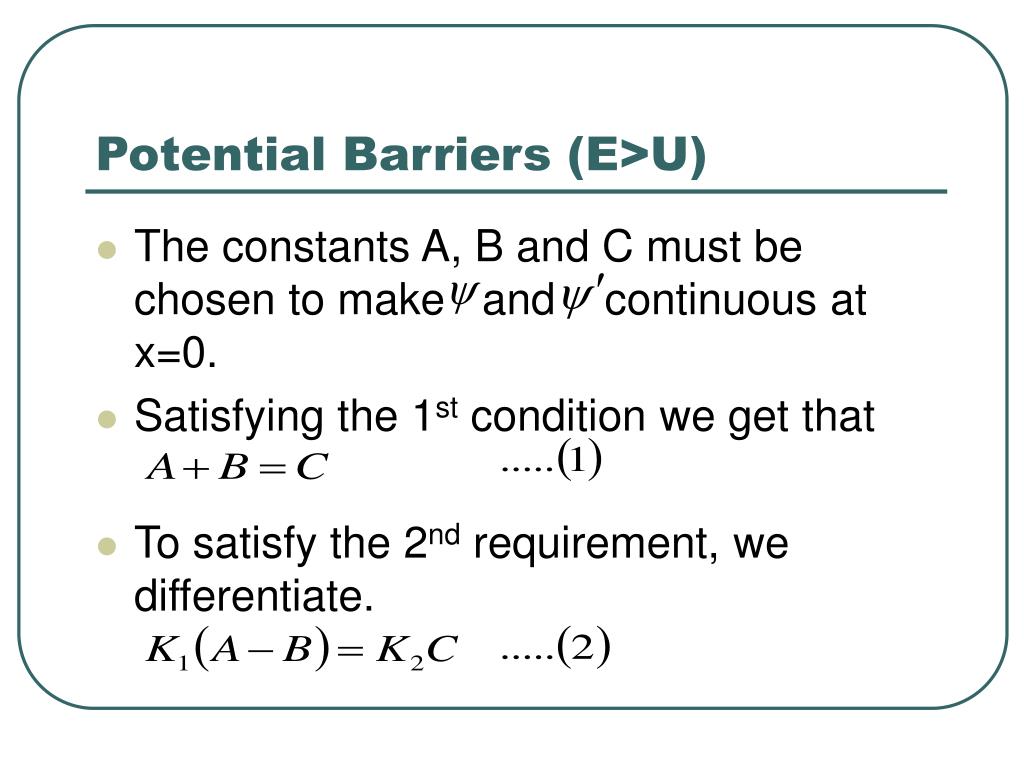

  29. Potential Barriers (E>U) • The constants A, B and C must be chosen to make and continuous at x=0.

  30. Potential Barriers (E>U) • The constants A, B and C must be chosen to make and continuous at x=0. • Satisfying the 1st condition we get that

  31. Potential Barriers (E>U) • The constants A, B and C must be chosen to make and continuous at x=0. • Satisfying the 1st condition we get that • To satisfy the 2nd requirement, we differentiate.

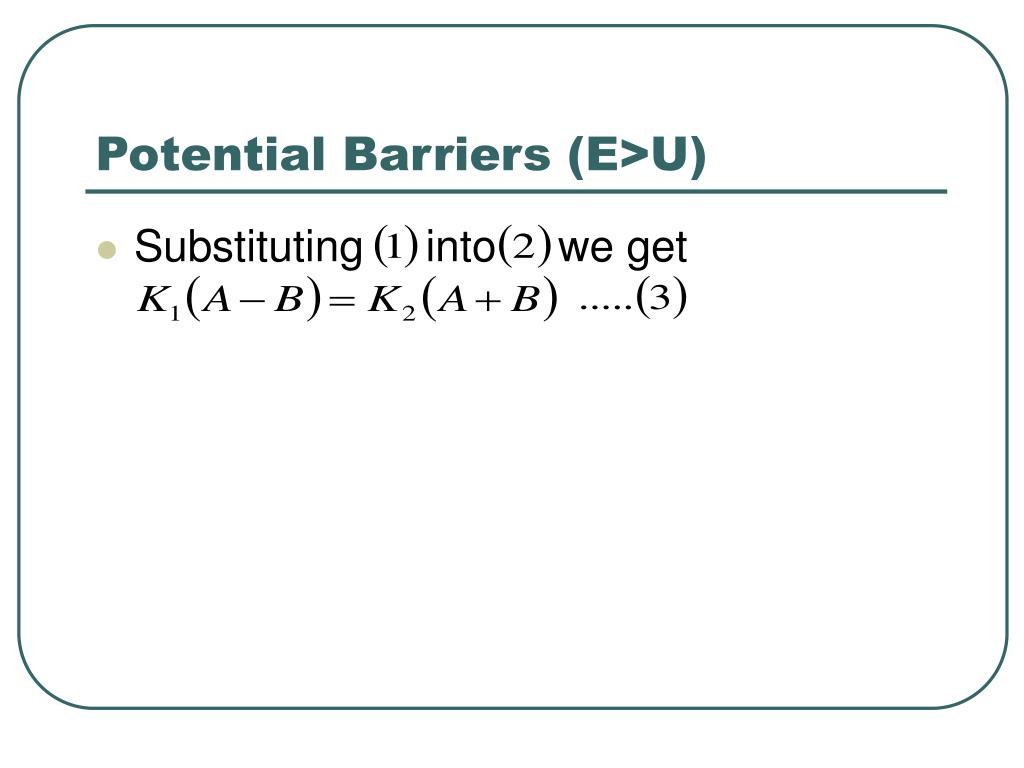

  32. Potential Barriers (E>U) • Substituting into we get

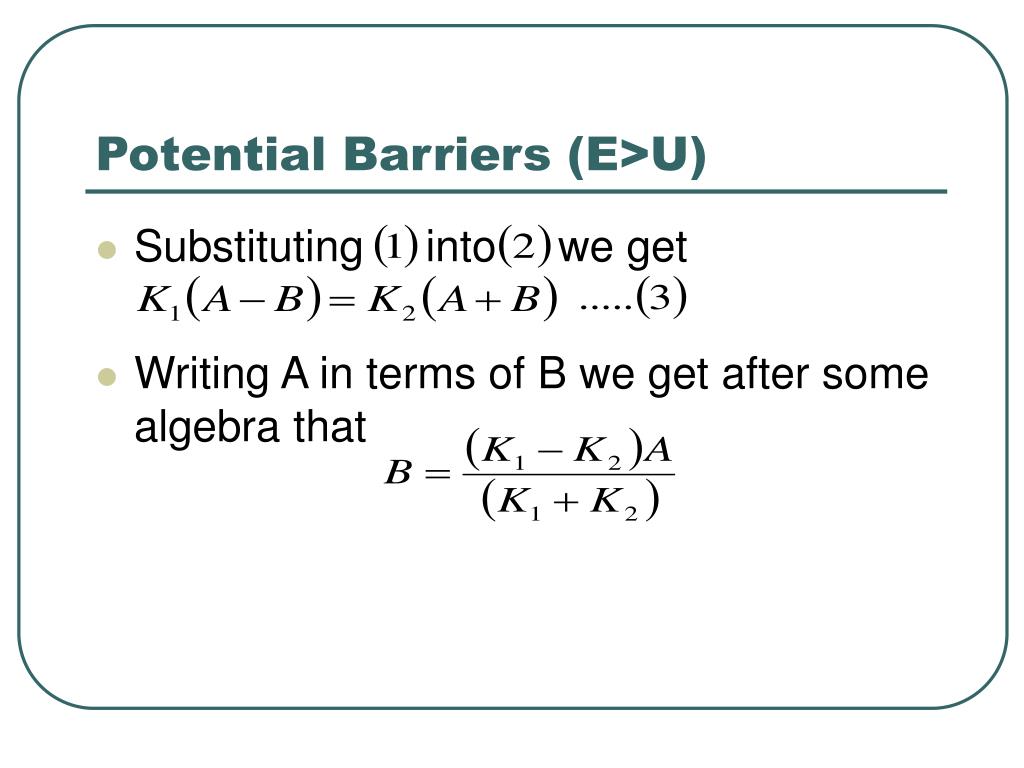

  33. Potential Barriers (E>U) • Substituting into we get • Writing A in terms of B we get after some algebra that

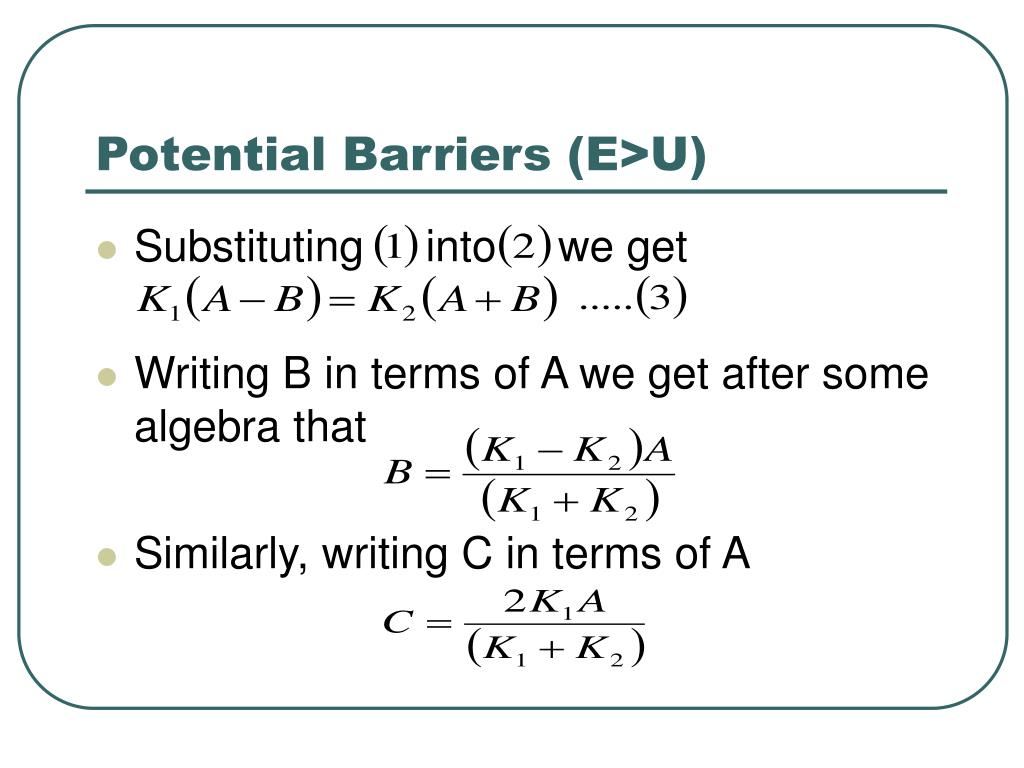

  34. Potential Barriers (E>U) • Substituting into we get • Writing B in terms of A we get after some algebra that • Similarly, writing C in terms of A

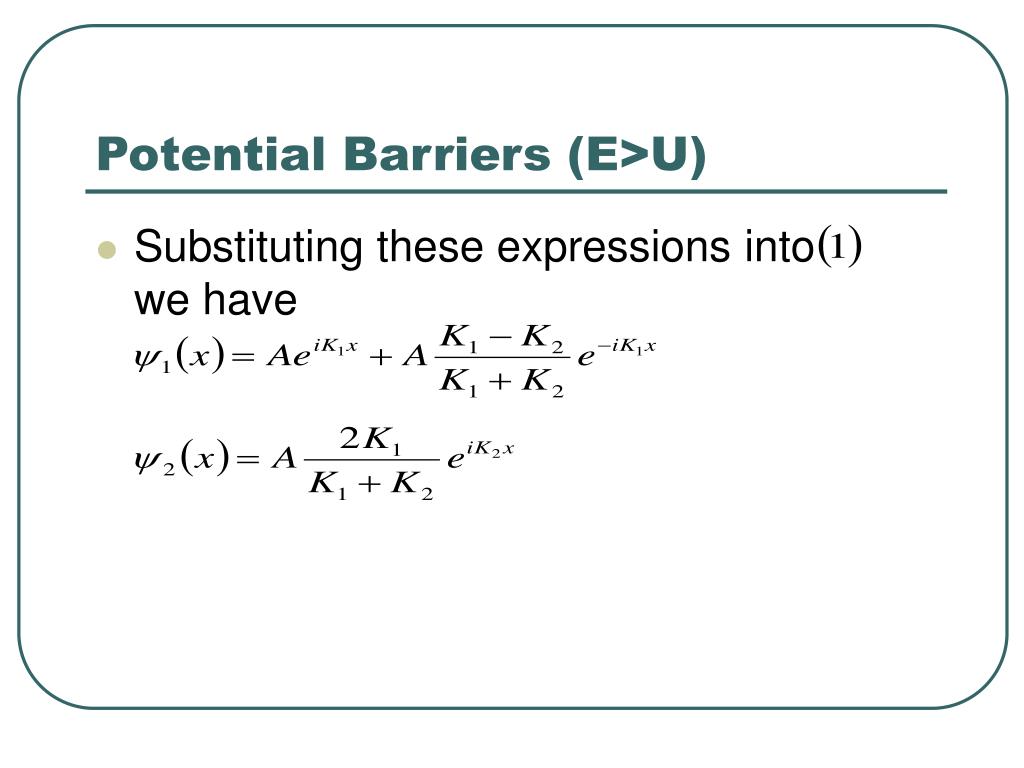

  35. Potential Barriers (E>U) • Substituting these expressions into we have

  36. Potential Barriers (E>U) • Substituting these expressions into we have • As usual we normalize to find A.

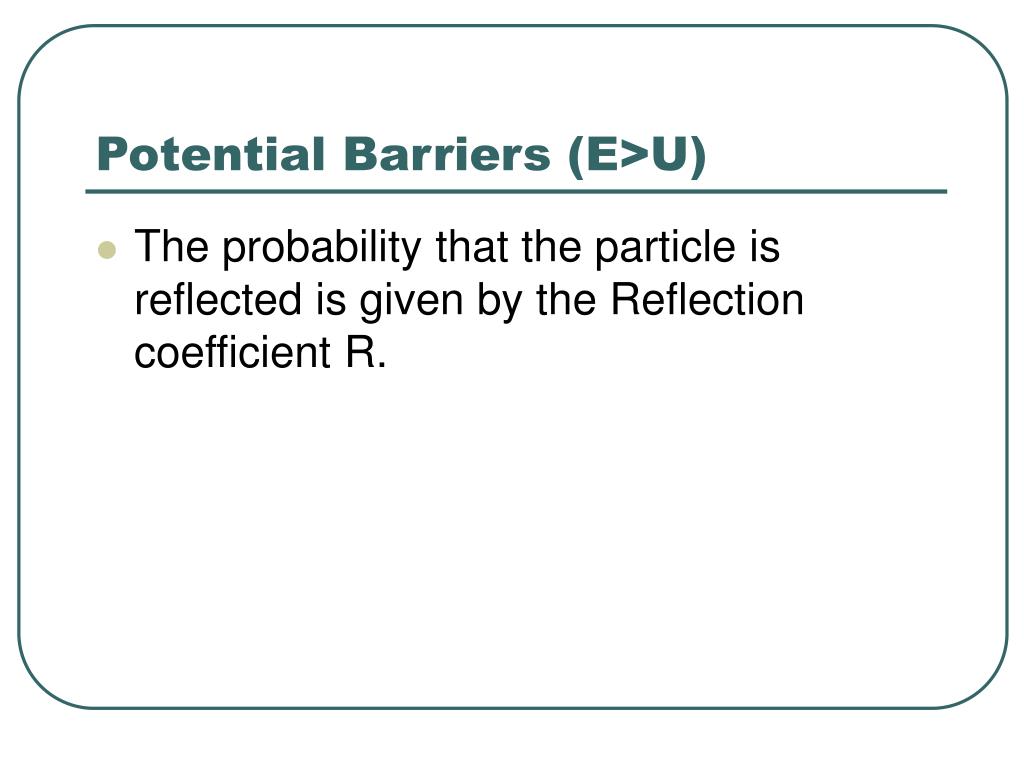

  37. Potential Barriers (E>U) • The probability that the particle is reflected is given by the Reflection coefficient R.

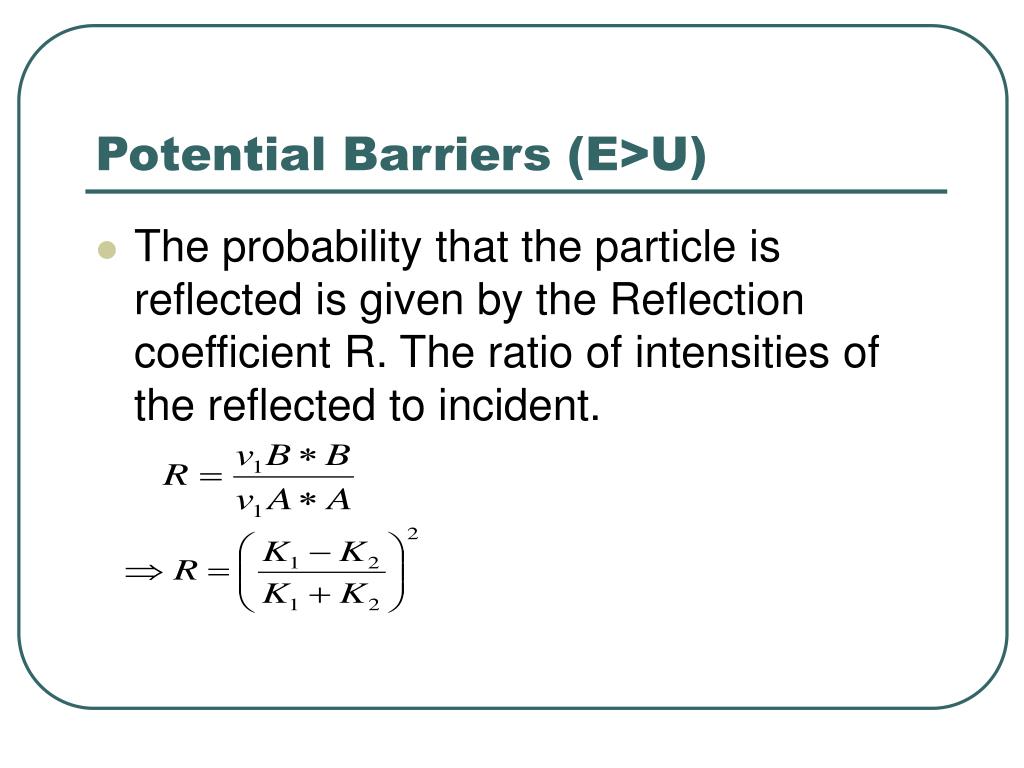

  38. Potential Barriers (E>U) • The probability that the particle is reflected is given by the Reflection coefficient R. The ratio of intensities of the reflected to incident.

  39. Potential Barriers (E>U) • The probability that the particle is reflected is given by the Reflection coefficient R. The ratio of intensities of the reflected to incident.

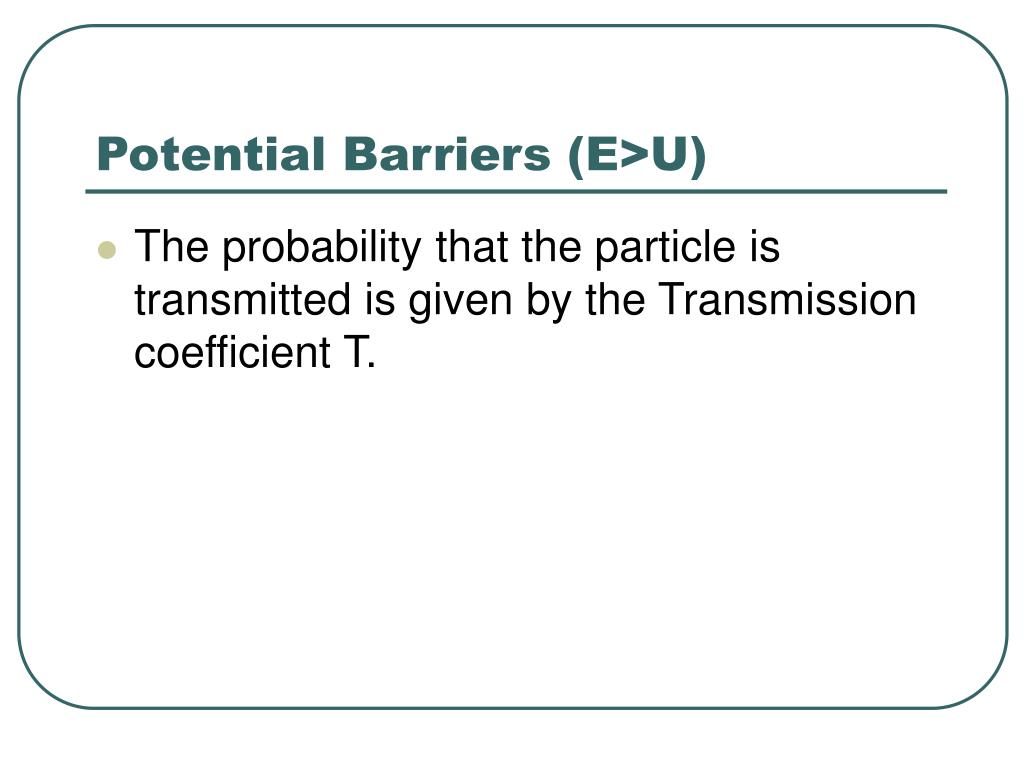

  40. Potential Barriers (E>U) • The probability that the particle is transmitted is given by the Transmission coefficient T.

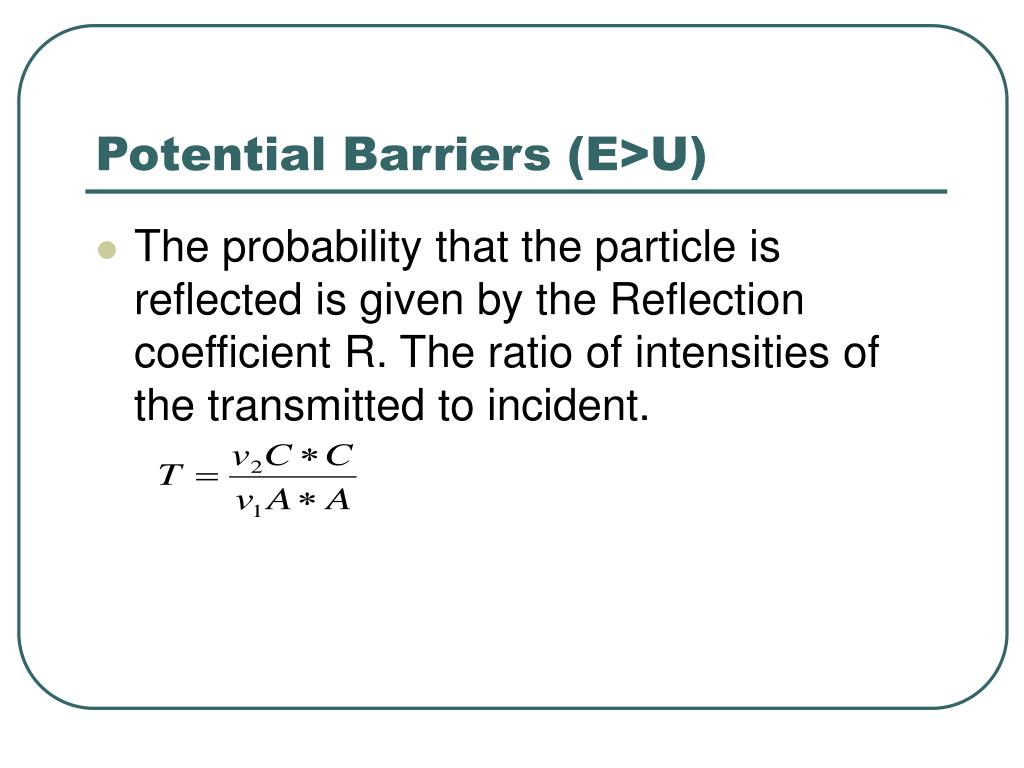

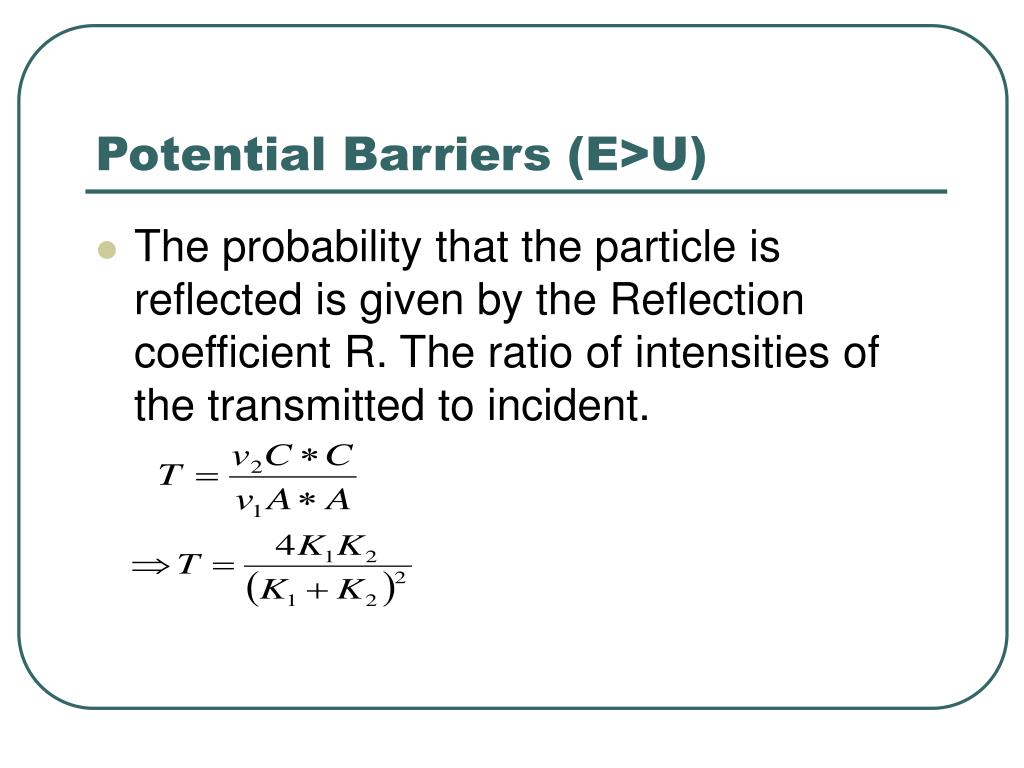

  41. Potential Barriers (E>U) • The probability that the particle is reflected is given by the Reflection coefficient R. The ratio of intensities of the transmitted to incident.

  42. Potential Barriers (E>U) • The probability that the particle is reflected is given by the Reflection coefficient R. The ratio of intensities of the transmitted to incident.

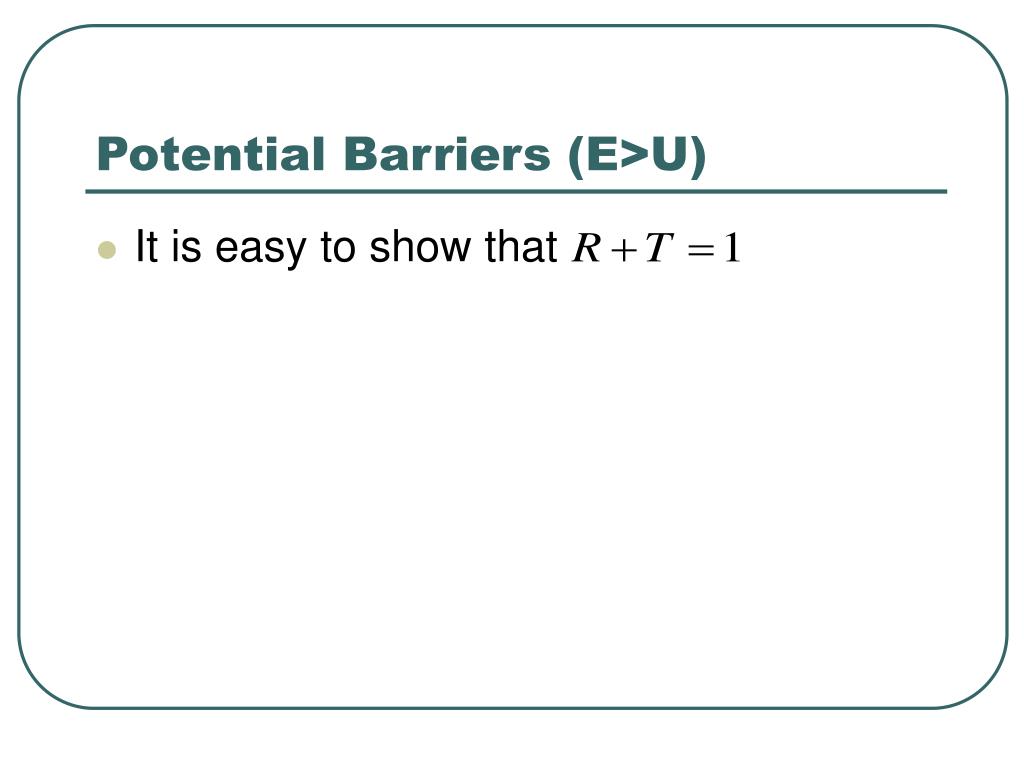

  43. Potential Barriers (E>U) • It is easy to show that

  44. Potential Barriers (E>U) • A similar case to the previous example is given below A B C U(x)=U0 U=0 x=0

  45. Potential Barriers (E>U) • Applying the same logic as the previous example we can show that

  46. Potential Barriers (E>U) • Applying the same logic as the previous example we can show that • The solution to these equations are

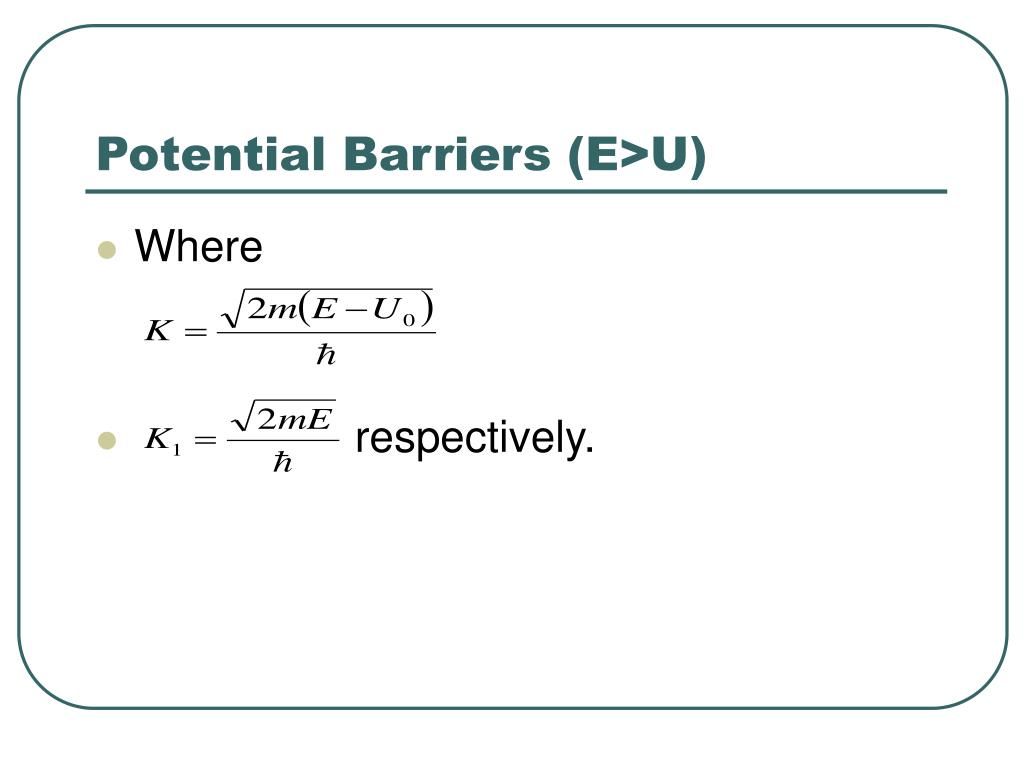

  47. Potential Barriers (E>U) • Where • respectively.

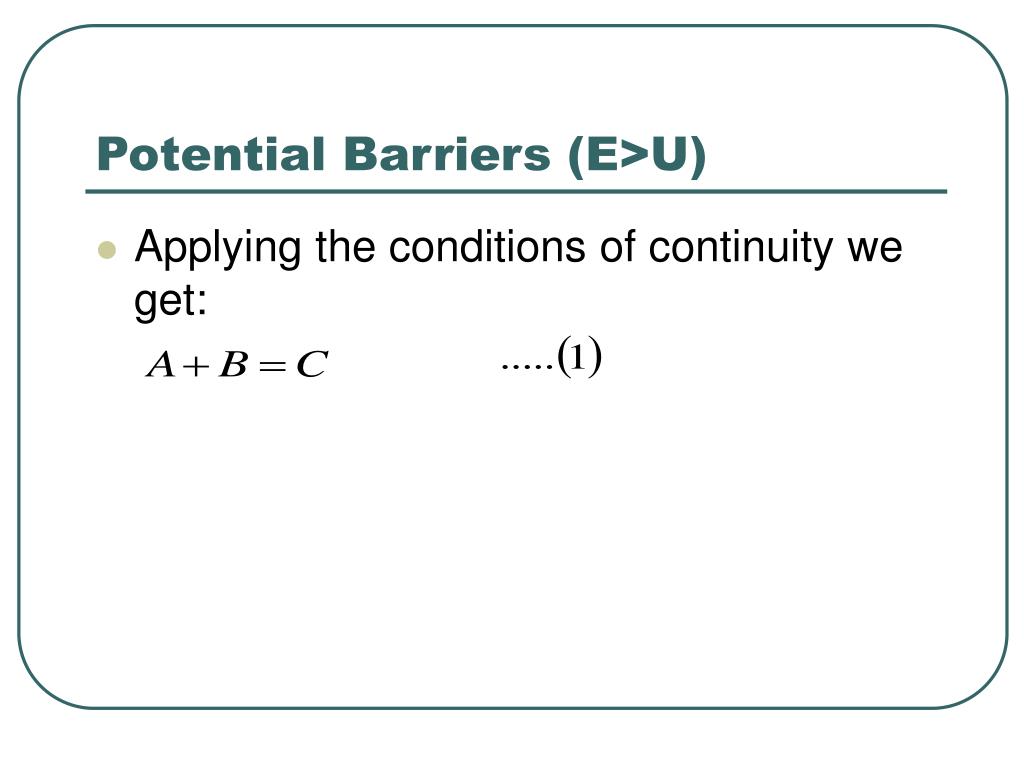

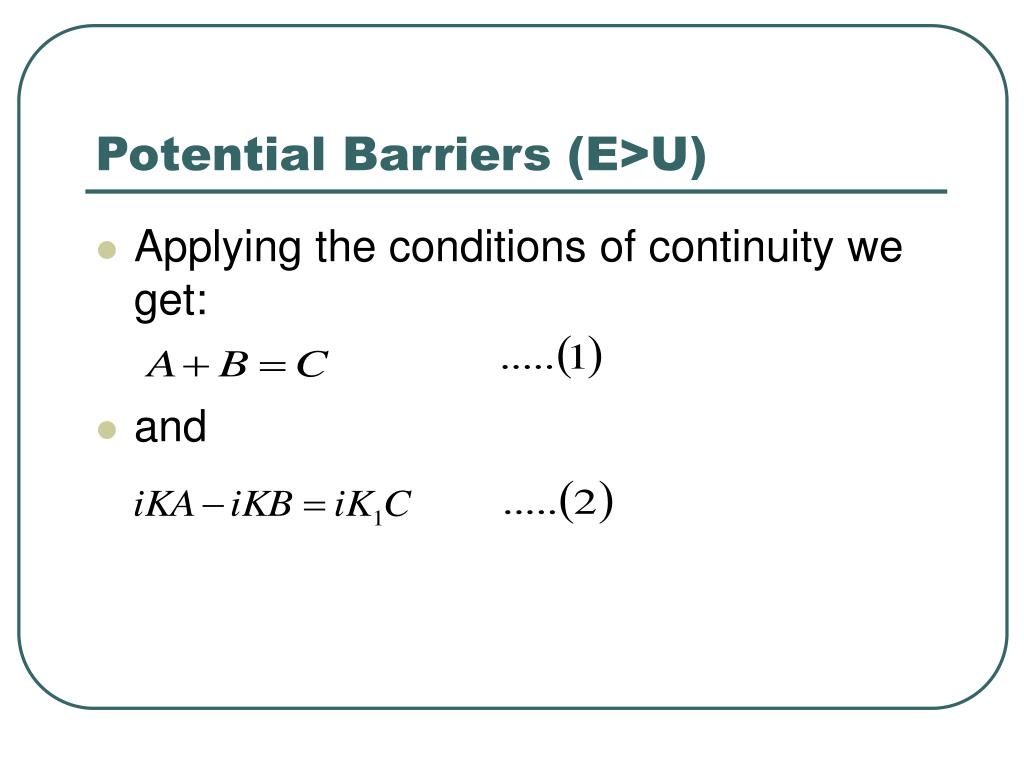

  48. Potential Barriers (E>U) • Applying the conditions of continuity we get:

  49. Potential Barriers (E>U) • Applying the conditions of continuity we get: • and
