Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun EIE360 Integrated Project Lecture 6 Ogre and Kinect References: 1. J.M. Hart, Windows System Programming, 4th Ed., Addison-Wesley, 2010, Ch.12 2. Microsoft Kinect SDK for Developers, http://kinectforwindows.org/ 3. Kinect, Wikipedia

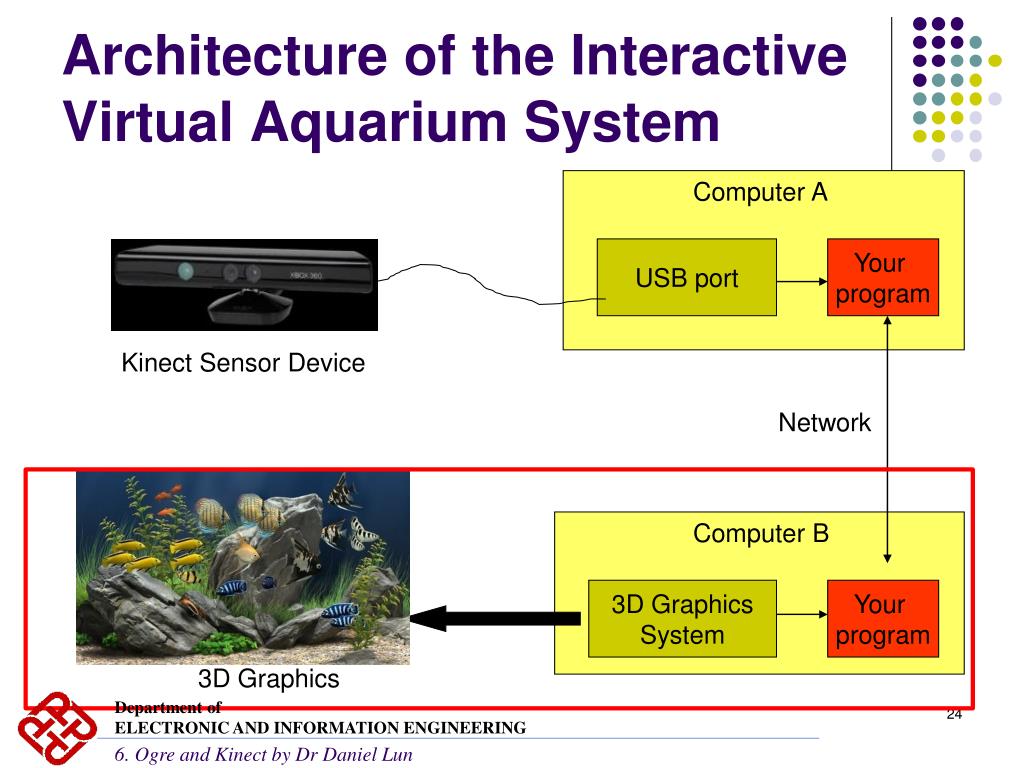

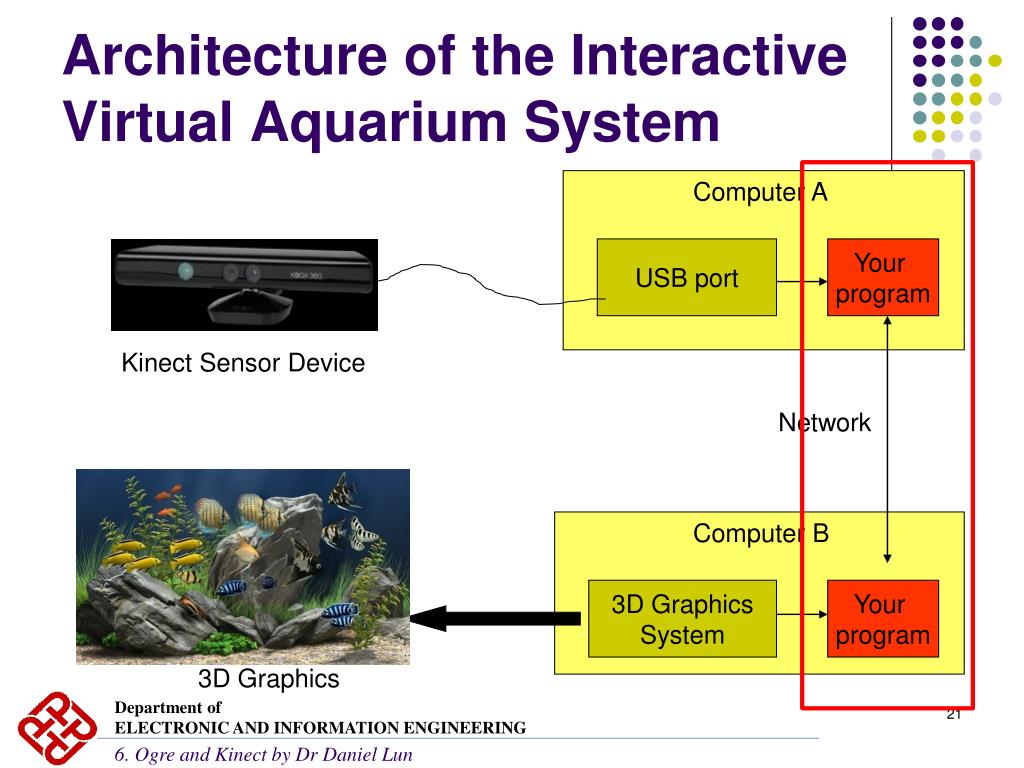

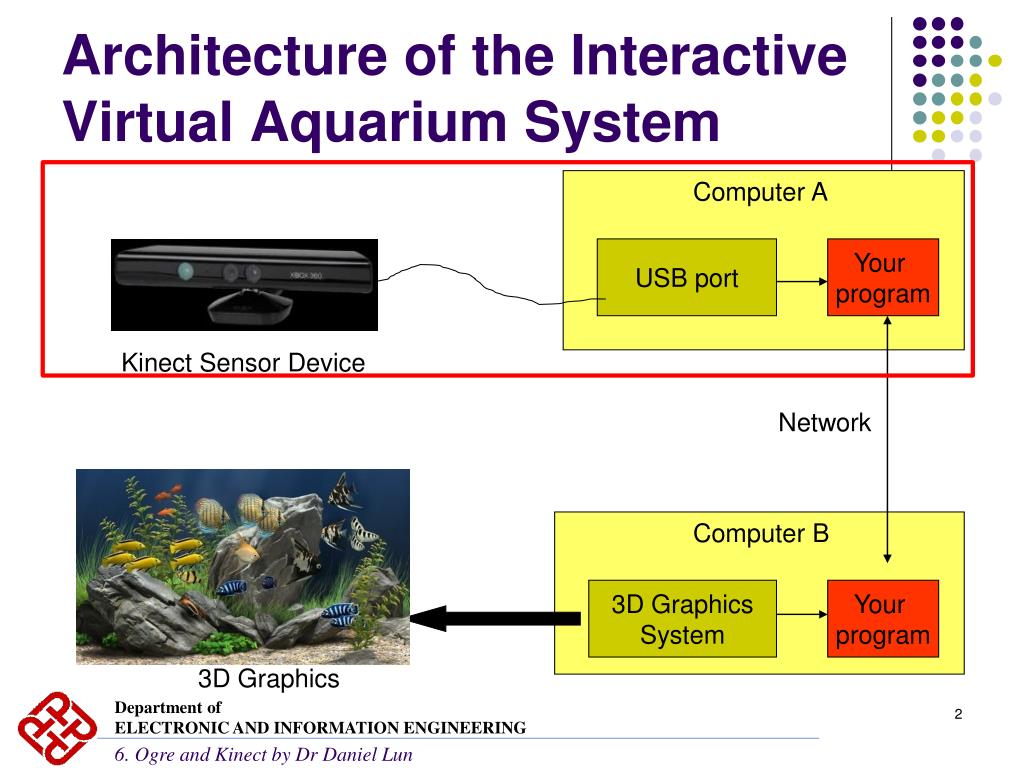

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Architecture of the Interactive Virtual Aquarium System Computer A USB port Your program Kinect Sensor Device Network Computer B 3D Graphics System Your program 3D Graphics

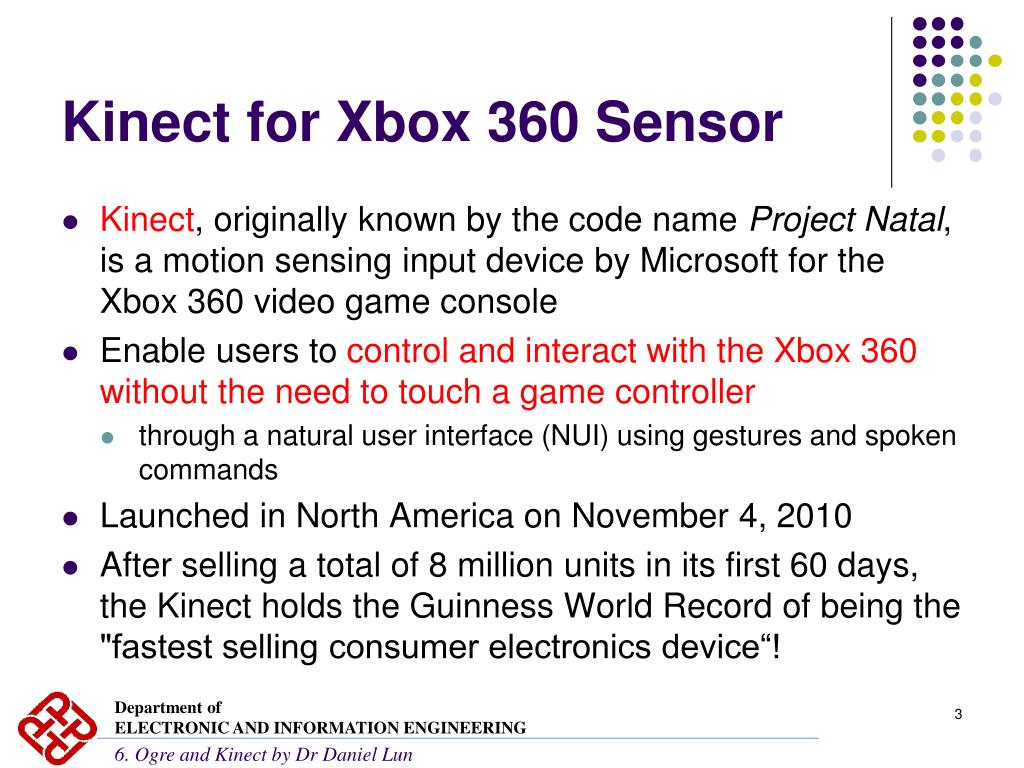

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Kinect for Xbox 360 Sensor • Kinect, originally known by the code name Project Natal, is a motion sensing input device by Microsoft for the Xbox 360 video game console • Enable users to control and interact with the Xbox 360 without the need to touch a game controller • through a natural user interface (NUI) using gestures and spoken commands • Launched in North America on November 4, 2010 • After selling a total of 8 million units in its first 60 days, the Kinect holds the Guinness World Record of being the "fastest selling consumer electronics device“!

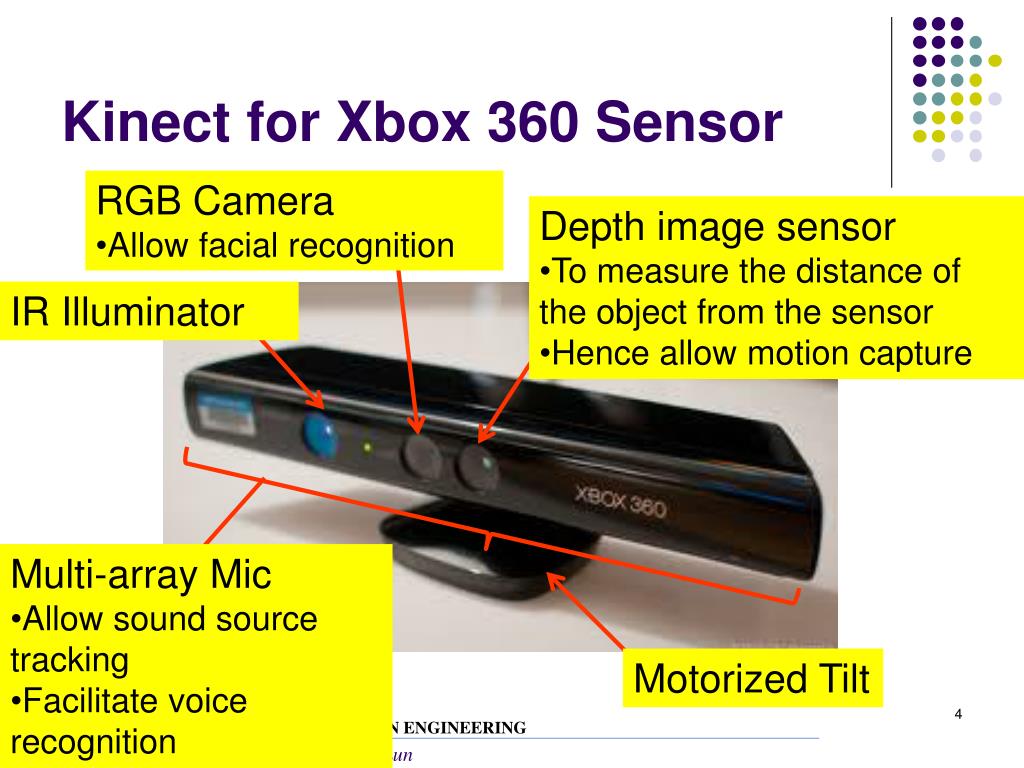

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Kinect for Xbox 360 Sensor • RGB Camera • Allow facial recognition • Depth image sensor • To measure the distance of the object from the sensor • Hence allow motion capture IR Illuminator • Multi-array Mic • Allow sound source tracking • Facilitate voice recognition Motorized Tilt

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Kinect for Xbox 360 Sensor • Some technical data of Kinect sensor: • RGB video: 8-bit VGA resolution (640x480) at 30FPS • Depth sensing video stream: resolution 640x480, 320x240, 80x60, 11 bits dynamic range • Hence provides 2048 levels of sensitivity when measuring depth • Distance limit when using with the Xbox software: 4 – 11ft • The sensor has an angular field of view of 57° horizontally and 43° vertically • Since using optical sensor, can have line-of-sight problem (e.g. occluded body parts cannot be measured)

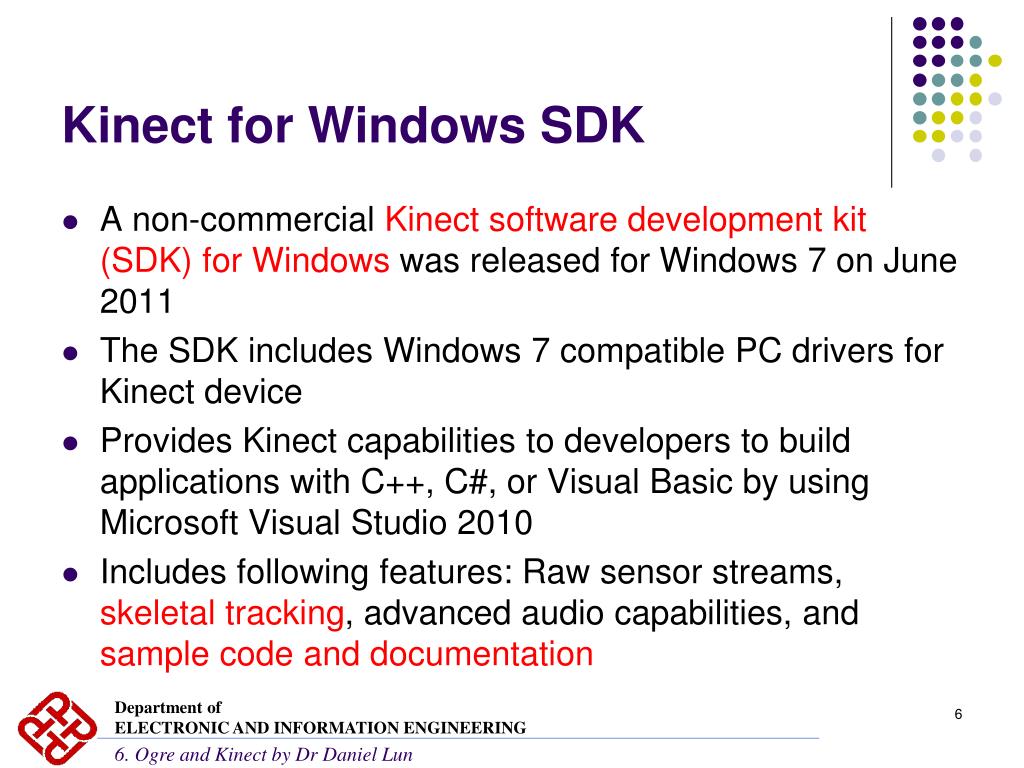

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Kinect for Windows SDK • A non-commercial Kinect software development kit (SDK) for Windows was released for Windows 7 on June 2011 • The SDK includes Windows 7 compatible PC drivers for Kinect device • Provides Kinect capabilities to developers to build applications with C++, C#, or Visual Basic by using Microsoft Visual Studio 2010 • Includes following features: Raw sensor streams, skeletal tracking, advanced audio capabilities, and sample code and documentation

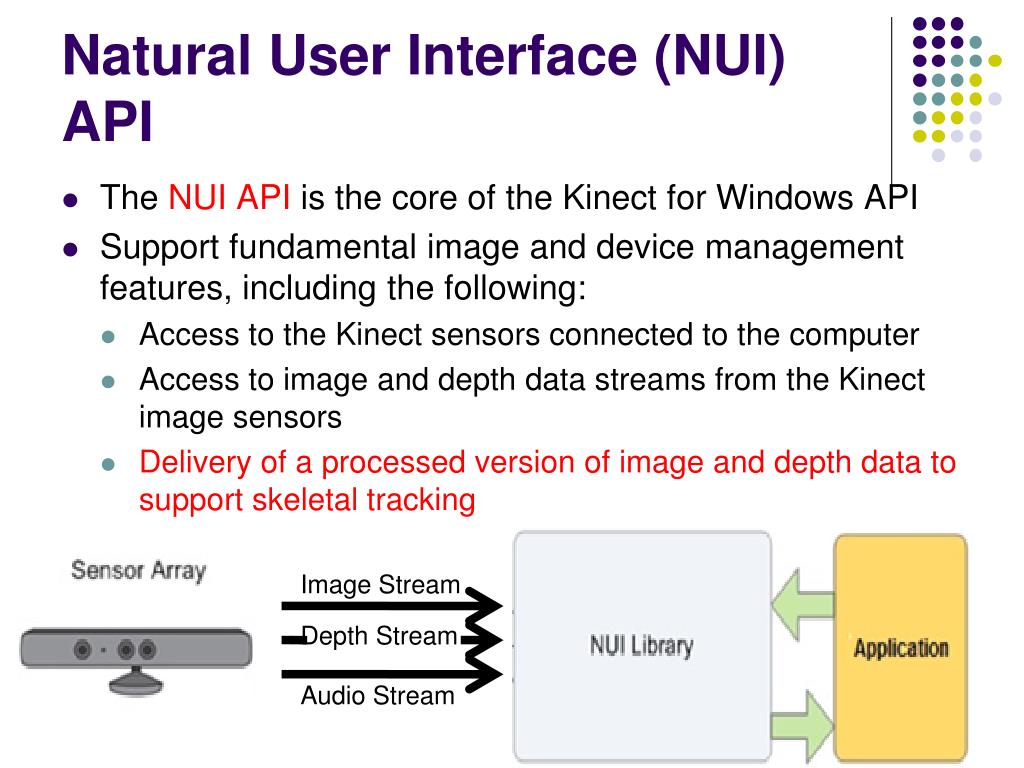

Natural User Interface (NUI) API • The NUI API is the core of the Kinect for Windows API • Support fundamental image and device management features, including the following: • Access to the Kinect sensors connected to the computer • Access to image and depth data streams from the Kinect image sensors • Delivery of a processed version of image and depth data to support skeletal tracking Image Stream Depth Stream Audio Stream

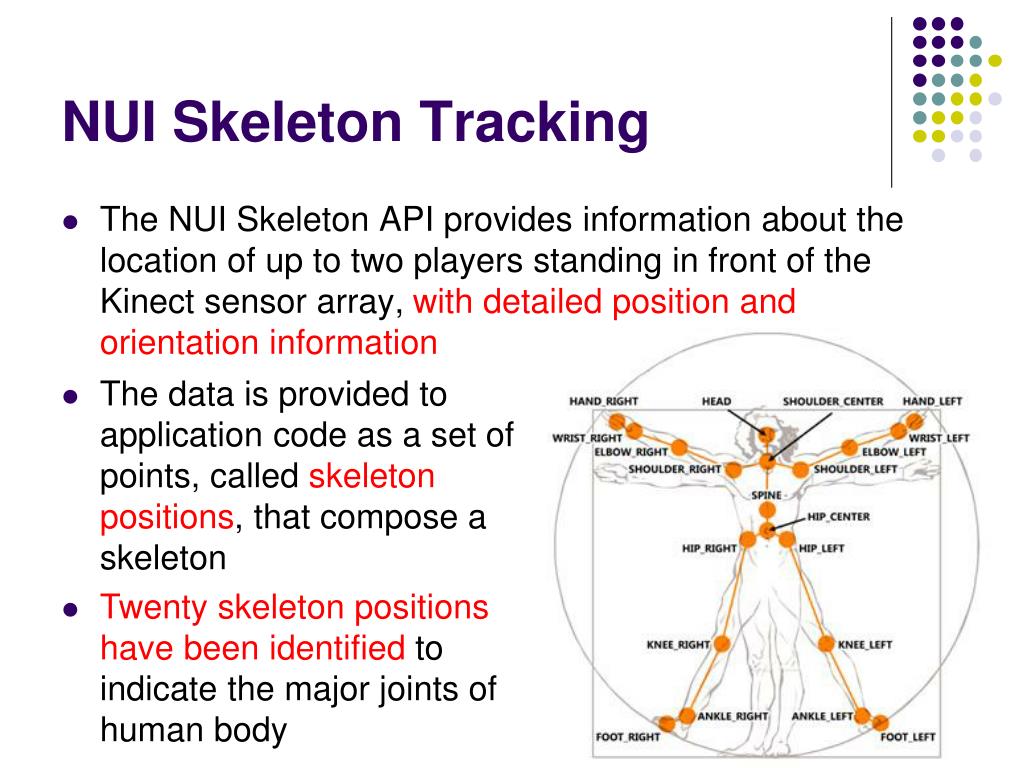

NUI Skeleton Tracking • The NUI Skeleton API provides information about the location of up to two players standing in front of the Kinect sensor array, with detailed position and orientation information • The data is provided to application code as a set of points, called skeleton positions, that compose a skeleton • Twenty skeleton positions have been identified to indicate the major joints of human body

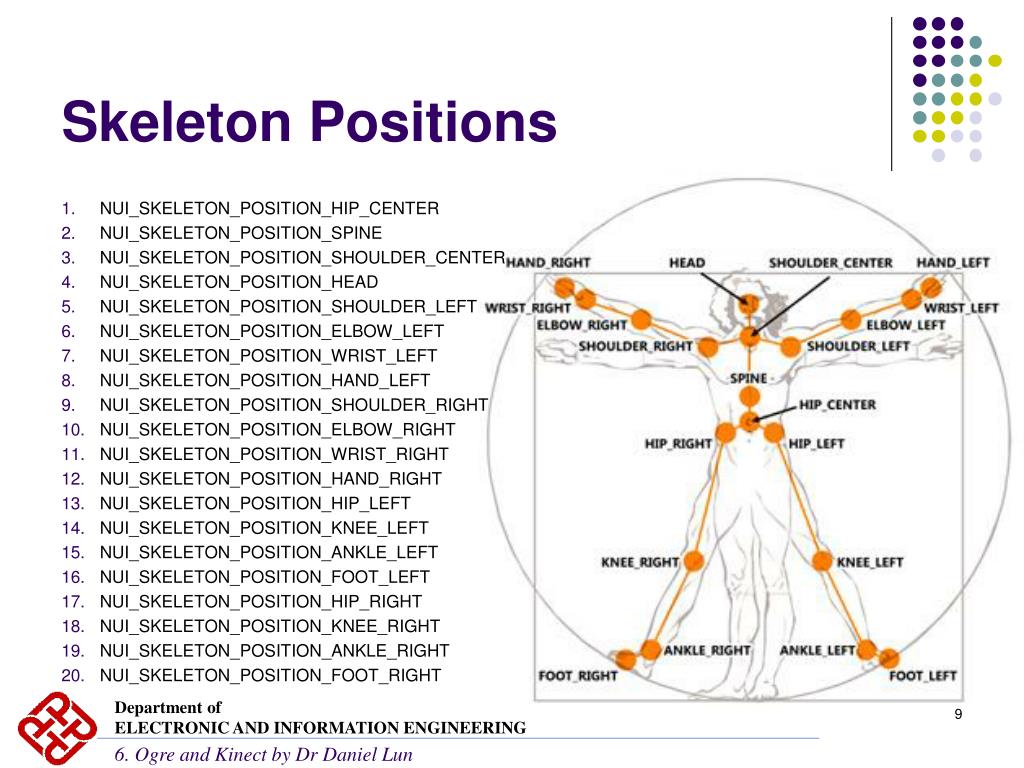

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Skeleton Positions • NUI_SKELETON_POSITION_HIP_CENTER • NUI_SKELETON_POSITION_SPINE • NUI_SKELETON_POSITION_SHOULDER_CENTER • NUI_SKELETON_POSITION_HEAD • NUI_SKELETON_POSITION_SHOULDER_LEFT • NUI_SKELETON_POSITION_ELBOW_LEFT • NUI_SKELETON_POSITION_WRIST_LEFT • NUI_SKELETON_POSITION_HAND_LEFT • NUI_SKELETON_POSITION_SHOULDER_RIGHT • NUI_SKELETON_POSITION_ELBOW_RIGHT • NUI_SKELETON_POSITION_WRIST_RIGHT • NUI_SKELETON_POSITION_HAND_RIGHT • NUI_SKELETON_POSITION_HIP_LEFT • NUI_SKELETON_POSITION_KNEE_LEFT • NUI_SKELETON_POSITION_ANKLE_LEFT • NUI_SKELETON_POSITION_FOOT_LEFT • NUI_SKELETON_POSITION_HIP_RIGHT • NUI_SKELETON_POSITION_KNEE_RIGHT • NUI_SKELETON_POSITION_ANKLE_RIGHT • NUI_SKELETON_POSITION_FOOT_RIGHT

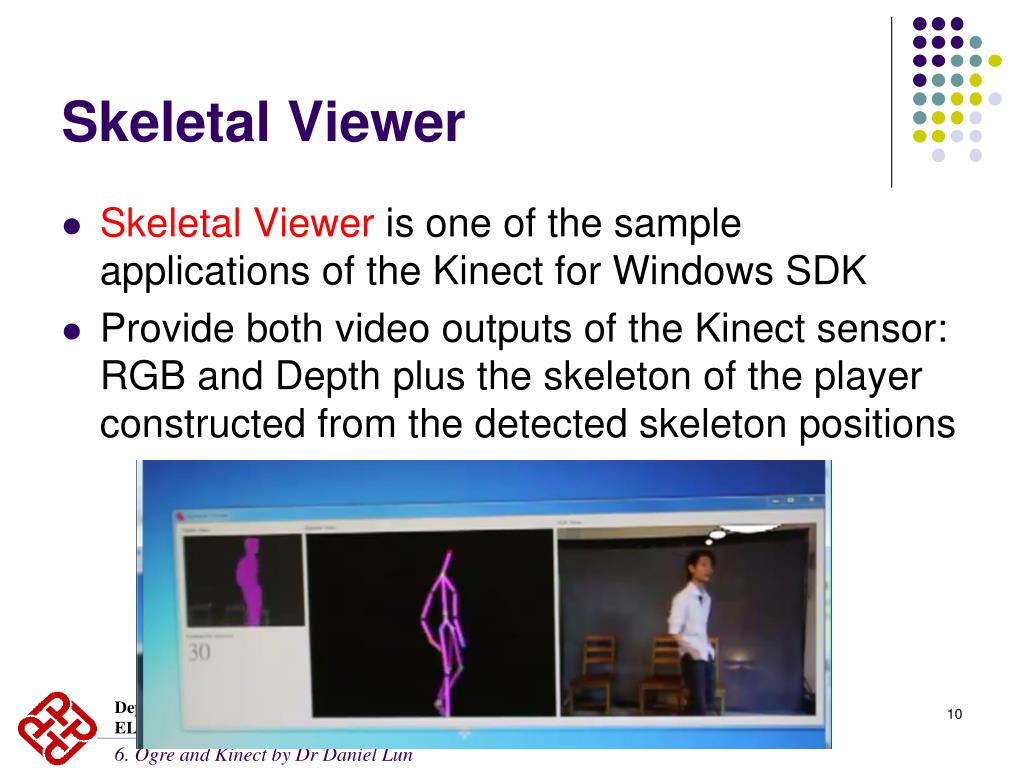

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Skeletal Viewer • Skeletal Viewer is one of the sample applications of the Kinect for Windows SDK • Provide both video outputs of the Kinect sensor: RGB and Depth plus the skeleton of the player constructed from the detected skeleton positions

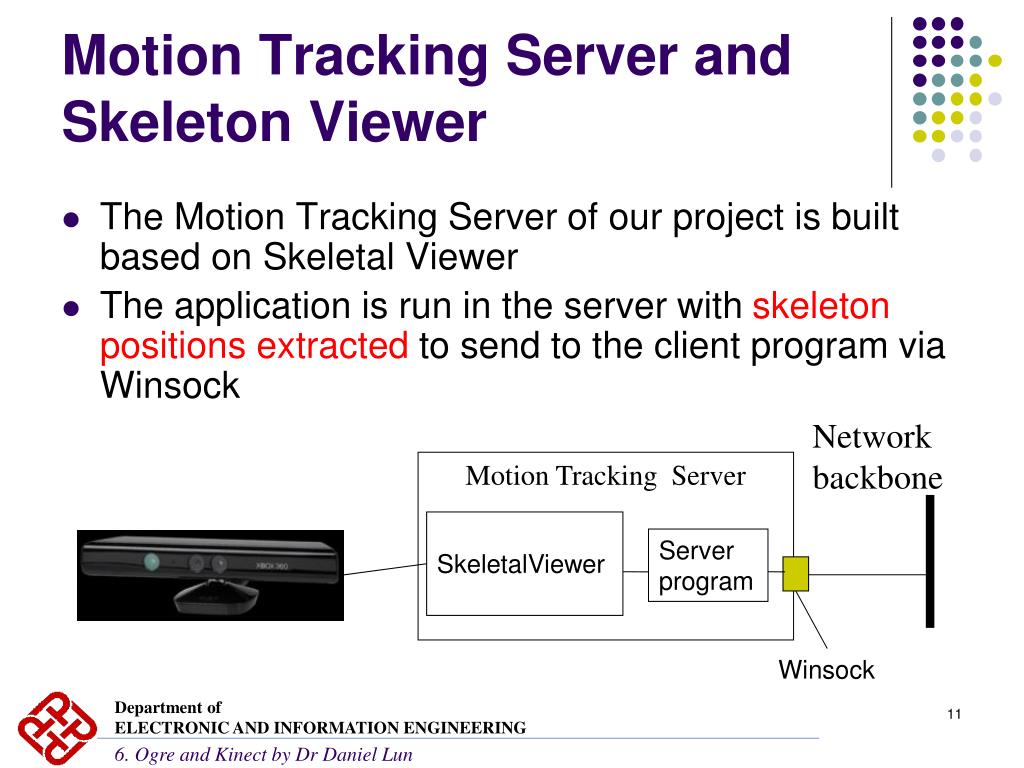

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Motion Tracking Server and Skeleton Viewer • The Motion Tracking Server of our project is built based on Skeletal Viewer • The application is run in the server with skeleton positions extracted to send to the client program via Winsock Network backbone Motion Tracking Server SkeletalViewer Server program Winsock

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Software Architecture of the Motion Tracking Server Motion Tracking Server mSkeletalViewerApp CSkeletalViewerApp ServerSocket bool mSkeletonExist[2]; char mMessage[2][160];char mMessage3D[2][320]; ListenOnPort() AcceptConnection() ProcessClient() CloseConnection() SkeletalViewer Server Program Winsock

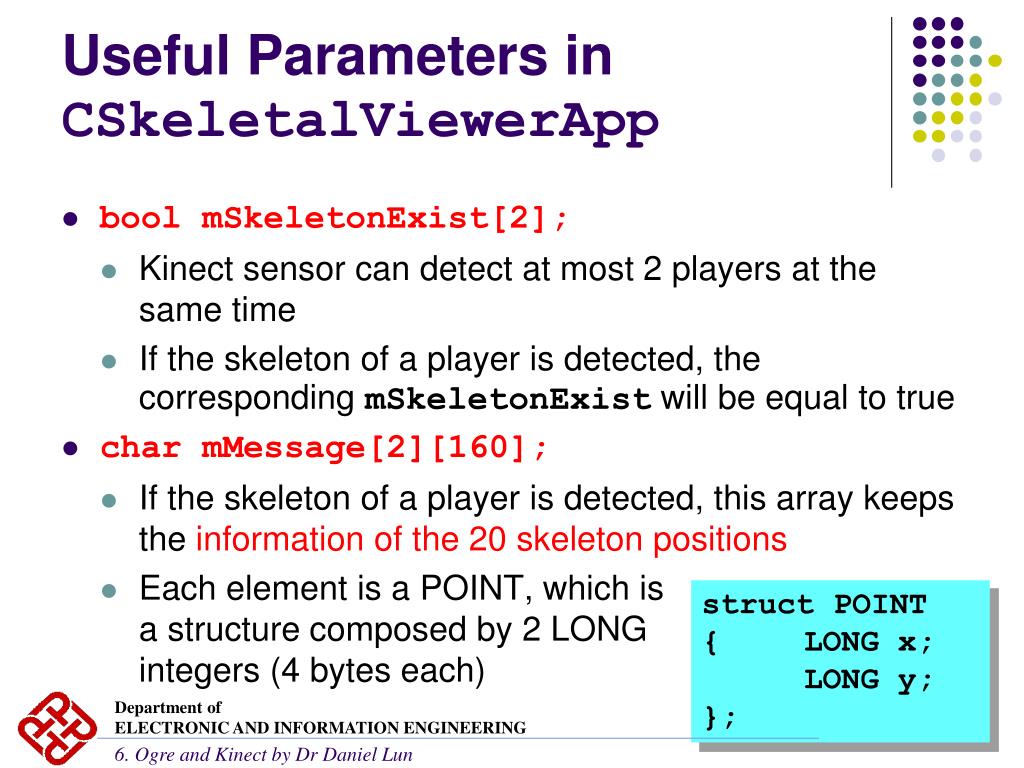

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Useful Parameters in CSkeletalViewerApp • bool mSkeletonExist[2]; • Kinect sensor can detect at most 2 players at the same time • If the skeleton of a player is detected, the corresponding mSkeletonExist will be equal to true • char mMessage[2][160]; • If the skeleton of a player is detected, this array keeps the information of the 20 skeleton positions • Each element is a POINT, which is a structure composed by 2 LONG integers (4 bytes each) struct POINT { LONG x; LONG y; };

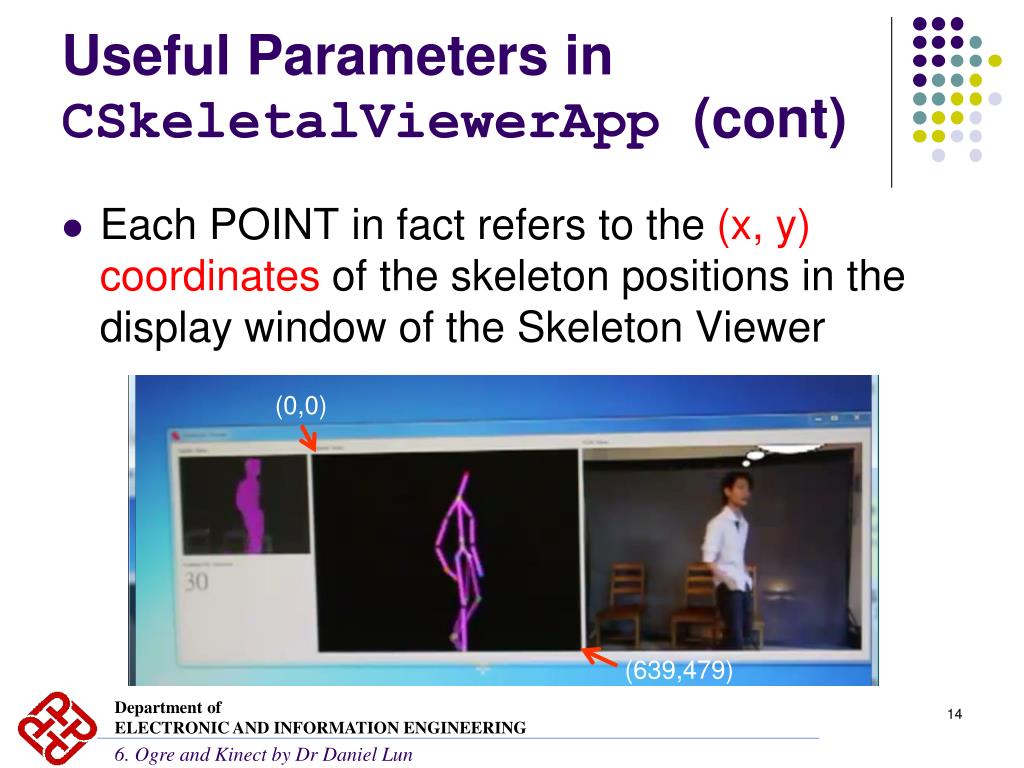

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Useful Parameters in CSkeletalViewerApp (cont) • Each POINT in fact refers to the (x, y) coordinates of the skeleton positions in the display window of the Skeleton Viewer (0,0) (639,479)

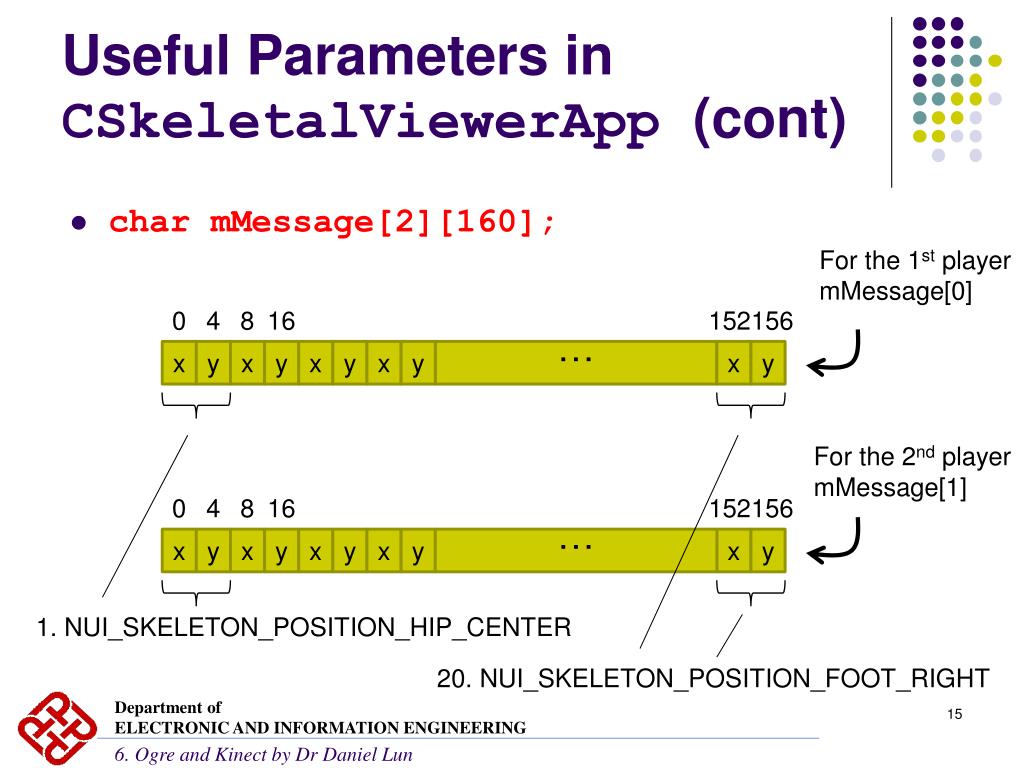

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Useful Parameters in CSkeletalViewerApp (cont) • char mMessage[2][160]; For the 1st player mMessage[0] 0 4 8 16 152 156 x y x y x y x y … x y For the 2nd player mMessage[1] 0 4 8 16 152 156 x y x y x y x y … x y 1. NUI_SKELETON_POSITION_HIP_CENTER 20. NUI_SKELETON_POSITION_FOOT_RIGHT

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Useful Parameters in CSkeletalViewerApp (cont) • char mMessage3D[2][320]; • If the skeleton of a player is detected, this array keeps the 3D coordinates of the 20 skeleton positions of the player in the 3D space with reference to the sensor • Each element of the array is a Vector4 composed by 4 float numbers (4 bytes each) struct Vector4 { float x; float y; float z; float w; }; • Using 4-d vector rather than 3-d vector facilitates efficient matrix operations to translate a vector (e.g. by a matrix multiplication)

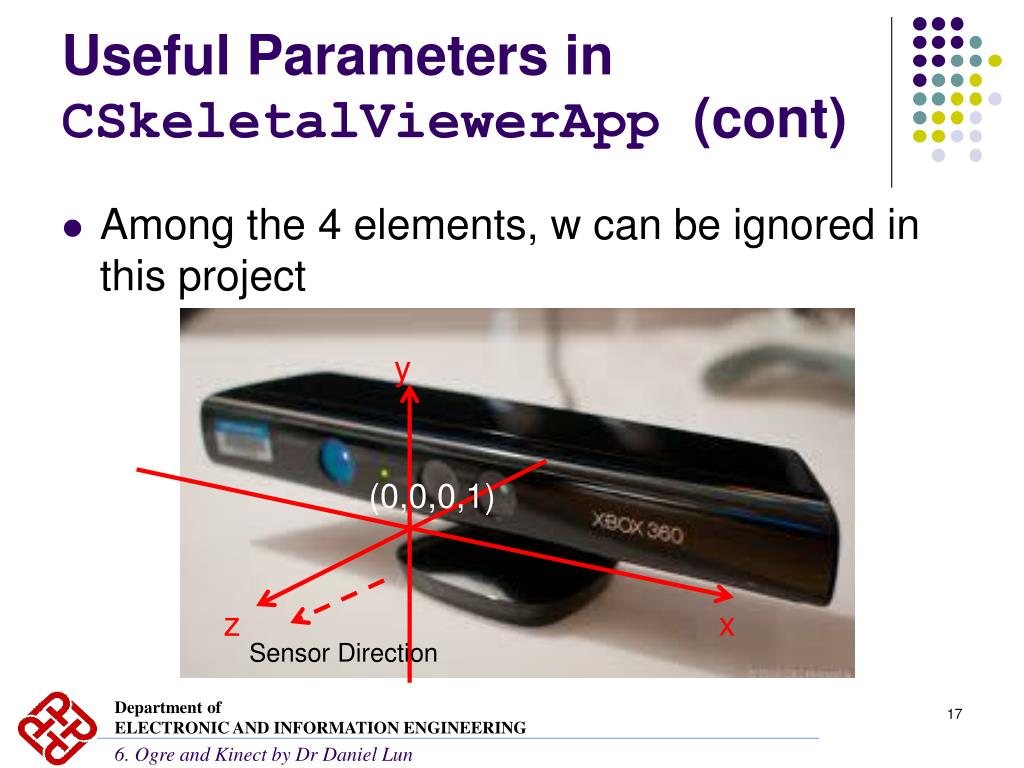

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Useful Parameters in CSkeletalViewerApp (cont) • Among the 4 elements, w can be ignored in this project y (0,0,0,1) z x Sensor Direction

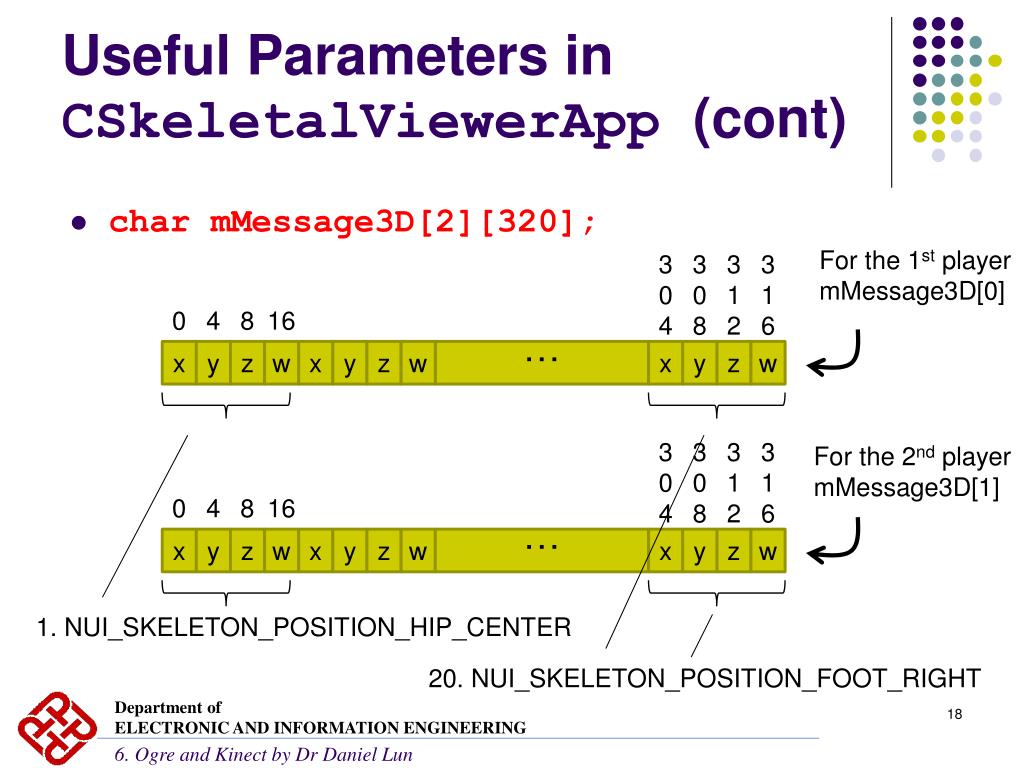

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Useful Parameters in CSkeletalViewerApp (cont) • char mMessage3D[2][320]; For the 1st player mMessage3D[0] 304 308 312 316 0 4 8 16 x y z w x y z w … x y z w For the 2nd player mMessage3D[1] 304 308 312 316 0 4 8 16 x y z w x y z w … x y z w 1. NUI_SKELETON_POSITION_HIP_CENTER 20. NUI_SKELETON_POSITION_FOOT_RIGHT

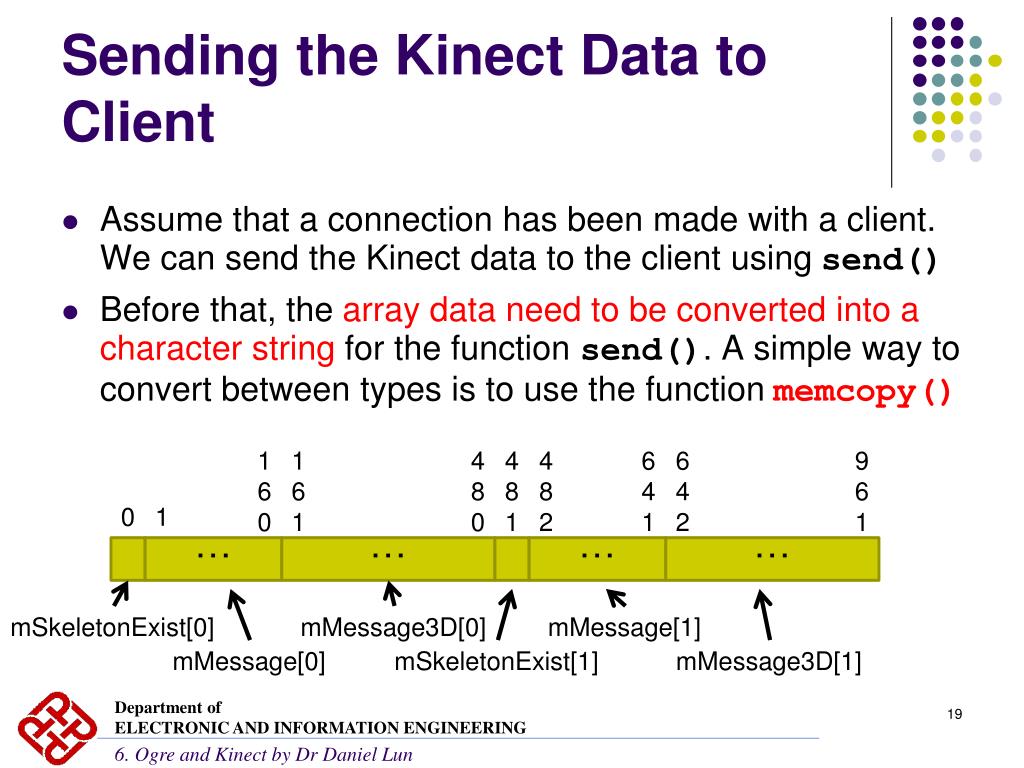

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Sending the Kinect Data to Client • Assume that a connection has been made with a client. We can send the Kinect data to the client using send() • Before that, the array data need to be converted into a character string for the function send(). A simple way to convert between types is to use the function memcopy() 160 161 480 481 482 641 642 961 0 1 … … … … mSkeletonExist[0] mMessage3D[0] mMessage[1] mMessage[0] mSkeletonExist[1] mMessage3D[1]

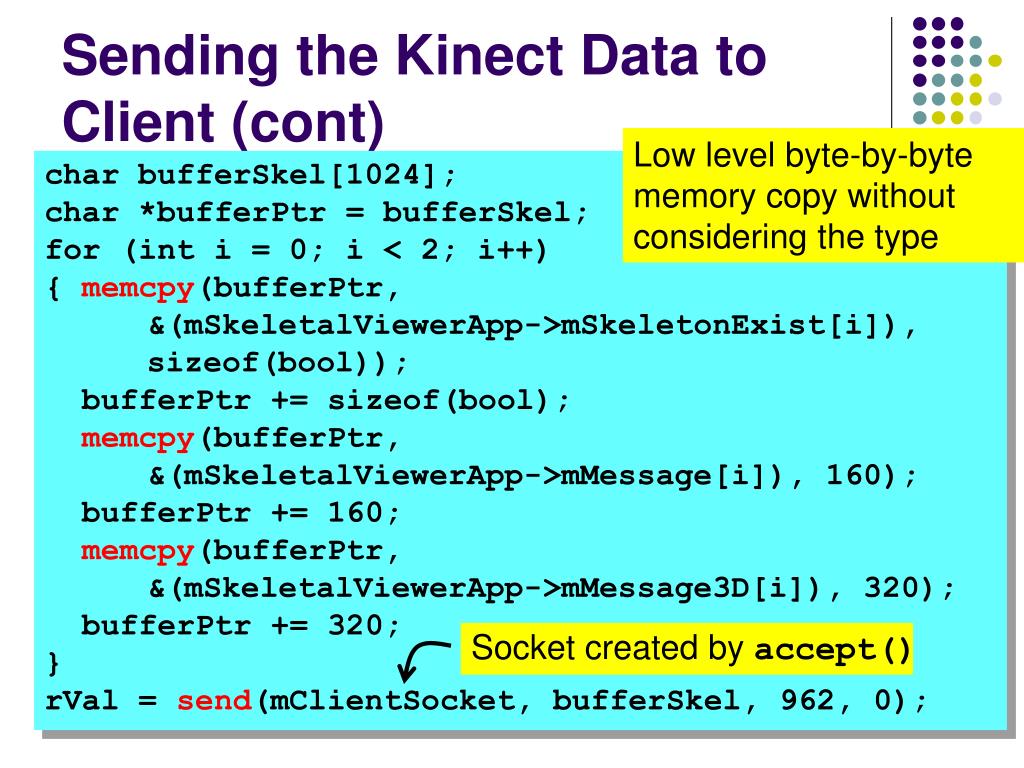

Sending the Kinect Data to Client (cont) Low level byte-by-byte memory copy without considering the type char bufferSkel[1024]; char *bufferPtr = bufferSkel; for (int i = 0; i < 2; i++) { memcpy(bufferPtr, &(mSkeletalViewerApp->mSkeletonExist[i]), sizeof(bool)); bufferPtr += sizeof(bool); memcpy(bufferPtr, &(mSkeletalViewerApp->mMessage[i]), 160); bufferPtr += 160; memcpy(bufferPtr, &(mSkeletalViewerApp->mMessage3D[i]), 320); bufferPtr += 320; } rVal = send(mClientSocket, bufferSkel, 962, 0); Socket created by accept()

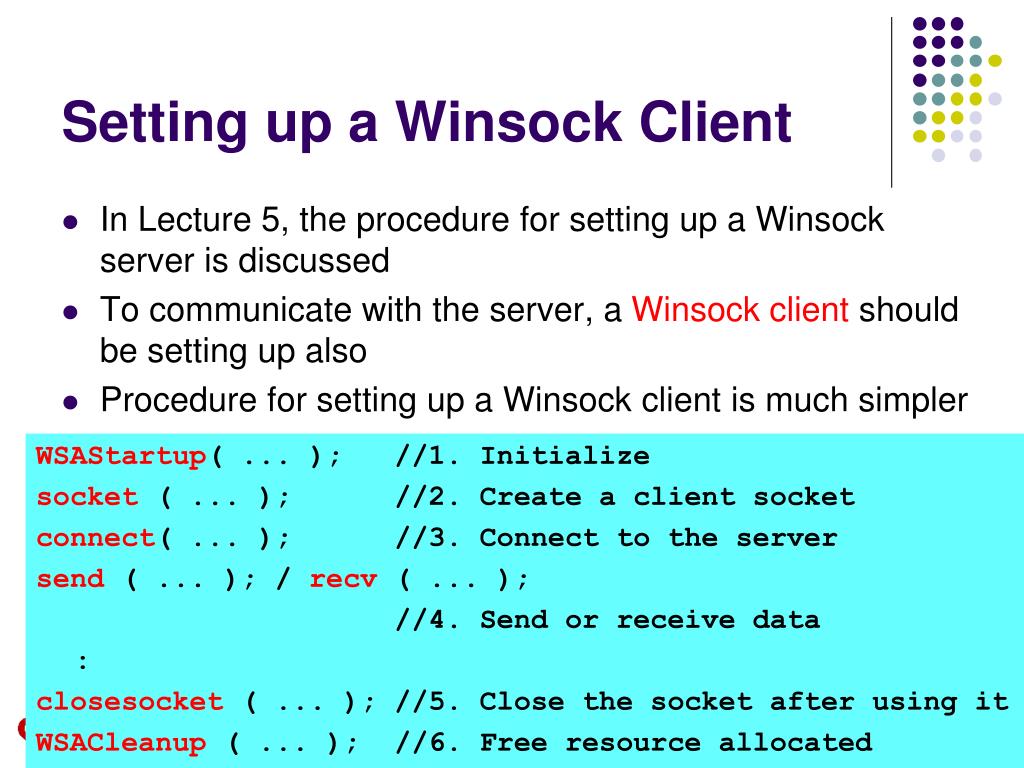

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Setting up a Winsock Client • In Lecture 5, the procedure for setting up a Winsock server is discussed • To communicate with the server, a Winsock client should be setting up also • Procedure for setting up a Winsock client is much simpler WSAStartup( ... ); //1. Initialize socket ( ... ); //2. Create a client socket connect( ... ); //3. Connect to the server send ( ... ); / recv ( ... ); //4. Send or receive data : closesocket ( ... ); //5. Close the socket after using it WSACleanup ( ... ); //6. Free resource allocated

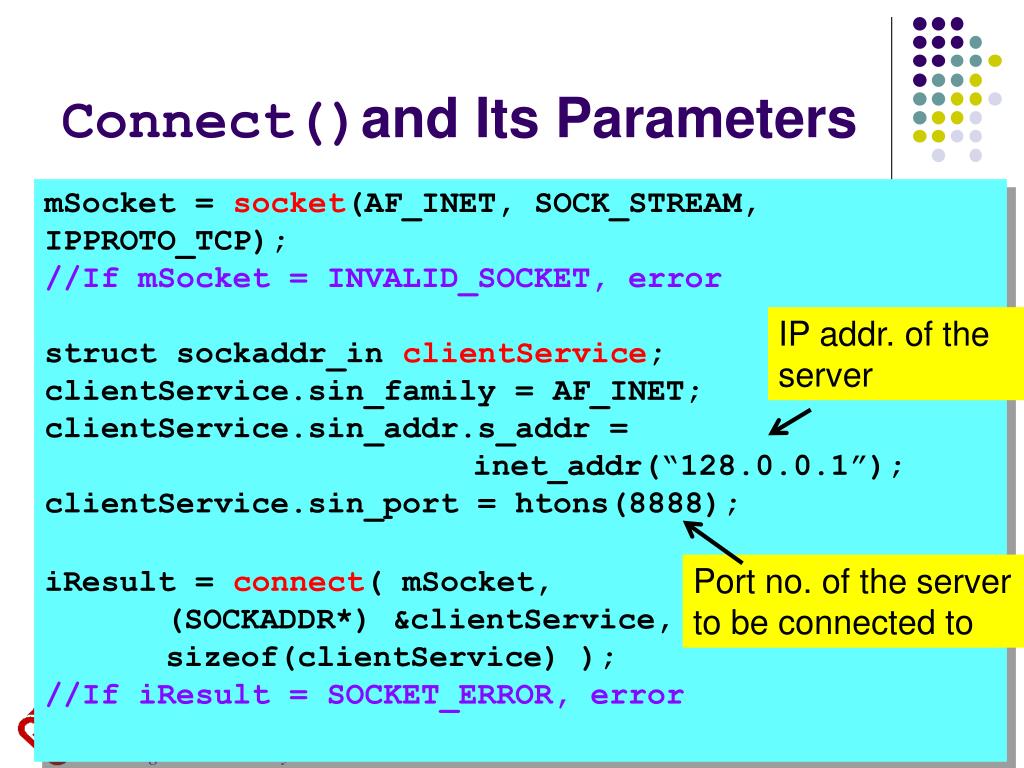

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Connect()and Its Parameters mSocket = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP); //If mSocket = INVALID_SOCKET, error struct sockaddr_in clientService; clientService.sin_family = AF_INET; clientService.sin_addr.s_addr = inet_addr(“128.0.0.1”); clientService.sin_port = htons(8888); iResult = connect( mSocket, (SOCKADDR*) &clientService, sizeof(clientService) ); //If iResult = SOCKET_ERROR, error IP addr. of the server Port no. of the server to be connected to

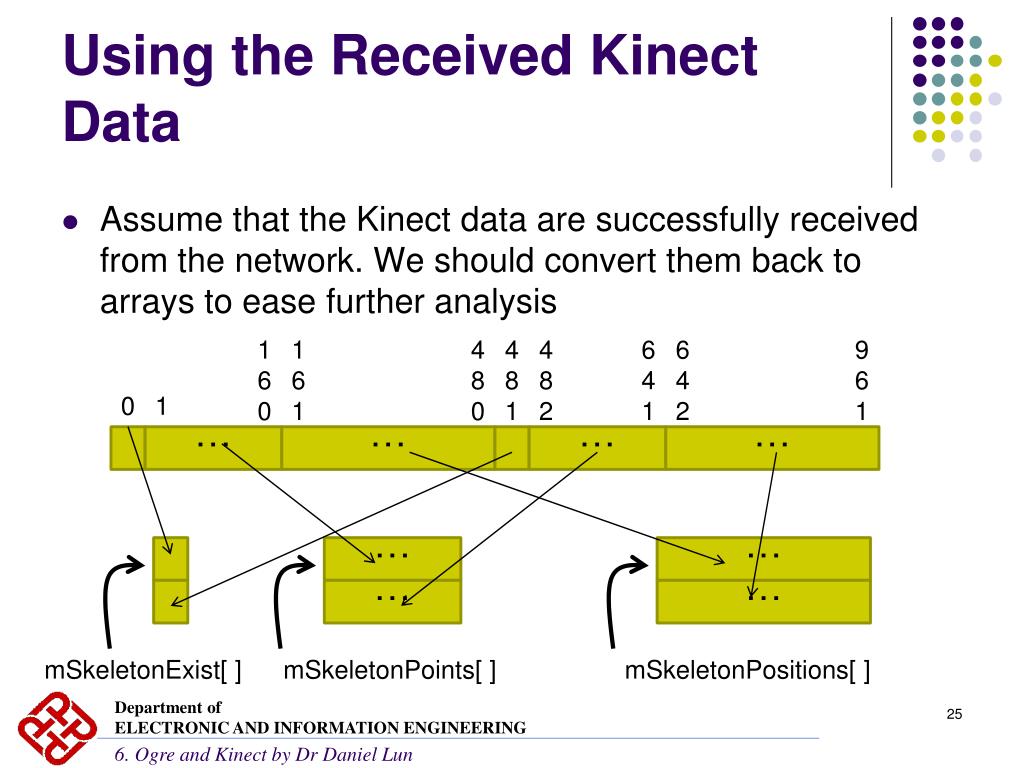

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Using the Received Kinect Data • Assume that the Kinect data are successfully received from the network. We should convert them back to arrays to ease further analysis 160 161 480 481 482 641 642 961 0 1 … … … … … … … … mSkeletonExist[ ] mSkeletonPoints[ ] mSkeletonPositions[ ]

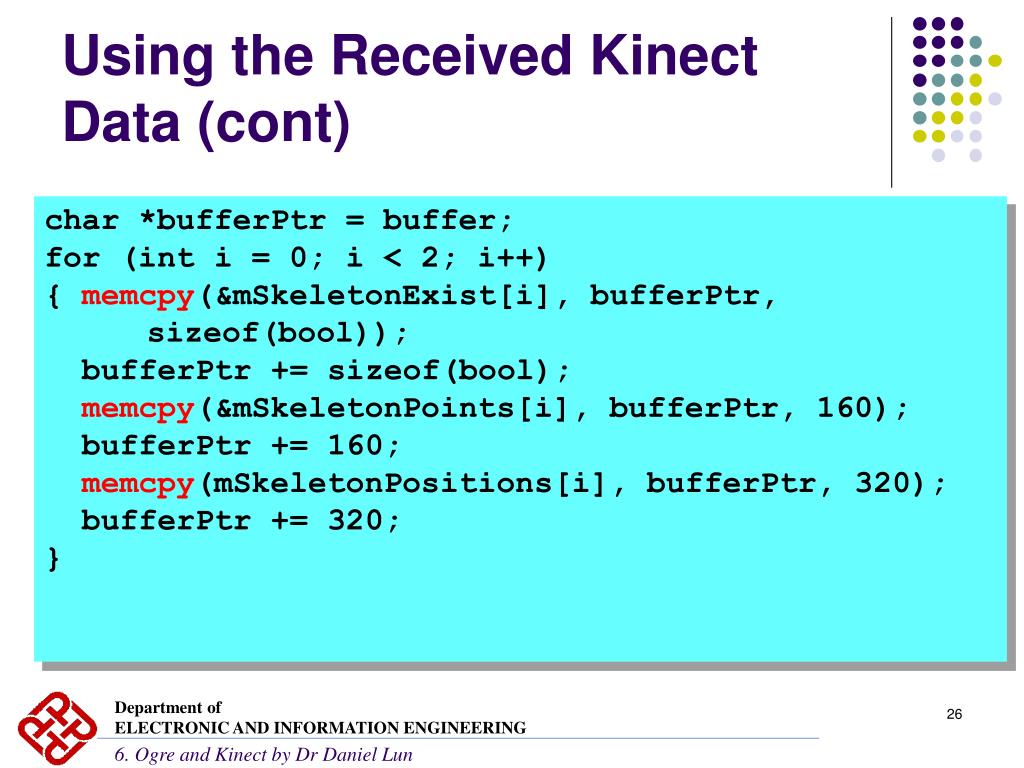

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Using the Received Kinect Data (cont) char *bufferPtr = buffer; for (int i = 0; i < 2; i++) { memcpy(&mSkeletonExist[i], bufferPtr, sizeof(bool)); bufferPtr += sizeof(bool); memcpy(&mSkeletonPoints[i], bufferPtr, 160); bufferPtr += 160; memcpy(mSkeletonPositions[i], bufferPtr, 320); bufferPtr += 320; }

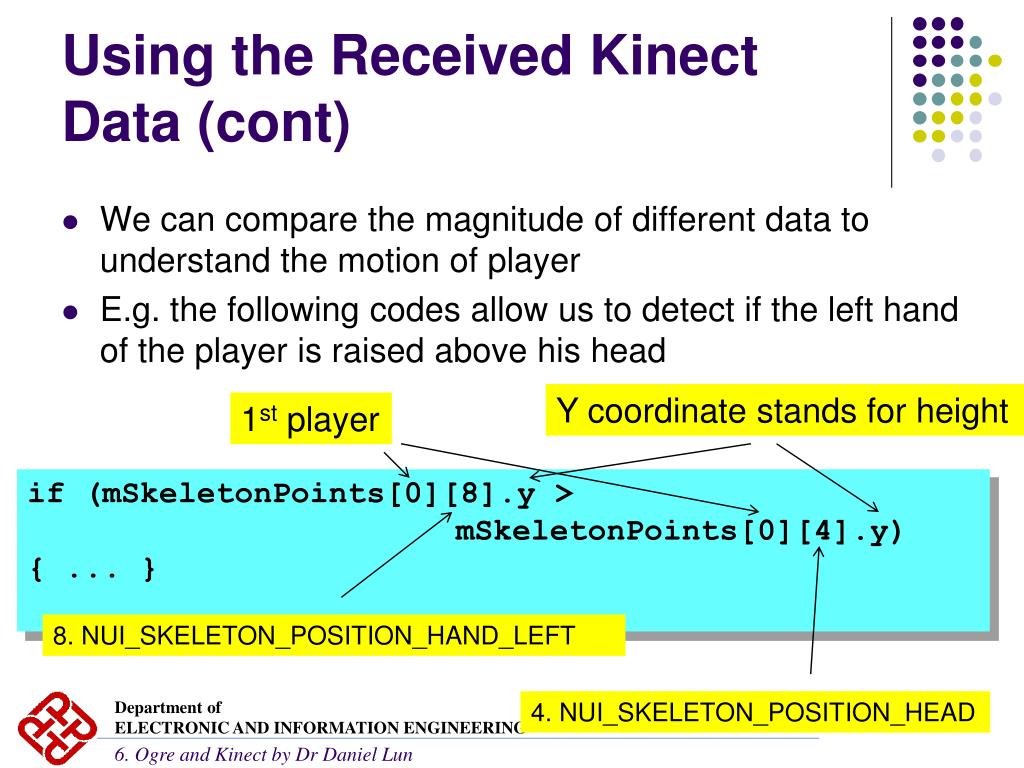

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Using the Received Kinect Data (cont) • We can compare the magnitude of different data to understand the motion of player • E.g. the following codes allow us to detect if the left hand of the player is raised above his head Y coordinate stands for height 1st player if (mSkeletonPoints[0][8].y > mSkeletonPoints[0][4].y) { ... } 8. NUI_SKELETON_POSITION_HAND_LEFT 4. NUI_SKELETON_POSITION_HEAD

Department of ELECTRONIC AND INFORMATION ENGINEERING 6. Ogre and Kinect by Dr Daniel Lun Using the Received Kinect Data (cont) Update screen Initialization • We may also estimate the velocity of motion • E.g. to estimate the velocity of the motion of left hand in y direction: processCalculation() { Ogre::Real eTime = evt.timeSinceLastFrame; float currentY = mSkeletonPoints[0][8].y; Ogre::Real velocity = (currentY – mPreviousY)/eTime; mPreviousY = currentY; } • May not be accurate as it is only the instantaneous result between 2 frames • May need to average the results across a few frames Finish update screen
