  1. Health Effects of Radiation

  2. What Radiation Affects • Directly or indirectly, radiation affects the DNA in cells • DNA controls the cell’s function and ability to reproduce

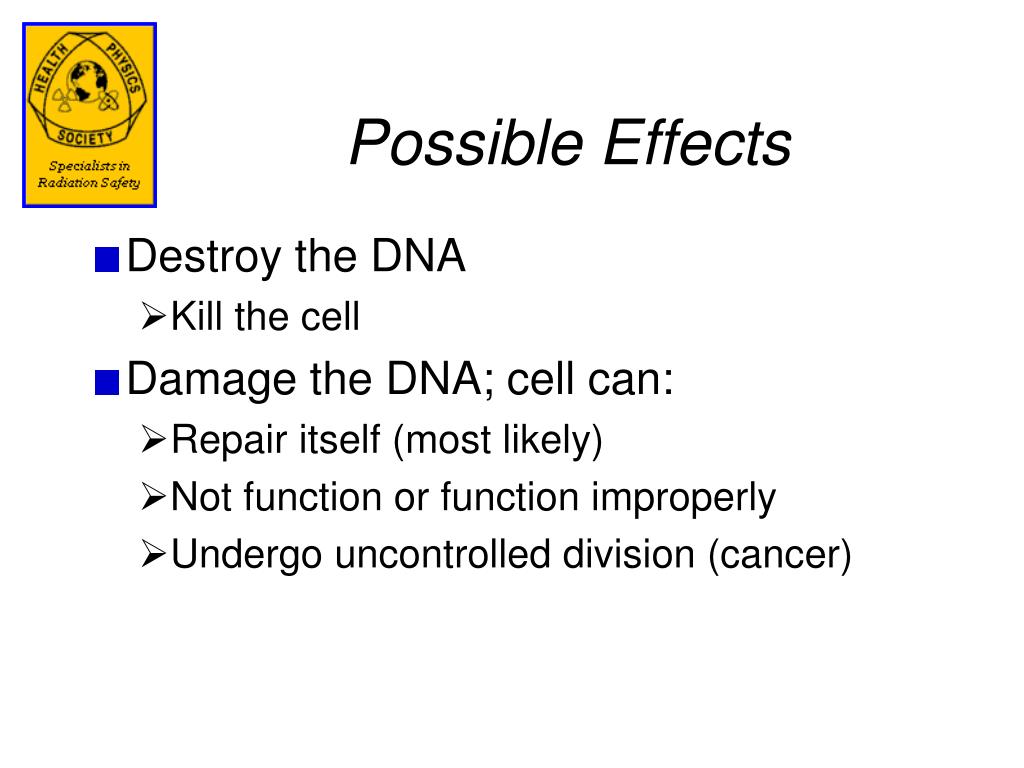

  3. Possible Effects • Destroy the DNA • Kill the cell • Damage the DNA; cell can: • Repair itself (most likely) • Not function or function improperly • Undergo uncontrolled division (cancer)

  4. Cell Sensitivity • Cells most affected: • Rapidly dividing cells: • (small intestines, bone marrow, hair, fetus) • Cells least affected: • Slowly dividing cells: • (brain, nerves)

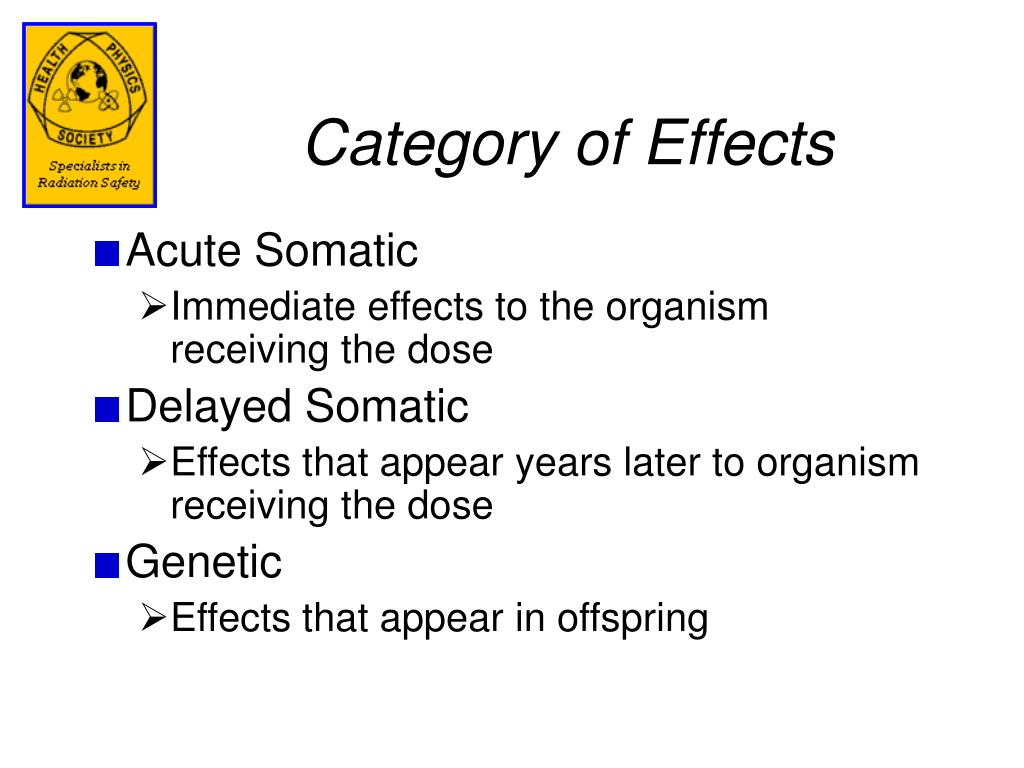

  5. Category of Effects • Acute Somatic • Immediate effects to the organism receiving the dose • Delayed Somatic • Effects that appear years later to organism receiving the dose • Genetic • Effects that appear in offspring

  6. Units of Dose • Dose measured as energy absorbed per mass • Units of Gray (Gy) or rad (= 0.01 Gy) • Dose equivalent accounts for different effect of different radiations • Units of Sieverts (Sv) or rem (= 0.01 Sv) • Dose measured equated to dose equivalent • 1 rad roughly equals 1 rem

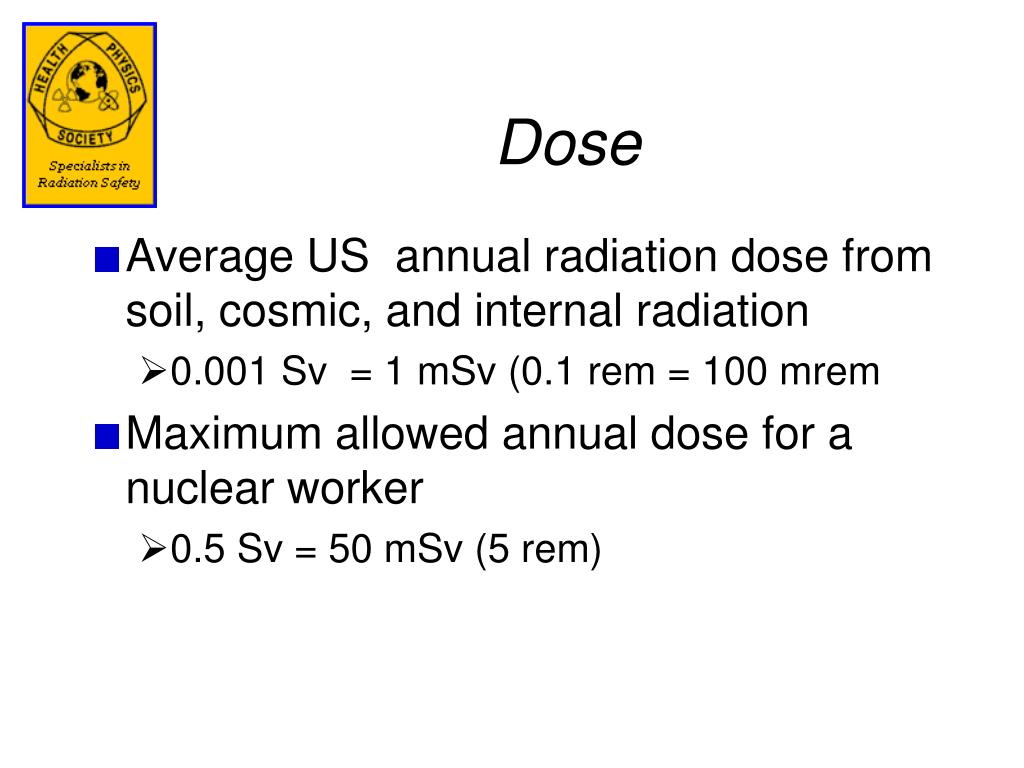

  7. Dose • Average US annual radiation dose from soil, cosmic, and internal radiation • 0.001 Sv = 1 mSv (0.1 rem = 100 mrem • Maximum allowed annual dose for a nuclear worker • 0.5 Sv = 50 mSv (5 rem)

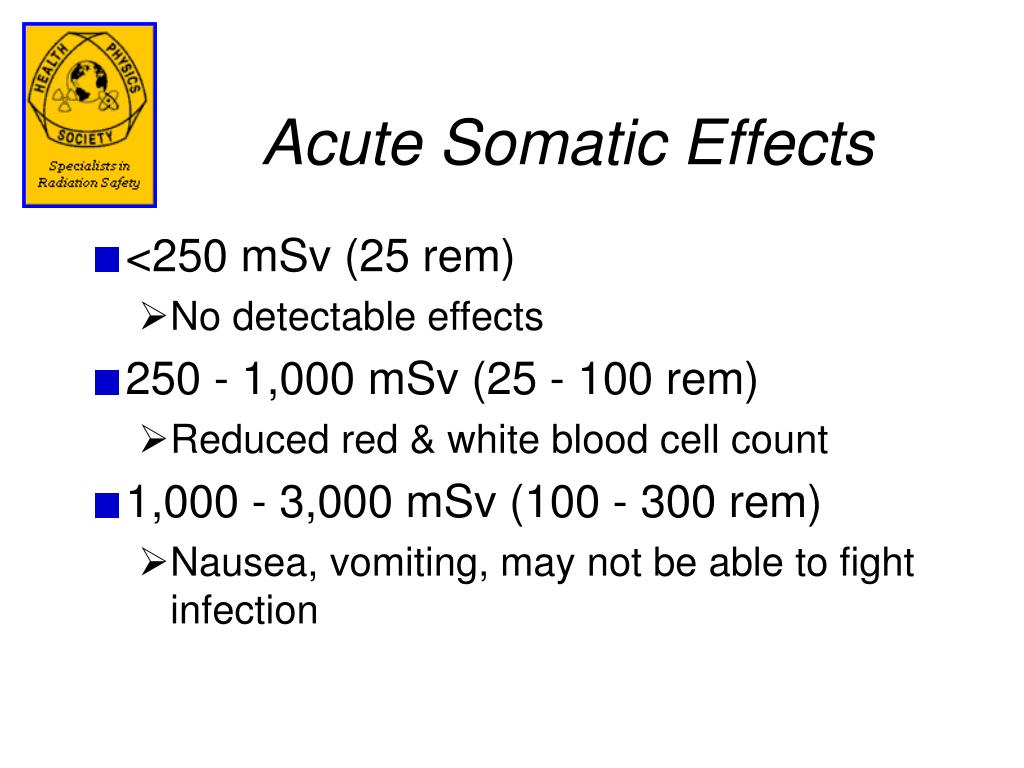

  8. Acute Somatic Effects • <250 mSv (25 rem) • No detectable effects • 250 - 1,000 mSv (25 - 100 rem) • Reduced red & white blood cell count • 1,000 - 3,000 mSv (100 - 300 rem) • Nausea, vomiting, may not be able to fight infection

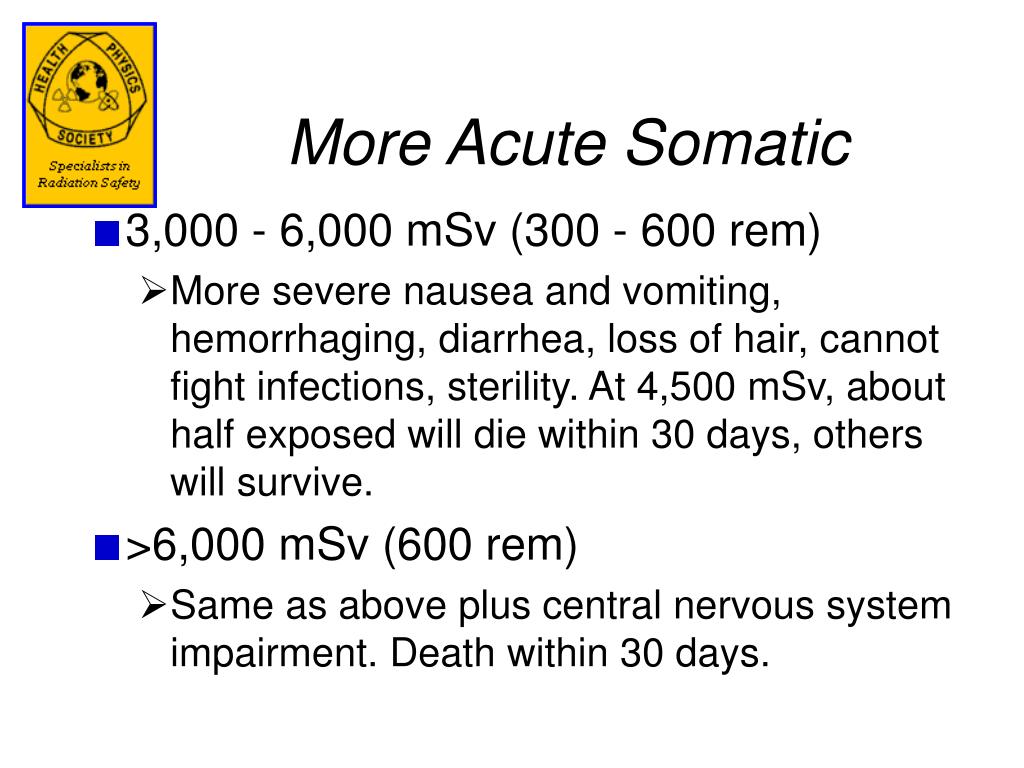

  9. More Acute Somatic • 3,000 - 6,000 mSv (300 - 600 rem) • More severe nausea and vomiting, hemorrhaging, diarrhea, loss of hair, cannot fight infections, sterility. At 4,500 mSv, about half exposed will die within 30 days, others will survive. • >6,000 mSv (600 rem) • Same as above plus central nervous system impairment. Death within 30 days.

  10. Delayed Somatic Effects • 1. Cancer: solid tumors • Increased risk • 2. Cancer: leukemia • Increased risk • 3. Degenerative effects • Life shortening (not sure)

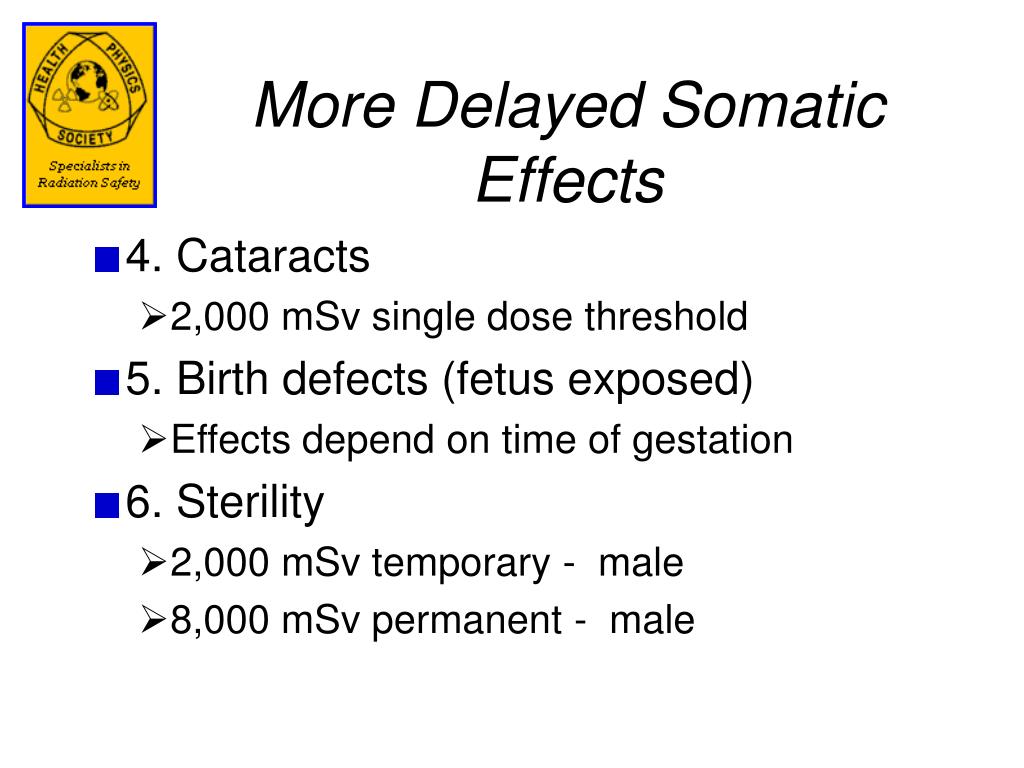

  11. More Delayed Somatic Effects • 4. Cataracts • 2,000 mSv single dose threshold • 5. Birth defects (fetus exposed) • Effects depend on time of gestation • 6. Sterility • 2,000 mSv temporary - male • 8,000 mSv permanent - male

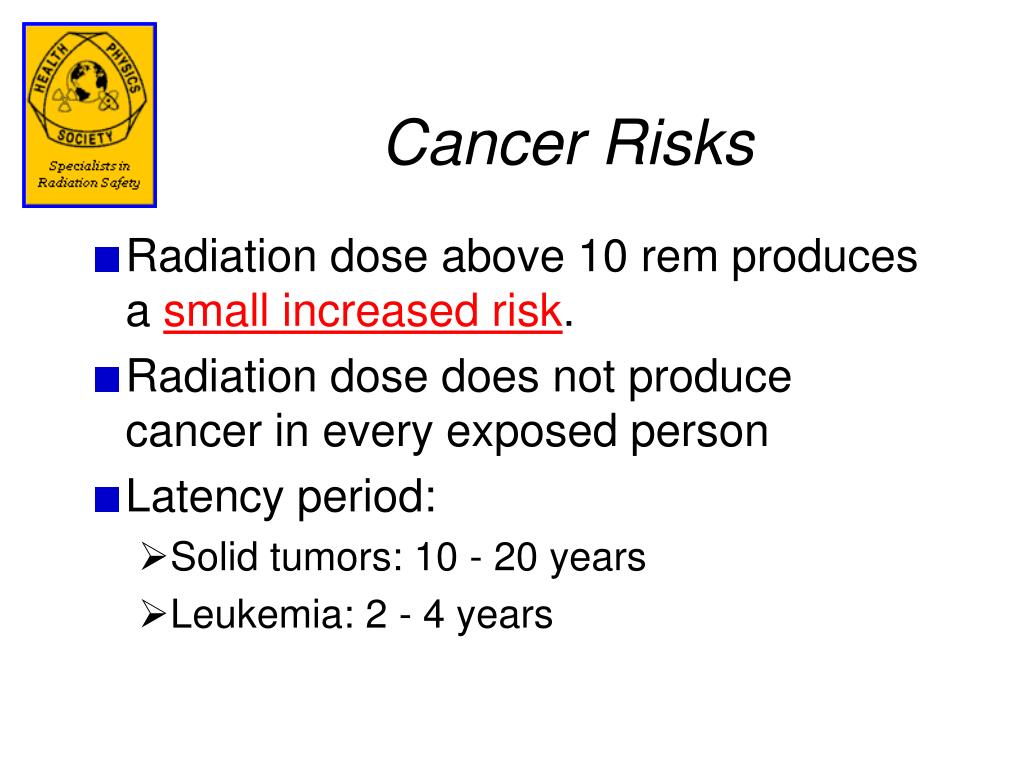

  12. Cancer Risks • Radiation dose above 10 rem produces a small increased risk. • Radiation dose does not produce cancer in every exposed person • Latency period: • Solid tumors: 10 - 20 years • Leukemia: 2 - 4 years

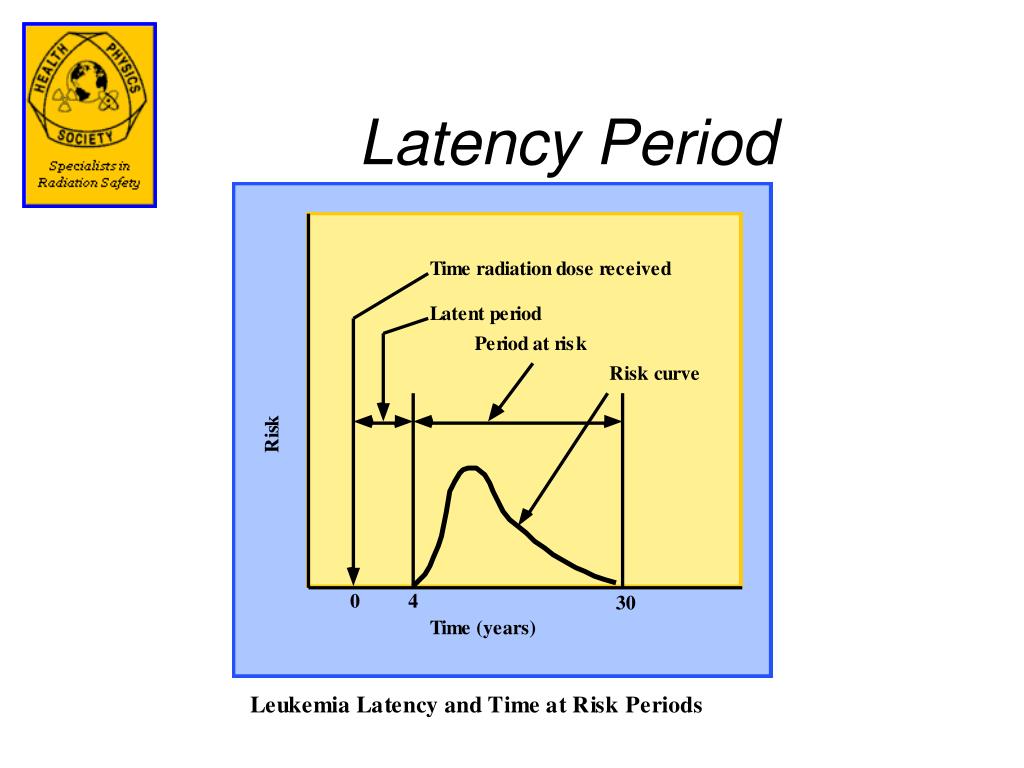

  13. Latency Period

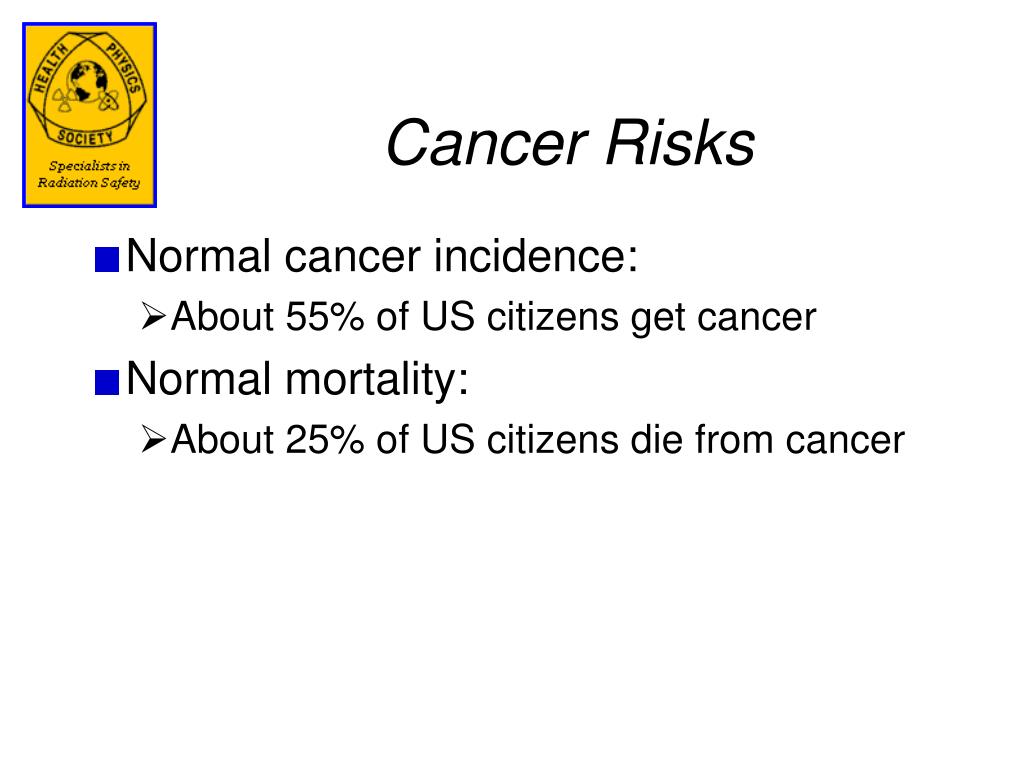

  14. Cancer Risks • Normal cancer incidence: • About 55% of US citizens get cancer • Normal mortality: • About 25% of US citizens die from cancer

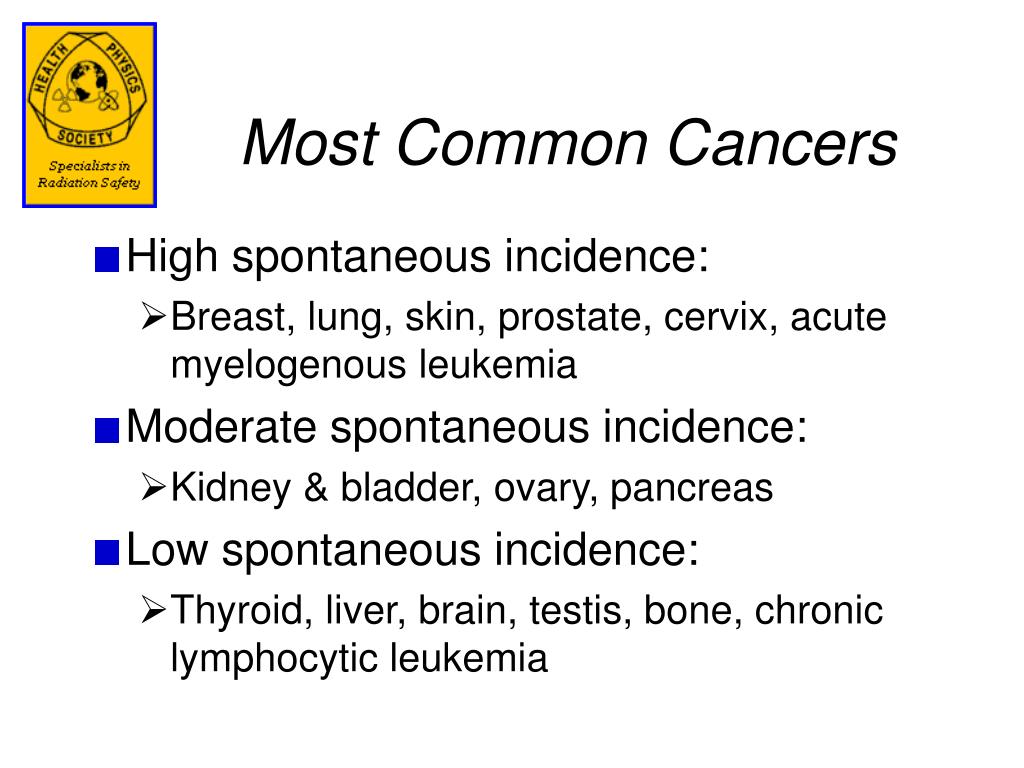

  15. Most Common Cancers • High spontaneous incidence: • Breast, lung, skin, prostate, cervix, acute myelogenous leukemia • Moderate spontaneous incidence: • Kidney & bladder, ovary, pancreas • Low spontaneous incidence: • Thyroid, liver, brain, testis, bone, chronic lymphocytic leukemia

  16. Radiation Induced Cancers • High sensitivity to radiation: • Breast, thyroid, kidney & bladder, ovary, acute myelogenous leukemia • Moderate sensitivity to radiation: • Lung, liver • Low sensitivity to radiation: • Brain, bone, skin, prostate, cervix

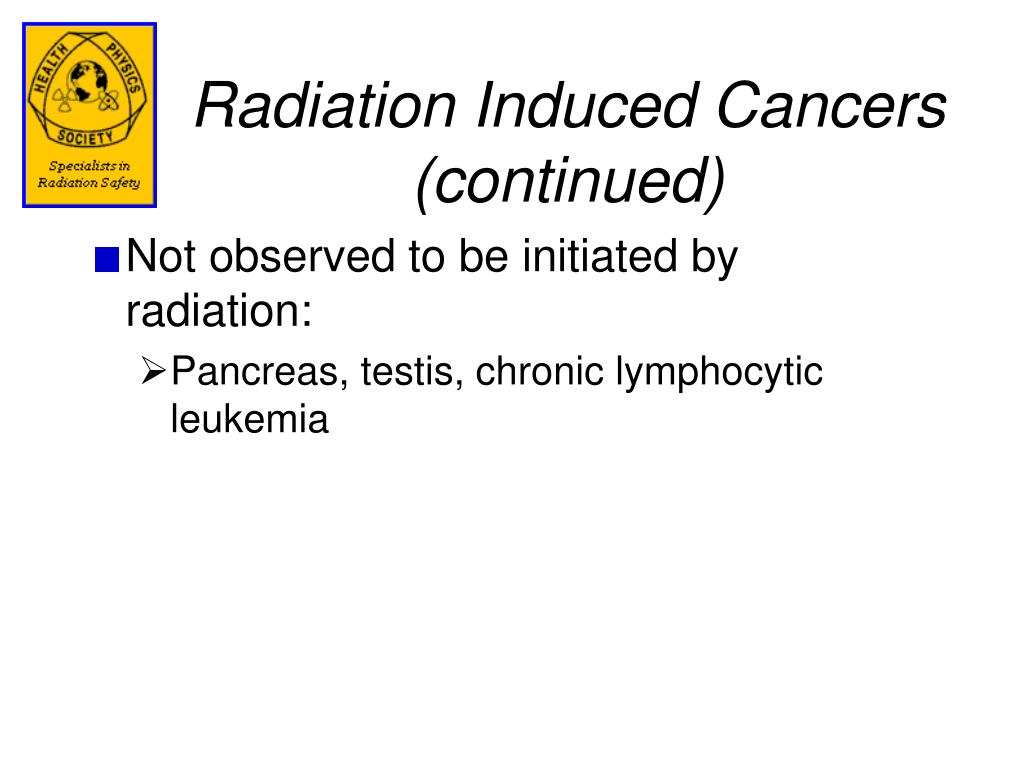

  17. Radiation Induced Cancers (continued) • Not observed to be initiated by radiation: • Pancreas, testis, chronic lymphocytic leukemia

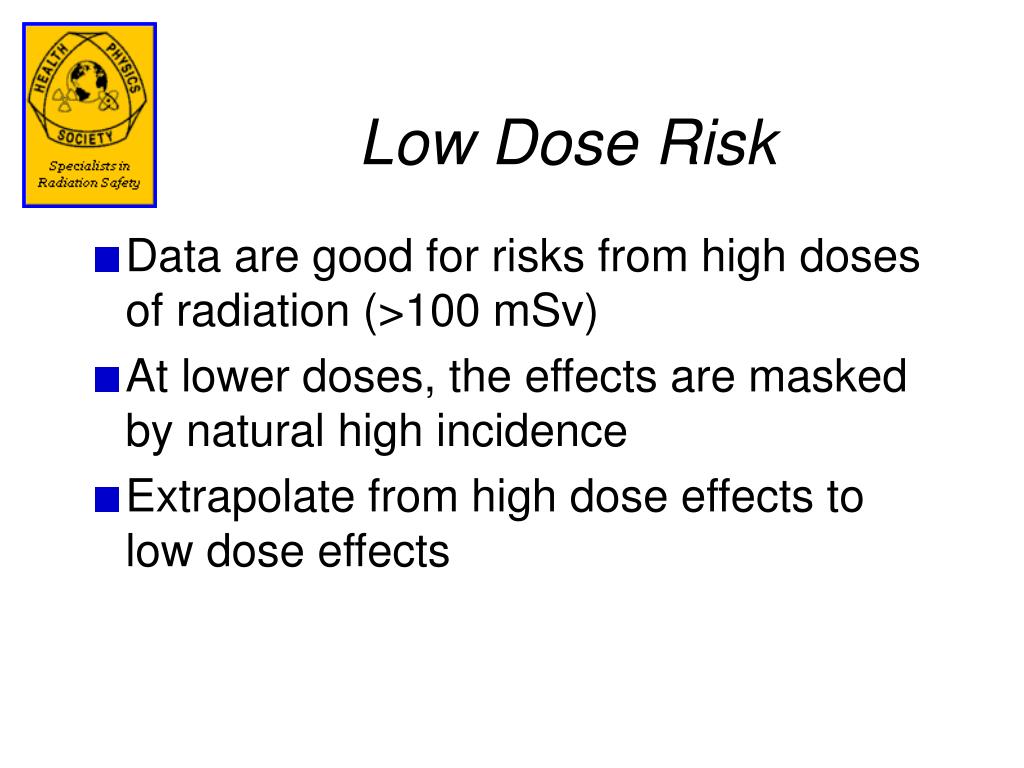

  18. Low Dose Risk • Data are good for risks from high doses of radiation (>100 mSv) • At lower doses, the effects are masked by natural high incidence • Extrapolate from high dose effects to low dose effects

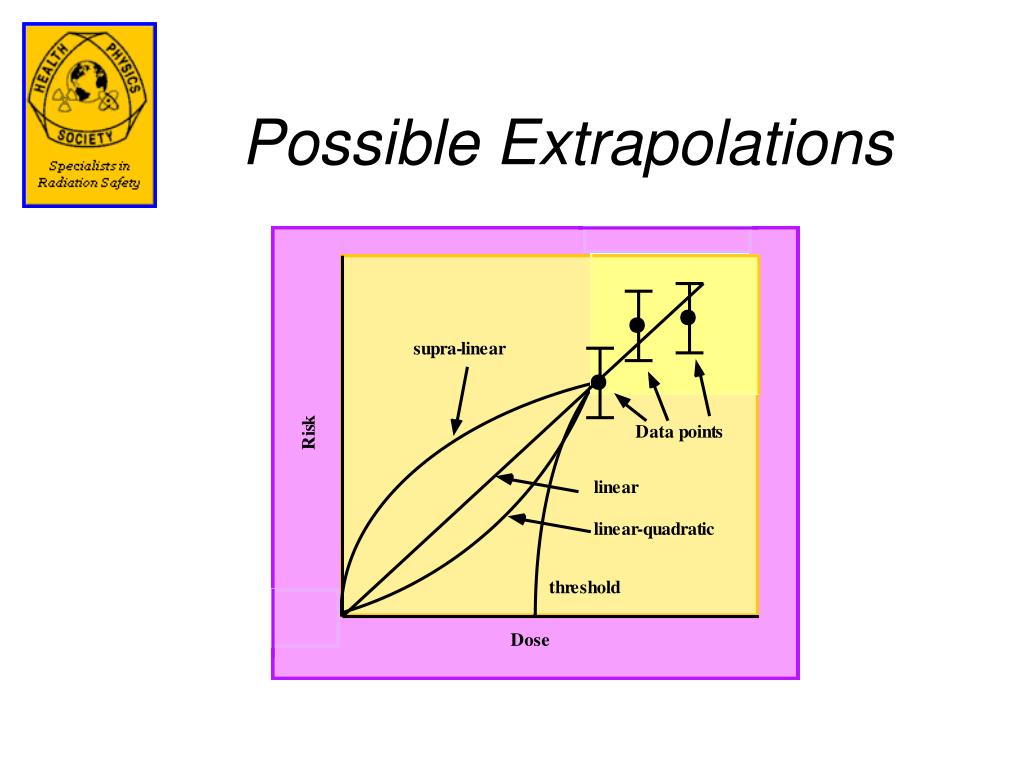

  19. Possible Extrapolations

  20. Supralinear Extrapolation • Some critics claim that the risk per dose is higher at low dose that at high dose • This would mean that natural background is more harmful than high dose medical exposures

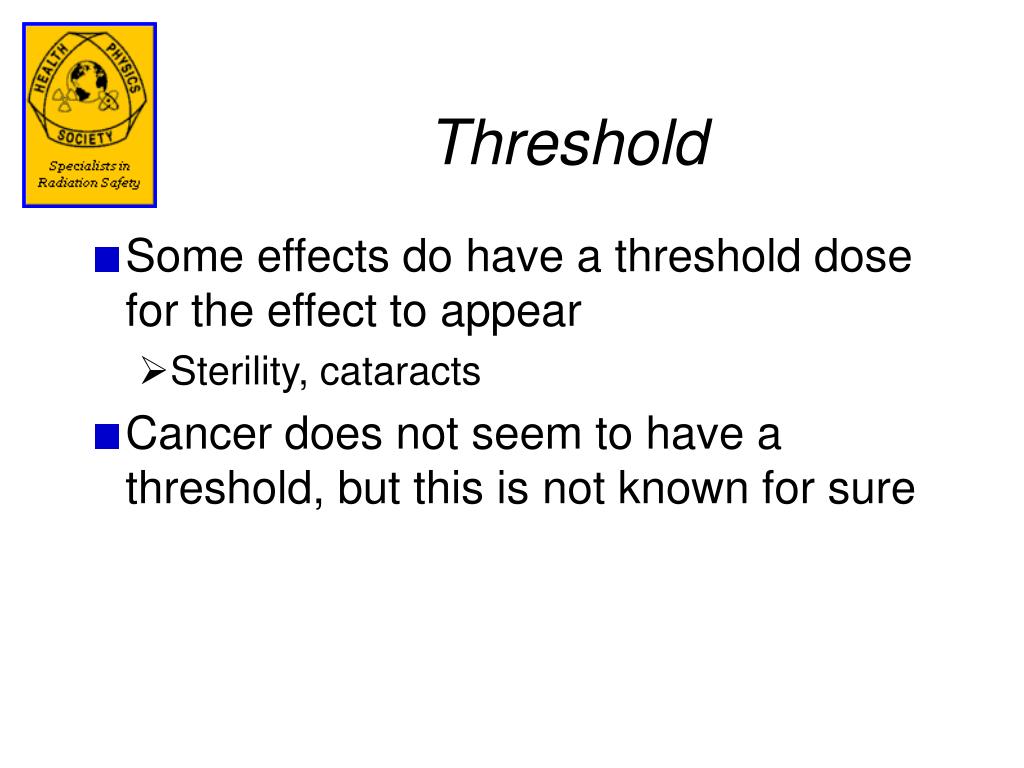

  21. Threshold • Some effects do have a threshold dose for the effect to appear • Sterility, cataracts • Cancer does not seem to have a threshold, but this is not known for sure

  22. Linear-Quadratic • Leukemia seems to obey this extrapolation

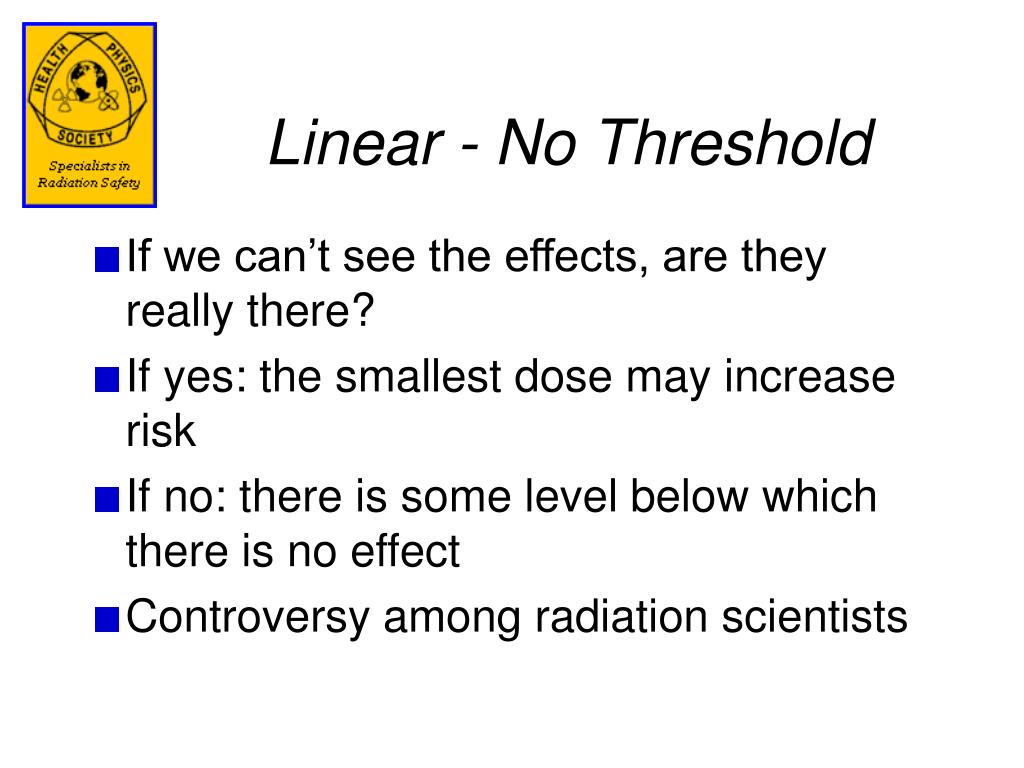

  23. Linear - No Threshold • If we can’t see the effects, are they really there? • If yes: the smallest dose may increase risk • If no: there is some level below which there is no effect • Controversy among radiation scientists

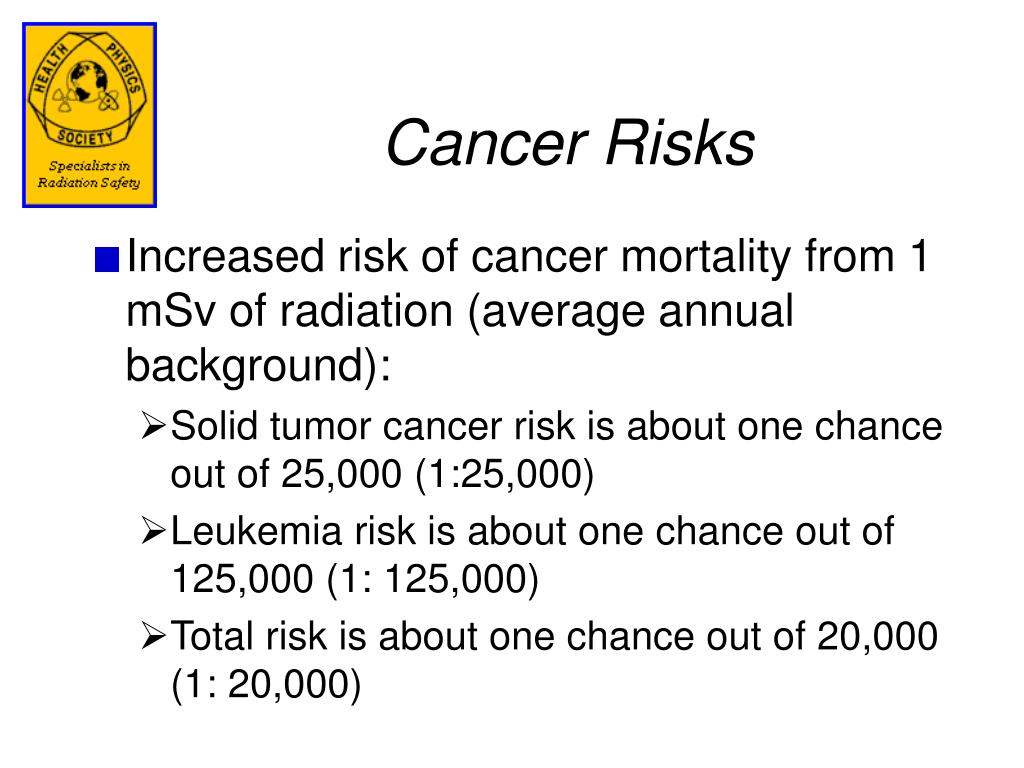

  24. Cancer Risks • Increased risk of cancer mortality from 1 mSv of radiation (average annual background): • Solid tumor cancer risk is about one chance out of 25,000 (1:25,000) • Leukemia risk is about one chance out of 125,000 (1: 125,000) • Total risk is about one chance out of 20,000 (1: 20,000)

  25. Comparative Risks • “Normal” risks we face: • Smoking (lifetime): 1:4 • Police officer: 1:2500 • Agriculture industry (per year): 1:2600 • Vehicle accident (per year): 1:6000 • Falls (per year): 1:20,000 • Home fire (per year): 1:50,000 • Airplane crash (one trip): 1: 1,000,000

  26. What is Safe? • Driving a car is “safe” • (1:6,000) • Living at home is “safe” • (Falls: 1:20,000, Fires: 1:50,000, Poisoning: 1:40,000; total: 1:10,000) • Radiation (1 mSv) is safe • (1:20,000)

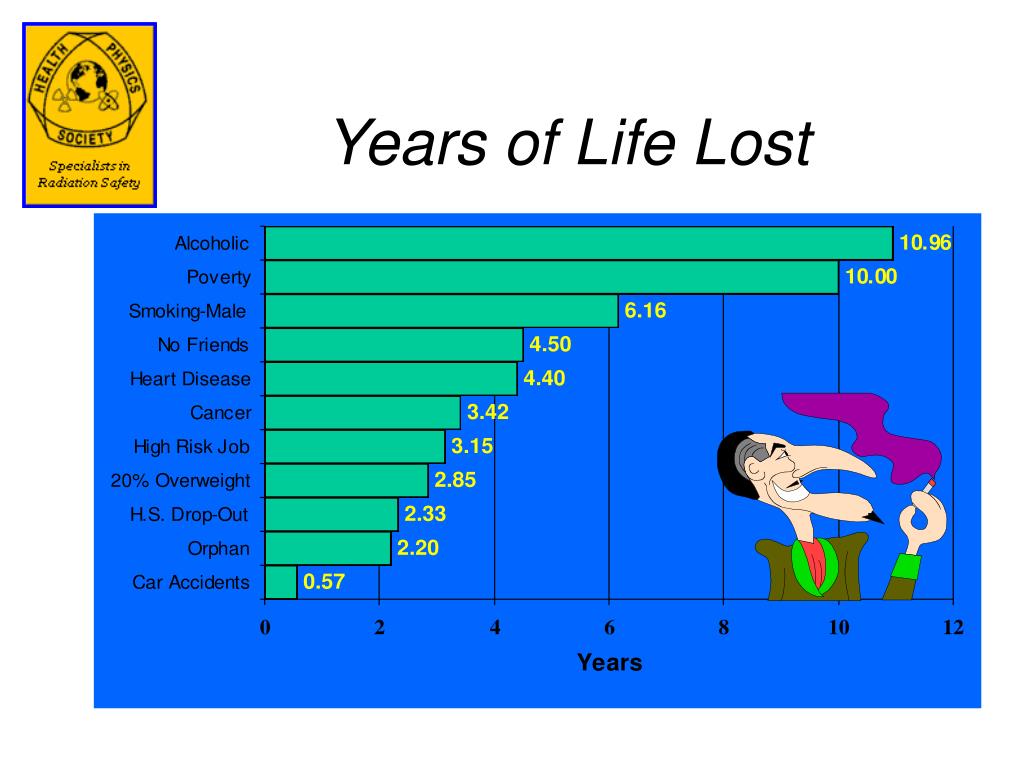

  27. Years of Life Lost

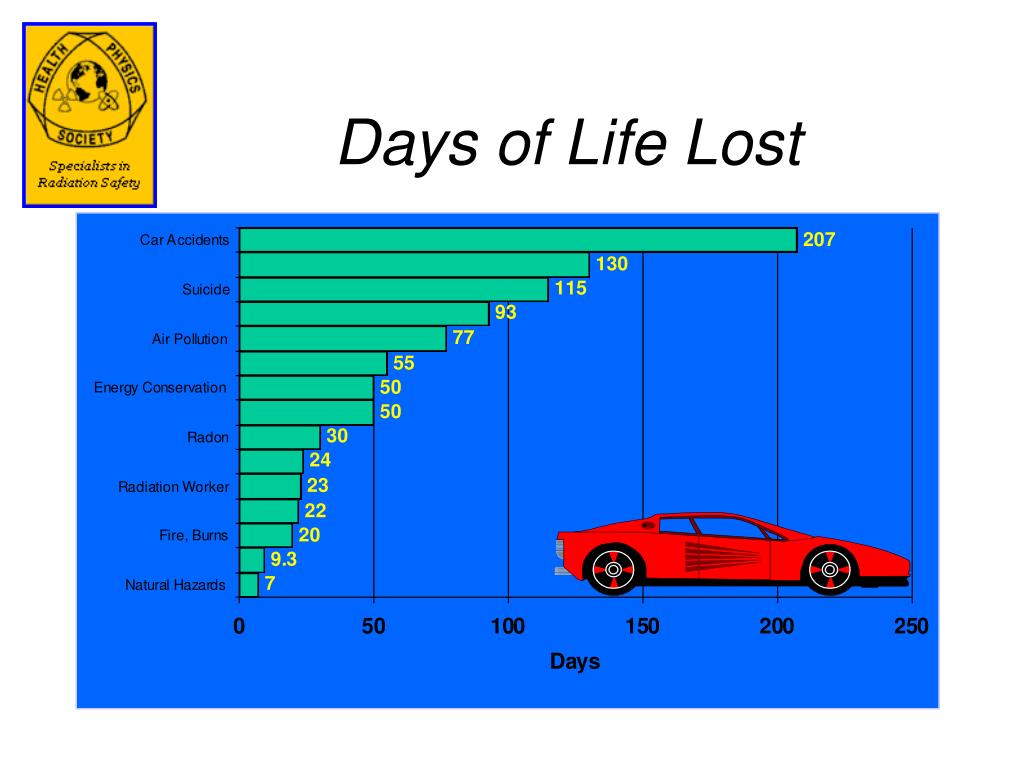

  28. Days of Life Lost

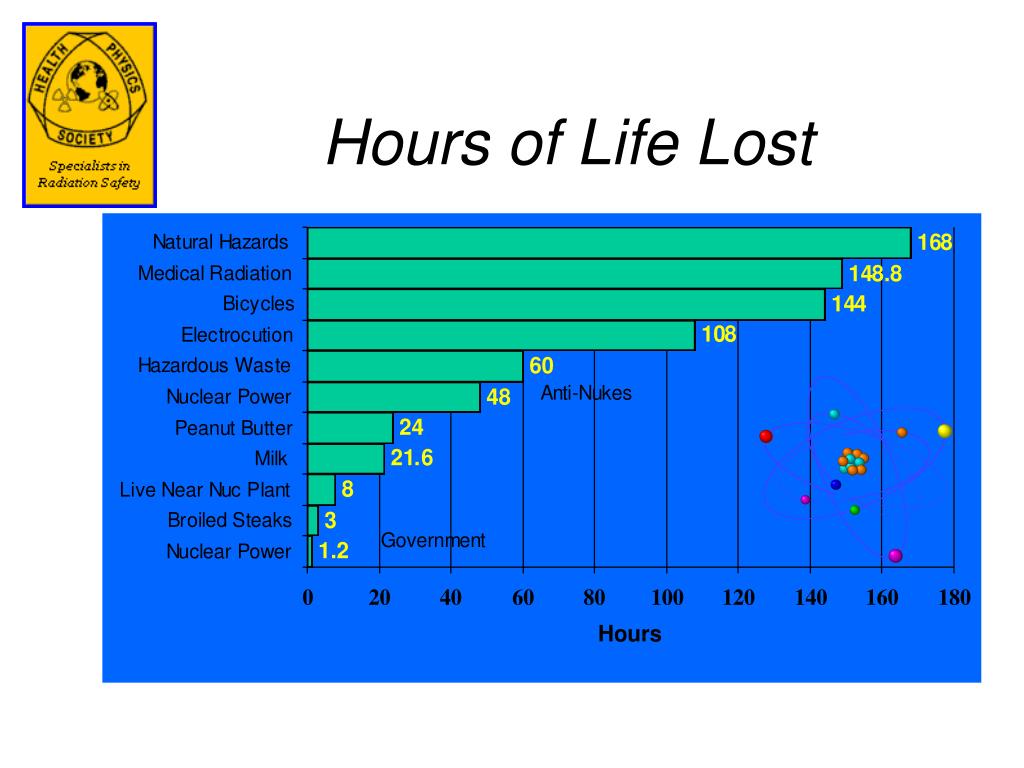

  29. Hours of Life Lost
