  1. SignificantV5 Interface Exchange Requirement Changes

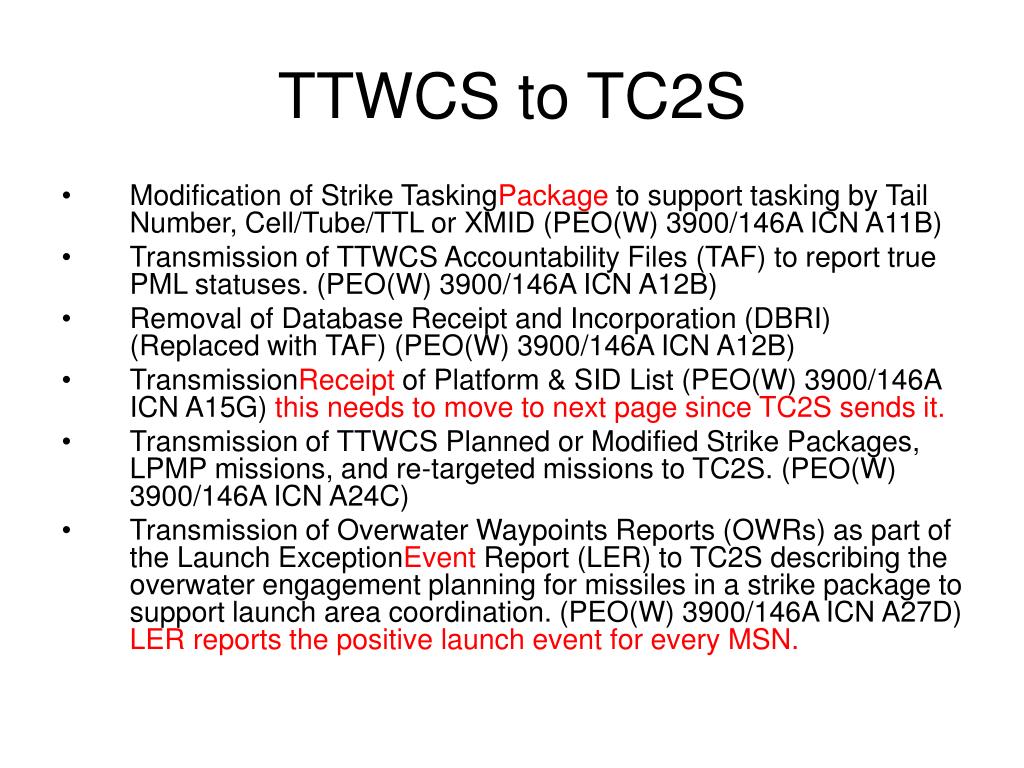

  2. TTWCS to TC2S • Modification of Strike TaskingPackage to support tasking by Tail Number, Cell/Tube/TTL or XMID (PEO(W) 3900/146A ICN A11B) • Transmission of TTWCS Accountability Files (TAF) to report true PML statuses. (PEO(W) 3900/146A ICN A12B) • Removal of Database Receipt and Incorporation (DBRI) (Replaced with TAF) (PEO(W) 3900/146A ICN A12B) • TransmissionReceipt of Platform & SID List (PEO(W) 3900/146A ICN A15G) this needs to move to next page since TC2S sends it. • Transmission of TTWCS Planned or Modified Strike Packages, LPMP missions, and re-targeted missions to TC2S. (PEO(W) 3900/146A ICN A24C) • Transmission of Overwater Waypoints Reports (OWRs) as part of the Launch ExceptionEvent Report (LER) to TC2S describing the overwater engagement planning for missiles in a strike package to support launch area coordination. (PEO(W) 3900/146A ICN A27D) LER reports the positive launch event for every MSN.

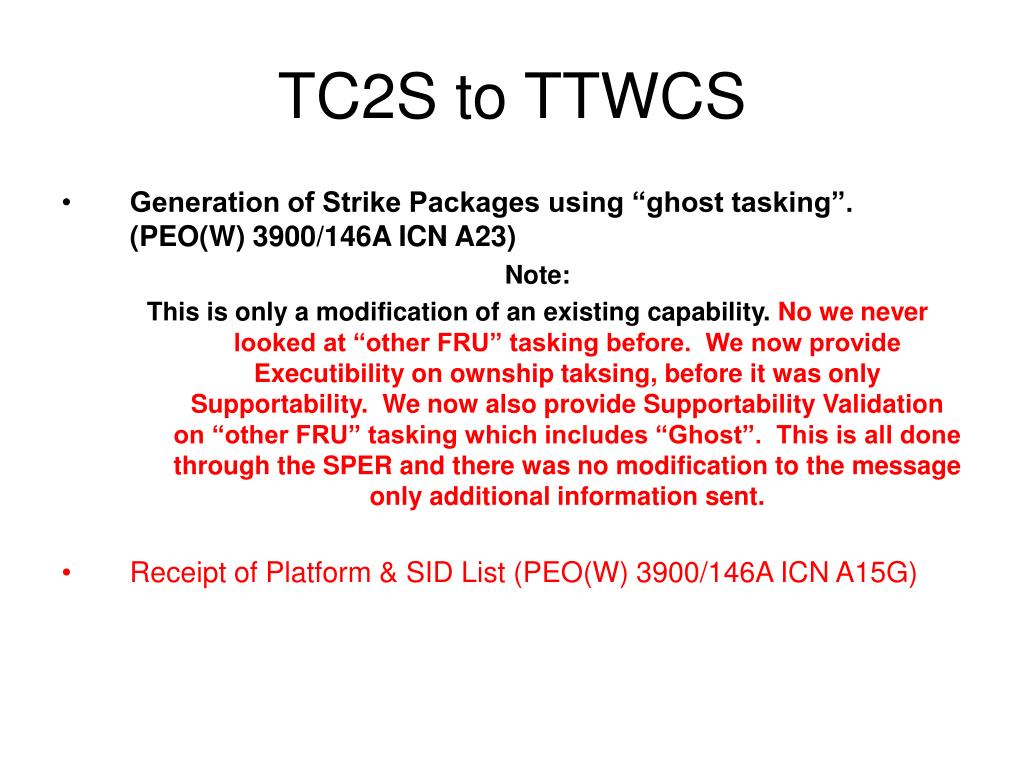

  3. TC2S to TTWCS • Generation of Strike Packages using “ghost tasking”. (PEO(W) 3900/146A ICN A23) Note: This is only a modification of an existing capability. No we never looked at “other FRU” tasking before. We now provide Executibility on ownship taksing, before it was only Supportability. We now also provide Supportability Validation on “other FRU” tasking which includes “Ghost”. This is all done through the SPER and there was no modification to the message only additional information sent. • Receiptof Platform & SID List (PEO(W) 3900/146A ICN A15G)

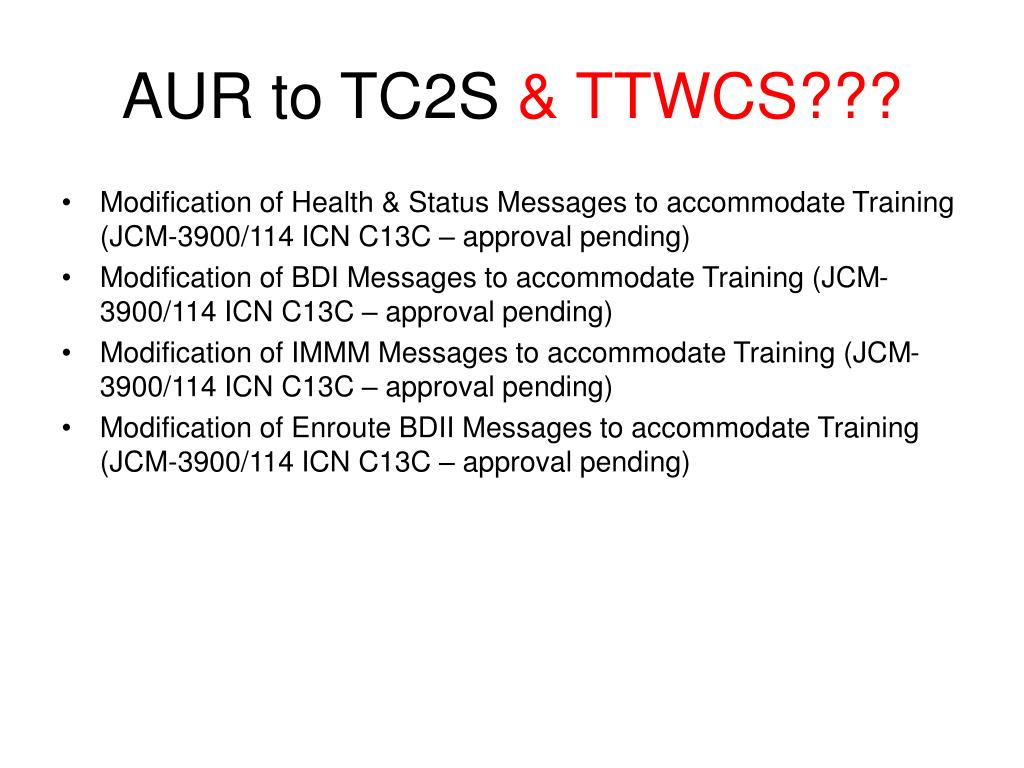

  4. AUR to TC2S & TTWCS??? • Modification of Health & Status Messages to accommodate Training (JCM-3900/114 ICN C13C – approval pending) • Modification of BDI Messages to accommodate Training (JCM-3900/114 ICN C13C – approval pending) • Modification of IMMM Messages to accommodate Training (JCM-3900/114 ICN C13C – approval pending) • Modification of Enroute BDII Messages to accommodate Training (JCM-3900/114 ICN C13C – approval pending)

  5. TTWCS to GCCS-M • Transmit training contact information in OTH Gold format to GCCS-M in support support ITA
