203MHz OR1200 Design with CTS, Power Grid, and DFM Features Integration Presentation

203MHz OR1200 Design with CTS, Power Grid, and DFM Features Integration Presentation Matt Slowik, slowik.matthew@gmail.com VLSI2 12.2.2011 Final Project Directory: /home/projects/courses/fall_11/ee382m-17145/project_fall_11/results/final/ Additional Details:

Download Presentation

203MHz OR1200 Design with CTS, Power Grid, and DFM Features Integration Presentation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 203MHz OR1200 Design with CTS, Power Grid, and DFM Features Integration Presentation Matt Slowik, slowik.matthew@gmail.com VLSI2 12.2.2011 Final Project Directory: • /home/projects/courses/fall_11/ee382m-17145/project_fall_11/results/final/ • Additional Details: • /home/projects/courses/fall_11/ee382m-17145/project_fall_11/results/final/README

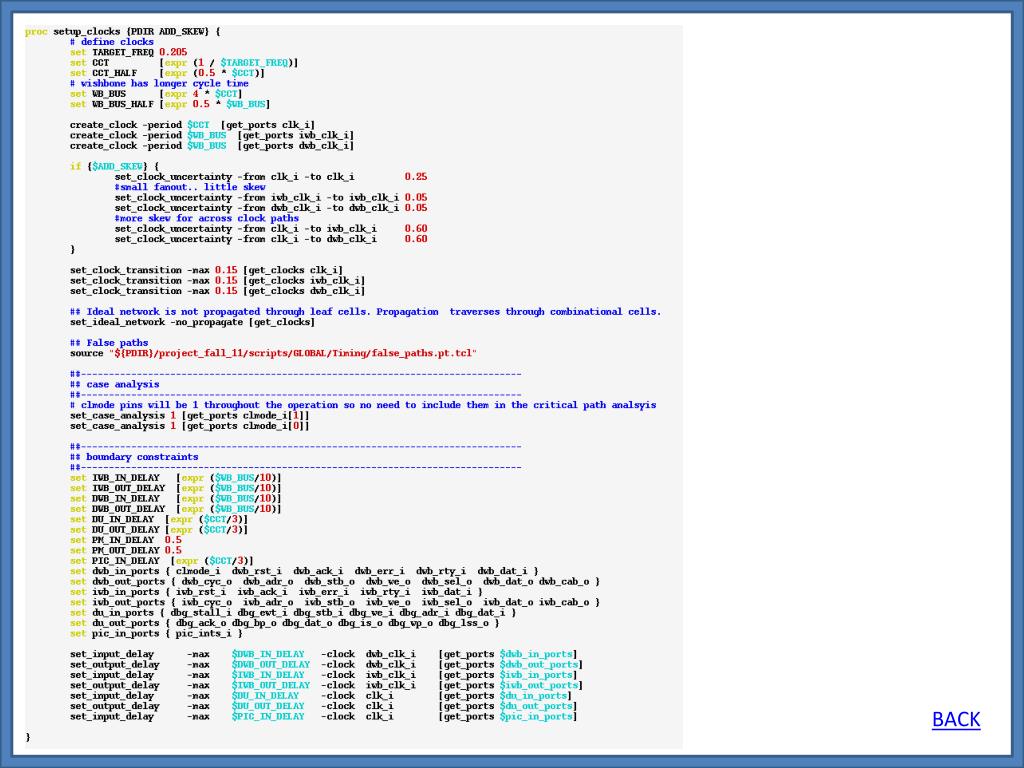

  2. icc.flow.tcl – Top level OR1200 APR Script <- SETUP LIBS <- TECHNOLOGY DESCRIPTION <- SETUP CLOCKS <- REMOVE EMPTY PORTS

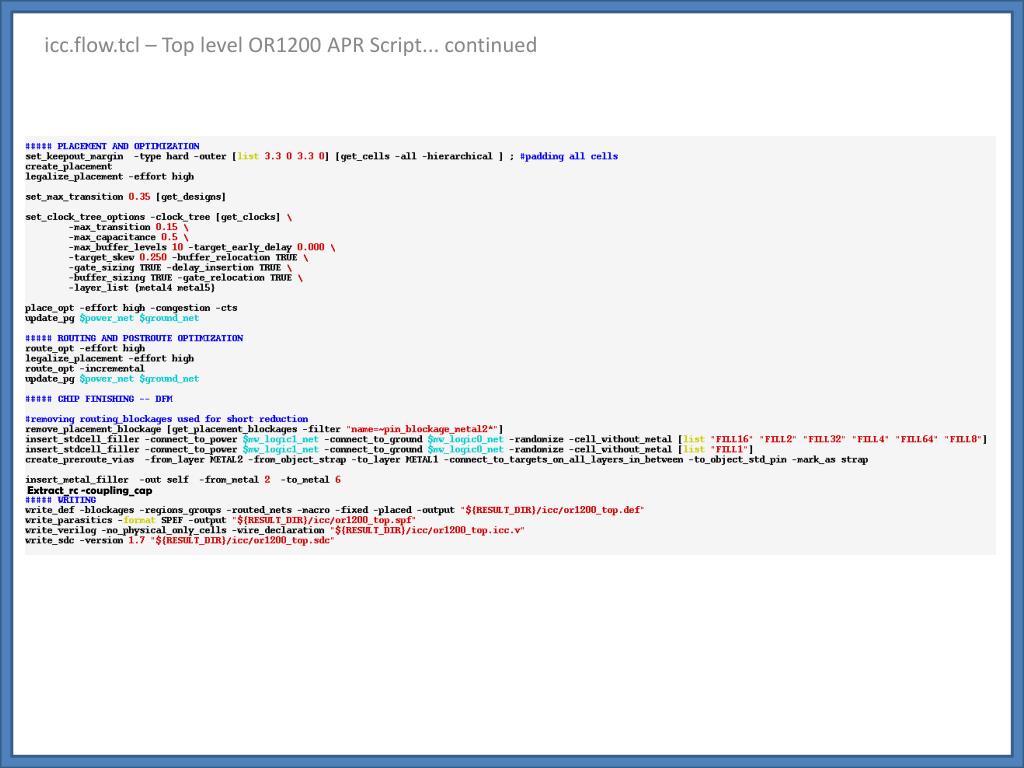

  3. icc.flow.tcl – Top level OR1200 APR Script... continued <- UPDATE_PG Extract_rc -coupling_cap

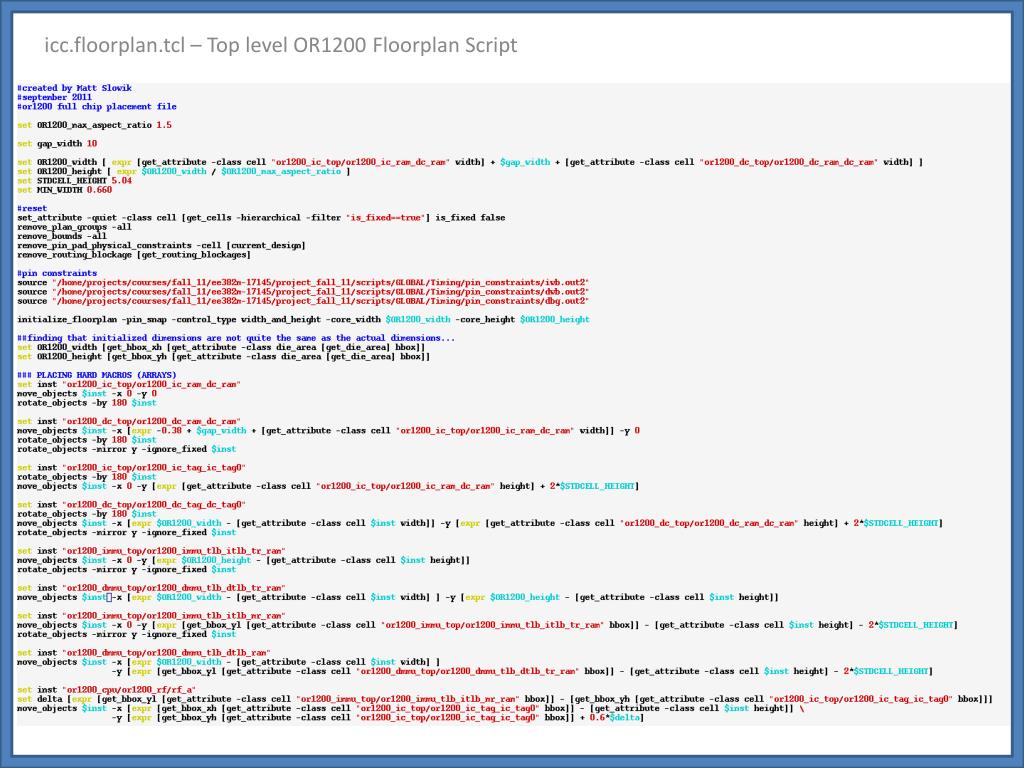

  4. icc.floorplan.tcl – Top level OR1200 Floorplan Script

  5. icc.floorplan.tcl – Top level OR1200 Floorplan Script… continued

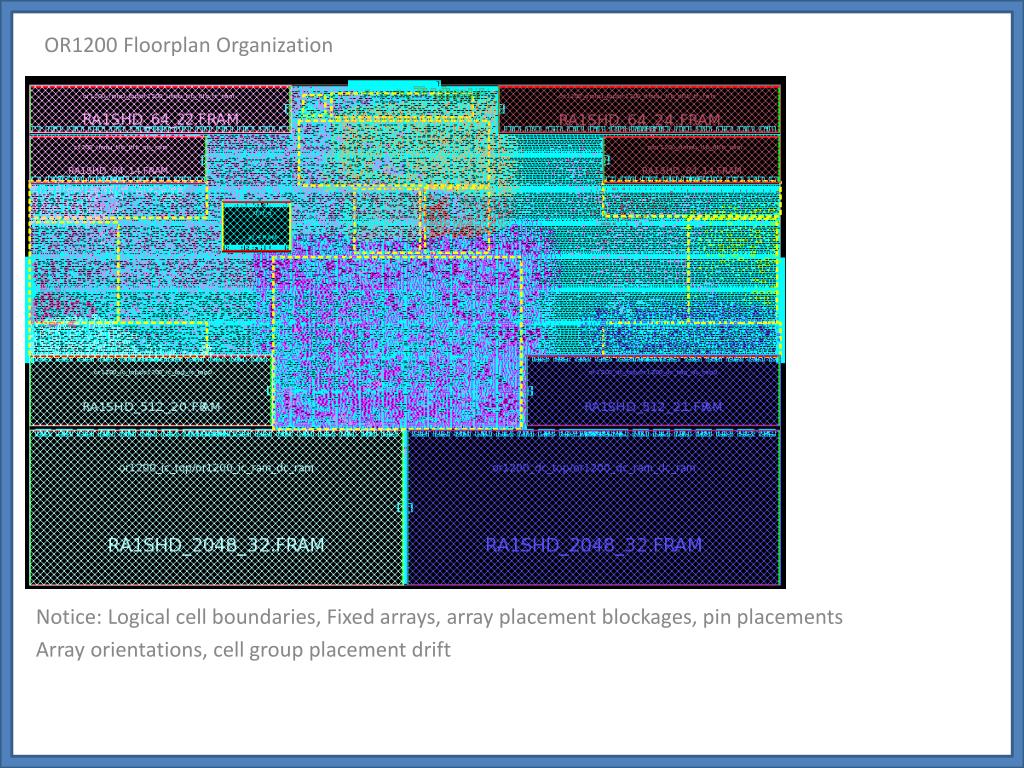

  6. OR1200 Floorplan Organization Notice: Logical cell boundaries, Fixed arrays, array placement blockages, pin placements Array orientations, cell group placement drift

  7. OR1200 Floorplan Organization.. Continued • # flattening some hierarchies -- this is needed to converge stall paths • current_design "or1200_mult_mac" • ungroup -flatten -all • current_design "or1200_lsu" • ungroup -flatten -all • current_design "or1200_ic_top" • ungroup -flatten -all • current_design "or1200_dc_top" • ungroup -flatten -all • current_design "or1200_dmmu_top" • ungroup -flatten -all • current_design "or1200_immu_top" • ungroup -flatten -all • current_design "or1200_top" • ungroup [get_cells -hierarchical or1200_genpc] • ungroup [get_cells -hierarchical or1200_freeze] • ungroup [get_cells -hierarchical or1200_sprs] • ungroup [get_cells -hierarchical or1200_except] • ungroup [get_cells -hierarchical or1200_ctrl] • ungroup [get_cells -hierarchical or1200_if] • ungroup [get_cells -hierarchical or1200_lsu] • Notice the slim vertical placement blockages…

  8. OR1200 Power Grid Idea #1 Idea #2 Idea#2 has twice the number of vias for each VDD and VSS supply, while using half the vertical routing tracks. Used idea#2 to keep be able to route the design cleanly at 3.1mm^2 and to satisfy current density constraints. Icc.powergird.tcl file script used to implement Idea#2

  9. icc.powergrid.tcl – Power Grid Script <- Sparse, but satisfies constraints from Mostafa’s via current densities

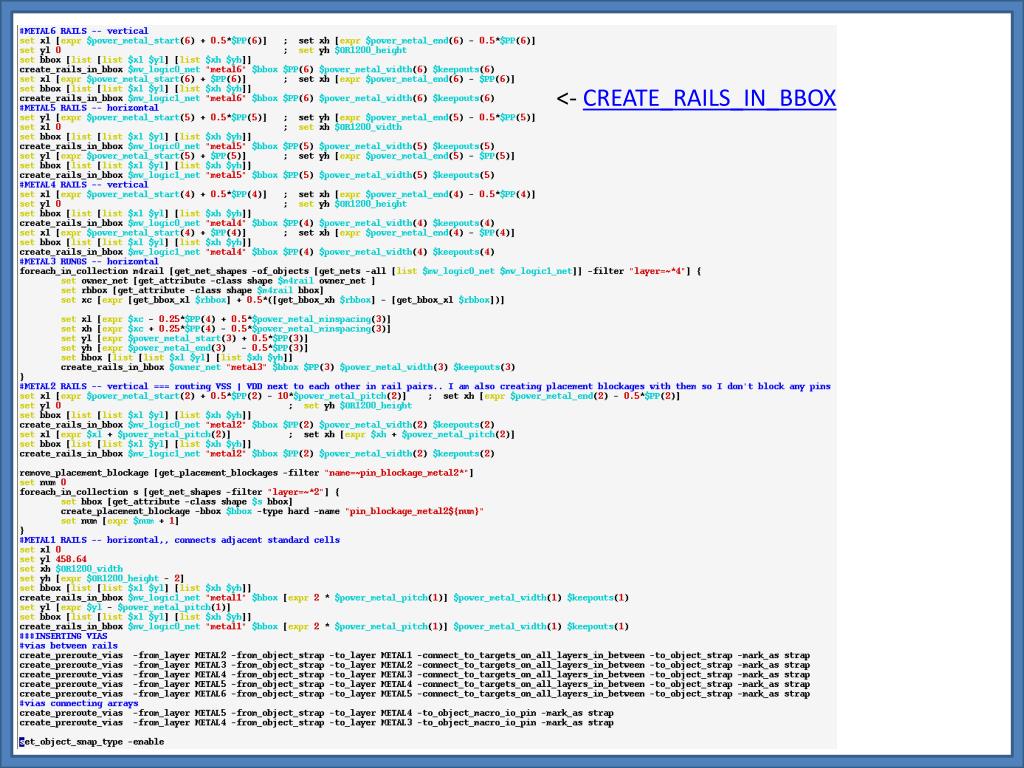

  10. <- CREATE_RAILS_IN_BBOX

  11. Power Grid Visual

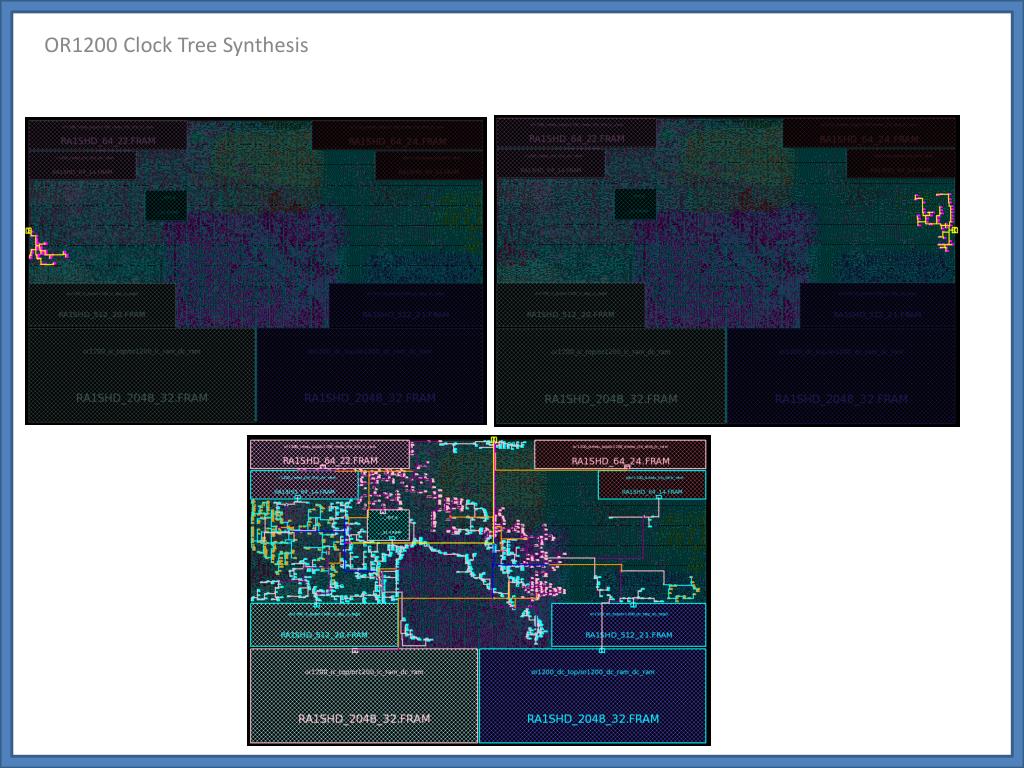

  12. OR1200 Clock Tree Synthesis

  13. OR1200 Area Audit • icc_shell> set OR1200_width [get_bbox_xh [get_attribute -class die_area [get_die_area] bbox]] • 2164.140 • icc_shell> set OR1200_height [get_bbox_yh [get_attribute -class die_area [get_die_area] bbox]] • 1441.440 • icc_shell> set AREA [expr $OR1200_width * $OR1200_height] • 3119477.9616 • This corresponds to 3.119mm^2 << 4mm^2 goal

  14. OR1200 LVS/DRC Audit Ran verify_lvs with the “ignore_floating_port” switch This is because sequential cells in the library output Q and QN even though the design does not require it (thus leaving them floating in the layout)

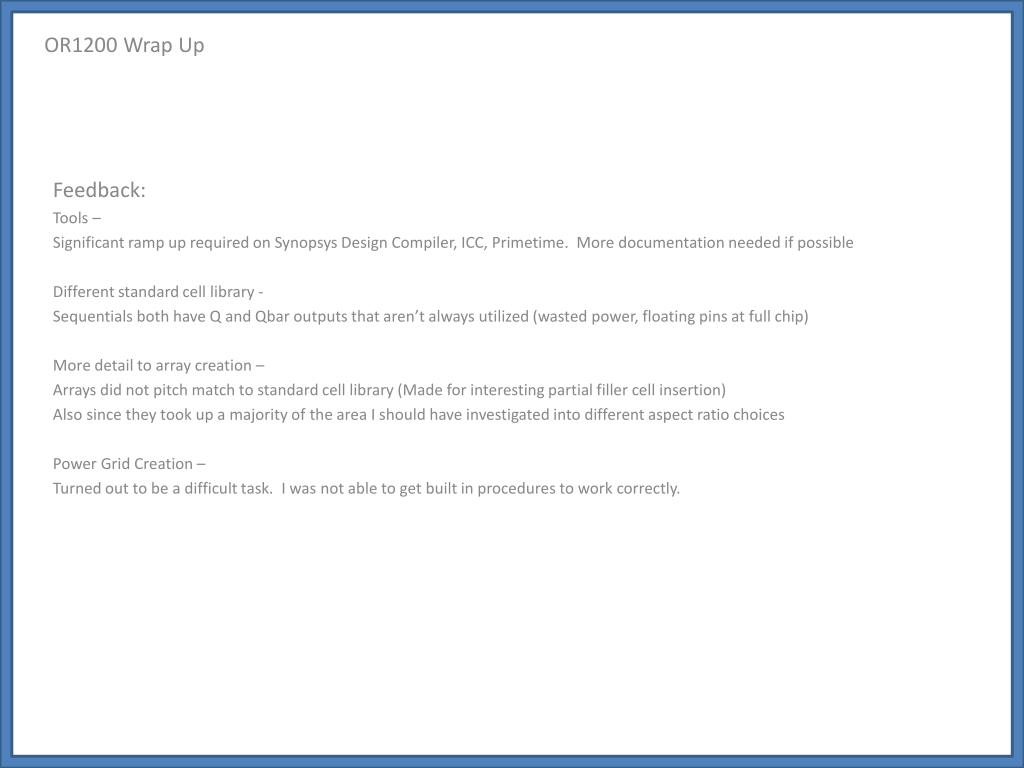

  15. OR1200 Wrap Up Feedback: Tools – Significant ramp up required on Synopsys Design Compiler, ICC, Primetime. More documentation needed if possible Different standard cell library - Sequentials both have Q and Qbar outputs that aren’t always utilized (wasted power, floating pins at full chip) More detail to array creation – Arrays did not pitch match to standard cell library (Made for interesting partial filler cell insertion) Also since they took up a majority of the area I should have investigated into different aspect ratio choices Power Grid Creation – Turned out to be a difficult task. I was not able to get built in procedures to work correctly.

  16. BACKUP

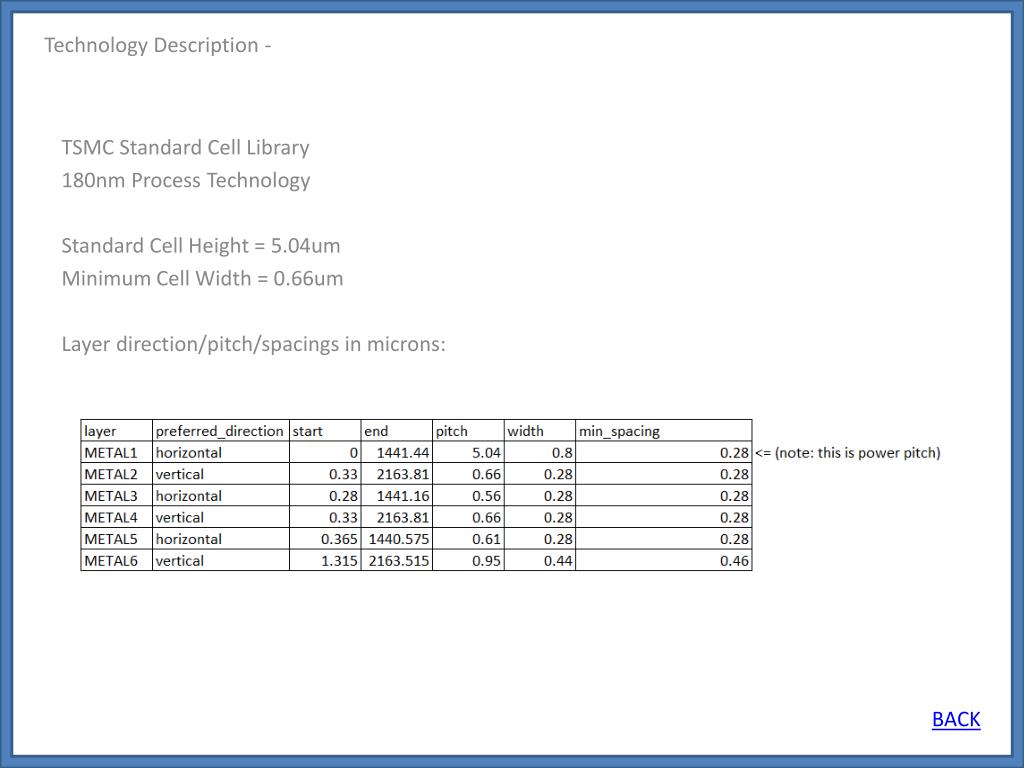

  17. Technology Description - TSMC Standard Cell Library 180nm Process Technology Standard Cell Height = 5.04um Minimum Cell Width = 0.66um Layer direction/pitch/spacings in microns: BACK

  18. BACK BACK <- CREATE_RAIL_STUBS

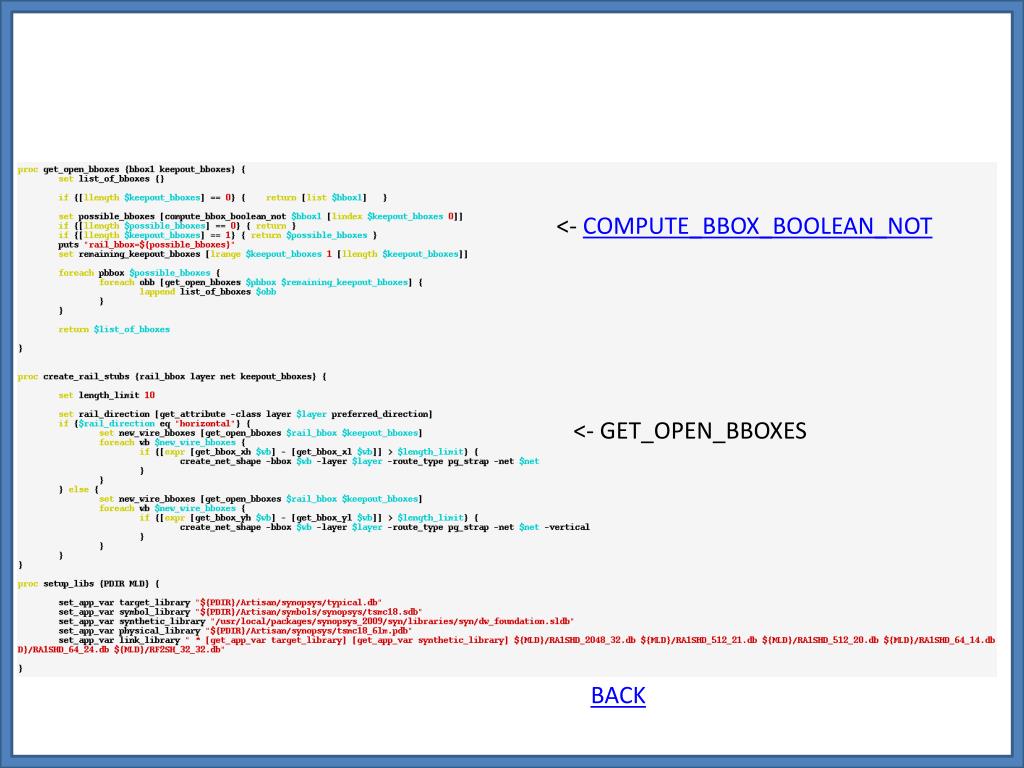

  19. <- COMPUTE_BBOX_BOOLEAN_NOT <- GET_OPEN_BBOXES BACK

  20. BACK

  21. BACK
