  1. Evolutionary Structural Optimisation Lectures notes modified from Alicia Kim, University of Bath, UK and Mike Xie RMIT Australia

  2. KKT Conditions for Topology Optimisation

  3. KKT Conditions (cont’d) • Strain energy density should be constant throughout the design domain • Similar to fully-stressed design. • Need to compute strain energy density  Finite Element Analysis

  4. Evolutionary Structural Optimisation (ESO) • Fully-stressed design – von Mises stress as design sensitivity. • Total strain energy = hydrostatic + deviatoric (deviatoric component usually dominant in most continuum) • Von Mises stress represents the deviatoric component of strain energy. • Removes low stress material and adds material around high stress regions  descent method • Design variables: finite elements (binary discrete)

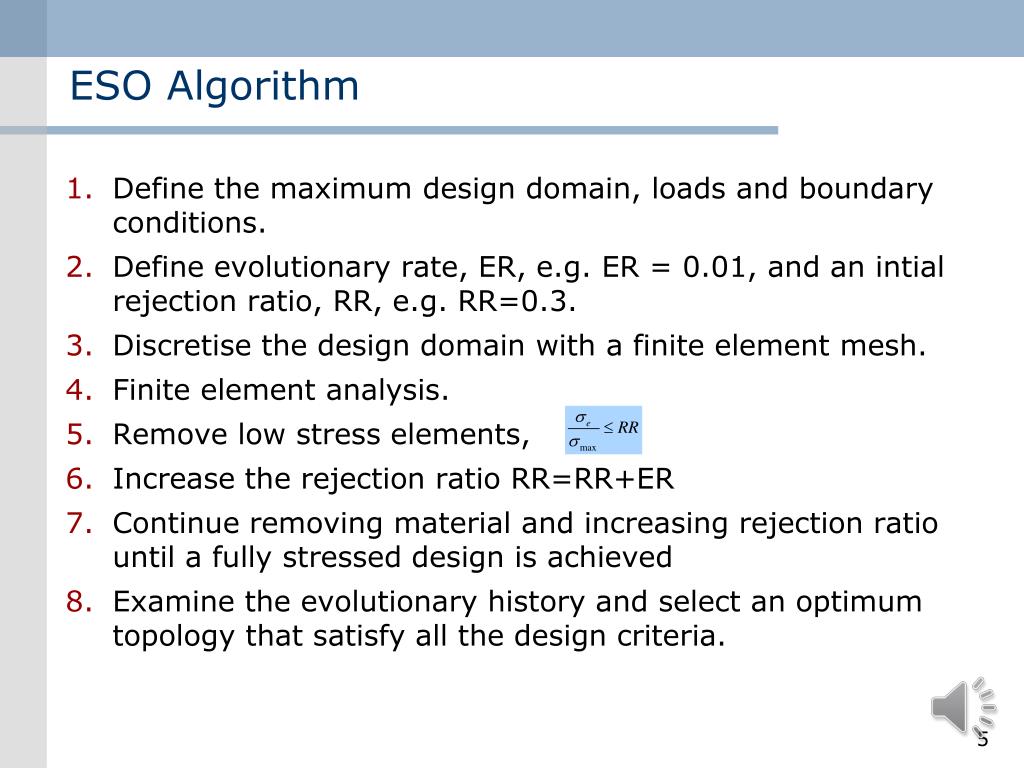

  5. ESO Algorithm • Define the maximum design domain, loads and boundary conditions. • Define evolutionary rate, ER, e.g. ER = 0.01, and an intial rejection ratio, RR, e.g. RR=0.3. • Discretise the design domain with a finite element mesh. • Finite element analysis. • Remove low stress elements, • Increase the rejection ratio RR=RR+ER • Continue removing material and increasing rejection ratio until a fully stressed design is achieved • Examine the evolutionary history and select an optimum topology that satisfy all the design criteria.

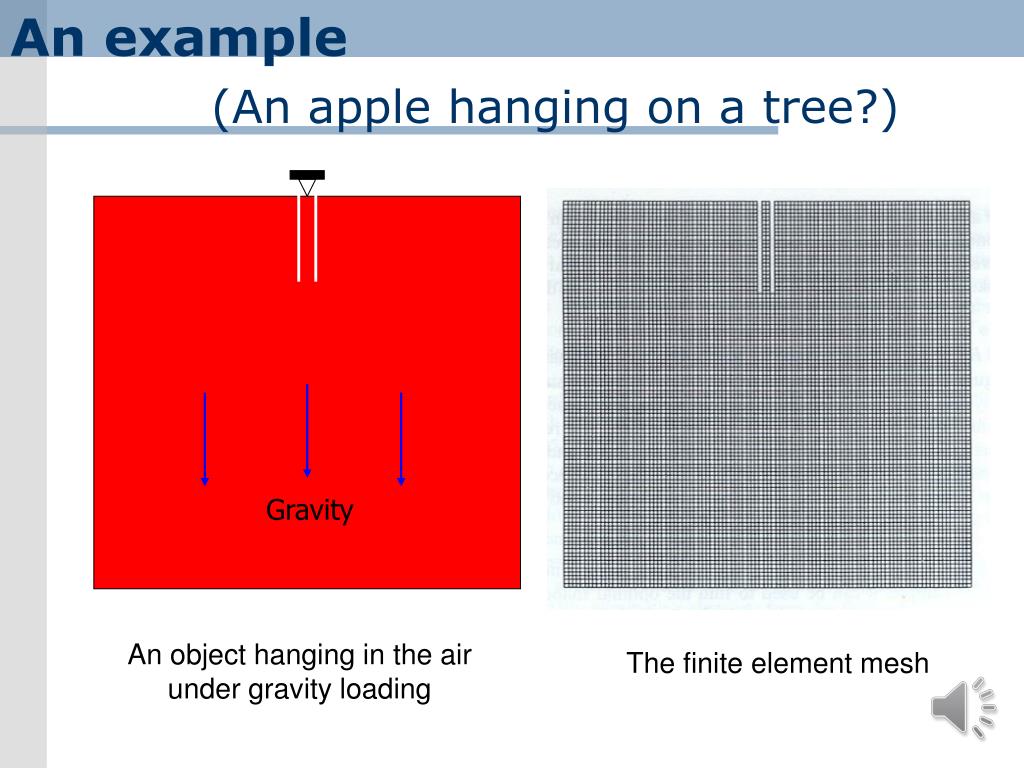

  6. An example(An apple hanging on a tree?) Gravity An object hanging in the air under gravity loading The finite element mesh

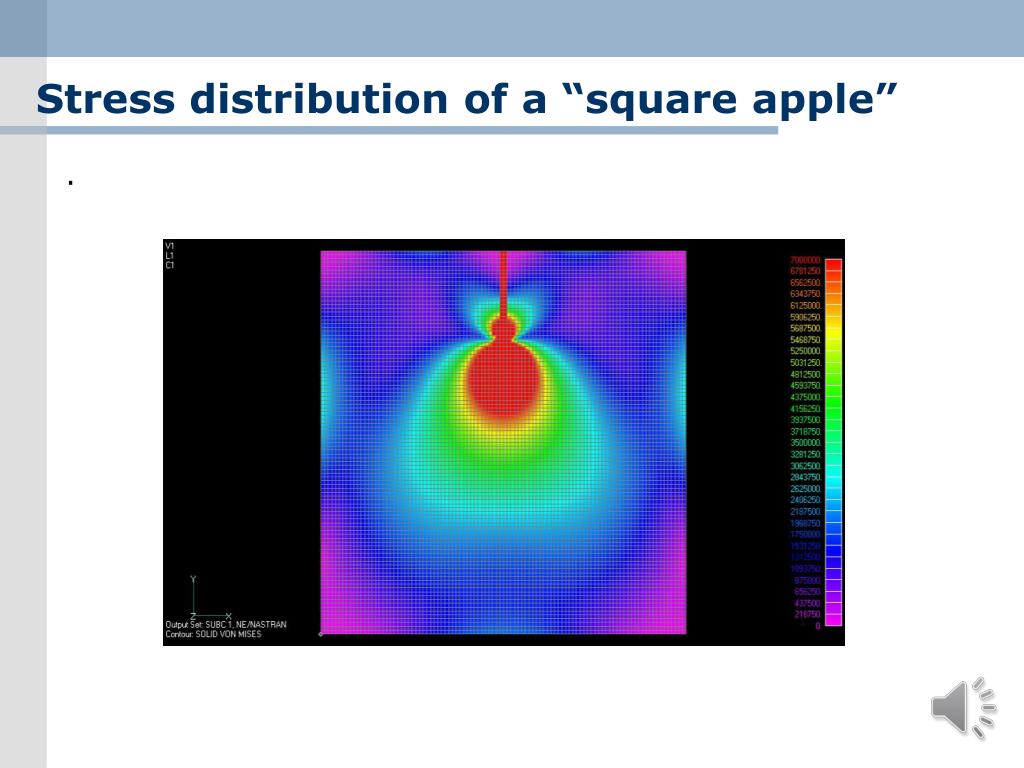

  7. Stress distribution of a “square apple” .

  8. Evolution of the object .

  9. Comparison of stress distributions . movie

  10. Problems ESO • What is common and what is different between SIMP based topology optimization and ESO? • What do you perceive as the pros and cons of ESO compared to SIMP? • Use ESO to design the MBB beam by modifying the 99 line topology optimization program. Compare to the solution produced by top.m

  11. Chequerboard Formation • Numerical instability due to discretisation. • Closely linked to mesh dependency. • Piecewise linear displacement field vs. piecewise constant design update

  12. Topology Optimisation using Level-Set Function • Design update is achieved by moving the boundary points based on their sensitivities • Normal velocity of the boundary points are proportional to the sensitivities (ESO concept) • Move inwards to remove material if sensitivities are low • Move outwards to add material if sensitivities are high • Move limit is usually imposed (within an element size) to ensure stability of algorithm • Holes are usually inserted where sensitivities are low (often by using topological derivatives, proportional to strain energy) • Iteration continued until near constant strain energy/stress is reached.

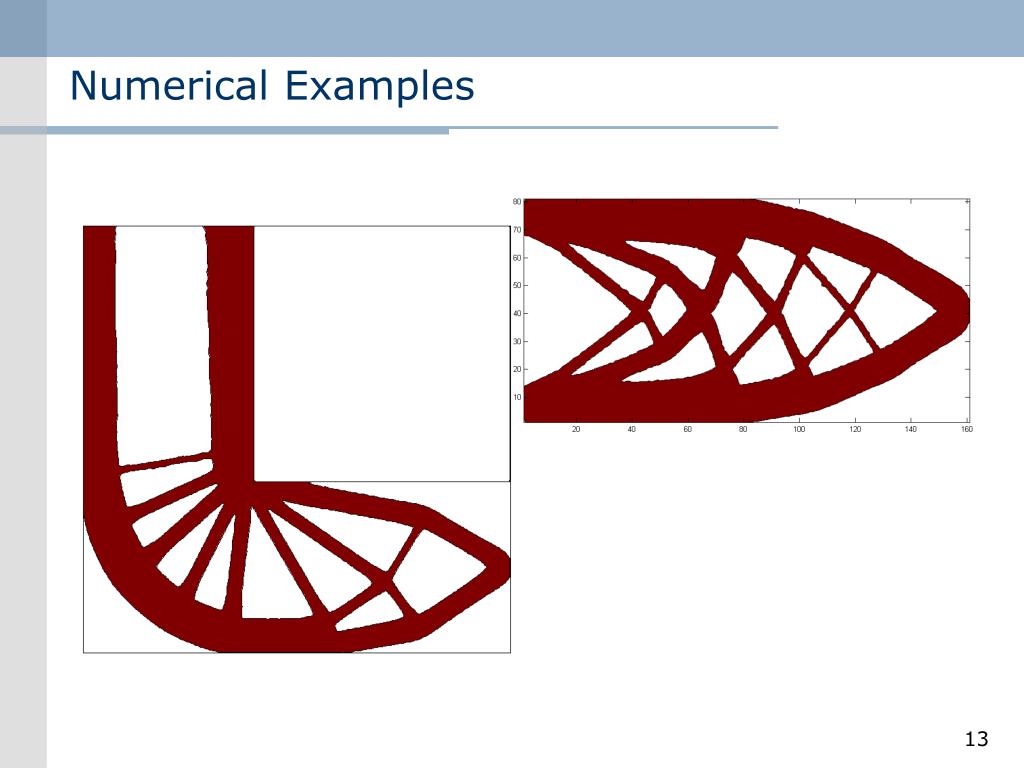

  13. Numerical Examples

  14. 720 477 24 Uniform Temperature P Thermoelastic problems • Both temperature and mechanical loadings • FE Heat Analysis to determine the temperature distribution • Thermoelastic FEA to determine stress distribution due to temperature • Then ESO using these stress values Design Domain

  15. Plate with clamped sides and central load

  16. Group ESO • Group a set of finite elements • Modification is applied to the entire set • Applicable to configuration optimisation

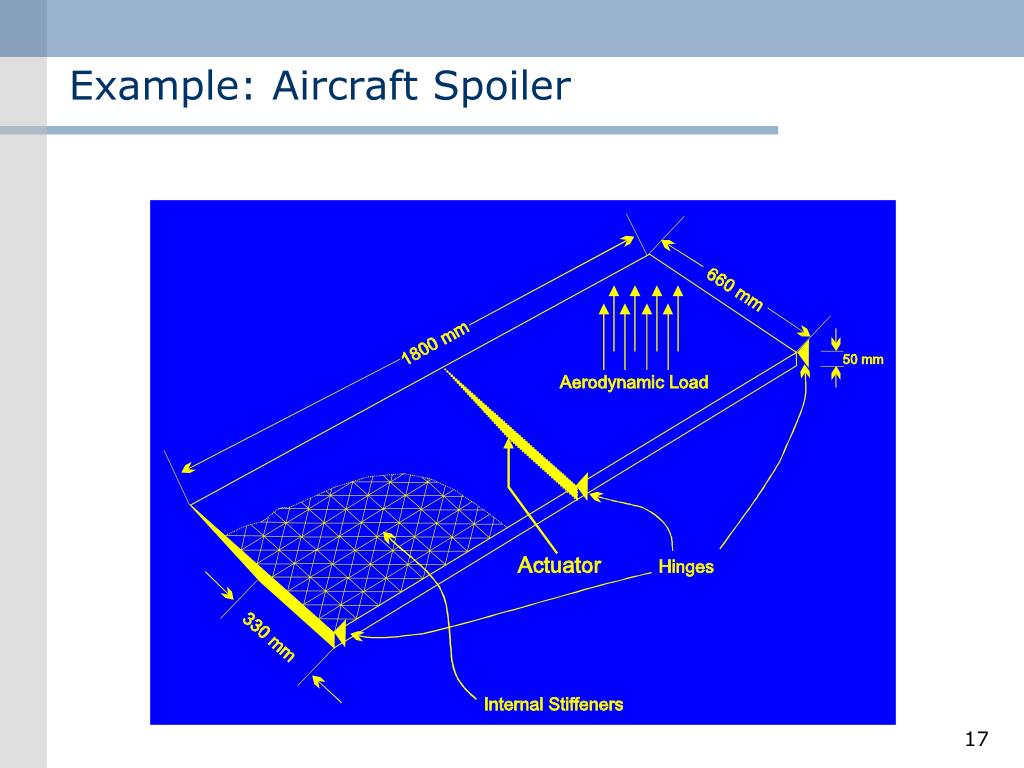

  17. Example: Aircraft Spoiler

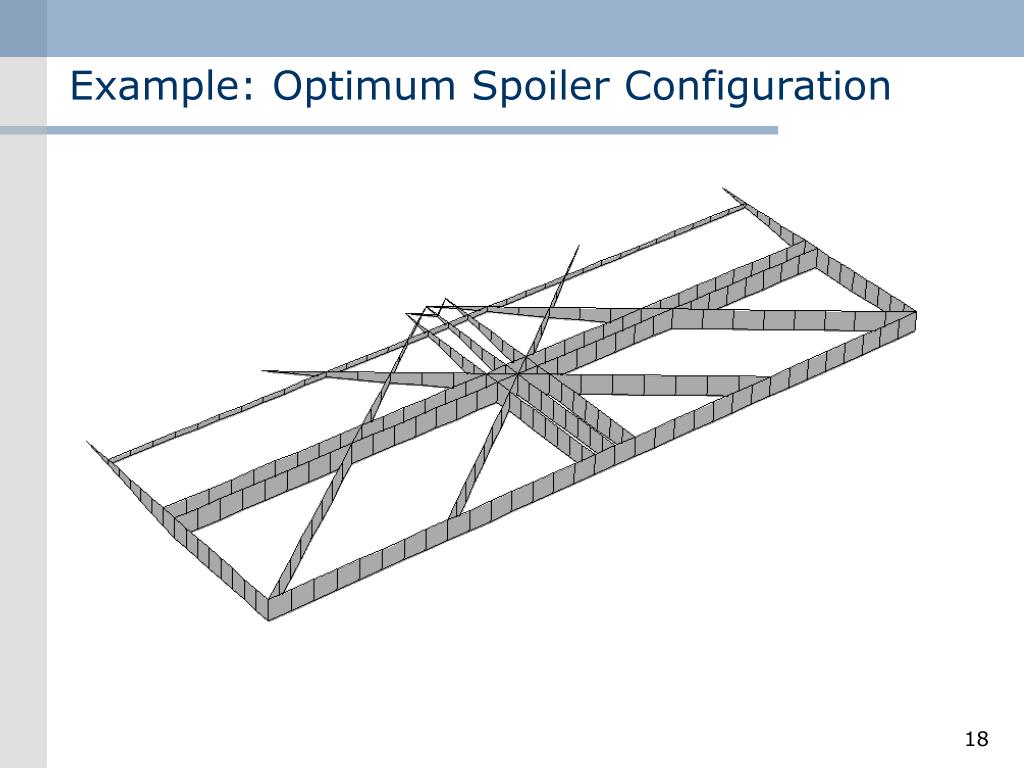

  18. Example: Optimum Spoiler Configuration
