  1. Project Management OPER 576 Project Networks Greg Magnan, Ph.D. April 29, 2004

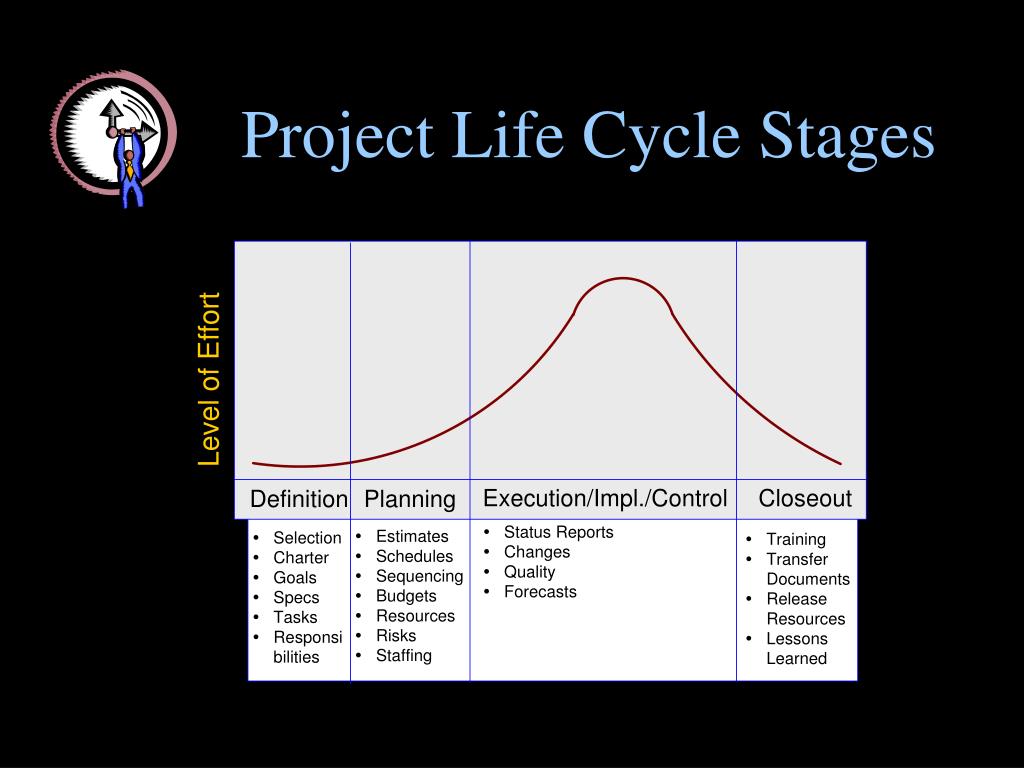

  2. Project Life Cycle Stages

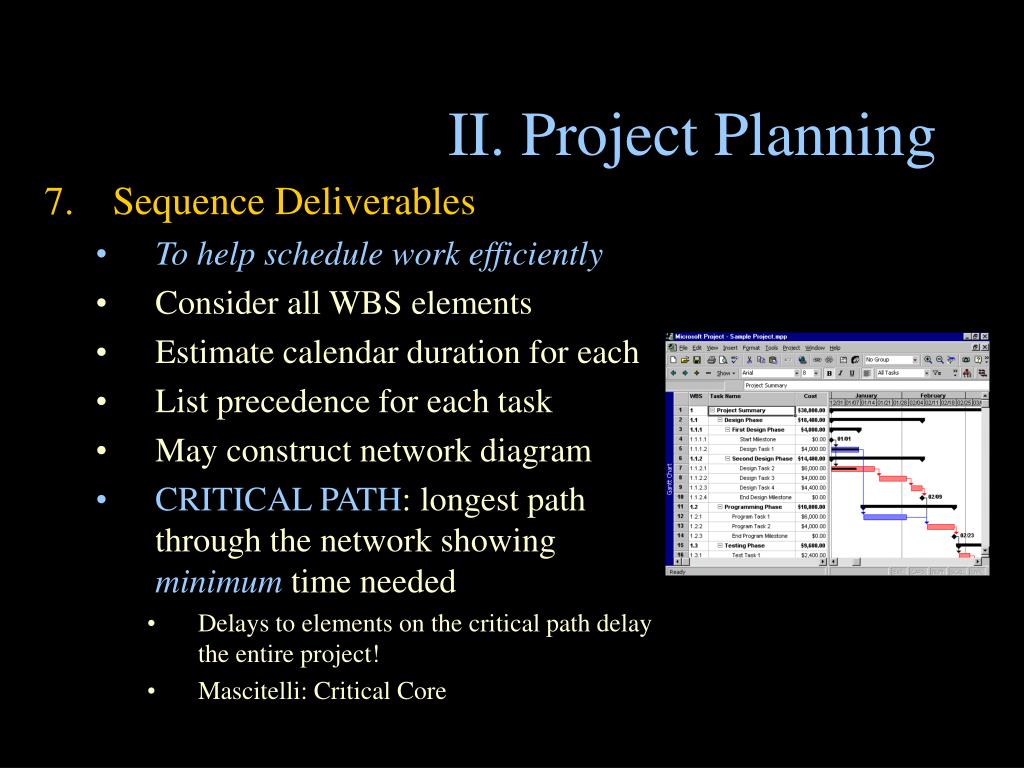

  3. II. Project Planning • Sequence Deliverables • To help schedule work efficiently • Consider all WBS elements • Estimate calendar duration for each • List precedence for each task • May construct network diagram • CRITICAL PATH: longest path through the network showingminimumtime needed • Delays to elements on the critical path delay the entire project! • Mascitelli: Critical Core

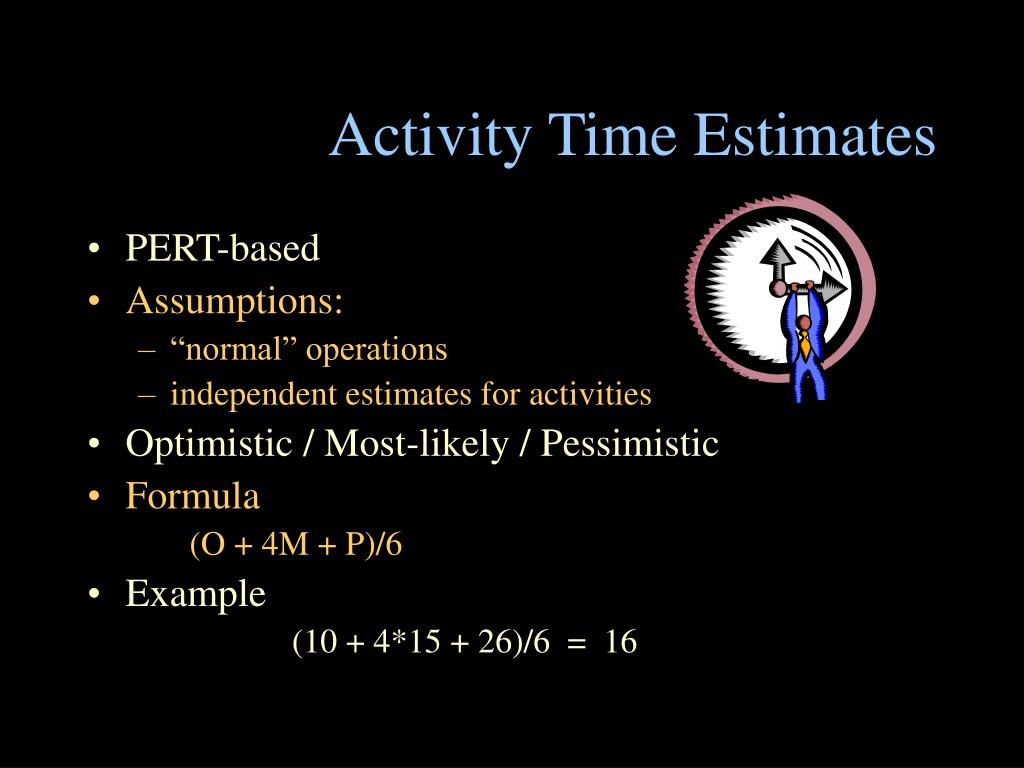

  4. Activity Time Estimates • PERT-based • Assumptions: • “normal” operations • independent estimates for activities • Optimistic / Most-likely / Pessimistic • Formula (O + 4M + P)/6 • Example (10 + 4*15 + 26)/6 = 16

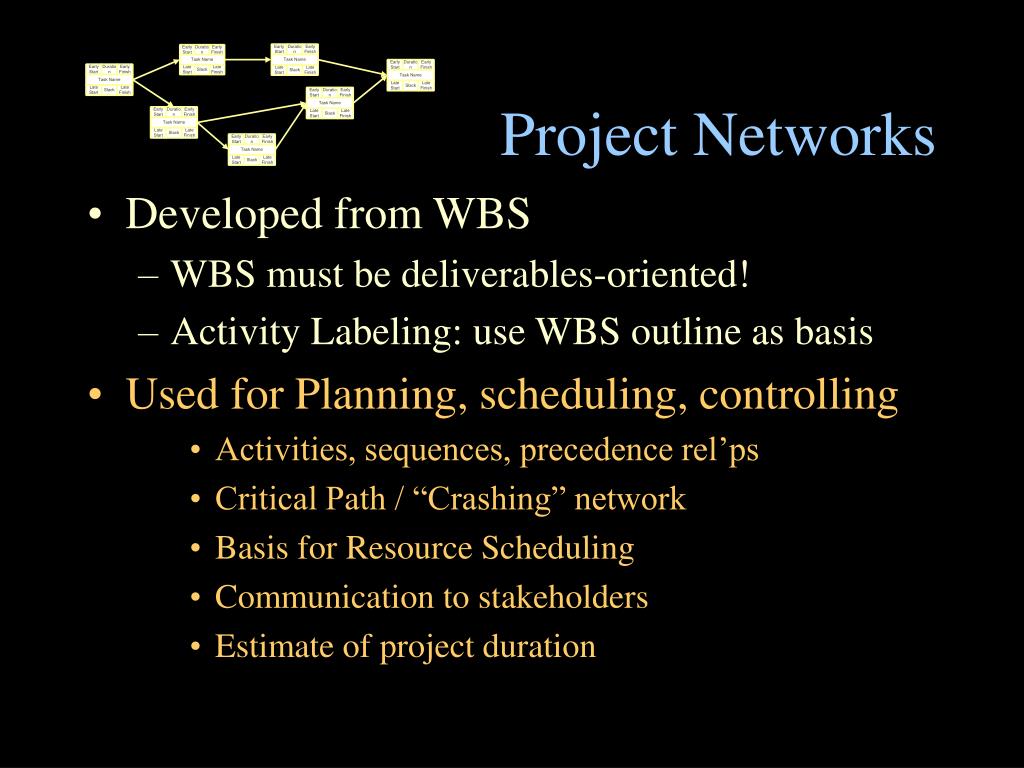

  5. Project Networks • Developed from WBS • WBS must be deliverables-oriented! • Activity Labeling: use WBS outline as basis • Used for Planning, scheduling, controlling • Activities, sequences, precedence rel’ps • Critical Path / “Crashing” network • Basis for Resource Scheduling • Communication to stakeholders • Estimate of project duration

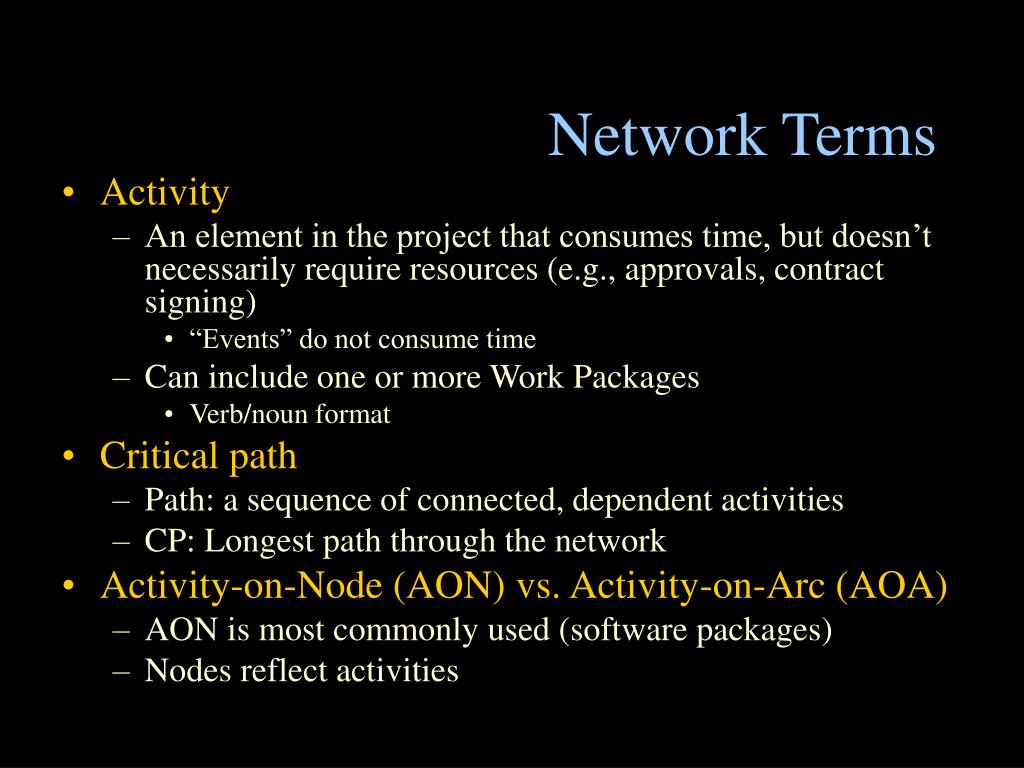

  6. Network Terms • Activity • An element in the project that consumes time, but doesn’t necessarily require resources (e.g., approvals, contract signing) • “Events” do not consume time • Can include one or more Work Packages • Verb/noun format • Critical path • Path: a sequence of connected, dependent activities • CP: Longest path through the network • Activity-on-Node (AON) vs. Activity-on-Arc (AOA) • AON is most commonly used (software packages) • Nodes reflect activities

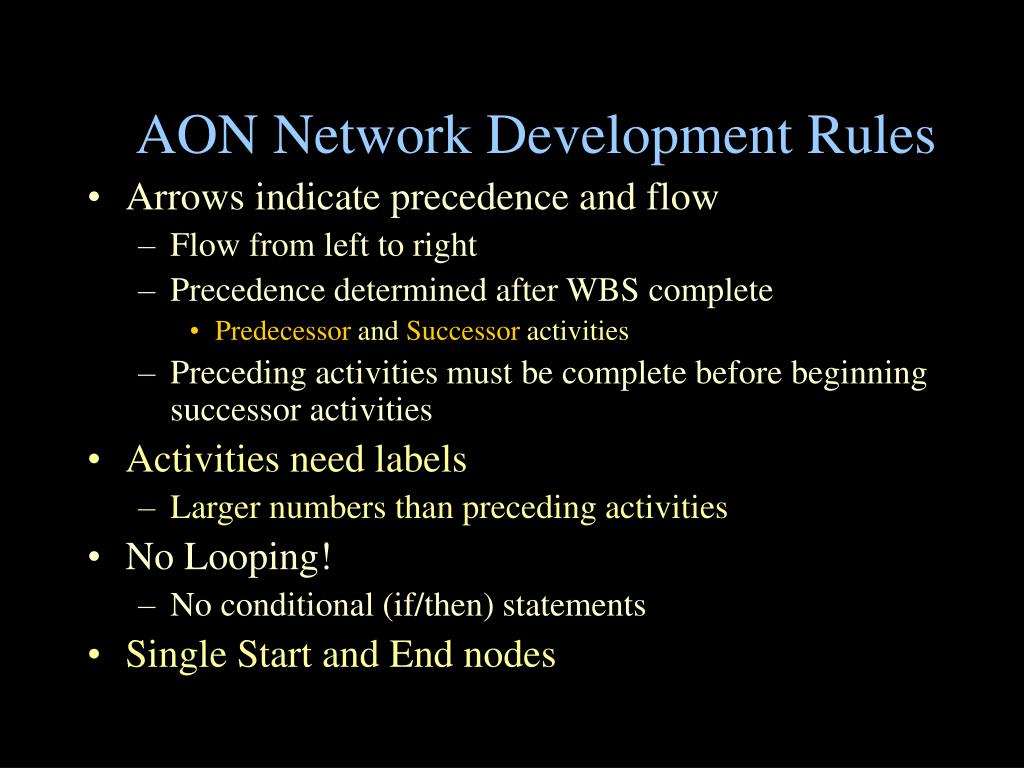

  7. AON Network Development Rules • Arrows indicate precedence and flow • Flow from left to right • Precedence determined after WBS complete • Predecessor and Successor activities • Preceding activities must be complete before beginning successor activities • Activities need labels • Larger numbers than preceding activities • No Looping! • No conditional (if/then) statements • Single Start and End nodes

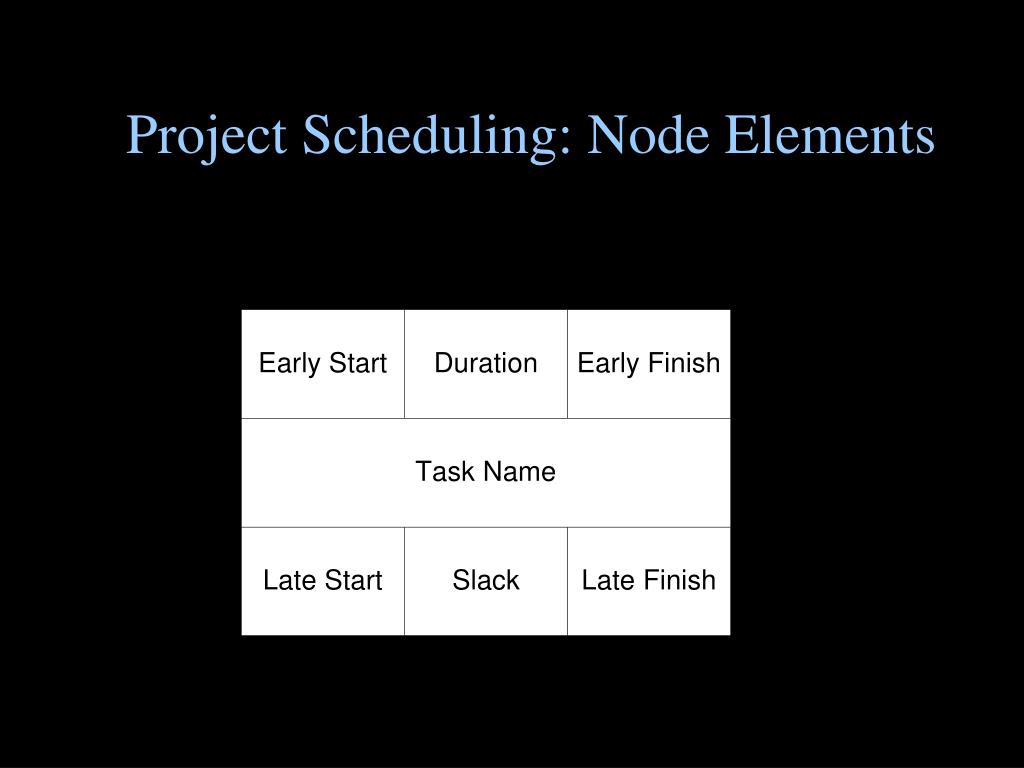

  8. Project Scheduling: Node Elements

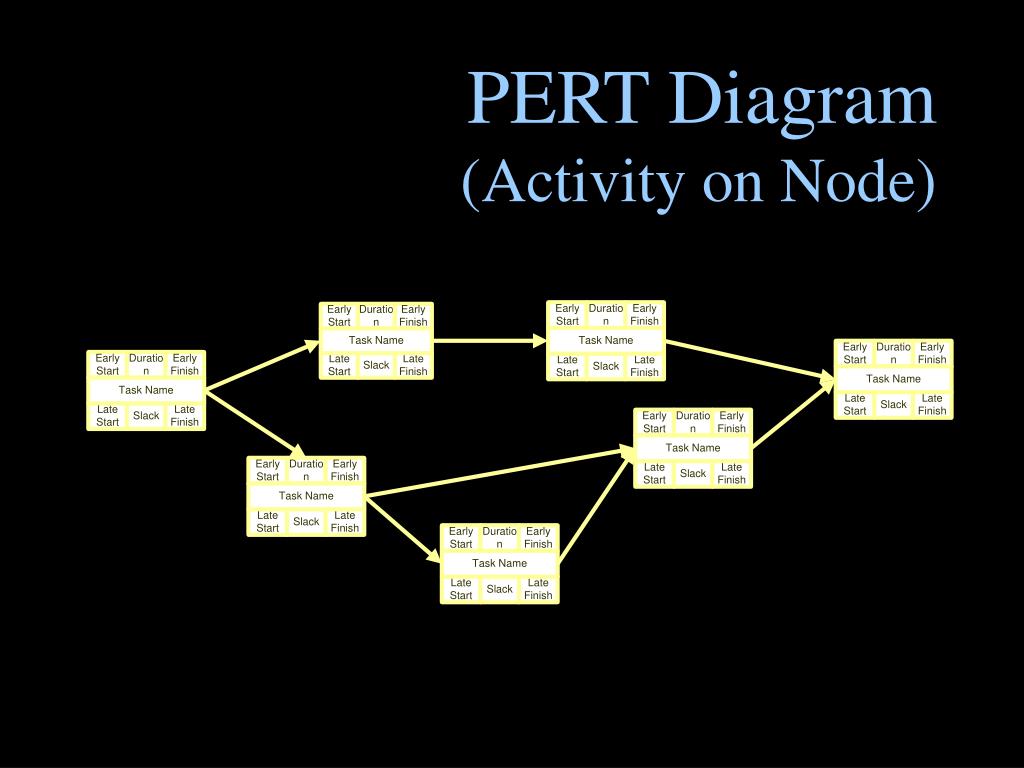

  9. PERT Diagram(Activity on Node)

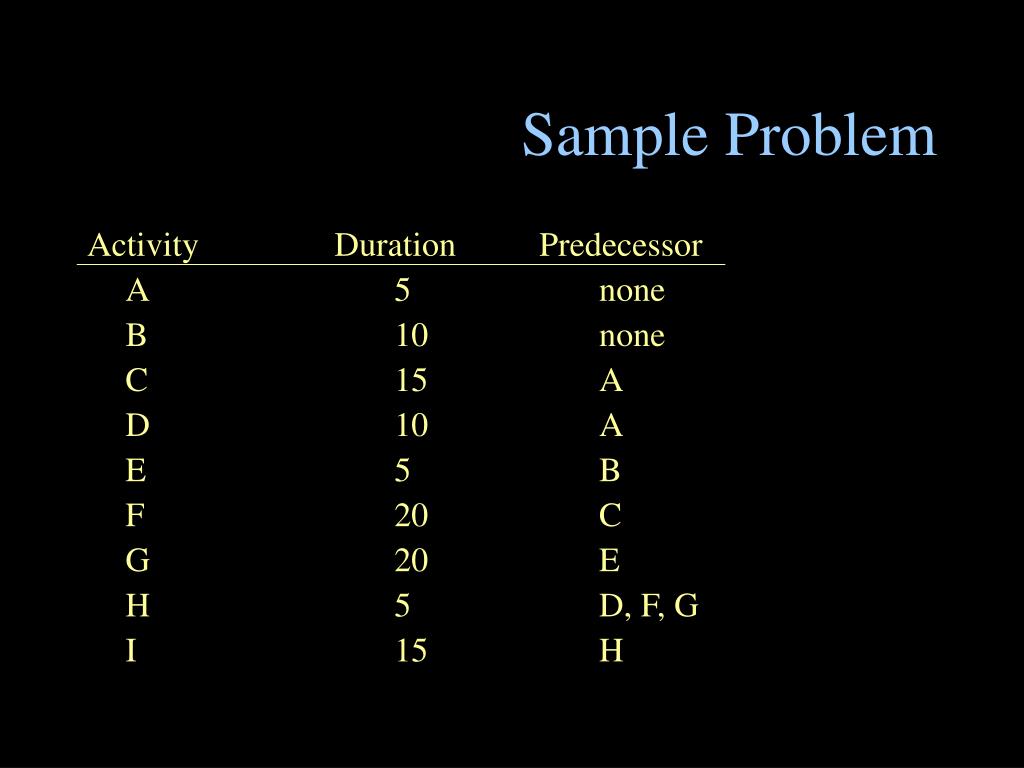

  10. Sample Problem Activity Duration Predecessor A 5 none B 10 none C 15 A D 10 A E 5 B F 20 C G 20 E H 5 D, F, G I 15 H

  11. Forward & Backward Pass • Determine: • Early Start (ES) and Early Finish (EF) • Late Start (LS) and Late Finish (LF)…and then Slack • Forward Pass (EF and ES) • For each path in the network, add activity times (duration) to each ES to get EF (ES + Dur = EF) • EF of preceding activity becomes ES of successor, unless • Succeeding activity is a merge activity (>1 predecessor) • Then select LARGEST EF time from all predecessor EF times to become ES for successor activity

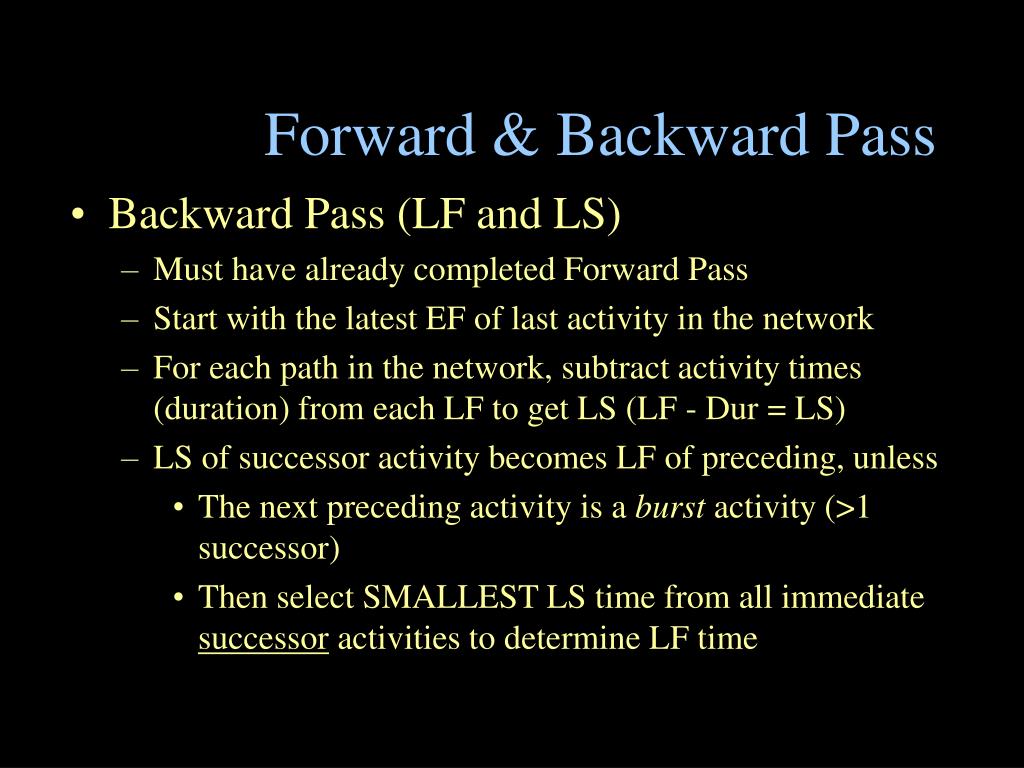

  12. Forward & Backward Pass • Backward Pass (LF and LS) • Must have already completed Forward Pass • Start with the latest EF of last activity in the network • For each path in the network, subtract activity times (duration) from each LF to get LS (LF - Dur = LS) • LS of successor activity becomes LF of preceding, unless • The next preceding activity is a burst activity (>1 successor) • Then select SMALLEST LS time from all immediate successor activities to determine LF time

  13. Conclusion… • Projects are everywhere • Can be actively managed • Science AND art
