  1. Chapter 2 : The ns-3 Network Simulator George F. Riley Thomas R. Henderson

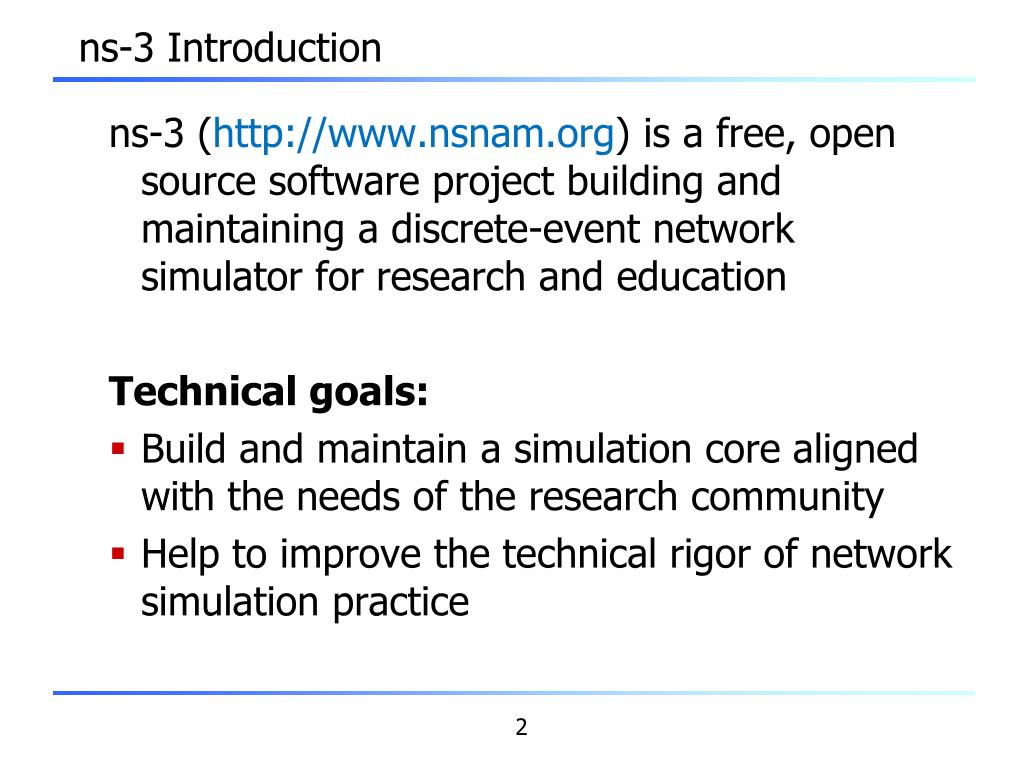

  2. ns-3 Introduction ns-3 (http://www.nsnam.org) is a free, open source software project building and maintaining a discrete-event network simulator for research and education Technical goals: • Build and maintain a simulation core aligned with the needs of the research community • Help to improve the technical rigor of network simulation practice

  3. ns-3 themes • Research and education focus • Build and maintain simulation core, integrate models developed by other researchers • Support research-driven workflows • Open source development model • Research community maintains the models • Leverage available tools and models • Write programs to work together • Enforce core coding/testing standards

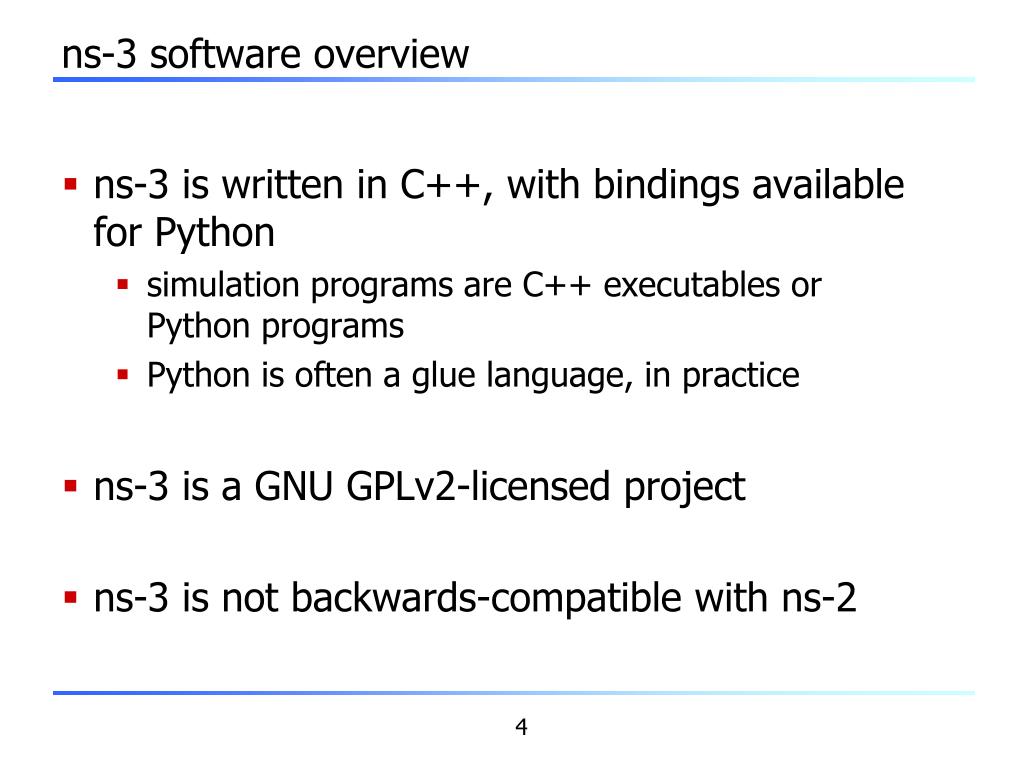

  4. ns-3 software overview • ns-3 is written in C++, with bindings available for Python • simulation programs are C++ executables or Python programs • Python is often a glue language, in practice • ns-3 is a GNU GPLv2-licensed project • ns-3 is not backwards-compatible with ns-2

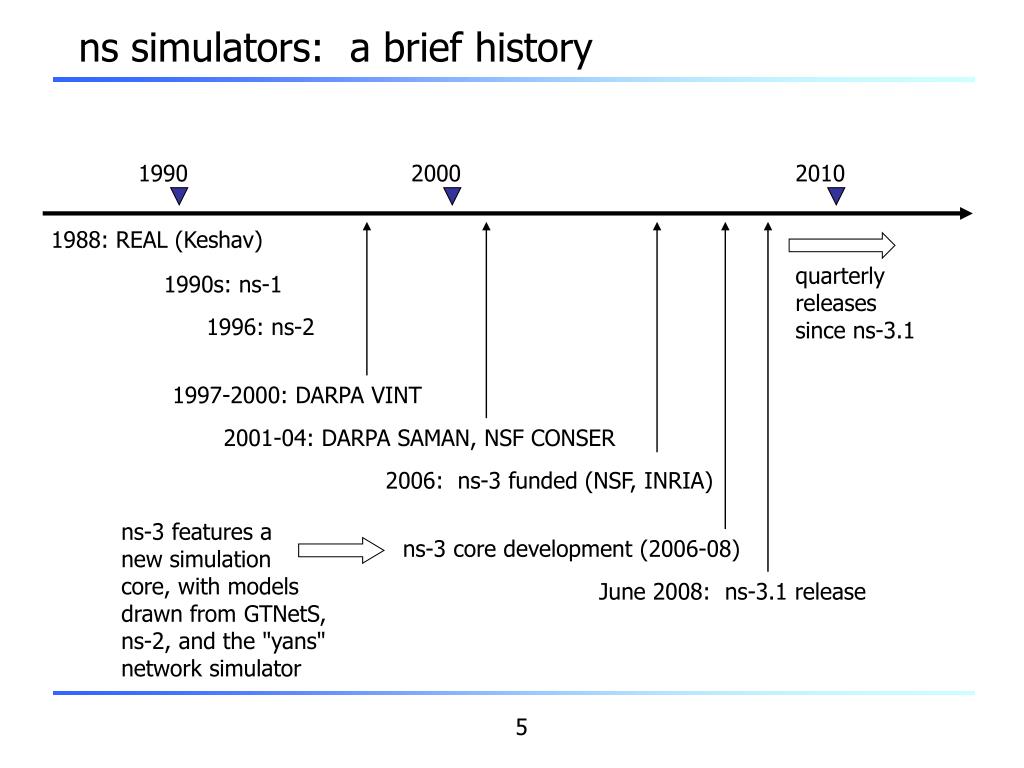

  5. ns simulators: a brief history 1990 2000 2010 1988: REAL (Keshav) quarterly releases since ns-3.1 1990s: ns-1 1996: ns-2 1997-2000: DARPA VINT 2001-04: DARPA SAMAN, NSF CONSER 2006: ns-3 funded (NSF, INRIA) ns-3 features a new simulation core, with models drawn from GTNetS, ns-2, and the "yans" network simulator ns-3 core development (2006-08) June 2008: ns-3.1 release

  6. Acknowledgment of support

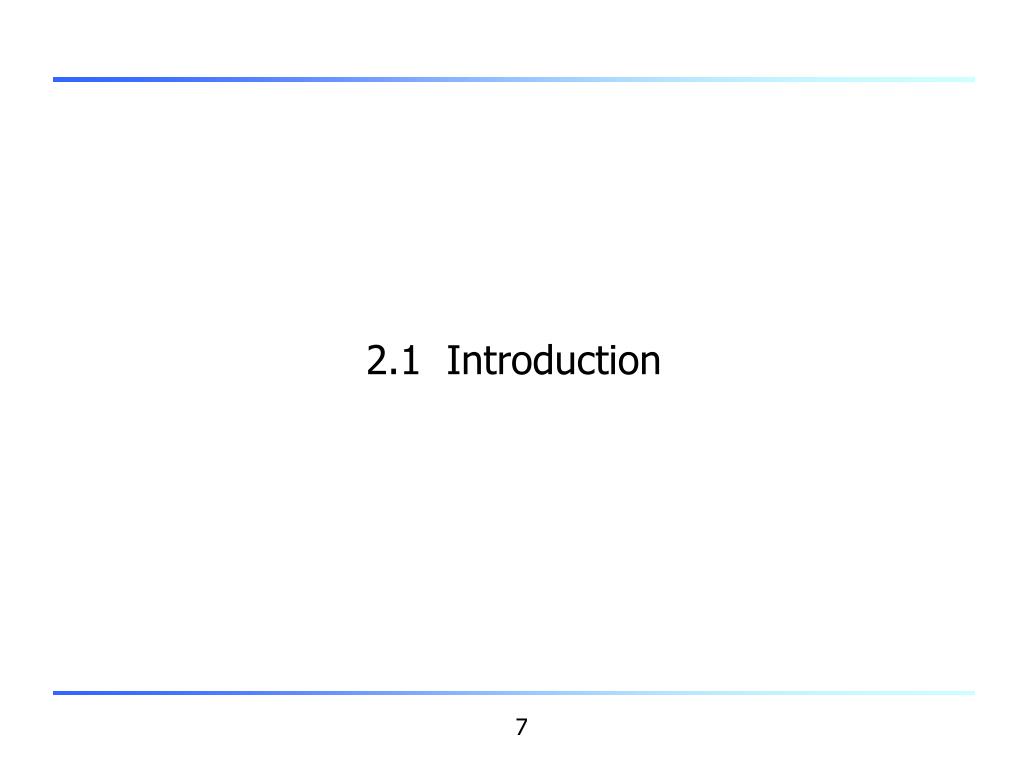

  7. 2.1 Introduction

  8. Why ns-3? • Despite huge success with ns-2, the ns-3 developers had project goals that motivated the development of a new tool 1) Improve the realism of the models 2) Software reuse 3) Improved debugging 4) Consider long-term software maintenance

  9. 1) attention to realism Problem: Research often involves a mix of simulations and testbed or live experiments • If the simulator cannot be made to closely model a real system: • hard to compare results or validate the model • hard to reuse software between the two domains ns-3 solution: • model nodes more like a real computer • support key interfaces such as sockets API and IP/device driver interface (in Linux) • reuse of kernel and application code

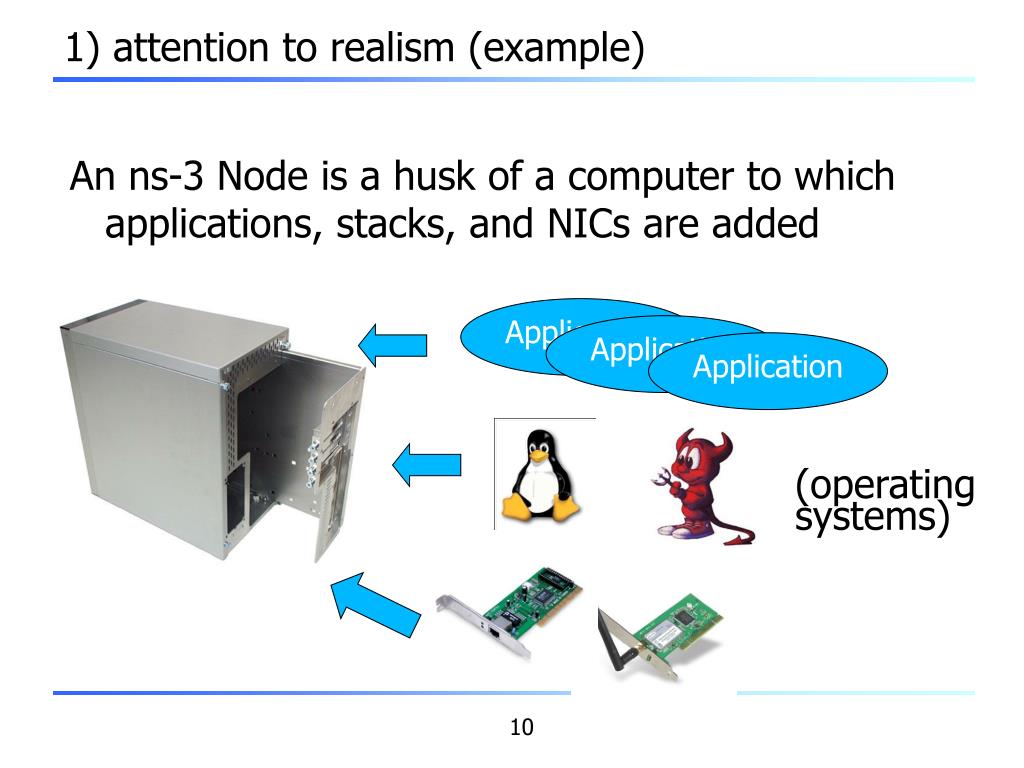

  10. 1) attention to realism (example) An ns-3 Node is a husk of a computer to which applications, stacks, and NICs are added Application Application Application (operating systems)

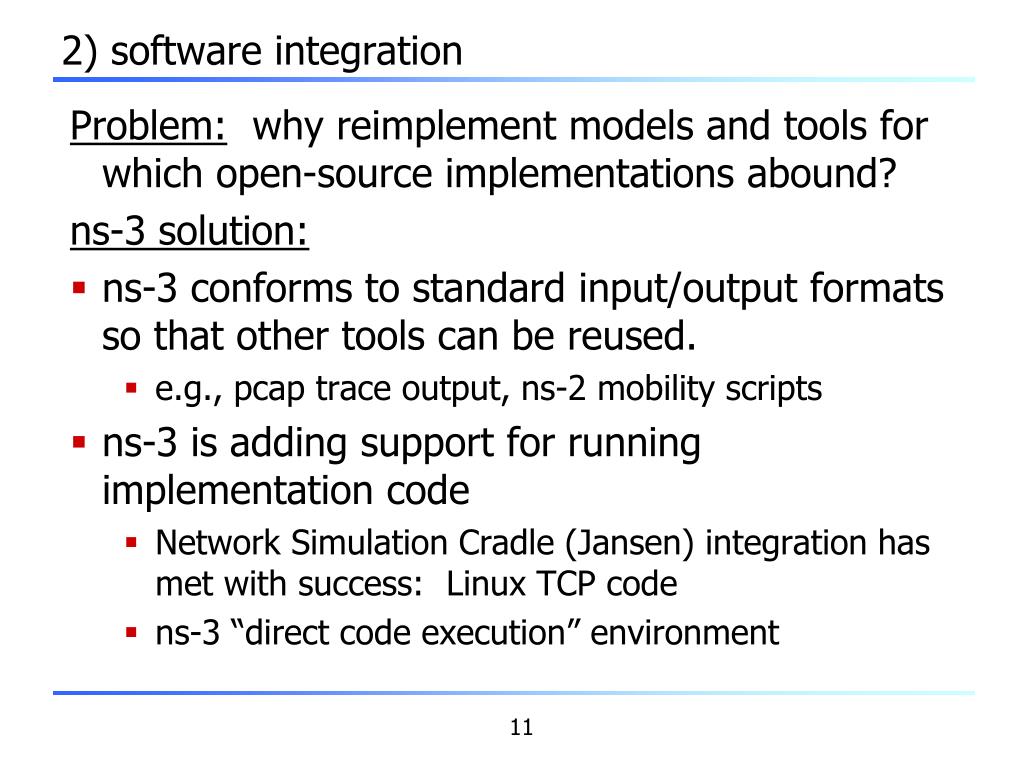

  11. 2) software integration Problem: why reimplement models and tools for which open-source implementations abound? ns-3 solution: • ns-3 conforms to standard input/output formats so that other tools can be reused. • e.g., pcap trace output, ns-2 mobility scripts • ns-3 is adding support for running implementation code • Network Simulation Cradle (Jansen) integration has met with success: Linux TCP code • ns-3 “direct code execution” environment

  12. 2) software reuse (cont.) • Example: ns-3 trace viewed with Wireshark:

  13. 3) Improved debugging • Avoid split-language object implementations that proved to be hard to debug in ns-2 (OTcl/C++) • ns-3 uses a C++ core with Python API bindings • Layer a "helper" API on top of a powerful but complex low-layer API • Different APIs for different user expertise • Reduce memory errors via use of smart pointers

  14. 4) Software maintenance • Open source projects are challenged to maintain the software over time • Developers contribute models, then graduate • Maintainers change over time • ns-3 chose to use a more rigorous coding standard, detailed code reviews, and regression testing infrastructure • ns-3 project decided not to devote scarce maintenance resources to develop and maintain ns-2 backward compatibility

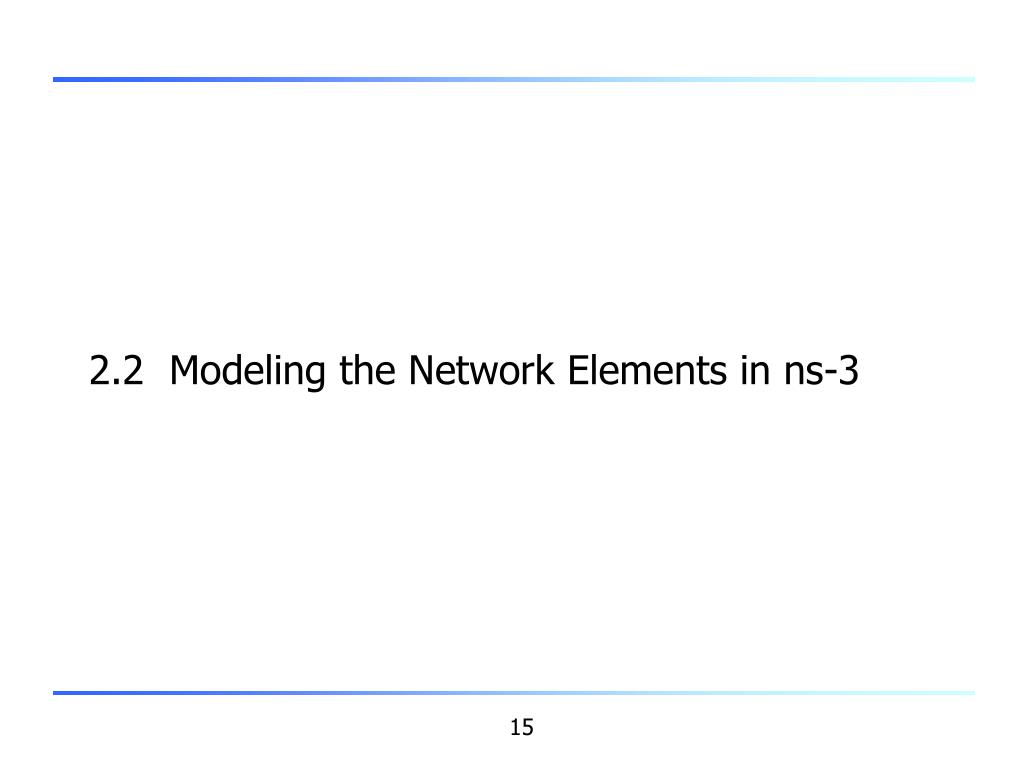

  15. 2.2 Modeling the Network Elements in ns-3

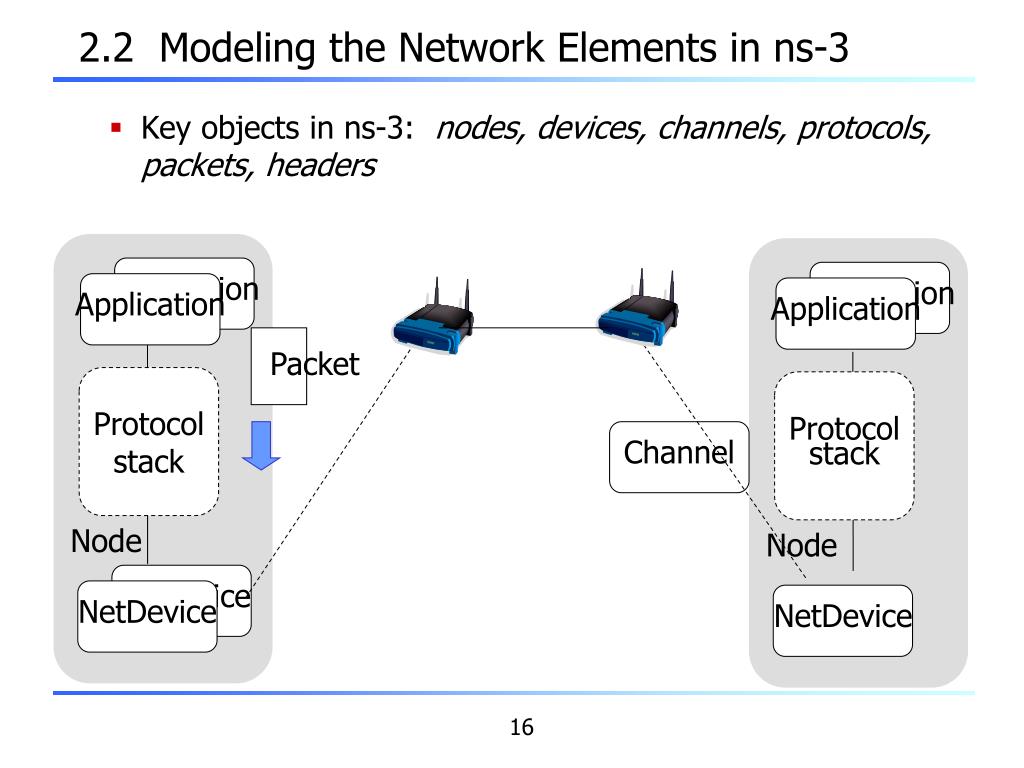

  16. 2.2 Modeling the Network Elements in ns-3 • Key objects in ns-3: nodes, devices, channels, protocols, packets, headers Application Application Application Application Packet Protocol stack Protocol stack Channel Node Node NetDevice NetDevice NetDevice

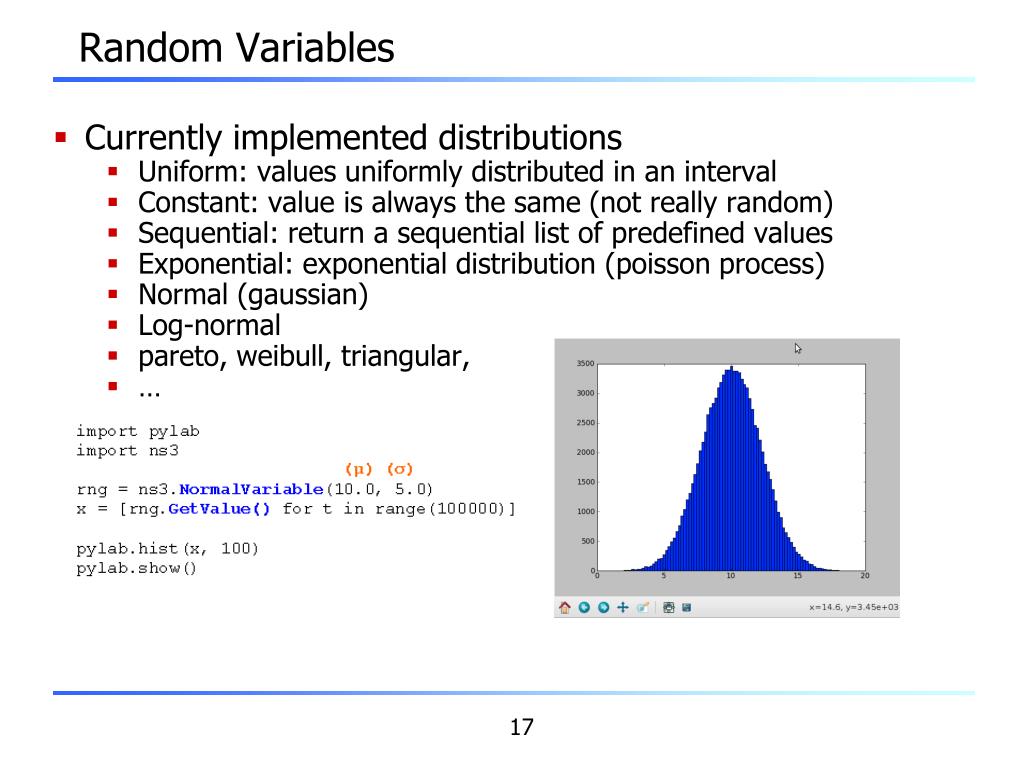

  17. Random Variables • Currently implemented distributions • Uniform: values uniformly distributed in an interval • Constant: value is always the same (not really random) • Sequential: return a sequential list of predefined values • Exponential: exponential distribution (poisson process) • Normal (gaussian) • Log-normal • pareto, weibull, triangular, • …

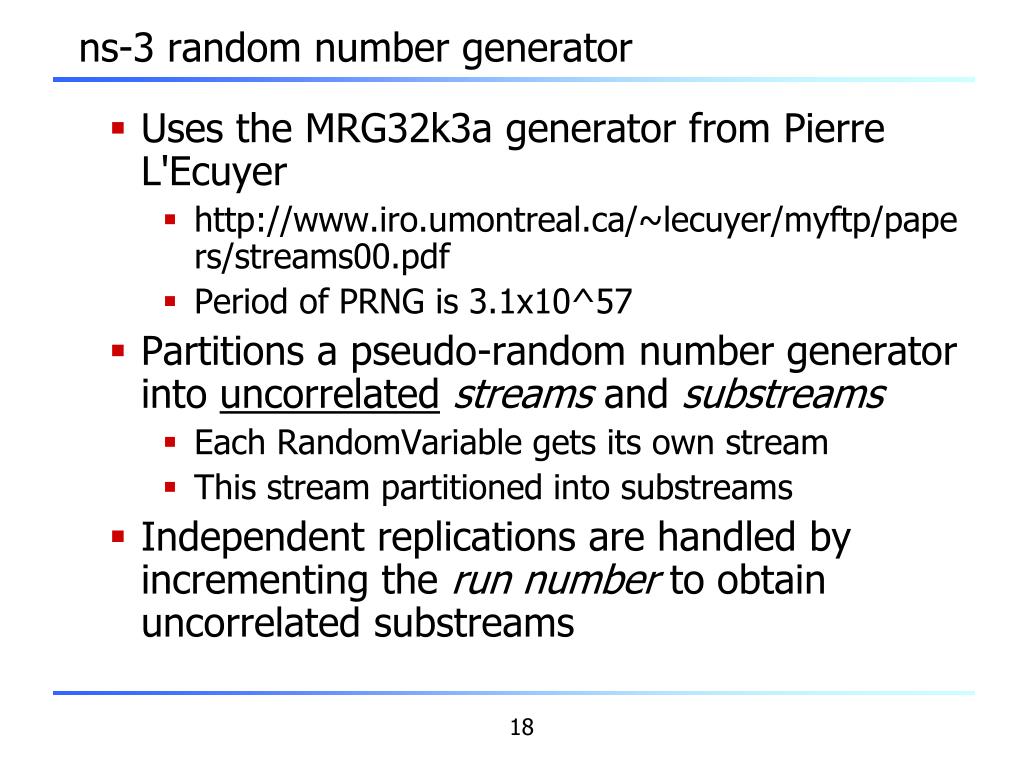

  18. ns-3 random number generator • Uses the MRG32k3a generator from Pierre L'Ecuyer • http://www.iro.umontreal.ca/~lecuyer/myftp/papers/streams00.pdf • Period of PRNG is 3.1x10^57 • Partitions a pseudo-random number generator into uncorrelatedstreams and substreams • Each RandomVariable gets its own stream • This stream partitioned into substreams • Independent replications are handled by incrementing the run number to obtain uncorrelated substreams

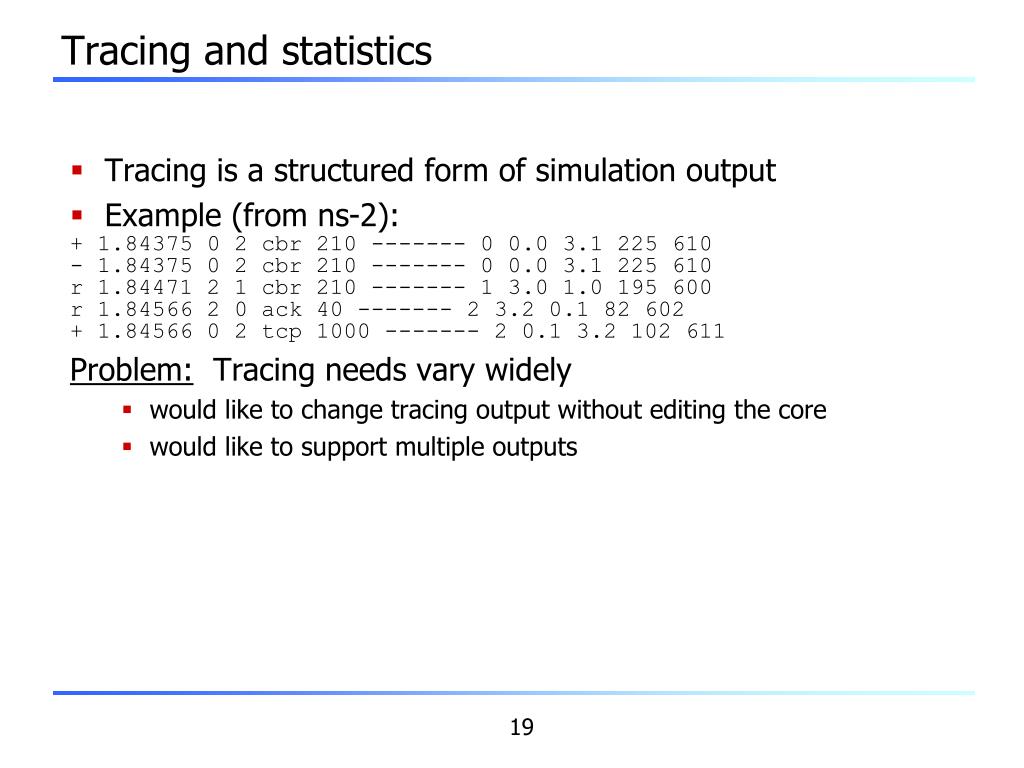

  19. Tracing and statistics • Tracing is a structured form of simulation output • Example (from ns-2): + 1.84375 0 2 cbr 210 ------- 0 0.0 3.1 225 610 - 1.84375 0 2 cbr 210 ------- 0 0.0 3.1 225 610 r 1.84471 2 1 cbr 210 ------- 1 3.0 1.0 195 600 r 1.84566 2 0 ack 40 ------- 2 3.2 0.1 82 602 + 1.84566 0 2 tcp 1000 ------- 2 0.1 3.2 102 611 Problem: Tracing needs vary widely • would like to change tracing output without editing the core • would like to support multiple outputs

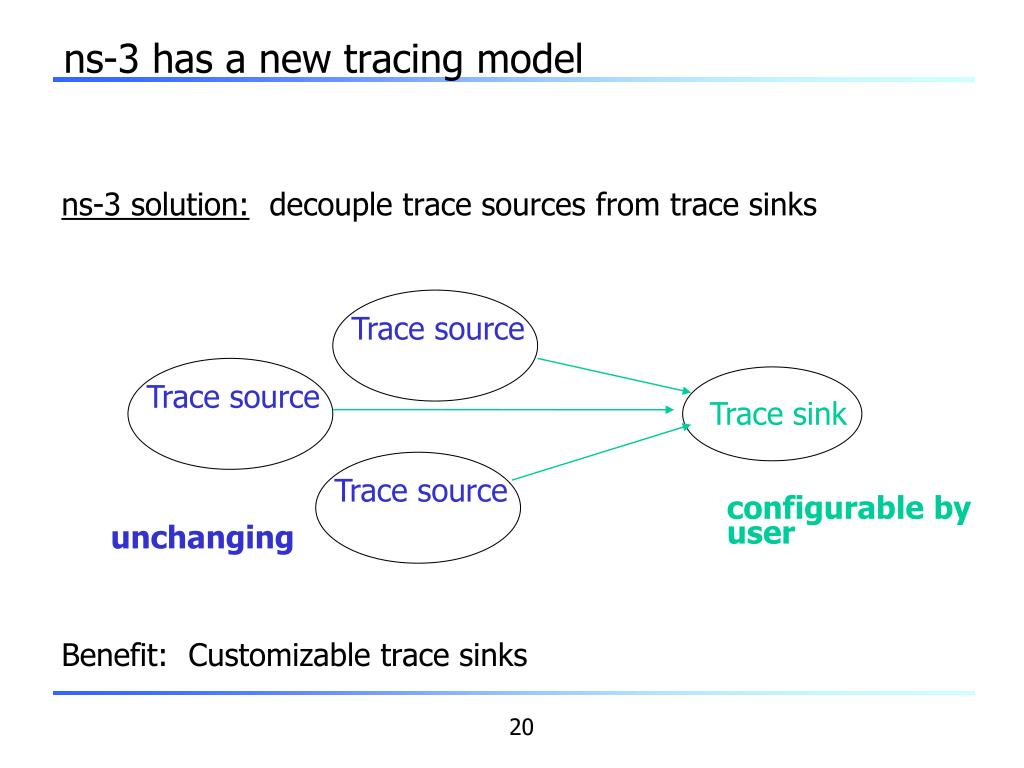

  20. ns-3 has a new tracing model ns-3 solution: decouple trace sources from trace sinks Benefit: Customizable trace sinks Trace source Trace source Trace sink Trace source configurable by user unchanging

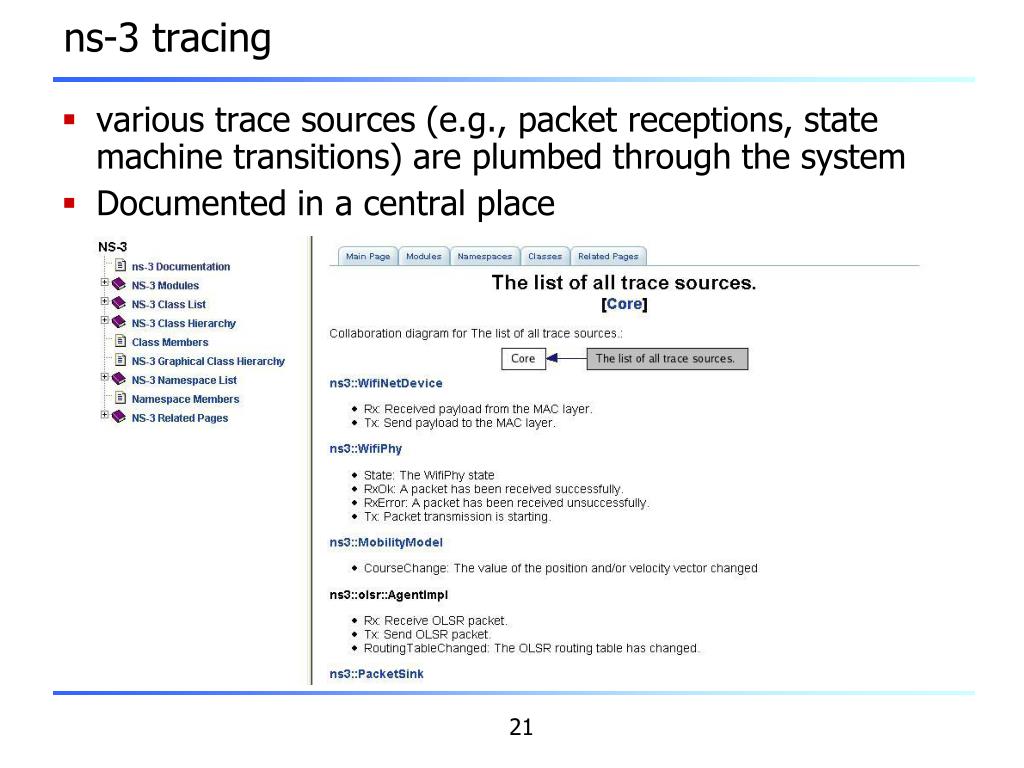

  21. ns-3 tracing • various trace sources (e.g., packet receptions, state machine transitions) are plumbed through the system • Documented in a central place

  22. Basic tracing • Helper classes hide the tracing details from the user, for simple trace types • ascii or pcap traces of devices std::ofstreamascii; ascii.open ("wns3-helper.tr"); CsmaHelper::EnableAsciiAll (ascii); CsmaHelper::EnablePcapAll ("wns3-helper"); YansWifiPhyHelper::EnablePcapAll ("wsn3-helper");

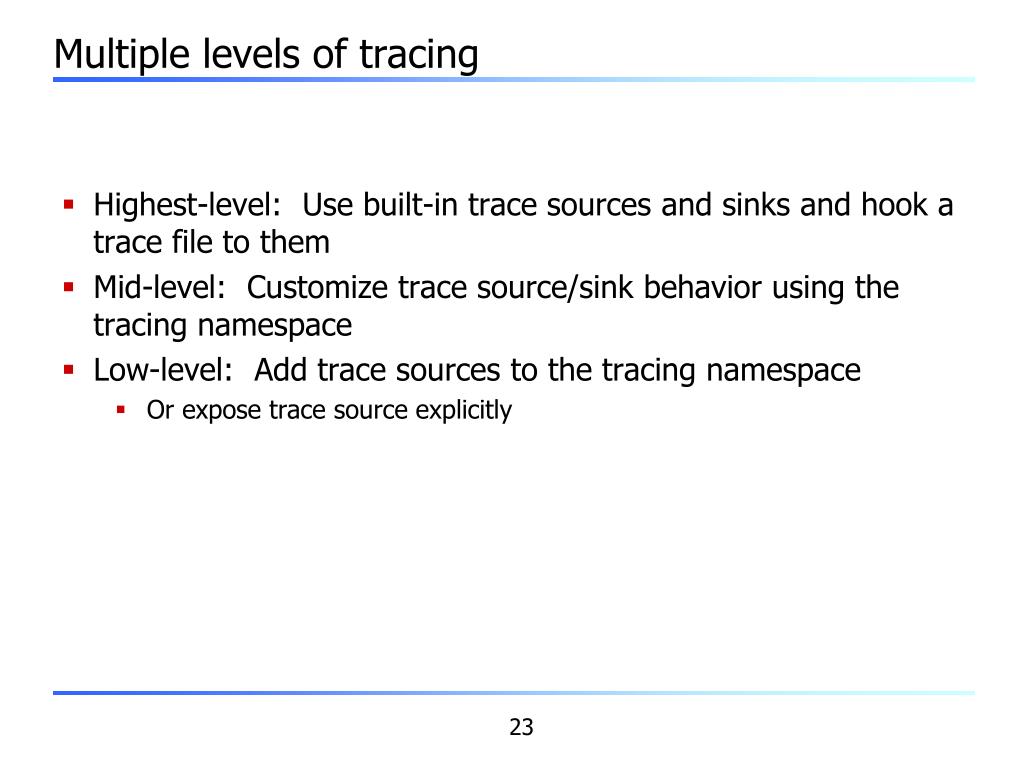

  23. Multiple levels of tracing • Highest-level: Use built-in trace sources and sinks and hook a trace file to them • Mid-level: Customize trace source/sink behavior using the tracing namespace • Low-level: Add trace sources to the tracing namespace • Or expose trace source explicitly

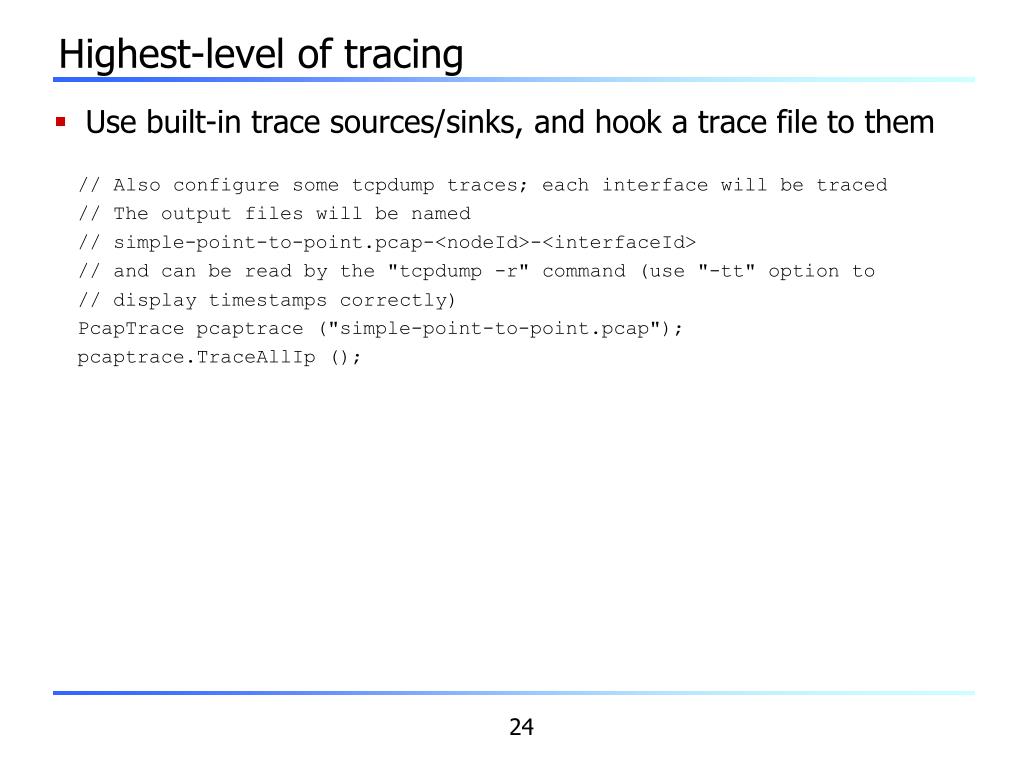

  24. Highest-level of tracing • Use built-in trace sources/sinks, and hook a trace file to them // Also configure some tcpdump traces; each interface will be traced // The output files will be named // simple-point-to-point.pcap-<nodeId>-<interfaceId> // and can be read by the "tcpdump -r" command (use "-tt" option to // display timestamps correctly)‏ PcapTracepcaptrace ("simple-point-to-point.pcap"); pcaptrace.TraceAllIp ();

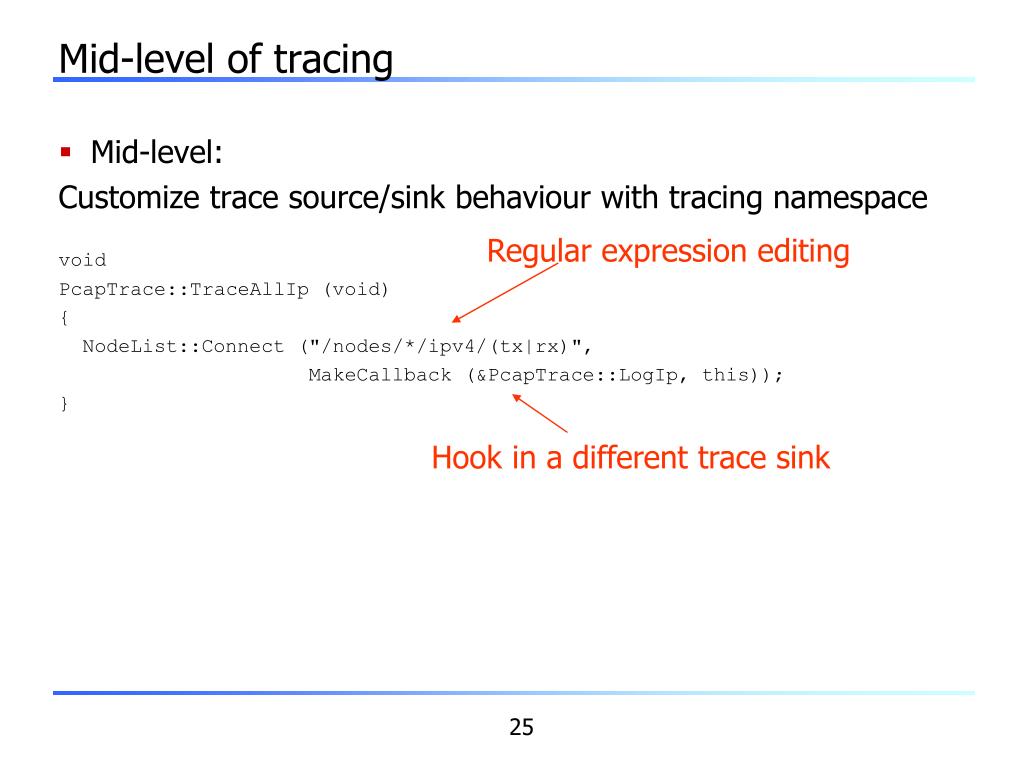

  25. Mid-level of tracing • Mid-level: Customize trace source/sink behaviour with tracing namespace void PcapTrace::TraceAllIp (void)‏ { NodeList::Connect ("/nodes/*/ipv4/(tx|rx)", MakeCallback (&PcapTrace::LogIp, this)); } Regular expression editing Hook in a different trace sink

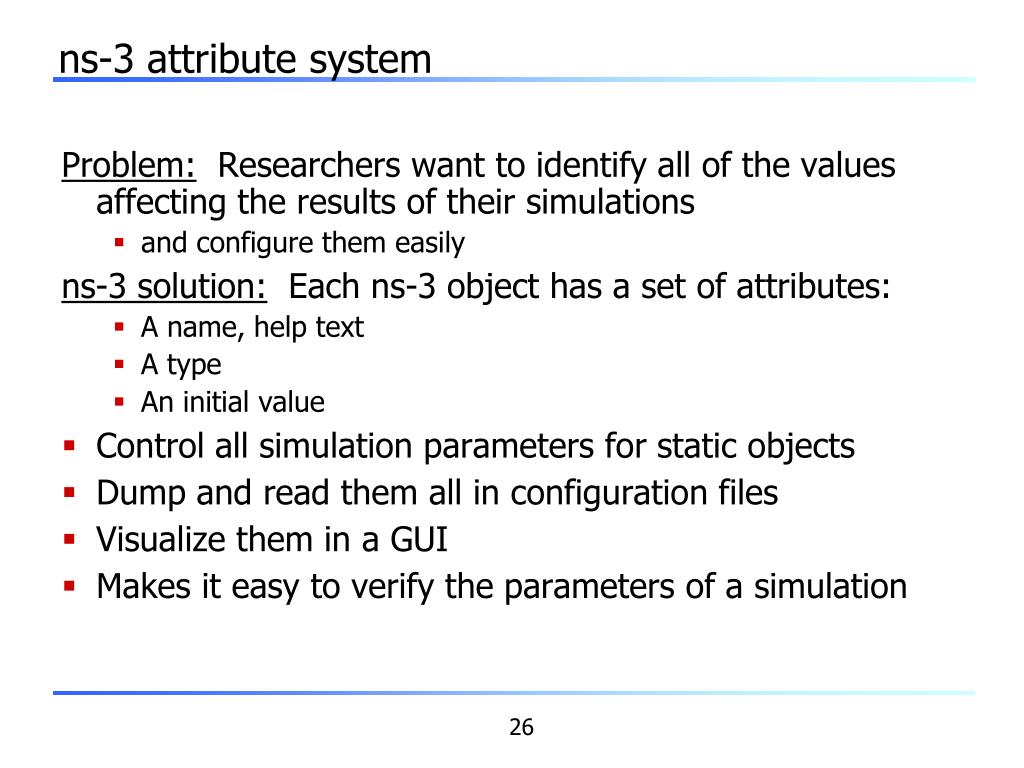

  26. ns-3 attribute system Problem: Researchers want to identify all of the values affecting the results of their simulations • and configure them easily ns-3 solution: Each ns-3 object has a set of attributes: • A name, help text • A type • An initial value • Control all simulation parameters for static objects • Dump and read them all in configuration files • Visualize them in a GUI • Makes it easy to verify the parameters of a simulation

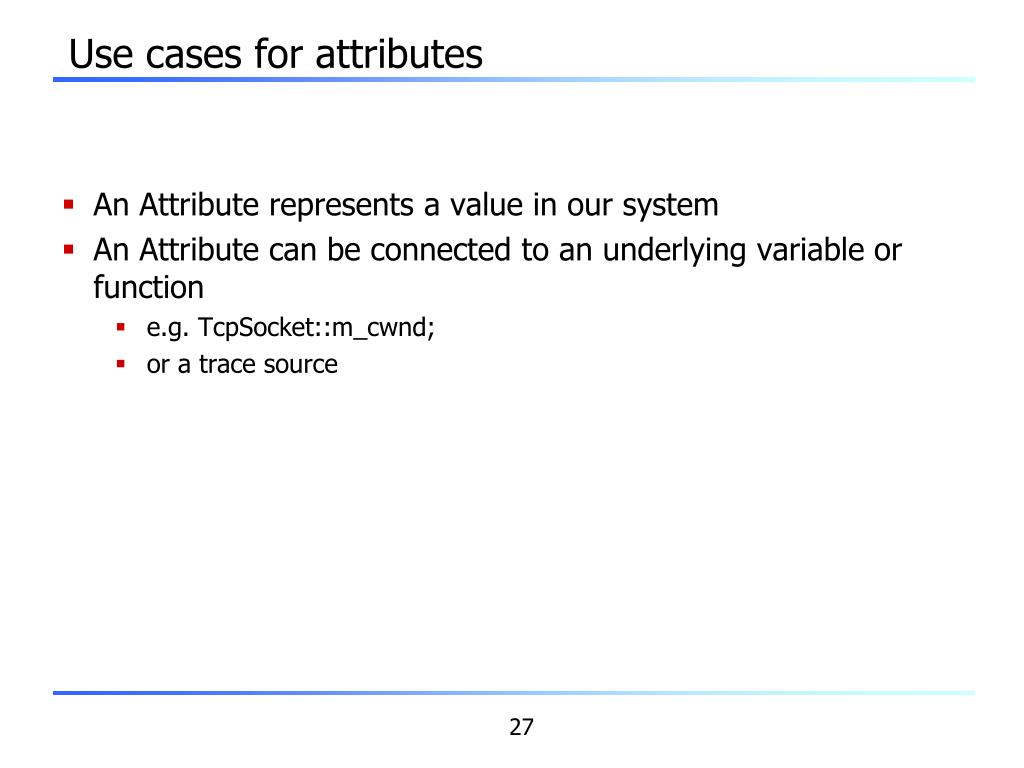

  27. Use cases for attributes • An Attribute represents a value in our system • An Attribute can be connected to an underlying variable or function • e.g. TcpSocket::m_cwnd; • or a trace source

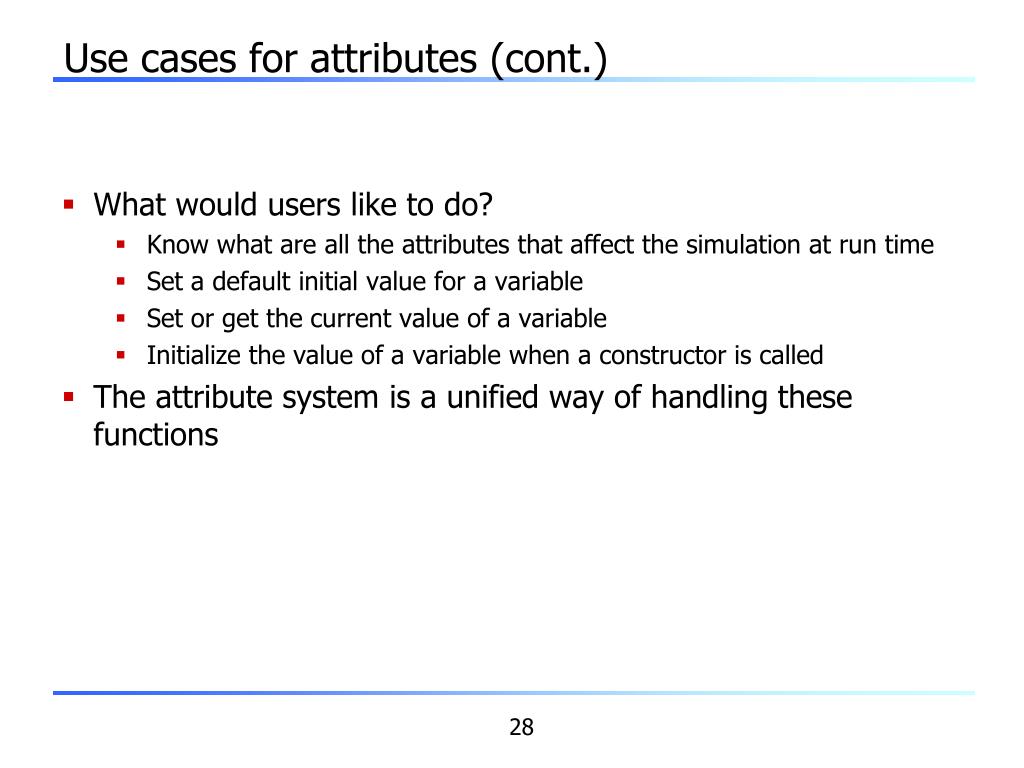

  28. Use cases for attributes (cont.)‏ • What would users like to do? • Know what are all the attributes that affect the simulation at run time • Set a default initial value for a variable • Set or get the current value of a variable • Initialize the value of a variable when a constructor is called • The attribute system is a unified way of handling these functions

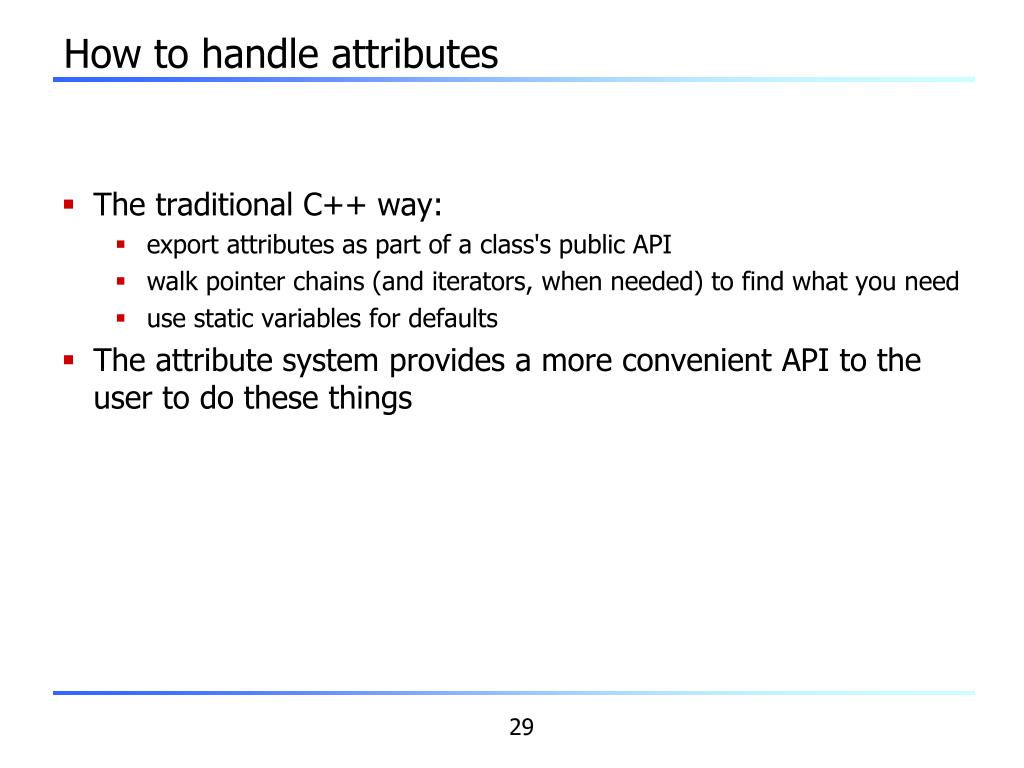

  29. How to handle attributes • The traditional C++ way: • export attributes as part of a class's public API • walk pointer chains (and iterators, when needed) to find what you need • use static variables for defaults • The attribute system provides a more convenient API to the user to do these things

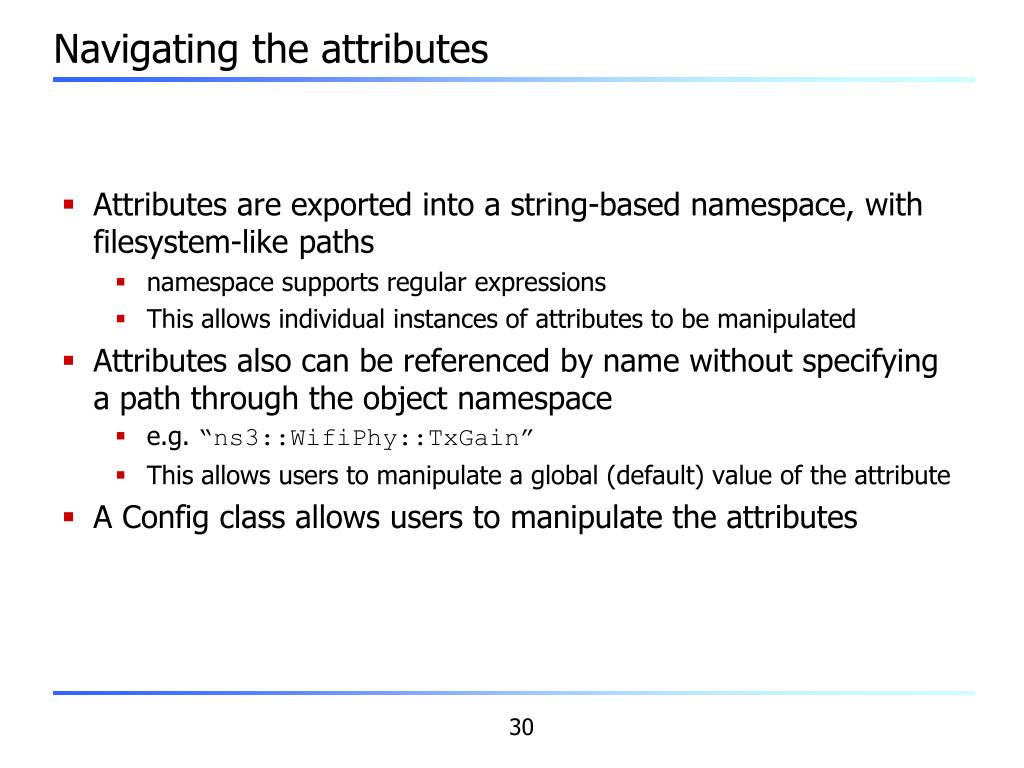

  30. Navigating the attributes • Attributes are exported into a string-based namespace, with filesystem-like paths • namespace supports regular expressions • This allows individual instances of attributes to be manipulated • Attributes also can be referenced by name without specifying a path through the object namespace • e.g. “ns3::WifiPhy::TxGain” • This allows users to manipulate a global (default) value of the attribute • A Config class allows users to manipulate the attributes

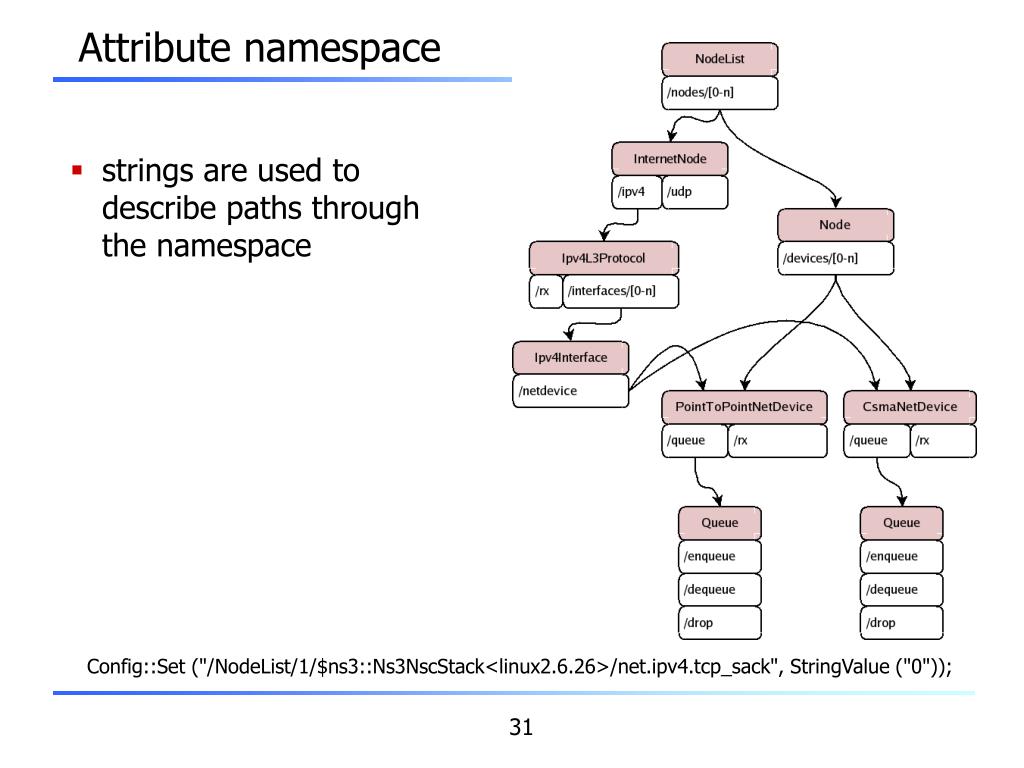

  31. Attribute namespace • strings are used to describe paths through the namespace Config::Set ("/NodeList/1/$ns3::Ns3NscStack<linux2.6.26>/net.ipv4.tcp_sack", StringValue ("0"));

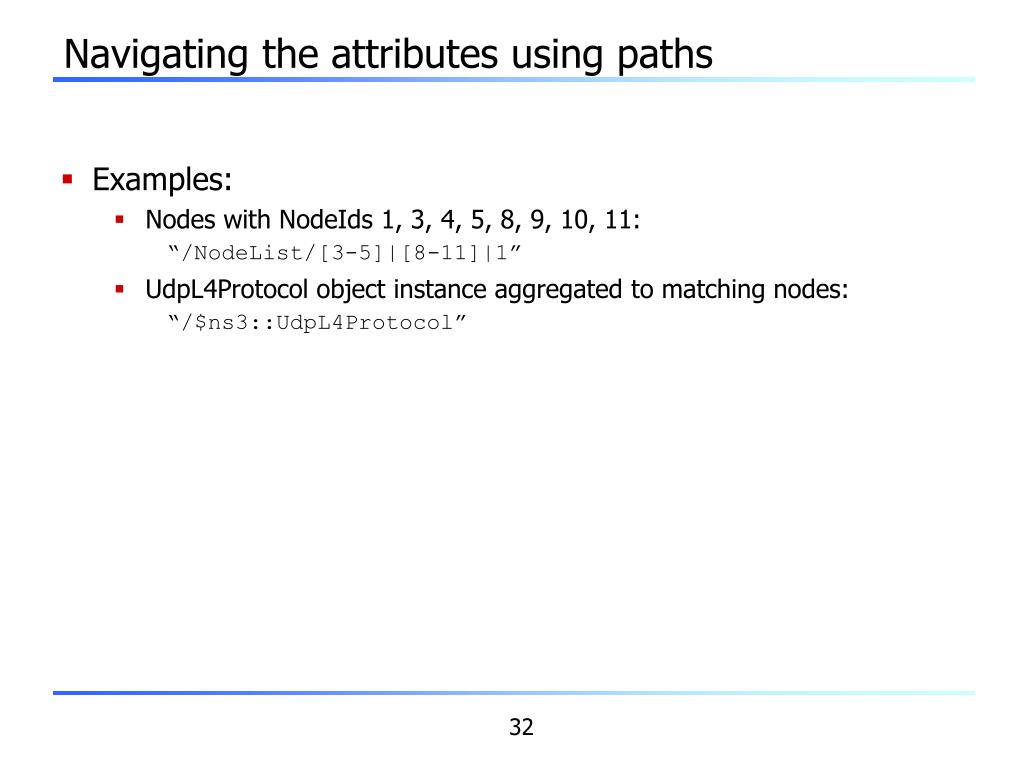

  32. Navigating the attributes using paths • Examples: • Nodes with NodeIds 1, 3, 4, 5, 8, 9, 10, 11: “/NodeList/[3-5]|[8-11]|1” • UdpL4Protocol object instance aggregated to matching nodes: “/$ns3::UdpL4Protocol”

  33. What users will do • e.g.: Set a default initial value for a variable Config::Set (“ns3::WifiPhy::TxGain”, DoubleValue (1.0)); • Syntax also supports string values: Config::Set (“WifiPhy::TxGain”, StringValue (“1.0”)); Attribute Value

  34. Fine-grained attribute handling • Set or get the current value of a variable • Here, one needs the path in the namespace to the right instance of the object Config::SetAttribute(“/NodeList/5/DeviceList/3/Phy/TxGain”, DoubleValue(1.0)); DoubleValued; nodePtr->GetAttribute ( “/NodeList/5/NetDevice/3/Phy/TxGain”, v); • Users can get pointers to instances also, and pointers to trace sources, in the same way

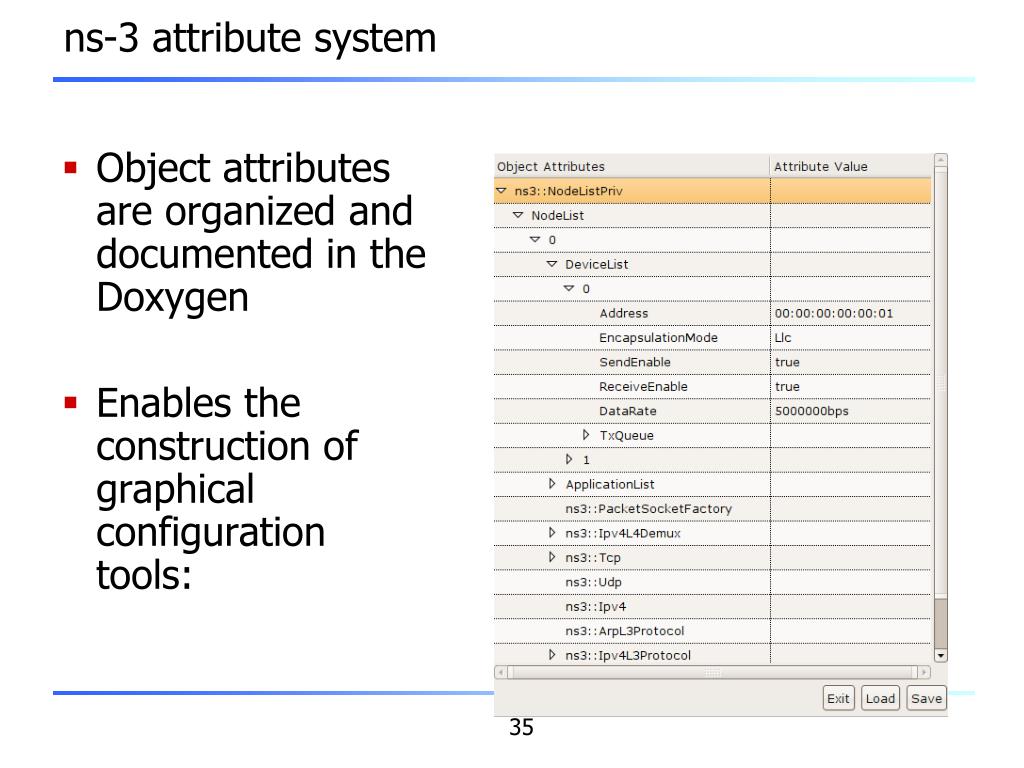

  35. ns-3 attribute system • Object attributes are organized and documented in the Doxygen • Enables the construction of graphical configuration tools:

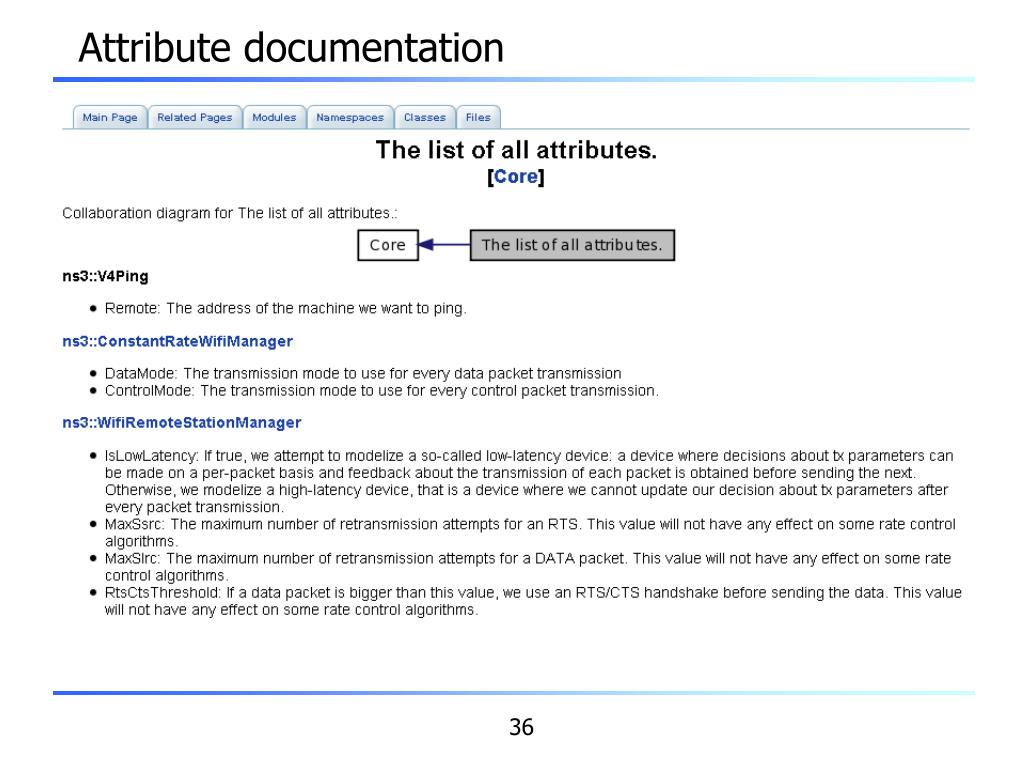

  36. Attribute documentation

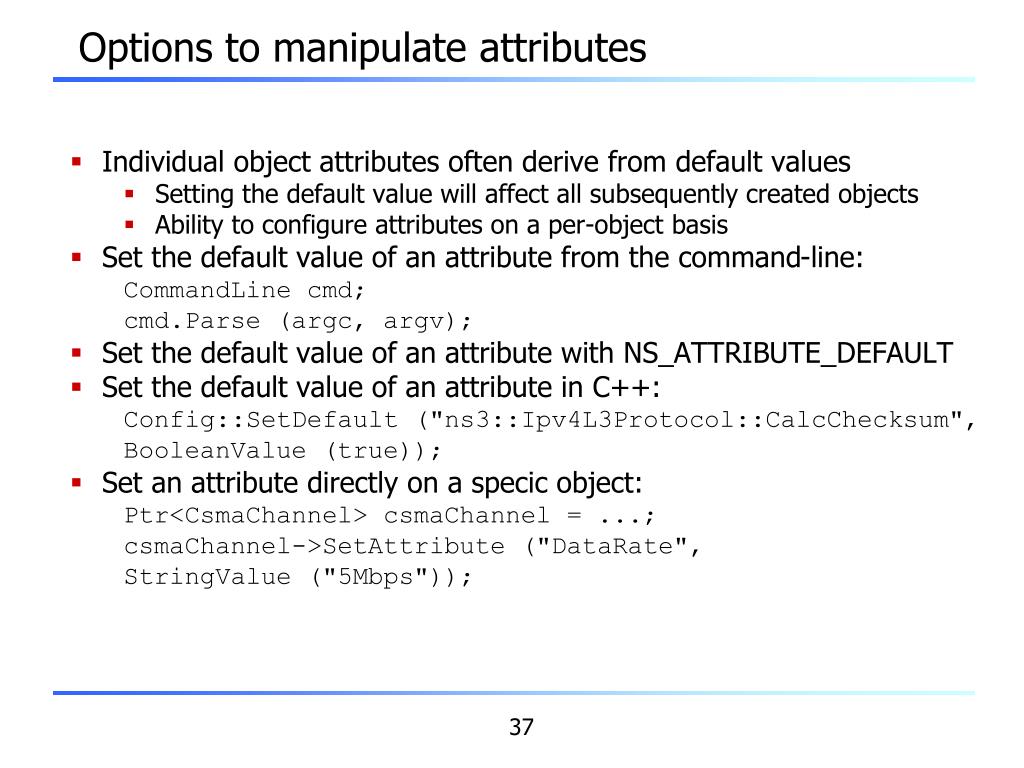

  37. Options to manipulate attributes • Individual object attributes often derive from default values • Setting the default value will affect all subsequently created objects • Ability to configure attributes on a per-object basis • Set the default value of an attribute from the command-line: CommandLine cmd; cmd.Parse (argc, argv); • Set the default value of an attribute with NS_ATTRIBUTE_DEFAULT • Set the default value of an attribute in C++: Config::SetDefault ("ns3::Ipv4L3Protocol::CalcChecksum", BooleanValue (true)); • Set an attribute directly on a specic object: Ptr<CsmaChannel> csmaChannel = ...; csmaChannel->SetAttribute ("DataRate", StringValue ("5Mbps"));

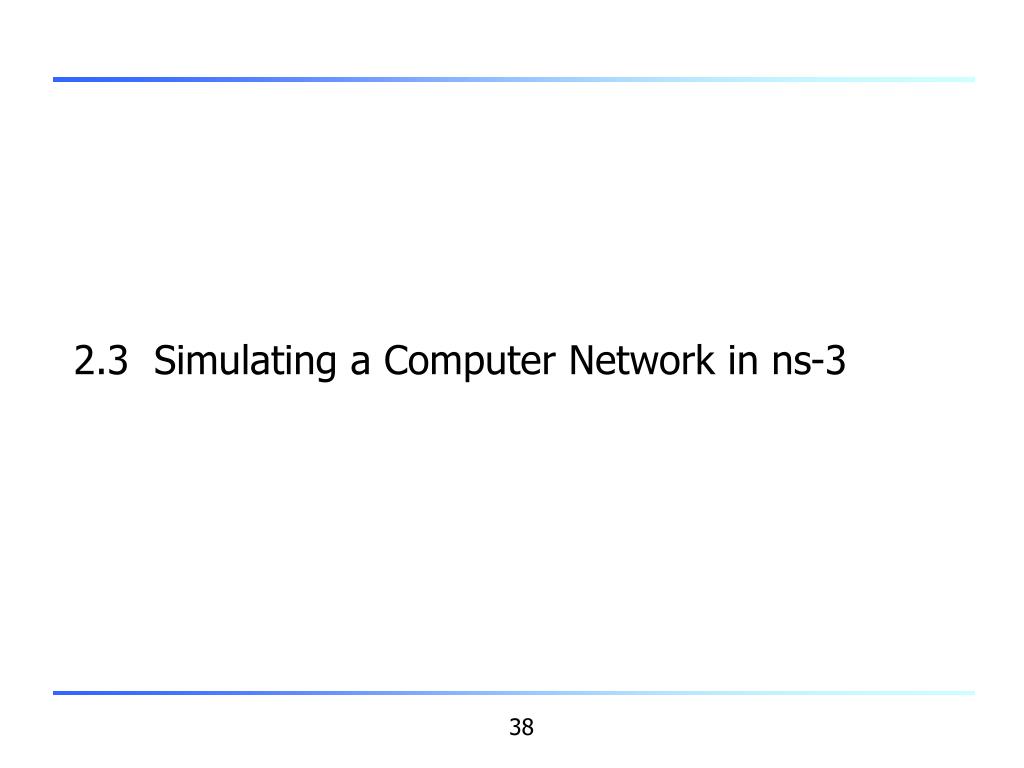

  38. 2.3 Simulating a Computer Network in ns-3

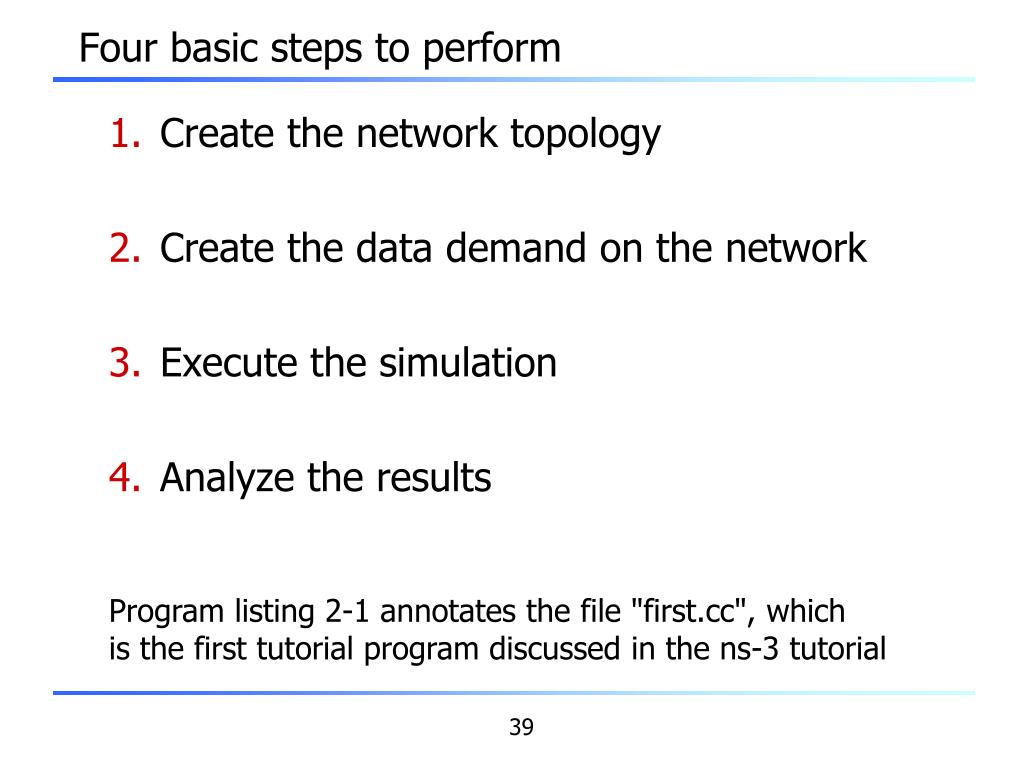

  39. Four basic steps to perform • Create the network topology • Create the data demand on the network • Execute the simulation • Analyze the results Program listing 2-1 annotates the file "first.cc", which is the first tutorial program discussed in the ns-3 tutorial

  40. 2.4: Smart Pointers in ns-3

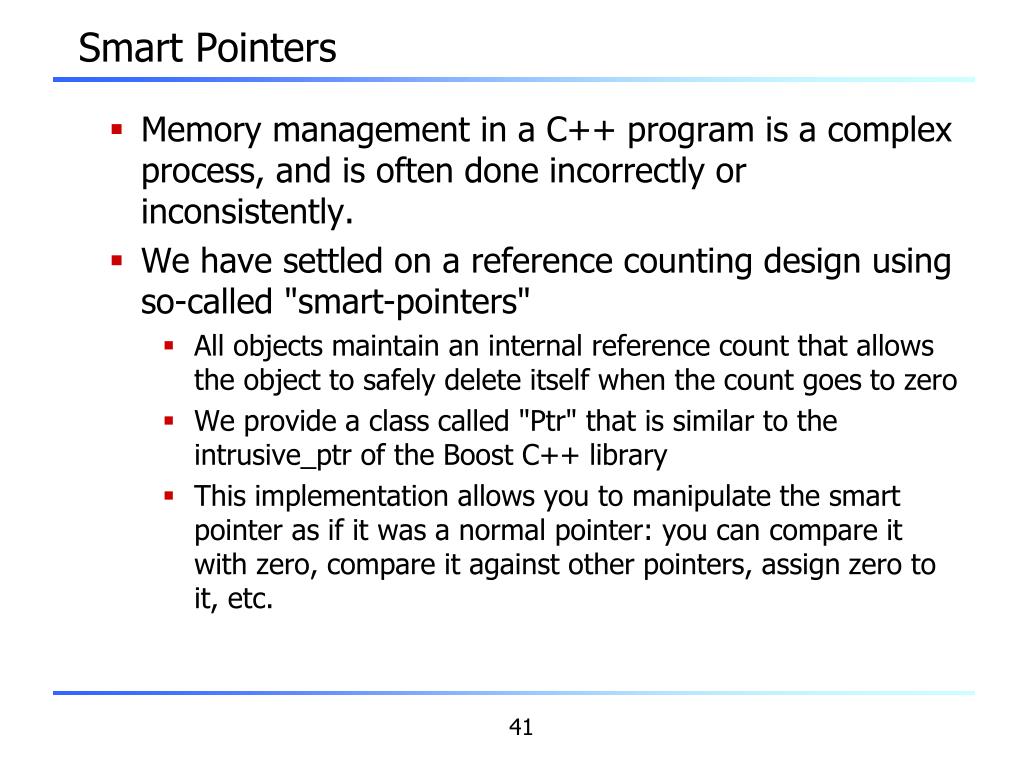

  41. Smart Pointers • Memory management in a C++ program is a complex process, and is often done incorrectly or inconsistently. • We have settled on a reference counting design using so-called "smart-pointers" • All objects maintain an internal reference count that allows the object to safely delete itself when the count goes to zero • We provide a class called "Ptr" that is similar to the intrusive_ptr of the Boost C++ library • This implementation allows you to manipulate the smart pointer as if it was a normal pointer: you can compare it with zero, compare it against other pointers, assign zero to it, etc.

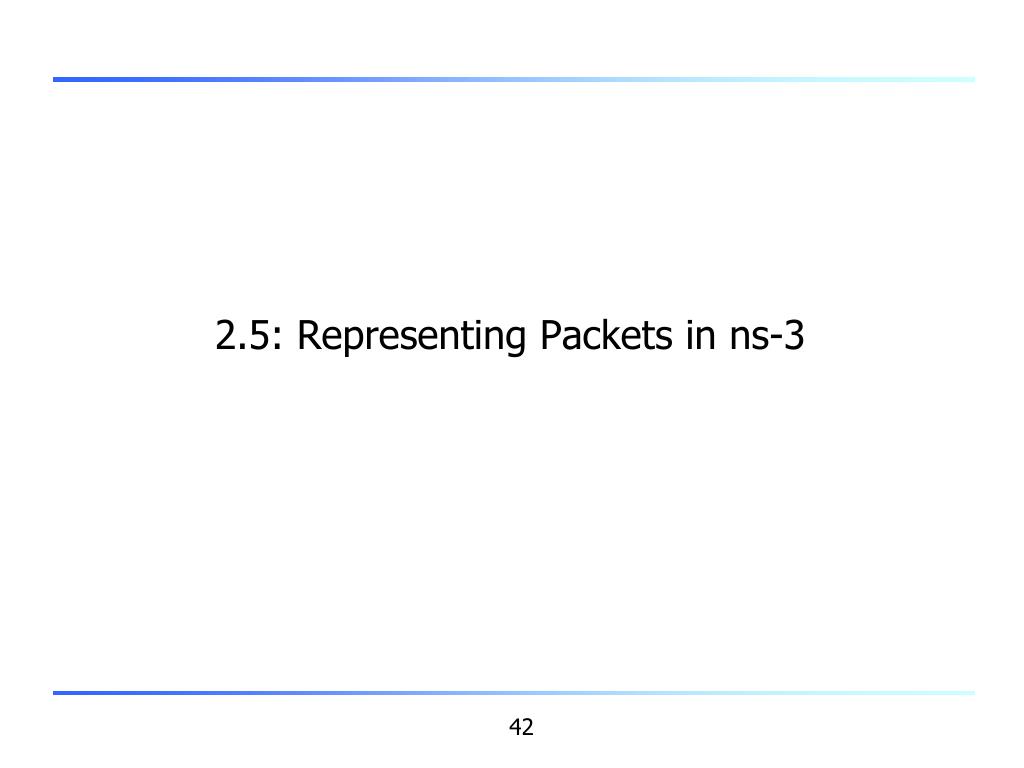

  42. 2.5: Representing Packets in ns-3

  43. 2.5: Representing Packets in ns-3 • The design of the Packet framework of ns-3 was heavily guided by a few important use-cases: • avoid changing the core of the simulator to introduce new types of packet headers or trailers • maximize the ease of integration with real-world code and systems • make it easy to support fragmentation, defragmentation, and, concatenation which are important, especially in wireless systems. • make memory management of this object efficient • allow actual application data or dummy application bytes for emulated applications • Each network packet contains a byte buffer, a set of byte tags, a set of packet tags, and metadata.

  44. Packet class organization each Packet has a reference to a Buffer holding packed packet data class Packet provides the user API Packet Tags contain simulation-specific information such as cross-layer messages, or simulation flow IDs optional PacketMetadata provides metadata about the contents of the buffer to enable (e.g.) pretty-printing

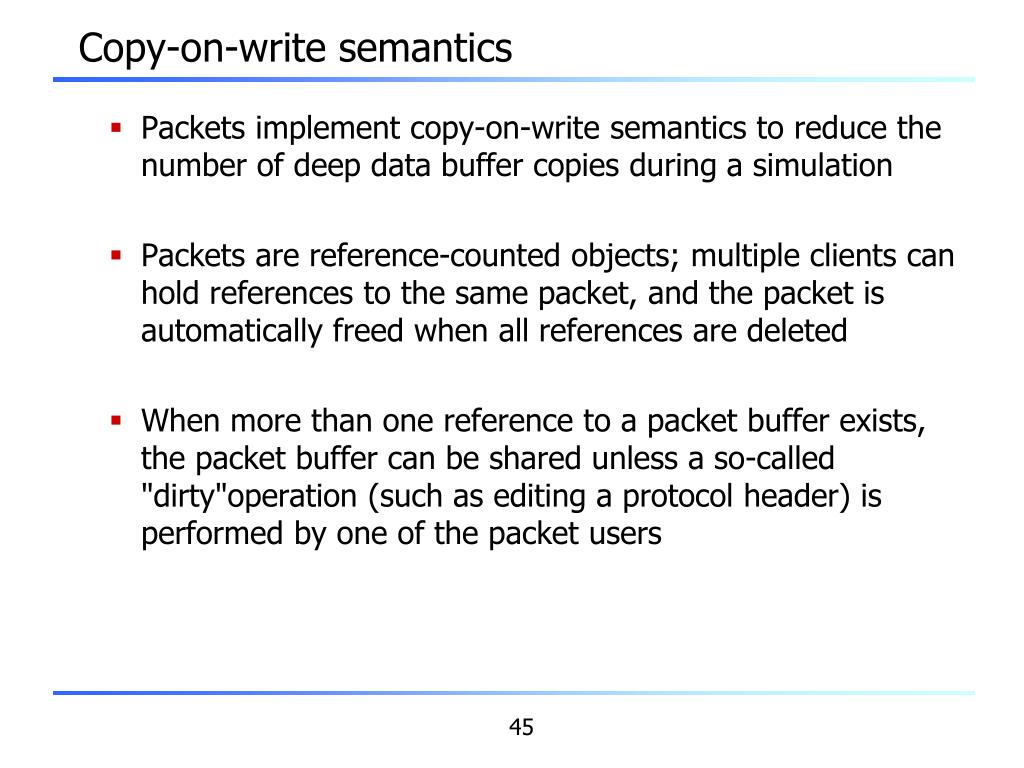

  45. Copy-on-write semantics • Packets implement copy-on-write semantics to reduce the number of deep data buffer copies during a simulation • Packets are reference-counted objects; multiple clients can hold references to the same packet, and the packet is automatically freed when all references are deleted • When more than one reference to a packet buffer exists, the packet buffer can be shared unless a so-called "dirty"operation (such as editing a protocol header) is performed by one of the packet users

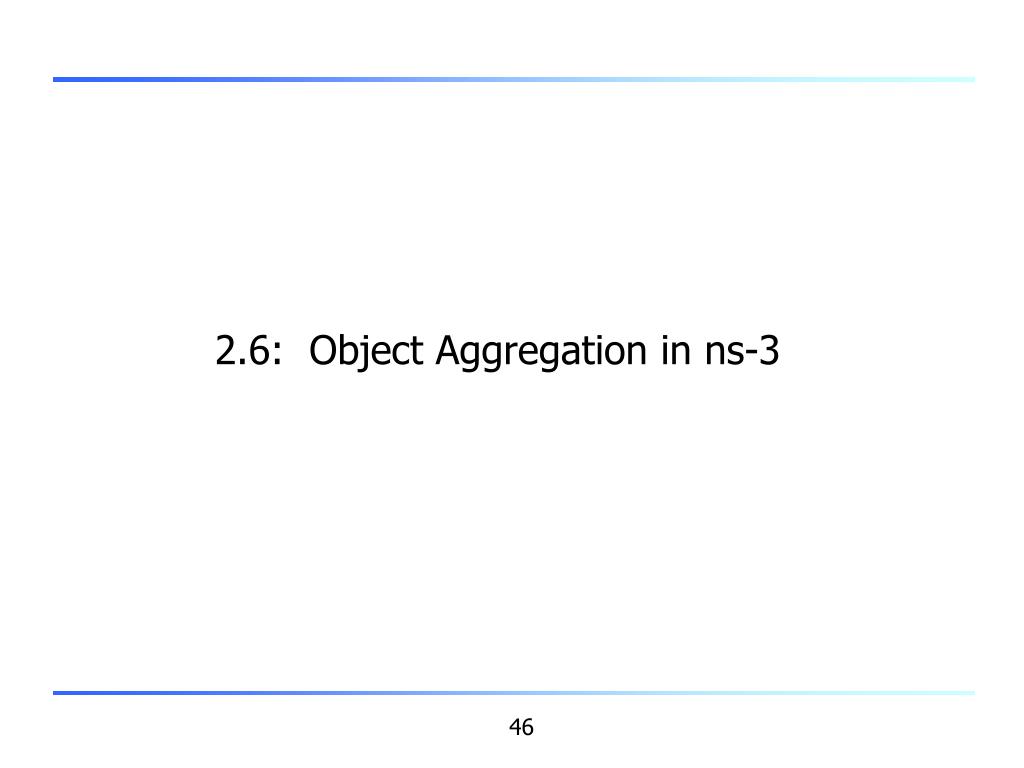

  46. 2.6: Object Aggregation in ns-3

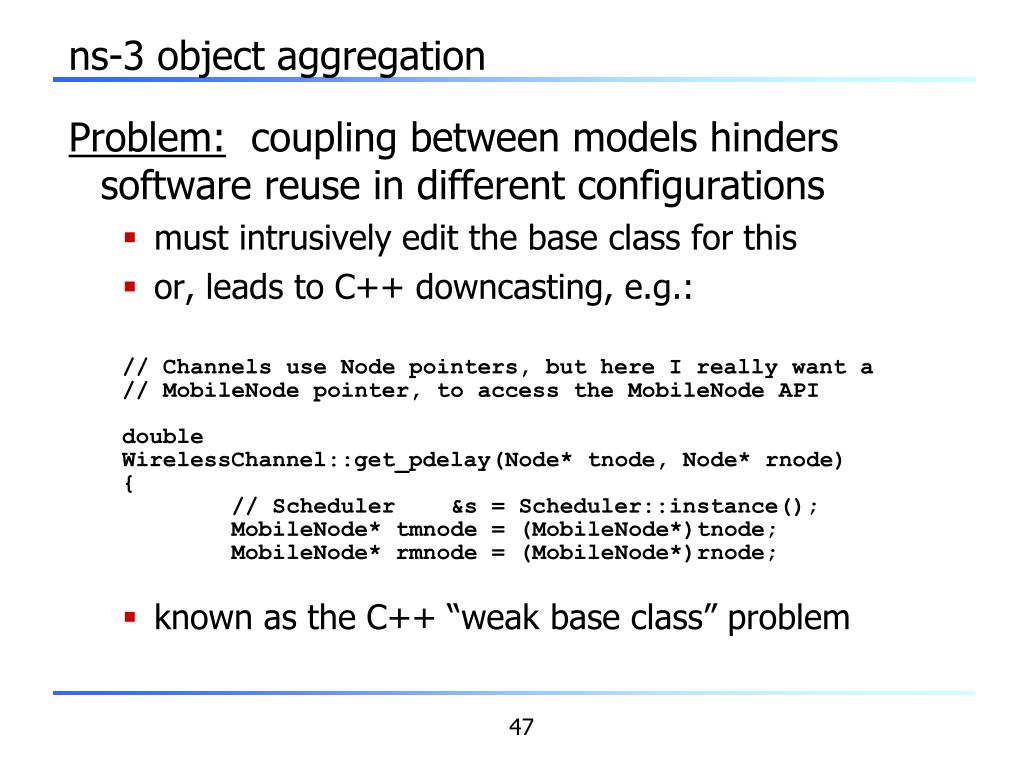

  47. ns-3 object aggregation Problem: coupling between models hinders software reuse in different configurations • must intrusively edit the base class for this • or, leads to C++ downcasting, e.g.: // Channels use Node pointers, but here I really want a // MobileNode pointer, to access the MobileNode API double WirelessChannel::get_pdelay(Node* tnode, Node* rnode) { // Scheduler &s = Scheduler::instance(); MobileNode* tmnode = (MobileNode*)tnode; MobileNode* rmnode = (MobileNode*)rnode; • known as the C++ “weak base class” problem

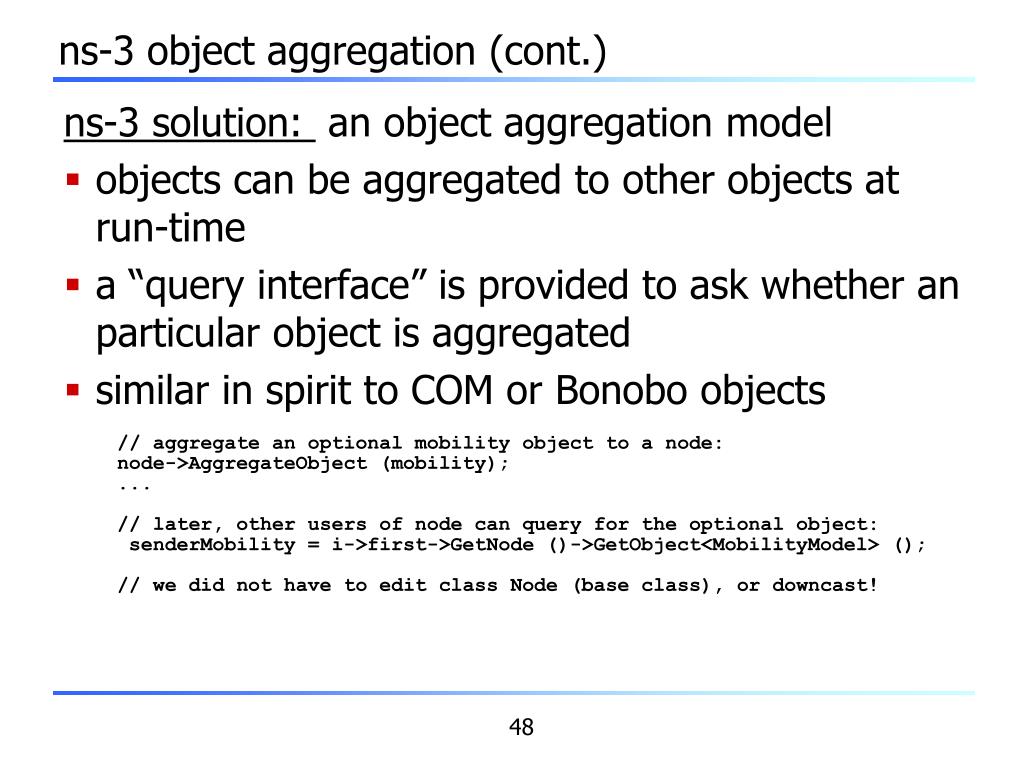

  48. ns-3 object aggregation (cont.) ns-3 solution: an object aggregation model • objects can be aggregated to other objects at run-time • a “query interface” is provided to ask whether an particular object is aggregated • similar in spirit to COM or Bonobo objects // aggregate an optional mobility object to a node: node->AggregateObject (mobility); ... // later, other users of node can query for the optional object: senderMobility = i->first->GetNode ()->GetObject<MobilityModel> (); // we did not have to edit class Node (base class), or downcast!

  49. 2.7: Events in ns-3

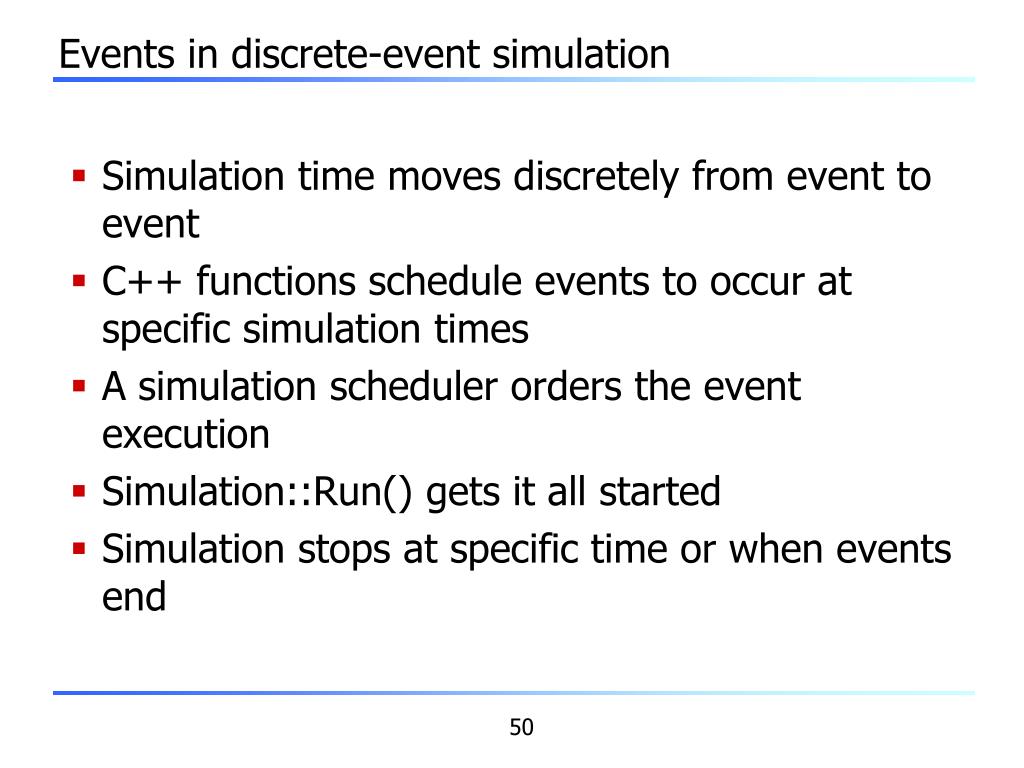

  50. Events in discrete-event simulation • Simulation time moves discretely from event to event • C++ functions schedule events to occur at specific simulation times • A simulation scheduler orders the event execution • Simulation::Run() gets it all started • Simulation stops at specific time or when events end
