  1. Wetland Assessment Methods FHWA Needs

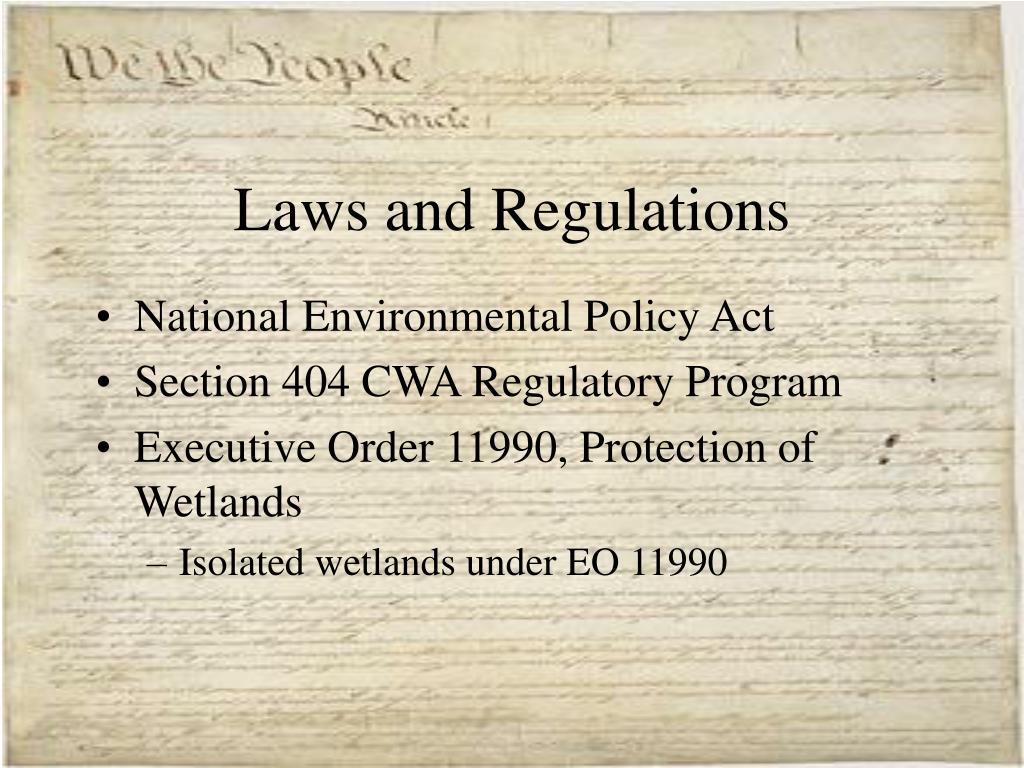

  2. Laws and Regulations • National Environmental Policy Act • Section 404 CWA Regulatory Program • Executive Order 11990, Protection of Wetlands • Isolated wetlands under EO 11990

  3. FHWA Regulation • 23 CFR 777, Mitigation of Impacts to Wetlands • Requires consideration of wetland functions and values to be impacted or replaced • Determination of landscape level functions and significance of impacted wetlands and mitigation needs • Consider both the short and long term effects of the project

  4. Other Guidance • FWHA Policy of a net gain of wetlands • 1.5:1 compensation ratio • Section 404 Mitigation Action Plan • Emphasizes landscape level functions • Functional replacement • Best available science • Corps REGL 2-02 • Watershed approach • Assessment of Streams

  5. Challenges for Linear Highway Projects • Impacts could occur in different drainage areas • Wetlands within and among drainages could be of various types • Wetlands in different areas may perform different functions

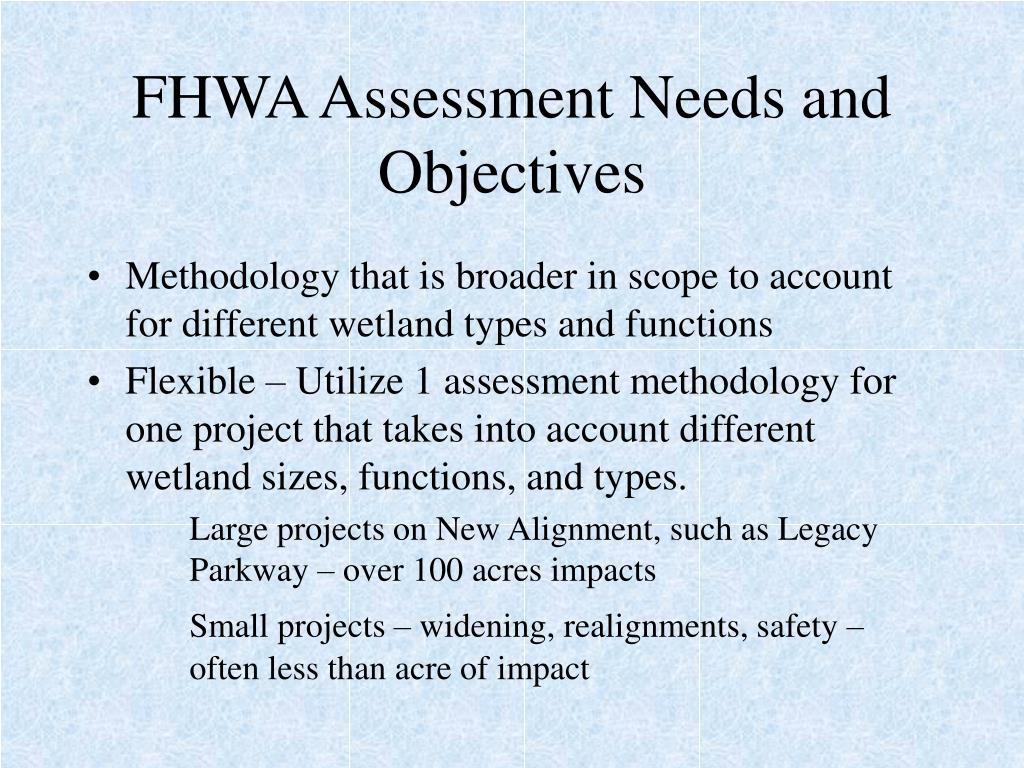

  6. FHWA Assessment Needs and Objectives • Methodology that is broader in scope to account for different wetland types and functions • Flexible – Utilize 1 assessment methodology for one project that takes into account different wetland sizes, functions, and types. Large projects on New Alignment, such as Legacy Parkway – over 100 acres impacts Small projects – widening, realignments, safety – often less than acre of impact

  7. FHWA/DOT Needs in Assessment • Standardized – One methodology per region or statewide uniformity • Rapid – Able to accommodate project timelines • Functionally based – Since linear projects may impact several different types of wetlands, a functionally based assessment is necessary. • Quantitative – determine appropriate mitigation ratios and identify suitable mitigation sites by site characteristics – NEPA, 404, 11990 • Efficient in use of personnel time

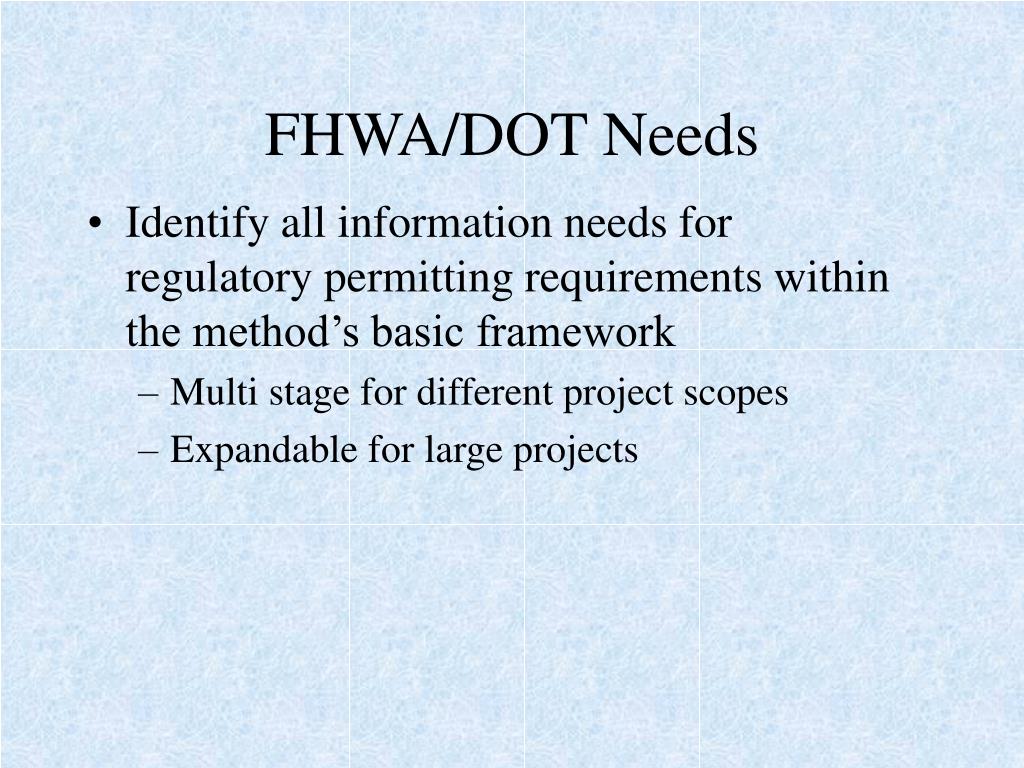

  8. FHWA/DOT Needs • Identify all information needs for regulatory permitting requirements within the method’s basic framework • Multi stage for different project scopes • Expandable for large projects

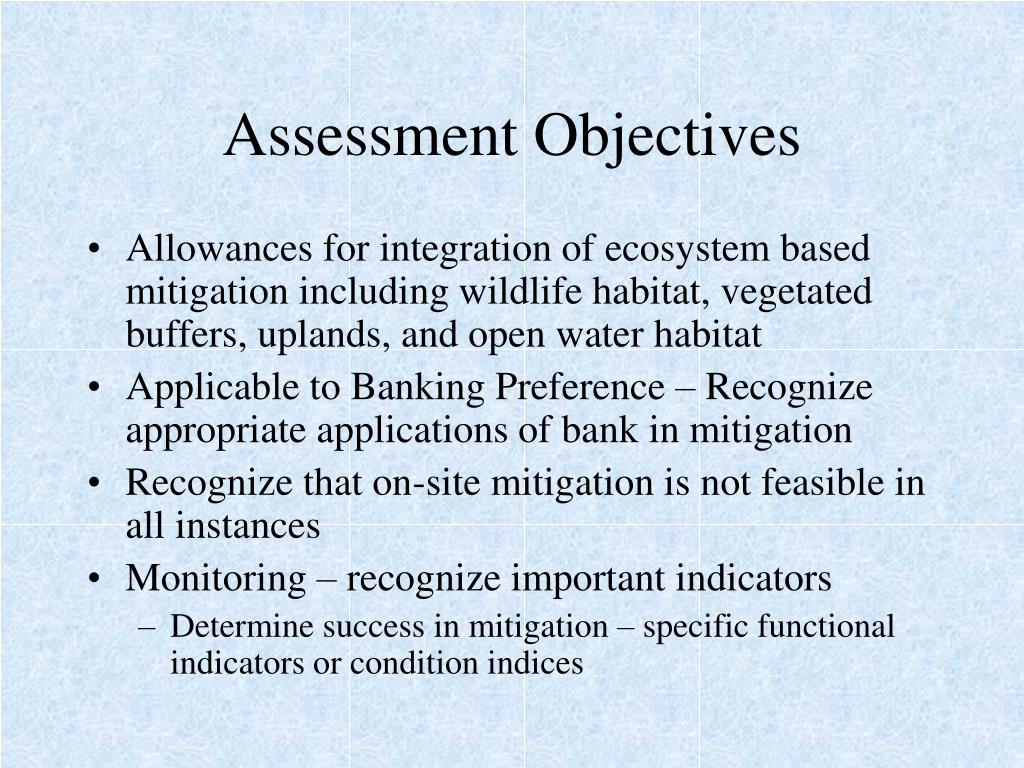

  9. Assessment Objectives • Allowances for integration of ecosystem based mitigation including wildlife habitat, vegetated buffers, uplands, and open water habitat • Applicable to Banking Preference – Recognize appropriate applications of bank in mitigation • Recognize that on-site mitigation is not feasible in all instances • Monitoring – recognize important indicators • Determine success in mitigation – specific functional indicators or condition indices

  10. Alternatives in Assessment • Hydrogeomorphic Approach (COE) • Has withstood legal challenge (on Legacy Parkway Project – over 100 acres of impacts) • Quantitative when correctly developed and applied – provides a numerical output • Establishes appropriate mitigation ratios • Identifies critical site parameters • Can address all functions, including wildlife • Updatable

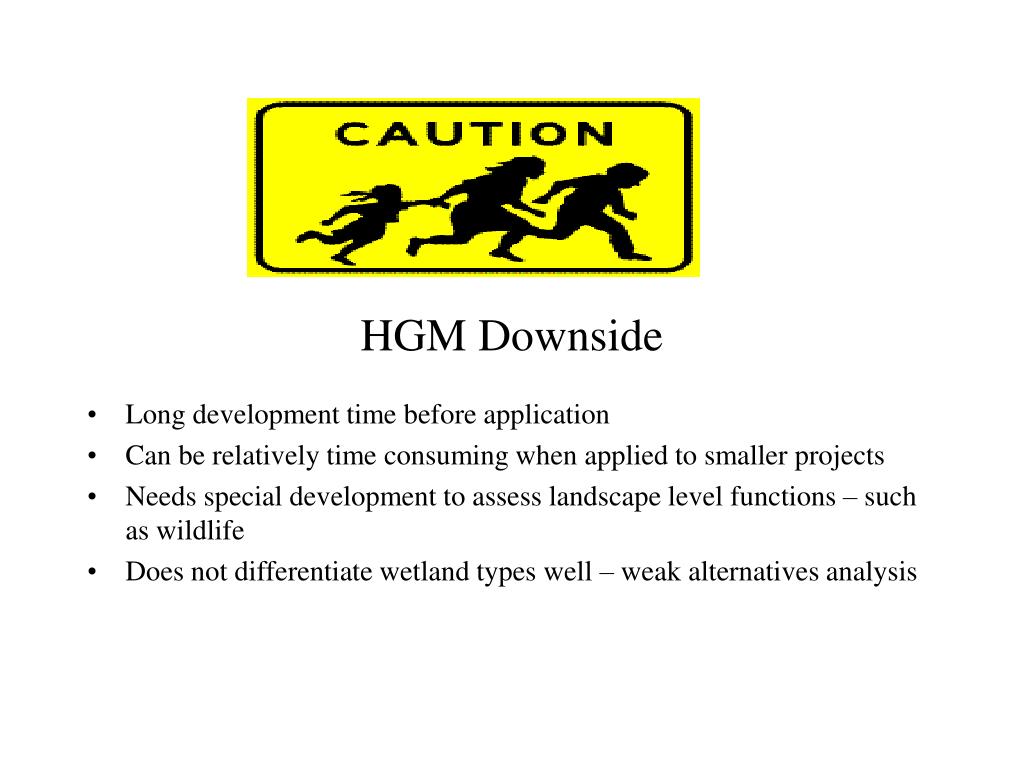

  11. HGM Downside • Long development time before application • Can be relatively time consuming when applied to smaller projects • Needs special development to assess landscape level functions – such as wildlife • Does not differentiate wetland types well – weak alternatives analysis

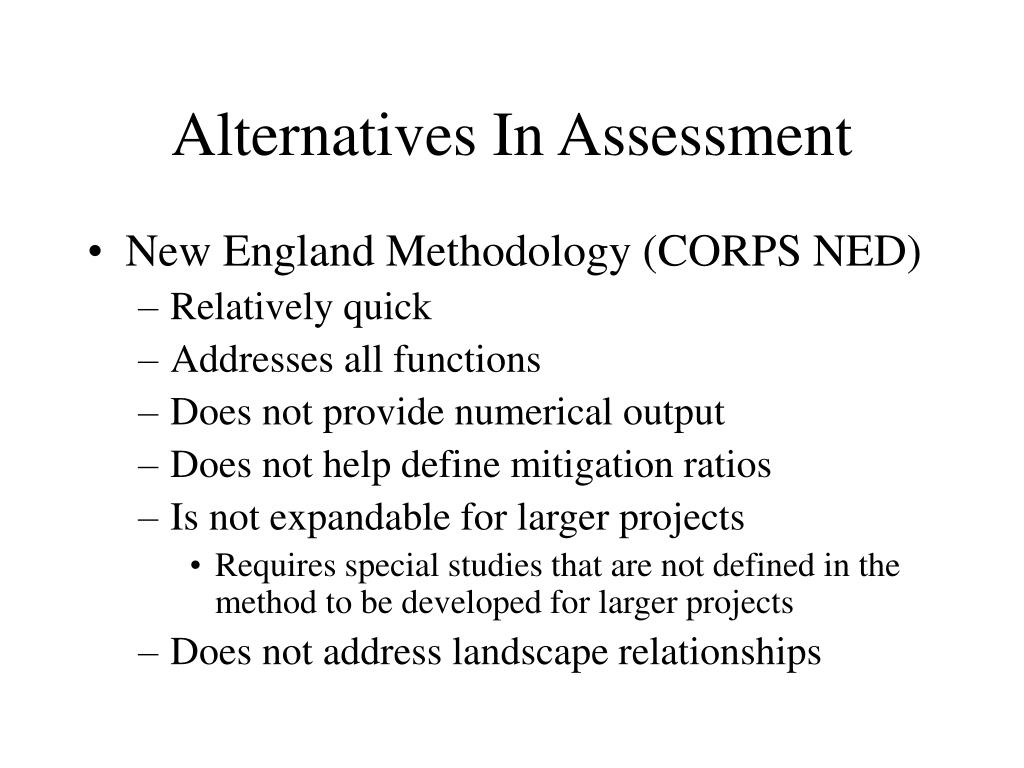

  12. Alternatives In Assessment • New England Methodology (CORPS NED) • Relatively quick • Addresses all functions • Does not provide numerical output • Does not help define mitigation ratios • Is not expandable for larger projects • Requires special studies that are not defined in the method to be developed for larger projects • Does not address landscape relationships

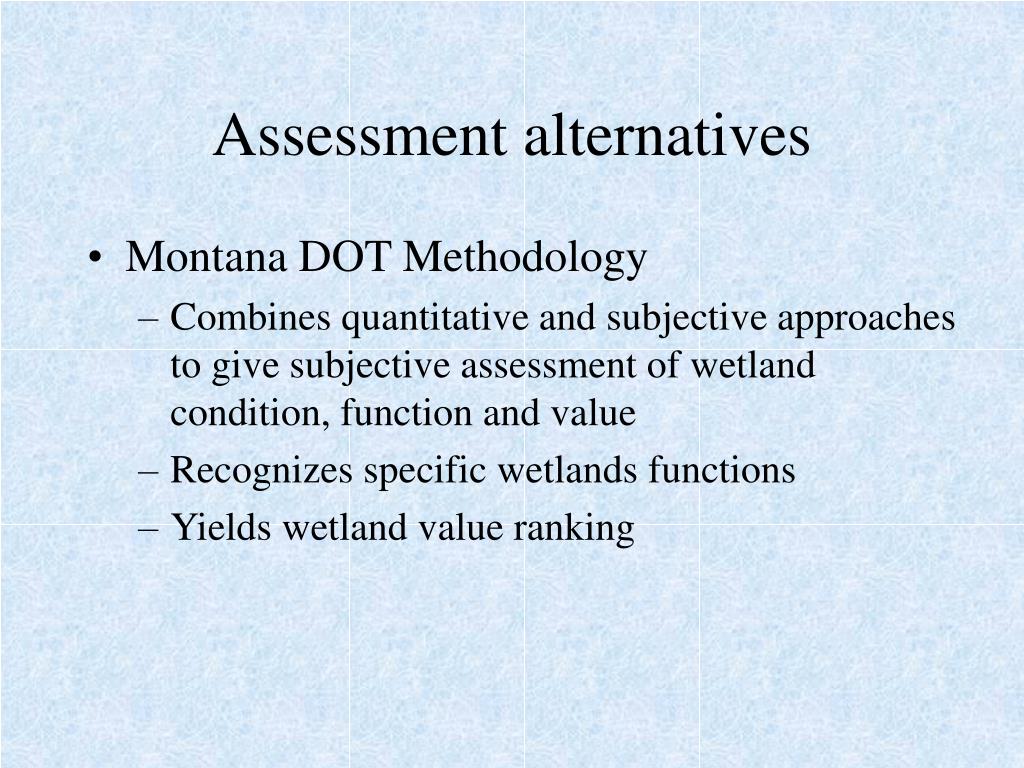

  13. Assessment alternatives • Montana DOT Methodology • Combines quantitative and subjective approaches to give subjective assessment of wetland condition, function and value • Recognizes specific wetlands functions • Yields wetland value ranking

  14. Alternatives in assessment • Washington DOT methodology • Uses HGM like characteristics to define wetland functions • Can associate landscape level functions • Helps identify specific mitigation site characteristics • Adaptation of New England methodology

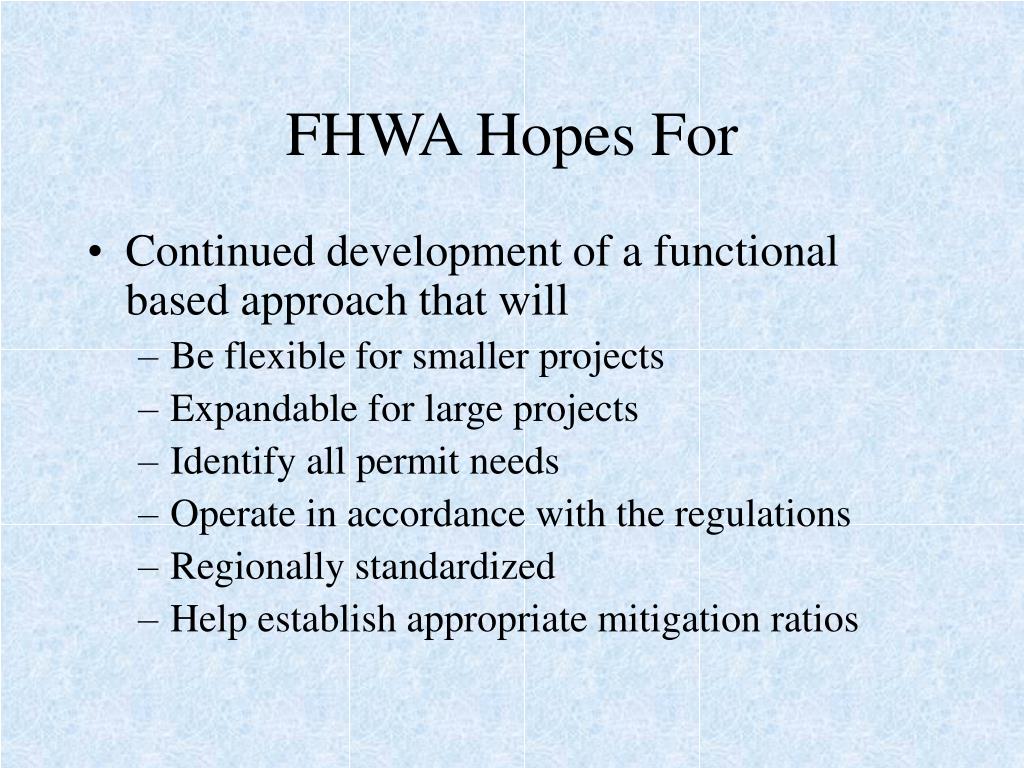

  15. FHWA Hopes For • Continued development of a functional based approach that will • Be flexible for smaller projects • Expandable for large projects • Identify all permit needs • Operate in accordance with the regulations • Regionally standardized • Help establish appropriate mitigation ratios
