Size

Size. In residential work, the return size is usually based on achieving either a 300 fpm velocity over the gross area of the grille (face velocity), or a 400 fpm velocity over the free area of the grille (core velocity). Size.

gustav
Download Presentation

Size

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Size In residential work, the return size is usually based on achieving either a 300 fpm velocity over the gross area of the grille (face velocity), or a 400 fpm velocity over the free area of the grille (core velocity).

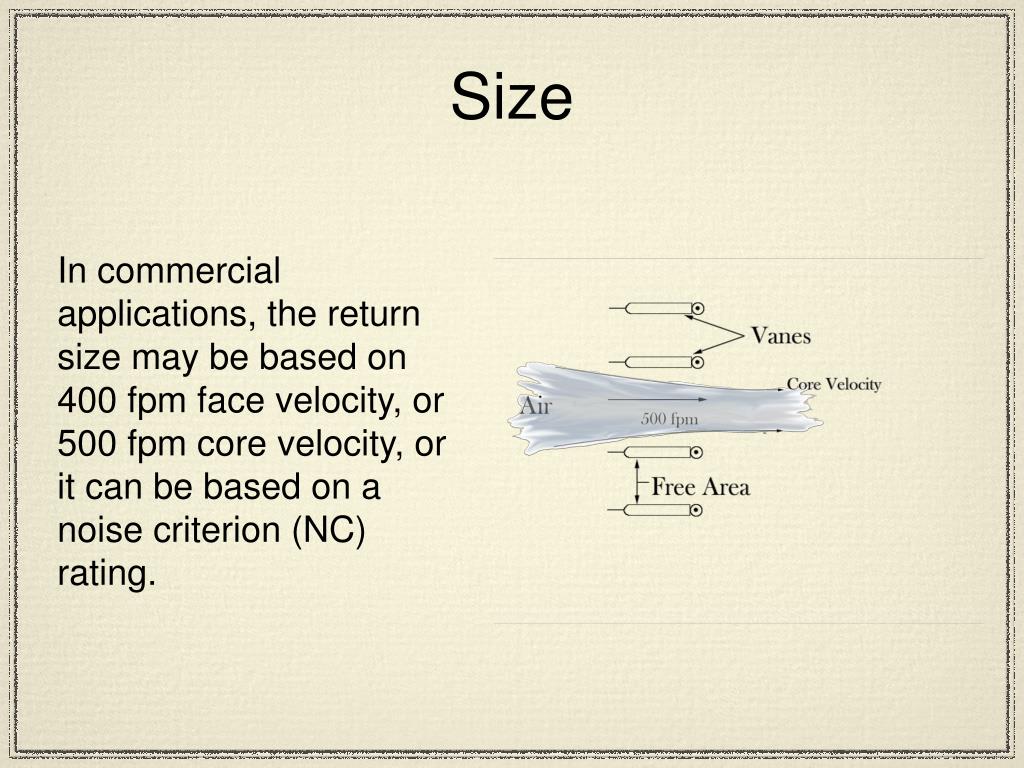

  2. Size In commercial applications, the return size may be based on 400 fpm face velocity, or 500 fpm core velocity, or it can be based on a noise criterion (NC) rating.

  3. Filter Grilles In general, the velocity through filters should be fairly low because filter performance and pressure drop are quite sensitive to flow rate. Therefore, filter grilles should be sized for either a face velocity of 200 fpm or a core velocity of 300 fpm.
