  1. Status of DHCAL using GEM • Introduction • Digital Hadron Calorimeter • GEM in the sensitive gap • Status of GEM DHCAL prototype • Simulation study status • Summary J. Yu Univ. of Texas at Arlington LCWS 2002, Aug. 26 – 30, 2002 Jeju Island, Korea (on behalf of the UTA team: A. Brandt, K. De, S. Habib, V. Kaushik, J. Li, M. Sosebee, A. White)

  2. Introduction • LC physics topics require higher jet energy resolution • Distinguish W from Z in two jet final states • s/E~30%/sqrt(E) • Excellent jet angular resolution • Energy flow algorithm is one of the solutions • Replace charged track energy with momentum measured in the tracking system • Requires efficient removal of associated energy cluster • Higher calorimeter granularity • Use calorimeter only for neutral particle energies • Large number of readout channel might drive up the cost for analogue style energy measurement  Digital hadron calorimeter • Tracking calorimeter with high gain sensitive gap Jae Yu: GEM Based DHCAL

  3. Goals for DHCAL Development • Develop digital hadron calorimetry for use with EFA • Develop GEM cell(s) and prototype • Develop module and stack design • Simulate GEM behavior • Implement GEM readout structure into simulation • Develop energy flow and calorimeter tracking algorithms • Estimate cost for large scale GEM readout layer Jae Yu: GEM Based DHCAL

  4. DHCAL General Requirements • Thin and sensitive readout layer for compact design • 1 or 2 level hit recording for EFA use • On-board amplification, digitization and discrimination for readout, minimizing noise and cross-talk • Flexible design for easy implementation of arbitrary cell size for upgrade • Minimal intrusion for crackless design • Ease of construction and maintenance • Cost minimization Jae Yu: GEM Based DHCAL

  5. DHCAL Gas Amplification Requirements • Sufficiently large gain for good S/N ratio • Minimize cross-talk between cells in readout • Isolated readout path from active volume to avoid coherent noise • Modularity, retaining continuity for gas and HV supplies and readout • Digitized readout from each cell • Allow pad design to avoid strip ambiguity • Keep low HV for safety and reliability • Simple readout electronics for cost savings and reliability Jae Yu: GEM Based DHCAL

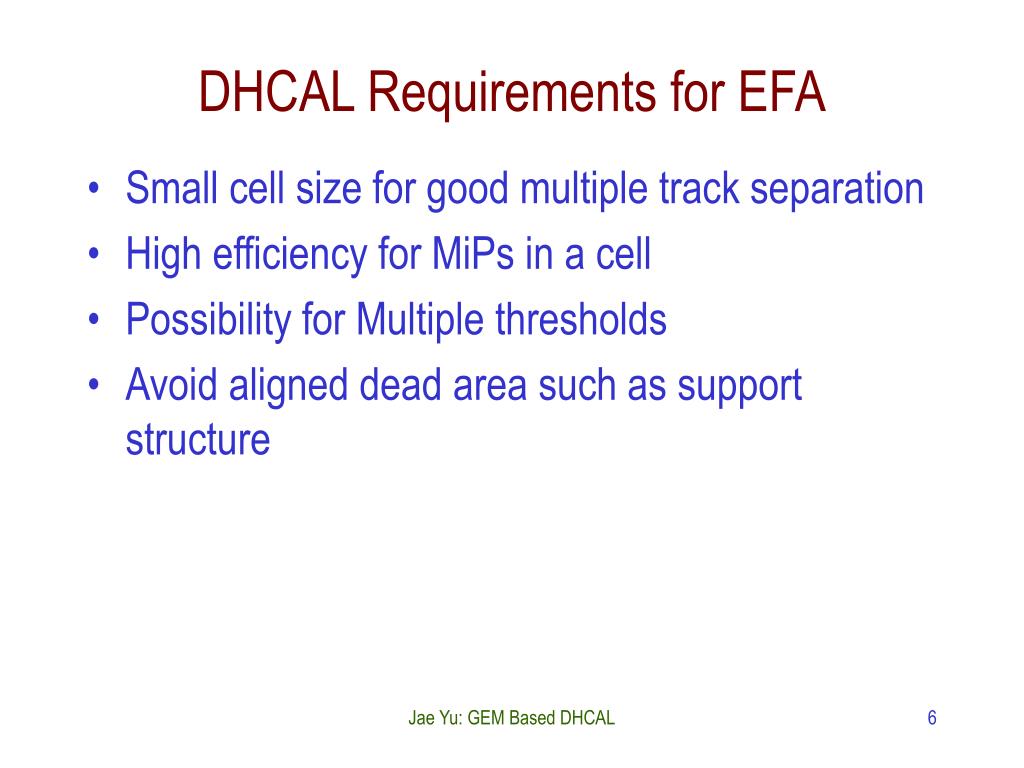

  6. DHCAL Requirements for EFA • Small cell size for good multiple track separation • High efficiency for MiPs in a cell • Possibility for Multiple thresholds • Avoid aligned dead area such as support structure Jae Yu: GEM Based DHCAL

  7. GEM (Gas Electron Multiplier) Approach • GEM developed by F. Sauli (CERN) for use as pre-amplification stage for MSGC’s • GEM also can be used with printed circuit readout – allows very flexible approach to geometrical design. • GEM’s with gains above 104 have been developed and spark probabilities per incident  less than 10-10. • Fast operation -> Ar CO2 40 ns drift for 3mm gap • Relatively low HV (~ few x100V per GEM layer) • (cf. 10-16kV for RPC!) Jae Yu: GEM Based DHCAL

  8. Why GEM? • GEM developed by F. Sauli (CERN) for use as pre-amplification stage for MSGC’s • Allow flexible and geometrical design, using printed circuit readout  Can be as fine a readout as GEM tracking chamber!! • High gains, above 104,with spark probabilities per incident  less than 10-10 • Fast response • 40ns drift time for 3mm gap with ArCO2 • Relative low HV • A few 100V per each GEM gap compared to 10-16kV for RPC • Rather reasonable cost • Foils are basically copper-clad kapton • Some $400 per framed 10cmx10cm foil Jae Yu: GEM Based DHCAL

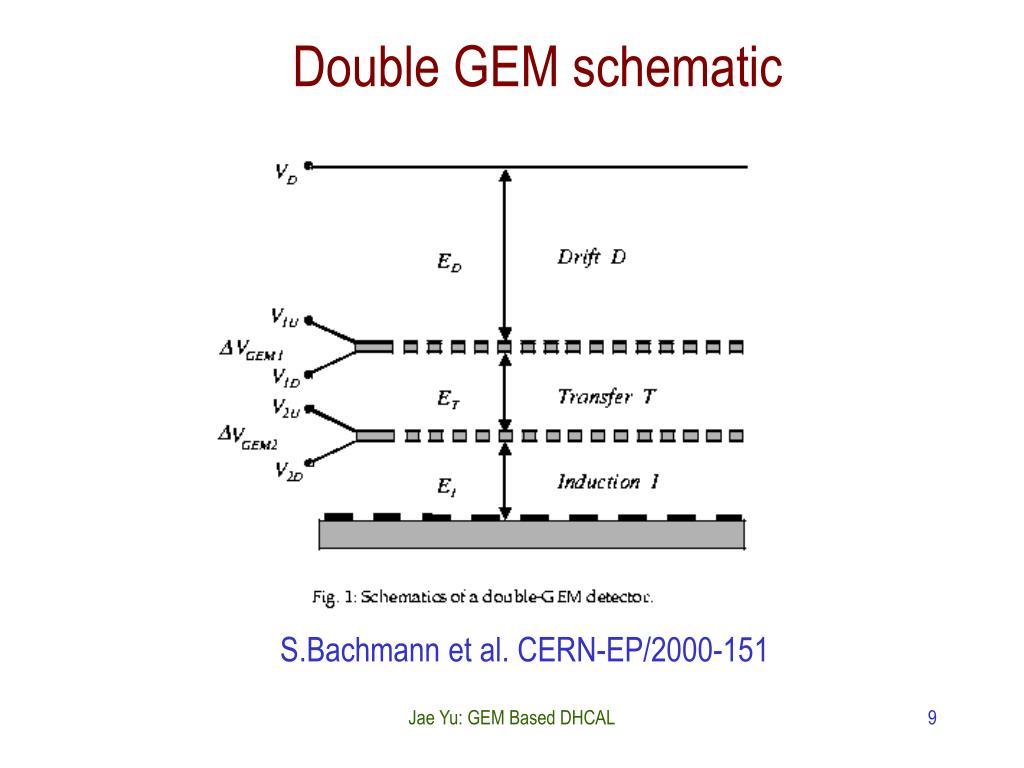

  9. Double GEM schematic S.Bachmann et al. CERN-EP/2000-151 Jae Yu: GEM Based DHCAL

  10. Large amplification 140mm 70mm CERN-open-2000-344, A. Sharma Jae Yu: GEM Based DHCAL

  11. r=70mm GEM Foils • Most foils made at CERN • A total of about 1000 foils made • COMPASS experiment has large scale, 31cmx31cm, GEM • Kapton etching most difficult step  Work with Sauli’s group A. Sharma CERN OPEN-98-030 Jae Yu: GEM Based DHCAL

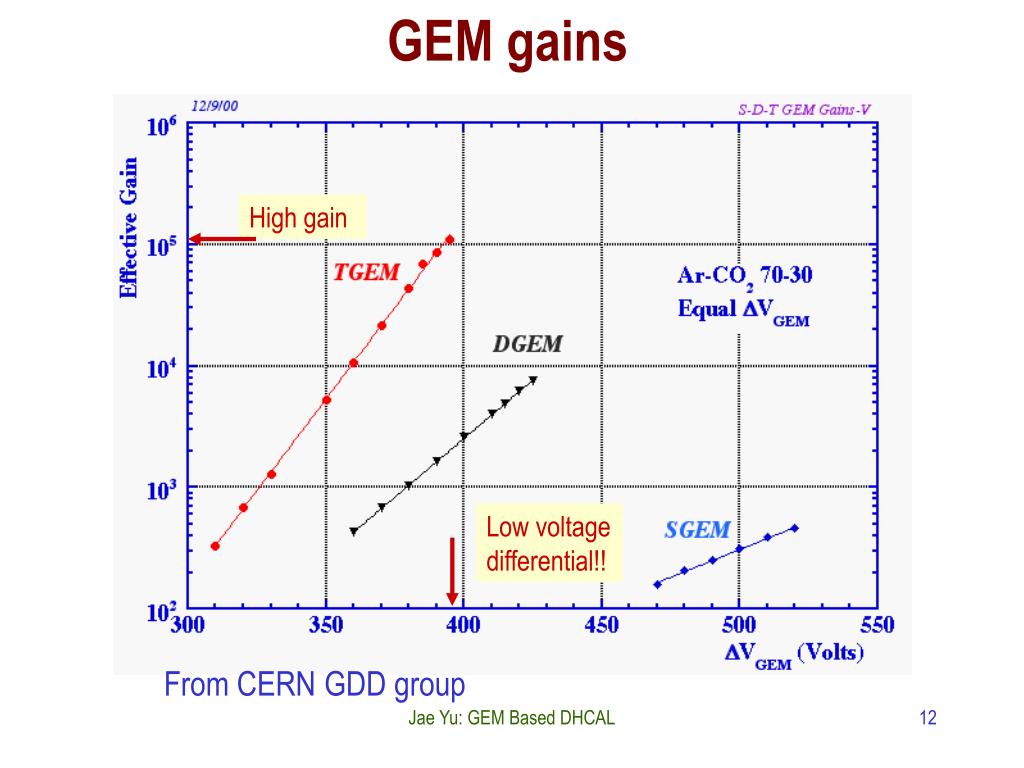

  12. GEM gains High gain Low voltage differential!! From CERN GDD group Jae Yu: GEM Based DHCAL

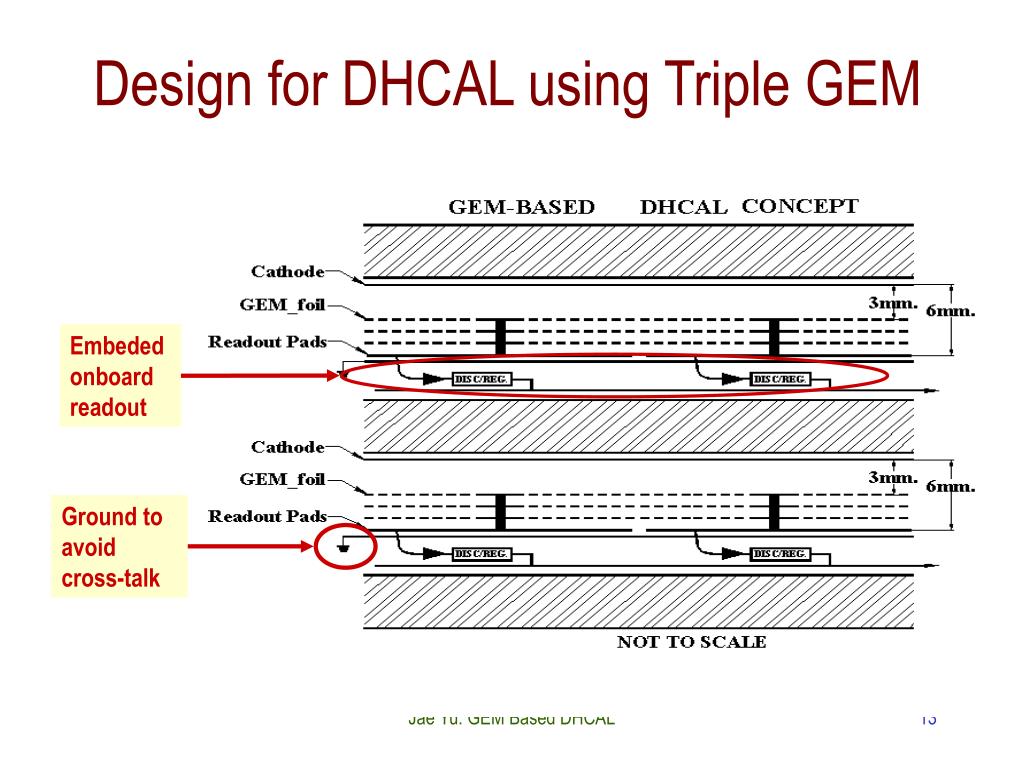

  13. Embeded onboard readout Ground to avoid cross-talk Design for DHCAL using Triple GEM Jae Yu: GEM Based DHCAL

  14. Readout Schematic Anode pad Ground thr thr AMP DISC AMP DISC REG REG Digital/serial output Jae Yu: GEM Based DHCAL

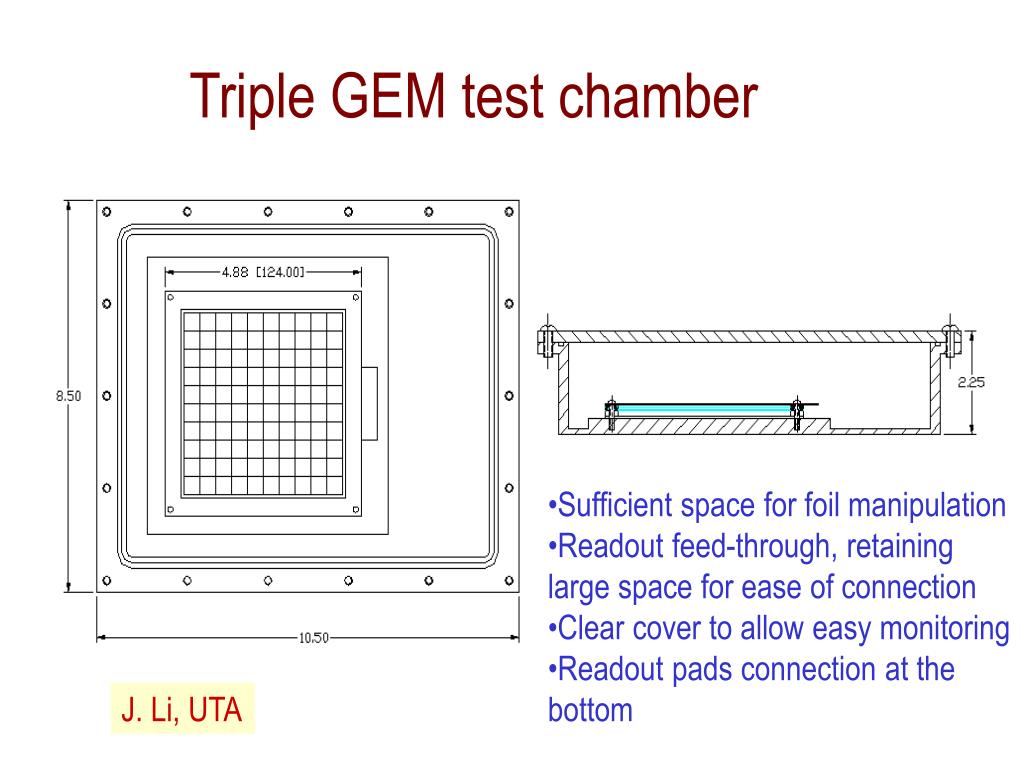

  15. Triple GEM test chamber • Sufficient space for foil manipulation • Readout feed-through, retaining large space for ease of connection • Clear cover to allow easy monitoring • Readout pads connection at the bottom J. Li, UTA Jae Yu: GEM Based DHCAL

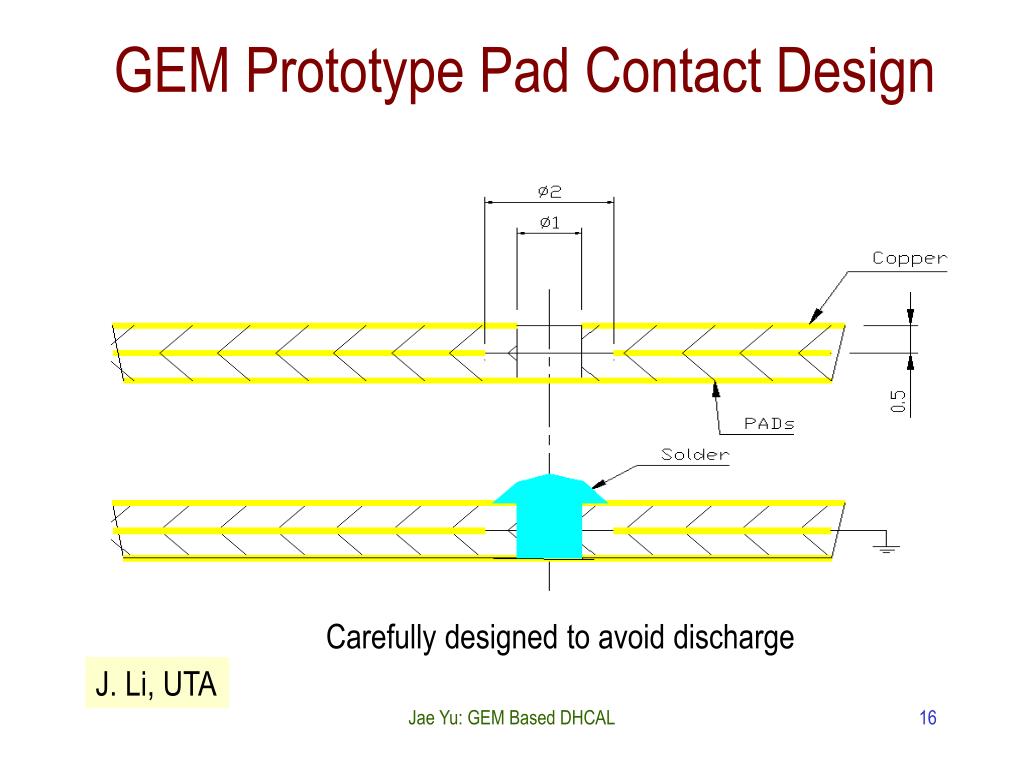

  16. GEM Prototype Pad Contact Design Carefully designed to avoid discharge J. Li, UTA Jae Yu: GEM Based DHCAL

  17. }1cm }1cm GEM prototype – readout path Readout through a gas tight feed-through Jae Yu: GEM Based DHCAL

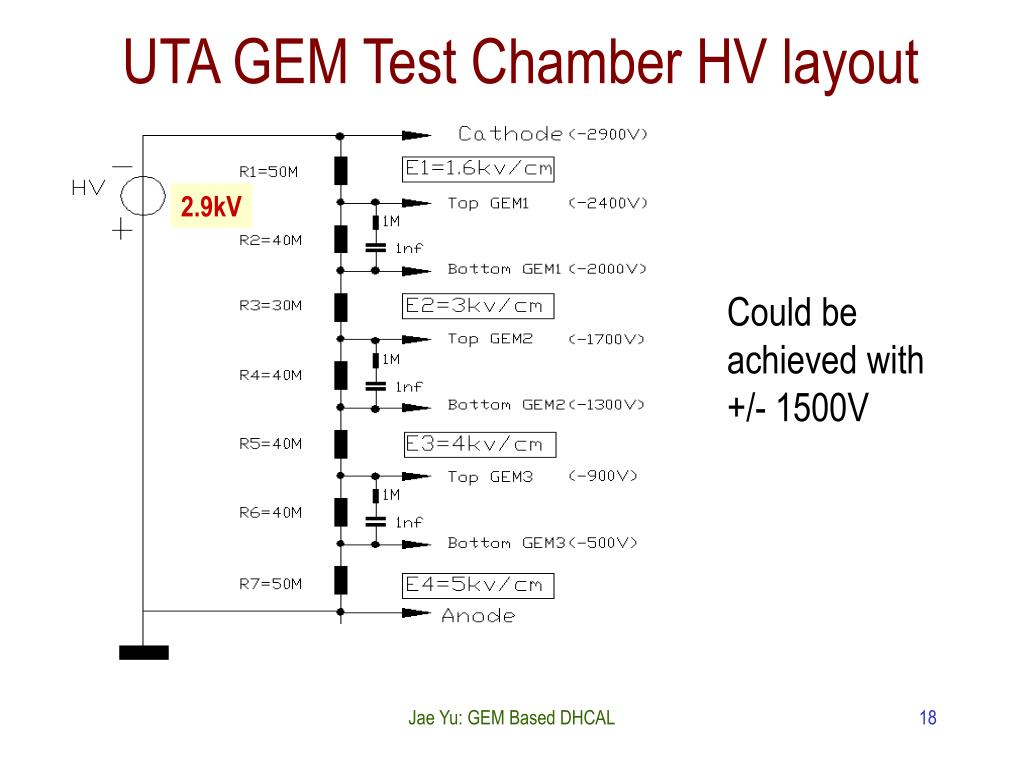

  18. UTA GEM Test Chamber HV layout 2.9kV Could be achieved with +/- 1500V Jae Yu: GEM Based DHCAL

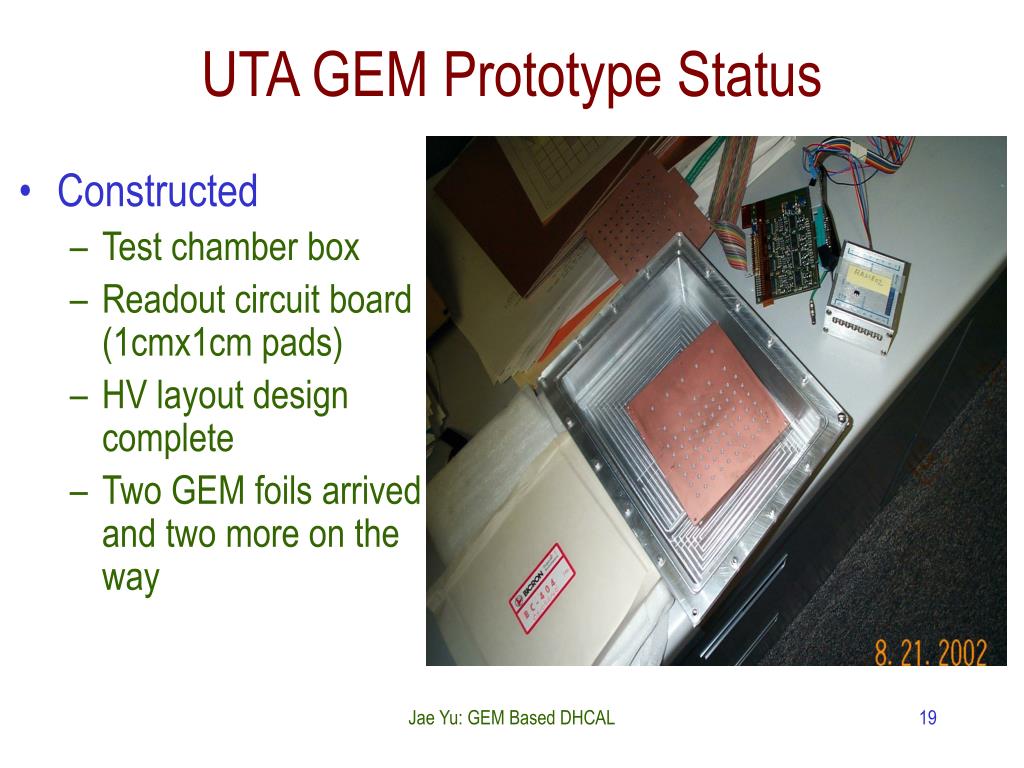

  19. UTA GEM Prototype Status • Constructed • Test chamber box • Readout circuit board (1cmx1cm pads) • HV layout design complete • Two GEM foils arrived and two more on the way Jae Yu: GEM Based DHCAL

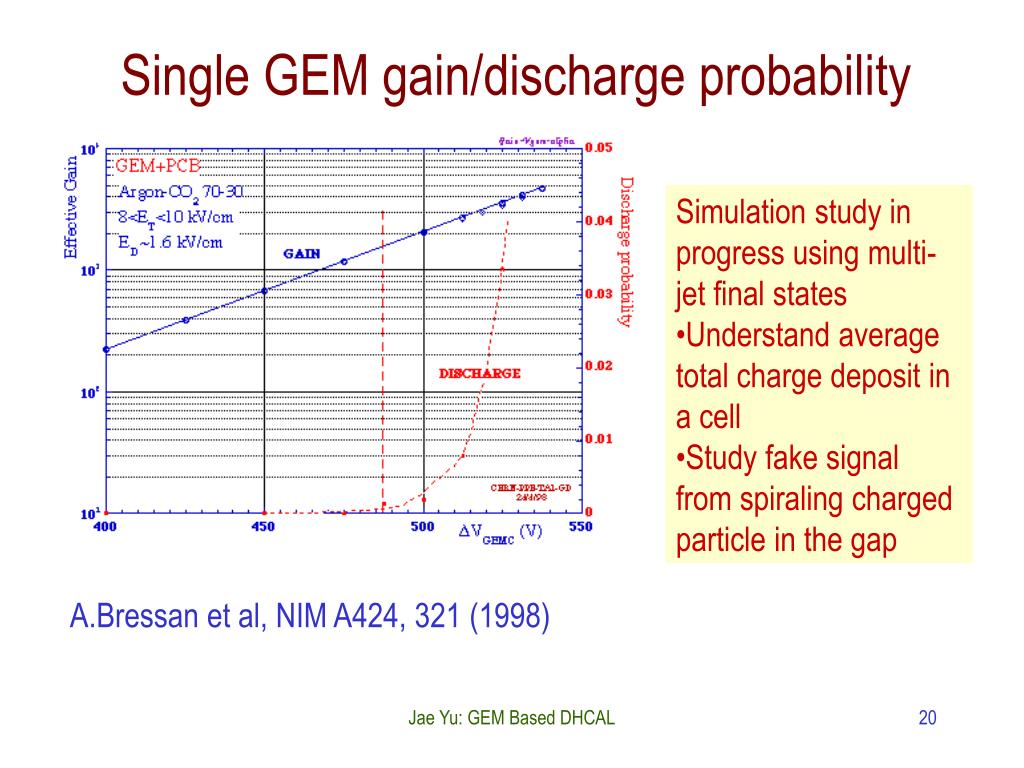

  20. Single GEM gain/discharge probability • Simulation study in progress using multi-jet final states • Understand average total charge deposit in a cell • Study fake signal from spiraling charged particle in the gap A.Bressan et al, NIM A424, 321 (1998) Jae Yu: GEM Based DHCAL

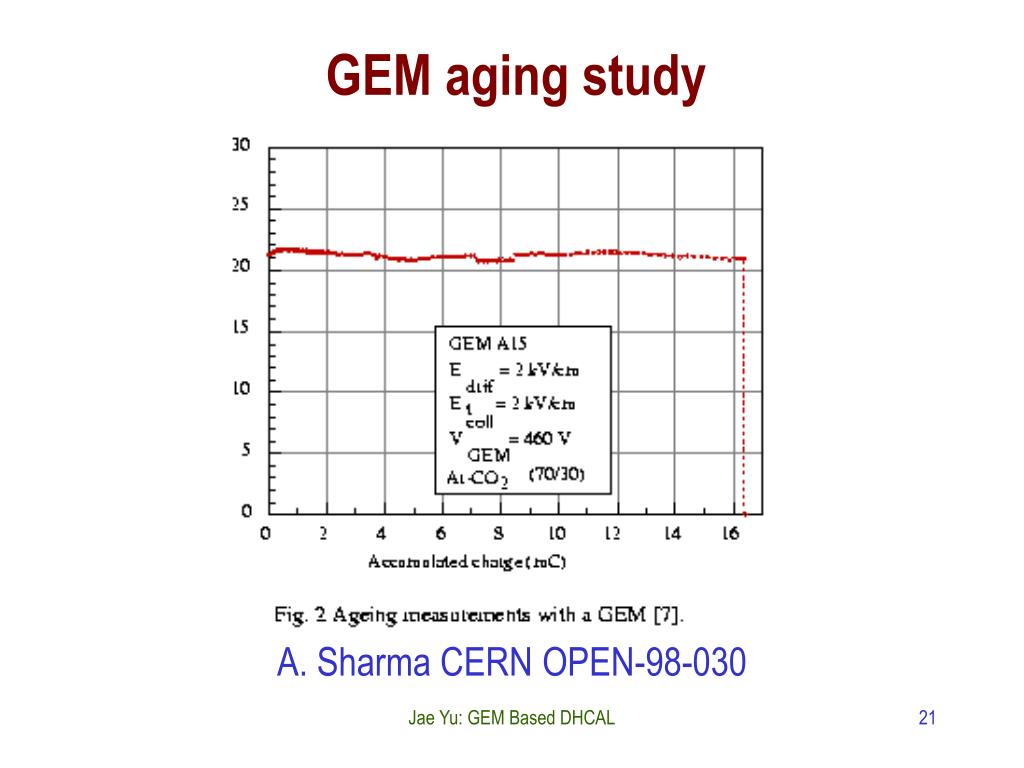

  21. GEM aging study A. Sharma CERN OPEN-98-030 Jae Yu: GEM Based DHCAL

  22. UTA Simulation Status and Plans • Two masters students working on this project • Mokka installed as the interface to Geant4 • Pandora-Pythia HEPEvt ASCII output working (Many thanks to Masako Iwasaka from U. of Tokyo!!!)  Why ASCII output? • Generated 1000 t`t6 jet events at ECMS=500GeV and processed through Mokka for GEM discharge study • In the process of analyzing the data using vanilla root macro  Are there a reconstruction and analysis packages for Mokka (V8?) • Output format needs improvement  A file per event per detector component is not that helpful for sophisticated studies • In the process of implementing Mokka geometry database • To implement prototype GEM cell geometry • Plan to study detailed design and performances • Plan to use in EFA and tracking algorithm development Jae Yu: GEM Based DHCAL

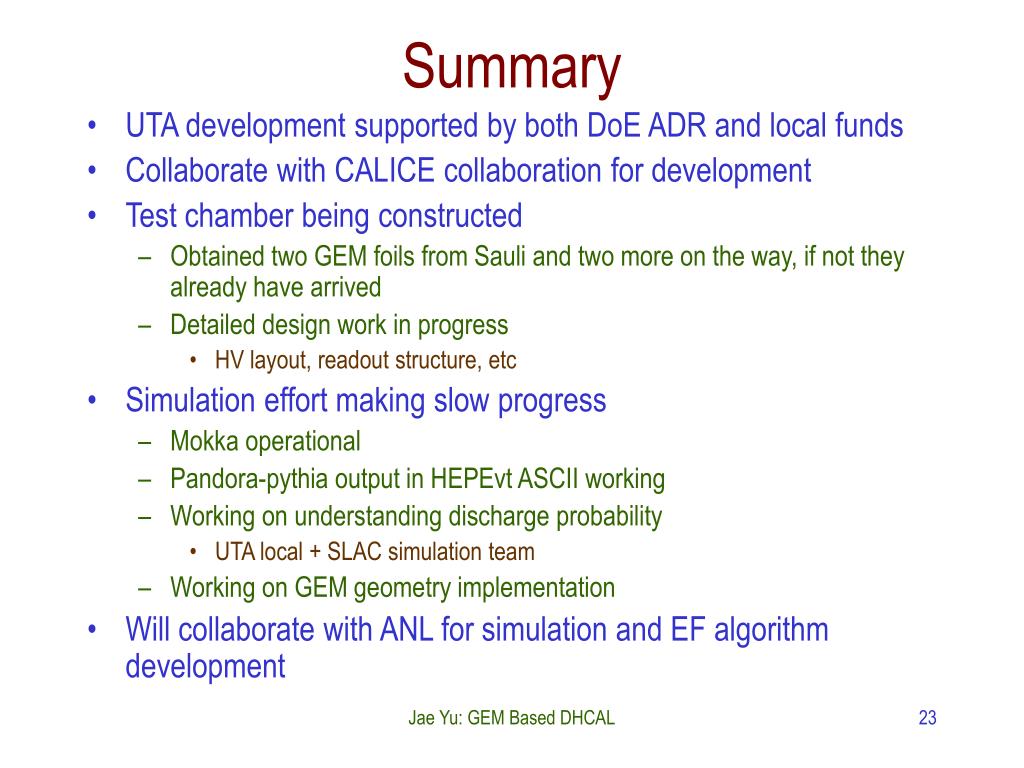

  23. Summary • UTA development supported by both DoE ADR and local funds • Collaborate with CALICE collaboration for development • Test chamber being constructed • Obtained two GEM foils from Sauli and two more on the way, if not they already have arrived • Detailed design work in progress • HV layout, readout structure, etc • Simulation effort making slow progress • Mokka operational • Pandora-pythia output in HEPEvt ASCII working • Working on understanding discharge probability • UTA local + SLAC simulation team • Working on GEM geometry implementation • Will collaborate with ANL for simulation and EF algorithm development Jae Yu: GEM Based DHCAL
