  1. xDSLAPPLICATION Netwell Technology Co., ltd

  2. SDSL Card Router模組 SDSL Card Router模組 Mercury3600 SWITCH 兩線式線路 速度可達E1 Mercury 3600 Router SWITCH Mercury 3600 SWITCH Mercury 3600 機架式Mercury3600 DASC產品 Netwell Technology Co., ltd

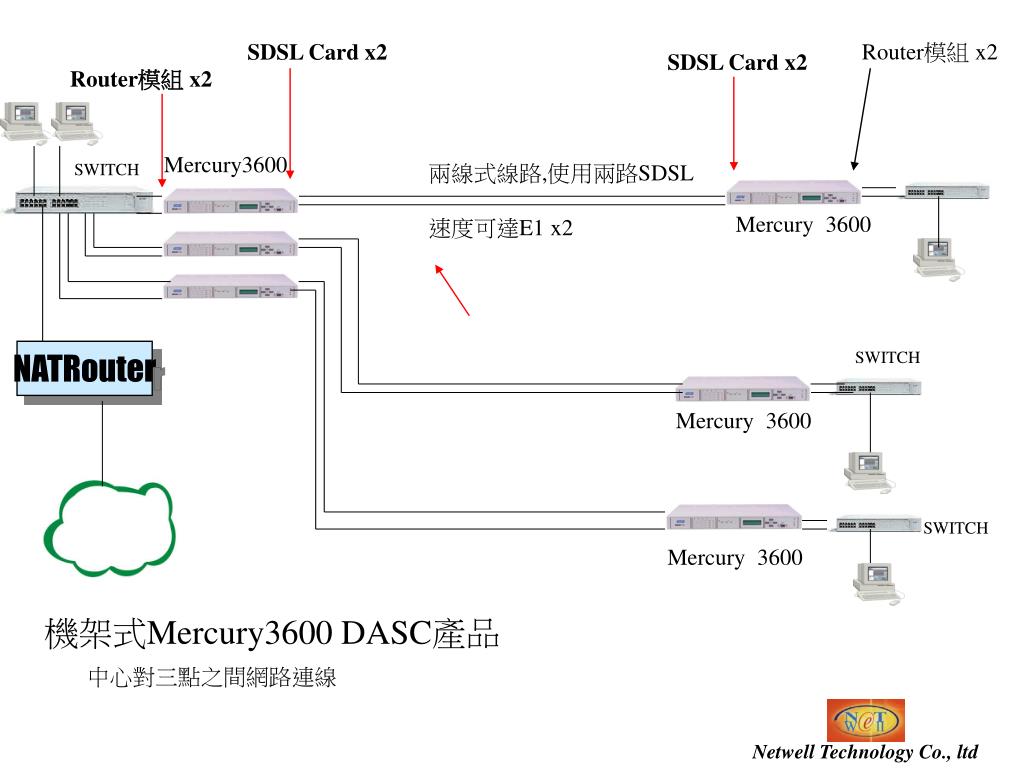

  3. SDSL Card x2 Router模組 x2 SDSL Card x2 Router模組 x2 Mercury3600 SWITCH 兩線式線路,使用兩路SDSL 速度可達E1 x2 Mercury 3600 NATRouter SWITCH Mercury 3600 SWITCH Mercury 3600 機架式Mercury3600 DASC產品 中心對三點之間網路連線 Netwell Technology Co., ltd

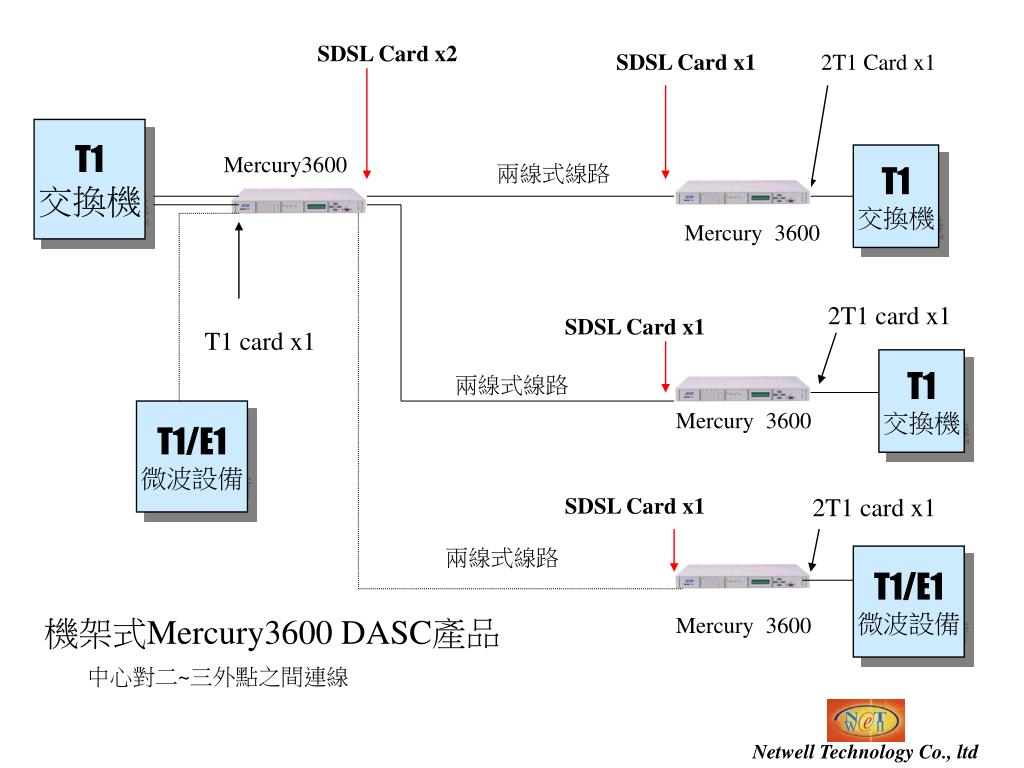

  4. SDSL Card x2 SDSL Card x1 2T1 Card x1 T1 交換機 Mercury3600 T1 交換機 兩線式線路 Mercury 3600 2T1 card x1 SDSL Card x1 T1 card x1 T1 交換機 兩線式線路 T1/E1 微波設備 Mercury 3600 SDSL Card x1 2T1 card x1 兩線式線路 T1/E1 微波設備 機架式Mercury3600 DASC產品 Mercury 3600 中心對二~三外點之間連線 Netwell Technology Co., ltd

  5. Mercury 3600 IAD APPLICATION SWITCH MERCURY 3600 SWITCH SDSL T1/E1交換機 T1/E1 交換機 MERCURY 3600 Fiber Optic SDSL MERCURY 3600 MERCURY 3600 V.35 V.35 T1/E1模組 T1/E1模組 Router Router SWITCH SWITCH Netwell Technology Co., ltd

  6. E1 HDSL Application NS-620 + Repeater 延伸距離 E1 設備 E1 設備 Repeater Repeater NS-620 NS-620 2-loop SWITCH SWITCH Netwell Technology Co., ltd

  7. xDSL使用注意事項

  8. MSDSL IAD E1 HDSL * 本設備提供一個Loop Full and Fractional E1(2Mbps)速率， 24AWG電話線路最大傳輸距離為4.0公里 （含）以上, 因此 在中心端每一線線路接線盤位置最好能跳10~15對以上,避免 產生訊號干擾. 如下圖所示: 1 20 一對線 一對線 21 40 電話接線盤 60 80 一對線

  9. *線路部分: 每一路需拉一對兩芯電話線即可,也可用網路線取代 線材:普通電話線及網路線都可 如圖所示: 8 PIN CABLE RJ45接線盒 DSL PORT LAN 接線盤 兩芯電話線(或網路線) MSDSL IAD SWITCH/HUB

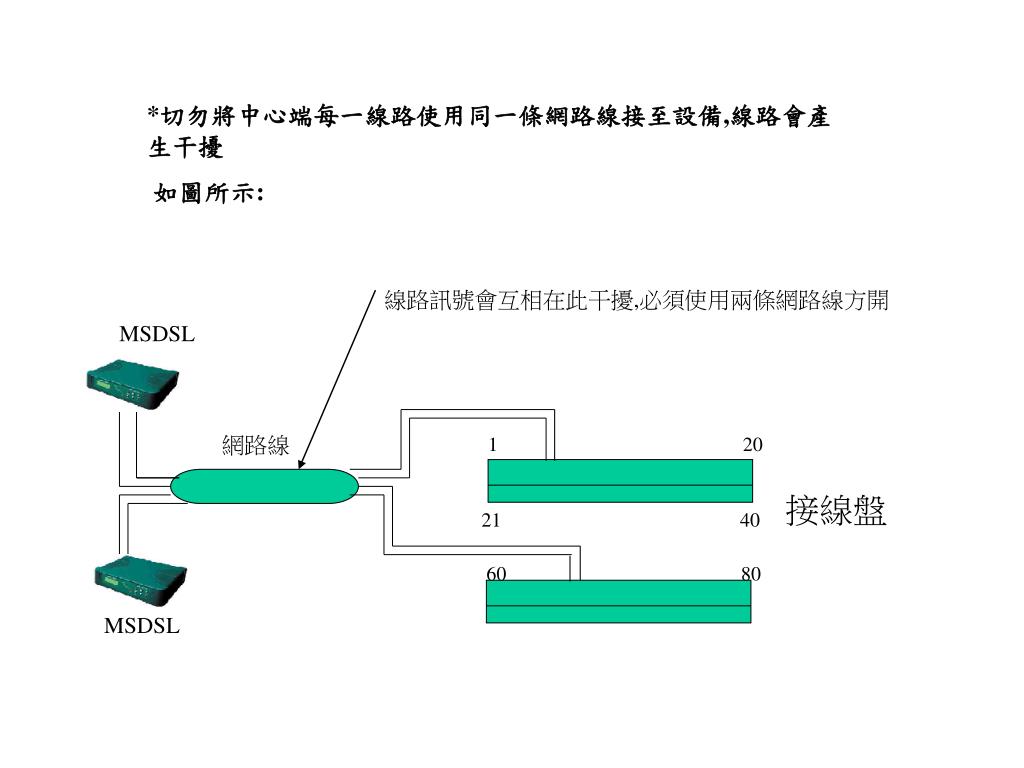

  10. *切勿將中心端每一線路使用同一條網路線接至設備,線路會產 生干擾 如圖所示: 線路訊號會互相在此干擾,必須使用兩條網路線方開 MSDSL 網路線 1 20 接線盤 21 40 60 80 MSDSL

  11. *設備切勿放在有電磁波干擾的環境下 * 佈線線路切勿經過有電磁波產生的地方 *切勿將有電壓或電流的電話線路上裝在本設備任何PORT上

  12. THANK YOU !
