  1. UH Raman Group Dr. Shiv K Sharma, (Physics) 1973 (100% g fund) Dr. Anupam Misra, (Physics) 1991 (0% g fund) Dr. Rachel C.F. Lentz, (Planetary Geology) 1998, (Postdoc) Dr. Lisa.Green, (Bio-Chemistry), 2007 (Postdoc) Dr. Ava Dykes, (Bio-Chemistry), 2006 (Postdoc) Dr. Lori Kamemoto, (Medicine) (Project 50% support) Dr. Qigui Yu, (Medicine) (Project 50% support) Dr. Ningjie Hu, (Medicine) (Project 50% support) Dr. Pavel Zinin, (Bio-Physicist) (Project 50% support) Bio-medical research Dr. Paul Lucey (Planetary scientist) Dr. Jeff Taylor (Planetary Science) Dr. John Porter (LIDAR) (Project 50% support) Dr. Dave Bates (LIDAR) (Postdoc) Dr. Barry R. Lienert (LIDAR) Planetary science

  2. UH Raman Group What is Raman Spectroscopy ? Why need Raman Spectra ? • Raman spectra Beam splitter Laser Vibrational modes of molecules Sample Notch Filter Depends on atomic mass, bond lengths, bond strength, configuration, etc… Spectrograph CCD Unique spectrum for each molecule * Raman Fingerprints: Chemical detection with very high confidence level

  3. UH Raman Group Typical Raman spectra (in 1 second) 1085 282 Calcite CaCO3 Intensity (a.u.) Notch filter 801 Cyclohexane C6H12 1444 Raman Shift (cm-1) Laser at 0 cm-1 • Sharp well defined peaks • Unique spectrum for each chemical • Can also tell polymorphs

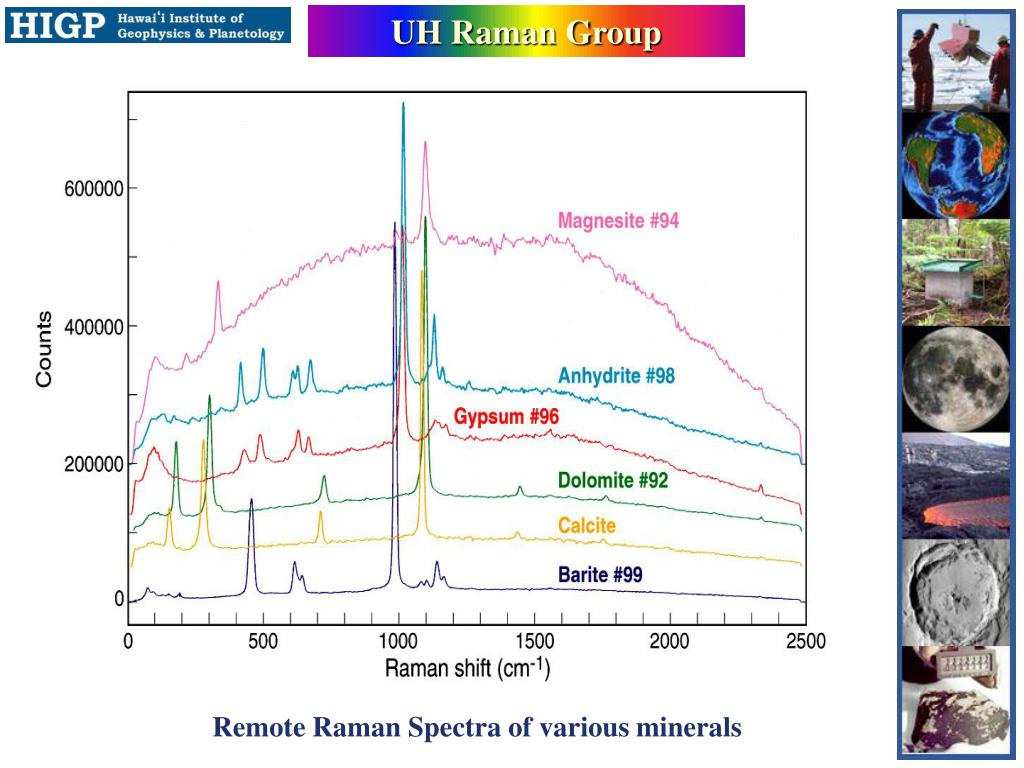

  4. UH Raman Group Remote Raman Spectra of various minerals

  5. UH Raman Group Capabilities Micro-Raman Remote-Sensing • . Can analyze samples smaller • than 1 nano gram • Small grains (~ micron size) • Big samples (rocks) • Low temperature (8 K) • High temperature • Low Pressure (10-6 torr) • High pressure (diamond anvil cell) • Liquids/solids/gases • Biological tissues/cells/virus – single cell • UV (244 nm), Tunable 198-240 nm • Visible (457, 488, 514.5, 532 nm) • NIR (752, 785, 830 nm) • * Remote Raman (125 m) • Daytime/night time • Fast analysis (1-10s) • Solids/liquids/gases • LIDAR • Raman-LIDAR • Remote LIBS • Remote RAMAN+LIBS • Remote LIF Simulated Mars/Moon/Venus conditions

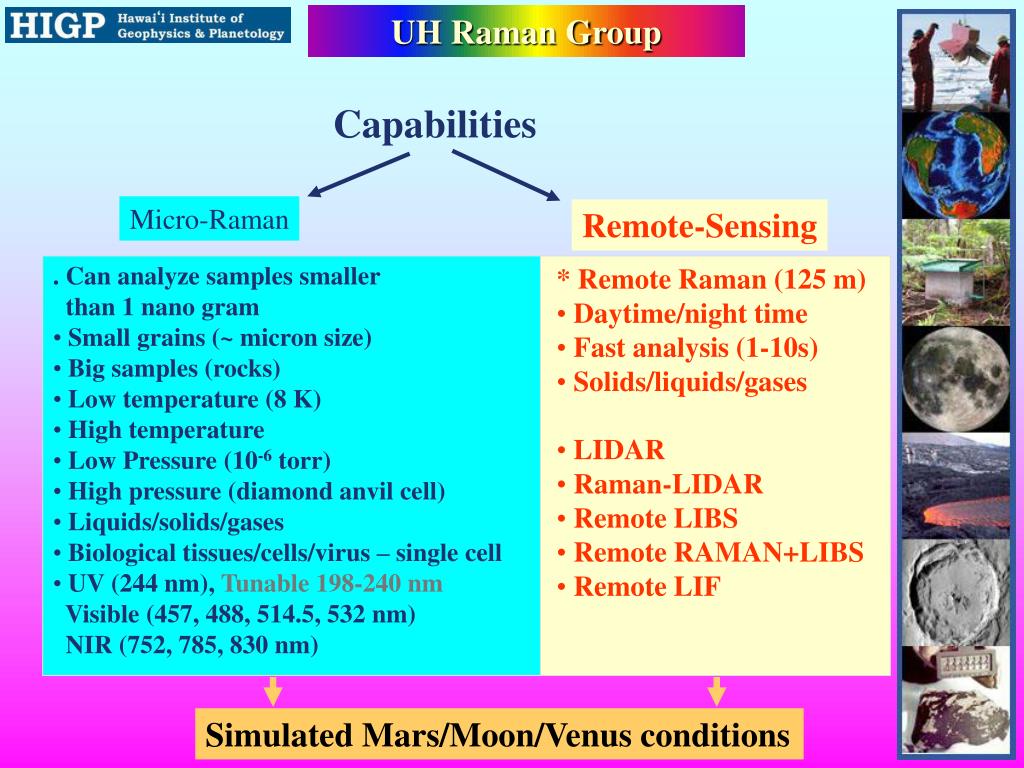

  6. UH Raman Group Patty Fryer (HIGP) – Hydro thermal vents Ed Scott (HIGP)– Meteorites L. C. Ming (HIGP) – BC2N, High pressure Pavel Zinin (HIGP)– Hard materials, Bio-Physics Jeff Taylor (HIGP)– ice simulations (Moon) Klause Sattler (Physics) – Nano phase materials John Madey (Physics) – Remote sensing David Muenow (Chem) – hydrous minerals (Mars analogue) Research Collaborations * Global *Multi-disciplinary Lori Kamemoto, Qigui Yu, Ningjie Hu, (Medical Sch. UH) HIV, Virus, bio-agents, cancer etc.. Angel Yanagihara, Pac. BioSc. Res. Center, UH, Fish venom ChemImage (Pat Treado) – Remote Raman Alakai Consult. & Eng. (Guy Ontai) – Remote Raman, LIBS • Mars Fundamental Research-Los Alamos National Lab • -Roger Wiens, Sam Clagg- LANL (LIBS) • - Roger Clark (USGS) • - Paul Lucey, Jeff Taylor (UH) • Discovery mission (Venus)- Los Alamos, JPL, Colorado ASTED (astrobiology Science & Tech Explora Prog.) NASA Langley (MIDDP, PIDDP) …MSL proposal $45M (X) -UH built a prototype Remote Raman for NASA EXOMARS: Fernano Rull (Spain) Shiv Sharma (Co-I on the Raman sensor.) GeoRaman International Conf. 2004 (U. of Hawaii)

  7. UH Raman Group Research Grants • UH/State/intramural support: $0,000,000 • (b) Current Extramural Support: $3,850,000 • (c) Pending Extramural Support: $1,500,000 Past ten years extramural funds ~ $6.97 Millions (not counting $55.8 Millions for FEL (Physics).

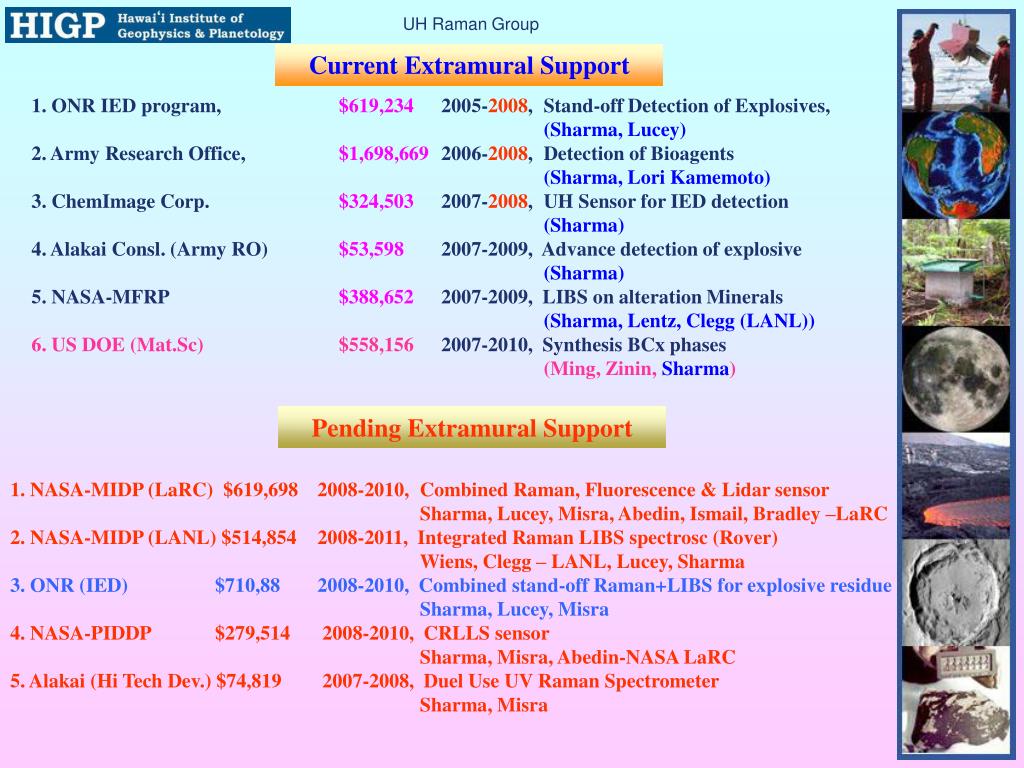

  8. UH Raman Group Current Extramural Support 1. ONR IED program, $619,234 2005-2008, Stand-off Detection of Explosives, (Sharma, Lucey) 2. Army Research Office, $1,698,669 2006-2008, Detection of Bioagents (Sharma, Lori Kamemoto) 3. ChemImage Corp. $324,503 2007-2008, UH Sensor for IED detection (Sharma) 4. Alakai Consl. (Army RO) $53,598 2007-2009, Advance detection of explosive (Sharma) 5. NASA-MFRP $388,652 2007-2009, LIBS on alteration Minerals (Sharma, Lentz, Clegg (LANL)) 6. US DOE (Mat.Sc) $558,156 2007-2010, Synthesis BCx phases (Ming, Zinin, Sharma) Pending Extramural Support 1. NASA-MIDP (LaRC) $619,698 2008-2010, Combined Raman, Fluorescence & Lidar sensor Sharma, Lucey, Misra, Abedin, Ismail, Bradley –LaRC 2. NASA-MIDP (LANL) $514,854 2008-2011, Integrated Raman LIBS spectrosc (Rover) Wiens, Clegg – LANL, Lucey, Sharma 3. ONR (IED) $710,88 2008-2010, Combined stand-off Raman+LIBS for explosive residue Sharma, Lucey, Misra 4. NASA-PIDDP $279,514 2008-2010, CRLLS sensor Sharma, Misra, Abedin-NASA LaRC 5. Alakai (Hi Tech Dev.) $74,819 2007-2008, Duel Use UV Raman Spectrometer Sharma, Misra

  9. UH Remote Raman System

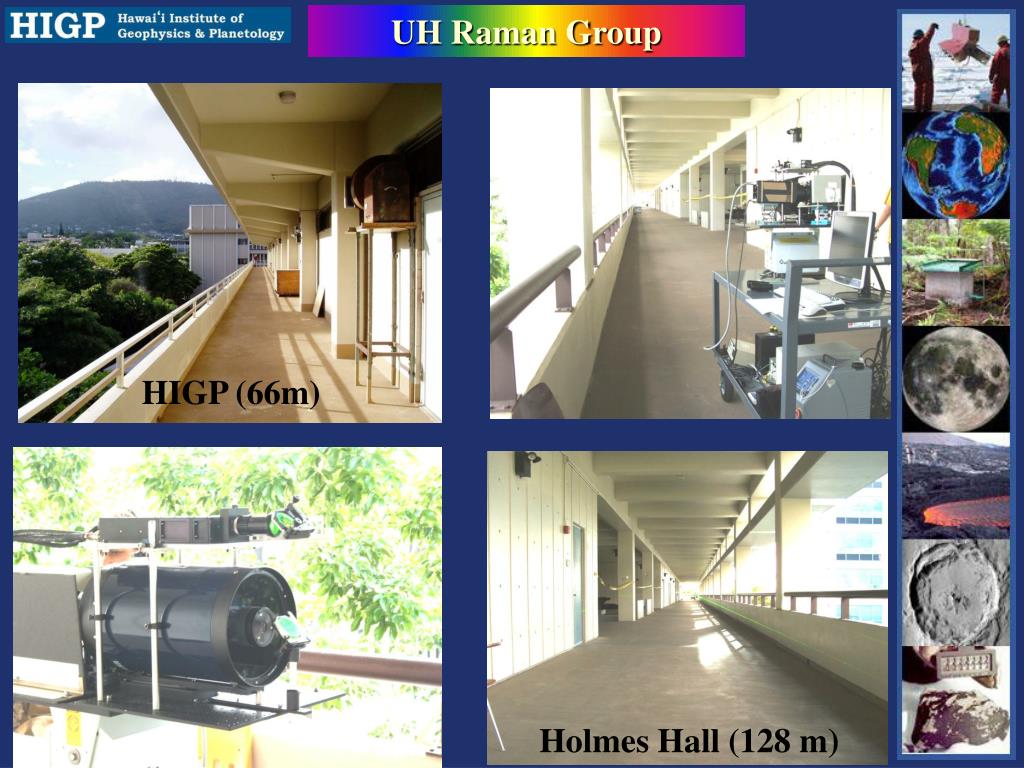

  10. UH Raman Group HIGP (66m) Holmes Hall (128 m)

  11. Single Pulse spectra of Sulfur from 50 and 100 m 219 473 153 60000 85 40000 Intensity (a.u.) 50 m 20000 100 m 0 100 200 300 400 500 600 700 800 900 1000 Raman Shift (cm-1) UH Raman Group

  12. Gypsum CaSO4.2H2O 1 second 1007 120000 100000 80000 1136 3495 493 414 Intensity (a.u.) 619 O2 1556 3405 N2 2331 671 60000 50 m 40000 20000 100 m 0 0 500 1000 1500 2000 2500 3000 3500 4000 4500 Raman Shift (cm-1) High frequency region is useful in detecting water. UH Raman Group

  13. 532 nm, 50 Hz, 32 mJ/pulse 100 micron slit, gated 2 µs 8% TNT on Silica 1556 (O2) 125 m 1366 2331 (N2) 1534 1618 40 1210 30 s 30 Counts x 105 x2 10 s 20 x10 1 s 10 0 Raman Shift (cm-1) 500 1000 1500 2000 UH Raman Group

  14. UH Raman Group December 2007 Fort Irwin, Mojave Desert Successful field test for explosive detection during dust storm

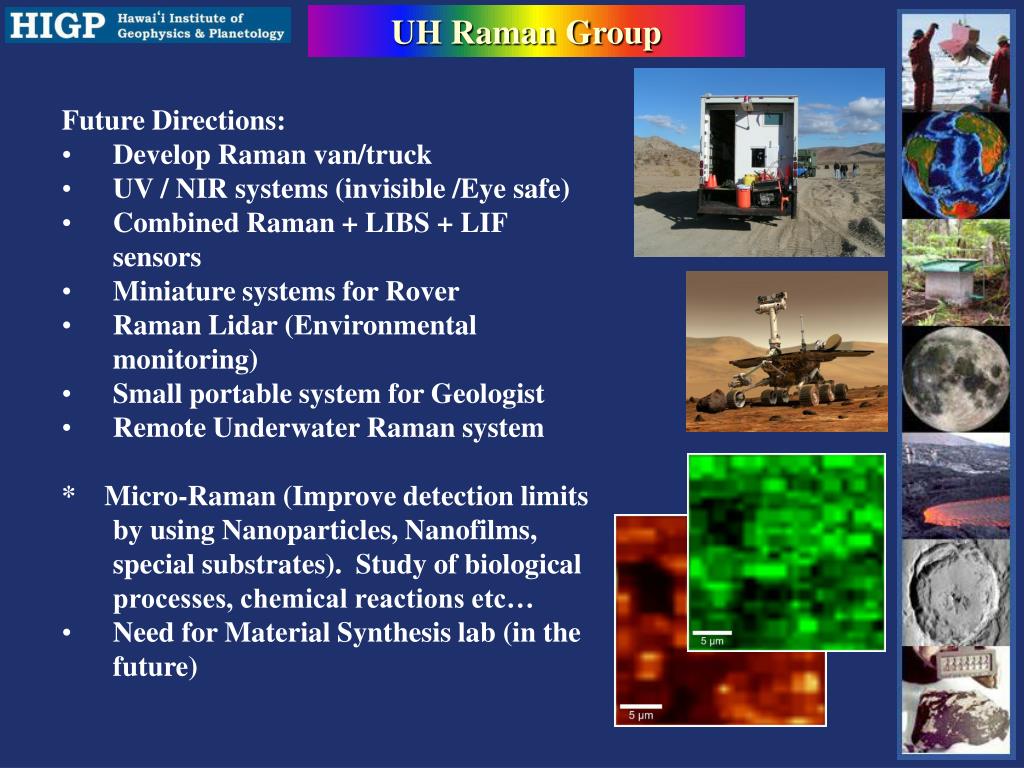

  15. UH Raman Group • Future Directions: • Develop Raman van/truck • UV / NIR systems (invisible /Eye safe) • Combined Raman + LIBS + LIF sensors • Miniature systems for Rover • Raman Lidar (Environmental monitoring) • Small portable system for Geologist • Remote Underwater Raman system • * Micro-Raman (Improve detection limits by using Nanoparticles, Nanofilms, special substrates). Study of biological processes, chemical reactions etc… • Need for Material Synthesis lab (in the future)

  16. UH Raman Group December 2007 Fort Irwin, Mojave Desert • Show Video (57 seconds long) of • - UH remote Raman system in field during dust storm • Single pulse spectra of gypsum at 50 m • (measurements through two ¼”thick glass windows)
