  1. Homework #1~4(5) Review

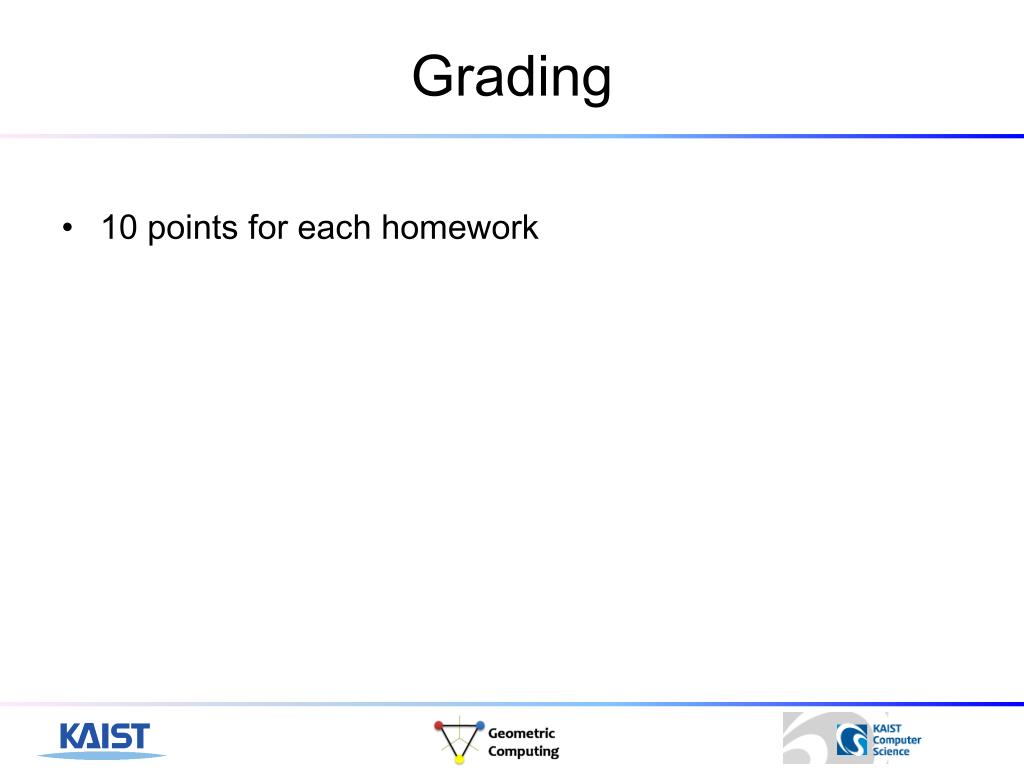

  2. Grading • 10 points for each homework

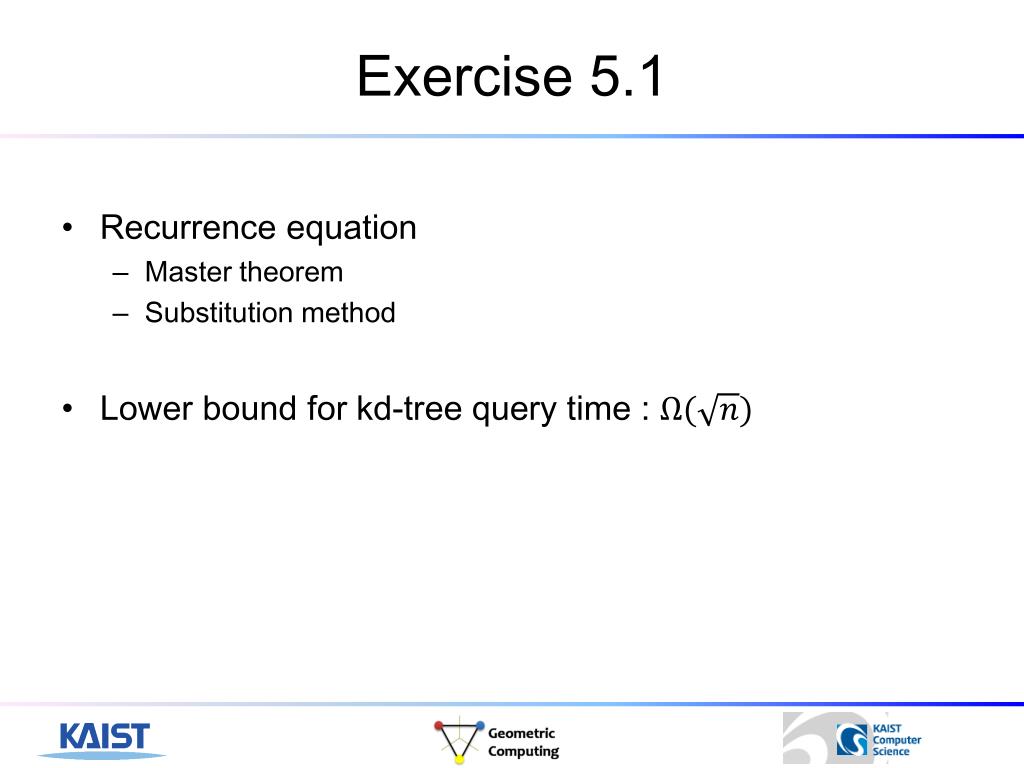

  3. Exercise 5.1 • Recurrence equation • Master theorem • Substitution method • Lower bound for kd-tree query time :

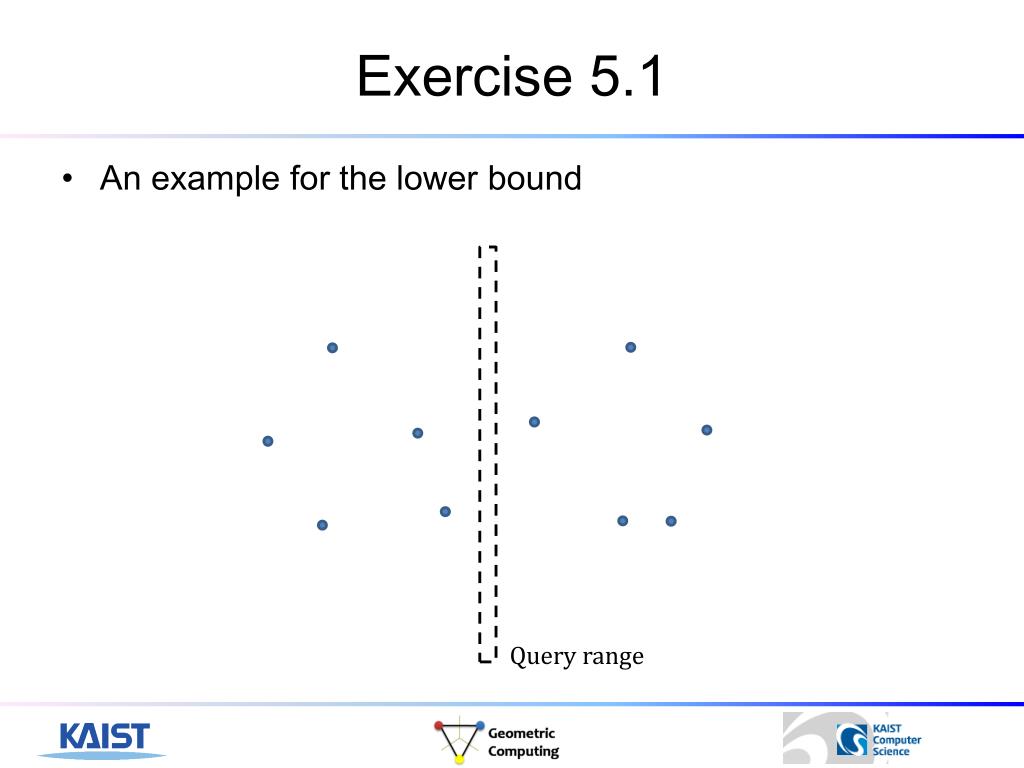

  4. Exercise 5.1 • An example for the lower bound Query range

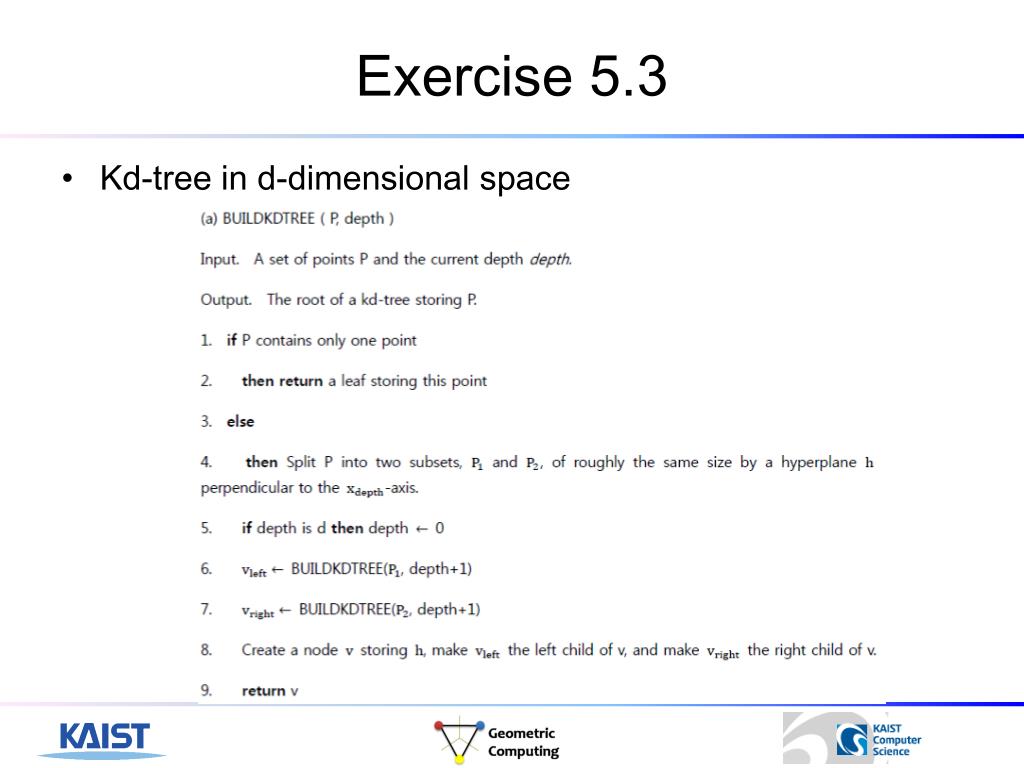

  5. Exercise 5.3 • Kd-tree in d-dimensional space

  6. Exercise 5.3 • Query time analysis • for reporting points where T(n) is number of internal nodes visited by the query • query time : • Constructuion time :

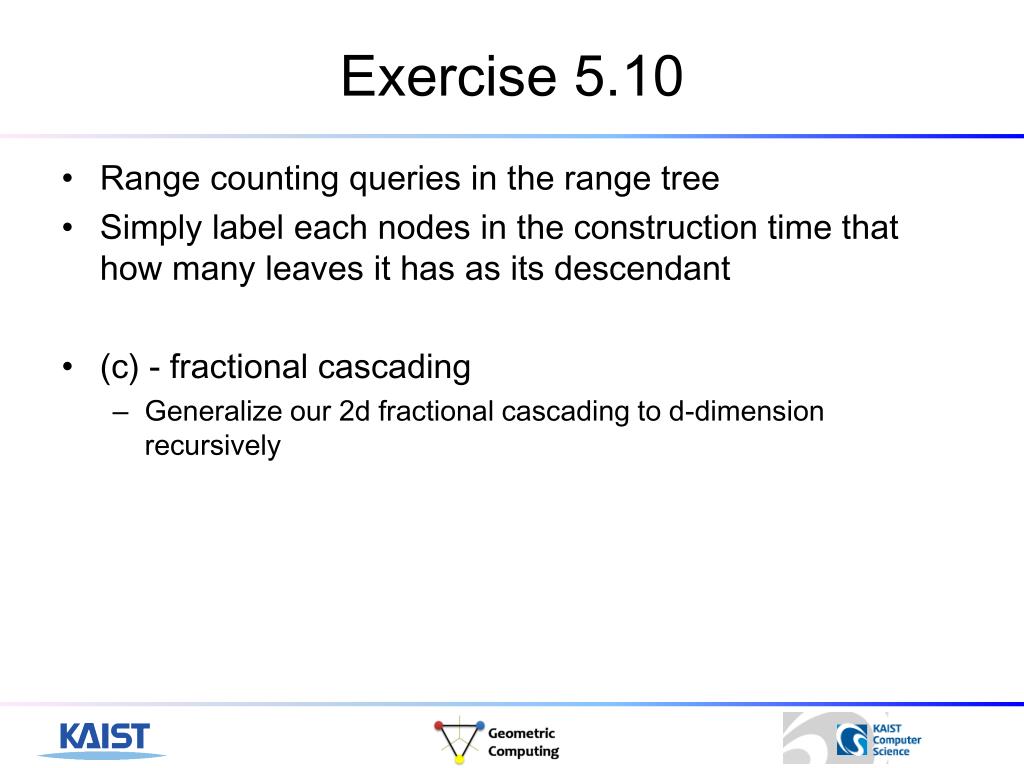

  7. Exercise 5.10 • Range counting queries in the range tree • Simply label each nodes in the construction time that how many leaves it has as its descendant • (c) - fractional cascading • Generalize our 2d fractional cascading to d-dimension recursively

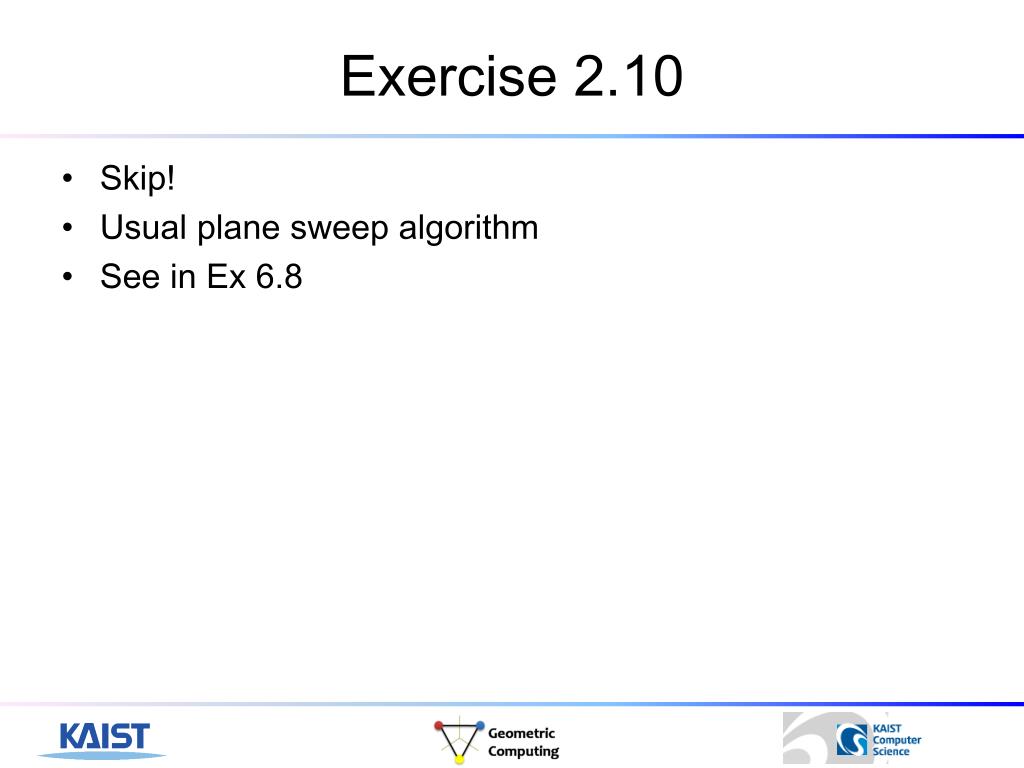

  8. Exercise 2.10 • Skip! • Usual plane sweep algorithm • See in Ex 6.8

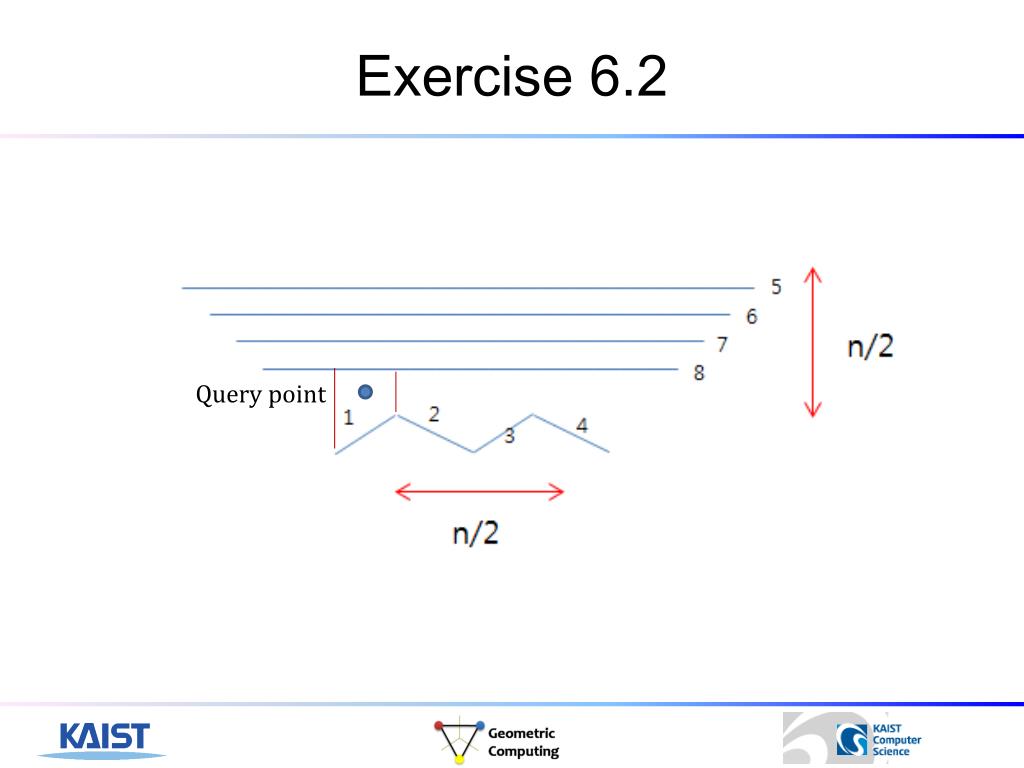

  9. Exercise 6.2 Query point

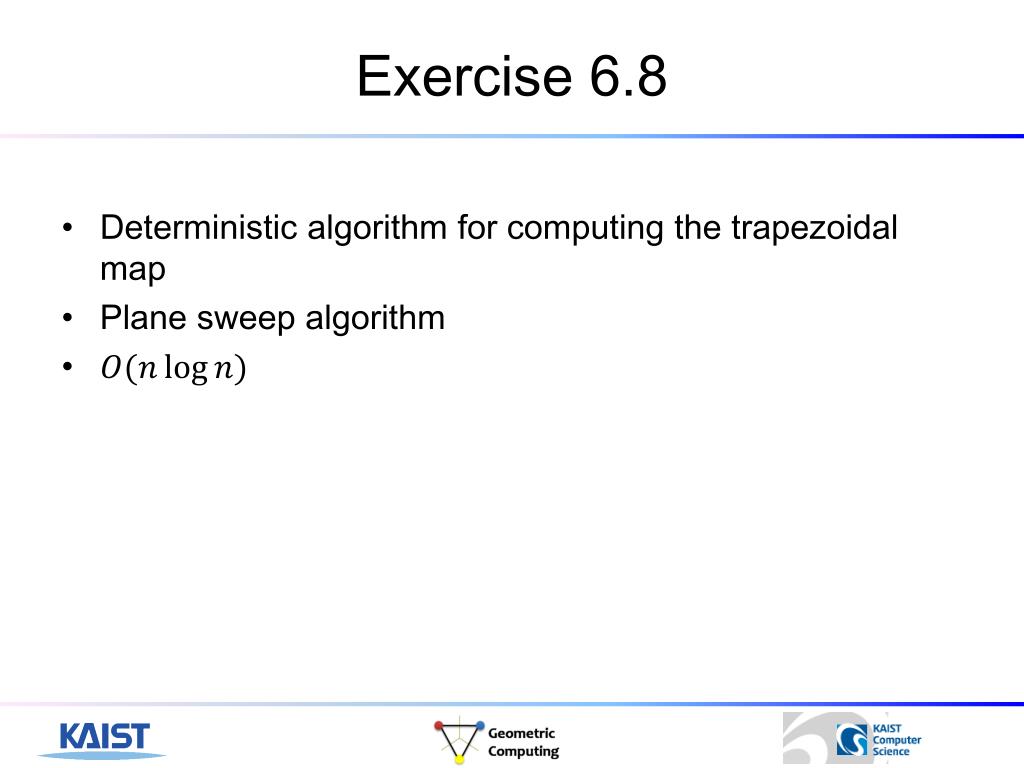

  10. Exercise 6.8 • Deterministic algorithm for computing the trapezoidal map • Plane sweep algorithm

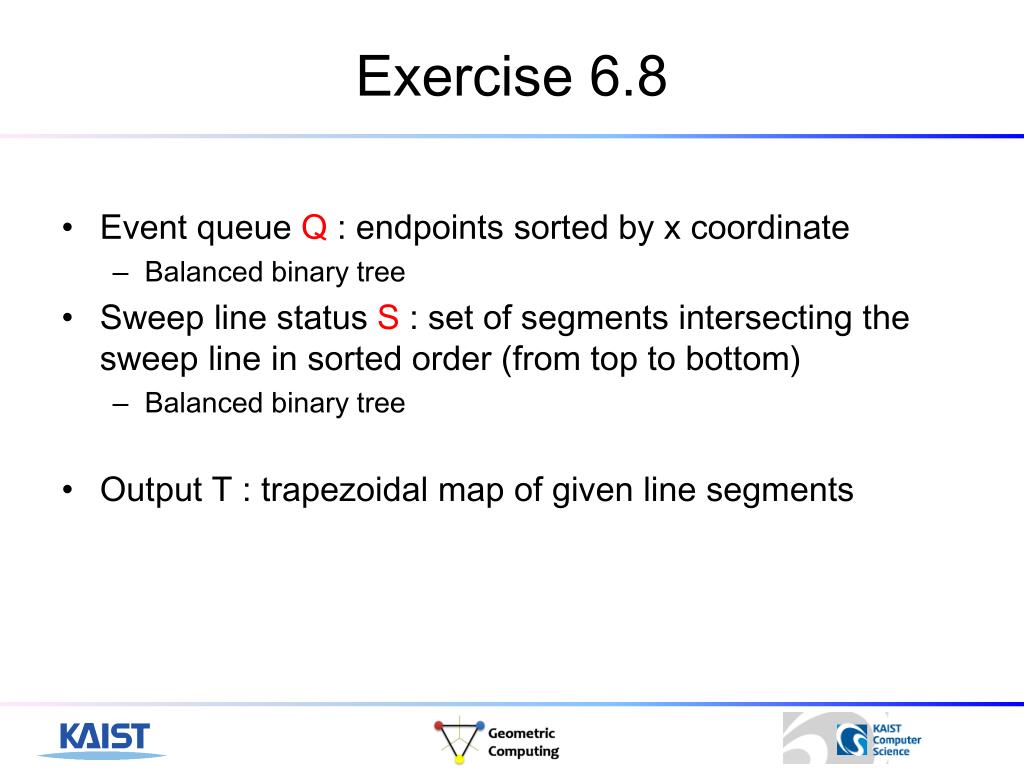

  11. Exercise 6.8 • Event queue Q : endpoints sorted by x coordinate • Balanced binary tree • Sweep line status S : set of segments intersecting the sweep line in sorted order (from top to bottom) • Balanced binary tree • Output T : trapezoidal map of given line segments

  12. Exercise 6.8 • Add the endpoints of segments to Q (sorted order) 8 2 5 3 11 7 4 1 6 10 9

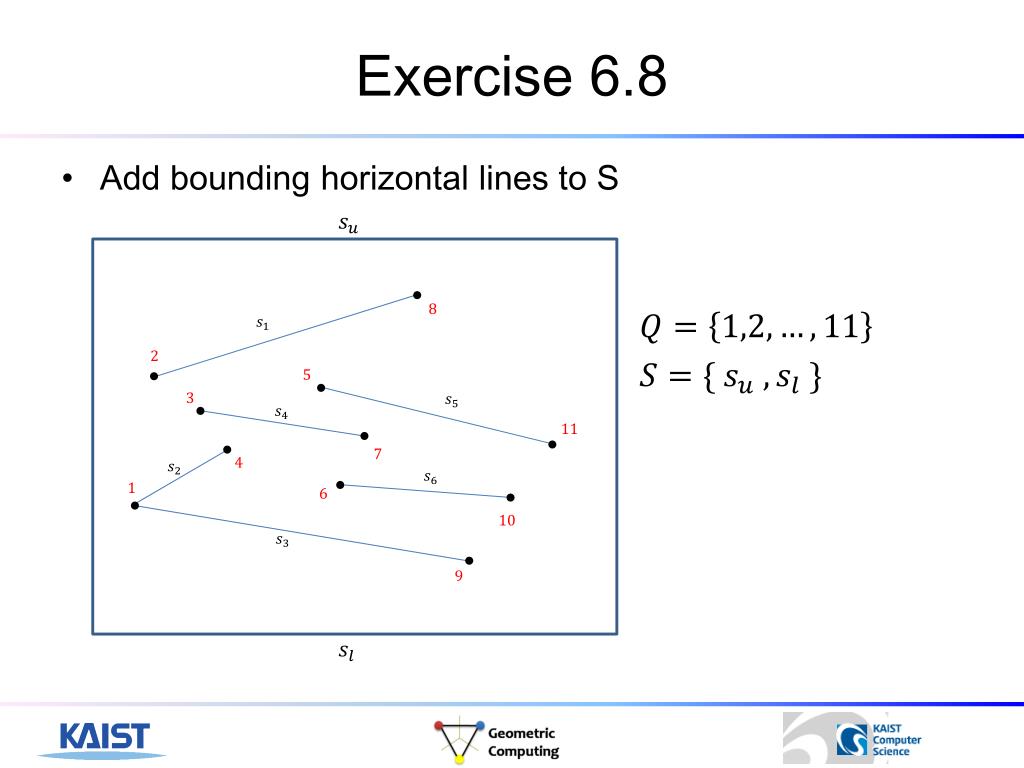

  13. Exercise 6.8 • Add bounding horizontal lines to S 8 2 5 3 11 7 4 1 6 10 9

  14. Exercise 6.8 • Extract min event 8 2 5 3 11 7 4 1 6 10 9

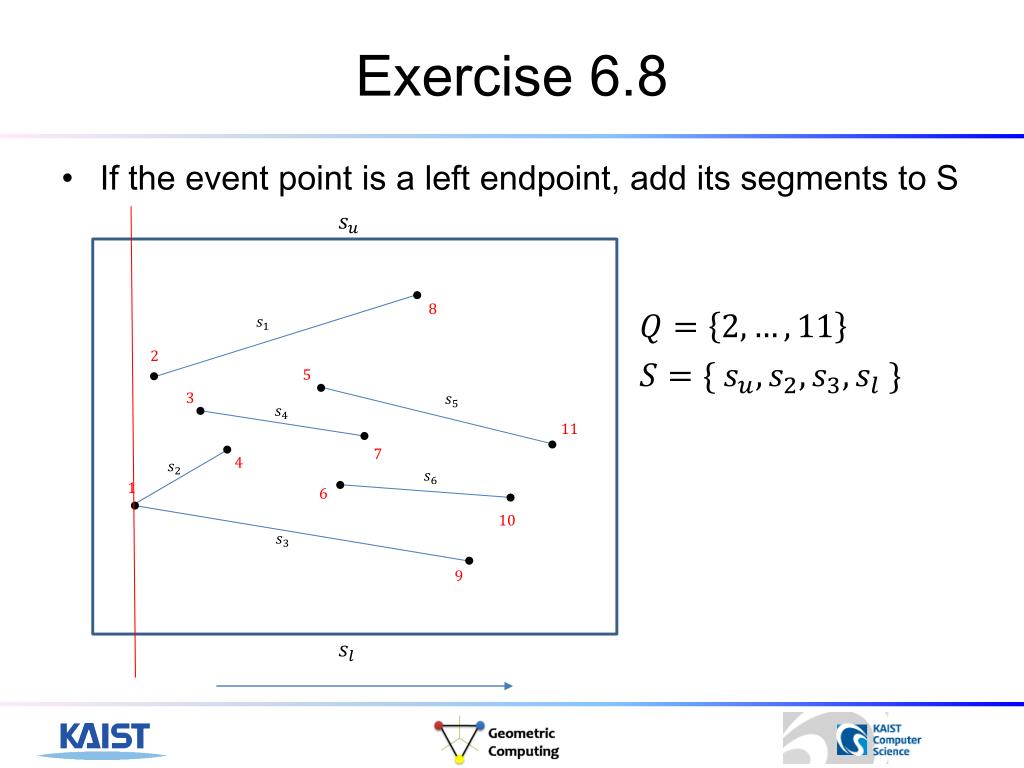

  15. Exercise 6.8 • If the event point is a left endpoint, add its segments to S 8 2 5 3 11 7 4 1 6 10 9

  16. Exercise 6.8 • Draw a vertical extension between two surrounding line segments in S 8 2 5 3 11 7 4 1 6 10 9

  17. Exercise 6.8 • Draw a vertical extension between two surrounding line segments in S } 8 2 5 3 11 7 4 1 6 10 9

  18. Exercise 6.8 • Draw a vertical extension between two surrounding line segments in S } 8 2 5 3 11 7 4 1 6 10 9

  19. Exercise 6.8 • Right endpoint event } 8 2 5 3 11 7 4 1 6 10 9

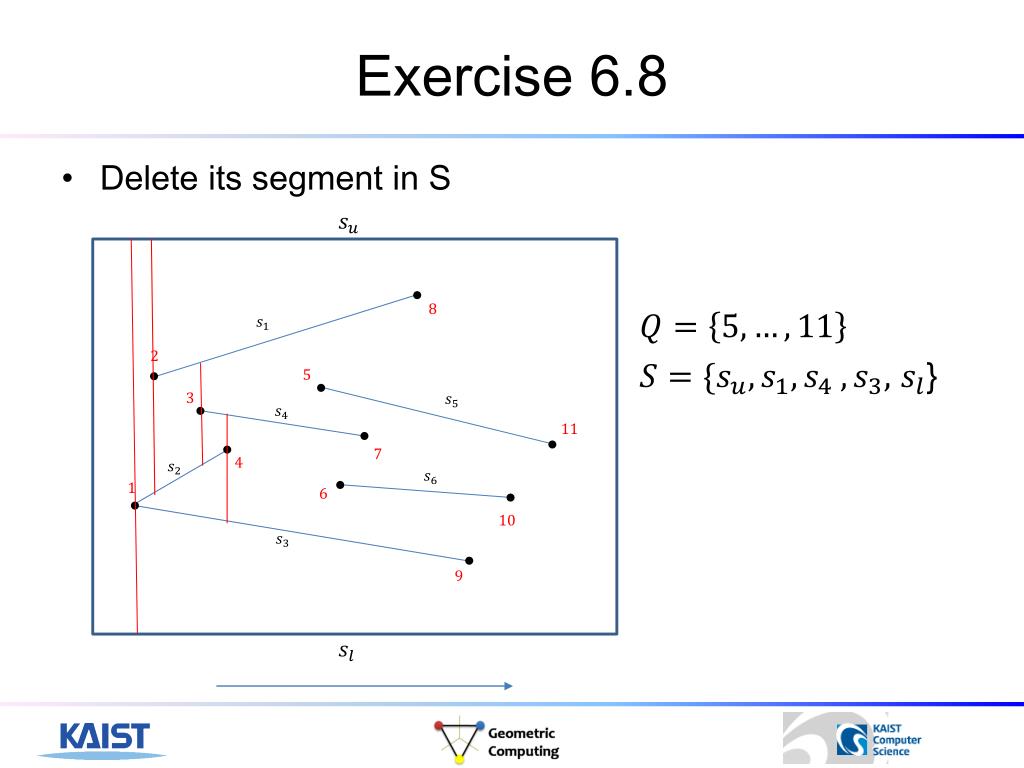

  20. Exercise 6.8 • Delete its segment in S } 8 2 5 3 11 7 4 1 6 10 9

  21. Exercise 6.8 • Delete its segment in S } 8 2 5 3 11 7 4 1 6 10 9

  22. Exercise 6.8 • Repeat until Q becomes empty } 8 2 5 3 11 7 4 1 6 10 9

  23. Exercise 6.8 • Analysis • Sorting : • One left endpoint event : • One right endpoint event : • Total :

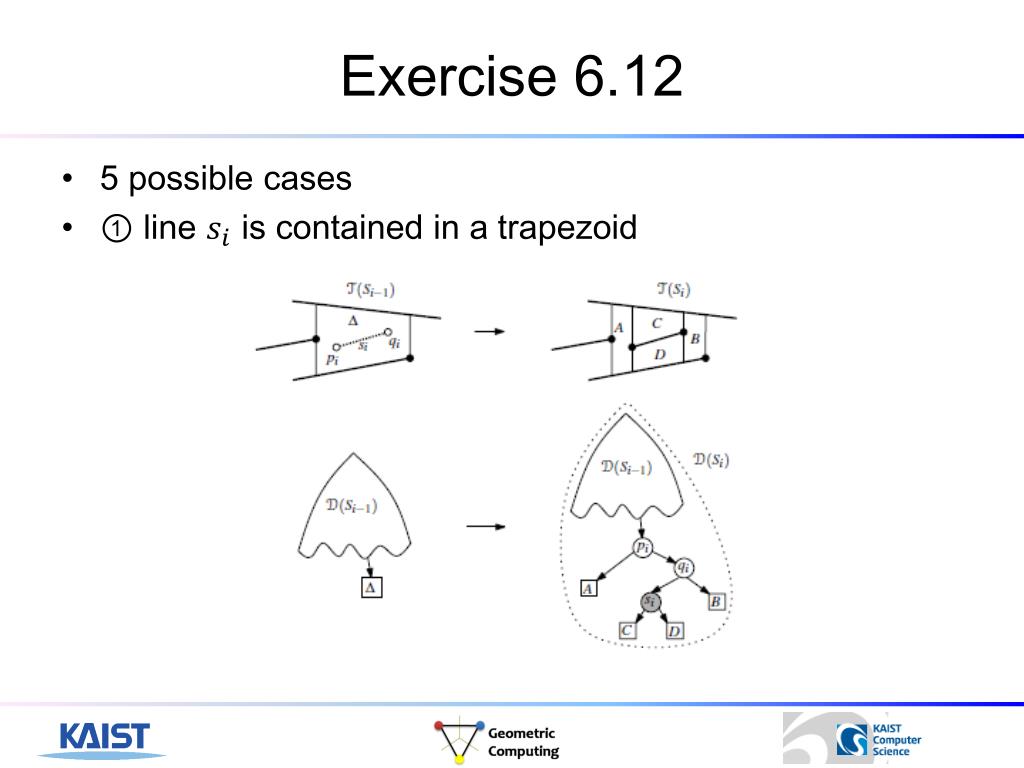

  24. Exercise 6.12 • 5 possible cases • ① line is contained in a trapezoid

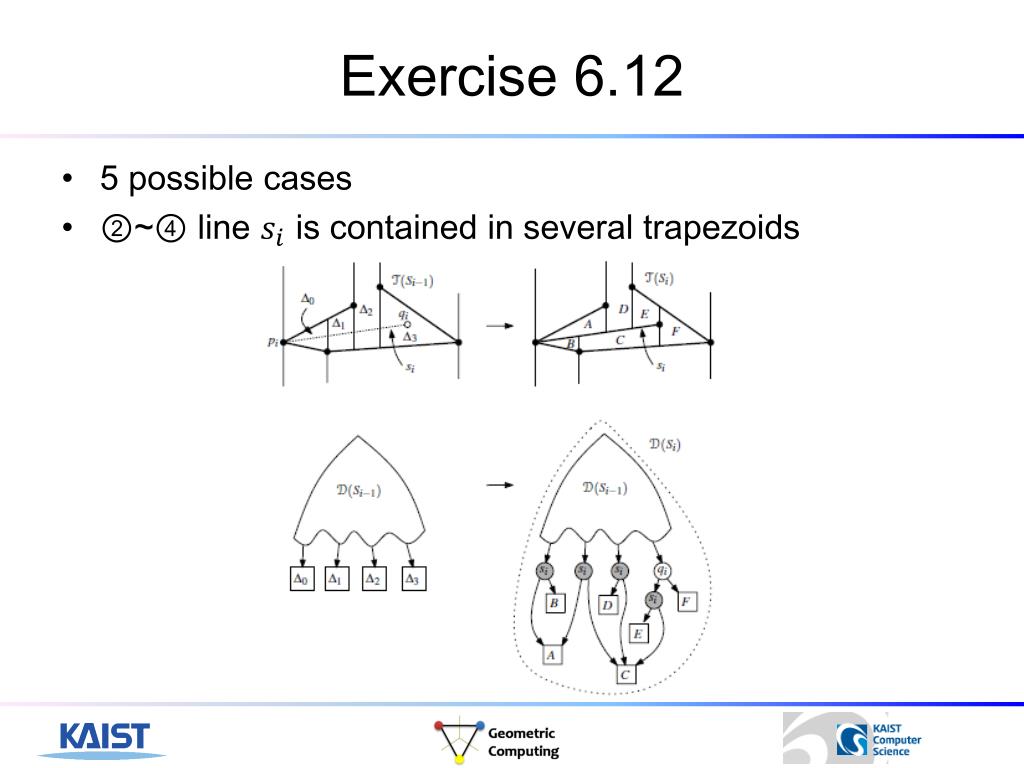

  25. Exercise 6.12 • 5 possible cases • ②~④ line is contained in several trapezoids

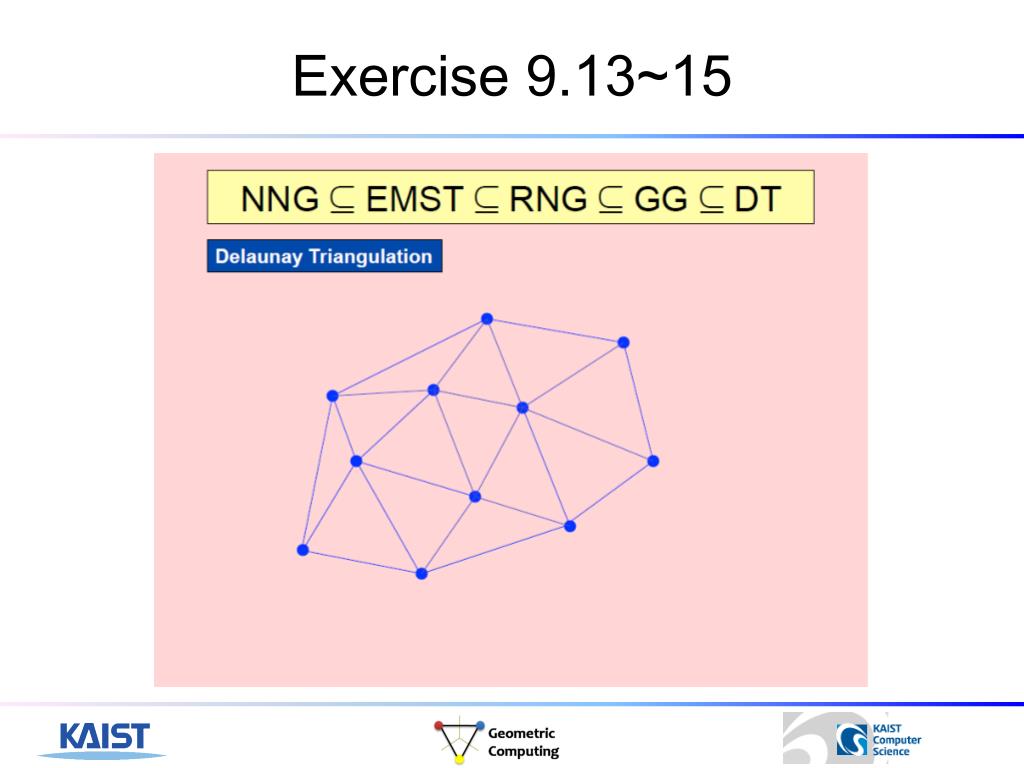

  26. Exercise 9.13~15

  27. Exercise 9.13~15

  28. Exercise 9.13~15

  29. Exercise 9.13~15

  30. Exercise 9.13~15

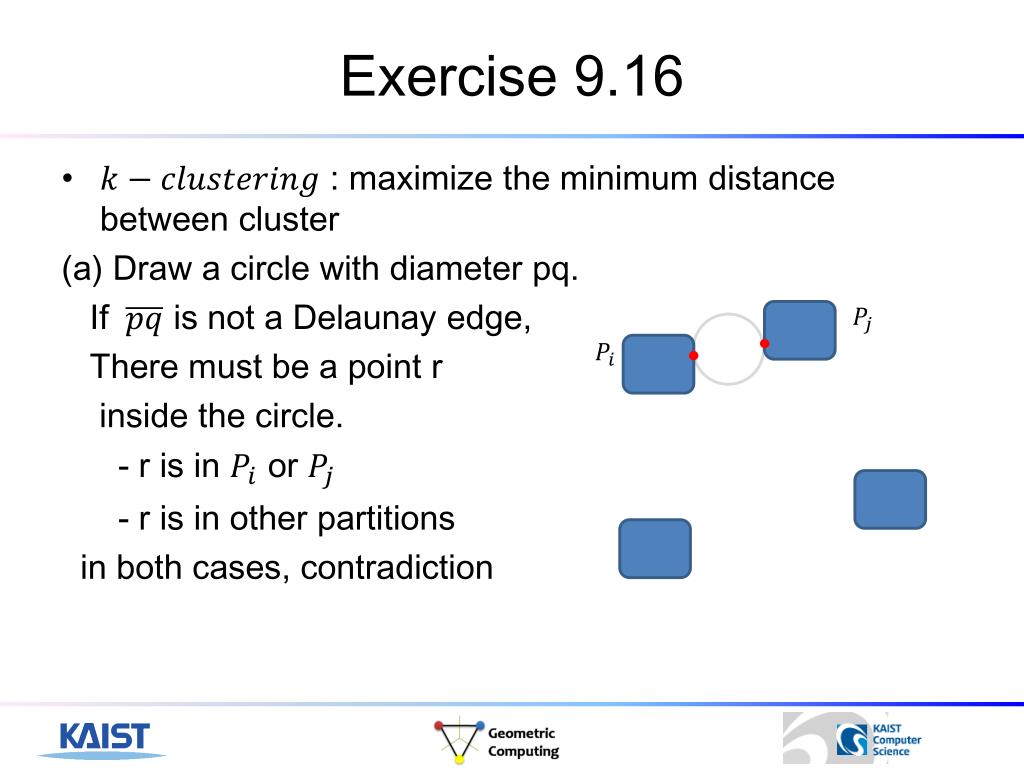

  31. Exercise 9.16 • : maximize the minimum distance between cluster • Draw a circle with diameter pq. If is not a Delaunay edge, There must be a point r inside the circle. - r is in or - r isin other partitions in both cases, contradiction

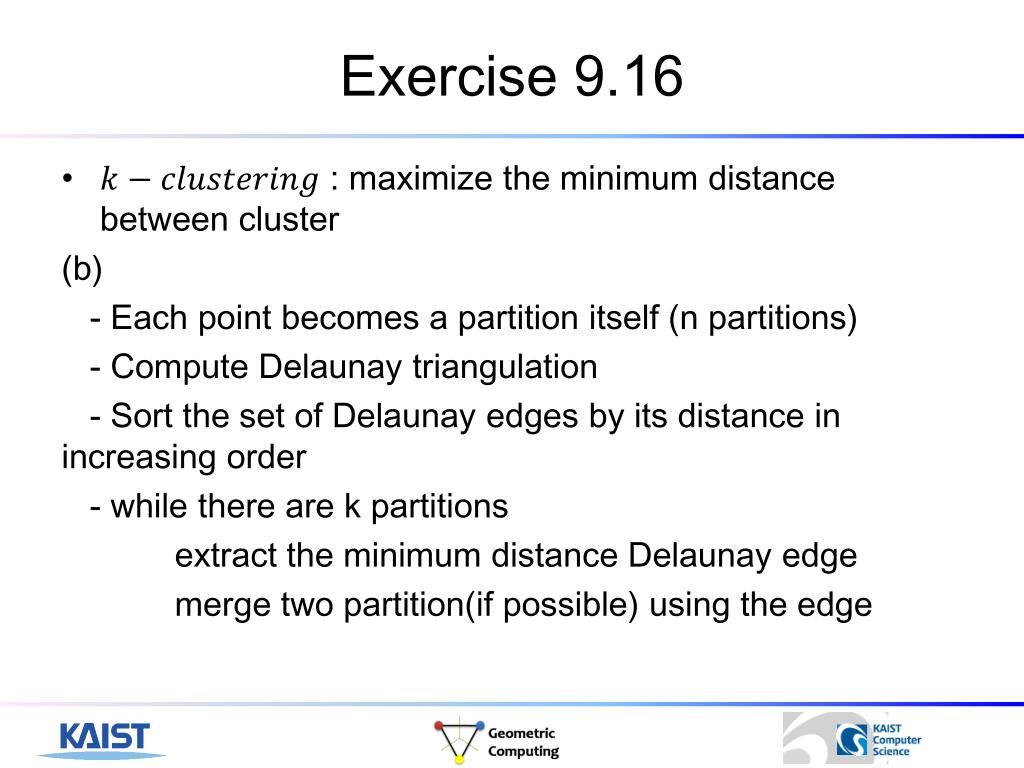

  32. Exercise 9.16 • : maximize the minimum distance between cluster (b) - Each point becomes a partition itself (n partitions) - Compute Delaunay triangulation - Sort the set of Delaunay edges by its distance in increasing order - while there are k partitions extract the minimum distance Delaunay edge merge two partition(if possible) using the edge

  33. Exercise 4.14

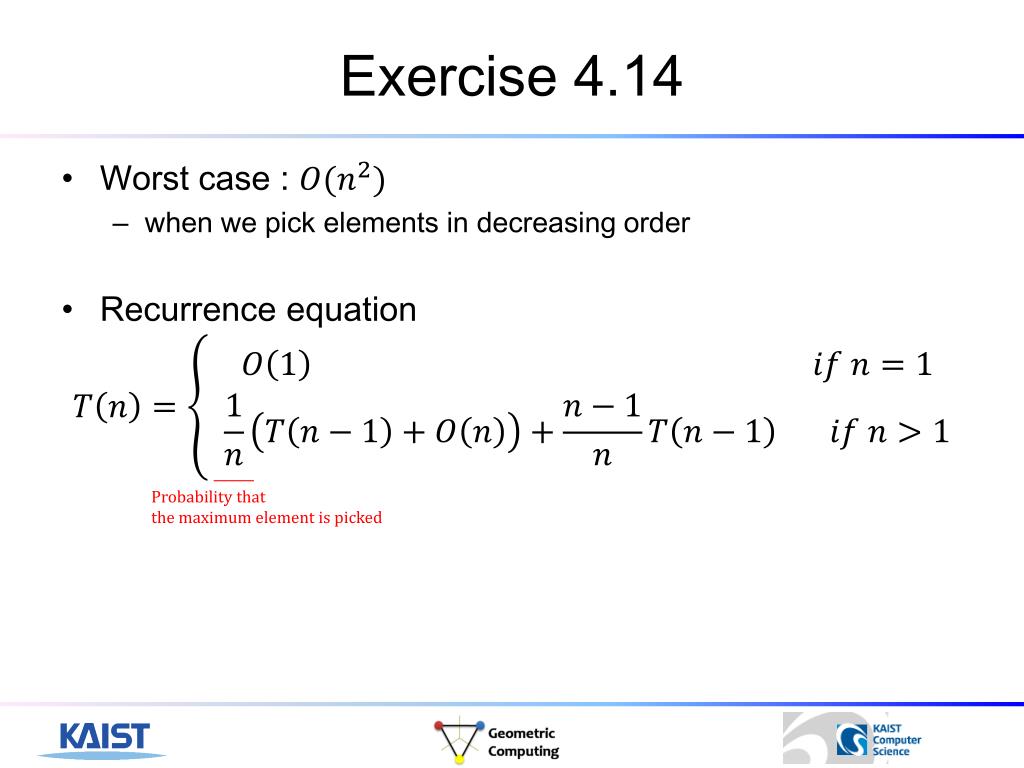

  34. Exercise 4.14 • Worst case : • when we pick elements in decreasing order • Recurrence equation Probability that the maximum element is picked

  35. Exercise 4.14 • Worst case : • when we pick elements in decreasing order • Recurrence equation Probability that the maximum element is picked If the maximum, m, is picked first, it must be bigger than or equal to the return value of PARANOIDMAXIMUM(A\{m}), so we have to compare m with all other elements =>

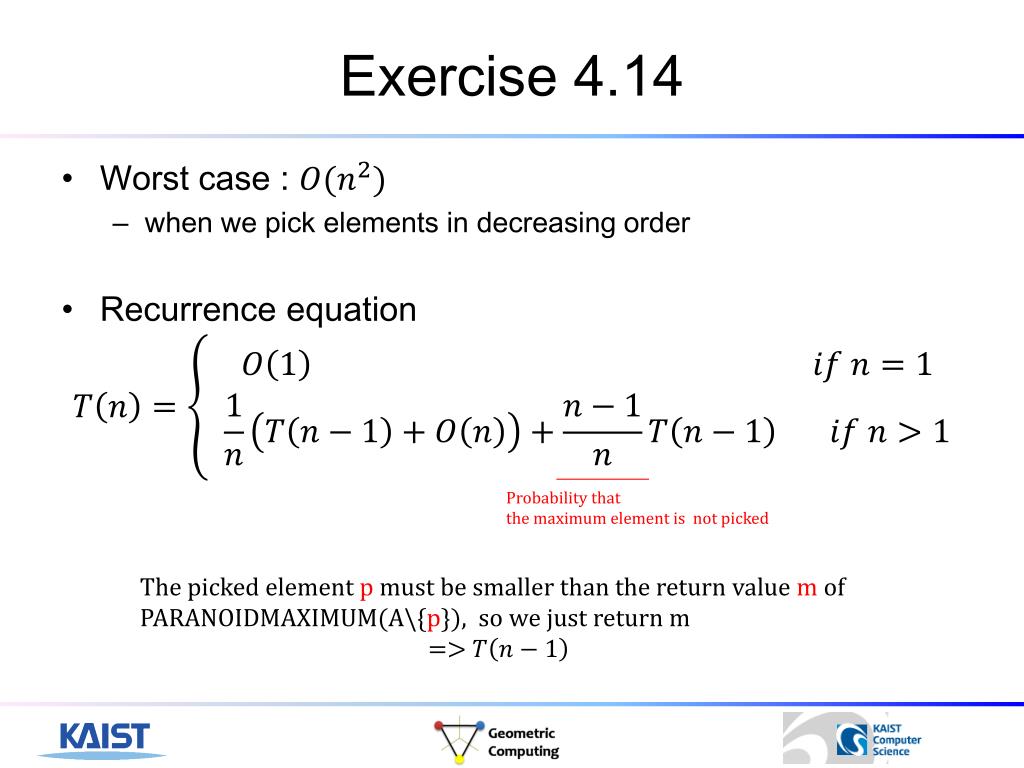

  36. Exercise 4.14 • Worst case : • when we pick elements in decreasing order • Recurrence equation Probability that the maximum element is not picked The picked element p must be smaller than the return value m of PARANOIDMAXIMUM(A\{p}), so we just return m =>

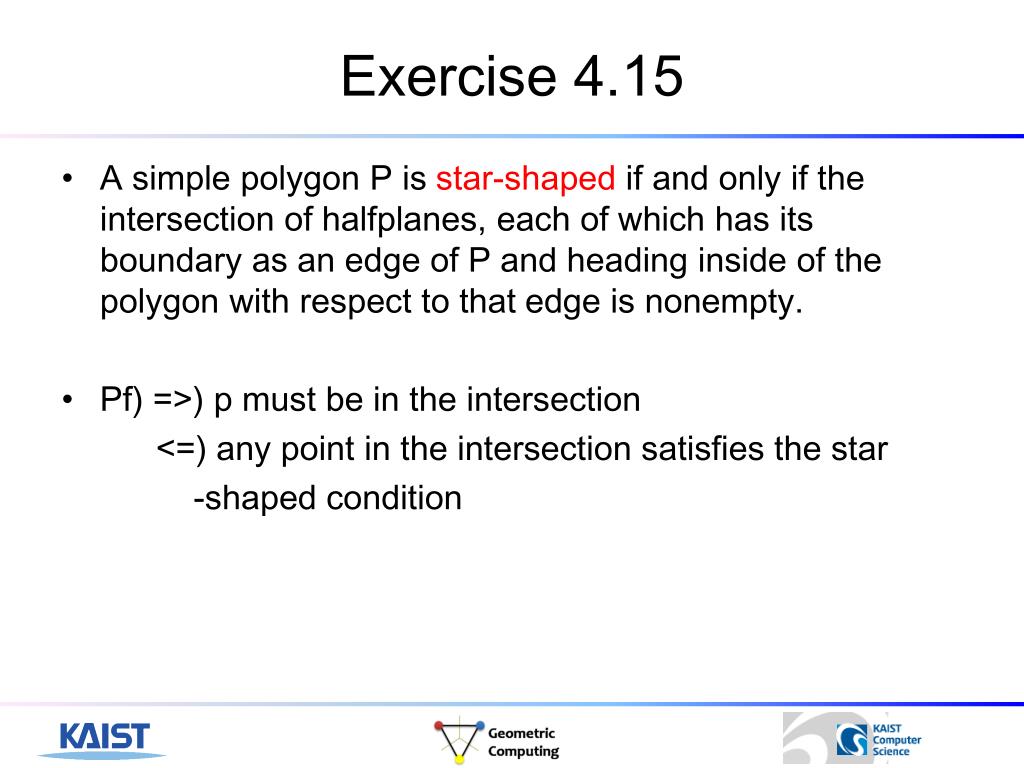

  37. Exercise 4.15 • A simple polygon P is star-shaped if and only if the intersection of halfplanes, each of which has its boundary as an edge of P and heading inside of the polygon with respect to that edge is nonempty. • Pf) =>) p must be in the intersection <=) any point in the intersection satisfies the star -shaped condition

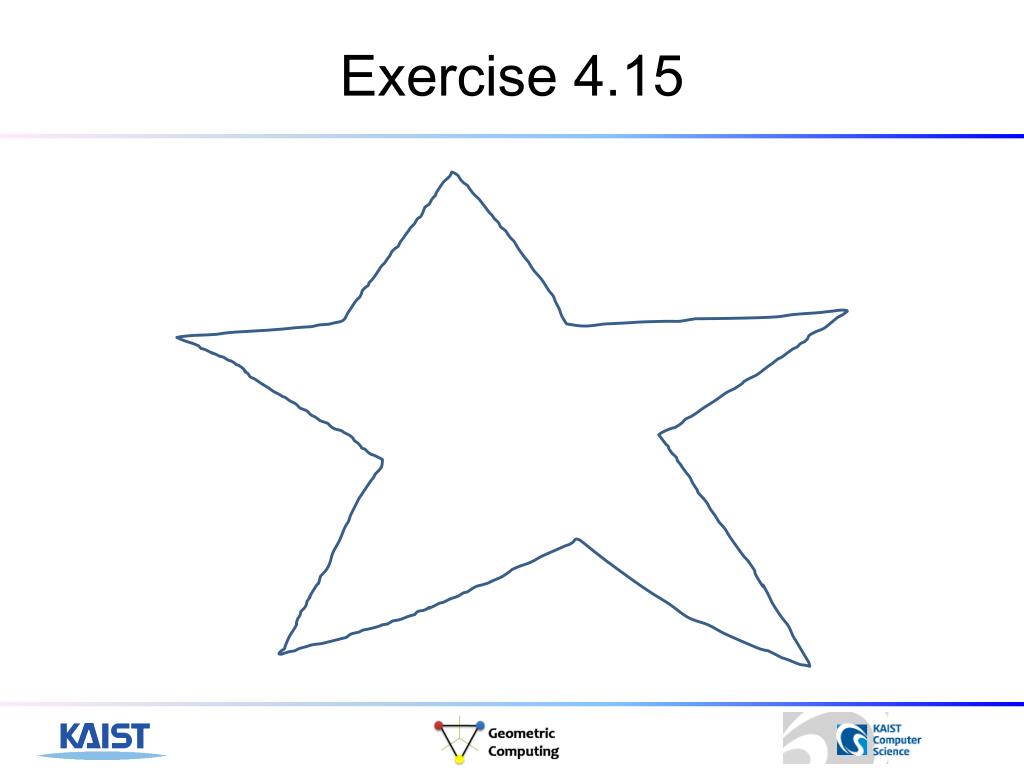

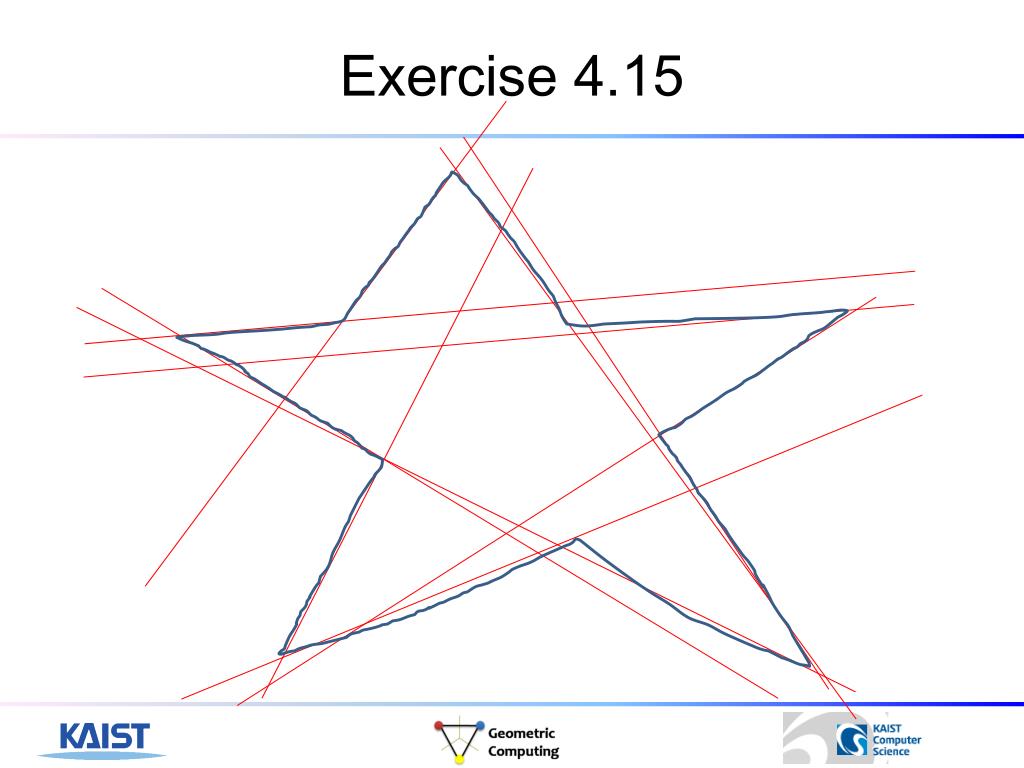

  38. Exercise 4.15

  39. Exercise 4.15

  40. Exercise 4.15

  41. Exercise 4.15

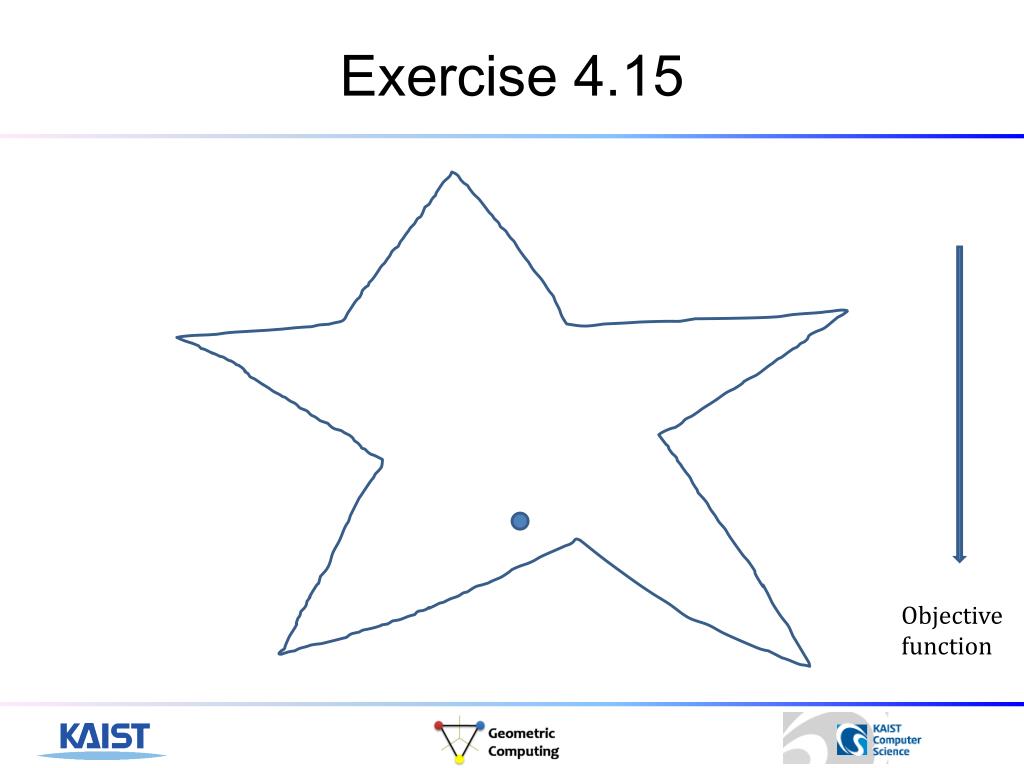

  42. Exercise 4.15 Objective function

  43. Exercise 4.15 Objective function

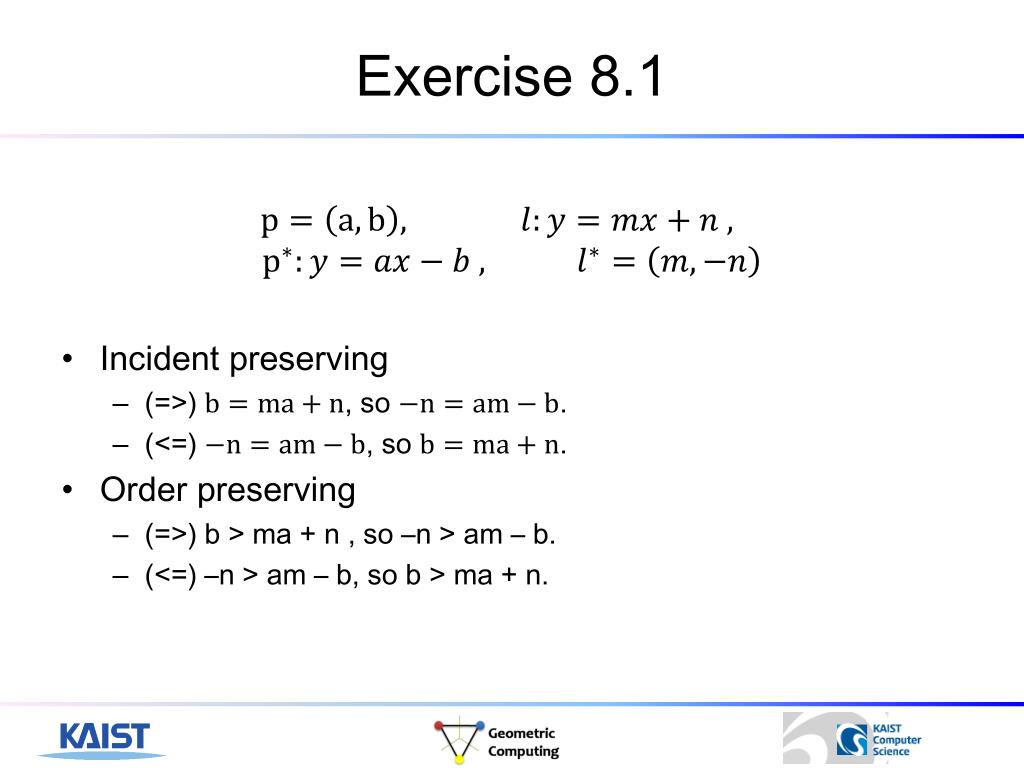

  44. Exercise 8.1 • Incident preserving • (=>) , so . • (<=) , so . • Order preserving • (=>) b > ma + n , so –n > am – b. • (<=) –n > am – b, so b > ma + n.

  45. Exercise 8.2 • The line segment can be expressed as . • The dual transform of these points are infinite set of lines, . • It forms a left-right double wedge, which is bounded by .

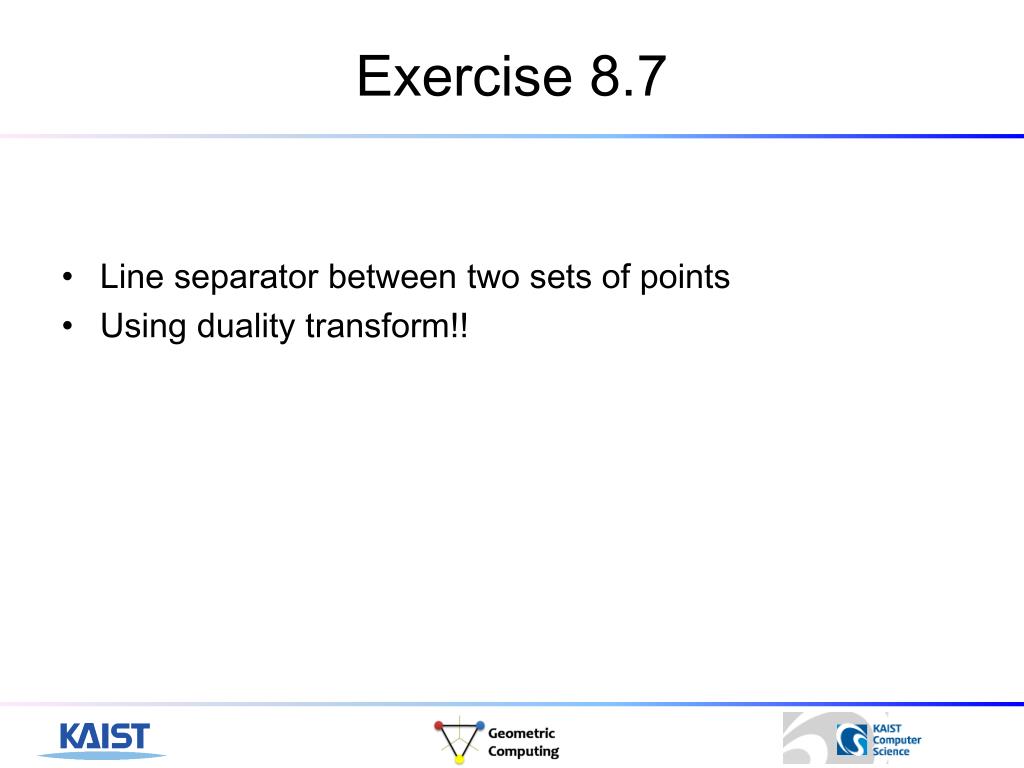

  46. Exercise 8.7 • Line separator between two sets of points • Using duality transform!!

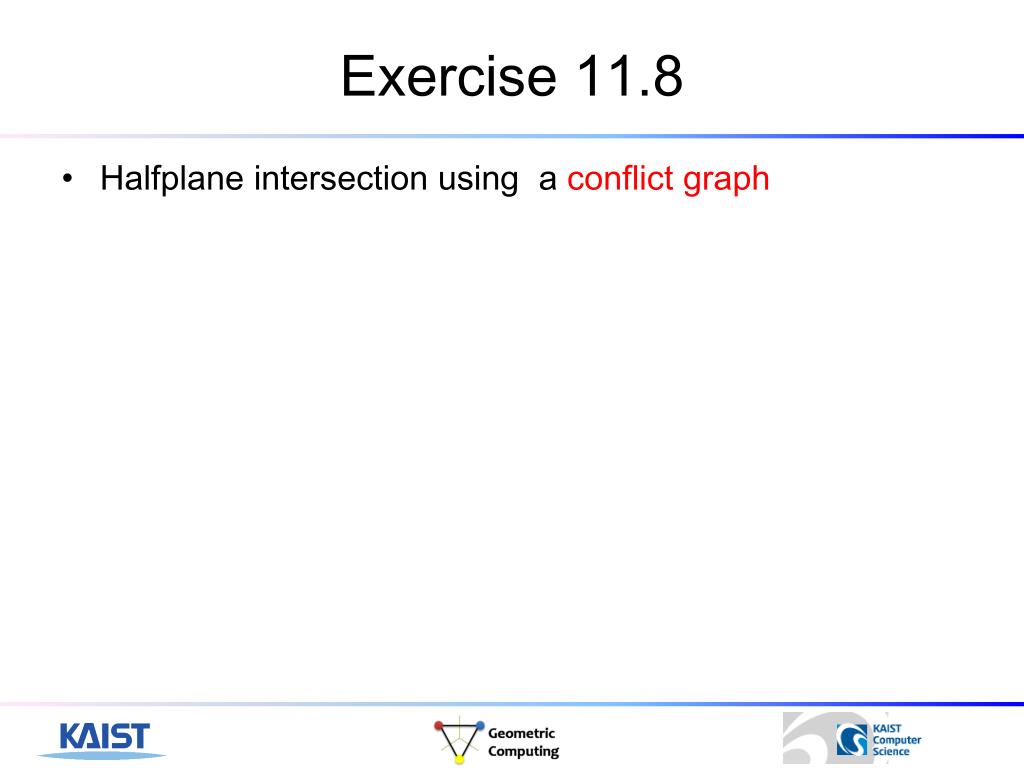

  47. Exercise 11.8 • Halfplane intersection using a conflict graph

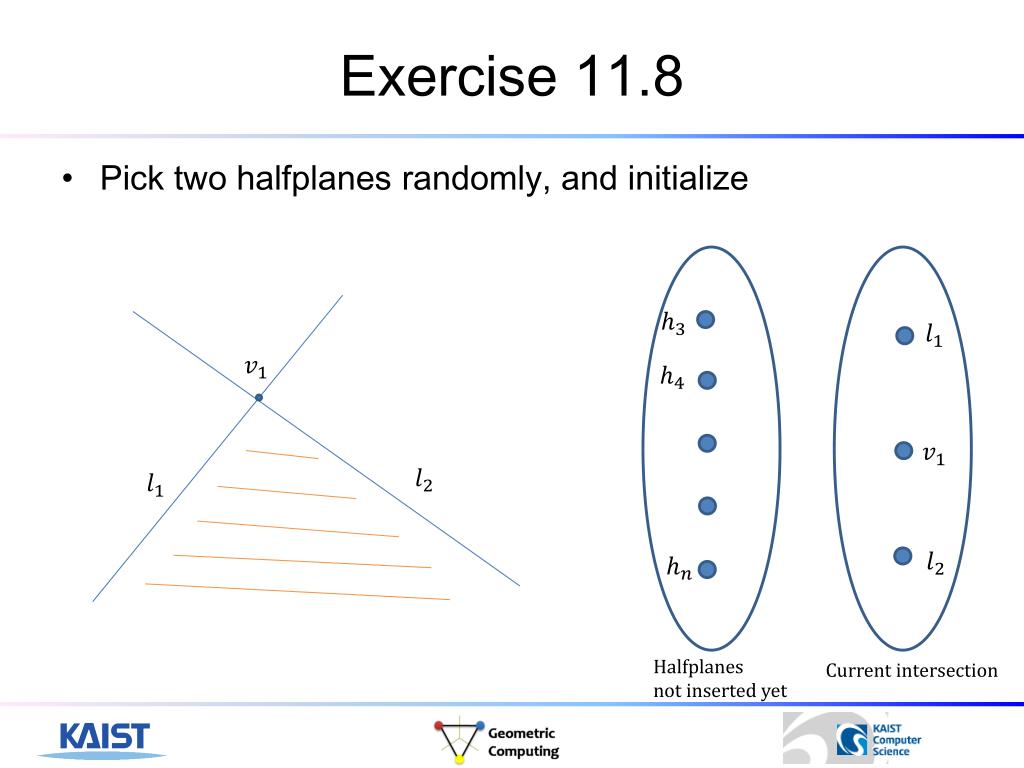

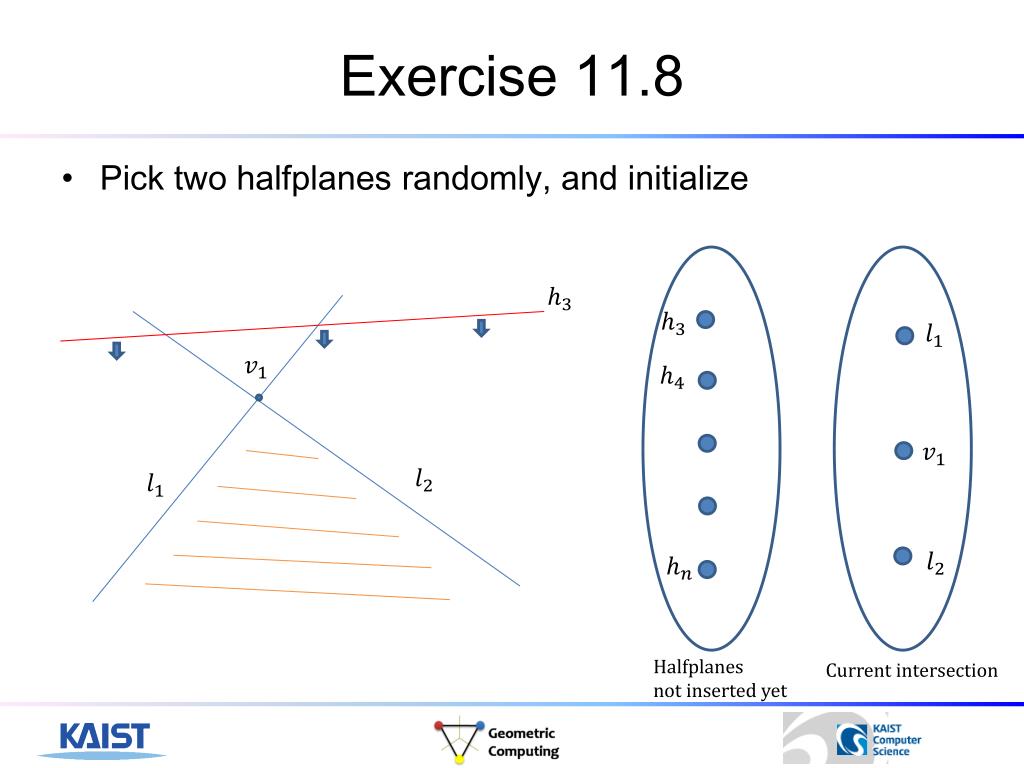

  48. Exercise 11.8 • Pick two halfplanes randomly, and initialize Halfplanes not inserted yet Current intersection

  49. Exercise 11.8 • Pick two halfplanes randomly, and initialize Halfplanes not inserted yet Current intersection
