  1. Teknologi Informasi Indonesiadi Masa mendatang Basuki Suhardiman basuki@itb.ac.id

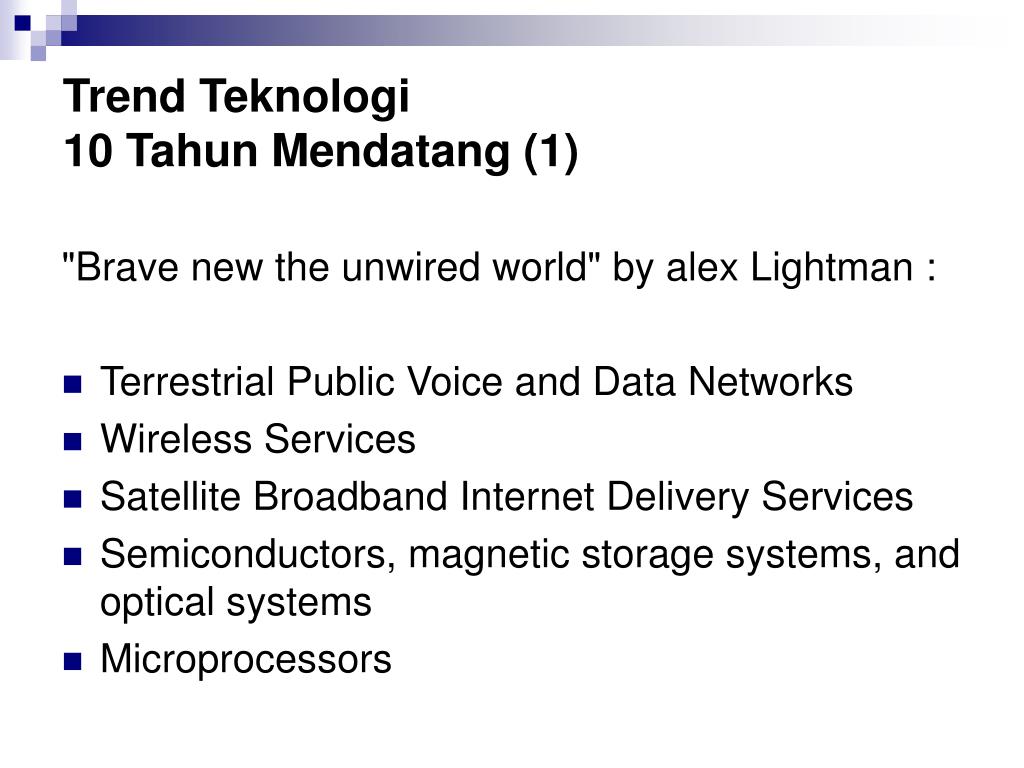

  2. Trend Teknologi 10 Tahun Mendatang (1) "Brave new the unwired world" by alex Lightman : • Terrestrial Public Voice and Data Networks • Wireless Services • Satellite Broadband Internet Delivery Services • Semiconductors, magnetic storage systems, and optical systems • Microprocessors

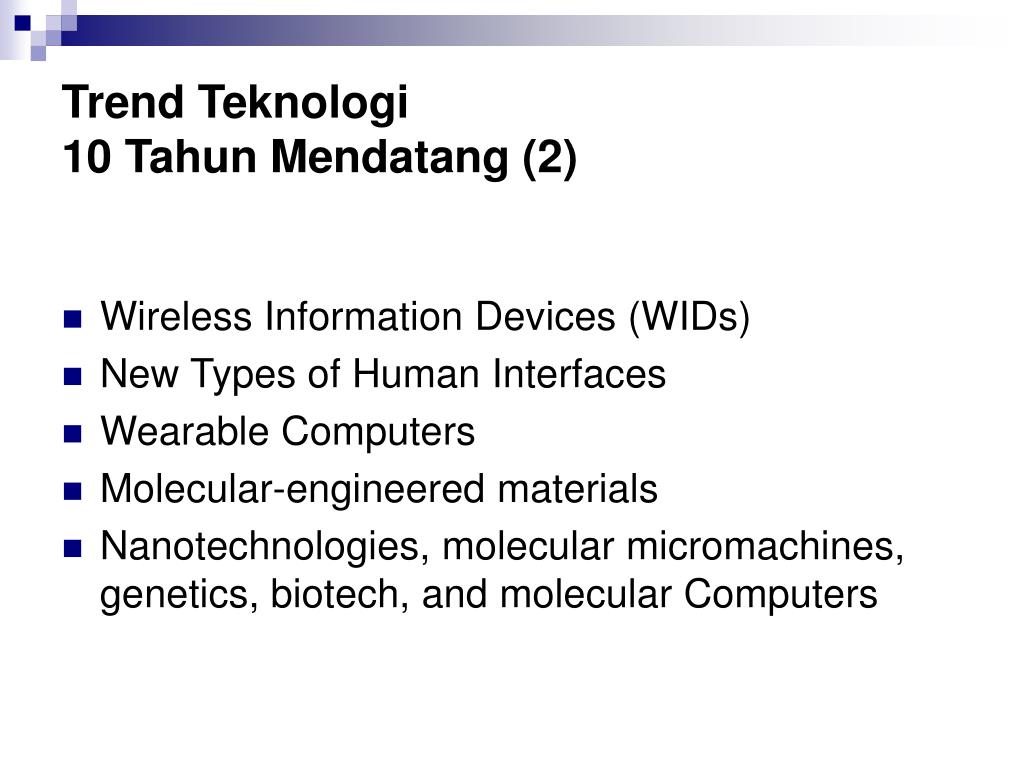

  3. Trend Teknologi 10 Tahun Mendatang (2) • Wireless Information Devices (WIDs) • New Types of Human Interfaces • Wearable Computers • Molecular-engineered materials • Nanotechnologies, molecular micromachines, genetics, biotech, and molecular Computers

  4. Internet Broadcast Servers e.g. MTV.com Cable Modem & PC Internet Digital Set Top Box & TV … Router Data, video & voice PC & TV Application Servers & Web Servers Switch Data, video & voice Home Gateway for video, voice and data Video Server PSTN Trend Sistem Telekomunikasi dan Teknologi Informasi

  5. Customer Communications (Telco) Computer (Internet) Content (Broadcasting) Convergence of Services

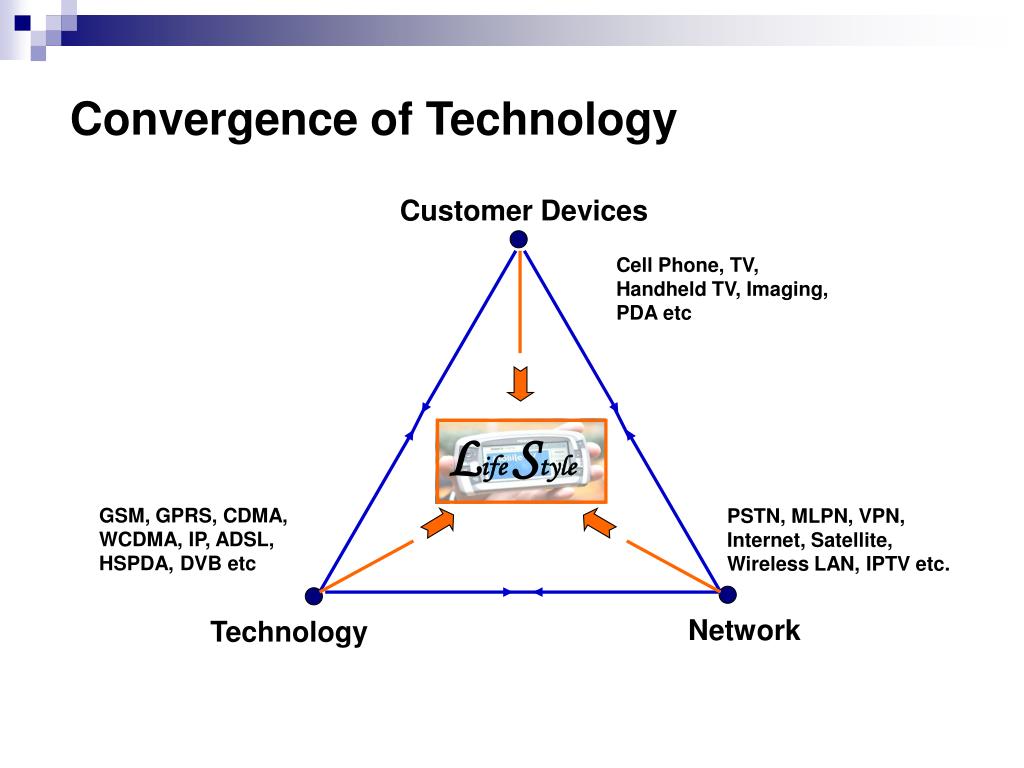

  6. Customer Devices Cell Phone, TV, Handheld TV, Imaging, PDA etc Life Style GSM, GPRS, CDMA, WCDMA, IP, ADSL, HSPDA, DVB etc PSTN, MLPN, VPN, Internet, Satellite, Wireless LAN, IPTV etc. Network Technology Convergence of Technology

  7. Conferences Home Internet ISP Access through the Internet Dial Hotel Commuting Meeting Rooms LANs and VLANs Cellular or Mobile Mobile IP Enables Seamless Connectivity to and from the Home Network

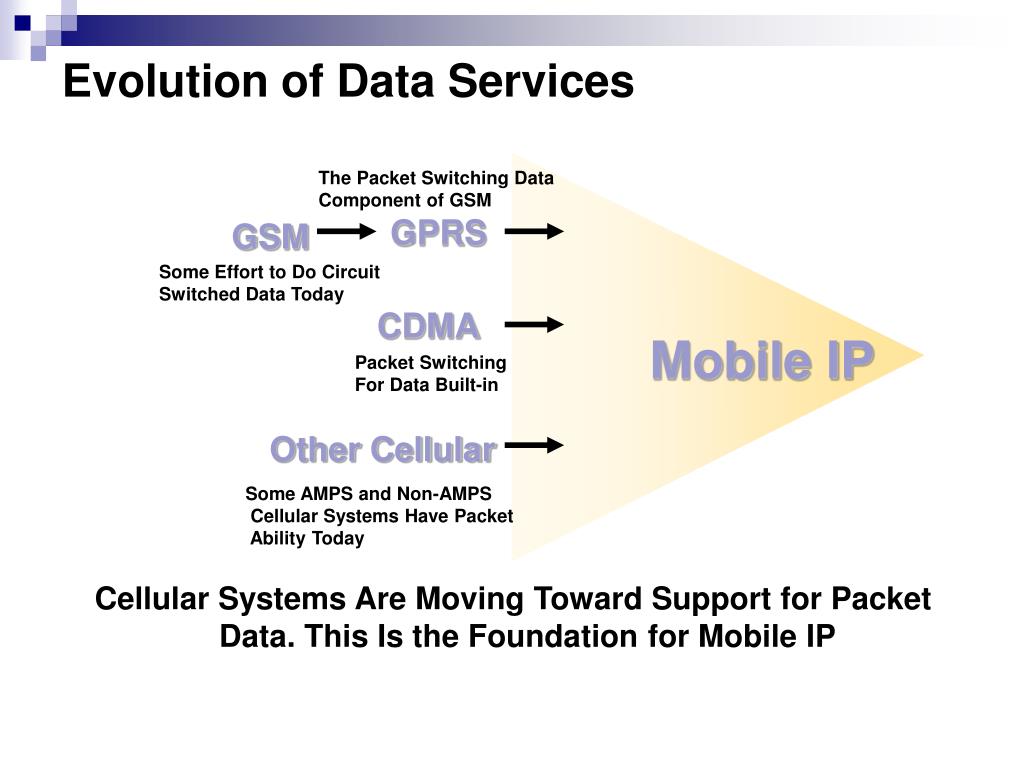

  8. The Packet Switching Data Component of GSM GPRS GSM Some Effort to Do Circuit Switched Data Today CDMA Mobile IP Packet Switching For Data Built-in Other Cellular Some AMPS and Non-AMPS Cellular Systems Have Packet Ability Today Cellular Systems Are Moving Toward Support for Packet Data. This Is the Foundation for Mobile IP Evolution of Data Services

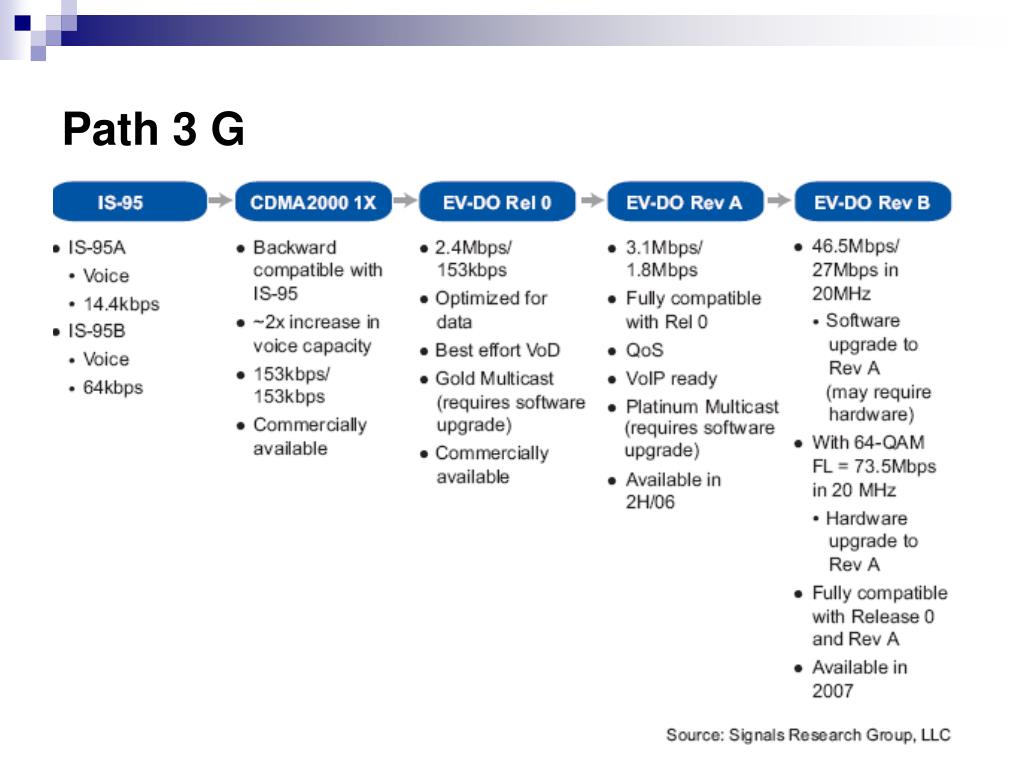

  9. Path 3 G

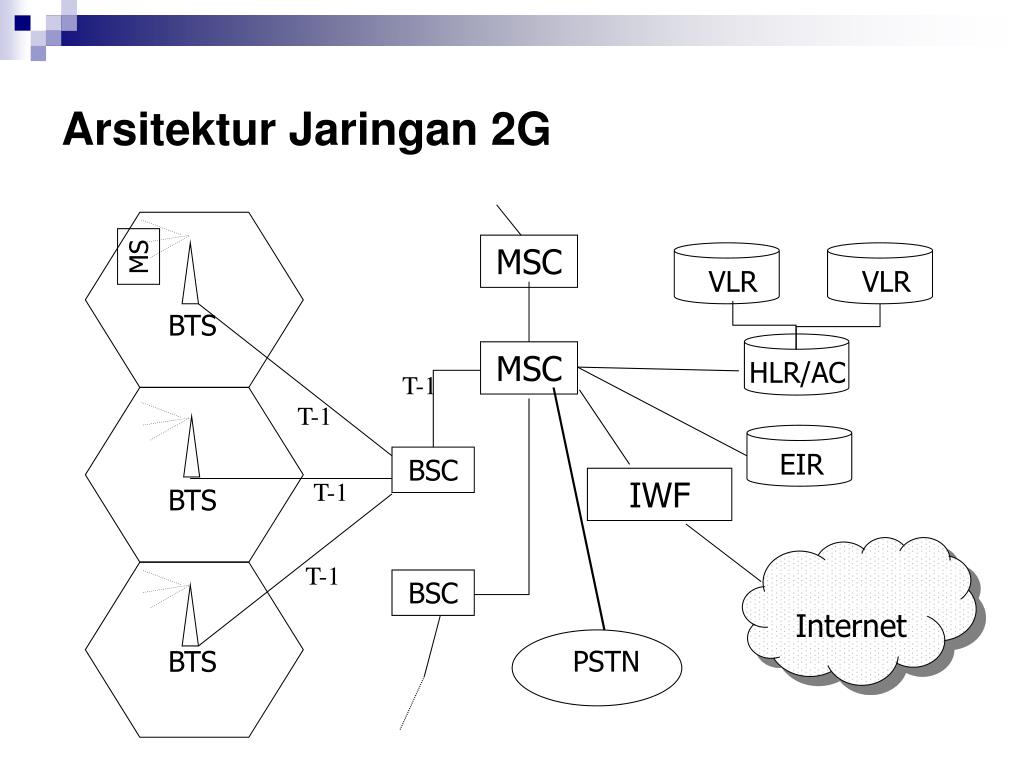

  10. MSC MS BTS MSC T-1 T-1 VLR VLR BSC IWF T-1 BTS HLR/AC EIR Internet T-1 BSC PSTN BTS Arsitektur Jaringan 2G

  11. MSC MS BTS T-1 IP New Switch MSC IP T-1 VLR VLR BSC New Switch PDSN IWF T-1 BTS IP HLR/AC EIR Internet T-1 IP New Switch BSC PSTN BTS Arsitektur Jaringan 3G

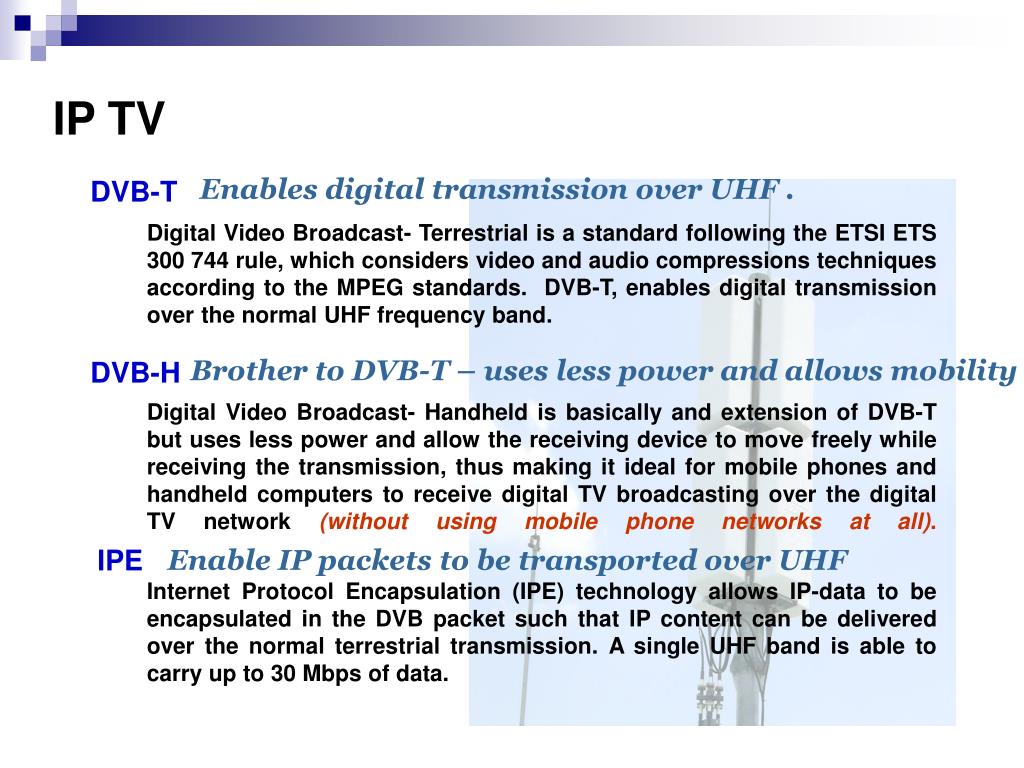

  12. IP TV Enables digital transmission over UHF . DVB-T Digital Video Broadcast- Terrestrial is a standard following the ETSI ETS 300 744 rule, which considers video and audio compressions techniques according to the MPEG standards. DVB-T, enables digital transmission over the normal UHF frequency band. Brother to DVB-T – uses less power and allows mobility DVB-H Digital Video Broadcast- Handheld is basically and extension of DVB-T but uses less power and allow the receiving device to move freely while receiving the transmission, thus making it ideal for mobile phones and handheld computers to receive digital TV broadcasting over the digital TV network (without using mobile phone networks at all). Enable IP packets to be transported over UHF IPE Internet Protocol Encapsulation (IPE) technology allows IP-data to be encapsulated in the DVB packet such that IP content can be delivered over the normal terrestrial transmission. A single UHF band is able to carry up to 30 Mbps of data.

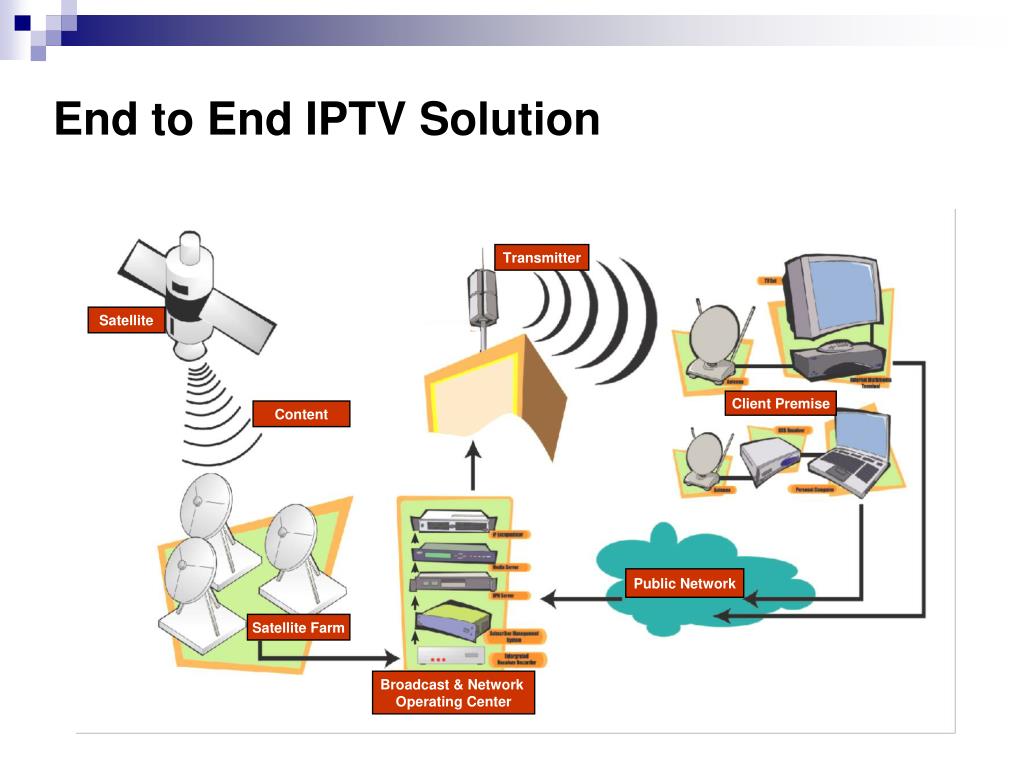

  13. Transmitter Satellite Client Premise Content Public Network Satellite Farm Broadcast & Network Operating Center End to End IPTV Solution

  14. Pola Transmisi Cell Content from Satellite TV Station Broadcasting Studio N O C Transmitter Satellite Farm

  15. Layanan IP TV

  16. Infrastruktur Satelit • Tingginya kebutuhan IT terutama untuk akses Internet • Jumlah penduduk Indonesia > 200.000.000 • Mendekati 16.000.000 pengguna • Geografi yang sangat luas • Panjang geografis dari sabang sampai Merauke 5000 km • Skema VSAT dengan uplink dan downlink yang Customized • Harga yang kompetitif • Pricing is basic issues

  17. Teknologi Internet menggunakan satelit • DVB (digital video broadcasting) Downlink only • Di desain untuk downlink • DVB uplink and downlink /DVB-RCS • Designed for point-to-multipoint 2 way communication

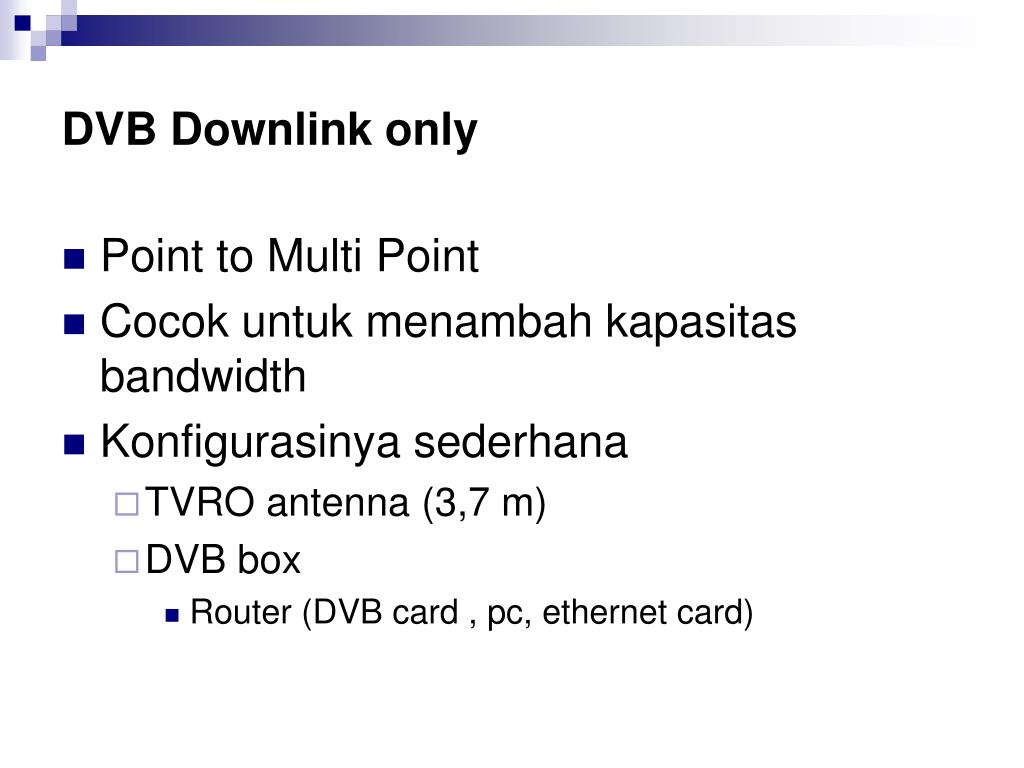

  18. DVB Downlink only • Point to Multi Point • Cocok untuk menambah kapasitas bandwidth • Konfigurasinya sederhana • TVRO antenna (3,7 m) • DVB box • Router (DVB card , pc, ethernet card)

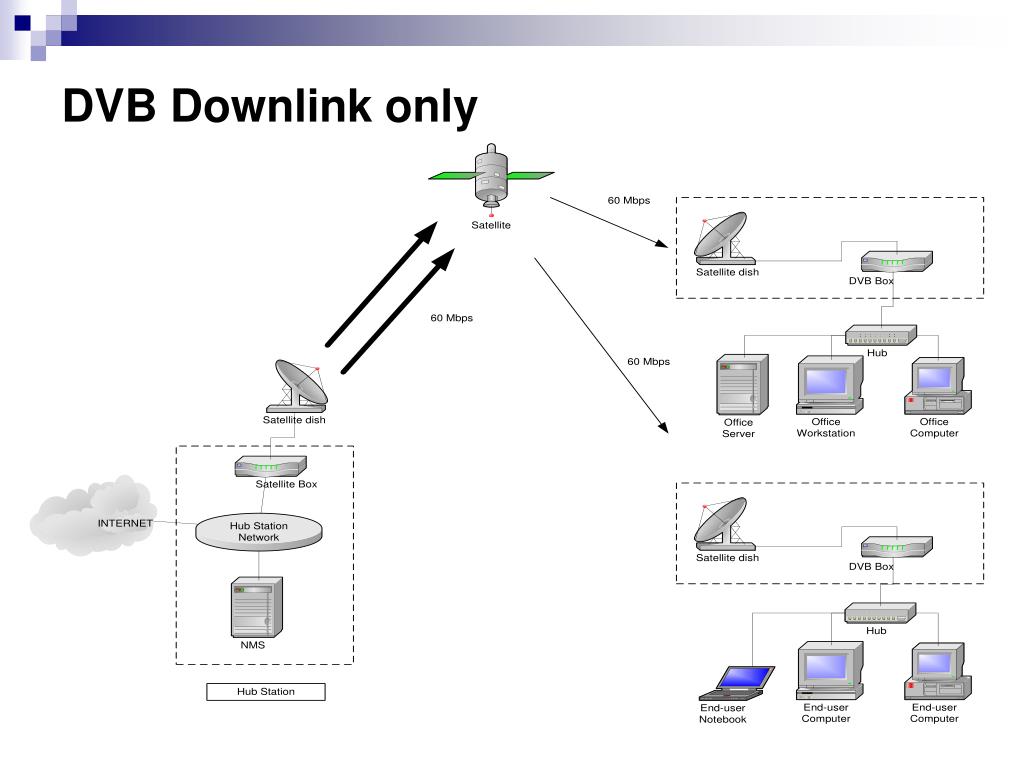

  19. DVB Downlink only

  20. DVB-RCS (return channel via satellite) • Desain untuk two communications • Cocok untuk pengembangan infrastruktur di daerah : • sub urban and rural areas • Cocok untuk Indonesia • Low Cost
