  1. D-Link Surveillance Industry Solution Present by D-Link South Africa Date: October 10, 2003

  2. Topics • Current Surveillance System • PC-Independent System • PC-Base System • What’s Internet Camera • Market Trend • Application Diagram

  3. Current Surveillance System Display Camera Processor Storage Transmission BNC Monitor CRT/LCD Monitor Plasma Monitor Projector Home TV Camera Switcher Quad Multiplexer Matrix / DVR VCR BNC Coax-Cable Ethernet WiFi Wireless HomePNA DVR PC HDD DAS/SAN/NAS

  4. Processor BNC ( CCD or CMOS ) Analog Codec BNC CCTV Camera PC-Independent System A CCTV camera including lens, optical filters, image processor and analog codec with coaxial Cable (BNC) interface.

  5. Live View Only Live View and Recording (Multiply Cameras) BNC Coaxial Cable BNC Coaxial Cable BNC CRT Monitor Different type Cameras BNC CRT Monitor Different type Cameras Switcher AV Cable Live View and Recording BNC Coaxial Cable VHS VCR BNC CRT Monitor Different type Cameras Switcher AV Cable VHS VCR Traditional CCTV Diagram (Simplex Live View and Recording) PC-Independent System 1. Only one camera image will record in VCR 2. Only one camera image will display at BNC CRT Monitor

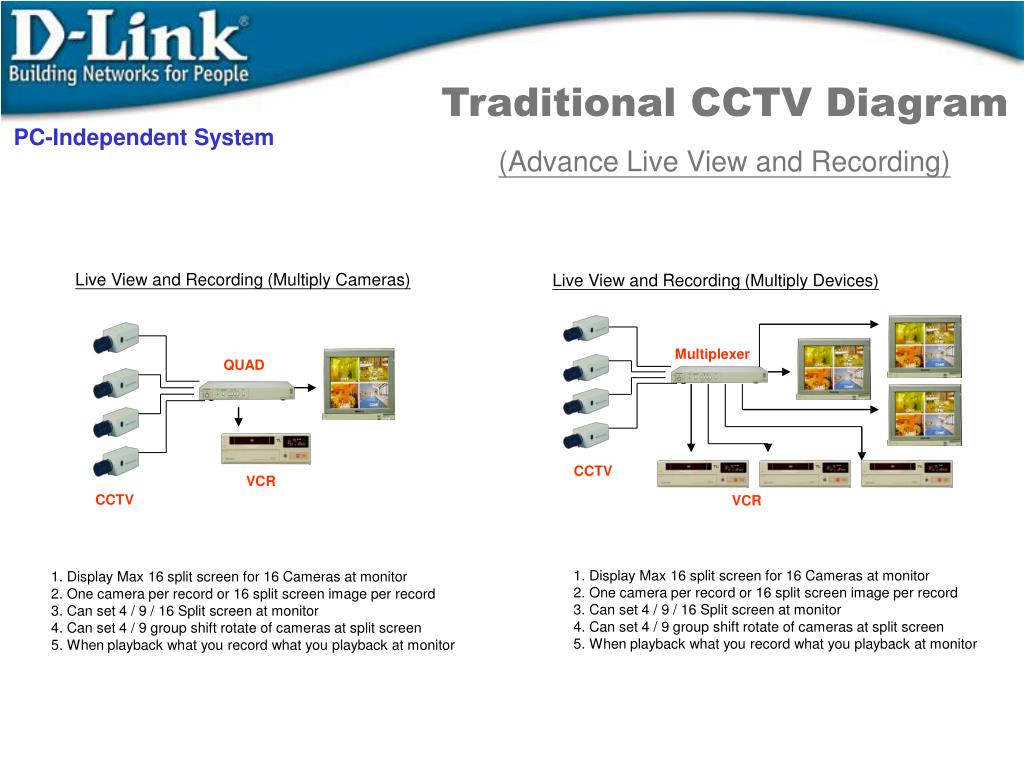

  6. Live View and Recording (Multiply Cameras) Live View and Recording (Multiply Devices) QUAD Multiplexer CCTV VCR VCR CCTV Traditional CCTV Diagram (Advance Live View and Recording) PC-Independent System 1. Display Max 16 split screen for 16 Cameras at monitor 2. One camera per record or 16 split screen image per record 3. Can set 4 / 9 / 16 Split screen at monitor 4. Can set 4 / 9 group shift rotate of cameras at split screen 5. When playback what you record what you playback at monitor 1. Display Max 16 split screen for 16 Cameras at monitor 2. One camera per record or 16 split screen image per record 3. Can set 4 / 9 / 16 Split screen at monitor 4. Can set 4 / 9 group shift rotate of cameras at split screen 5. When playback what you record what you playback at monitor

  7. BNC CRT Monitor Camera 1-16 Time-lapse VCR Switcher / Quad Multiplexer / Matrix Tape Storage Management Center P/T P/T/Z Controller P/T Passive Infrared Detector Passive Infrared Detector Alarm Alarm Microphone Traditional CCTV Diagram (Multiplex Live View and Recording) PC-Independent System

  8. Traditional CCTV Diagram ( Playback ) PC-Independent System Home TV (AV Connector) Time-lapse VCR Switcher / Quad Multiplexer / Matrix Multiply Cameras QUAD Screen Tape Storage Management Center BNC CRT Monitor

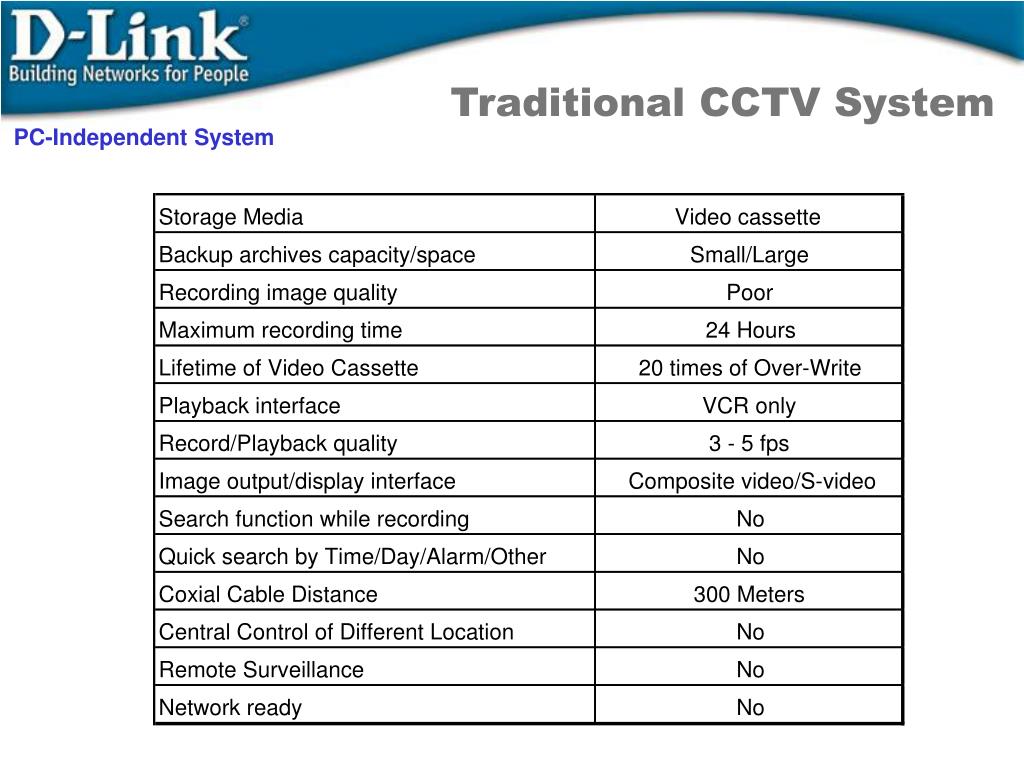

  9. Traditional CCTV System PC-Independent System

  10. Traditional CCTV System PC-Independent System • Strength • Easy to installed • Easy to operated • Easy to get supply • Weakness • High maintain cost • Need Tape Library • Poor playback quality • Can’t record / playback simultaneous • VCR head, motor / belt and VHS tape • damage frequently • No record during camera shifted • Lost record during tape rewind • Opportunity • Manufacture keep supply in market • with cheaper initiate cost • Threats • Double invest with new • technologies in future • No maintain support in future • Video record can not as evidence • in court • Central administration is difficult • in different location

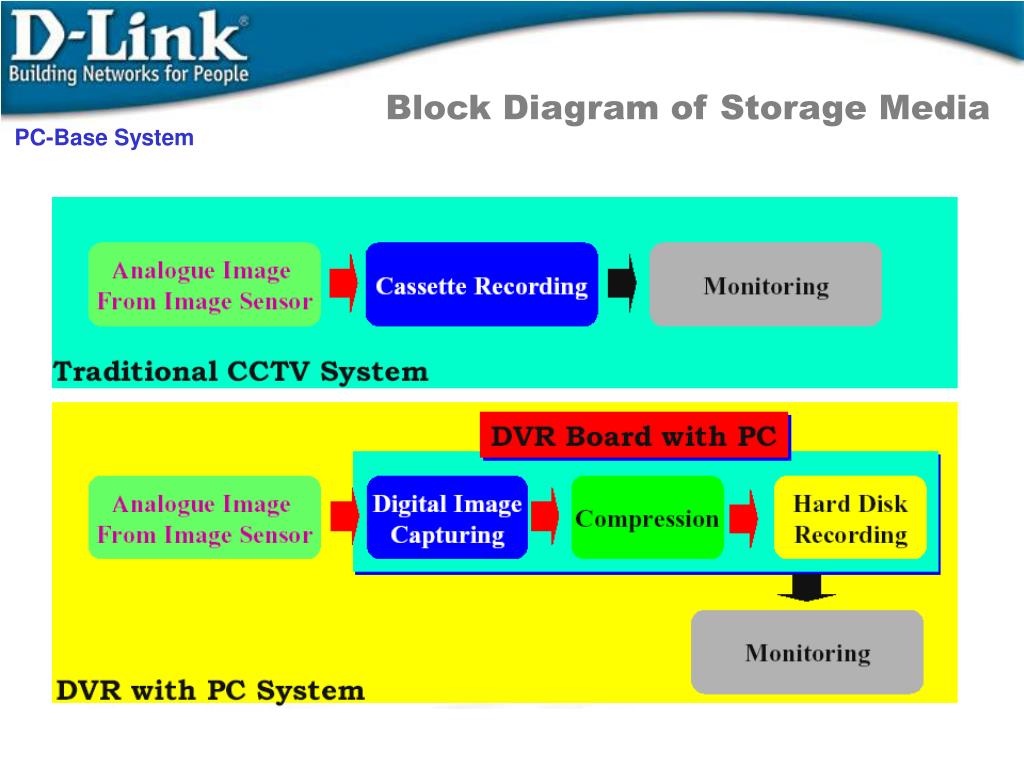

  11. Block Diagram of Storage Media PC-Base System

  12. Digital Video Record(DVR) System PC-Base System Storage Management Server DVR

  13. Digital Video Record(DVR) System PC-Base System

  14. Digital Video Record(DVR) System PC-Base System Strength • Exterior solution with outstanding performance • Maximum integration for greater efficiency • Designed to outperform existing technologies • Higher image quality, better reliability 640 x 480, 320x240, 176 x 144, 160 x 120 • Playback without missing images • Longer recording duration • Easy to operate, expand, and upgrade • Lowers total system costs and maintenance burden • Intelligent Recording Modes • Motion activated or Pre-event • Adjustable recording speeds and quality • Picture Quality and Security • Recorded pictures with “Watermark” • Image authentication guarantees • Integrated with Back-end Network System • Remote Surveillance, Download image • Lower the Total Cost of Recording • Reasonable price with excellent performance • Existing CCTV Peripheral utilization • Reduce Life Cycle Costs • Virtual maintenance-free operations • Remote Administration • Powerful Access Features • Remote access from any pc • Minimal (or no) staff intervention • Traditional multiplexer operation • VCR-like operation

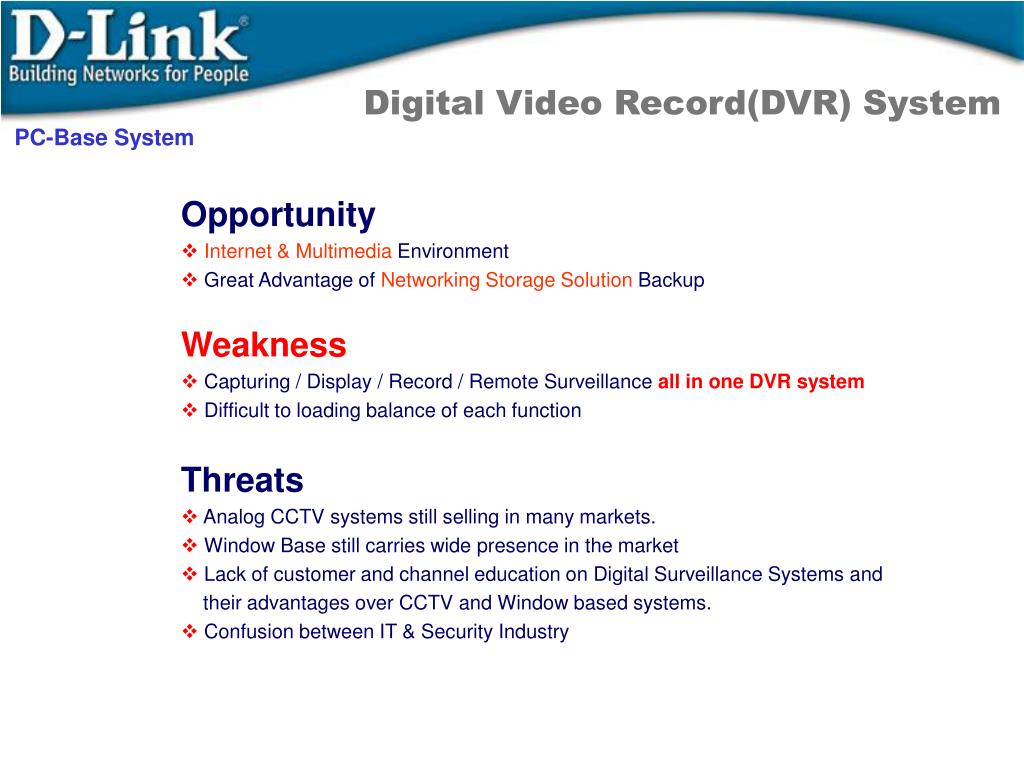

  15. Digital Video Record(DVR) System PC-Base System Opportunity • Internet & Multimedia Environment • Great Advantage of Networking Storage Solution Backup Weakness • Capturing / Display / Record / Remote Surveillance all in one DVR system • Difficult to loading balance of each function Threats • Analog CCTV systems still selling in many markets. • Window Base still carries wide presence in the market • Lack of customer and channel education on Digital Surveillance Systems and their advantages over CCTV and Window based systems. • Confusion between IT & Security Industry

  16. Digital Video Server System Embedded System Digital Video Server - The user can view the live picture from web server via internet BNC Camera Internet BNC Coaxial Cable Video server: 1 port User can browse the live picture Via Internet and record / store the image into multiple PC and Network Storage Access system Surveillance Site Remote Surveillance

  17. Digital Video Server System Embedded System Digital Video Server - The user can view the live picture from web server via internet BNC Cameras BNC Coaxial Cable Video server: 4 port 1 ~4 Internet User can browse the live picture Via Internet and record / store the image into multiple PC and Network Storage Access system Surveillance Site Remote Surveillance

  18. Digital Video Server System Embedded System Strength • Same As Digital Video Recorder (DVR) • Please refer to “Strength” analysis at Digital Video Recorder (DVR) session • System operated focus at Imaging Capturing / and Transmission function • Multiply Display / Record location support • Opportunity • Internet & Multimedia Environment • Great Advantage of Networking Storage Solution Backup • Weakness • No Internal Storage feature support • Maximum support four (4) cameras connected • Threats • Analog CCTV recording systems still selling in many markets. • Lack of customer and channel education on Internet IP implementation and their advantages over CCTV and IP based systems. • Confusion between IT & Security Industry

  19. What’s Internet Camera • A PC-independent Camera which can • Capture images • Be accessed via LAN or Internet remotely. (replace coaxial-cable infrastructure) • With its own or assigned IP address enable users to monitor and configure it (with authorized access) at anywhere / anytime.

  20. What’s Internet Camera -Con’d A Internet Camera including lens, optical filters, image processor and server with networking interface, say LAN (Wired Ethernet or WiFi Wireless). ( CCD or CMOS )

  21. Processor BNC ( CCD or CMOS ) Analog Codec Why Adopt New Solution? Internet Camera ( CCD or CMOS ) BNC CCTV Camera

  22. Why Adopt New Solution?-Con’d Comparing with Traditional CCTV system:

  23. Why Adopt New Solution?-Con’d Comparing with Digital CCTV system: • Heavy loading on PC or DVR system for data compressing • Internet Camera compress data inside the camera internally • BNC cable with distance limitation • Internet Camera not distance limitation in Internet environment • Centralized image database management • Multiple image database management capability • Image capturing / data compress / data storing / playback • all in one system • Flexible arrange different PCs to managing above feature

  24. Why Adopt New Solution?-Con’d Comparing with Digital CCTV system: per camera / 480 • Capture Card Technology : 30 / 120 frames per card X 4 = 120 / 480 frames per system • 4 ports per card : 5 / 25 frames per port

  25. Market Trend • Market Trend Overview • Market Segment

  26. Market Trend Overview • Broadband soars worldwide • Market growing up to USD$ 441.32M revenue by 2005 • Traditional CCTV system migration • Digital evolution • More requests than text and images only • Personal needs for security • Self exposure desire • Simple but complete solution • Remote facility • Easy & convenient record streaming video

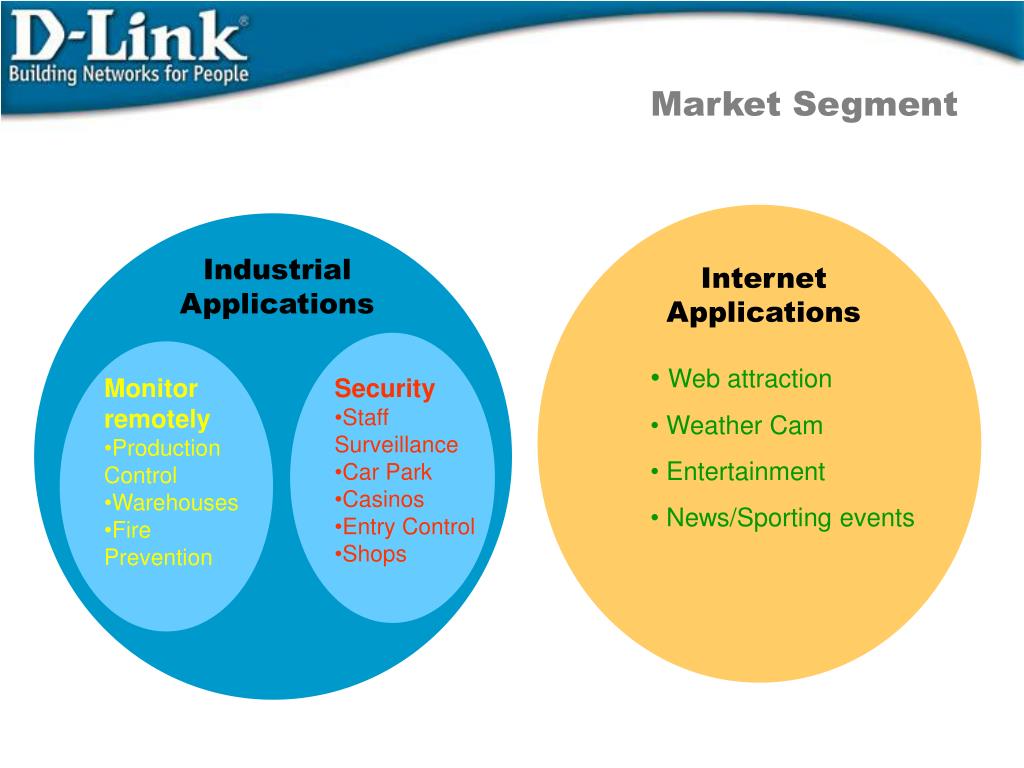

  27. Industrial Applications Internet Applications • Web attraction • Weather Cam • Entertainment • News/Sporting events • Monitor remotely • Production Control • Warehouses • Fire Prevention • Security • Staff Surveillance • Car Park • Casinos • Entry Control • Shops Market Segment

  28. Application Diagram • Typical Installation DCS-1000/1000W/2000/2100+ • DIY Surveillance • Real-Time Monitoring • Via VPN Tunnel • Simultaneously 16 Cameras • Internet Camera with NAS for Security Service

  29. DIY Surveillance

  30. View Everywhere via Internet 61.219.201.69 192.19.3.55 200.25.10.95 • HTTP request to 61.219.201.69 • HTTP request to 192.19.3.55 • HTTP request to 200.25.10.95 • HTTP request to 185.57.23.79 185.57.23.79

  31. View Remote Office via VPN Taiwan Office China Factory 192.168.0.3 192.168.0.4 192.168.0.5 VPN Tunnel • HTTP request to 192.168.0.3 • HTTP request to 192.168.0.4 • HTTP request to 192.168.0.5 • HTTP request to 192.168.0.6 • HTTP request to 192.168.0.7 192.168.0.6 192.168.0.7

  32. Surveillance System 61.219.201.69:81 192.19.3.55:82 200.25.10.95:83 185.57.23.79:84 • HTTP request to 61.219.201.69:81 • HTTP request to 192.19.3.55:82 • HTTP request to 200.25.10.95:83 • HTTP request to 185.57.23.79:84 • HTTP request to 61.214.57.79:85 • HTTP request to 61.200.59.48 61.214.57.79:85 61.200.59.48:80

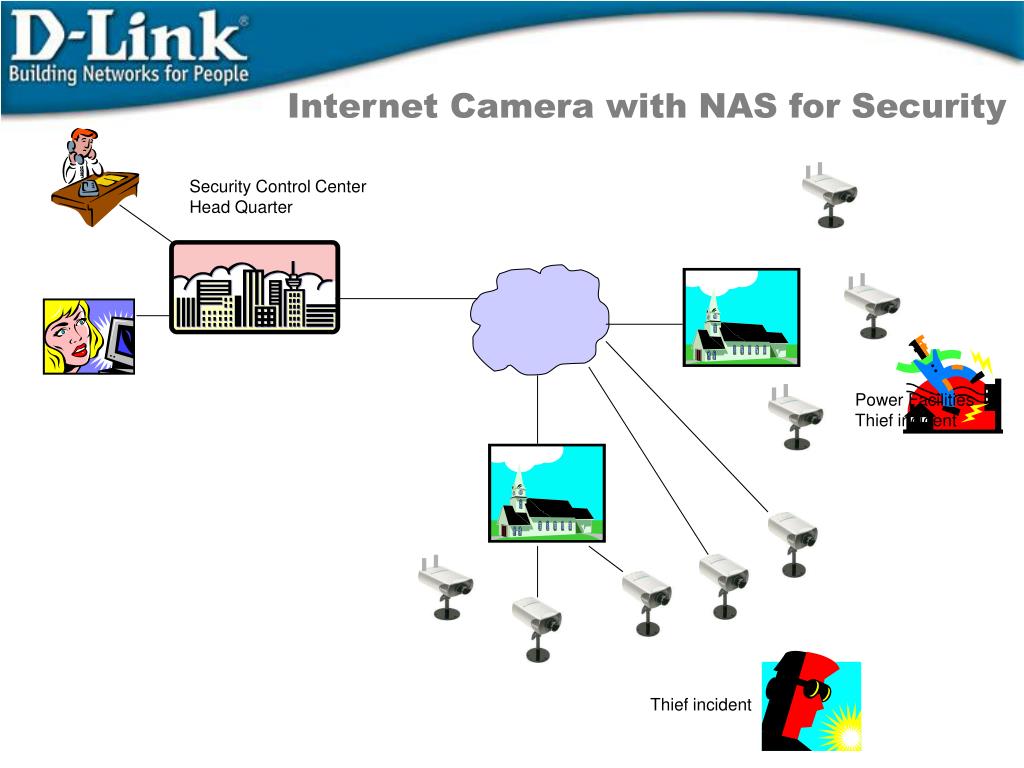

  33. Internet Camera with NAS for Security Security Control Center Head Quarter Power Facilities Thief incident Thief incident

  34. Construction Fee D-Link Solution Cost

  35. Building Networks for People Thank You!
