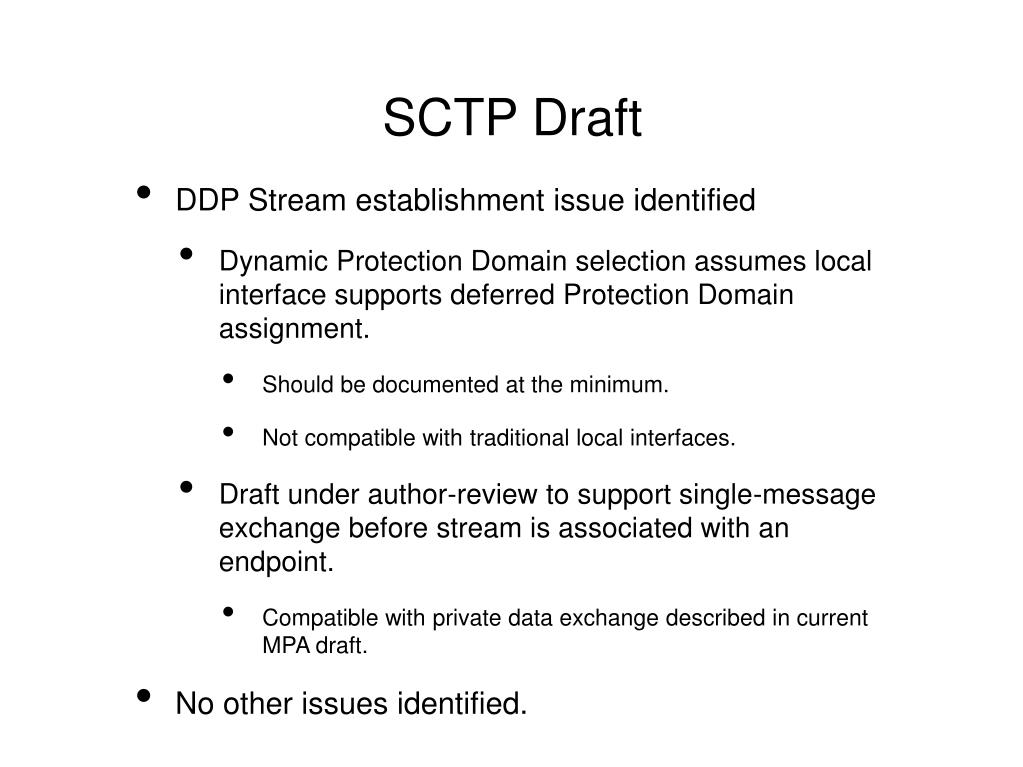

  1. SCTP Draft • DDP Stream establishment issue identified • Dynamic Protection Domain selection assumes local interface supports deferred Protection Domain assignment. • Should be documented at the minimum. • Not compatible with traditional local interfaces. • Draft under author-review to support single-message exchange before stream is associated with an endpoint. • Compatible with private data exchange described in current MPA draft. • No other issues identified.

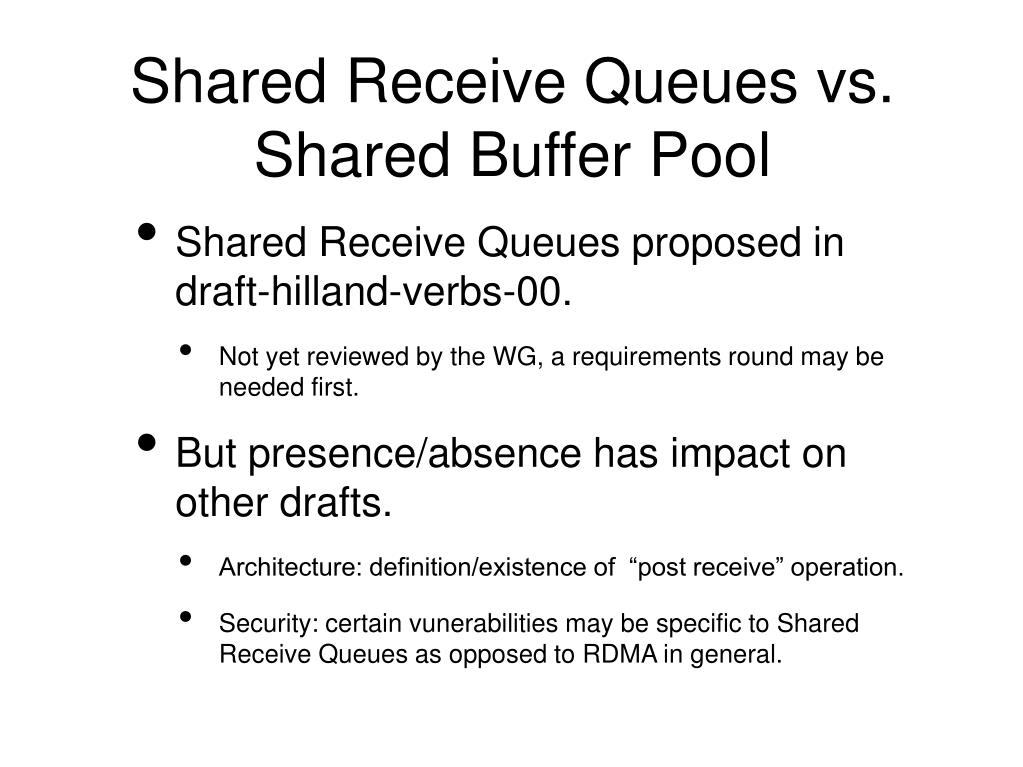

  2. Shared Receive Queues vs. Shared Buffer Pool • Shared Receive Queues proposed in draft-hilland-verbs-00. • Not yet reviewed by the WG, a requirements round may be needed first. • But presence/absence has impact on other drafts. • Architecture: definition/existence of “post receive” operation. • Security: certain vunerabilities may be specific to Shared Receive Queues as opposed to RDMA in general.

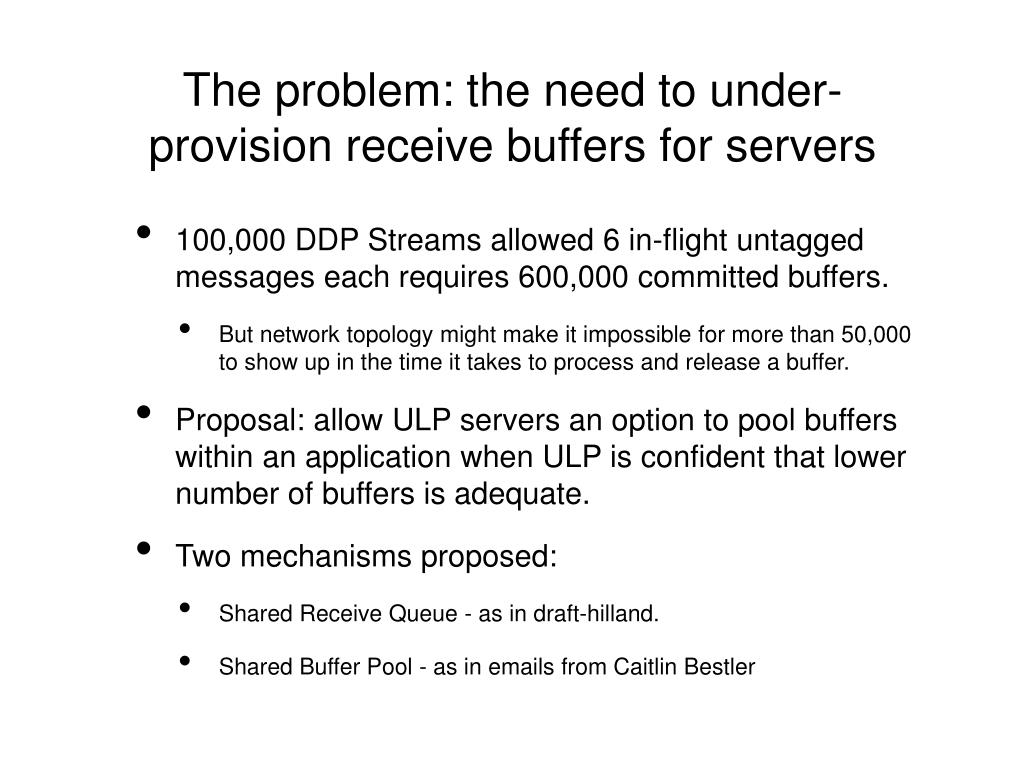

  3. The problem: the need to under-provision receive buffers for servers • 100,000 DDP Streams allowed 6 in-flight untagged messages each requires 600,000 committed buffers. • But network topology might make it impossible for more than 50,000 to show up in the time it takes to process and release a buffer. • Proposal: allow ULP servers an option to pool buffers within an application when ULP is confident that lower number of buffers is adequate. • Two mechanisms proposed: • Shared Receive Queue - as in draft-hilland. • Shared Buffer Pool - as in emails from Caitlin Bestler

  4. Non-shared Model • ULP enables one untagged receive by pre-posting a receive buffer to the DDP Stream’s “Receive Queue”. • If N have been posted, then a range of N Message Sequence Numbers (MSNs) can be accepted. • Peer sending “too much” will have out-of-range MSN, resulting in stream teardown.

  5. Shared Receive Queue Model • DDP Stream optionally associated with a Shared Receive Queue, rather than its own. • ULP enables reads by pre-posting to a shared receive queue. • Invalid message detection by buffer exhaustion (adjusting for implied buffers). • Asynchronous notice configurable for a stream if it exceeds its limits, but no DDP layer action is taken against the stream.

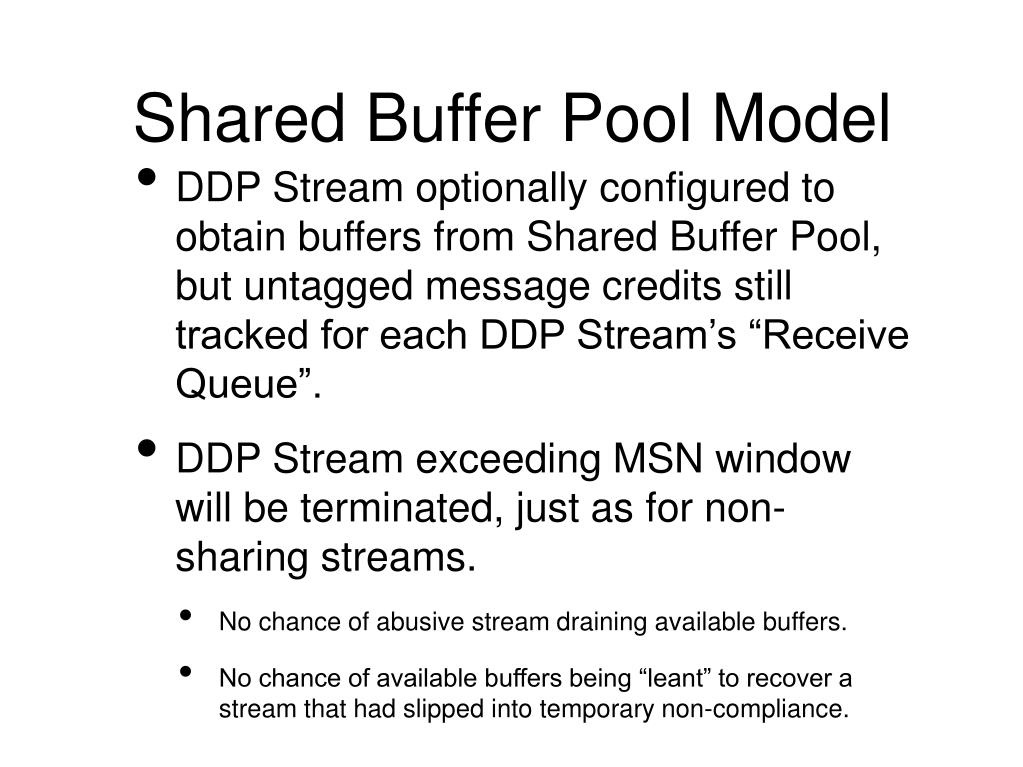

  6. Shared Buffer Pool Model • DDP Stream optionally configured to obtain buffers from Shared Buffer Pool, but untagged message credits still tracked for each DDP Stream’s “Receive Queue”. • DDP Stream exceeding MSN window will be terminated, just as for non-sharing streams. • No chance of abusive stream draining available buffers. • No chance of available buffers being “leant” to recover a stream that had slipped into temporary non-compliance.
