  1. Traffic Indication for Multi-Carrier Sleep Mode Operations (AWD-MCDG) Document Number: IEEE C802.16m-09/1496 Date Submitted: 2009-07-06 Source: Yih-Shen Chen yihshen.chen@mediatek.com Chung-Hsien Hsu stanley.hsu@mediatek.com I-Kang Fu IK.Fu@mediatek.com Paul Cheng paul.cheng@mediatek.com MediaTek Inc. No.1, Dusing Rd. 1, Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan Venue: IEEE 802.16 meeting #62 Re: “C802.16m-09/1283 : Multi-Carrier DG Harmonized Text Proposal - MAC”. Base Contribution: This is the base contribution Purpose: To be discussed and adopted by TGm for the 802.16m Multi-Carrier DG document

  2. Introduction • In SDD, it is agreed that • Data transmission follows the normal operation (no sleep) defined for multiple carriers • One set of unified sleep mode parameters (i.e., sleep window and listening window configuration) are configured for an AMS regardless of single carrier or multi-carrier operation • During the listening window of sleep mode, the traffic indication is transmitted through the primary carrier • To assign traffic in secondary carriers, those carriers shall be waked up first • AAI_TRF-IND with secondary carrier wake-up indication • Each bit of the wake-up indicator is corresponding to a logic index of secondary carrier

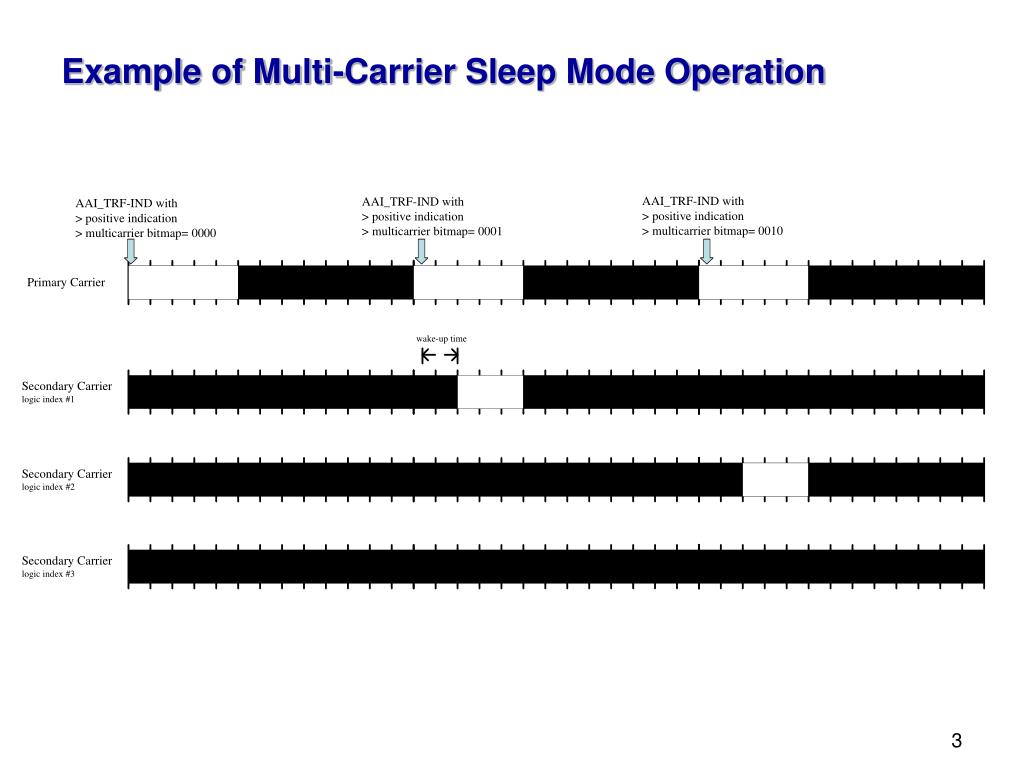

  3. Example of Multi-Carrier Sleep Mode Operation

  4. Proposed Text Add the following text into MC DG document (09_1283)
