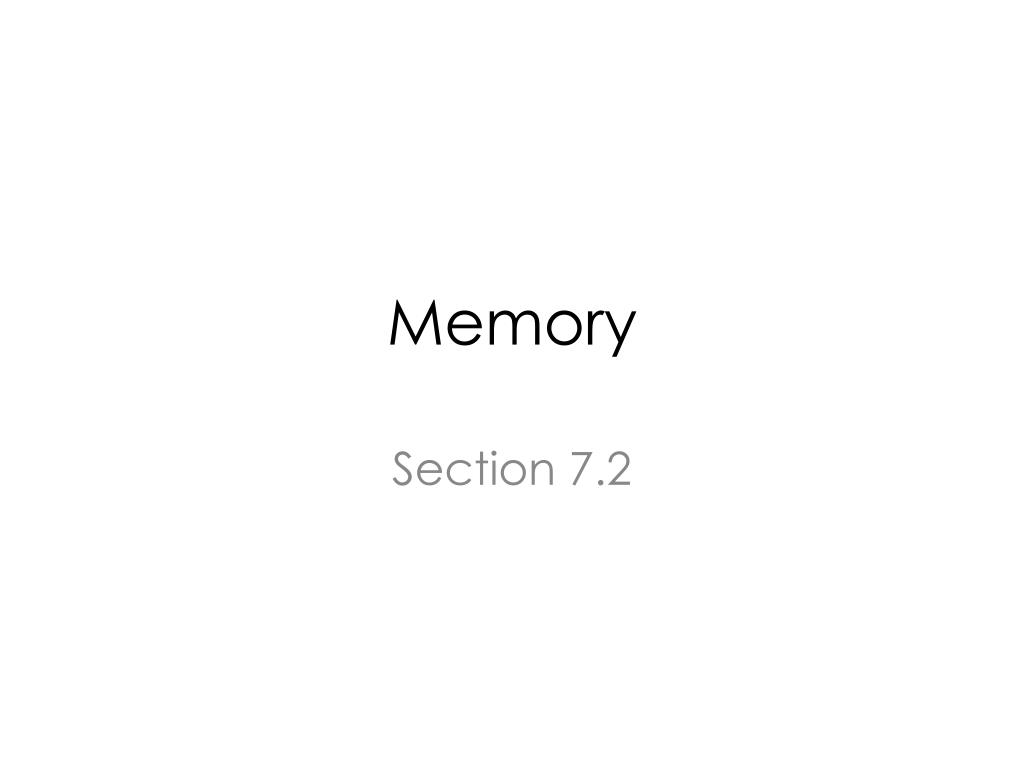

  1. Memory Section 7.2

  2. Types of Memories • Definitions • Write: store new information into memory • Read: transfer stored information out of memory • Random-Access Memory (RAM) • Can read and write • Read-Only-Memory (ROM) • Read only

  3. Interesting Facts • Interesting fact of RAM: the time it takes to transfer information to or from any desired random location is always the same • A word =a group of bits • A group of 8 bits is called a byte.

  4. Two Types of RAM • Static RAM (SRAM): Stored information remains valid as long as power is applied to the unit. • Dynamic RAM (DRAM): Stores binary information in the form of electric charges on capacitor provided inside the chip by MOS transistors.

  5. 74LS189 RAM 64 bits=16 4-bits words.

  6. Block Diagram of a Memory Unit

  7. 74LS189 RAM [A3,A2,A1,A0]=address inputs [D3,D2,D1,D0]=data inputs [S3,S2,S1,S0]=outputs ME,WE control the direction of transfer VCC=power GND=ground

  8. Logic Diagram memory cell Each word is enabled by the 4-input AND

  9. Write →Read

  10. Logic Diagram memory cell Each word is enabled by the 4-input AND

  11. Switch Characteristics

  12. Switching Time Waveforms 17 nS 23 nS A negative hold time means that the address/data can change before the rising edge of WE because the there is internal delay through the chip. -7 nS for address -14 nS for data

  13. Write (ME=0, WE=0) D1 1 D2 1 D3 1 D4 [hi Z?] 1 1 0 0 0

  14. READ (ME=0, WE=1) 0 1 1 Complement of data stored 0

  15. HOLD (ME=1, WE=X) X 0 Hi-Z output 1

  16. Memory Description in Verilog Need 6 bits address for 26=64 words. memory depth: 64 words word length 4-bits
