  1. 機器人圖控程式專題研習活動 技專院校與高職策略聯盟 南榮技術學院子系 新榮中學資訊科

  2. 機器人圖控程式專題研習活動內容及時程表

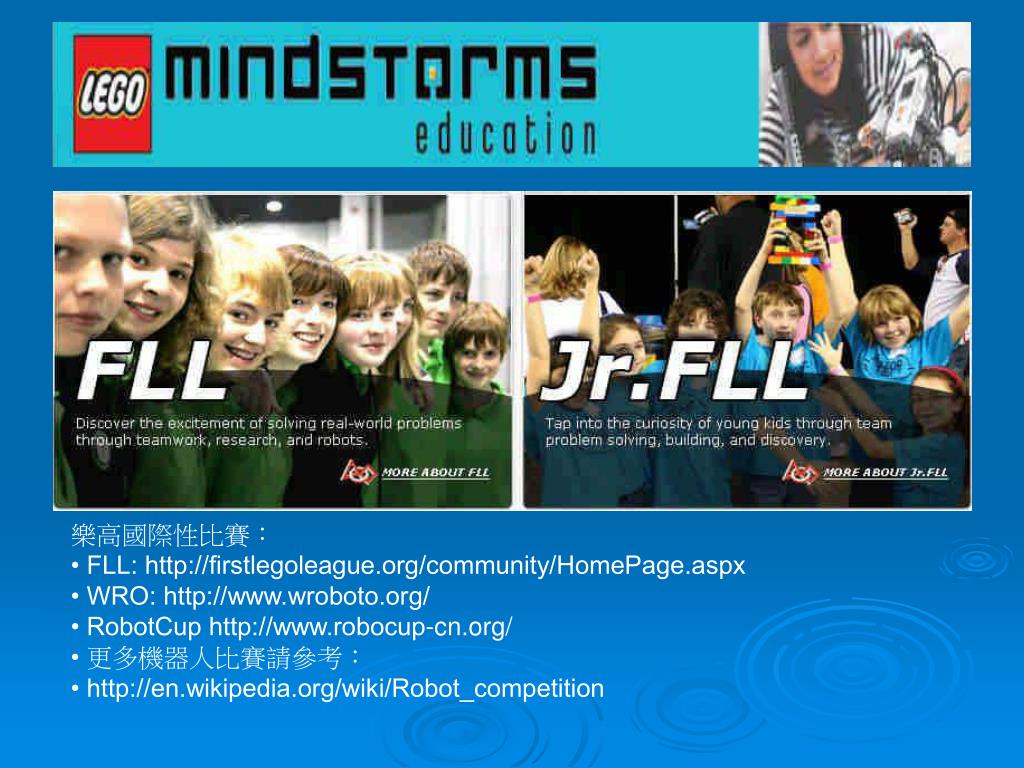

  3. 樂高國際性比賽: • FLL: http://firstlegoleague.org/community/HomePage.aspx • WRO: http://www.wroboto.org/ • RobotCup http://www.robocup-cn.org/ • 更多機器人比賽請參考: • http://en.wikipedia.org/wiki/Robot_competition

  4. NXTway-GS (Gyro Sensor) LEGO Mindstorms NXT Segway

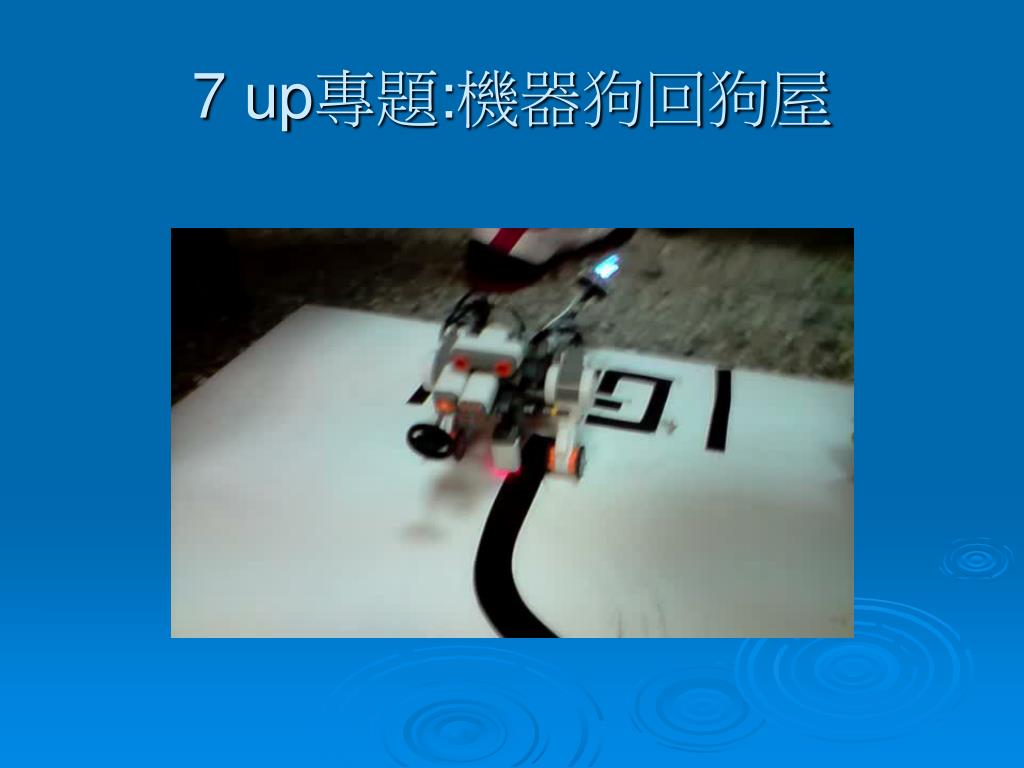

  5. 7 up專題:機器狗回狗屋

  6. 7 up專題:智慧型節能風扇

  7. 7 up專題:智慧型機器人吸塵器

  8. self-parking car The Sound Sensor is used to give SPC commands. When you clap your hands, it will park itself in the parking space An Ultrasonic Sensor is used as a parking Sensor Unlike most Mindstorms cars, this SPC has a gearing system that enables the front wheels to both drive and steer

  9. 攻擊的robot Guard-Bot uses a ball-launching mechanism, powered by a servo motor on the back of the robot, to throw a ball at intruders. Look out! Guard-Bot uses two motors and six legs to walk and turn. The servo motor technology helps to keep the legs properly synchronized.

  10. Tag-Bot's swiveling ultrasonic sensor, powered by a servo motor, enables the robot to observe different paths before deciding where to go.

  11. the m&m sorter The M&M candies are stored and ejected one by one, while the Light Sensor tracks the color. The M&M candies are stored and ejected one by one, while the Light Sensor tracks the color.

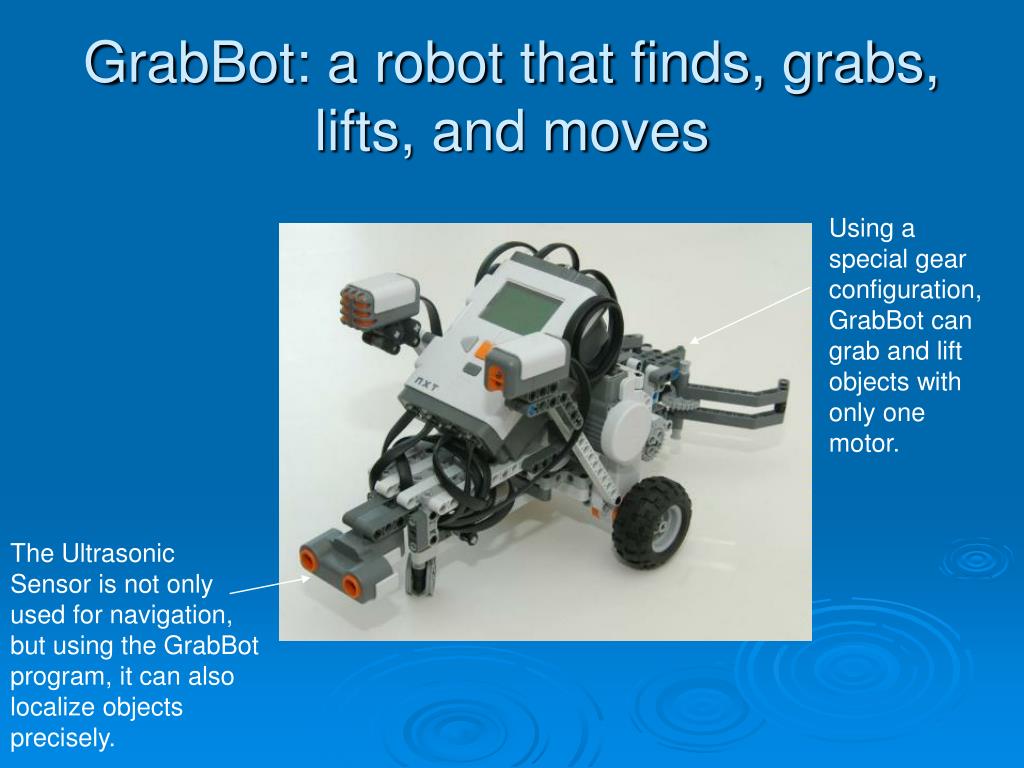

  12. GrabBot: a robot that finds, grabs, lifts, and moves Using a special gear configuration, GrabBot can grab and lift objects with only one motor. The Ultrasonic Sensor is not only used for navigation, but using the GrabBot program, it can also localize objects precisely.

  13. Scanner robot

  14. BobBot: an NXT version of the bobcat

  15. The bike: an NXT bicycle that can steer and move autonomously

  16. The NXT Dragster & The NXT Step Dragster Challenge

  17. Lesson 1 教材簡介(NXT 9797)
