FlexQube* features 1 (3). 1. Standard interface 4 x M6 on all components. 2. Integrated M6 threads for attachment of pipes and options. 3. Cutouts for combination with different pipe diameters. 40. M6. 40. Ø25. Ø30. 6. Standard interface on all sides when 2 FlexQubes are combined.

ikia
Download Presentation

* International patents pending

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. FlexQube* features 1 (3) 1. Standard interface 4 x M6 on all components 2. Integrated M6 threads for attachment of pipes and options 3. Cutouts for combination with different pipe diameters 40 M6 40 Ø25 Ø30 6. Standard interface on all sides when 2 FlexQubes are combined 4. Sliding function of FlexQube on pipe 5. Flat surfaces when various tube dimensions are used 4 x M6 * International patents pending

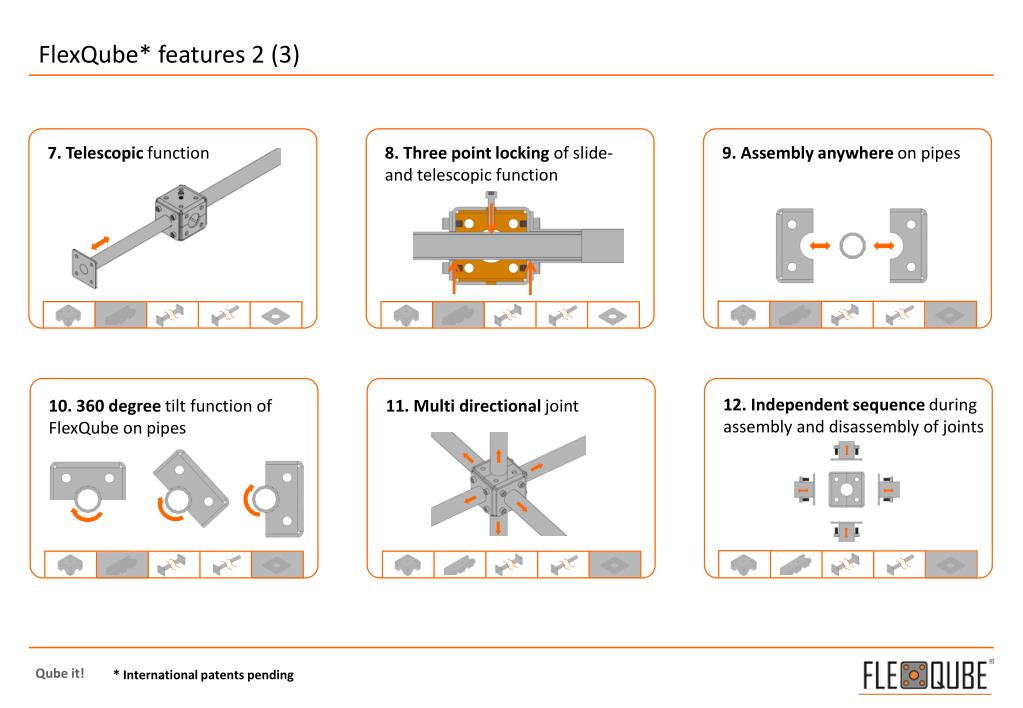

  2. FlexQube* features 2 (3) 7. Telescopic function 8. Three point locking of slide- and telescopic function 9. Assembly anywhere on pipes 12. Independent sequence during assembly and disassembly of joints 10. 360 degree tilt function of FlexQube on pipes 11. Multi directional joint * International patents pending

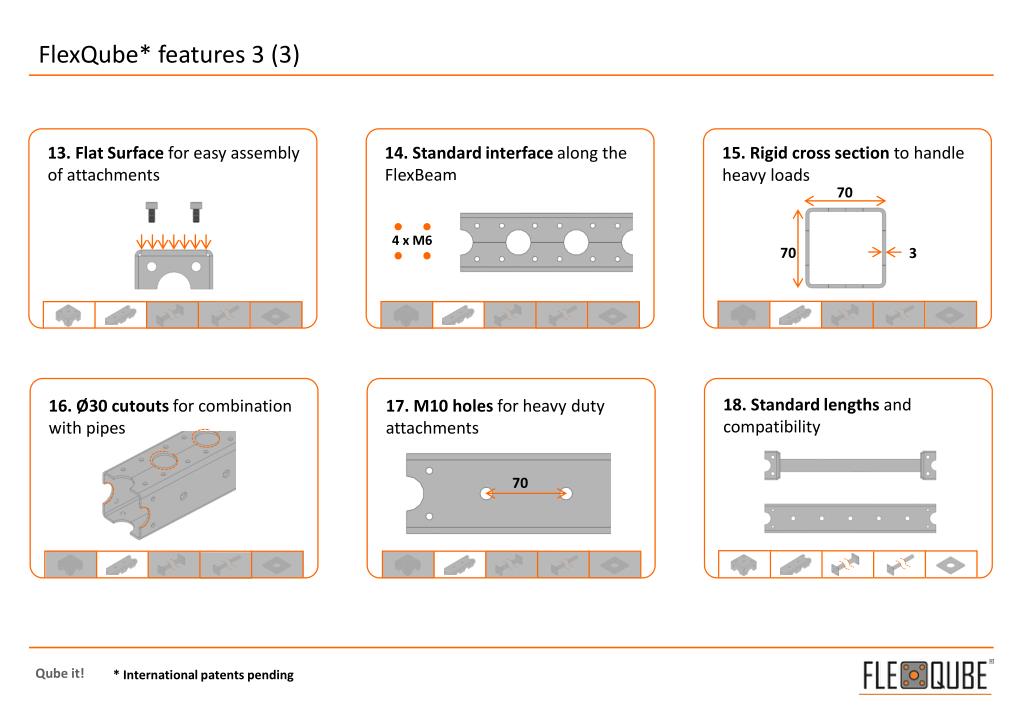

  3. FlexQube* features 3 (3) 13. Flat Surface for easy assembly of attachments 14. Standard interface along the FlexBeam 15. Rigid cross section to handle heavy loads 70 4 x M6 70 3 18. Standard lengths and compatibility 16. Ø30 cutouts for combination with pipes 17. M10 holes for heavy duty attachments 70 * International patents pending
