  1. POLYGRAM NETTM Calculations in ElectroGastroGraphy

  2. Analysis in POLYGRAM NETTM • Capture • Review • Report • Details about the Analysis

  3. Running Spectrum Analysis • Performed on segments containing 60 seconds of data • Based on a Auto Regressive Moving Average model. • Produce one spectrum for each time segment • Overview of frequency changes during study • Provides a high frequency resolution

  4. Overall Spectrum Analysis • Performed on a segment of the time domain signal • Window with 256 seconds of data forms the base for the calculation • Produce one One-sided Power Density Spectrum • Overview of overall frequency content in time segment

  5. Analysis in Capture • Running Spectrum Analysis • PeakPowerFrequency

  6. Analysis in Review • Overall Spectrum Analysis • Running Spectrum Analysis • Generic Analysis

  7. Review - Verify

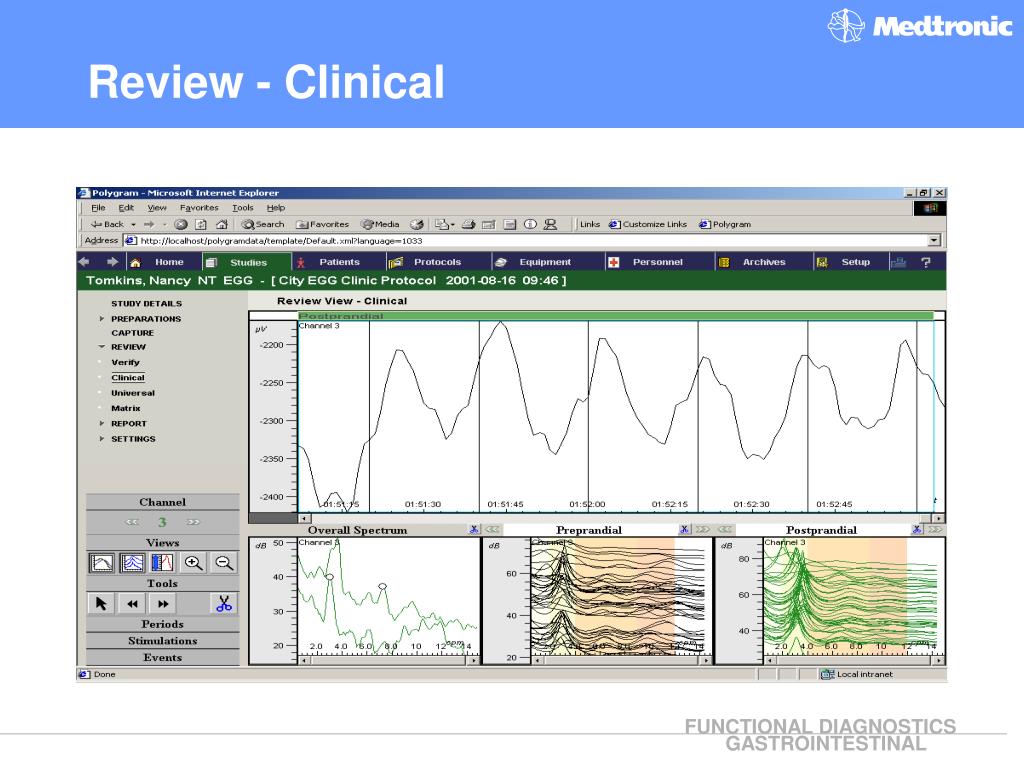

  8. Review - Clinical

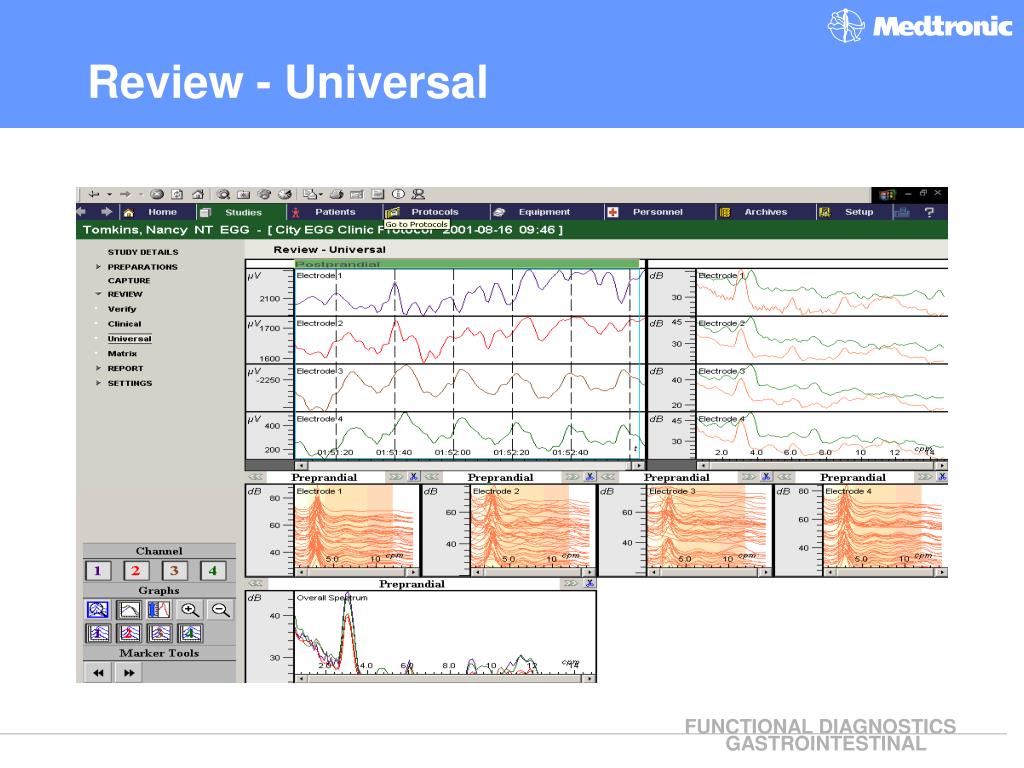

  9. Review - Universal

  10. Review - Matrix

  11. Analysis in Report • Overall Analysis • Percentage EGG Classification • Percentage Distribution of EGG Power • Dominant Power and Frequency • Power Instability Coefficient • VAIVA Propalyser • Power Ratio • Clipouts

  12. Artifact removal • Clinical • Scientific, No reset of RSA Model • Scientific, Reset of RSA Model

  13. Percentage EGG Classification • Calculates the percentage of Bradygastria, Normal, Tachygastria and Arrhythmia based on results from the Running Spectrum Analysis.

  14. Percentage Distribution of EGG Power • Calculates the percentage distribution of the EGG-power for the Bradygastria, Normal, Tachygastria and Duo ares.

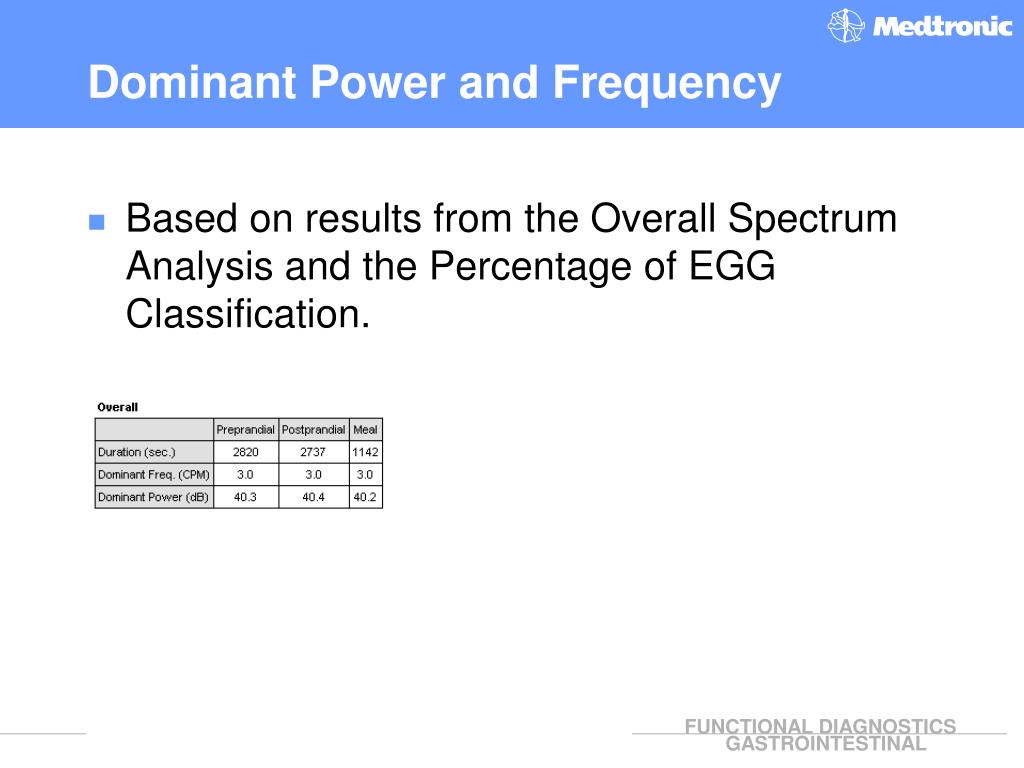

  15. Dominant Power and Frequency • Based on results from the Overall Spectrum Analysis and the Percentage of EGG Classification.

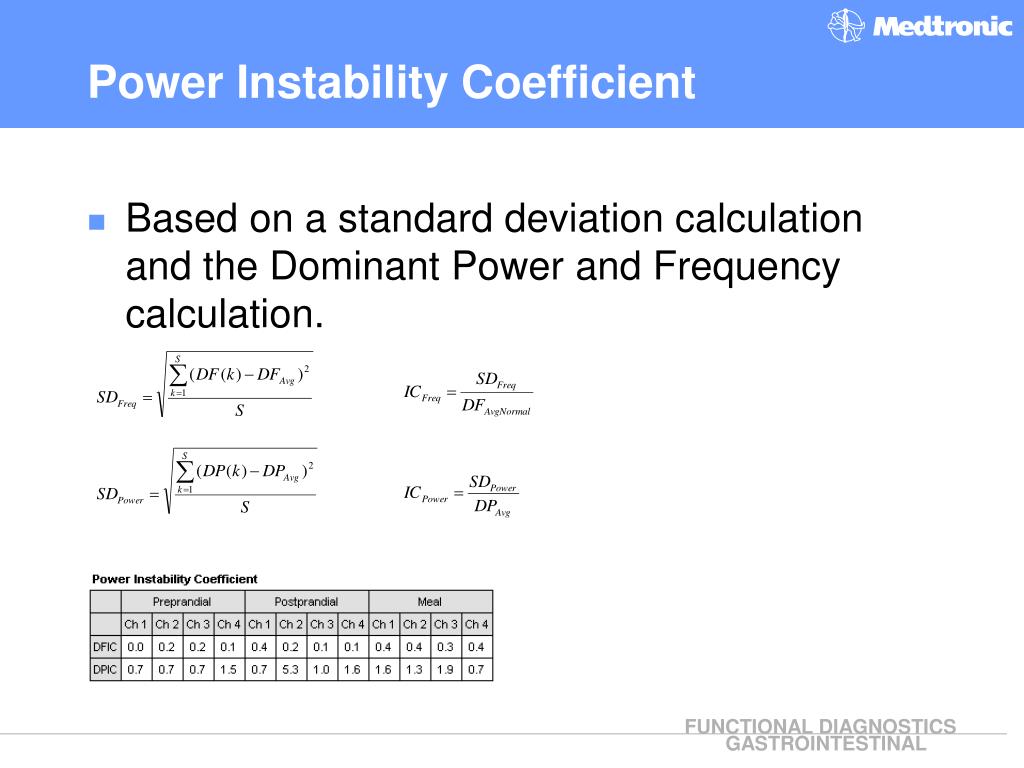

  16. Power Instability Coefficient • Based on a standard deviation calculation and the Dominant Power and Frequency calculation.

  17. VAIVA Propalyser • Multichannel analysis

  18. Power Ratio • The Ratio as a factor of the Power Spectrum for two user defined time segmens.

  19. Clipouts • Add clipouts from Review Clinical, Universal, and Matrix to the report by clicking
